OWDTR-0013-ETransmitter held to face

Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 48 APPENDIX G: MANUAL Please refer to the following pages. Operator’s Manual MM101332V1 R1A P7100 IP System/Scan Portable Radios 2 TABLE OF CONTENTS Page SAFETY TRAINING INFORMATION............................................ 3 OPERATING RULES AND REGULATIONS ................................. 7 OPERATING TIPS............................................................................ 9 BATTERY DISPOSAL ................................................................... 13 SCOPE OF THIS MANUAL........................................................... 14 USER INTERFACE ........................................................................ 15 STATUS MESSAGES..................................................................... 20 BASIC OPERATION ...................................................................... 23 ALERT TONES............................................................................... 28 TRANSMITTING A CALL IN TRUNKED MODE ....................... 29 RECEIVING A CALL IN TRUNKED MODE ............................... 30 CONVENTIONAL OPERATION................................................... 31 OPERATION FOLLOWING WATER CONTACT ........................ 32 CHANGING THE BATTERY PACK............................................. 34 BATTERY WARRANTY ............................................................... 36 WARRANTY .................................................................................. 37 The software contained in this device is copyrighted by M/A-COM Private Radio Systems, Inc. Unpublished rights are reserved under the copyright laws of the United States. NOTICE! This manual is published by M/A-COM Private Radio Systems, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-COM Private Radio Systems, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM Private Radio Systems, Inc. Copyright © 2002 M/A-COM Private Radio Systems, Inc. All rights reserved. 3 SAFETY TRAINING INFORMATION WARNING The M/A-COM P7100 PI portable radio generates RF electromagnetic energ y during transmit mode. This radio is designed for and classified as “Occupational Use Only,” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. The P7100 PI portable radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, this M/A-COM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans:
FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the Measurement of 4 Potentially Hazardous Electromagnetic Fields – RF and Microwave. CAUTION To ensure that exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines:
DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause the FCC RF exposure limits to be exceeded. A proper antenna is the antenna supplied with this radio by M/A-COM or an antenna specifically authorized by M/A-COM for use with this radio.
DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX” indicator appears in the display. The radio will transmit by pressing the “PTT” button.
ALWAYS use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance requirements to be exceeded. 5
ALWAYS keep the device and its antenna at least 2 cm (0.8 inches) from the body and at least 5 cm (2 inches) from the face when transmitting to ensure FCC RF exposure compliance requirements are not exceeded. This radio has been tested for RF exposure compliance at the distances listed in Table 1. However, to provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. Table 1: RF Exposure Compliance Testing Distances Tested Distances (worst case scenario) Radio Frequency BodyFace 800 MHz1.6 cm2.5 cm VHF ( MHz)1.1 cm2.5 cm The information listed above provides the information needed to make the user aware of a RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY During transmissions, this M/A-COM radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off 6 the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation su…

Text truncated - open the document above for the full version.

Operators Manual MM101332V1 R1A P7100 IP Series Portable Radios 2 TABLE OF CONTENTS Page SAFETY TRAINING INFORMATION ........................................... 3 OPERATING RULES AND REGULATIONS ................................ 7 OPERATING TIPS............................................................................ 9 BATTERY DISPOSAL ................................................................... 13 SCOPE OF THIS MANUAL .......................................................... 14 OPTIONS AND ACCESSORIES ................................................... 15 USER INTERFACE ........................................................................ 18 STATUS MESSAGES..................................................................... 25 BASIC OPERATION ...................................................................... 28 TRANSMITTING A CALL IN TRUNKED MODE...................... 34 RECEIVING A CALL IN TRUNKED MODE .............................. 35 CONVENTIONAL OPERATION .................................................. 36 OPERATION FOLLOWING WATER CONTACT....................... 37 CHANGING THE BATTERY PACK ............................................ 39 BATTERY WARRANTY ............................................................... 41 WARRANTY................................................................................... 42 The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are reserved under the copyright laws of the United States. NOTICE! This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A- COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM, Inc. Copyright © 2003 M/A-COM, Inc. All rights reserved. 3 SAFETY TRAINING INFORMATION WARNING The M/A-COM P7100 IP portable radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only,” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. The P7100 IP portable radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, this M/A-COM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 4 • American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. RF EXPOSURE GUIDELINES CAUTION To ensure that exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause the FCC RF exposure limits to be exceeded. A proper antenna is the antenna supplied with this radio by M/A-COM or an antenna specifically authorized by M/A-COM for use with this radio. (Refer to Table 2 – Options and Accessories.) • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX” indicator appears in the display. The radio will transmit by pressing the “PTT” button. 5 • Always transmit using low power (refer to High/Low Power Adjustment section) when possible. In addition to conserving battery charge, low power can reduce RF exposure. • ALWAYS use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance requirements to be exceeded. (Refer to Table 2 – Options and Accessories.) • ALWAYS keep the device and its antenna at least 2 cm (0.8 inches) from the body and at least 5 cm (2 inches) from the face when transmitting to ensure FCC RF exposure compliance requirements are not exceeded. This radio has been tested for RF exposure compliance at the distances listed in Table 1. However, to provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. 6 Table 1 - RF Exposure Compliance Testing Distances TESTED DISTANCES (worst case scenario) RADIO FREQUENCY Body Face 800 MHz 1.6 cm 2.5 cm VHF (136-174 MHz) 1.1 cm 2.5 cm The information in this section provides the information needed to make the user aware of a RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY During transmissions, this M/A-COM radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. 7 OPERATING RULES AND REGULATIONS Two-way FM radio systems must be operated in…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 47 APPENDIX F: BLOCK DIAGRAM Please refer to the following pages.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 December 19, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: FCC ID: OWDTR-0013-E 731 Confirmation #: EA808738 To Whom It May Concern: Prior to your review of this application, please note that the Equipment Code provided on the 731 Form, TBF, is incorrect. The correct Equipment Code for this device is TNF. Please also note that the associated FCC Rule Part should be changed from Part 74.86, to the correct Rule Part 90. Sincerely, Kathy Grzovic Rhein Tech Laboratories

Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 51 APPENDIX I: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 3: EXTERNAL FRONT VIEW Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 52 PHOTOGRAPH 4: EXTERNAL REAR VIEW

Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 44 APPENDIX C: LABEL INFORMATION Please refer to the following page for a label sample and the label location. FCC and Industry Canada Label Location M/A COM Private Radio Systems, Inc. FCC ID: OWDTR-0013-E CANADA: XXXXXXXXX LABEL SAMPLE:

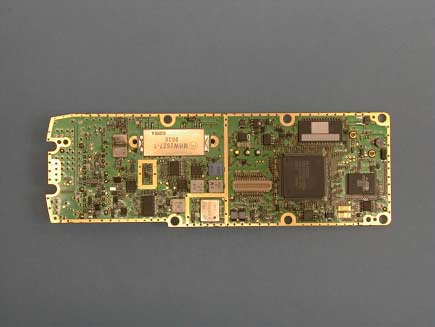

Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 53 APPENDIX J: INTERNAL PHOTOGRAPHS PHOTOGRAPH 5: FRONT SIDE OF MAIN BOARD Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 54 PHOTOGRAPH 6: REAR VIEW OF MAIN BOARD

6 CIRCUIT ANALYSIS The P7100 IP is a dual-conversion super heterodyne FM transceiver (see Table 1 for model number and frequency band information). 6.1 RECEIVER CIRCUITS The VHF P7100 IP receiver is designed for operation in the 136.000-174.000 MHz frequency range. The receiver has intermediate frequencies (IF) of 115.65 MHz and 450 kHz. Adjacent channel selectivity is obtained by using band pass filters- a 115.65 MHz crystal filter and two 450 kHz ceramic filters. The receive detector is the phase digitizer located within Hillary (U700). 6.1.1 Receiver Front End A RF signal from the antenna is coupled through the Tx low pass filter in the antenna switch (Z302), and the bandpass filter (FL101) to the input of low noise amplifier Q101. The output of Q101 is coupled through another bandpass filter (FL102) to the input of first mixer Z101. Front End selectivity is provided by the bandpass filters. Figure 8 – P7100 IP Receiver Bandpass Filter and First Mixer Circuit Diagram 6.1.2 First Mixer Circuit The first mixer is a Double-Balanced-Mixer (Z101) that converts a RF signal in the 136-174 MHz range to the 115.65 MHz first IF frequency. The Rx L.O. signal is derived from the Rx VCO, amplified by Q103, and input into Z101, pin 6. The signal on the output of Z101 is provided to the input of the first IF amplifier, Q102. 6.1.3 First IF Circuit The first IF signal from the output of the first Mixer is coupled through first IF amplifier Q102 to crystal filter FL103. The highly selective crystal filter provides the first portion of the receiver IF selectivity. The output of the filter is coupled through an impedance-matching network to the Rx back end IC (U101). Figure 9 - P7100 IP First Mixer and First I.F. Circuit Diagram 6.1.4 Second Mixer, Second IF Filters and Second IF Amplifier The receiver back end IC (U101) is a single chip digital communication systems IC. It includes the second Mixer, second IF amplifier and the limiter amplifier. Within the internal circuits of U101, the first IF signal is amplified and applied to the input of the second mixer. The second local injection frequency, 115.2 MHz, is applied from the second L.O. amplifier (Q106) to another input to the second mixer. [Note that the 115.2 MHz second L.O. signal is the 6th harmonic of the 19.2 MHz reference oscillator.] The second mixer converts the first IF signal (115.65 MHz) down to the second IF frequency 450 kHz. The second IF signal is applied to Ceramic Filter FL105 (wideband or narrowband mode) or FL106 (Project 25 mode), which provide the first part of the 450 kHz selectivity. Selection of FL105 or FL106 filters are controlled by the IF.NARROW signal from the microcomputer (“Hillary”, i.e. U700). The output of the second IF filter is amplified through the second IF amplifier and back to ceramic filter FL104 (wideband mode) or FL107 (narrowband or Project 25 mode), which provide the second part of the 450 kHz selectivity. Selection of FL104 or FL107 filters are controlled by the C4FM.DATA signal from the microcomputer (“Hillary”:U700). The output is then run to a limiter amplifier where the IF signal is amplified/limited, balanced and output at RXIF and RXIF (bar). These outputs are then sent to Hillary. These two lines, one with a positive phase and the other with a negative phase, are used to cancel out any noise that might be on the line. These balanced outputs are applied to the phase digitizer in Hillary and detected. Figure 10 - P7100 Second Mixer and Second IF Circuit Diagram 6.2 TRANSMITTER CIRCUIT The VHF P7100 IP transmitter circuit consists of Tx VCO Z304, pre-driver amplifier U202, driver amplifier Q202, PA module U201, automatic power control circuitry, and antenna switch module Z302. 6.2.1 Tx VCO The Tx VCO in the synthesizer circuit is programmed to generate low phase noise transmitter carrier frequencies from 136 to 174 MHz. The output of the Tx VCO is applied to filter attenuator pads R332-R334 & R221-R223. The typical output level is 0 dBm. 6.2.2 Pre-Driver & Driver Ampliers The output of the two filter attenuator pads is applied to pre-driver amplifier U202 and is amplified to +x dBm. The output from the pre-driver amplifier is appplied to driver amplifier Q202, and amplified to + 0 dBm. 6.2.3 PA Module The 0 dBm input into PA Module U201 is amplified to about 7.0 watts. The PA Module is a two stage RF amplifier. The first stage’s bias voltage is supplied by the power control circuitry. The output of the PA module is regulated by this bias voltage. The second stage’s RF amplifier operates in Class C. Its bias is the battery voltage [B+ (7.5 VDC)] that is connected to U201 through RF choke L251. 6.2.4 Automatic Power Control The automatic power control circuit samples the forward output power to the antenna to maintain a constant power level across the band. The automatic power control circuit controls the voltage “Vcont” to PA Module U201, pin 2. A directional coupler is included in the antenna switch module. This directional coupler provides a sample of transmitted forward power for diode detection. The diode produces a positive DC voltage proportional to the transmitter output power level. This DC voltage (Z302, pin 4) is compared at comparator U404 to the “TX POWER CONT” signal from the Patti IC (U500, pin 62). [Note: the TX POWER CONT signal out of Patti is set by RF Power tracking data.] The output of U404 is applied to DC driver amplifier Q421, and over to DC amplifier Q422. The output voltage of Q422 is applied to the Vcont input of PA Module U201, pin 2 to provide a constant output power level. 6.2.6 Antenna Switch Module The Antenna Switch Module also consists of the transmit/receive switch circuitry and a low pass filter. During transmit, the DPTT signal from Hillary is high. Transistor Q402 turns on the “SW-5V” supply to antenna switch module Z302, pin 6. When transmitting, the antenna switch pin diodes are in a low impedance state. During receive mode, the antenna switch pin diodes are in …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 45 APPENDIX D: PARTS LIST Please refer to the following pages. J725P/Pi -VHF- PARTS LIST 1/10 12/13/2002 SYMBOLKDE_PARTS_No.PARTS_NAMEPARTS_DESCRIPTIONVENDOR_ITEM_NBRQ'tyVENDOR_NAMEREMARKS C101CN 8200CAPACITORCERAMIC CHIP100 pF50VGRM36CH101J50-PT1MURATA C102CN 8080CAPACITORCERAMIC CHIP12 pF50VGRM36CH120J50-PT1MURATA C103CN 7910CAPACITORCERAMIC CHIP3 pF50VGRM36CJ030C50-PT1MURATA C104CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C105CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C106GRM360MURATANot Used C107GRM360MURATANot Used C108CN 8090CAPACITORCERAMIC CHIP15 pF50VGRM36CH150J50-PT1MURATA C109CN 8090CAPACITORCERAMIC CHIP15 pF50VGRM36CH150J50-PT1MURATA C110CN 8100CAPACITORCERAMIC CHIP18 pF50VGRM36CH180J50-PT1MURATA C111CN 8100CAPACITORCERAMIC CHIP18 pF50VGRM36CH180J50-PT1MURATA C112CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C113CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C114CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C115GRM360MURATANot Used C116CN 8040CAPACITORCERAMIC CHIP7 pF50VGRM36CH070D50-PT1MURATA C117CN 7910CAPACITORCERAMIC CHIP3 pF50VGRM36CJ030C50-PT1MURATA C118GRM360MURATANot Used C119CN 8010CAPACITORCERAMIC CHIP4 pF50VGRM36CH040C50-PT1MURATA C120GRM360MURATANot Used C121CN 8020CAPACITORCERAMIC CHIP5 pF50VGRM36CH050C50-PT1MURATA C122CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C124CN 6630CAPACITORCERAMIC CHIP0.1 uF10VGRM36B104K10PT1MURATA C125CN 6630CAPACITORCERAMIC CHIP0.1 uF10VGRM36B104K10PT1MURATA C126CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C127CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C128GRM360MURATANot Used C129GRM360MURATANot Used C131CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C132CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C133CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C134CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C135CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C136CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C137CN 6630CAPACITORCERAMIC CHIP0.1 uF10VGRM36B104K10PT1MURATA C138CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C139CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C140CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C141CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C142CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C143CN 8070CAPACITORCERAMIC CHIP10 pF50VGRM36CH100D50-PT1MURATA C144CN 6630CAPACITORCERAMIC CHIP0.1 uF10VGRM36B104K10PT1MURATA C145CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C146CT 8860CAPACITORTANTALUM CHIP1 uF10VTEMSVA21A105M-8R1NEC C152CN 8090CAPACITORCERAMIC CHIP15 pF50VGRM36CH150J50-PT1MURATA C153CN 8060CAPACITORCERAMIC CHIP15 pF50VGRM36CH150J50-PT1MURATA C154CN 8091CAPACITORCERAMIC CHIP9 pF50VGRM36CH090D50-PT1MURATA C155CN 8010CAPACITORCERAMIC CHIP4 pF50VGRM36CH040C50-PT1MURATA C156CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C157CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C158CN 8090CAPACITORCERAMIC CHIP15 pF50VGRM36CH150J50-PT1MURATA C159CN 8070CAPACITORCERAMIC CHIP10 pF50VGRM36CH100D50-PT1MURATA C160GRM360MURATANot Used C162GRM360MURATANot Used C163GRM360MURATANot Used C164GRM360MURATANot Used C168CN 8220CAPACITORCERAMIC CHIP27 pF50VGRM36CH270J50-PT1MURATA C169CN 7820CAPACITORCERAMIC CHIP2 pF50VGRM36CK020C50-PT1MURATA C170CN 8220CAPACITORCERAMIC CHIP27 pF50VGRM36CH270J50-PT1MURATA C171CN 6630CAPACITORCERAMIC CHIP0.1 uF10VGRM36B104K10PT1MURATA C172CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C173CN 8070CAPACITORCERAMIC CHIP10 pF50VGRM36CH100D50-PT1MURATA C174CN 8230CAPACITORCERAMIC CHIP11 pF50VGRM36CH110J50-PT1MURATA C175CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C176CN 9830CAPACITORCERAMIC CHIP0.1 uF16VGRM36F104Z16-PT1MURATA C177CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C178CN 7820CAPACITORCERAMIC CHIP2 pF50VGRM36CK020C50-PT1MURATA C179CN 8070CAPACITORCERAMIC CHIP10 pF50VGRM36CH100D50-PT1MURATA C180CN 8200CAPACITORCERAMIC CHIP100 pF50VGRM36CH101J50-PT1MURATA C181CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C201CS 1490CAPACITORCERAMIC CHIP1 uF10VC1608JB1A105KT1TDK C202CN 8070CAPACITORCERAMIC CHIP10 pF50VGRM36CH100D50-PT1MURATA C205CN 6630CAPACITORCERAMIC CHIP0.1 uF10VGRM36B104K10PT1MURATA C210GRM390MURATANot Used C218CN 8200CAPACITORCERAMIC CHIP100 pF50VGRM36CH101J50-PT1MURATA C220GRM360MURATANot Used C222GRM360MURATANot Used C223GRM360MURATANot Used C224GRM360MURATANot Used C225CN 8200CAPACITORCERAMIC CHIP100 pF50VGRM36CH101J50-PT1MURATA C226CN 8200CAPACITORCERAMIC CHIP100 pF50VGRM36CH101J50-PT1MURATA C227CN 8200CAPACITORCERAMIC CHIP100 pF50VGRM36CH101J50-PT1MURATA C228CN 7710CAPACITORCERAMIC CHIP0.01 uF16VGRM36B103K16-PT1MURATA C229CN 9410CAPACITORCERAMIC CHIP180 pF25VGRM36CH181J25-PT1MURATA C230CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C231CN 8080CAPACITORCERAMIC CHIP12 pF50VGRM36CH120J50-PT1MURATA C232GRM360MURATANot Used C233CN 8120CAPACITORCERAMIC CHIP22 pF50VGRM36CH220J50-PT1MURATA C234CN 8120CAPACITORCERAMIC CHIP22 pF50VGRM36CH220J50-PT1MURATA C235CN 8200CAPACITORCERAMIC CHIP100 pF50VGRM36CH101J50-PT1MURATA C236GRM390MURATANot Used C237GRM390MURATANot Used C238GRM360MURATANot Used C251CT 2290CAPACITORTANTALUM CHIP15 uF16VTEMSVB21C156M-8R1NEC C252CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C253TEMSVB0NECNot Used C255CN 7550CAPACITORCERAMIC CHIP1000 pF50VGRM36B102K50-PT1MURATA C256CT 2280CAPACITORTANTALUM CHIP4.7 uF10VTEMSVA21A475M-8R1NEC FUNCTION DESIGNATION PARTS LIST : J725P/Pi VHF MAIN BOARD Design K.Sugimoto Document No. G3UD07407 Rev.0 J725P/Pi -VHF- PARTS LI…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories M/A Com Private Radio Systems, Inc. 360 Herndon Parkway Model: P7100(IP) VHF Radio Suite 1400 FCC ID: OWDTR-0013-E Herndon, VA 20170 . FCC & IC: Part 90 and RSS-119 http://www.rheintech.com RTL WO: 2002158 42 APPENDIX A: FCC PART 1.1307, 1.1310, 2.1091, 2.1093: RF EXPOSURES Please see the SAR Evaluation that follows. Test Report S/N: 081602-270OWD Test Date(s): August 21-22 & 30, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc. 1 of 21 Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and Industry Canada RSS-102 Issue 1 (Occupational Environment/Controlled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 448-7047 Fax: 250 - 448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information M/A-COM PRIVATE RADIO SYSTEMS, INC. 3315 Old Forest Road Lynchburg, VA 24501 Rule Part(s): FCC §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65 Supplement C (Edition 01-01) Device Classification: Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Type: Portable VHF PTT Radio Transceiver FCC ID: OWDTR-0013-E Model Name / No.: P7100(IP) Modulation: FM (VHF Band) Tx Frequency Range: 136 - 174 MHz Max. Cond. Power Tested: 37.68 dBm Antenna Type(s): Helical Coil Antenna Part No.(s): KRE1011219/1 (136-151 MHz) / KRE1011219/2 (150-162 MHz) / KRE1011219/3 (162-174 MHz) Battery Type(s): 1. 7.5V Nickel Cadmium - Immersion (BKB191210/3) 2. 7.5V Nickel Metal Hydride - Immersion (BKB191210/4) 3. 7.5V Nickel Cadmium - Immersion - Intrinsically Safe (BKB191210/5) 4. 7.5V Nickel Metal Hydride - Immersion - Intrinsically Safe (BKB191210/6) 5. 7.5V Nickel Cadmium (BKB191210/23) 6. 7.5V Nickel Metal Hydride (BKB191210/24) 7. 7.5V Nickel Cadmium - Intrinsically Safe (BKB191210/25) 8. 7.5V Nickel Metal Hydride - Intrinsically Safe (BKB191210/26) Body-Worn Accessories: 1. Speaker Microphone Antenna Version Plus (KRY1011617/84R1A, KRY1011617/184R1A) 2. Speaker-Microphone (KRY1011617/83R1A, KRY1011617/183R1A) 3. Metal Belt-Clip (KRY1011647/1) 4. Belt-Loop with Swivel (KRY1011609/1) 5. Leather Case with Belt-Loop (KRY1011638/1) 6. Leather Case with Swivel & Belt-Loop (KRY1011639/1) 7. Nylon Case with Swivel & Belt-Loop (KRY1011648/1) Test Report S/N: 081602-270OWD Test Date(s): August 21-22 & 30, 2002 FCC/IC SAR Evaluation © 2002 Celltech Research Inc. 2 of 21 TABLE OF CONTENTS 1.0 INTRO…

Text truncated - open the document above for the full version.
