Operatorís Manual MM101332V1 R1A J AGUAR 725P & J AGUAR 725Pi System/Scan Portable Radio 2 TABLE OF CONTENTS Page SAFETY TRAINING INFORMATION............................................ 3 OPERATING RULES AND REGULATIONS ................................. 6 OPERATING TIPS............................................................................ 8 BATTERY DISPOSAL ..................................................................... 9 USER INTERFACE ........................................................................ 10 BASIC OPERATION ...................................................................... 16 ALERT TONES............................................................................... 21 TRANSMITTING A CALL IN TRUNKED MODE ....................... 22 RECEIVING A CALL IN TRUNKED MODE ............................... 23 CONVENTIONAL OPERATION................................................... 24 OPERATION FOLLOWING WATER CONTACT ........................ 25 CHANGING THE BATTERY PACK............................................. 27 BATTERY WARRANTY ............................................................... 29 WARRANTY .................................................................................. 30 The software contained in this device is copyrighted by M/A- COM Private Radio Systems, Inc. Unpublished rights are reserved under the copyright laws of the United States. NOTICE! This manual is published by M/A-COM Private Radio Systems, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-COM Private Radio Systems, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM Private Radio Systems, Inc. Copyright © 1999-2001 M/A-COM Private Radio Systems, Inc. All rights reserved. 3 SAFETY TRAINING INFORMATION WARNING Your M/A-COM radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as ìOccupational Use Onlyî meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT intended for use by the ìGeneral Populationî in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for ìOccupational Use Only.î In addition, your M/A-COM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 ñ 1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3 ñ 1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields ñ RF and Microwave. 4 CAUTION To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by M/A-COM or an antenna specifically authorized by M/A-COM for use with this radio. • DO NOT transmit for more than 50% of total radio use time (ì50% duty cycleî). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the ìTXî indicator appears in the display. You can cause the radio to transmit by pressing the ìPTTî button. • ALWAYS use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance requirements to be exceeded. • ALWAYS keep the device and its antenna at least 2 cm (0.8 inches) from the body and at least 5 cm (2 inches) from the face when transmitting to ensure FCC RF exposure compliance requirements are not 5 exceeded. This radio has been tested for RF exposure compliance at a distance of 1.1 cm from the body and 2.5 cm from the face for a worst-case scenario. However, to provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of a RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your M/A-COM radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. 6 OPERATING RULES AND REGULATIONS Two-way FM radio systems must be operated in accordance with the rules and regulations of the Federal Communications Commission (FCC). As an operator of two-way radio equipment, you must be thoroughly familiar with the rules that apply to your particular type of radio operation. Following these rules will help eliminate confusion and will assure the most efficient use of existing radio channels. This will provide a smooth operating radio network. When using the …

Text truncated - open the document above for the full version.

M/A-COM 3315 Old Forest Rd. Lynchburg, VA 24501 Telephone: (804) 385-2300 www.macom.com 3315 Old Forest Road Lynchburg, VA 24501 January 25, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Andy Leimer Dear Andy, We are adding data to a filing that you are presently reviewing (OWDTR-0014-E); additional data for SAR and FCC performance tests are reported because hardware changes were made to the J700P radio. The new data was reported to insure that no significant measurement differences would be found between the original report and the newly modified radio. The main item that was changed was the DSP model, from a TI C5402 to a C5416 and a number of discreet components were change in order aid in implementation. Upon completion of the testing, little difference was observed. In order to prevent confusion please note; in the original report the radio was referred to as the Jaguar 725P, due to marketing considerations we have changed the name to the Jaguar 700P, this is merely administrative no technical difference is meant to be implied. Regards, Bryan McWatters Engineering Regulatory Manager M/A Com Private Radio Systems Inc. BLM

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 •• Fax. 250-860-3110 •• e-mail: [email protected] www.celltechlabs.com January 25, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Andy Leimer SUBJECT: M/A COM Private Radio Systems, Inc. FCC ID: OWDTR-0014-E 731 Confirmation No.: EA521598 Dear Andy: On behalf of M/A Com PRS, Inc. we hereby submit a supplement SAR measurement report for the modified unit with the changes described. Firstly, the radio was evaluated for face-held SAR at the mid-channel in both low and upper frequency bands with all 3 antennas and both battery options (NiCad & NiMH). The SAR was found to be lower for the modified unit with the 3 antenna configurations and both batteries and the overall internal SAR distributions were unchanged from the original unit tested. The SAR was significantly lower with the NiMH battery; therefore mid-channel test data in both bands with the NiCAD battery was reported. Secondly, the speaker-microphone was evaluated for face-held SAR at the mid-channel in both bands with antenna #1 only. This was based on the fact that in the original test data antenna #1 produced the highest SAR. It was found that in the speaker-microphone configuration the SAR was reduced with the modified unit. Thirdly, the radio was evaluated for body-worn SAR at the mid-channel in both bands with the metal belt- clip and t-strap accessories with antenna #1 only. Antenna #2 and #3 were not investigated based on antenna #1 being the worst-case configuration for the previous SAR evaluations. The leather belt-loop was not investigated based on the fact that increased separation distance produced significantly lower SAR in the original report. The new SAR was found to be higher for the t-strap accessory; therefore all channels in both bands were investigated and reported using the NiCAD battery. The SAR was found to be lower for the metal belt-clip accessory with the modified unit, therefore only mid-channel test data in both bands was reported using the NiCAD battery. Please note that both NiCAD and NiMH batteries were evaluated and the NiMH battery gave lower SAR results, therefore the NiCAD battery data was reported. If you have any further questions regarding the above, please do not hesitate to contact me. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: M/A Com PRS, Inc.

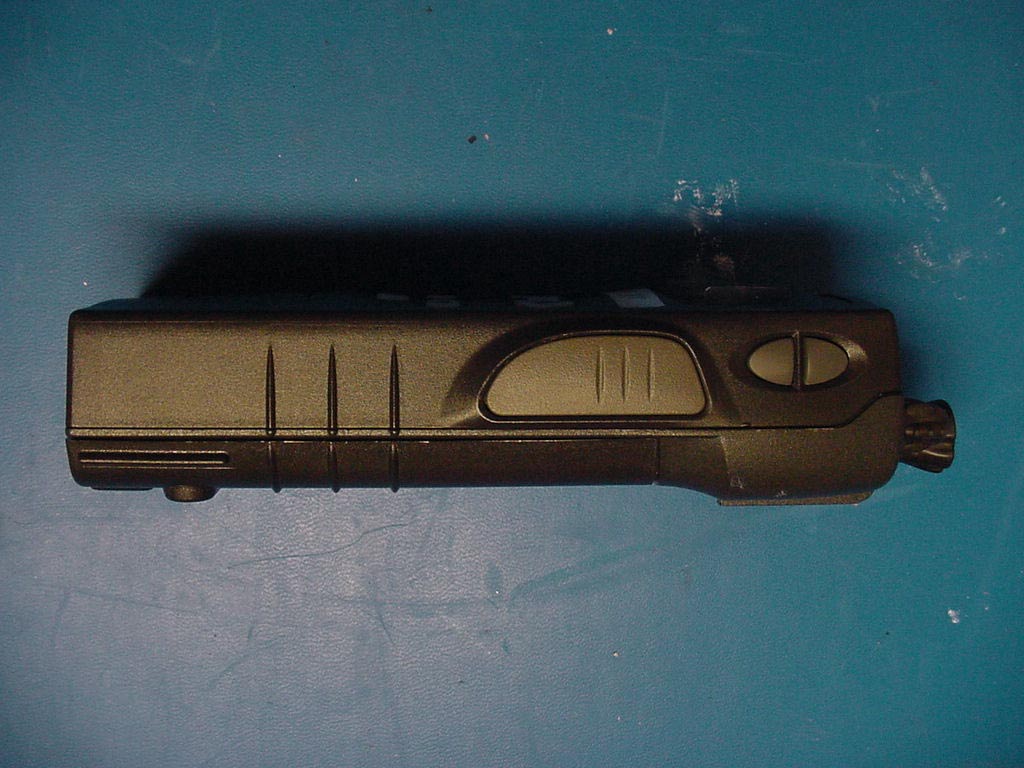

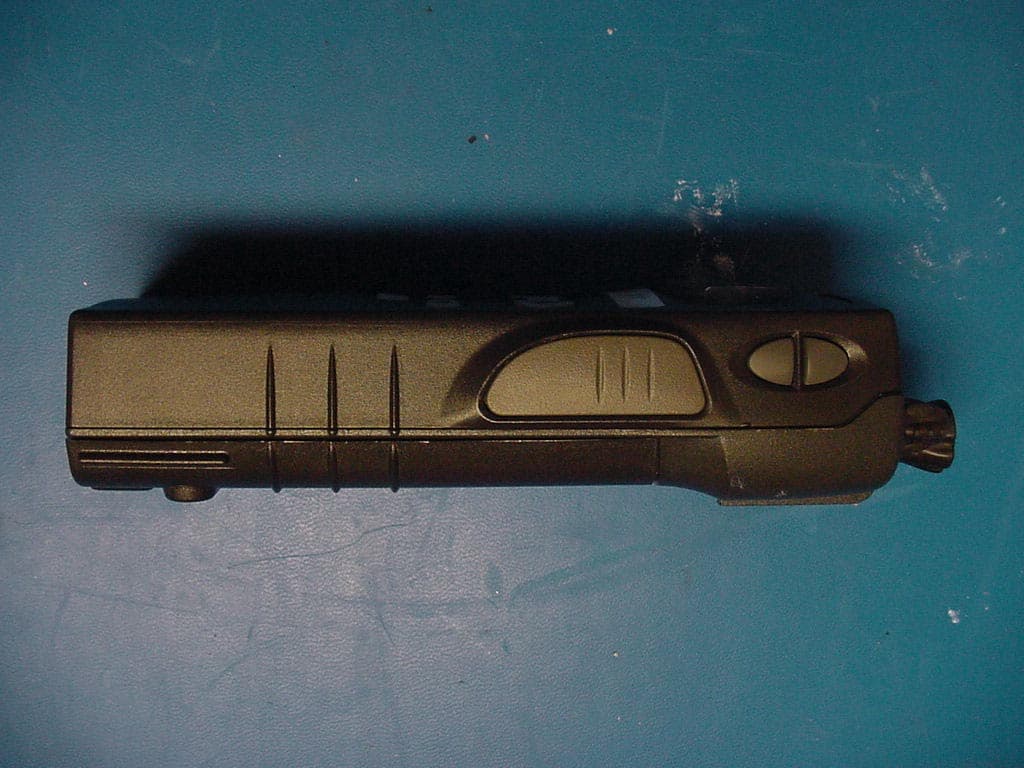

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 50 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio APPENDIX I: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: FRONT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 51 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 6: BACK 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 52 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 7: BOTTOM 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 53 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 8: LEFT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 54 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 9: RIGHT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 55 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 10: TOP

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 50 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio APPENDIX I: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: FRONT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 51 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 6: BACK 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 52 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 7: BOTTOM 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 53 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 8: LEFT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 54 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 9: RIGHT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 55 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 10: TOP

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 41 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio APPENDIX C: LABEL INFORMATION FCC and Canada Label Warning Information Label M/A COM Private Radio Systems, Inc. FCC ID: OWDTR-0014-E CANADA: XXXXXXXXX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, an d (2) this device must accept any interference received, including interference that may cause undesire d operation.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 41 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio APPENDIX C: LABEL INFORMATION FCC and Canada Label M/A COM Private Radio Systems, Inc. FCC ID: OWDTR-0014-E CANADA: XXXXXXXXX

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 56 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio APPENDIX J: INTERNAL PHOTOGRAPHS PHOTOGRAPH 11: BATTERY LABEL 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 57 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 12: INSIDE FRONT COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 58 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 13: FRONT OF PCB WITH SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 59 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 14: FRONT OF PCB WITHOUT SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 60 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 15: BACK OF PCB WITH SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 61 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 16: INSIDE OF REAR CHASSIS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 62 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 17: REAR OF SECONDARY PCB 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 63 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 18: FRONT OF SECONDARY PCB WITH LCD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 64 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 19: FRONT OF SHIELD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 65 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 20: REAR OF SHIELD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 66 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 21: VERTICAL PCB (FRONT) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 67 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar 725P 800 MHz Portable Radio PHOTOGRAPH 22: VERTICAL PCB (REAR)

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 56 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio APPENDIX J: INTERNAL PHOTOGRAPHS PHOTOGRAPH 11: BATTERY LABEL 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 57 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 12: INSIDE FRONT COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 58 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 13: FRONT OF PCB WITH SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 59 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 14: FRONT OF PCB WITHOUT SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 60 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 15: BACK OF PCB WITH SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 61 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 16: INSIDE OF REAR CHASSIS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 62 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 17: REAR OF SECONDARY PCB 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 63 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 18: FRONT OF SECONDARY PCB WITH LCD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 64 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 19: FRONT OF SHIELD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 65 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 20: REAR OF SHIELD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 66 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 21: VERTICAL PCB (FRONT) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 67 of 68 2001266 / QRTL01-264 M/A Com Private Radio Systems, Inc. Jaguar J700P 800 MHz Portable Radio PHOTOGRAPH 22: VERTICAL PCB (REAR)

6 CIRCUIT ANALYSIS The J AGUAR 700P is a dual-conversion super heterodyne FM transceiver (see Table 1 for model number and frequency band information). 6.1 RECEIVER CIRCUITS The 800 MHz J AGUAR 700P receiver is designed for operation in the 851-869 MHz frequency range. (865-870 MHz for Australia). The receiver has intermediate frequencies (IF) of 115.65 MHz and 450 kHz. Adjacent channel selectivity is obtained by using band pass filters- a 115.65 MHz crystal filter and two 450 kHz ceramic filters. The receive detector is the phase digitizer located within Hillary. 6.1.1 Receiver Front End A RF signal from the antenna is coupled through the low pass filter/antenna switch, and the bandpass filter (FL101) to the input of low noise amplifier Q101. The output of Q101 is coupled through another bandpass filter (FL102) to the input of first Mixer Z101. Front End selectivity is provided by the bandpass filters. F igure 8 – J AGUAR 700P Receiver Bandpass Filter and First Mixer Circuit Diagram 6.1.2 First Mixer Circuit The first mixer is a Double-Balanced-Mixer (Z101) that converts a RF signal in the 851-869 MHz range to the 115.65 MHz first IF frequency. The Rx L.O. signal is derived from the Rx VCO, amplified by Q103, and input into Z101, pin 6. The signal on the output of Z101 is provided to the input of the first IF amplifier, Q102. 6.1.3 First IF Circuit The first IF signal from the output of the first Mixer is coupled through first IF amplifier Q102 to crystal filter FL103. The highly selective crystal filter provides the first portion of the receiver IF selectivity. The output of the filter is coupled through an impedance-matching network to the Rx back end IC (U101). Figure 9 - J AGUAR 700P First Mixer and First I.F. Circuit Diagram 6.1.4 Second Mixer, Second IF Filters and Second IF Amplifier The receiver back end IC (U101) is a single chip digital communication systems IC. It includes the second Mixer, second IF amplifier and the limiter amplifier. Within the internal circuits of U101, the first IF signal is amplified and applied to the input of the second mixer. The second local injection frequency, 115.2 MHz, is applied from the second L.O. amplifier (Q106) to another input to the second mixer. [Note that the 115.2 MHz second L.O. signal is the 6th harmonic of the 19.2 MHz reference oscillator.] The second mixer converts the first IF signal (115.65 MHz) down to the second IF frequency 450 kHz. The second IF signal is applied to Ceramic Filter FL105 (wideband mode) or FL106 (Project 25 mode), which provide the first part of the 450 kHz selectivity. Selection of FL105 or FL106 filters are controlled by the IF.NARROW signal from the microcomputer (“Hillary”:U700). The output of the second IF filter is amplified through the second IF amplifier and back to ceramic filter FL104 (wideband mode) or FL107 (Project 25 mode), which provide the second part of the 450 kHz selectivity. Selection of FL104 or FL107 filters are controlled by the C4FM.DATA signal from the microcomputer (“Hillary”:U700). The output is then run to a limiter amplifier where the IF signal is amplified/limited, balanced and output at RXIF and RXIF (bar). These outputs are then sent to Hillary. These two lines, one positive and the other negative, are used to cancel out any noise that might be on the line. These balanced outputs are applied to the phase digitizer in Hillary and detected. Figure 10 - J AGUAR 700P Second Mixer and Second IF Circuit Diagram 6.2 TRANSMITTER CIRCUIT The 800 MHz Jaguar 700P transmitter circuit consists of modulator IC U203, a notch filter, variable attenuator CR201, buffer/driver amplifier U202, a low pass filter, RF switches U204 & U205, SAW filter FL201, PA module U201, automatic power control and antenna switch module Z302. 6.2.1 Modulator IC and Notch Filter The main VCO in the synthesizer circuit is programmed to generate the transmitter carrier frequencies 806 to 824 MHz (repeater input band) and 851 to 869 MHz (repeater talkaround band). [Australian Tx frequency ranges are 820-825 MHz & 865-870 MHz.) The notch filter consists of C222, C224, C226, and L221. The output of modulator IC U203 is applied to the notch filter attenuator pad R221-R223. 6.2.2 Variable Attenuator The output of the notch filter is applied to variable attenuator circuit R224, R225, and CR201. The transmitter power level is controlled by voltage feedback from the automatic power control circuit (APC). This control voltage is applied through resistor R224 to the anode of variable capacitor CR201 and to R225. 6.2.3 Buffer Amplifier and Low Pass/Bandpass Filter The output of the variable attenuator circuit is applied to buffer amplifier U202 and is amplified to +6 dBm. The collector voltage for U202 is provided by a switch circuit controlled by DPTT. In the repeater input band, the output of U202 is applied to the input to SAW filter FL201. The drive signal is bandpass filtered and then applied to the PA module input. In the repeater talk-around band, the output of U202 is applied to a low pass filter consisting of C232, C233, C234, and L223. The output of of the low pass filter is then applied to the PA module input. 6.2.4 PA Module The output of the PA Module is amplified to about 4.5 watts. B+ (7.5 VDC) is connected to U201 through RF choke L251. The PA Module is a two stage RF amplifier. The first stage power supply voltage is supplied by a power control circuit. The second RF amplifier operates in Class C. This output is regulated by the automatic power control circuit. 6.2.5 Automatic Power Control The automatic power control circuit samples the output power to the antenna to maintain a constant power level across the band. The automatic power control circuit controls the voltage “Vcont” to PA Module U201, pin 2. A directional coupler is included in the antenna switch module. This directional coupler provides a sample of transmitted forward power for diode detection. The diode produces a positive DC voltage proportiona…
