OWDTR-0018-EP7100(PI) 800 MHz Portable Land Mobile Radio

Operator’s Manual MM101332V1 R1A P7100 IP System/Scan Portable Radios 2 TABLE OF CONTENTS Page SAFETY TRAINING INFORMATION............................................ 3 OPERATING RULES AND REGULATIONS ................................. 6 OPERATING TIPS............................................................................ 8 BATTERY DISPOSAL ................................................................... 12 SCOPE OF THIS MANUAL........................................................... 13 USER INTERFACE ........................................................................ 14 STATUS MESSAGES..................................................................... 19 BASIC OPERATION ...................................................................... 22 ALERT TONES............................................................................... 27 TRANSMITTING A CALL IN TRUNKED MODE ....................... 28 RECEIVING A CALL IN TRUNKED MODE ............................... 29 CONVENTIONAL OPERATION................................................... 30 OPERATION FOLLOWING WATER CONTACT ........................ 31 CHANGING THE BATTERY PACK............................................. 33 BATTERY WARRANTY ............................................................... 35 WARRANTY .................................................................................. 36 The software contained in this device is copyrighted by M/A-COM Private Radio Systems, Inc. Unpublished rights are reserved under the copyright laws of the United States. NOTICE! This manual is published by M/A-COM Private Radio Systems, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-COM Private Radio Systems, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM Private Radio Systems, Inc. Copyright © 2002 M/A-COM Private Radio Systems, Inc. All rights reserved. 3 SAFETY TRAINING INFORMATION WARNING The M/A-COM P7100 PI portable radio generates RF electromagnetic energ y during transmit mode. This radio is designed for and classified as “Occupational Use Only,” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. The P7100 PI portable radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, this M/A-COM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans:
FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the Measurement of 4 Potentially Hazardous Electromagnetic Fields – RF and Microwave. CAUTION To ensure that exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines:
DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by M/A-COM or an antenna specifically authorized by M/A-COM for use with this radio.
DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX” indicator appears in the display. The radio will transmit by pressing the “PTT” button.
ALWAYS use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance requirements to be exceeded. 5
ALWAYS keep the device and its antenna at least 2 cm (0.8 inches) from the body and at least 5 cm (2 inches) from the face when transmitting to ensure FCC RF exposure compliance requirements are not exceeded. This radio has been tested for RF exposure compliance at a distance of 1.6 cm from the body and 2.5 cm from the face for a worst-case scenario. However, to provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. The information listed above provides the information needed to make the user aware of a RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY During transmissions, this M/A-COM radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. 6 OPERATING RULES AND REGULATIONS Two-way FM radio systems must be operated in accordance with the rules and regulations of the Federal Communications Commission (FCC). As an operator of two-way radio equipment, you must be thoroughly familiar with the rules that apply to your particular type of radio operation. Following these rules will help elimin…

Text truncated - open the document above for the full version.

`Operators Manual MM101332V1 R2A P7100 IP Series Portable Radios 2 TABLE OF CONTENTS Page SAFETY TRAINING INFORMATION ........................................... 3 OPERATING RULES AND REGULATIONS ................................ 7 OPERATING TIPS............................................................................ 9 BATTERY DISPOSAL ................................................................... 13 SCOPE OF THIS MANUAL .......................................................... 14 OPTIONS AND ACCESSORIES ................................................... 15 USER INTERFACE ........................................................................ 18 STATUS MESSAGES..................................................................... 25 BASIC OPERATION ...................................................................... 28 TRANSMITTING A CALL IN TRUNKED MODE...................... 34 RECEIVING A CALL IN TRUNKED MODE .............................. 35 CONVENTIONAL OPERATION .................................................. 36 OPERATION FOLLOWING WATER CONTACT....................... 37 CHANGING THE BATTERY PACK ............................................ 39 BATTERY WARRANTY ............................................................... 41 WARRANTY................................................................................... 42 The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are reserved under the copyright laws of the United States. NOTICE! This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A- COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM, Inc. Copyright © 2003 M/A-COM, Inc. All rights reserved. 3 SAFETY TRAINING INFORMATION WARNING The M/A-COM P7100 IP portable radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only,” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. The P7100 IP portable radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, this M/A-COM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 4 • American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. RF EXPOSURE GUIDELINES CAUTION To ensure that exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause the FCC RF exposure limits to be exceeded. A proper antenna is the antenna supplied with this radio by M/A-COM or an antenna specifically authorized by M/A-COM for use with this radio. (Refer to Table 2 – Options and Accessories.) • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX” indicator appears in the display. The radio will transmit by pressing the “PTT” button. 5 • Always transmit using low power (refer to High/Low Power Adjustment section) when possible. In addition to conserving battery charge, low power can reduce RF exposure. • ALWAYS use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance requirements to be exceeded. (Refer to Table 2 – Options and Accessories.) • ALWAYS keep the device and its antenna at least 2 cm (0.8 inches) from the body and at least 5 cm (2 inches) from the face when transmitting to ensure FCC RF exposure compliance requirements are not exceeded. This radio has been tested for RF exposure compliance at the distances listed in Table 1. However, to provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. 6 Table 1 - RF Exposure Compliance Testing Distances TESTED DISTANCES (worst case scenario) RADIO FREQUENCY Body Face 800MHz 1.6 cm 2.5 cm VHF (136-174MHz) 1.1 cm 2.5 cm UHF-H (450-512MHz) 1.1 cm 2.5 cm The information in this section provides the information needed to make the user aware of a RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY During transmissions, this M/A-COM radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. 7 OPERATING RULES AND REGULATIONS Two-way FM r…

Text truncated - open the document above for the full version.

M/A-COM 3315 Old Forest Rd. Lynchburg, VA 24501 [email protected] Regulatory Manager Telephone: (434) 385-2146 Fax: (434) 385-2146 October 30, 2002 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia Maryland 21046 Attention: Equipment Authorization Branch Subject: Type Acceptance FCC ID: OWDTR-0018-E Members of the Commission or TCB M/A Com Private Radio Systems Inc. requests the Type Acceptance of the OWDTR-0018-E portable transceiver. The OWDTR-0018-E is a trunking portable radio that operates in the 806-821/851-866 MHz band with a talkaround mode, and in the 821-824/866-869 MHz band with NPSPC and talkaround modes. The OWDTR-0018-E has a maximum power rating of about 3.2 watts conducted switchable to 1 watt. This radio is very similar to the OWDTR-0014-E and the OWDTR-0006-E. The radio has an analog voice, 2-level FM voice/data and C4FM voice/data modes, Carson’s rule calculations have been furnished for all modes, but only the worst case is requested to be placed on the grant. Unit used for test in report is representative of the product to be sold. ModulationBand MHz Max. Modulation kHz Baud(s/s)BpsChannel Spacing kHz Deviation kHz Carson’s Rule B=s/s Emission Designator 2-level806-821960096002532(B)/2+2DK15K6F1D 15K6F1E 2-level821-82496009600NPSPAC2.42(B)/2+2DK14K4F1D 14K4F1E 2-level851-866960096002532(B)/2+2DK15K6F1D 15K6F1E 2-level866-86996009600NPSPAC2.42(B)/2+2DK14K4F1D 14K4F1E C4FM806-8214800960012.52.82(B)/2+2DK10K4F1D 10K4F1E C4FM821-82448009600NPSPAC2.82(B)/2+2DK10K4F1D 10K4F1E C4FM851-8664800960012.52.82(B)/2+2DK10K4F1D 10K4F1E C4FM866-86948009600NPSPAC2.82(B)/2+2DK10K4F1D 10K4F1E Analog806-8213N/aN/a25 kHz52M+2DK16K0F3E Analog821-8243N/aN/aNPSPAC42M+2DK14K0F3E Analog851-8663N/aN/a25kHz52M+2DK16K0F3E Analog866-8693N/aN/aNPSPAC42M+2DK14K0F3E Regards, Bryan McWatters Regulatory Manager M/A Com Private Radio Systems Inc. (434)385-2146, Fax(434)385-2195 [email protected]

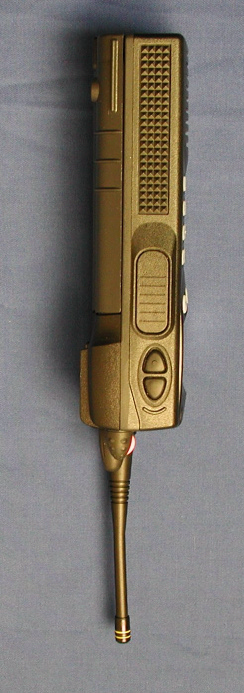

Response to FCC Question 1, Reference # 6483: PAGE 1 of 1 PREPARED BY: PHONE: DATE: REV. DOCUMENT INFO: Bryan McWatters 434-845-6243 02-03-03 A BM020303-1 Question: 1.) Please update the 731 form for high and low power modes. Answer: Updated form attached as requested. Response to FCC Question 2, Reference # 6483: PAGE 1 of 1 PREPARED BY: PHONE: DATE: REV. DOCUMENT INFO: Bryan McWatters434-845-624302-03-03ABM020303-2 Question: 2.) The Operation Description mentions that this device can transmit at 870.0 MHz. Please confirm that the maximum frequency this device transmits is 868.987 MHz. Answer: This radio may transmit up to 869.9875 MHz, but is throttled via software by trained service personnel for the US Market to 868.9875 MHz and may not be modified except by the same. Response to FCC Question 3, Reference # 6483: PAGE 1 of 1 PREPARED BY: PHONE: DATE: REV. DOCUMENT INFO: Bryan McWatters 434-845-6243 02-03-03 A BM020303-3 Question: 3.) Photograph of warning label on the device referring user to users manual RF exposure training. Answer: Drawing of label and photograph of radio attached.

Response to FCC Question 4, Reference # 6483: PAGE 1 of 1 PREPARED BY: PHONE: DATE: REV. DOCUMENT INFO: Bryan McWatters 434-845-6243 02-03-03 A BM020303-4 Question: 4.) Updated user manual body-worn statement. The statement " ALWAYS use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc)." could easily be understood to mean any M/A-COM accessory. Please refer to the specific accessories tested for this device. Answer: A list of the authorized accessories may be found on page 15 and 16 of the “ Operator’s Manual MM101332V1 R1A” attached. Operator’s Manual MM101332V1 R1A P7100 IP System/Scan Portable Radios 2 TABLE OF CONTENTS Page SAFETY TRAINING INFORMATION.......................................3 OPERATING RULES AND REGULATIONS..............................7 OPERATING TIPS....................................................................9 BATTERY DISPOSAL............................................................13 SCOPE OF THIS MANUAL.....................................................14 OPTIONS AND ACCESSORIES...............................................15 USER INTERFACE.................................................................17 STATUS MESSAGES..............................................................23 BASIC OPERATION...............................................................26 ALERT TONES.......................................................................31 TRANSMITTING A CALL IN TRUNKED MODE....................32 RECEIVING A CALL IN TRUNKED MODE............................33 CONVENTIONAL OPERATION.............................................34 OPERATION FOLLOWING WATER CONTACT.....................35 CHANGING THE BATTERY PACK........................................37 BATTERY WARRANTY........................................................39 WARRANTY..........................................................................40 The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are reserved under the copyright laws of the United States. NOTICE! This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A- COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM, Inc. Copyright © 2003 M/A-COM, Inc. All rights reserved. 3 SAFETY TRAINING INFORMATION WARNING The M/A-COM P7100 PI portable radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only,” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. The P7100 PI portable radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, this M/A-COM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 4 • American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. CAUTION To ensure that exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause the FCC RF exposure limits to be exceeded. A proper antenna is the antenna supplied with this radio by M/A-COM or an antenna specifically authorized by M/A-COM for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX” indicator appears in the display. The radio will transmit by pressing the “PTT” button. 5 • ALWAYS use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance requirements to be exceeded. • ALWAYS keep the device and its antenna at least 2 cm (0.8 inches) from the body and at least 5 cm (2 inches) from the face when transmitting to ensure FCC RF exposure compliance requirements are not exceeded. This radio has been tested for RF exposure compliance at the distances listed in Table 1. However, to provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. Table 1 - RF Exposure Compliance Testing Distances Tested Distances (worst case scenario) Radio Frequency BodyFace 800 MHz1.6 cm2.5 cm VHF ( MHz)1.1 cm2.5 cm The information listed above provides the information needed to make the user aware of a RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. 6 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY During transmissions, this M/A-COM radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio …

Text truncated - open the document above for the full version.

M/A-COM PRS INC. FCC ID: OWDTR-0018-E Small Planar Phantom Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.92 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Body-Worn SAR with Nylon T-Strap (KRY1011656/1) with Speaker-Microphone (KRY1011617/83R1A) 1.6cm T-Strap Separation Distance to Planar Phantom J7100(PI) Portable FM PTT Radio Transceiver Flexible Gain Antenna (KRE1011506/01) NiCd Battery (BKB191210/3) Continuous Wave Mode Low Band Mid Channel [815.5000 MHz] Conducted Power: 3.35 Watts Ambient Temp: 23.2°C; Fluid Temp: 22.7°C Date Tested: January 20, 2003 01/20/03 Celltech Research Inc. 0.106 0.108 0.110 0.112 0.114 0.116 0.118 0100200300400500600700800900100011001200130014001500160017001800 SAR tot [mW/g] [s] Test Report S/N: 092502-280OWD Test Date(s): January 20, 2003 FCC SAR Evaluation © 2003 Celltech Research Inc. M/A-COM PRS INC. FCC ID: OWDTR-0018-E (Model: J7100(PI)) Portable FM PTT Radio Transceiver (806-824MHz/851-869MHz) SAR MEASUREMENT DATA SAR COMPARISON BETWEEN 20 SECOND STABILIZING PERIOD & NO TURN-ON DELAY (TWO WORST-CASE BODY CONFIGS.) SAR 1g (W/kg) Measured Conducted Power (Watts) 100% Duty Cycle 50% Duty Cycle Turn-on Delay Period Freq. (MHz) Chan. Test Mode Before After Drift Antenna Type Battery Type Body-worn Accessory Access. Separ. Dist. (cm) Without Scaling Scaled by Drift Without Scaling Scaled by Drift 20 sec. 815.5000 LB Mid CW 3.35 3.23 -0.12 Flexible Gain NiCd Nylon T-Strap 1.6 13.2 13.8 6.60 6.90 No delay* 815.5000 LB Mid CW 3.35 2.95 -0.40 Flexible Gain NiCd Nylon T-Strap 1.6 10.4 10.8 5.20 5.40 20 sec. 823.9875 LB High CW 3.33 3.17 -0.16 Flexible Gain NiCd Metal Belt-Clip 1.1 12.1 12.7 6.05 6.35 No delay* 823.9875 LB High CW 3.33 2.95 -0.38 Flexible Gain NiCd Metal Belt-Clip 1.1 9.46 10.7 4.73 5.35 * Test Date: 01/20/03 * Conductivity: 0.92 * Dielectric Constant: 52.9 * Ambient Temp.: 23.2°C * Fluid Temp.: 22.7°C * Fluid Depth: 15 cm * Atmospheric Pressure: 102.4 kPa * Relative Humidity: 41% Abbreviation(s): LB = Low-Band M/A-COM PRS INC. FCC ID: OWDTR-0018-E Small Planar Phantom; Planar Section; Position: (270°,180°) Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.92 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.55 dB SAR (1g): 10.4 mW/g, SAR (10g): 7.18 mW/g Body-Worn SAR with Nylon T-Strap (KRY1011656/1) with Speaker-Microphone (KRY1011617/83R1A) 1.6cm T-Strap Separation Distance to Planar Phantom J7100(PI) Portable FM PTT Radio Transceiver Flexible Gain Antenna (KRE1011506/01) NiCd Battery (BKB191210/3) Continuous Wave Mode Low Band Mid Channel [815.5000 MHz] Conducted Power: 3.35 Watts Ambient Temp: 23.2°C; Fluid Temp: 22.7°C Date Tested: January 20, 2003 SAR Tot [mW/g] 6.73E-1 2.69E+0 4.71E+0 6.73E+0 8.75E+0 01/20/03 Celltech Research Inc. M/A-COM PRS INC. FCC ID: OWDTR-0018-E Small Planar Phantom; Planar Section Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.92 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Z-Axis Extrapolation at Peak SAR Location Body-Worn SAR with Nylon T-Strap (KRY1011656/1) with Speaker-Microphone (KRY1011617/83R1A) 1.6cm T-Strap Separation Distance to Planar Phantom J7100(PI) Portable FM PTT Radio Transceiver Flexible Gain Antenna (KRE1011506/01) NiCd Battery (BKB191210/3) Continuous Wave Mode Low Band Mid Channel [815.5000 MHz] Conducted Power: 3.35 Watts Ambient Temp: 23.2°C; Fluid Temp: 22.7°C Date Tested: January 20, 2003 01/20/03 Celltech Research Inc. 0 5 10 15 0102030405060708090100110120130140150 SAR tot [mW/g] [mm] M/A-COM PRS INC. FCC ID: OWDTR-0018-E Small Planar Phantom; Planar Section; Position: (270°,180°) Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.92 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.52 dB SAR (1g): 9.46 mW/g, SAR (10g): 6.55 mW/g Body-Worn SAR with Metal Belt-Clip (KRY1011647/1) with Speaker-Microphone (KRY1011617/83R1A) 1.1cm Belt-Clip Separation Distance to Planar Phantom J7100(PI) Portable FM PTT Radio Transceiver Flexible Gain Antenna (KRE1011506/01) NiCd Battery (BKB191210/3) Continuous Wave Mode Low Band High Channel [823.9875 MHz] Conducted Power: 3.33 Watts Ambient Temp: 23.2°C; Fluid Temp: 22.7°C Date Tested: January 20, 2003 SAR Tot [mW/g] 6.14E-1 2.46E+0 4.30E+0 6.15E+0 7.99E+0 01/20/03 Celltech Research Inc. 835MHz EUT Evaluation (Body) Measured Fluid Dielectric Parameters (Muscle) January 20, 2003 Frequency 735.000000 MHz 745.000000 MHz 755.000000 MHz 765.000000 MHz 775.000000 MHz 785.000000 MHz 795.000000 MHz 805.000000 MHz 815.000000 MHz 825.000000 MHz 835.000000 MHz 845.000000 MHz 855.000000 MHz 865.000000 MHz 875.000000 MHz 885.000000 MHz 895.000000 MHz 905.000000 MHz 915.000000 MHz 925.000000 MHz 935.000000 MHz e'e'' 53.872020.4364 53.729420.3771 53.655920.2968 53.530020.2235 53.446920.1608 53.371120.1081 53.289520.1262 53.221120.0718 53.126020.0109 53.007219.9652 52.902819.9319 52.816219.8768 52.686019.8388 52.588119.7901 52.501919.7908 52.405619.7537 52.357219.6422 52.297519.6033 52.188519.5739 52.135619.5487 52.049919.5216 Response to FCC Question 7, Reference # 6483: PAGE 1 of 1 PREPARED BY: PHONE: DATE: REV. DOCUMENT INFO: Bryan McWatters 434-845-6243 02-03-03 A BM020303-7 Question: 7.) Updated user manual RF exposure training information. Control of power is key parameter in controlling exposure. This is not discussed. Answer: Control of power is not available to the end user other than by switching from 1.1 to 3 watts, the measurements made where taken under the 3 watt option as stated in the SAR report. We have discussed limiting the duty cycle to 50 percent however as stated below: DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX” indicator appears in the displa…

Text truncated - open the document above for the full version.

Answer to question 9 9.) Explanation for large change in SAR contours/hotspot for Whip antenna compared to flex gain antenna. Please provide SAR values for all secondary hotspots in accordance with Supplement C. Provide course scan plots of the body of the device for all WHIP antenna configurations. See attached data Test Report S/N: 092502-280OWD Test Date(s): January 20, 2003 FCC SAR Evaluation © 2003 Celltech Research Inc. M/A-COM PRS INC. FCC ID: OWDTR-0018 -E (Model: J7100(PI)) Portable FM PTT Radio Transceiver (806-824MHz/851-869MHz) SAR MEASUREMENT SUMMARY SAR DATA FOR THE TWO WORST-CASE (BATTERY) SECONDARY HOTSPOTS (BODY-WORN, WHIP ANTENNA) SAR 1g (W/kg) Measured Conducted Power (Watts) 100% Duty Cycle 50% Duty Cycle Freq. (MHz) Chan. Test Mode Before After Drift Antenna Type Battery Type Body-worn Accessory Access. Separ. Dist. (cm) Without Scaling Scaled by Drift Without Scaling Scaled by Drift 806.0125 LB Low CW 3.38 3.21 -0.17 Whip NiCd Nylon T-Strap 1.6 2.22 2.34 1.11 1.17 815.5000 LB Mid CW 3.35 3.18 -0.17 Whip NiMH Nylon T-Strap 1.6 1.77 1.86 0.885 0.930 ANSI / IEEE C95.1 1992 - SAFETY LIMIT BODY: 8.0 W/kg (averaged over 1 gram) Spatial Peak - Controlled Exposure / Occupational 835MHz Body Atmospheric Pressure 102.4 kPa Measured Mixture Type Target Measured Relative Humidity 41 % Dielectric Constant 55.2 (+/- 5%) 52.9 Ambient Temperature 23.2 °C Conductivity 0.97 (+/- 5%) 0.92 Fluid Temperature 22.7 °C Abbreviation(s) LB = Low Band Fluid Depth ≥ 15 cm Note(s): 1. The ambient and fluid temperatures were measured prior to, and during, the fluid dielectric parameter check and the SAR evaluation. 2. The temperatures listed in the table above were consistent for all measurement periods. 3. The EUT was tested with no turn-on delay. M/A-COM PRS INC. FCC ID: OWDTR-0018-E Small Planar Phantom; Planar Section; Position: (270°,180°) Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.92 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 2.22 mW/g, SAR (10g): 1.61 mW/g Body-Worn SAR with Nylon T-Strap (KRY1011656/1) with Speaker-Microphone (KRY1011617/83R1A) 1.6cm T-Strap Separation Distance to Planar Phantom J7100(PI) Portable FM PTT Radio Transceiver Whip Antenna (KRE1011223/01) NiCd Battery (BKB191210/3) Continuous Wave Mode Low Band Low Channel [806.0125 MHz] Conducted Power: 3.38 Watts Ambient Temp: 23.2°C; Fluid Temp: 22.7°C Date Tested: January 20, 2003 SAR Tot [mW/g] 5.64E-1 2.26E+0 3.95E+0 5.64E+0 7.34E+0 01/20/03 Celltech Research Inc. M/A-COM PRS INC. FCC ID: OWDTR-0018-E Small Planar Phantom; Planar Section; Position: (270°,180°) Probe: ET3DV6 - SN1387; ConvF(6.30,6.30,6.30); Crest factor: 1.0 835 MHz Muscle: σ = 0.92 mho/m ε r = 52.9 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.77 mW/g, SAR (10g): 1.29 mW/g Body-Worn SAR with Nylon T-Str…
