OWDTR-0022-EM7100 800 MHz Mobile Radio

HARRIS CORPORATION

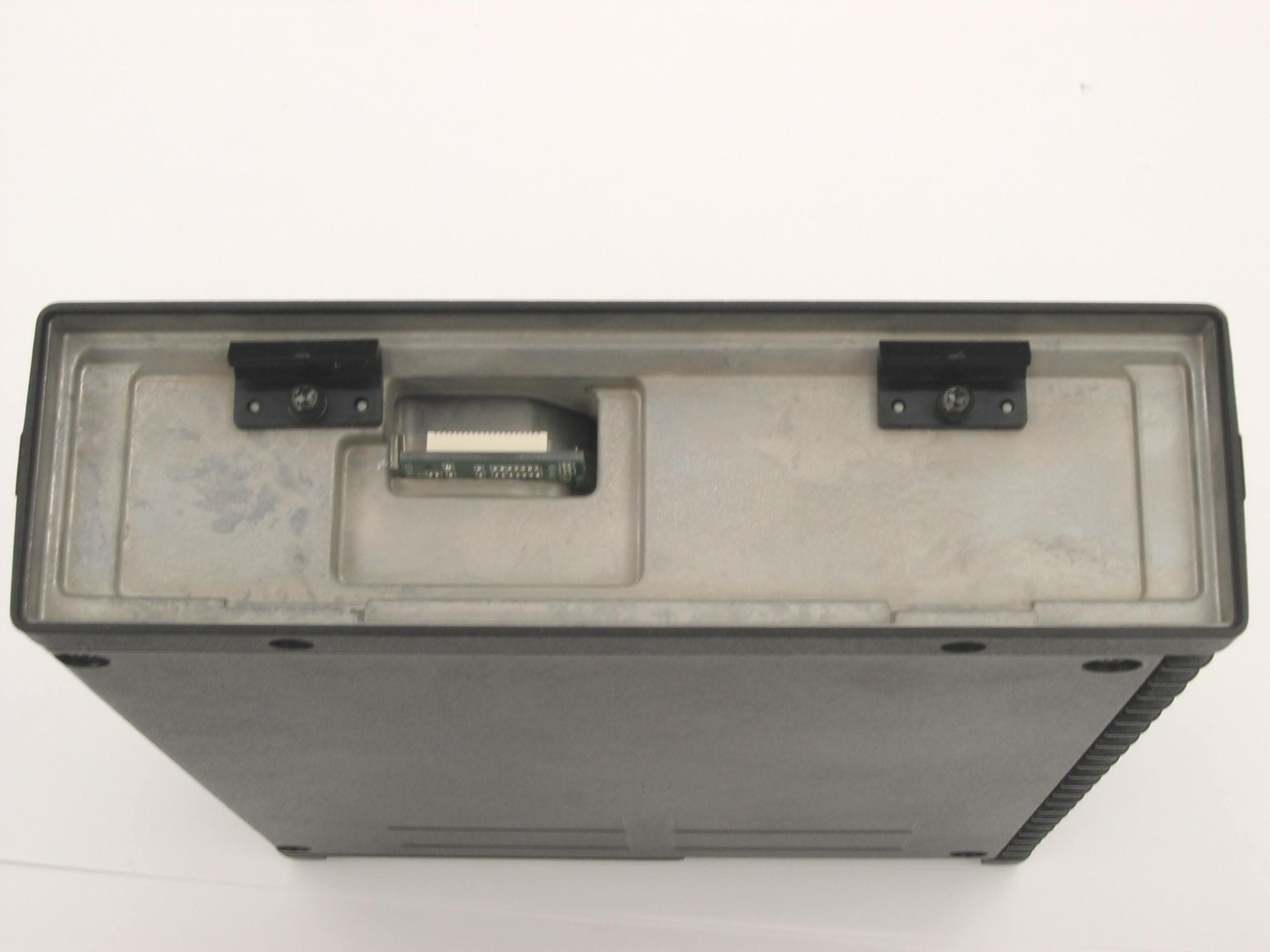

M7100 800 MHz Mobile Radio - FCC ID OWDTR-0022-E - HARRIS CORPORATION
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Jun 27, 2004
Application Purpose
Original Equipment
Date of Application
Jun 27, 2004
Equipment Note
M7100 800 MHz Mobile Radio
Frequency Range
806.00000000 - 821.00000000
Company
HARRIS CORPORATION
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗
↗

Cover Letter(s)

↗
↗
↗
↗
↗
↗
↗
↗
↗

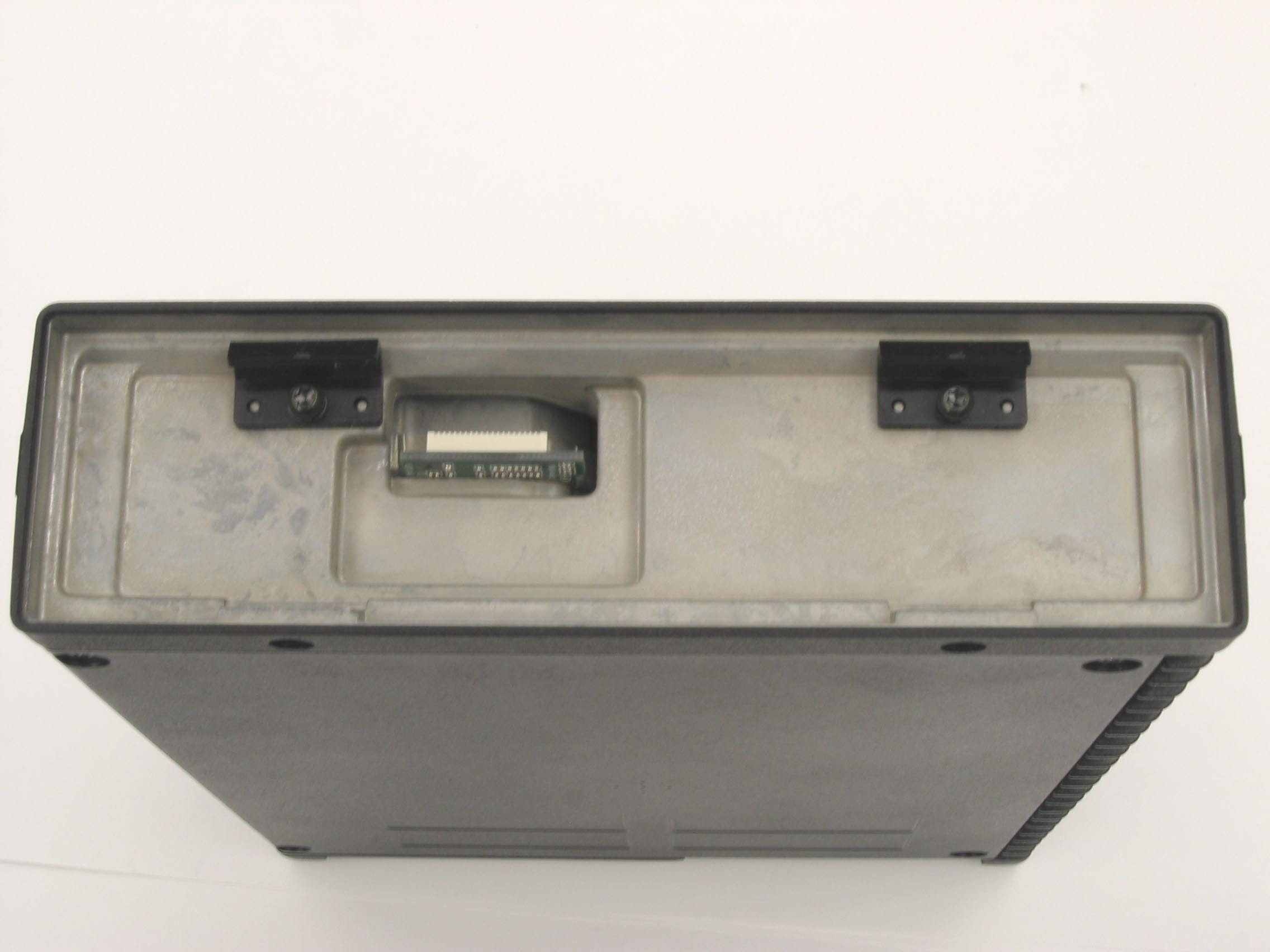

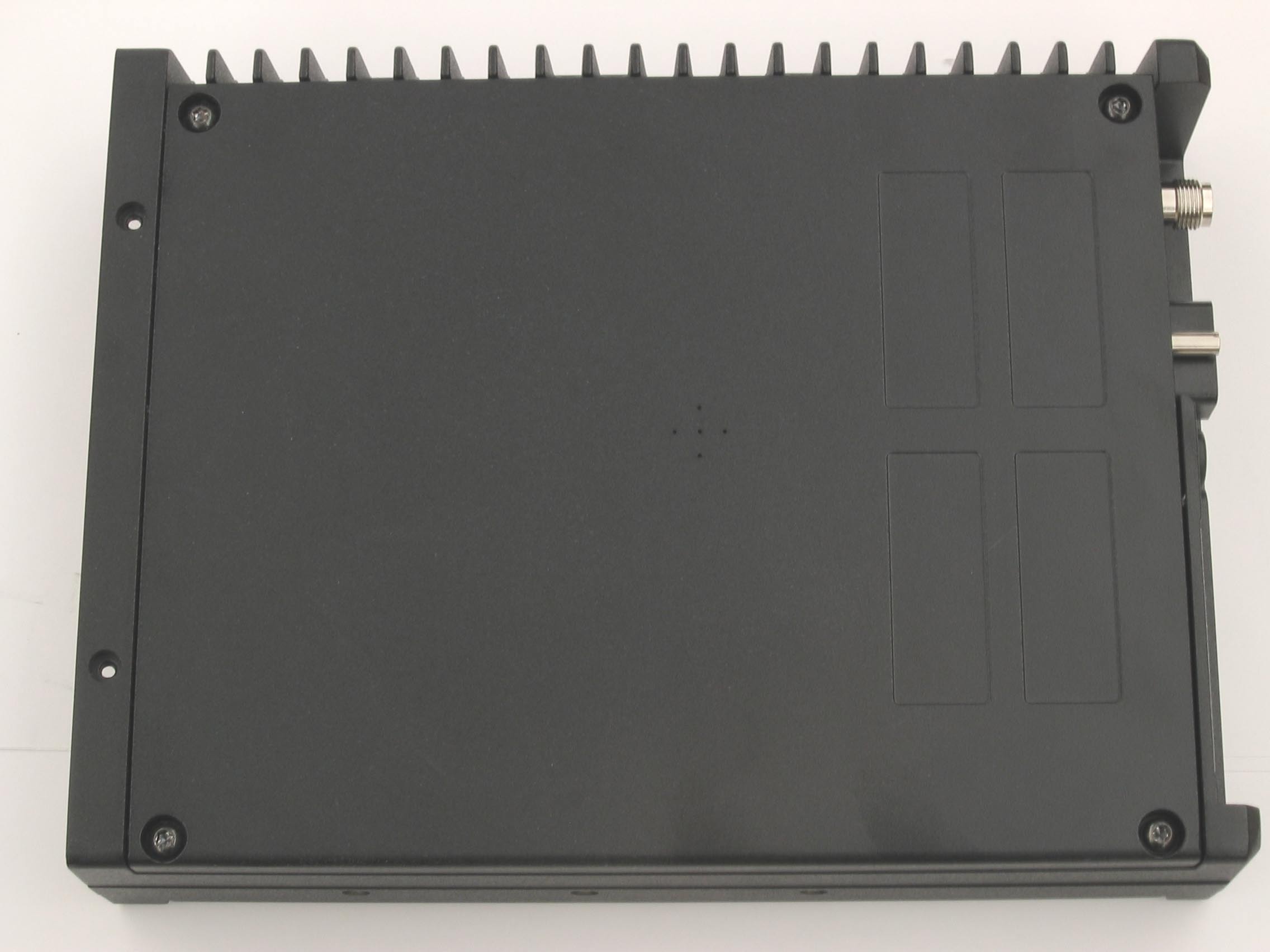

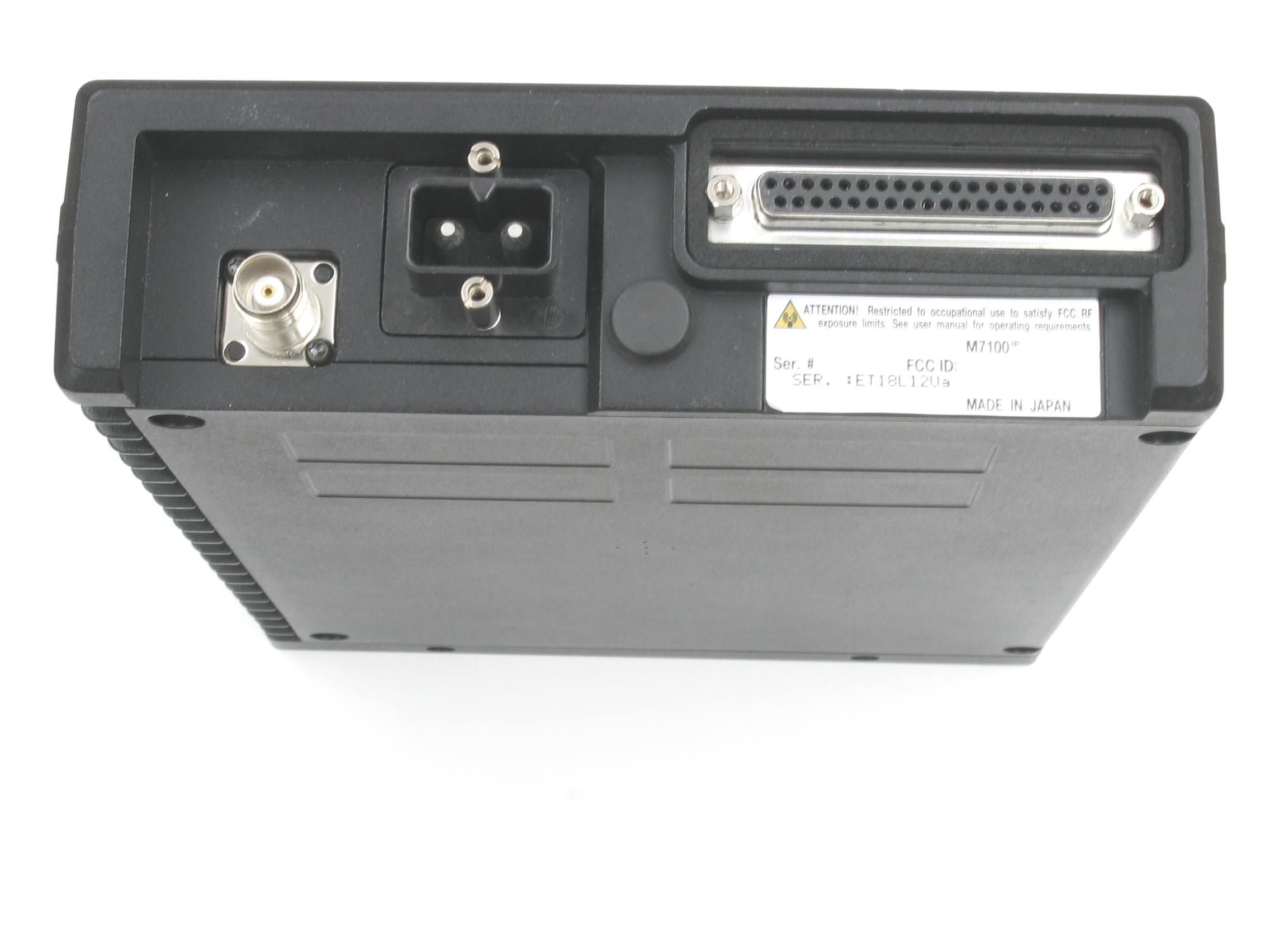

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗
↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Operator’s Manual MM102341V1 Rev. Bp5, Mar-04 M7100 IP Series Mobile Radio 2 MANUAL REVISION HISTORY REVISION DATE REASON FOR CHANGE A February 2004 Initial release. B April 2004 Add MPE and FCC information for VHF, UHF-L, UHF-H, and 800MHz M7100 IP radios. SUPPLEMENTARY INFORMATION: At this time, the M7100 IP mobile radio may not be operated while in a desktop station in the European Community since it does not meet immunity requirements when operated in this mode. The M7100 IP mobile radio can be used in both trunked and conventional applications. ACKNOWLEDGEMENTS This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 5,502,767; 5,146,497; 5,164,986; 5,185,795. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. EDACS is a registered trademark and ProGrammer, SCAT, Failsoft, ProSound, ProScan, Aegis, ProFile, ProVoice, and G-STAR are trademarks of M/A-COM, Inc. IMBE is a registered trademark of Digital Voice Systems, Inc. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! This manual covers M/A-COM products manufactured and sold by M/A-COM, Inc. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty. The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are reserved under the copyright laws of the United States. This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A- COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM, Inc. Copyright© 2004 M/A-COM, Inc. All rights reserved. 3 TABLE OF CONTENTS Page 1 SAFETY SYMBOL CONVENTIONS.......................................................................................... 5 2 RF ENERGY EXPOSURE INFORMATION.............................................................................. 6 2.1 RF ENERGY EXPOSURE INFORMATION ............................................................ 6 2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS ........................................... 7 3 OPERATION SAFETY RECOMMENDATIONS ...................................................................... 9 3.1 TRANSMITTER HAZARDS ..................................................................................... 9 3.2 SAFE DRIVING RECOMMENDATIONS ............................................................... 9 4 OPERATING RULES AND REGULATIONS .......................................................................... 10 4.1 OPERATING TIPS................................................................................................... 10 5 INTRODUCTION ........................................................................................................................ 11 6 USER INTERFACE ..................................................................................................................... 12 7 CONTROLS .................................................................................................................................. 13 7.1 POWER ON-OFF VOLUME KNOB ....................................................................... 13 7.2 SYSTEM/GROUP CHANNEL KNOB .................................................................... 13 7.3 RAMP CONTROL ................................................................................................... 13 7.4 SCAN ON/OFF......................................................................................................... 13 7.5 SCAN ADD/DELETE .............................................................................................. 14 7.6 INDICATORS .......................................................................................................... 14 7.7 KEYPAD .................................................................................................................. 14 8 DISPLAY 18 8.1 RADIO STATUS ICONS ......................................................................................... 18 8.2 MESSAGES.............................................................................................................. 19 9 ALERT TONES ............................................................................................................................ 22 9.1 CALL ORIGINATE ................................................................................................. 22 9.2 AUTOKEY (TRUNKED MODE ONLY)................................................................ 22 9.3 CALL QUEUED (TRUNKED MODE ONLY) ....................................................... 22 9.4 SYSTEM BUSY (TRUNKED MODE ONLY)........................................................ 22 9.5 CALL DENIED (TRUNKED MODE ONLY) ......................................................... 22 9.6 CARRIER CONTROL TIMER ................................................................................ 22 9.7 KEY PRESS ALERT..................…

Text truncated - open the document above for the full version.

Users Manual

Operator’s Manual MM102341V1 Rev. B, Apr-04 M7100 IP Series Mobile Radio MANUAL REVISION HISTORY REVISION DATE REASON FOR CHANGE A February 2004 Initial release. B April 2004 Add MPE and FCC information for VHF, UHF-L, UHF-H, and 800MHz M7100 IP radios. M/A-COM Technical Publications would particularly appreciate feedback on any errors found in this document and suggestions on how the document could be improved. Submit your comments and suggestions to: Wireless Systems Business Unit or fax your comments to: (434) 455-6851 M/A-COM, Inc. Technical Publications or e-mail us at: [email protected] 221 Jefferson Ridge Parkway Lynchburg, VA 24501 SUPPLEMENTARY INFORMATION: At this time, the M7100 IP mobile radio may not be operated while in a desktop station in the European Community since it does not meet immunity requirements when operated in this mode. The M7100 IP mobile radio can be used in both trunked and conventional applications. ACKNOWLEDGEMENTS This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 5,502,767; 5,146,497; 5,164,986; 5,185,795. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. EDACS is a registered trademark and ProGrammer, SCAT, Failsoft, ProSound, ProScan, Aegis, ProFile, ProVoice, and G-STAR are trademarks of M/A-COM, Inc. IMBE is a registered trademark of Digital Voice Systems, Inc. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! This manual covers M/A-COM products manufactured and sold by M/A-COM, Inc. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty. The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are reserved under the copyright laws of the United States. This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A- COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM, Inc. Copyright© 2004 M/A-COM, Inc. All rights reserved. 2 TABLE OF CONTENTS Page 1 SAFETY SYMBOL CONVENTIONS..........................................................................................5 2 RF ENERGY EXPOSURE INFORMATION..............................................................................6 2.1 RF ENERGY EXPOSURE AWARENESS, CONTROL INFORMATION, AND OPERATION INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS......................................................................................................6 2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS...........................................7 3 OPERATION SAFETY RECOMMENDATIONS......................................................................9 3.1 TRANSMITTER HAZARDS.....................................................................................9 3.2 SAFE DRIVING RECOMMENDATIONS...............................................................9 4 OPERATING RULES AND REGULATIONS..........................................................................10 4.1 OPERATING TIPS...................................................................................................10 5 INTRODUCTION........................................................................................................................11 6 USER INTERFACE.....................................................................................................................12 7 CONTROLS..................................................................................................................................13 7.1 POWER ON-OFF VOLUME KNOB.......................................................................13 7.2 SYSTEM/GROUP CHANNEL KNOB....................................................................13 7.3 RAMP CONTROL...................................................................................................13 7.4 SCAN ON/OFF.........................................................................................................13 7.5 SCAN ADD/DELETE..............................................................................................14 7.6 INDICATORS..........................................................................................................14 7.7 KEYPAD..................................................................................................................14 8 DISPLAY.......................................................................................................................................18 8.1 RADIO STATUS ICONS.........................................................................................18 8.2 MESSAGES..............................................................................................................19 9 ALERT TONES............................................................................................................................22 9.1 CALL ORIGINATE............…

Text truncated - open the document above for the full version.

Users Manual

Installation Manual MM102343V1 Rev. A, May-04 M7100 IP Mobile Radio & Control Unit Motorcycle Installation REVISION HISTORY REVDATESUMMARY OF CHANGES AMay 2004 Initial release M/A-COM Technical Publications would particularly appreciate feedback on any errors found in this document and suggestions on how the document could be improved. Submit your comments and suggestions to: Wireless Systems Business Unitor fax your comments to: (434) 455-6851 M/A-COM, Inc. Technical Publications or e-mail us at: [email protected] 221 Jefferson Ridge Parkway Lynchburg, VA 24501 CREDITS EDACS is a registered trademark and PANTHER, M-PA, M-PD, MTL, TPX, PCS, M-RK, LPE-200, and Prism are trademarks of M/A-COM, Inc. Kawasaki is a registered trademark of Kawasaki Motors Corporation, U.S.A. Harley-Davidson is a registered trademark of Harley-Davidson, Inc. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any way convert the Object Code into human-readable form. NOTICE Repairs to this equipment should be made only by an authorized service technician or at a facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturers warranty. The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are reserved under the copyright laws of the United States. This manual is published byM/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made byM/A-COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means,. electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM, Inc. Copyright” 2004 M/A-COM, Inc. All rights reserved. 2 3 TABLE OF CONTENTS Page 1SAFETY SYMBOL CONVENTIONS ................................................... 4 2RF ENERGY EXPOSURE INFORMATION ....................................... 5 2.1 RF ENERGY EXPOSURE INFORMATION....................................... 5 2.1.1Federal Communications Commission Regulations ................ 6 2.2 COMPLIANCE WITH RF EXPOSURESTANDARDS...................... 6 2.2.1Mobile Antennas...................................................................... 8 2.2.2Approved Accessories ............................................................. 8 2.2.3Contact Information................................................................. 8 3OPERATION SAFETY RECOMMENDATIONS................................ 9 3.1 TRANSMITTER HAZARDS............................................................... 9 3.2 SAFE DRIVING RECOMMENDATIONS........................................ 10 4GENERAL INFORMATION ............................................................... 12 4.1 RELATED DOCUMENTATION ....................................................... 12 5OPTIONS AND ACCESSORIES......................................................... 13 5.1 VENDOR DROP SHIP OPTIONS ..................................................... 15 5.1.1External Headset Options ...................................................... 15 5.2 HARDWARE KITS ............................................................................ 15 5.3 USER SUPPLIED EQUIPMENT ....................................................... 19 5.4 POWER CONSIDERATIONS............................................................ 19 5.4.1RF Power Adjustments .......................................................... 19 6INSTALLATION ................................................................................... 21 6.1 TOOLS REQUIRED ........................................................................... 21 6.2 EQUIPMENT INSTALLATION ........................................................ 21 6.2.1Weather Resistant Case Assembly and Installation ............... 21 6.2.2Harley-Davidson Installation................................................. 24 6.3 RADIO MOUNTING BRACKETS.................................................... 24 7CONTROL UNIT MOUNTING ........................................................... 26 7.1.1Control Unit and Mic Hanger Installation ............................. 27 7.2 SPEAKER MOUNTING..................................................................... 29 7.3 CABLE ROUTING ............................................................................. 29 7.3.1Power and Control Cables ..................................................... 29 7.3.2Option Cable.......................................................................... 30 7.3.3Typical Harley-Davidson Installation.................................... 30 7.4 CABLE CONNECTIONS................................................................... 33 7.4.1Power Cable........................................................................... 34 7.4.2Control Cable......................................................................... 34 7.4.3Ignition Switch Option .......................................................... 34 7.4.4Accessory Cable .................................................................... 35 7.5 ANTENNA INSTALLATION............................................................ 35 7.5.1General .................................................................................. 35…

Text truncated - open the document above for the full version.

Cover Letter(s)

M/A-COM, Inc. 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Telephone: 434.455.9527 FAX: 434.455.6851 [email protected] www.macom.com March 16, 2004 To Whom It May Concern: The following organization is granted authority to act on M/A-COM’s behalf, to file technical reports, measurements, and forms for M/A-COM equipment with FCC ID: OWDTR-0022-E, 800 MHz mobile radio equipment, as it applies to an original submission. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager, Engineering Project Manager

Cover Letter(s)

M/A-COM, Inc. 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Telephone: 434.455.9527 FAX: 434.455.6851 [email protected] www.macom.com March 16, 2004 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0022-E Original submission CONFIDENTIALITY M/A-COM, Inc. wishes to submit this confidentiality letter for the record on FCC ID: OWDTR-0022-E 800 MHz M7100 mobile radio. M/A-COM, Inc. is requesting that schematic diagrams, parts lists, block diagrams, tune up procedure, and operational descriptions for this original submission not be made routinely available for public inspection. M/A-COM, Inc. considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Daryl Popowitch Regulatory Manager Engineering Project Manager M/A-COM, Inc. – Lynchburg, VA

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 31, 2004 RE: M/A-COM Inc. FCC ID: OWDTR-0022-E After a review of the submitted information, I have a few comments on the above referenced Application. Administrative/General: 1) External photographs appear to be missing the front of the unit. Please provide. 2) The RF exposure appears to be calculated using 35 W, while the maximum measured appear to be 36.4 W. Typically, the RF exposure should be calculated using worse case power. Please explain and/or correct. Note that this may affect the distances documented in the users manual. 3) Also in regards to RF exposure, 90.205(q) should be accounted for in MPE evaluations, i.e., compliance distances should be determined according to allowed 20% over nominal power, unless radio is documented to not support such levels. Please explain and/or correct as necessary. 4) The label mentioning occupational exposure appears to be placed on the back of the unit in a position that is not seen by the end user. The FCC rules state that the Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. If the label not visible after installation, please explain how the user is made fully aware of the potential for exposure, given the user may not necessarily be the installer. 5) The manual(s) appear to be missing information regarding co-location, i.e.: "This device must not be co-located or operating in conjunction with any other antenna or transmitter." Technical: 7) Please confirm that the digital device and RX portions of this equipment have been verified for compliance under Part 15 requirements. Additionally, information regarding this fact was not found in the users manual. Please provide an updated users manual as necessary for Part 15 compliance statements and prohibition against modification, etc. 8) Please provide an attestation/explanation of compliance to 90.203 (e)/(g). 9) Please justify the use of a 2851 Hz signal for modulation purposes listed in several places in the report (i.e. pages 12, 16, 18) while the plots are typically labeled 2500 Hz. 10) Please explain why the EA mask was only applied to the 2-Level, wideband, 9600 Modulation in the 806-821 and 851-866 Bands. Please explain why the masks G & H are not necessary for these bands as specified by 90.210. It seems the device may also apply to mask G, but it appears that these waveforms may not meet the G masks requirements. 11) If possible, please provide a test for all appropriate masks within each sub-band 806-821, 821-824, 851-866, and 866-869 MHz. 12) A careful look at Plot 8-8 shows one sidelobe which exceeds the limit. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. z Page 2March 31, 2004 Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 28, 2004 RE: M/A-COM Inc. FCC ID: OWDTR-0022-E After a review of the submitted information, I have a few comments on the above referenced Application. 1) According to the table in 90.210, this device should be subject to Mask B for voice being transmitted with Low Pass Filter and Mask G & H (depending on TX band) for transmission without low pass filter. Mask EA only apply to specific EA-based systems which may only be for certain installations for specific EA locations in the U.S and is also only applied at the bandedge. Mask H is the most restrictive data mask. Because not all modulations were provided in each of the 4 bands, the masks must also be applied to the cross sections. For example, there are not any plots of 2 level wideband, 9600 modulation in the bands 821-824 or 866-869. It is also not clear if the F1D and F1E waveforms are identical for each modulation (2 Level WB, 2 Level NPSPAC, and 4 Level), nor is it certain which emission (F1D vs F1E is provided in the plots). Please note that the cross sectional presentation of the data in this case, and lack of proper presentation has made reviewing this application more time consuming and difficult, and hard to understand. To show compliance, therefore the most restrictive limits are being applied to the limited cross- sectional data provided. By doing this, it has been determined that 2 Level WB (i.e. plot 8-5) does not meet with Mask H requirements. Note that the data was only provided for the bands requiring the G-mask, but since only a cross sectional set of data was provided, this is the only view that could be found. It is highly recommended that the report for this application show data for each of the appropriate sub-bands. Regardless it is uncertain if the various modulations (F1D vs F1E) have been shown as compliant, as well as the fact that 2 Level WB appears out of compliance with H masks. Further information is necessary to clarify these issues. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 4, 2004 RE: M/A-COM Inc. FCC ID: OWDTR-0022-E After a review of the submitted information, I have a few comments on the above referenced Application. 1) The response appears to state that only certain modulations are used in certain bands. Is this correct? Information in the 731 and test report did not reflect this. If this is correct, please adjust the cover page and page 7 of the test report and 731 form to correctly show which modulations are being approved for which bands. These documents suggest that all modulations operate in all bands, which has created the previous questions. Also, please note that the last response did not address the 4 level modulation. Additionally please note that 4 level modulation data appears to suggest operation in all bands. Please justify the use of 4 level modulation in all bands, and explain why all other modulations only appear in certain bands. Additionally, please note that the data does not appear to match the response (i.e. Wideband Data and Voice were not tested to Mask G) as given in the response. Please clarify. Additionally, it is uncertain why some voice modulations are subject to low pass filter masks, and others are not. Please explain. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 31, 2004 RE: M/A-COM Inc. FCC ID: OWDTR-0022-E After a review of the submitted information, I have a few comments on the above referenced Application. Administrative/General: 1) External photographs appear to be missing the front of the unit. Please provide. Response : Please refer to the revised external photograph exhibit uploaded with this response. 2) The RF exposure appears to be calculated using 35 W, while the maximum measured appear to be 36.4 W. Typically, the RF exposure should be calculated using worse case power. Please explain and/or correct. Note that this may affect the distances documented in the users manual. Response : MPE reports have been changed to use the 36.4 W measured conducted power. Revised reports are loaded with this response. 3) Also in regards to RF exposure, 90.205(q) should be accounted for in MPE evaluations, i.e., compliance distances should be determined according to allowed 20% over nominal power, unless radio is documented to not support such levels. Please explain and/or correct as necessary. Response : MPE reports have been changed to incorporate a 20% adder over the reported conducted power measurement. Revised reports are loaded with this response. 4) The label mentioning occupational exposure appears to be placed on the back of the unit in a position that is not seen by the end user. The FCC rules state that the Occupational/controlled limits apply in situations in wh…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Thomas Camper, Jr.(Regulatory Manager)
[email protected]434-455-9367Fax: 434-455-6851

Technical Contact

Rhein Tech LaboratoriesRick McMurray
[email protected]703-689-0368

360 Herndon Parkway, Suite 1400 · Herndon, Virginia · United States

Non-Technical Contact

Rhein Tech LaboratoriesKathy Grzovic
[email protected]703-689-0368

Test Firm

Rhein Tech Laboratories, Inc.Galina Yushina
[email protected]7036890368Fax: 7036892056

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
1690.21806 MHz - 821 MHz36.4 W10K0F1D0.98 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is conducted maximum per 90.205(r) measured at the antenna terminals, nominal output power is 35 W. Occupational/Controlled MPE evaluation covers fixed-mounted and mobile operation for use with a 2.15 or 5.5 dBi antenna and a duty factor not exceeding 50%. The 2.15 dBi antenna must be installed to provide a separation distance of at least 65 cm from all bystanders and 28 cm from the operator during use with a duty factor not exceeding 50%. The 5.5 dBi antenna must be installed to provide a separation distance of at least 96 cm from all bystanders and 43 cm from the operator during use with a duty factor not exceeding 50%. All qualified end-users of this device must receive training to have the knowledge to control their exposure conditions and/or duration to comply with Occupational /Controlled exposure limit and also have control of the exposure conditions of bystanders for complying with General Population/Uncontrolled exposure limit. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements and users must be provided with the training information. This device must not be collocated or operating in conjunction with any other antenna or transmitter. Installers and end users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
