OWDTR-0056-EM7300, 136-174MHz, 110W

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 89 of 104 Appendix N: Manual Please refer to the following pages for the Operators Manual, and to a separate file for the Installation/Safety Manual. Operator’s Manual MM-014716-001 Rev. J, Jan/12 M7300 Series Mobile Radios MM-014716-001, Rev. J 2 MANUAL REVISION HISTORY REV DATE REASON FOR CHANGE - Jun/08 Initial Release. A Sep/08 Added quick buttons, error messages, keypad lock/unlock, client mode, new CH-721 key maps, updated keypad commands, and updated status call and status alert messages. B Mar/09 Updated Table 8-2 and updated CH-721 graphic to remove M/A-COM. C Sep/09 Added new antennas to Table 2-1, added VHF MPE distances, added “Enable/Disable Volume Side Tone,” updated to Harris format. D Apr/10 Added keypad lock/unlock instructions for ECP, added REGISTER and BND SCAN to P25T status messages. E Jan/11 Updated antenna information; other minor updates. F Apr/11 Updated for OTP R17, consolidated EDACS, Conventional, P25 operation into one section. G Aug/11 Updated antennas; removed reference to ambient light sensor, minor edits. H Oct/11 Added Part 80 information. J Jan/12 Updated antennas and updated warranty. Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e- mail us at: PSPC _ TechPubs @ harris.com 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENT This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; ; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS EDACS, OpenSky, Harris, VIDA, and assuredcommunications are registered trademarks of Harris Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Division, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2008-2012 Harris Corporation. MM-014716-001, Rev. J 3 TABLE OF CONTENTS Page 1 SAFETY SYMBOL CONVENTION .................................................................................................... 8 2 RF ENERGY EXPOSURE INFORMATION ..................................................................................... 9 2.1 RF ENERGY EXPOSURE AWARENESS, CONTROL INFORMATION, AND OPERATION INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS ................................ 9 2.2 FEDERAL COMMUNICATIONS COMMISSION REGULATIONS ....................................... 9 2.3 COMPLIANCE WITH RF EXPOSURE STANDARDS ........................................................... 10 2.3.1 Mobile Antennas (Vehicle Installations) ....................................................................... 10 2.3.2 Mobile Antennas (Motorcycle Installations) ................................................................. 15 2.3.3 Approved Accessories ................................................................................................... 16 2.3.4 Contact Information ....................................................................................................... 16 2.4 REGULATORY APPROVALS ................................................................................................. 16 2.4.1 Part 15 ............................................................................................................................ 16 2.4.2 Industry Canada…

Text truncated - open the document above for the full version.

Installation and Product Safety Manual MM-014763-001 Rev. J, Jan/12 M7300 Mobile Radios VHF, UHF, and 700/800 MHz Front and Remote-Mount Mobile Radios Includes CH-721 Scan and System Control Heads and HHC-731 Hand-Held Controller MM-014763-001, Rev. J 2 MANUAL REVISION HISTORY REV. DATE REASON FOR CHANGE G Apr/11 Revised specifications, antenna part numbers and the respective MPE distance data, and HHC-731 installation kits. Added UHF radios and mobile data connection section. H Dec/11 Added FCC Part 80 information and maritime frequencies. Revised specifications and antenna installation procedures. J Jan/12 Added 110-watt VHF radio. Revised specifications and warranty. Harris Corporation, Public Safety and Professional Communications (PSPC) Business, continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e-mail us at: PSPC _ TechPubs @ harris.com 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENT This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS Harris, assuredcommunications, OpenSky and EDACS are registered trademarks of and ProVoice is a trademark of Harris Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. Bird is a registered trademark of Bird Electronic Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. SmartSiren is a registered trademark of Federal Signal Corporation. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE ! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99 in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2008 — 2012, Harris Corporation MM-014763-001, Rev. J 3 TABLE OF CONTENTS Section Page 1 REGULATORY AND SAFETY INFORMATION .................................................................... 7 1.1 SAFETY SYMBOL CONVENTIONS ................................................................................................. 7 1.2 RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION FOR FCC OCCUPATIONAL USE REQUIREMENTS ........................................................................................ 7 1.2.1 Federal Communications Commission Regulations ............................................................... 8 1.3 COMPLIANCE WITH RF EXPOSURE STANDARDS ...................................................................... 8 1.3.1 Mobile Antennas .................................................................................................................. 15 1.3.2 Approved Accessories .......................................................................................................... 15 1.3.3 Contact Information .............................................................................................................. 15 1.4 RADIO FREQUENCY INTERFERENCE ......................................................................................... 15 1.4.1 FCC Part 15 .......................................................................................................................... 15 1.4.2 Industry Canada ..............................................................................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 78 of 104 Appendix D: FCC Frequency Attestation Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL ATTESTATION M7300 110W VHF Extended Frequency Range – Contiguous Frequency Listing Device is for use in Public Safety Part 90 band. Additionally, Federal end users are intended. The frequency bands are: 136 – 174 MHz Part 2.106 has been used to construct the following table of frequency range capability intended for end users. Harris Corporation acknowledges that operation on unauthorized frequencies is a violation of FCC rules. Harris Corporation acknowledges the inclusion of Grant note code “EF”. End users are not able to directly configure transmit frequencies and there are no end user controls available for such. Device configuration is the responsibility of Harris Corporation and its approved Service personnel. Frequency(MHz) Part 90 Federal 136.0000-150.0000 X 150.0000-150.8000 X 150.8000-152.8550 X 152.8550-154.0000 X 154.0000-156.2475 X 156.2475-157.0375 X 157.0375-157.4500 X 157.4500-161.5750 X 161.5750-161.6250 161.7750-162.0125 X 162.0125-173.2000 X 173.2000-173.4000 X 173.4000-174.0000 X Daryl Popowitch Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 76 of 104 Appendix B: Agency Authorization Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 January 18, 2012 Subject: FCC ID: OWDTR-0056-E Original Grant The following organization is granted authority to act on Harris’ behalf, to file documentation for Harris equipment with FCC ID: OWDTR-0056-E, M7300 110W VHF mobile radio, as it applies to an original Grant. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Harris certifies that it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 77 of 104 Appendix C: FCC Confidentiality Request Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com January 18, 2012 ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0056-E Original Grant CONFIDENTIALITY Harris wishes to submit this confidentiality letter for the record on FCC ID: OWDTR- 0056-E, M7300 110W VHF mobile radio. Harris is requesting that parts lists, schematics, block diagrams, tune up procedure, and operational descriptions for this application not be made routinely available for public inspection. Harris considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Daryl Popowitch Regulatory Manager

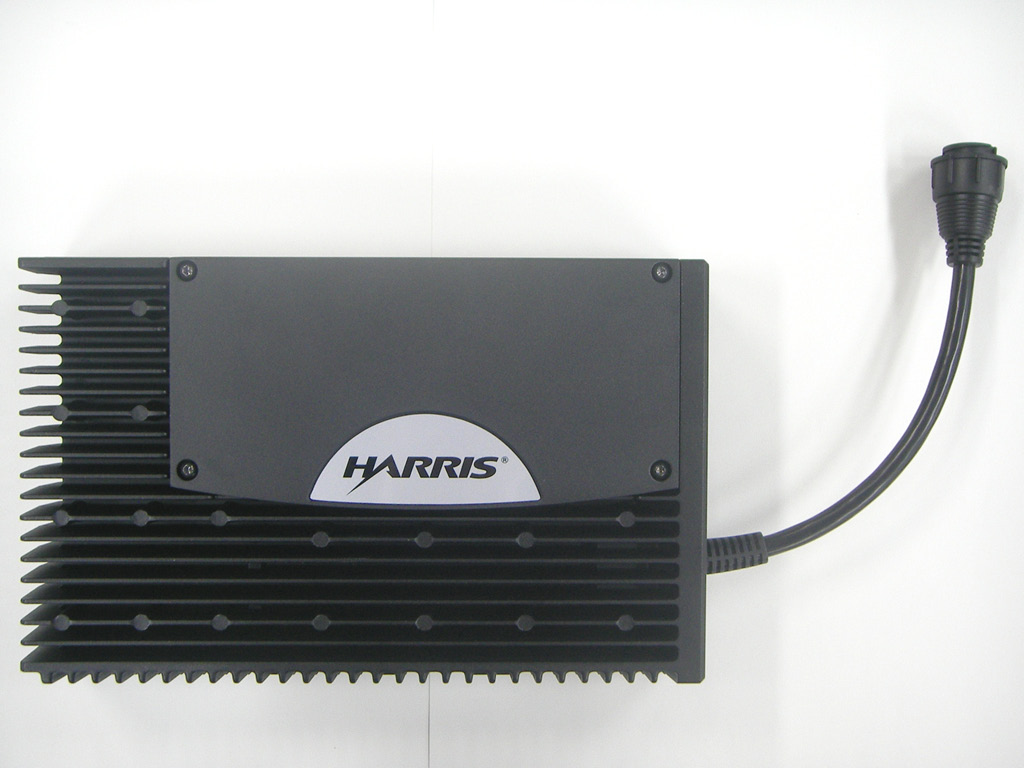

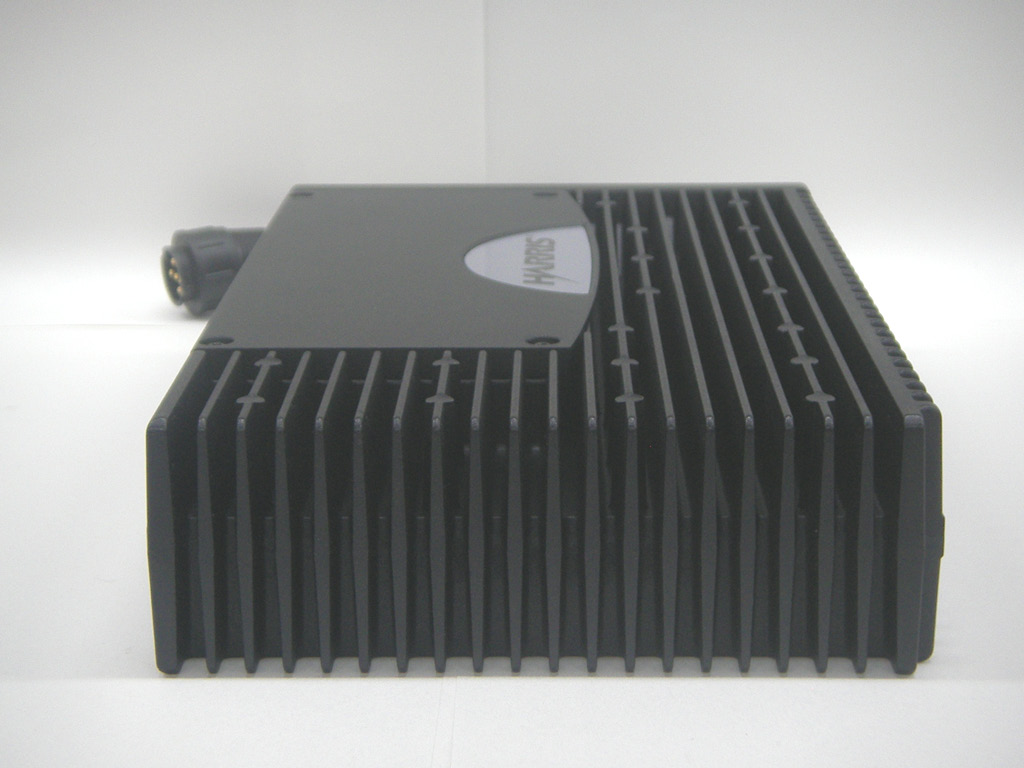

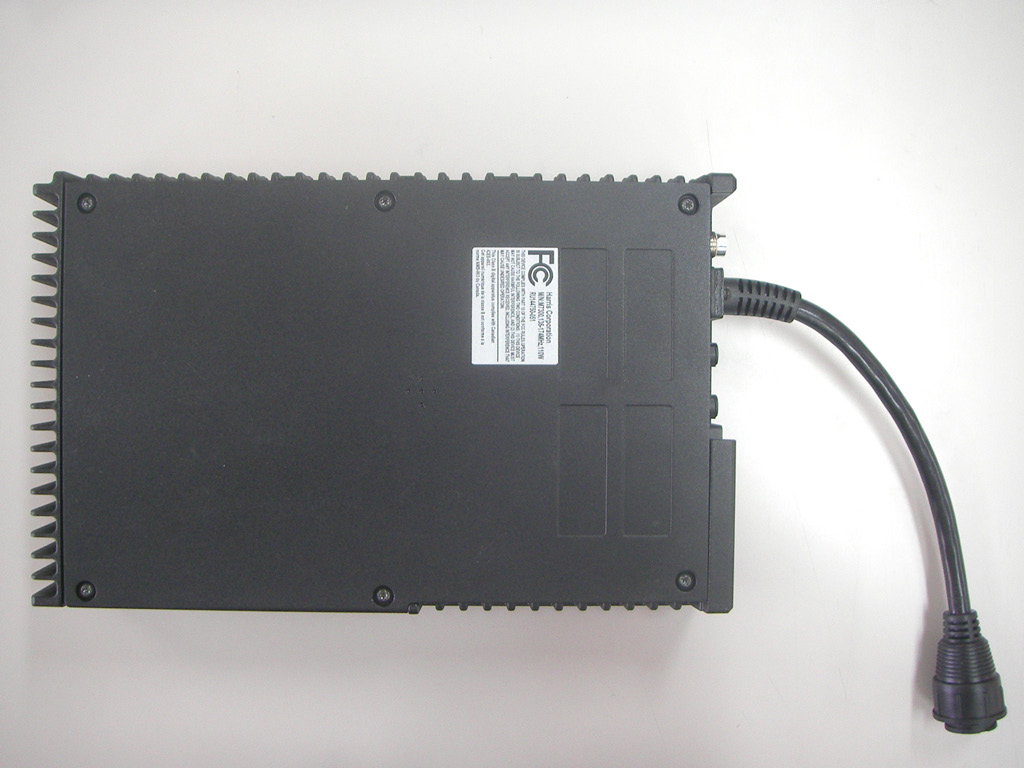

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 92 of 104 Appendix P: External Photographs Photograph 7: Top Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 93 of 104 Photograph 8: Bottom Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 94 of 104 Photograph 9: Front Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 95 of 104 Photograph 10: Rear Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 96 of 104 Photograph 11: Left Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 97 of 104 Photograph 12: Right Side M7300 110W does not have/take a ‘control face plate’. It only accepts remote control head, as shown below.

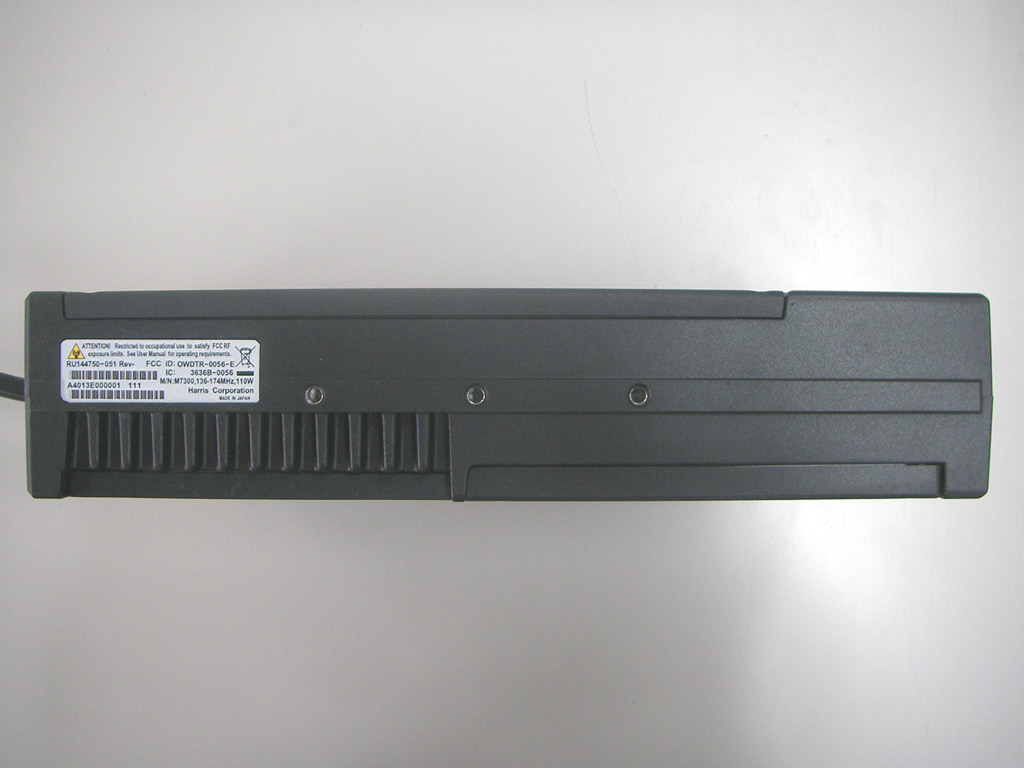

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 82 of 104 Appendix H: Label Information Photograph 1: ID & RF Label Sample Photograph 2: Part 15 Label Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 83 of 104 Photograph 3: ID & RF Label Location on Side Photograph 4: Part 15 Label Location on Bottom

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 98 of 104 Appendix Q: Internal Photographs Photograph 13: Top Cover Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 99 of 104 Photograph 14: Bottom Cover Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 100 of 104 Photograph 15: Bottom Cover and Shield Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 101 of 104 Photograph 16: RF Processor Board – Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 102 of 104 Photograph 17: RF Processor Board – Solder Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 103 of 104 Photograph 18: PK Board – Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 104 of 104 Photograph 19: PK Board – Solder Side

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Vehicle Application - Mobile Radio MPE Evaluation Report (Two antennas; same type) Declaration of Compliance FCC Rule Part: 47 CFR §90; §2.1091; §1.1310 Device Classification: Licensed Non-Broadcast Station Transmitter (TNB) Device Type: Mobile VHF PTT Radio Transceiver with Vehicle Rooftop Antenna FCC ID: OWDTR-0056-E Model Name: M7300 Modulation: FM Tx Frequency Range: 136 – 174 MHz Max. RF Conducted Power: 110.0 W (nominal/rated or lab report value, times 1.2; § 90.205(s)) Power Supply: 12 VDC Antenna Type: Quarter wave vertical (AN-225002-001; AN-225006-001) Antenna Gain: 2.15 dbi; Minimum Antenna Distance: 93 cm Limits for Occupational/Controlled Exposure. 208 cm Limits for General Population/Uncontrolled Exposure. Calculation S = therefore: R = √ Where: S – power density (mW/cm 2 ; as defined in 47 CFR § 1.1310), P – power input to antenna at 50% duty cycle (in mW), G – power gain of the antenna relative to isotropic (numeric value, not db), R – distance to center of antenna (result in cm). S = 1/.2 (Controlled/Uncontrolled) at Tx frequency 136 MHz. Calculated controlled distance: 92.825444 cm Calculated uncontrolled distance: 207.564 cm Daryl Popowitch Regulatory Manager, PG 4πS PG 4πR 2

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC & IC Certification Report Harris Corporation 221 Jefferson Ridge Parkway Lynchburg, VA 21481 Daryl Popowitch Phone: (434) 455-9527 Model: M7300 VHF FCC ID: OWDTR-0056-E IC: 3636B-0056 December 22, 2011 Standards Referenced for this Report Part 2: 2011 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Part 90: 2011 Private Land Mobile Radio Services TIA-EIA-603-C August 2004 Land Mobile FM or PM Communications Equipment – Measurement and Performance Standards ANSI/TIA/EIA – 102.CAAA-2002 Digital C4FM/CQPSK Transceiver Measurement Methods ANSI/TIA/EIA– 102.BAAA–1998 Project 25 FDMA Common Air Interface—New Technology Standards Project— Digital Radio Technical Standards RSS-119 Issue 11 Land Mobile and Fixed Radio Transmitters and Receivers 27.41 to 960.0 MHz SRSP-500 Technical Requirements for Land Mobile and Fixed Radio Services Operating in the Bands 138-144 MHz and 148-174 MHz Report Prepared By: Daniel Baltzell Document Number: 2011200 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Harris Corporation. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 2 of 90 Frequency Range (MHz) Rated Conducted Output Power (W) Frequency Tolerance (ppm) Emission Designator 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 11K0F3E (NB Analog Voice) 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 9K90F1D (2 level NB 9600 FSK) 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 9K90F1E (2 level NB 9600 FSK) 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 7K10F1D (2 level NB 4800 FSK) 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 7K10F1E (2 level NB 4800 FSK) 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 8K40F1D (OpenSky/TDMA) 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 8K40F1E (OpenSky/TDMA) 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 8K40F1D (P25) 136-150 (Federal) 150-174 (FCC) 138-174 (IC) 110.0 -0.18 8K40F1E (P25) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 3 of 90 Table of Contents 1 Test Result Summary ...................................................................................................................................... 8 2 General Information ......................................................................................................................................... 8 2.1 Test Facility ................................................................................................................................................ 8 2.2 Related Submittal(s)/Grant(s) .................................................................................................................... 8 2.3 Grant Notes ................................................................................................................................................ 8 2.4 Tested System Details ............................................................................................................................... 9 3 FCC Rules and Regulations Part 2.1033(C)(8) Voltages & Currents Through The Final Amplifying Stage . 11 4 FCC Rules and Regulations Part 2.1046(a): RF Power Output: Conducted, Part 90.205 Transmitting Power Limits, RSS-119 5.4: Transmitter Output Power ...................................................................................... 11 4.1 Test Procedure ......................................................................................................................................... 11 4.2 Test Data .................................................................................................................................................. 11 5 FCC Rules and Regulations Part 2.1051: Spurious Emissions at Antenna Terminals; Part 90.210: Emission Limitations, RSS-119 5.8: Transmitter Unwanted Emissions .............................................................. 12 5.1 Test Procedure ......................................................................................................................................... 12 5.2 Test Data .................................................................................................................................................. 12 6 FCC Rules and Regulations Part 2.1053(a): Field Strength of Spurious Radiation; Part 90 90.210 Out of Band Emissions Limit; RSS-119 5.8: Unwanted Emissions ................................................................................ 13 6.1 Test Procedure ......................................................................................................................................... 13 6.2 Test Data .................................................................................................................................................. 13 6.2.1 CFR 47 Part 90.210 Requirements ................................................................................................. 13 7 FCC Rules and Regulations Part 2.1049(c)(1): Occupied Bandwidth; Part 90.210 Authorized Bandwidth; RSS-119 5.8: Transmitter Unwanted Emissions.................................................................................................. 17 7.1 Te…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 90 of 104 Appendix O: Test Configuration Photographs Photograph 5: Radiated Emissions – Front View MOUSE MOUSE Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 VHF Suite 1400 IDs: OWDTR-0056-E/3636B-0056 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011200 91 of 104 Photograph 6: Radiated Emissions – Back View
