OWDTR-0060-EM7300/M5300 Mobile Radio

Installation and Product Safety Manual MM-014763-001 Rev. G, Jul/10 The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. M7300 Mobile Radio VHF and 700/800 MHz Front and Remote-Mount Mobile Radios Includes CH-721 Scan and System Control Heads and HHC-731 Hand-Held Controller MM-014763-001, Rev. G 2 MANUAL REVISION HISTORY REV. DATE REASON FOR CHANGE F Jun/10 Revised introduction, antenna part numbers and antenna installation procedures, specifications, catalog and part number tables, and cable installation procedures. Added HHC-731 hand-held controller. G Jul/10 Revised antenna part numbers and the respective MPE distance data. Harris Corporation, Public Safety and Professional Communications (PSPC) Business, continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e-mail us at: PSPC _ Tech Pubs @ harris.com 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENT This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS Harris, assuredcommunications, OpenSky and EDACS are registered trademarks of and ProVoice is a trademark of Harris Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. Bird is a registered trademark of Bird Electronic Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. SmartSiren is a registered trademark of Federal Signal Corporation. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2008, 2009, 2010, Harris Corporation MM-014763-001, Rev. G 3 TABLE OF CONTENTS Section Page 1 REGULATORY AND SAFETY INFORMATION....................................................................................7 1.1 SAFETY SYMBOL CONVENTIONS.................................................................................................7 1.2 RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION FOR FCC OCCUPATIONAL USE REQUIREMENTS........................................................................................7 1.2.1 Federal Communications Commission Regulations ...............................................................8 1.3 COMPLIANCE WITH RF EXPOSURE STANDARDS......................................................................8 1.3.1 Mobile Antennas .................................................................................................................. 12 1.3.2 Approved Accessories ..........................................................................................................12 1.3.3 Contact Information.............................................................................................................. 13 1.4 OCCUPATIONAL SAFETY GUIDELINES AND SAFETY TRAINING INFORMATION ...........13 1.5 COMMON HAZARDS ......................................................................................................................13 1.6 SAFE DRIVING RECOMMENDATIONS........................................................................................14 1.7 OPERATING RULES AND REGULATIONS ..................................................................................14 1.8 OPERATING TIPS.....................................................................................................…

Text truncated - open the document above for the full version.

Operator’s Manual MM-014716-001 Rev. E, Jul/10 M7300 Series Mobile Radios MM-014716-001, Rev. E 2 MANUAL REVISION HISTORY REV DATE REASON FOR CHANGE - Jun/08 Initial Release. A Sep/08 Added quick buttons, error messages, keypad lock/unlock, client mode, new CH721 key maps, updated keypad commands, updated status call and status alert messages. B Mar/09 Updated Table 8-2 and updated CH721 graphic to remove M/A-COM. C Sep/09 Added new antennas to Table 2-1, added VHF MPE distances, added “Enable/Disable Vo lume Side Tone,” updated to Harris format. D Apr/10 Added keypad lock/unlock instructions for ECP, added REGISTER and BND SCAN to P25T status messages. E Jul/10 Updated antenna information. Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e-mail us at: PSPC _ TechPubs @ harris.co m 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENT This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; ; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS EDACS, OpenSky, Harris, and assuredcommunications are registered trademarks of Harris Corporation. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. NOTICE ! Tyco Electronics (“TE”) has divested its Wireless systems business to Harris Corporation (“HARRIS”). As a result, all references herein to TE or M/A-COM shall be to HARRIS. Neither TE nor M/A-COM is an agent or affiliate of Harris. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Division, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions o f this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2008-2010 Harris Corporation. MM-014716-001, Rev. E 3 TABLE OF CONTENTS Page 1 SAFETY SYMBOL CONVENTION....................................................................................................9 2 RF ENERGY EXPOSURE INFORMATION ...................................................................................10 2.1 RF ENERGY EXPOSURE AWARENESS, CONTROL INFORMATION, AND OPERATION INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS ..............................10 2.1.1 Federal Communications Commission Regulations......................................................10 2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS ...........................................................11 2.2.1 Mobile Antennas (Vehicle Installations) .......................................................................11 2.2.2 Mobile Antennas (Motorcycle Installations) .................................................................15 2.2.3 Approved Accessories ...................................................................................................15 2.2.4 Contact Information.......................................................................................................15 3 OPERATION SAFETY RECOMMENDATIONS............................................................................16 3.1 TRANSMITTER HAZARDS .....................................................................................................16 3.2 SAFE DRIVING RECOMMENDATIONS................................................................................16 4 OPERATING RULES AND REGULATIONS..................................................................................17 4.1 OPERATING TIPS .....................................................................................................................17 5 PRODUCT DESCRIPTION................................................................................................................18 5.1 CH721 CONTROL HEADS .......................................................................................................18 5.2 INTERCOM OPERATION .........................................................................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 64 of 88 Appendix C: FCC Confidentiality Request Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com August 30, 2010 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0060-E Original Grant CONFIDENTIALITY Harris wishes to submit this confidentiality letter for the record on FCC ID: OWDTR- 0060-E, M7300 mobile radio. Harris is requesting that parts lists, schematics, block diagrams, tune up procedure, and operational descriptions for this application not be made routinely available for public inspection. Harris considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Daryl Popowitch Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 63 of 88 Appendix B: Agency Authorization Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 August 27, 2010 Subject: FCC ID: OWDTR-0060-E Original Grant The following organization is granted authority to act on Harris’ behalf, to file documentation for Harris equipment with FCC ID: OWDTR-0060-E, M7300 700/800 MHz mobile radio, as it applies to an original Grant. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Harris certifies that it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 65 of 88 Appendix D: AFC Attestation Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com ATTESTATION Locked/unlocked AFC Operation The M7300 Mobile Radio uses a single TCXO as its frequency reference. All local oscillators are phase locked to this single reference. The reference is specified to be better than +/- 1.5ppm over the operating temperature and voltage ranges. This reference oscillator has an electronic frequency control (EFC) range of 108 Hz (minimum) at the TCXO output. The EFC can be fine- tuned through software. The initial tuning is performed at factory test, calibration and configuration time. This function is performed by providing a GPS locked RF carrier to the radio under test, while the radio’s AFC function is enabled. The radio software computes the difference between the internal reference and the applied GPS locked RF carrier and adjusts the EFC voltage to minimize the difference. The radio is then commanded to transmit an unmodulated carrier and the frequency of that carrier is checked to confirm that it is within tolerance. The EFC correction factor is stored in the radio’s non-volatile memory. Software control is used to implement AFC, when operating in the 700 MHz band (Part 90, Subpart R rules). In AFC locked mode, the digital signal processor examines the received base station signal and determines if there is any residual frequency error. The software then adjusts to minimize the residual frequency error. Hardware correction provides a resolution of below 0.1 ppm when adjusting the TCXO and so it is straightforward to control the TCXO to within the +/- 0.5 ppm requirement. The received base station signal correction is a continuously executed radio function. When the radio operates on channels that are configuration defined as other than base station channels (i.e., on-scene incident response or itinerant channels) the radio’s AFC uses the last determined base station correction value for frequency control.

Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 66 of 88 Appendix E: Part 90 Subpart R Application Review Please refer to the following pages. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com September 17, 2010 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0060-E Original submission ATTESTATION Part 90 Subpart R Application Review 1. Explanation of which Narrowband or Wideband channel segments the device is capable of supporting from those listed in 90.531(b), and 90.531(c). - For Narrowband segments: a) Is the device capable of operating on “General Use” channels listed in 90.531(b)(5) or “State” channels listed in 90.531(b)(6)? Response: Yes. b) Is the device ONLY capable of operating on Low Power “Regional” channels listed in 90.531(b)(3) or Low Power “Itinerant” channels listed in 90.531(b)(4)? Response: The device is capable of operating in the channels, as well as those specified in a) above. c) Is the device capable of operating on “Nationwide” Interoperability channels listed in 90.531(b)(1)? Response: Yes. - For Wideband segments: d) Is the device capable of operating on Interoperability channels listed in 90.531(c)(1)? Response: No. 2. Statement regarding the modulation capabilities of the device: - Does the device support digital Voice only, Data only, or both [see 90.547]? Response: Both HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com - Does the device support analog voice operation [see 90.535(a)]? Response: Yes 3. Verify the following Interoperability Channel Operation requirements listed in 90.531 and 90.547 for Narrowband mobile, portable, or control devices only, given the information from #1 and #2 above: a) Designed for Data ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the data interoperability channels listed in 90.531(b)(1)(i). Response: Answered in question 1. Radio is not a single mode device. b) Designed for Voice ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the nationwide and calling only interoperability channels listed in 90.531(b)(1) and (b)(1)(ii), but do not have to operate on data only channels listed in 90.531(b)(1)(i). Response: Answered in question 1. Radio is not a single mode device, and has a wide configuration flexibility to allow compliance with these rule parts. c) Designed for BOTH Voice and Data Operation on Nationwide, General Use or State channels – Must be capable of operating on all nationwide interoperability channels including data only and calling only channels listed in 90.531(b)(1), (b)(1)(i), and (b)(1)(ii). Response: Answered in question 1. Yes, when application configured as such. d) Designed for Low Power ONLY Operation on Regional/Itinerant channels – Must operate ONLY on the data/voice channels listed in 90.531(b)(3) or (b)(4). Response: Answered in question 1. 4. Verify the following capability requirements for all Wideband devices only, given the information from #1. and #2. above: a) Designed for Data ONLY Operation on Nationwide Interoperability channels – Must operate on the wideband data interoperability channels listed in 90.531(c)(1). Response: N/A 5. Application filing requirements for Narrowband mobile, portable or control devices only: - Voice Operation on General Use, State, or Nationwide Voice Interoperability channels: HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com a) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Response: Yes. Performed and reported in FCC EMC test report filed. b) Attestation of voice path efficiency compliance for operation on General Use and State channels only – 90.203(m) & 90.535(d). Response: N/A; applies to licensees. c) Attestation of operation on Nationwide Voice Interoperability and Calling Only channels – 90.547. For Voice Only devices, attestation to 90.547(a)(3). Response: Radio is capable of operation in sections cited. Answered above. d) Attestation of compliance to Project 25 FDMA Common Air Interface (ANSI 102) standards for operation on Nationwide Voice Interoperability and Calling Only channels only - 90.548(a)(1). Response: Radio product capable of Project 25. FCC EMC test report shows this, and emission designators indicate so. e) Frequency stability compliance for all band plans - 90.539(a) & (c). Response: Yes. FCC EMC test report shows this, and emission designators indicate so. f) Transmitting power compliance for all band plans - 90.541(b) & (c). Response: Yes. FCC EMC test report shows this. - Data Operation on General Use, State, or Nationwide Data Interoperability channels: g) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Response: Performed and reported in FCC EMC test report filed. h) Attestation of data rate efficiency compliance for General Use and State channels only 90.535(b). Response: Compliant to requirements. Rates reported in FCC EMC test report filed. i) Attestation of operation on Nationwide Data Interoperability channels listed in 90.531(b)(1)(i) only – 90.547. For Data Only devices, attestation to 90.547(a)(2). Response: Yes, When radio product is data mode. Radio is multi mode product. FCC EMC test report filed identifies emission designators for data mode operation. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com j) Attestation of compliance to Project 25 Data Overview (ANSI 102) standards for operation on data interoperability channels listed in 90.531(b)(1)(i) only 90.548(a)(2). Response: Radio is Project 25 compliant. k) Frequency stability compliance for all b…

Text truncated - open the document above for the full version.

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com August 27, 2010 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0060-E Harris seeks application approval for an original Grant on the M7300 700/800 MHz mobile radio. Test reports (EMC and MPE), along with Operator and Installation manuals, parts lists, schematics, block diagrams, tune up procedure, and operational descriptions are included as exhibits. The product variants of 800 MHz only mobile (M5300), and the desktop control station (CS7000) are part of this Grant application. Desktop control stations utilize antennas picked at the time of site licensing, with co-location and MPE being assessed as part of the site licensing process. Thank you for your kind consideration and timely review of this product. Sincerely, Daryl Popowitch Regulatory Manager

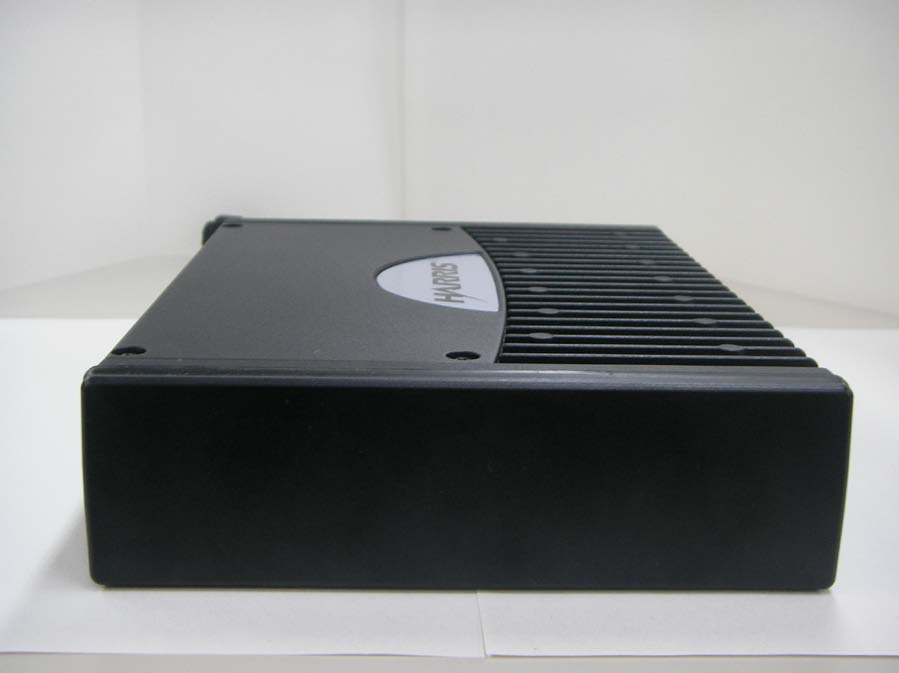

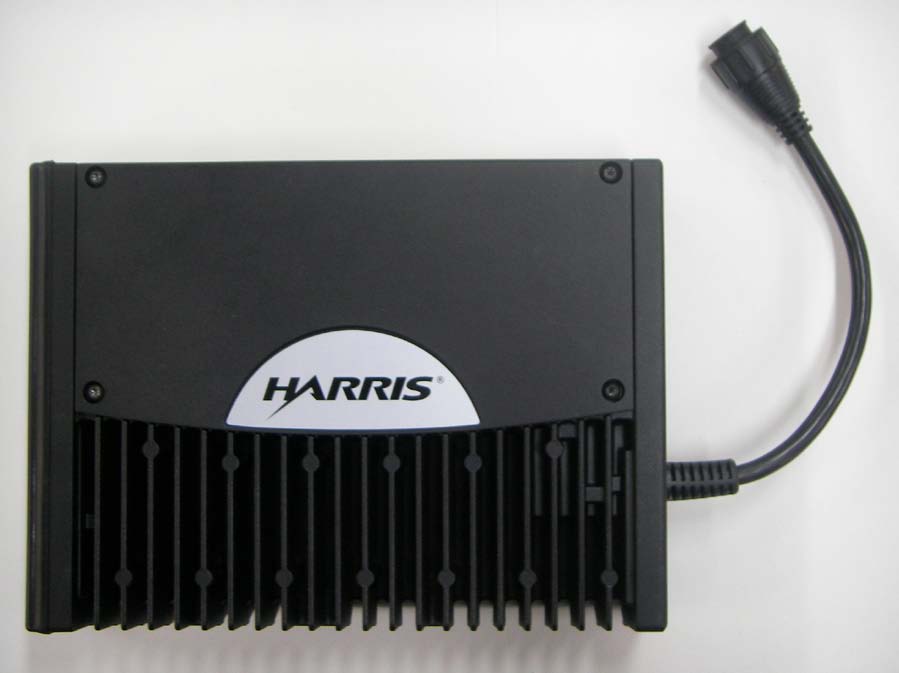

Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 77 of 88 Appendix N: External Photographs Photograph 7: Front View Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 78 of 88 Photograph 8: Top View Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 79 of 88 Photograph 9: Rear View Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 80 of 88 Photograph 10: Bottom View

Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 67 of 88 Appendix F: Label Information Photograph 1: FCC ID Label Sample, with RF Statement Photograph 2: Part 15.19 Label Sample Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 68 of 88 Photograph 3: ID Label Location Photograph 4: Part 15.19 Label Location

Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 81 of 88 Appendix O: Internal Photographs Photograph 11: Top View without Cover Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 82 of 88 Photograph 12: Bottom View without Cover Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 83 of 88 Photograph 13: Bottom Cover and Shield Removed Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 84 of 88 Photograph 14: Bottom Cover and Shields Removed Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 85 of 88 Photograph 15: RF Processor Board - Component Side Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 86 of 88 Photograph 16: RF Processor Board – Solder Side Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 87 of 88 Photograph 17: PK Board – Component Side Rhein Tech Laboratories, Inc. Client: Harris Corp. 360 Herndon Parkway Model: M7300/M5300 Mobile Radio Suite 1400 FCC ID: OWDTR-0060-E Herndon, VA 20170 Standard: FCC Part 90 http://www.rheintech.com Report #: 2010092 88 of 88 Photograph 18: PK Board – Solder Side

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Telephone: 703-689-0368 Fax: 703-689-2056 RF Maximum Permissible Exposure (MPE) Report for Controlled and Uncontrolled Environments Harris Corporation 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Daryl Popowitch Phone: (434) 455-9527 Model: M7300/M5300 700/800 MHz Mobile Radio FCC ID: OWDTR-0060-E July 21, 2010 Report Prepared by: Richard B. McMurray, P.E. Document Number: 2010092MPE R1.1 This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Harris Corporation. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway, Suite 1400 Model: M7300/M5300 700/800 MHz Herndon, VA 20170 ID: OWDTR-0060-E http://www.rheintech.com Report #: 2010092MPE Page 2 of 11 Table of Contents 1 MPE Measurements and Applicable Regulations ............................................................................ 3 2 Identification of the EUT ..................................................................................................................... 4 3 Modifications ........................................................................................................................................ 5 4 Test Laboratory .................................................................................................................................... 5 5 Test Dates ............................................................................................................................................. 5 6 Antenna Information ............................................................................................................................ 5 7 Test Equipment, Accessories and Test Setup .................................................................................. 6 8 Justification of Transmitting Mode and Frequency ......................................................................... 7 9 MPE Limits for the EUT ....................................................................................................................... 7 10 Calculating the Safe Distance from the EUT’s Antenna .................................................................. 8 11 Standard Test Conditions and Engineering Practices ..................................................................... 8 12 Measurement Procedure .........................................................…

Text truncated - open the document above for the full version.
