OWDTR-0062-EM7300 440-512MHz 50W

Installation and Product Safety Manual MM-014763-001 Rev. G, Sep/10 M7300 Series Mobile Radios M7300 (700/800 MHz) M7300 VHF 50-Watt M7300 440 to 512 MHz 50-Watt Front and Remote-Mount Mobile Radios Includes CH-721 Scan and System Control Heads and HHC-731 Hand-Held Controller MM-014763-001, Rev. G 2 MANUAL REVISION HISTORY REV. DATE REASON FOR CHANGE F Jun/10 Revised introduction, antenna part numbers and antenna installation procedures, specifications, catalog and part number tables, and cable installation procedures. Added HHC-731 hand-held controller. G Sep/10 Revised antenna part numbers and the respective MPE distance data. Added 44 0 to 512 MHz (high-split UHF) radio. Harris Corporation, Public Safety and Professional Communications (PSPC) Business, continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e-mail us at: PSPC _ TechPubs @ harris.com 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENT This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS Harris, assuredcommunications, OpenSky and EDACS are registered trademarks of and ProVoice is a trademark of Harris Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. Bird is a registered trademark of Bird Electronic Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. SmartSiren is a registered trademark of Federal Signal Corporation. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99 in accordance with U.S. Dept. of Commence regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2008, 2009, 2010, Harris Corporation MM-014763-001, Rev. G 3 TABLE OF CONTENTS Section Page 1 REGULATORY AND SAFETY INFORMATION .................................................................................... 7 1.1 SAFETY SYMBOL CONVENTIONS ................................................................................................. 7 1.2 RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION FOR FCC OCCUPATIONAL USE REQUIREMENTS........................................................................................ 7 1.2.1 Federal Communications Commission Regulations ............................................................... 8 1.3 COMPLIANCE WITH RF EXPOSURE STANDARDS ...................................................................... 8 1.3.1 Mobile Antennas .................................................................................................................. 13 1.3.2 Approved Accessories .......................................................................................................... 14 1.3.3 Contact Information .............................................................................................................. 14 1.4 OCCUPATIONAL SAFETY GUIDELINES AND SAFETY TRAINING INFORMATION ........... 14 1.5 COMMON HAZARDS ...................................................................................................................... 14 1.6 SAFE DRIVING RECOMMENDATIONS ........................................................................................ 15 1.7 OPERATING …

Text truncated - open the document above for the full version.

Operator’s Manual MM-014716-001 Rev. E, Sep/10 M7300 Series Mobile Radios MM-014716-001, Rev. E 2 MANUAL REVISION HISTORY REV DATE REASON FOR CHANGE - Jun/08 Initial Release. A Sep/08 Added quick buttons, error messages, keypad lock/unlock, client mode, new CH721 key maps, updated keypad commands, updated status call and status alert messages. B Mar/09 Updated Table 8-2 and updated CH721 graphic to remove M/A-COM. C Sep/09 Added new antennas to Table 2-1, added VHF MPE distances, added “Enable/Disable Volume Side Tone,” updated to Harris format. D Apr/10 Added keypad lock/unlock instructions for ECP, added REGISTER and BND SCAN to P25T status messages. E Sep/10 Updated antenna information. Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e-mail us at: PSPC _ TechPubs @ harris.com 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENT This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; ; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS EDACS, OpenSky, Harris, and assuredcommunications are registered trademarks of Harris Corporation. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. NOTICE ! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commence regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Division, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2008-2010 Harris Corporation. MM-014716-001, Rev. E 3 TABLE OF CONTENTS Page 1 SAFETY SYMBOL CONVENTION .................................................................................................... 9 2 RF ENERGY EXPOSURE INFORMATION ................................................................................... 10 2.1 RF ENERGY EXPOSURE AWARENESS, CONTROL INFORMATION, AND OPERATION INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS .............................. 10 2.1.1 Federal Communications Commission Regulations ...................................................... 10 2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS ........................................................... 11 2.2.1 Mobile Antennas (Vehicle Installations) ....................................................................... 11 2.2.2 Mobile Antennas (Motorcycle Installations) ................................................................. 15 2.2.3 Approved Accessories ................................................................................................... 15 2.2.4 Contact Information ....................................................................................................... 16 3 OPERATION SAFETY RECOMMENDATIONS ............................................................................ 17 3.1 TRANSMITTER HAZARDS ..................................................................................................... 17 3.2 SAFE DRIVING RECOMMENDATIONS ................................................................................ 17 4 OPERATING RULES AND REGULATIONS .................................................................................. 18 4.1 OPERATING TIPS ..................................................................................................................... 18 5 PRODUCT DESCRIPTION ................................................................................................................ 19 5.1 CH721 CONTROL HEADS ....................................................................................................... 19 5.2 INTERCOM OPERATION ...................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 104 of 130 Appendix C: FCC Confidentiality Request Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com September 9, 2010 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0062-E Original Grant CONFIDENTIALITY Harris wishes to submit this confidentiality letter for the record on FCC ID: OWDTR- 0062-E, M7300 UHF-H mobile radio. Harris is requesting that parts lists, schematics, block diagrams, tune up procedure, and operational descriptions for this application not be made routinely available for public inspection. Harris considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Daryl Popowitch Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 103 of 130 Appendix B: Agency Authorization Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 September 9, 2010 Subject: FCC ID: OWDTR-0062-E Original Grant The following organization is granted authority to act on Harris’ behalf, to file documentation for Harris equipment with FCC ID: OWDTR-0062-E, M7300 UHF-H mobile radio, as it applies to an original Grant. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Harris certifies that it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager

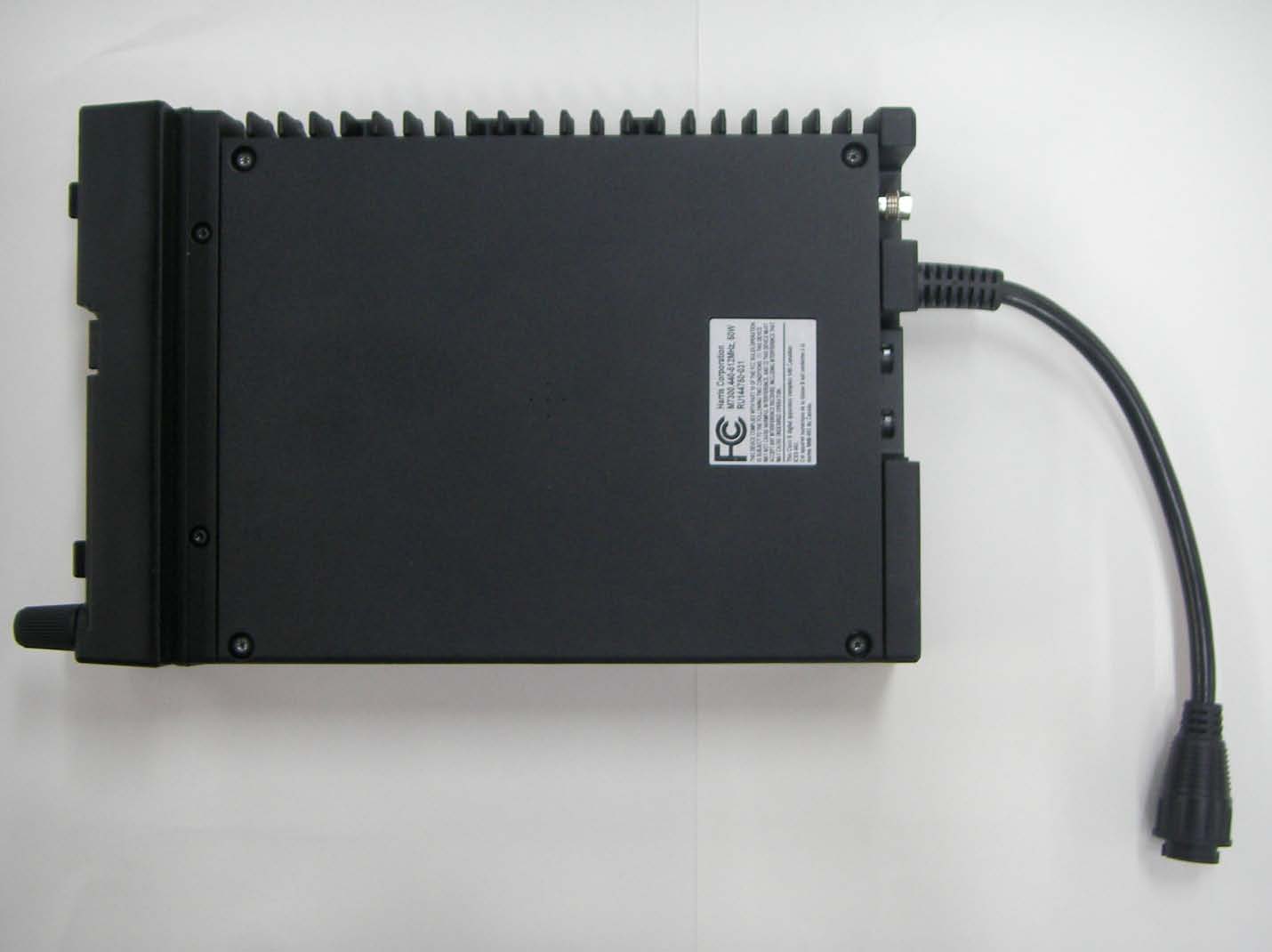

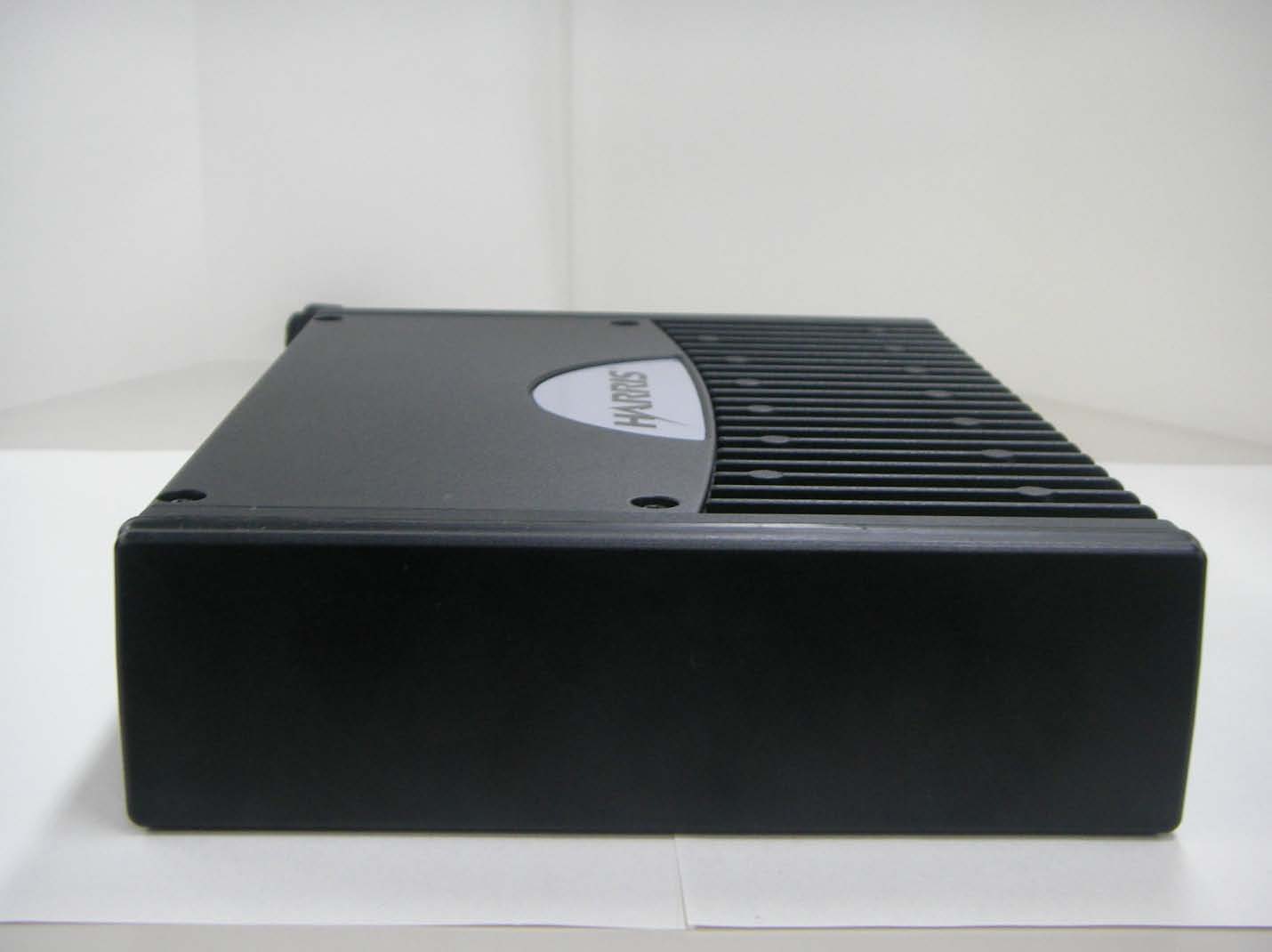

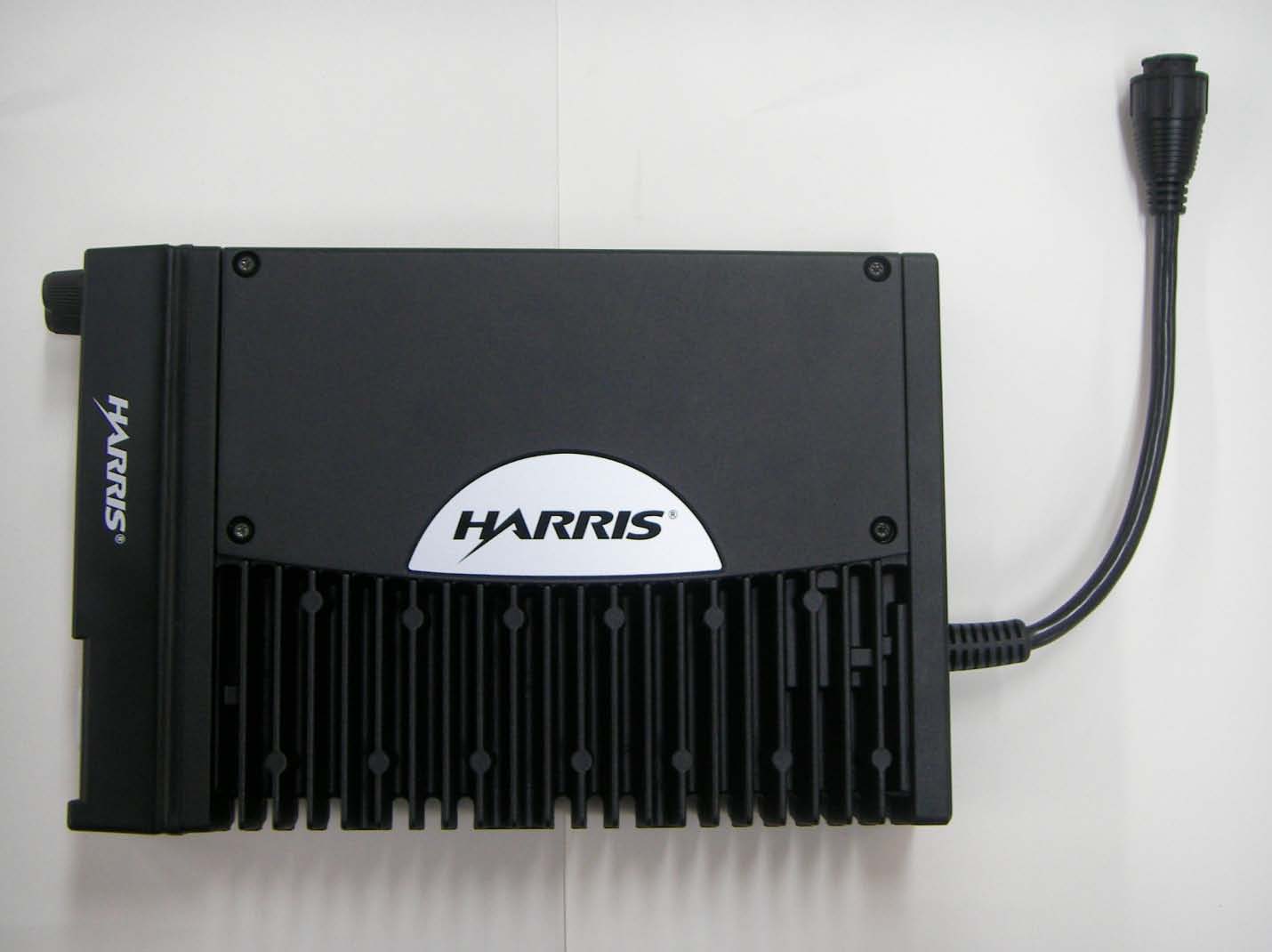

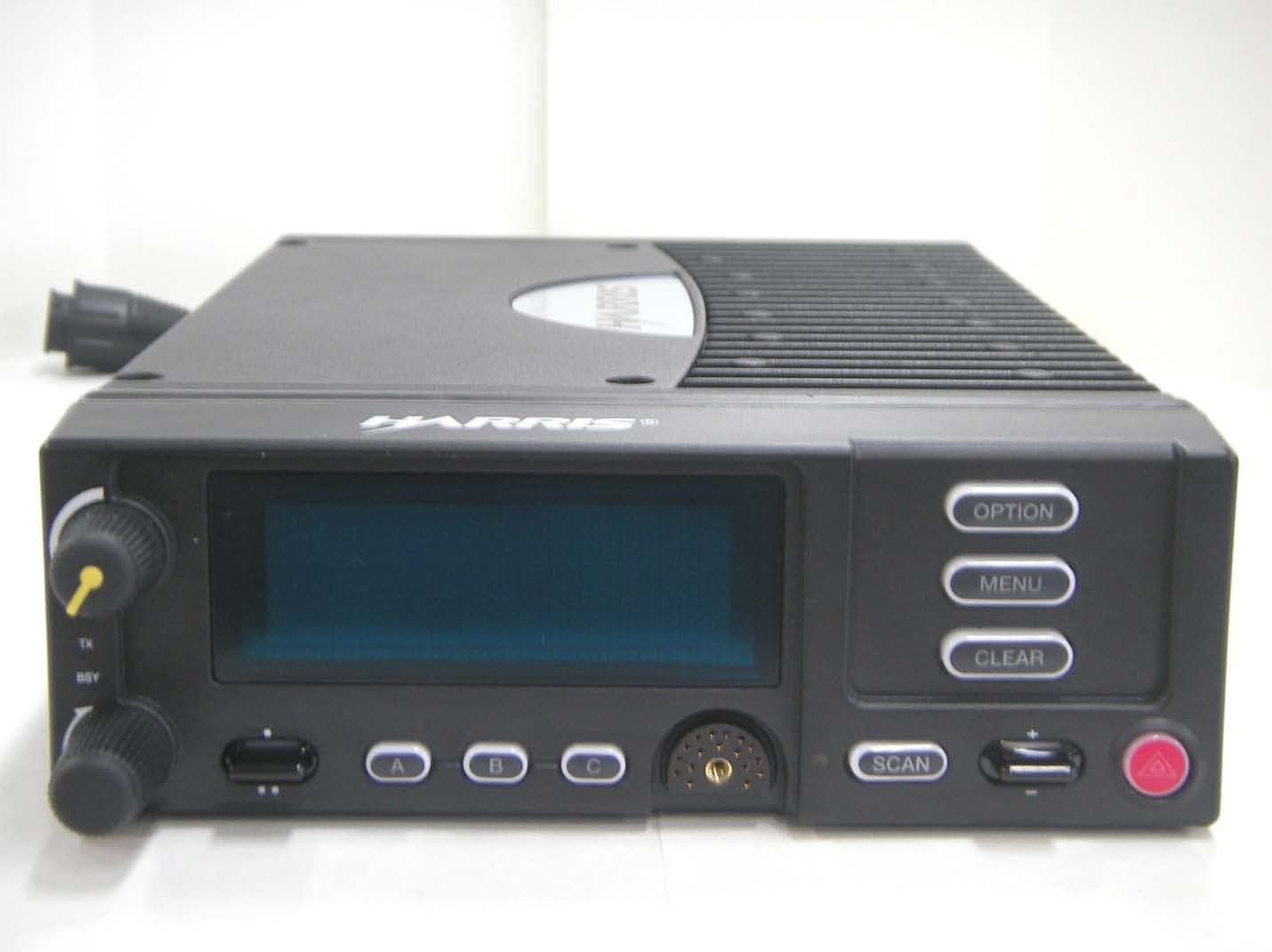

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 117 of 130 Appendix N: External Photographs Photograph 6: HB Local – Front View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 118 of 130 Photograph 7: HB Local – Rear View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 119 of 130 Photograph 8: HB Local – Top View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 120 of 130 Photograph 9: HB Local – Bottom View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 121 of 130 Photograph 10: HB Local – Left View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 122 of 130 Photograph 11: HB Local – Right View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 123 of 130 Photograph 12: HB Remote – Front View

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 107 of 130 Appendix F: Label Information Photograph 1: FCC & IC ID Label Sample with RF Statement Photograph 2: Part 15.19 Label Sample Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 108 of 130 Photograph 3: ID Label and RF Label Statement Location on Side

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 124 of 130 Appendix O: Internal Photographs Photograph 13: HB – Top Cover Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 125 of 130 Photograph 14: HB Bottom Cover Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 126 of 130 Photograph 15: HB Bottom Cover and Shield Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 127 of 130 Photograph 16: HB RF Processor Board Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 128 of 130 Photograph 17: HB RF Processor Board Solder Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 129 of 130 Photograph 18: HB PK Board Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 130 of 130 Photograph 19: HB PK Board Solder Side

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 102 of 130 Appendix A: FCC Part 1.1307, 1.1310, 2.1091, 2.1093: RF Exposure Please refer to the MPE Report that follows. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Mobile Radio MPE Evaluation Report FCC Rule Part: 47 CFR §90; §2.1091; §1.1310 Device Classification: Licensed Non-Broadcast Station Transmitter (TNB) Device Type: Mobile UHF Transceiver with Vehicle Rooftop Antenna FCC ID: OWDTR-0062-E Model Name: M7300 UHF-H mobile radio Modulation: FM Tx Frequency Range: 440 – 512 MHz Max. RF Conducted Power: 50 W (nominal/rated, times 1.2; § 90.205(r)) Power Supply: 13.6 VDC Antenna Type: AN-225004-001 and -004, AN-102800V1; vertical vehicle rooftop antenna. Antenna Gain: 2.15 dbi Minimum Antenna Distance: 51 cm Limits for Occupational/Controlled Exposure. 114 cm Limits for General Population/Uncontrolled Exposure. Calculation S = therefore: R = √ Where: S – power density (mW/cm 2 ; as defined in 47 CFR § 1.1310), P – power input to antenna at 50% duty cycle (in mW), G – power gain of the antenna relative to isotropic (numeric value, not db), R – distance to center of antenna (result in cm). S = 1.5/.3 (Controlled(f/300)/Uncontrolled(f/1500)) at Tx frequency 450 MHz (frequency when applicable). Calculated controlled distance: 51.10 cm Calculated uncontrolled distance: 114.26 cm Daryl Popowitch Regulatory Manager PG 4πS PG 4πR 2

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 FCC & IC Certification Report Harris Corporation 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Daryl Popowitch Phone: (434) 455-9527 MODEL: M7300 440-512MHz 50W Mobile Radio FCC ID: OWDTR-0062-E IC: 3636B-0062 September 15, 2010 Standards Referenced for this Report Part 2: 2009 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Part 90: 2009 Private Land Mobile Radio Services TIA-EIA-603-C August 2004 Land Mobile FM or PM Communications Equipment – Measurement and Performance Standards ANSI/TIA/EIA – 102.CAAA-2002 Digital C4FM/CQPSK Transceiver Measurement Methods ANSI/TIA/EIA– 102.BAAA–1998 Project 25 FDMA Common Air Interface—New Technology Standards Project— Digital Radio Technical Standards RSS-119 Issue 10 2010 Land Mobile and Fixed Radio Transmitters and Receivers 27.41 to 960.0 MHz Report Prepared By: Daniel Baltzell Document Number: 2010130 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Harris Corporation. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 2 of 130 Frequency Range (MHz) * Manufacturer’s Rated Power (W) Frequency Tolerance (ppm) Emission Designator 440-512 50 0.5 16K0F3E 440-512 50 0.5 11K0F3E 440-512 50 0.5 14K2F1D (2 level WB) 440-512 50 0.5 14K2F1E (2 level WB) 440-512 50 0.5 9K90F1D (2 level NB 9600) 440-512 50 0.5 9K90F1E (2 level NB 9600) 440-512 50 0.5 7K10F1D (2 level NB 4800) 440-512 50 0.5 7K10F1E (2 level NB 4800) 440-512 50 0.5 13K1F9W (OpenSky TDMA) 440-512 50 0.5 8K40F1D (OpenSky TDMA) 440-512 50 0.5 8K40F1E (OpenSky TDMA) 440-512 50 0.5 8K40F1D (P25) 440-512 50 0.5 8K40F1E (P25) * 450-470 MHz only for Canada Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 3 of 130 Table of Contents 1 Test Result Summary ................................................................................................................................... 7 2 General Information ...................................................................................................................................... 7 2.1 Test Facility ..................................................................................................................................................................................... 7 2.2 Related Submittal(s)/Grant(s) ......................................................................................................................................................... 7 2.3 Grant Notes .................................................................................................................................................................................... 7 3 Tested System Details .................................................................................................................................. 8 4 FCC Rules and Regulations Part 2.1033(C)(8) Voltages and Currents Through The Final Amplifying Stage .................................................................................................................................................................... 9 5 FCC Rules and Regulations Part 2.1046(a): RF Power Output: Conducted, Part 90.205 Transmitting Power Limits, RSS-119 5.4: Transmitter Output Power ................................................................................... 10 5.1 Test Procedure ............................................................................................................................................................................. 10 5.2 Test Data ...................................................................................................................................................................................... 10 6 FCC Rules and Regulations Part 2.1051: Spurious Emissions at Antenna Terminals; Part 90.210: Emission Limitations, RSS-119 5.8: Transmitter Unwanted Emissions ........................................................... 11 6.1 Test Procedure ............................................................................................................................................................................. 11 6.2 Test Data ...................................................................................................................................................................................... 11 7 FCC Rules and Regulations Part 2.1053(a): Field Strength of Spurious Radiation; Part 90 90.210 Out of Band Emissions Limit; RSS-119 5.8: Unwanted Emissions ............................................................................. 15 7.1 Test Procedure ............................................................................................................................................................................. 15 7.2 Test Data ...................................................................................................................................................................................... 15 7.2.1 CFR 47 Part 90.210 Requirements .................................................................................................................................... 15 8 FCC Rules and Regulations Part 2.1049(c)(1): Occupied Bandwidth; Part 90…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 115 of 130 Appendix M: Test Configuration Photographs Photograph 4: Radiated Emissions – Front View MOUSE MOUSE Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: M7300 440-512MHz 50W Mobile Radio Suite 1400 IDs: OWDTR-0062-E/3636B-0062 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2010130 116 of 130 Photograph 5: Radiated Emissions – Back View
