OWDTR-0066-E800 MHz P5500, 800 MHz P5300

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 50 of 65 Appendix M: Manual Please refer to the following pages for the Operators Manual and the Safety Manual. Operator’s Manual 14221-1400-2000 Jul/11 P5500 Series Portable Radio 14221-1400-2000 2 REV DATE REASON FOR REVISION - Jul/11 Initial release. Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e-mail us at: PSPC _ TechPubs @ harris.com 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENTS The software contained in this device is copyrighted by Harris Corporation Unpublished rights are reserved under the copyright laws of the United States. This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; ; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS! Harris Corporation, assuredcommunications, EDACS, VIDA, and OpenSky are registered trademarks and ProScan and Failsoft are trademarks of Harris Corporation. RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. TORX is a registered trademark of CAMCAR division of TEXTRON, Inc. All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. This manual covers Harris Corporation products manufactured and sold by Harris Corporation. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Changes or modifications not expressly approved by Harris Corporation could void the user’s authority to operate the equipment. This manual is published by Harris Corporation, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation, at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2011 Harris Corporation. All rights reserved. 14221-1400-2000 3 TABLE OF CONTENTS Page 1. SAFETY CONVENTIONS .................................................................................................................................... 8 2. SAFETY TRAINING INFORMATION .............................................................................................................. 9 2.1 RF EXPOSURE GUIDELINES .................................................................................................................. 9 2.2 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY .............................................................. 10 2.3 REGULATORY APPROVALS ................................................................................................................ 10 2.3.1 Part 15 ......................................................................................................................................... 10 2.3.2 Industry Canada .......................................................................................................................... 10 3. OPERATING TIPS .............................................................................................................................................. 11 3.1 EFFICIENT RADIO OPERATION .......................................................................................................... 11 3.1.1 Antenna Care and Replacement .................................................................................................. 11 3.1.2 Electronic Devices .........................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 38 of 65 Appendix C: FCC Confidentiality Request Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com July 28, 2011 ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0066-E Original Grant CONFIDENTIALITY Harris wishes to submit this confidentiality letter for the record on FCC ID: OWDTR- 0066-E, P5500 800 MHz portable radio. Harris is requesting that parts lists, schematics, block diagrams, tune up procedure, and operational descriptions for this application not be made routinely available for public inspection. Harris considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Daryl Popowitch Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 37 of 65 Appendix B: Agency Authorization Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 July 28, 2011 Subject: FCC ID: OWDTR-0066-E Original Grant The following organization is granted authority to act on Harris’ behalf, to file documentation for Harris equipment with FCC ID: OWDTR-0066-E, P5500 800 MHz portable radio, as it applies to an original Grant. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Harris certifies that it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager

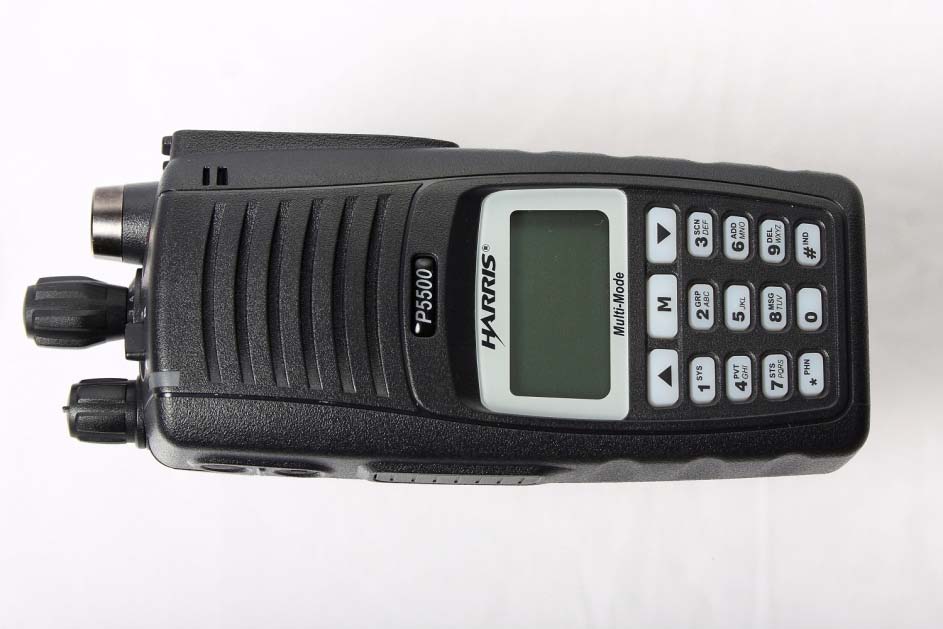

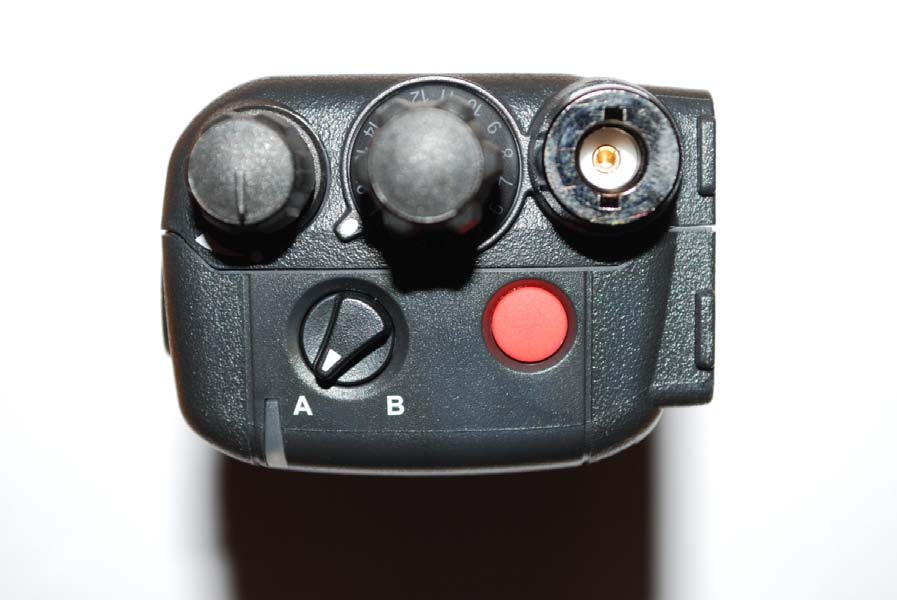

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 53 of 65 Appendix O: External Photographs Photograph 6 : Front Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 54 of 65 Photograph 7 : Top Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 55 of 65 Photograph 8 : Back Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 56 of 65 Photograph 9 : Side 1 Photograph 10 : Side 2

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 47 of 71 Appendix G: Label Information Photograph 1 : ID Label Sample – Model P5570 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 48 of 71 Photograph 2: Label with RF Statement Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 49 of 71 Photograph 3 : ID Label Location Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 50 of 71 Photograph 4 : ID Labels for Model Numbers EX55-PF78B, EX55-PB78B, EX53-PF78B, EX53-PB78B

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 57 of 65 Appendix P: Internal Photographs Photograph 11 : Inside Front Cover Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 58 of 65 Photograph 12 : Rear Casting Assembly Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 59 of 65 Photograph 13 : RF Shield Side 1 Photograph 14: RF Shield Side 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 60 of 65 Photograph 15 : Main PWB in Unit Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 61 of 65 Photograph 16 : Main PWB Side 1 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 62 of 65 Photograph 17 : Main PWB Side 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 63 of 65 Photograph 18 : Interface PWB in Unit Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 64 of 65 Photograph 19 : Interface PWB Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 800 MHz Radio Suite 1400 ID’s: OWDTR-0066-E/3636B-0066 Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report #: 2011067 65 of 65 Photograph 20 : Interface PWB LCD Side

Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION (FCC/IC) Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) A2LA ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Name HARRIS CORPORATION Applicant Information Address 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 U.S.A. Standard(s) Applied FCC 47 CFR §2.1093 ICHealth Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCCKDB 447498 D01v04 FCC KDB 643646 D01v01r01 (SAR Test Reduction Considerations for Occ. PTT Radios) Procedure(s) Applied IC RSS-102 Issue 4 IEEE1528-2003 IEC62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 FCC ID: OWDTR-0066-E Application Type FCC TCB Certification Device Identifier(s) IC 3636B-0066 Application Type IC CB Certification Date of Sample Receipt July 04, 2011 Dates of EvaluationJuly 05-08, 11-12, 2011 Device Description Portable 800-Band Digital Push-To-Talk (PTT) Radio Transceiver 800 MHz P5500 (SYSTEM version) P/N: RU-123550-006 Device Model(s) 800 MHz P5300 (SYSTEM version) P/N: RU-123550-008 (color difference only) Device Model(s) TestedP5500 (SYSTEM version) S/N: Re-8T-004 (Identical Prototype) Test Sample Revision No.s Hardware TMS-1 Firmware R14B01 Transmit Frequency Range(s) FCC/IC 806-824 MHz 851-869 MHz Manufacturer’s Rated Output Power 3 Watts Nominal (Conducted) Upper Tolerance Spec. + 0.23 Watts (1) 1/4-wave Whip P/N: KRE 101 1223/01 Gain Spec.: 0 dBi Length: 100mm (2) High-Gain P/N: KRE 101 506/1 Gain Spec.: 2.5 dBi Length: 175mm Antenna Type(s) Tested (3) ¼-wave Whip P/N: KRE 101 506/2 Gain Spec.: 0 dBi Length: 83mm Ni-MH Immersible, non-IS 7.5V, 2400 mAh BT-023406-003 Ni-MH Immersible, <IS> 7.5V, 2400 mAh BT-023406-004 Battery Type(s) Tested Li-Ion Immersible, non-IS 7.4V, 2000 mAh BT-023406-005 Body-worn Accessories Tested See manufacturer’s accessory listing (Section 7.0) Audio Accessories Tested See manufacturer’s accessory listing (Section 7.0) Face-held 2.42 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. Max. SAR Level(s) Evaluated Body-worn 4.00 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved BySean JohnstonLab ManagerCelltech Labs Inc. Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION __________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENTS ___________________________________ 4 4.0 FCC POWER THRESHOLDS FOR PTT DEVICES (F< 0.5 GHZ) ____________________________ 5 5.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ___________________________ 5 6.0 NO. OF TEST CHANNELS (N C )_______________________________________________________ 5 7.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING _________________________________ 6 8.0 FLUID DIELECTRIC PARAMETERS___________________________________________________ 8 FLUID DIELECTRIC PARAMETERS (CONT.) _______________________________________________ 9 FLUID DIELECTRIC PARAMETERS (CONT.) ______________________________________________ 10 FLUID DIELECTRIC PARAMETERS (CONT.) ______________________________________________ 11 FLUID DIELECTRIC PARAMETERS (CONT.) ______________________________________________ 12 FLUID DIELECTRIC PARAMETERS (CONT.) ______________________________________________ 13 9.0 TEST PROCEDURES APPLIED PER FCC KDB 643646 ____…

Text truncated - open the document above for the full version.

Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 45 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX A - SAR MEASUREMENT DATA Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 46 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face SAR Plot #1 (F1) Date Tested: 07/05/2011 DUT: Harris P5500 (800); Type: Portable 800-Band PTT Radio Transceiver; Serial: Re-8T-004 Ambient Temp: 24.0ºC; Fluid Temp: 23.2ºC; Barometric Pressure: 101.1 kPa; Humidity: 29% Communication System: CW Frequency: 823.9875 MHz; Duty Cycle: 1:1 Medium: HSL835 Medium parameters used (interpolated): f = 824 MHz; ı = 0.888 mho/m; İ r = 43; ȡ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(6.5, 6.5, 6.5); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Side Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Face-held SAR - 2.5 cm Spacing from Front of DUT to Planar Phantom Area Scan (7x24x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.08 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.2 V/m; Power Drift = -0.134 dB Peak SAR (extrapolated) = 4.65 W/kg SAR(1 g) = 3.82 mW/g; SAR(10 g) = 2.86 mW/g Maximum value of SAR (measured) = 4.05 mW/g Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 47 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face SAR Plot #2 (F2) Date Tested: 07/05/2011 DUT: Harris P5500 (800); Type: Portable 800-Band PTT Radio Transceiver; Serial: Re-8T-004 Ambient Temp: 24.0ºC; Fluid Temp: 23.2ºC; Barometric Pressure: 101.1 kPa; Humidity: 29% Communication System: CW Frequency: 868.9875 MHz; Duty Cycle: 1:1 Medium: HSL835 Medium parameters used (interpolated): f = 869 MHz; ı = 0.92 mho/m; İ r = 42.5; ȡ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(6.5, 6.5, 6.5); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Side Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Face-held SAR - 2.5 cm Spacing from Front of DUT to Planar Phantom Area Scan (7x24x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.67 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.8 V/m; Power Drift = 0.062 dB Peak SAR (extrapolated) = 4.29 W/kg SAR(1 g) = 3.43 mW/g; SAR(10 g) = 2.54 mW/g Maximum value of SAR (measured) = 3.63 mW/g Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 48 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face SAR Plot #3 (F3) Date Tested: 07/05/2011 DUT: Harris P5500 (800); Type: Portable 800-Band PTT Radio Transceiver; Serial: Re-8T-004 Ambient Temp: 24.0ºC; Fluid Temp: 23.2ºC; Barometric Pressure: 101.1 kPa; Humidity: 29% Communication System: CW Frequency: 823.9875 MHz; Duty Cycle: 1:1 Medium: HSL835 Medium parameters used (interpolated): f = 824 MHz; ı = 0.888 mho/m; İ r = 43; ȡ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(6.5, 6.5, 6.5); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Side Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Face-held SAR - 2.5 cm Spacing from Front of DUT to Planar Phantom Area Scan (7x24x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.66 mW/g Face - P5500 System - 824MHz - NiMH NIS - 506/1 Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.90 V/m; Power Drift = -0.189 dB Peak SAR (extrapolated) = 1.99 W/kg SAR(1 g) = 1.60 mW/g; SAR(10 g) = 1.19 mW/g Maximum value of SAR (measured) = 1.69 mW/g Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 8…

Text truncated - open the document above for the full version.

Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 83 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body SAR Plot #18 (B18) Date Tested: 07/07/2011 DUT: Harris P5500 (800); Type: Portable 800-Band PTT Radio Transceiver; Serial: Re-8T-004 Ambient Temp: 24.0ºC; Fluid Temp: 23.8|&; Barometric Pressure: 101.1 kPa; Humidity: 33% Communication System: CW Frequency: 868.9875 MHz; Duty Cycle: 1:1 Medium: M835 Medium parameters used (interpolated): f = 869 MHz; ı = 0.984 mho/m; İ r = 53.8; ȡ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(6.37, 6.37, 6.37); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Barski Industries; Type: Fiberglas Planar; Serial: 03-01 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Body-worn SAR - 3.0 cm Belt-Loop Spacing from Back of DUT to Planar Phantom Area Scan (6x18x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 1.88 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36.8 V/m; Power Drift = -0.549 dB Peak SAR (extrapolated) = 2.26 W/kg SAR(1 g) = 1.79 mW/g; SAR(10 g) = 1.32 mW/g Maximum value of SAR (measured) = 1.91 mW/g Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 84 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body SAR Plot #19 (B19) Date Tested: 07/06/2011 DUT: Harris P5500 (800); Type: Portable 800-Band PTT Radio Transceiver; Serial: Re-8T-004 Ambient Temp: 24.0ºC; Fluid Temp: 22.2|&; Barometric Pressure: 101.1 kPa; Humidity: 31% Communication System: CW Frequency: 823.9875 MHz; Duty Cycle: 1:1 Medium: M835 Medium parameters used (interpolated): f = 824 MHz; ı = 0.938 mho/m; İ r = 53.9; ȡ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(6.37, 6.37, 6.37); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Barski Industries; Type: Fiberglas Planar; Serial: 03-01 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Body-worn SAR - 3.0 cm Belt-Loop Spacing from Back of DUT to Planar Phantom Area Scan (6x18x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 1.96 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = -0.088 dB Peak SAR (extrapolated) = 2.25 W/kg SAR(1 g) = 1.84 mW/g; SAR(10 g) = 1.39 mW/g Maximum value of SAR (measured) = 1.94 mW/g Applicant: HARRIS Corporation FCC ID: OWDTR-0066-E IC: 3636B-0066 DUT Type: Portable 800-Band PTT Radio Transceiver Model: P5500 (800) 806-824 / 851-869 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 85 of 242 Date(s) of Evaluation July 05-08, 11-12, 2011 Test Report Serial No. 070411OW D-T1108-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date October 05, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body SAR Plot #20 (B20) Date Tested: 07/07/2011 DUT: Harris P5500 (800); Type: Portable 800-Band PTT Radio Transceiver; Serial: Re-8T-004 Ambient Temp: 24.0ºC; Fluid Temp: 23.8|&; Barometric Pressure: 101.1 kPa; Humidity: 33% Communication System: CW Frequency: 868.9875 MHz; Duty Cycle: 1:1 Medium: M835 Medium parameters used (interpolated): f = 869 MHz; ı = 0.984 mho/m; İ r = 53.8; ȡ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(6.37, 6.37, 6.37); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection - Electronics: DAE4 Sn353; Calibrated: 27/04/2…
