OWDTR-0067-EP5500 VHF

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 84 of 98 Appendix M: Manual Please refer to the following pages. Operator’s Manual 14221-1400-2000 Sep/11 P5500 Series Portable Radio 14221-1400-2000 2 REV DATE REASON FOR REVISION - Sep/11 Initial release. Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e-mail us at: PSPC _ TechPubs @ harris.com 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENTS The software contained in this device is copyrighted by Harris Corporation Unpublished rights are reserved under the copyright laws of the United States. This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; ; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS! Harris Corporation, assuredcommunications, EDACS, VIDA, and OpenSky are registered trademarks and ProScan and Failsoft are trademarks of Harris Corporation. RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. TORX is a registered trademark of CAMCAR division of TEXTRON, Inc. All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. This manual covers Harris Corporation products manufactured and sold by Harris Corporation. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Changes or modifications not expressly approved by Harris Corporation could void the user’s authority to operate the equipment. This manual is published by Harris Corporation, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation, at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2011 Harris Corporation. All rights reserved. 14221-1400-2000 3 TABLE OF CONTENTS Page 1. SAFETY CONVENTIONS .................................................................................................................................... 8 2. SAFETY TRAINING INFORMATION .............................................................................................................. 9 2.1 RF EXPOSURE GUIDELINES .................................................................................................................. 9 2.2 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY .............................................................. 10 2.3 REGULATORY APPROVALS ................................................................................................................ 10 2.3.1 Part 15 ......................................................................................................................................... 10 2.3.2 Industry Canada .......................................................................................................................... 11 3. OPERATING TIPS .............................................................................................................................................. 12 3.1 EFFICIENT RADIO OPERATION .......................................................................................................... 12 3.1.1 Antenna Care and Replacement .................................................................................................. 12 3.1.2 Electronic Devices ................................................................................................…

Text truncated - open the document above for the full version.

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL ATTESTATION Unity Extended Frequency Range – Contiguous Frequency Listing Device is for use in Public Safety Part 90 and Part 80 bands. Additionally, Federal end users are intended. The frequency bands are: 136 – 174 MHz Part 2.106 has been used to construct the following table of frequency range capability intended for end users. Harris Corporation acknowledges that operation on unauthorized frequencies is a violation of FCC rules. Harris Corporation acknowledges the inclusion of Grant note code “EF”. End users are not able to directly configure transmit frequencies and there are no end user controls available for such. Device configuration is the responsibility of Harris Corporation and its approved Service personnel. Frequency(MHz) Part 90 Part 80 Federal 136.0000-150.0000 X 150.0000-150.8000 X 150.8000-152.8550 X 152.8550-154.0000 X 154.0000-156.2475 X X 156.2475-157.0375 X X 157.0375-157.4500 X X 157.4500-161.5750 X 161.5750-161.6250 X 161.7750-162.0125 X 162.0125-173.2000 X 173.2000-173.4000 X 173.4000-174.0000 X

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 70 of 98 Appendix B: Agency Authorization Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 November 29, 2011 Subject: FCC ID: OWDTR-0067-E Original Grant The following organization is granted authority to act on Harris’ behalf, to file documentation for Harris equipment with FCC ID: OWDTR-0067-E, P5500 VHF portable radio, as it applies to an original Grant. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Harris certifies that it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 71 of 98 Appendix C: FCC Confidentiality Request Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com November 29, 2011 ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0067-E Original Grant CONFIDENTIALITY Harris wishes to submit this confidentiality letter for the record on FCC ID: OWDTR- 0067-E, P5500 VHF portable radio. Harris is requesting that parts lists, schematics, block diagrams, tune up procedure, and operational descriptions for this application not be made routinely available for public inspection. Harris considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Daryl Popowitch Regulatory Manager

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com November 29, 2011 ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0067-E IC: 3636B-0067 Harris seeks application approval for an original Grant and IC Technical Acceptance Certificate for the P5500 VHF portable radio family. Test reports, along with Operator manual, parts lists, schematics, block diagrams, tune up procedure, internal/external photos, label photo, and operational descriptions are included as exhibits. Thank you for your kind consideration and timely review of this new product. Sincerely, Daryl Popowitch Regulatory Manager

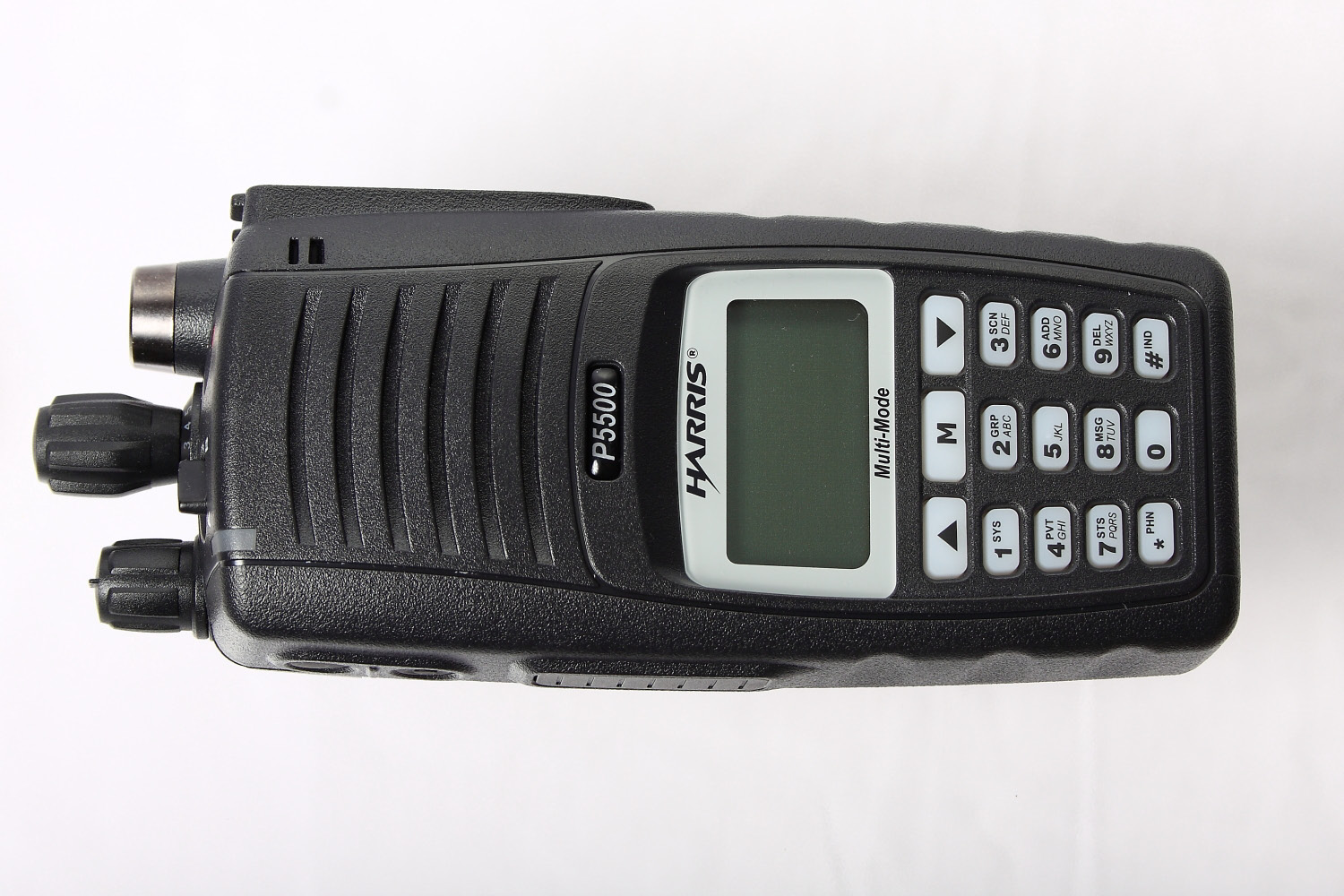

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 87 of 98 Appendix O: External Photographs Photograph 7: Front View – System Version Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 88 of 98 Photograph 8: Back View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 89 of 98 Photograph 9: PTT Side Photograph 10: UDC Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 90 of 98 Photograph 11: Top View

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 75 of 98 Appendix G: Label Information Photograph 1: ID Label Sample – System Version Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 76 of 98 Photograph 2: ID Label Sample – Scan Version Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 77 of 98 Photograph 3: ID Label Location and RF Safety Label Location Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 78 of 98 Photograph 4: RF Safety Label Location

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 91 of 98 Appendix P: Internal Photographs Photograph 12: Inside Front Cover Photograph 13: Rear Casting Assembly Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 92 of 98 Photograph 14: RF Shield – Side 1 Photograph 15: RF Shield – Side 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 93 of 98 Photograph 16: Main PWB – Front Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 94 of 98 Photograph 17: Main PWB – Back Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 95 of 98 Photograph 18: Main PWB on Casting Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 96 of 98 Photograph 19: Interface PWB in Unit Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 97 of 98 Photograph 20: Interface PWB – Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: P5500 VHF Suite 1400 IDs: OWDTR-0067-E/3636B-0067 Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119 http://www.rheintech.com Report #: 2011135 98 of 98 Photograph 21: Interface PWB LCD Side

Date(s) of Evaluation October 04-17, 2011 Test Report Serial No. 090211OWD-T1114-S90V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date November 10, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: HARRIS Corporation FCC ID: OWDTR-0067-E IC: 363B-0067 DUT Type: Portable VHF PTT Radio Transceiver DUT Model: P5500 VHF 138-144 / 150.8-173.4 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 260 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) ISO 17025 (A2LA Test Lab Certificate No. 2470.01 Name HARRIS CORPORATION Applicant Information Address 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 U.S.A. Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C KDB 447498 D01v04 KDB 643646 D01v01r01 Procedure(s) Applied IC RSS-102 Issue 4 IEEE 1528-2003 IEC 62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 FCC ID: OWDTR-0067-E Device Identifier(s) IC: 3636B-0067 FCC TCB Certification Application Type(s) IC CB Certification Date of Sample Receipt September 02, 2011 Dates of Evaluation October 04-17, 2011 Device Description Portable VHF Digital Push-To-Talk (PTT) Radio Transceiver M/N: P5570 VHF - EX55 P/N: RU-123550-014 SYSTEM With DTMF Device Model(s) & P/N(s) P5500 VHF M/N: P5550 VHF - EX55 P/N: RU-123550-013 SCAN Without DTMF Re-VT-004 (Identical Prototype) - P5500 VHF (System) Test Sample Serial No.(s) Re-VT-003 (Identical Prototype) - P5500 VHF (Scan) Hardware Revision - Test Sample Revision No.(s) Firmware R14B05 FCC 150.8 - 173.4 MHz Transmit Frequency Range(s) IC 138.0 - 144.0, 150.0 - 174.0 MHz Manuf. Max. Rated Output Power 5 Watts Nominal (Conducted) Manuf. Upper Tolerance Spec. + 0.35 Watts Antenna Type(s) Tested Battery Type(s) Tested Body-worn Accessories Tested Audio Accessories Tested See manufacturer’s accessory listing (Section 7.0) Face-held 0.865 W/kg 1g 50% PTT duty factor Max. SAR Level(s) Evaluated Body-worn 5.90 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Date(s) of Evaluation October 04-17, 2011 Test Report Serial No. 090211OWD-T1114-S90V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date November 10, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: HARRIS Corporation FCC ID: OWDTR-0067-E IC: 363B-0067 DUT Type: Portable VHF PTT Radio Transceiver DUT Model: P5500 VHF 138-144 / 150.8-173.4 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 260 TABLE OF CONTENTS 1.0 INTRODUCTION___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________ 4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENTS____________________________________ 5 4.0 FCC POWER THRESHOLDS FOR PTT DEVICES (F < 0.5 GHZ) _____________________________ 5 5.0 NO. OF TEST CHANNELS (N C ) _______________________________________________________ 6 6.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES____________________________ 6 7.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING__________________________________ 7 8.0 FLUID DIELECTRIC PARAMETERS ___________________________________________________ 9 9.0 SAR TEST REDUCTION PROCEDURES - SYSTEM MODEL (FCC KDB 643646) ______________ 20 10.0 SAR TEST REDUCTION PROCEDURES - SCAN MODEL (FCC KDB INQ. #235657)_____________ 21 11.0 SAR MEASUREMENT SUMMARY ___________________________________________________ 22 12.0 SAR SCALING (TUNE-UP TOLERANCE) _____________________________________________ 46 13.0 DETAILS OF SAR EVALUATION ____________________________________________________ 47 14.0 SAR EVALUATION PROCEDURES __________________________________________________ 47 15.0 SYSTEM PERFORMANCE CHECK __________________________________________________ 48 16.0 SIMULATED EQUIVALENT TISSUES ________________________________________________ 49 17.0 SAR LIMITS _____________________________________________________________________ 49 18.0 ROBOT SYSTEM SPECIFICATIONS _________________________________________________ 50 19.0 PROBE SPECIFICATION _________________________…

Text truncated - open the document above for the full version.

Date(s) of Evaluation October 04-17, 2011 Test Report Serial No. 090211OWD-T1114-S90V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date November 10, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: HARRIS Corporation FCC ID: OWDTR-0067-E IC: 363B-0067 DUT Type: Portable VHF PTT Radio Transceiver DUT Model: P5500 VHF 138-144 / 150.8-173.4 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 55 of 260 APPENDIX A - SAR MEASUREMENT PLOTS Date(s) of Evaluation October 04-17, 2011 Test Report Serial No. 090211OWD-T1114-S90V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date November 10, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: HARRIS Corporation FCC ID: OWDTR-0067-E IC: 363B-0067 DUT Type: Portable VHF PTT Radio Transceiver DUT Model: P5500 VHF 138-144 / 150.8-173.4 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 56 of 260 Face SAR Plot F1 Date Tested: 10/14/2011 DUT: Harris P5500 VHF; Type: Portable VHF PTT Radio Transceiver; Serial: Re-VT-004 Ambient Temp: 22C; Fluid Temp: 21.6C; Barometric Pressure: 101.1 kPa; Humidity: 31% Communication System: CW Frequency: 144 MHz; Duty Cycle: 1:1 Medium: HSL150 Medium parameters used (interpolated): f = 144 MHz; σ = 0.722 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(8.9, 8.9, 8.9); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Side Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Area Scan (6x20x1): Measurement grid: dx=20mm, dy=20mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.35 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 42.4 V/m; Power Drift = -0.113 dB Peak SAR (extrapolated) = 1.87 W/kg SAR(1 g) = 1.31 mW/g; SAR(10 g) = 1.02 mW/g Info: Interpolated medium parameters used for SAR evaluation. Date(s) of Evaluation October 04-17, 2011 Test Report Serial No. 090211OWD-T1114-S90V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date November 10, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: HARRIS Corporation FCC ID: OWDTR-0067-E IC: 363B-0067 DUT Type: Portable VHF PTT Radio Transceiver DUT Model: P5500 VHF 138-144 / 150.8-173.4 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 57 of 260 Face SAR Plot F2 Date Tested: 10/14/2011 DUT: Harris P5500 VHF; Type: Portable VHF PTT Radio Transceiver; Serial: Re-VT-004 Ambient Temp: 22C; Fluid Temp: 21.6C; Barometric Pressure: 101.1 kPa; Humidity: 31% Communication System: CW Frequency: 156.4 MHz; Duty Cycle: 1:1 Medium: HSL150 Medium parameters used (interpolated): f = 156.4 MHz; σ = 0.726 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(8.9, 8.9, 8.9); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Side Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Area Scan (6x20x1): Measurement grid: dx=20mm, dy=20mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.03 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 36.7 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.782 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.04 mW/g Date(s) of Evaluation October 04-17, 2011 Test Report Serial No. 090211OWD-T1114-S90V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date November 10, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: HARRIS Corporation FCC ID: OWDTR-0067-E IC: 363B-0067 DUT Type: Portable VHF PTT Radio Transceiver DUT Model: P5500 VHF 138-144 / 150.8-173.4 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 58 of 260 Face SAR Plot F3 Date Tested: 10/14/2011 DUT: Harris P5500 VHF; Type: Portable VHF PTT Radio Transceiver; Serial: Re-VT-004 Ambient Temp: 22C; Fluid Temp: 21.6C; Barometric Pressure: 101.1 kPa; Humidity: 31% Communication System: CW Frequency: 173.4 MHz; Duty Cycle: 1:1 Medium: HSL150 Medium parameters used (interpolated): f = 173.4 MHz; σ = 0.743 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(8.9, 8.9, 8.9); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Side Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Area Scan (6x20x1): Measurement grid: dx=20mm, dy=20mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.351 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 20.5 V/m; Power D…

Text truncated - open the document above for the full version.

Date(s) of Evaluation October 04-17, 2011 Test Report Serial No. 090211OWD-T1114-S90V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date November 10, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: HARRIS Corporation FCC ID: OWDTR-0067-E IC: 363B-0067 DUT Type: Portable VHF PTT Radio Transceiver DUT Model: P5500 VHF 138-144 / 150.8-173.4 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 112 of 260 Body SAR Plot B37 Date Tested: 10/6/2011 DUT: Harris P5500 VHF; Type: Portable VHF PTT Radio Transceiver; Serial: Re-VT-004 Ambient Temp: 22C; Fluid Temp: 20.9C; Barometric Pressure: 101.1 kPa; Humidity: 34% Communication System: CW Frequency: 173.4 MHz; Duty Cycle: 1:1 Medium: M150 Medium parameters used (interpolated): f = 173.4 MHz; σ = 0.783 mho/m; ε r = 64.2; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(8.3, 8.3, 8.3); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Side Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Area Scan (6x20x1): Measurement grid: dx=20mm, dy=20mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.656 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 28.3 V/m; Power Drift = -0.302 dB Peak SAR (extrapolated) = 0.927 W/kg SAR(1 g) = 0.644 mW/g; SAR(10 g) = 0.495 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.679 mW/g Date(s) of Evaluation October 04-17, 2011 Test Report Serial No. 090211OWD-T1114-S90V Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date November 10, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: HARRIS Corporation FCC ID: OWDTR-0067-E IC: 363B-0067 DUT Type: Portable VHF PTT Radio Transceiver DUT Model: P5500 VHF 138-144 / 150.8-173.4 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 113 of 260 Body SAR Plot B38 Date Tested: 10/11/2011 DUT: Harris P5500 VHF; Type: Portable VHF PTT Radio Transceiver; Serial: Re-VT-004 Ambient Temp: 22C; Fluid Temp: 20.3C; Barometric Pressure: 101.1 kPa; Humidity: 37% Communication System: CW Frequency: 173.4 MHz; Duty Cycle: 1:1 Medium: M150 Medium parameters used (interpolated): f = 173.4 MHz; σ = 0.77 mho/m; ε r = 62.7; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(8.3, 8.3, 8.3); Calibrated: 22/06/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Side Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Area Scan (6x20x1): Measurement grid: dx=20mm, d…

Text truncated - open the document above for the full version.
