OWDTR-0073-EXG-25P 7/800

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 122 of 141 Appendix O: Manuals Please refer to the following pages for the Operator’s Manual and the Safety Manual. Operator’s Manual 14221-1500-2000 Rev. C, Sep/12 XG-25P Series Portable Radios 14221-1500-2000, Rev. C 2 REV DATE REASON FOR REVISION - Dec/11 Initial release. A Jan/12 Updated to finalize features and functions. B Jun/12 Updated to include P25T information and included cleaning instructions. C Sep/12 Added 700/800 MHz and OpenSky operation. Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation PSPC Business or fax your comments to: 1-434-455-6851 Technical Publications 221 Jefferson Ridge Parkway or e-mail us at: PSPC _ [email protected] Lynchburg, VA 24501 ACKNOWLEDGEMENTS The software contained in this device is copyrighted by Harris Corporation Unpublished rights are reserved under the copyright laws of the United States. This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS! Harris, assuredcommunications, OpenSky, and EDACS are registered trademarks and ProScan and Failsoft are trademarks of Harris Corporation. RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. This manual covers Harris Corporation products manufactured and sold by Harris Corporation. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations, or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2011, 2012 Harris Corporation 14221-1500-2000, Rev. C 3 TABLE OF CONTENTS Page 1 SAFETY CONVENTIONS .................................................................................................................... 8 2 SAFETY TRAINING INFORMATION .............................................................................................. 9 2.1 RF EXPOSURE GUIDELINES ................................................................................................... 9 2.2 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY ............................................... 10 2.3 REGULATORY APPROVALS ................................................................................................. 10 2.3.1 Part 15 ............................................................................................................................ 10 2.3.2 Industry Canada ............................................................................................................. 10 3 OPERATING TIPS .............................................................................................................................. 11 3.1 EFFICIENT RADIO OPERATION ........................................................................................... 11 3.1.1 Antenna Care and Replacement ..................................................................................... 11 3.1.2 Electronic …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 113 of 141 Appendix H: Part 90 Subpart R Attestation Please refer to the following pages. HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL FCC ID: OWDTR-0073-E Original submission ATTESTATION Part 90 Subpart R Application Review 1. Explanation of which Narrowband or Wideband channel segments the device is capable of supporting from those listed in 90.531(b), and 90.531(c). - For Narrowband segments: a) Is the device capable of operating on “General Use” channels listed in 90.531(b)(5) or “State” channels listed in 90.531(b)(6)? Response: Yes. b) Is the device ONLY capable of operating on Low Power “Regional” channels listed in 90.531(b)(3) or Low Power “Itinerant” channels listed in 90.531(b)(4)? Response: No, the device is capable of operating on the channels specified in a) above, c) below, as well as the Low Power “Itinerant” channels listed in 90.531(b)(4). c) Is the device capable of operating on “Nationwide” Interoperability channels listed in 90.531(b)(1)? Response: Yes. - For Wideband segments: HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL d) Is the device capable of operating on Interoperability channels listed in 90.531(c)(1)? Response: No. 2. Statement regarding the modulation capabilities of the device: - Does the device support digital Voice only, Data only, or both [see 90.547]? Response: Both - Does the device support analog voice operation [see 90.535(a)]? Response: Yes 3. Verify the following Interoperability Channel Operation requirements listed in 90.531 and 90.547 for Narrowband mobile, portable, or control devices only, given the information from #1 and #2 above: a) Designed for Data ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the data interoperability channels listed in 90.531(b)(1)(i). Response: Answered in question 1. Radio is not a single mode device. b) Designed for Voice ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the nationwide and calling only interoperability channels listed in 90.531(b)(1) and (b)(1)(ii), but do not have to operate on data only channels listed in 90.531(b)(1)(i). HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL Response: Answered in question 1. Radio is not a single mode device, and has a wide configuration flexibility to allow compliance with these rule parts. c) Designed for BOTH Voice and Data Operation on Nationwide, General Use or State channels – Must be capable of operating on all nationwide interoperability channels including data only and calling only channels listed in 90.531(b)(1), (b)(1)(i), and (b)(1)(ii). Response: Answered in question 1. Yes, when application configured as such. d) Designed for Low Power ONLY Operation on Regional/Itinerant channels – Must operate ONLY on the data/voice channels listed in 90.531(b)(3) or (b)(4). Response: Answered in question 1. 4. Verify the following capability requirements for all Wideband devices only, given the information from #1. and #2. above: a) Designed for Data ONLY Operation on Nationwide Interoperability channels – Must operate on the wideband data interoperability channels listed in 90.531(c)(1). Response: N/A 5. Application filing requirements for Narrowband mobile, portable or control devices only: - Voice Operation on General Use, State, or Nationwide Voice Interoperability channels: HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL a) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Response: Performed and reported in FCC EMC test report filed. b) Attestation of voice path efficiency compliance for operation on General Use and State channels only – 90.203(m) & 90.535(d). Response: N/A; applies to licensees. c) Attestation of operation on Nationwide Voice Interoperability and Calling Only channels – 90.547. For Voice Only devices, attestation to 90.547(a)(3). Response: Radio is capable of operation in sections cited. Answered above. d) Attestation of compliance to Project 25 FDMA Common Air Interface (ANSI 102) standards for operation on Nationwide Voice Interoperability and Calling Only channels only - 90.548(a)(1). Response: Radio product capable of Project 25. FCC EMC test report shows this, and emission designators indicate so. e) Frequency stability compliance for all band plans - 90.539(a) & (c). Response: Yes. FCC EMC test report shows this, and emission designators indicate so. f) Transmitting power compliance for all band plans - 90.541(b) & (c). Response: Yes. FCC EMC test report shows this. HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL - Data Operation on General Use, State, or Nationwide Data Interoperability channels: g) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Response: Performed and reported in FCC EMC test report filed. h) Attestation of data rate efficiency compliance for General Use and State channels only 90.535(b). Response: Compliant to requirements. Rates reported in FCC EMC test report filed. i) Attestation of operation on Nationwide Data Interoperability channels listed in 90.531(b)(1)(i) only – 90.547. For Data Only devices, attestation to 90.547(a)(2). Response: Radio product in data mode, but is multi mode product based on application configuration. FCC EMC test report filed identifies emission designators for data…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 112 of 141 Appendix G: AFC Attestation Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL ATTESTATION Locked/unlocked AFC Operation The XG-25P 7/800 MHz Portable Radio uses a single TCXO (14.4 MHz) as its frequency reference. All local oscillators are phase locked to this single reference. The reference is specified to be better than +/- 1.5ppm over the operating temperature and voltage ranges. This reference oscillator has an electronic frequency control (EFC) range of +/ 410 Hz. The EFC can be fine- tuned through software. The initial tuning is performed at factory test, calibration and configuration time. This function is performed by providing a GPS locked RF carrier to the radio under test, while the radio’s AFC function is enabled. The radio software computes the difference between the internal reference and the applied GPS locked RF carrier and adjusts the EFC voltage to minimize the difference. The radio is then commanded to transmit an unmodulated carrier and the frequency of that carrier is checked to confirm that it is within tolerance. The EFC correction factor is stored in the radio’s non-volatile memory. Software control is used to implement AFC, when operating in the 700 MHz band (Part 90, Subpart R rules). In AFC locked mode, the digital signal processor examines the received base station signal and determines if there is any residual frequency error. The software then adjusts to minimize the residual frequency error. Hardware correction provides a resolution of below 0.1 ppm when adjusting the TCXO and so it is straightforward to control the TCXO to within the +/- 0.4 ppm requirement. The received base station signal correction is a continuously executed radio function. When the radio is switched from a trunked system to a conventional system, the radio’s AFC uses the last determined base station correction value for frequency control. When the radio powers up on a conventional channel, calibration data will be used.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 107 of 141 Appendix B: Agency Authorization Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 October 3, 2012 Subject: FCC ID: OWDTR-0073-E Original Grant The following organization is granted authority to act on Harris’ behalf, to file documentation for Harris equipment with FCC ID: OWDTR-0073-E, XG-25P 700 – 800 MHz portable radio, as it applies to an original Grant. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Harris certifies that it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 108 of 141 Appendix C: FCC Confidentiality Request Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com October 3, 2012 ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: OWDTR-0073-E Original Grant CONFIDENTIALITY Harris wishes to submit this confidentiality letter for the record on FCC ID: OWDTR- 0073-E, XG-25P 700 – 800 MHz portable radio. Harris is requesting that parts lists, schematics, block diagrams, tune up procedure, and operational descriptions for this application not be made routinely available for public inspection. Harris considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Daryl Popowitch Regulatory Manager

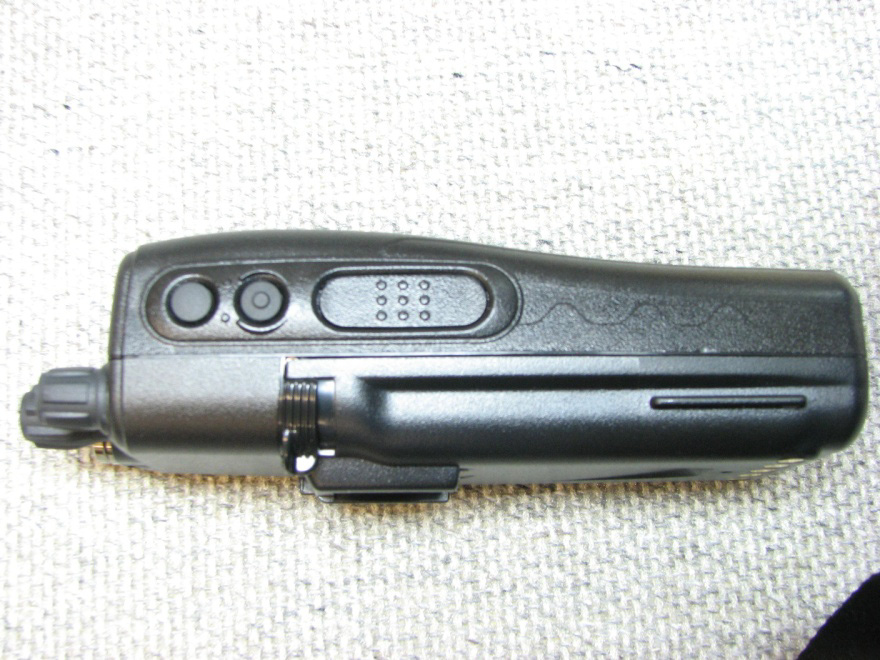

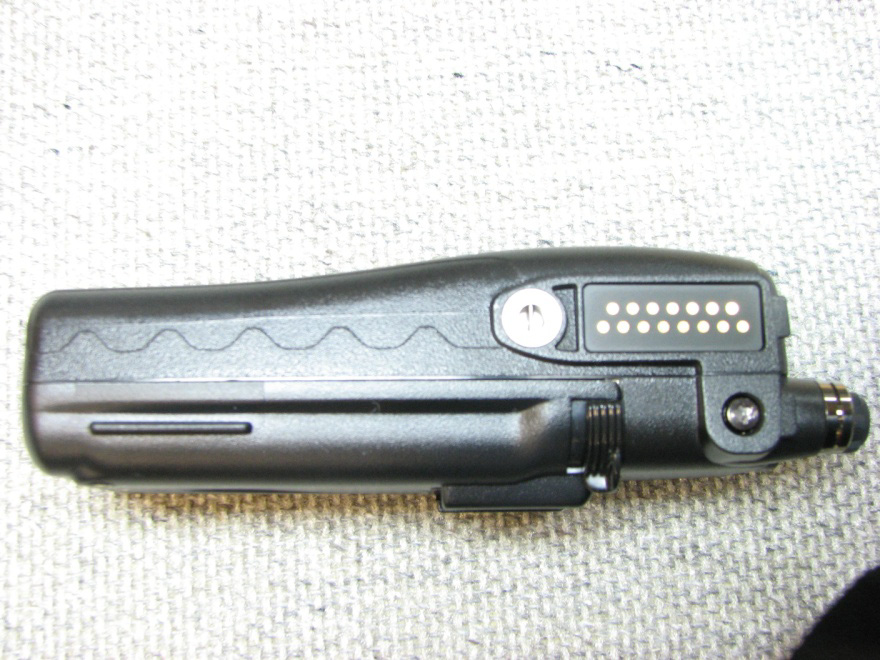

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 125 of 141 Appendix Q: External Photographs Photograph 7: System Model and Scan Model Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 126 of 141 Photograph 8: Top View Photograph 9: Bottom View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 127 of 141 Photograph 10: PTT Side Photograph 11: UDC Side

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 114 of 141 Appendix I: ID Label & Location Photograph 1: ID Label Sample – System Model ID Label Sample – Scan Model Photograph 2: ID Label Sample – Scan Model Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 115 of 141 Photograph 3: RF Safety Label Sample Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 116 of 141 Photograph 4: ID Label Location and RF Safety Label Location

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 128 of 141 Appendix R: Internal Photographs Photograph 12: Front Cover Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 129 of 141 Photograph 13: IF Board View 1 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 130 of 141 Photograph 14: IF Board View 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 131 of 141 Photograph 15: IF Board View 3 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 132 of 141 Photograph 16: IF Board View 4 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 133 of 141 Photograph 17: IF Board View 5 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 134 of 141 Photograph 18: IF Board View 6

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 135 of 141 Photograph 19: Main Board View 1 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 136 of 141 Photograph 20: Main Board View 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 137 of 141 Photograph 21: Main Board View 3 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 138 of 141 Photograph 22: Main Board Back View 1 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 139 of 141 Photograph 23: Main Board Back View 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 140 of 141 Photograph 24: Main Board Back View 3 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P 7/800 MHz Suite 1400 ID’s: OWDTR-0073-E/3636B-0073 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2012225 141 of 141 Photograph 25: Radio Shield

Applicant: HARRIS Corporation FCC ID: OWDTR-0073-E IC: 3636B-0073 DUT Type: Portable 700/800-Band PTT Radio Transceiver with Bluetooth DUT Name: XG-25P 7/800 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 208 Date(s) of Evaluation September 04-07, 2012 Test Report Serial No. 082712OWD-T1184-S90M Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date September 20, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) ISO 17025 A2LA Test Lab Certificate No. 2470.01 Name HARRIS CORPORATION Applicant Information Address 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 U.S.A. FCC 47 CFR §2.1093 Standard(s) Applied IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supp. C KDB 447498 D01v04 KDB 643646 D01v01r01 Procedure(s) Applied IC RSS-102 Issue 4 IEEE 1528-2003 IEC 62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 Device Identifier(s) FCC ID: OWDTR-0073-E IC: 3636B-0073 FCC Part 90 Certification Application Type(s) IC RSS-119 Certification Date of Sample Receipt August 27, 2012 Dates of Evaluation September 04-07, 2012 Device Description Portable 700/800-Band Digital Push-To-Talk (PTT) Radio Transceiver with Bluetooth XG-25P 7/800 System Model: DPXG-PF78B P/N: 14011-0020-01 DTMF Keypad Device Name / Model(s) XG-25P 7/800 Scan Model: DPXG-PB78B P/N: 14011-0020-02 Limited Keypad Test Sample Serial No.(s) XG-25P System - S/N: 14 (identical prototype) XG-25P Scan - S/N: 35 (identical prototype) Test Sample Revision No.s Hardware Rev. - Firmware R16A10 FCC 764-776 MHz 794-805 MHz 806-824 MHz 851-869 MHz Transmit Frequency Range(s) IC 768-776 MHz 798-805 MHz 806-824 MHz 851-869 MHz 700 Band 2.9 Watts Nominal (Conducted) Upper Tolerance Spec. + 0.05 Watts Manufacturer’s Rated Output Power 800 Band 3.0 Watts Nominal (Conducted) Upper Tolerance Spec. + 0.23 Watts Co-located Transmitters) Bluetooth (Class 2) Nominal Output Power: 2.5 mW (Cond.) Freq. Range: 2402-2480 MHz Antenna Type(s) Tested See manufacturer’s accessory listing (Section 5.0) Battery Type(s) Tested See manufacturer’s accessory listing (Section 5.0) Body-worn Accessories Tested See manufacturer’s accessory listing (Section 5.0) Audio Accessories Tested See manufacturer’s accessory listing (Section 5.0) Face-held 1.63 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure Max. SAR Level(s) Evaluated Body-worn 3.62 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209- 2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Applicant: HARRIS Corporation FCC ID: OWDTR-0073-E IC: 3636B-0073 DUT Type: Portable 700/800-Band PTT Radio Transceiver with Bluetooth DUT Name: XG-25P 7/800 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 208 Date(s) of Evaluation September 04-07, 2012 Test Report Serial No. 082712OWD-T1184-S90M Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date September 20, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION__________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENTS ___________________________________ 5 4.0 NO. OF TEST CHANNELS (N C )_______________________________________________________ 5 5.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING _________________________________ 6 6.0 FLUID DIELECTRIC PARAMETERS___________________________________________________ 8 7.0 SAR TEST REDUCTION PROCEDURES APPLIED (FCC KDB 643646 D01V01R01) ___________ 12 8.0 SAR TEST REDUCTION PROCEDURES - SCAN MODEL (FCC KDB INQ. #235657)_____________ 13 9.0 SAR MEASUREMENT SUMMARY ___________________________________________________ 14 10.0 SAR SCALING (TUNE-UP TOLERANCE)____________________________________________ 32 11.0 SIMULTANEOUS TRANSMISSION ASSESSMENT_____________________________________ 32 12.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES _________________________ 33 13.0 SAR LEVEL CORRECTION FOR FLUID DEVIATION (IC RSS-102 / IEC 62209-2)_____________ 34 14.0 DETAILS OF SAR EVALUATION _____________…
