OWDTR-0109-EXG-25P UHF-L

Operator’s Manual 14221-1500-2000 Rev. D, Jul/13 XG-25P Series Portable Radios 14221-1500-2000, Rev. D 2 REV DATE REASON FOR REVISION - Dec/11 Initial release. A Jan/12 Updated to finalize features and functions. B Jun/12 Updated to include P25T information and included cleaning instructions. C Jan/13 Added 700/800 MHz radios to Table 2-1. D Jul/13 Updated Options and Accessories and updated warranty. Added UHF-L radios. Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation PSPC Business or fax your comments to: 1-434-455-6851 Technical Publications 221 Jefferson Ridge Parkway or e-mail us at: PSPC _ [email protected] Lynchburg, VA 24501 ACKNOWLEDGEMENTS The software contained in this device is copyrighted by Harris Corporation Unpublished rights are reserved under the copyright laws of the United States. This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS! Harris, assuredcommunications, OpenSky, and EDACS are registered trademarks and ProScan and Failsoft are trademarks of Harris Corporation. RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. This manual covers Harris Corporation products manufactured and sold by Harris Corporation. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations, or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2011-2013 Harris Corporation 14221-1500-2000, Rev. D 3 TABLE OF CONTENTS Page 1 SAFETY CONVENTIONS .................................................................................................................... 6 2 SAFETY TRAINING INFORMATION .............................................................................................. 7 2.1 RF EXPOSURE GUIDELINES ................................................................................................... 7 2.2 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY ................................................. 8 2.3 REGULATORY APPROVALS ................................................................................................... 8 2.3.1 Part 15 .............................................................................................................................. 8 2.3.2 Industry Canada ............................................................................................................... 8 3 OPERATING TIPS ................................................................................................................................ 9 3.1 EFFICIENT RADIO OPERATION ............................................................................................. 9 3.1.1 Antenna Care and Replacement ....................................................................................... 9 3.1.2 Electronic Devices ........................................................................................................... 9 3.1.3 Aircraft..........................................................................................................................…

Text truncated - open the document above for the full version.

Product Safety Manual 14221-1500-2010 Rev. B, Jul/13 This booklet contains important safety information regarding specific absorption rate (SAR) and RF exposure limits included in United States and international standards. Read the information in this booklet before operating your radio. XG-25P Series Portable Radios 2 14221-1500-2010, Rev. B REV DATE DESCRIPTION - Dec/11 Initial release A Oct/12 Added 700/800 MHz. B Jul/13 Added UHF-L. ACKNOWLEDGEMENTS The software contained in this device is copyrighted by Harris Corporation. Unpublished rights are reserved under the copyright laws of the United States. This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS Harris, EDACS, OpenSky, and assuredcommunications are registered trademarks and ProVoice is a trademark of Harris Corporation. RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PS&PC Division, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. This product should be taken to a recycling center at the end of its life. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations, or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty. This manual is published by Harris Corporation, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation, at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2011-2013 Harris Corporation. 14221-1500-2010, Rev. B 3 TABLE OF CONTENTS Page 1. SAFETY SYMBOL CONVENTIONS ........................................... 4 2. SAFETY TRAINING INFORMATION ........................................ 5 2.1 RF EXPOSURE GUIDELINES ...................................................... 5 2.2 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY .... 6 2.3 REGULATORY APPROVALS ..................................................... 6 3. OPERATING TIPS .......................................................................... 7 3.1 EFFICIENT RADIO OPERATION ................................................ 7 4. OPTIONS AND ACCESSORIES ................................................... 9 5. BATTERY PACKS .......................................................................... 9 5.1 CONDITIONING NIMH BATTERY PACKS ............................. 10 5.2 CONDITIONING LITHIUM BATTERY PACKS ....................... 10 5.3 ADDITIONAL INFORMATION ................................................. 10 5.4 BATTERY DISPOSAL ................................................................ 11 6. TECHNICAL ASSISTANCE ........................................................ 12 7. WARRANTY .................................................................................. 13 Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation PSPC Business or fax your comments to: 1-434-455-6851 Technical Publications 221 Jefferson Ridge Parkway or e-mail us at: PSPC _ [email protected] Lynchburg, VA 24501 4 14221-1500-2010, Rev. B 1. SAFETY SYMBOL CONVENTIONS The following conventions are used to alert the user to general safety precautions that must be observed during all phases of operation, service, and repair of this product. Failure to comply with these precautions or with specific warnings elsewhere violates safety standards of design, manufacture, and intended use of the product. Harris assumes no liability for the custo…

Text truncated - open the document above for the full version.

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com July 9, 2013 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: OWDTR-0109-E Original Grant The following organization is granted authority to act on Harris’ behalf, to file documentation for Harris equipment with FCC ID: OWDTR-0109-E; XG-25P Portable System and Scan Models, DPXG-PFU1B and DPXG-PBU1B, in the UHF 378-470 MHz band, as it applies to an original Grant. Ms. Kathy Grzovic Rheintech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Harris certifies that it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, 21 U.S.C. Section 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Shane Miller Regulatory Manager

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com July 11, 2013 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: OWDTR-0109-E Original Grant CONFIDENTIALITY Harris wishes to submit this confidentiality letter for the record on FCC ID: OWDTR- 0109-E; XG-25P Portable System and Scan Models, DPXG-PFU1B and DPXG-PBU1B, in the UHF 378-470 MHz band. Harris is requesting that the following be kept confidential, and not be made available for routine public inspection: • Schematics, • Technical Operational Description, • Block Diagrams, • Parts Lists, and • Tune Up / Alignment Procedure. Harris considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Shane Miller Regulatory Manager

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL July 16, 2013 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 ATTESTATION Extended Frequency Range FCC ID: OWDTR-0109-E, IC: 3636B-0109 Original Grant This equipment is designed to operate in the frequency bands 378MHz -470MHz. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Harris Corporation is requesting that the FCC lists the frequencies 378MHz-470MHz under FCC Rule Parts 90 on the FCC Grant. For the FCC’s Rule Parts 90 applications, this equipment is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, “as an alternative to listing the exact frequencies”, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. _____________________________ Shane Miller Regulatory Manager

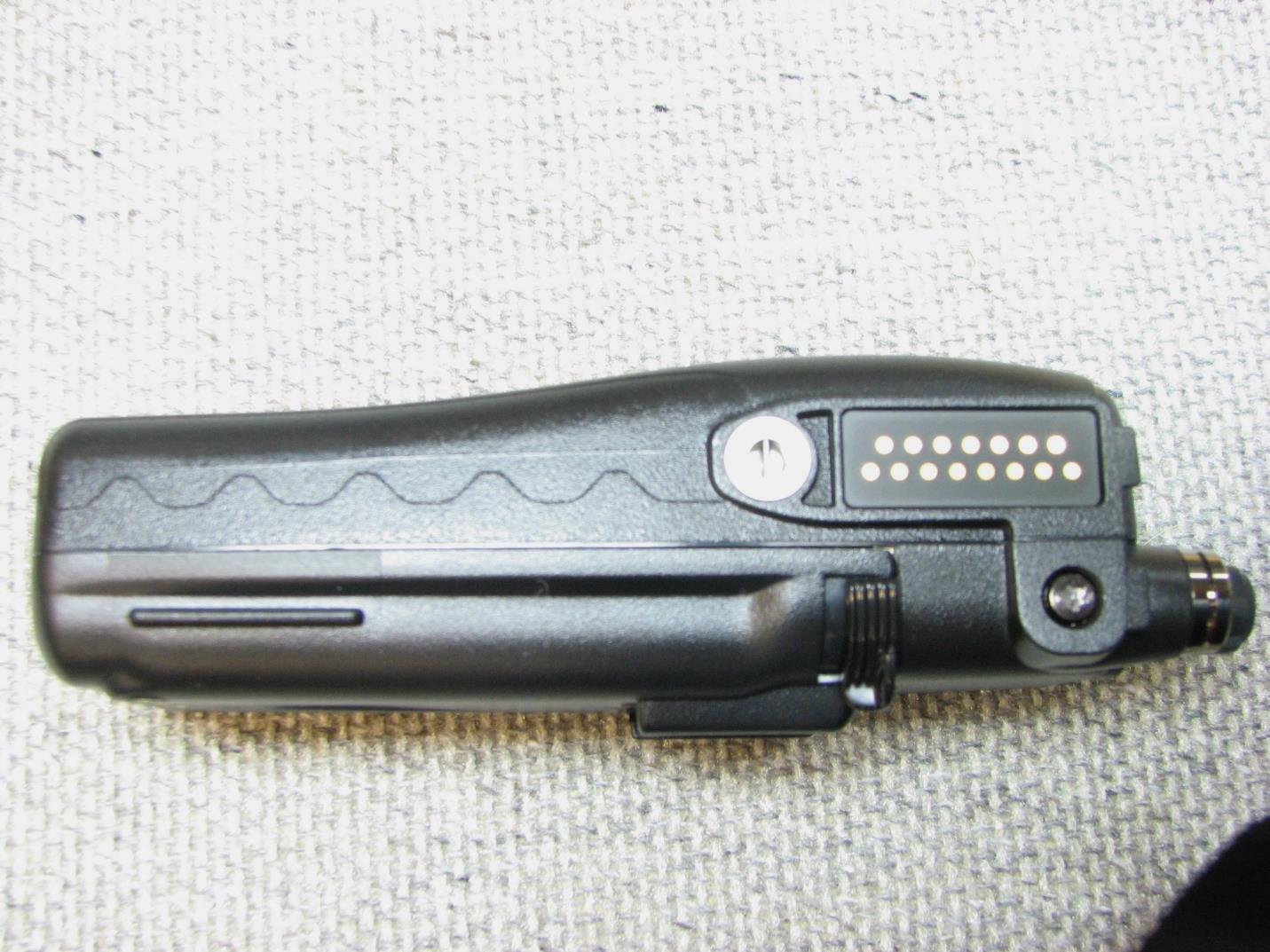

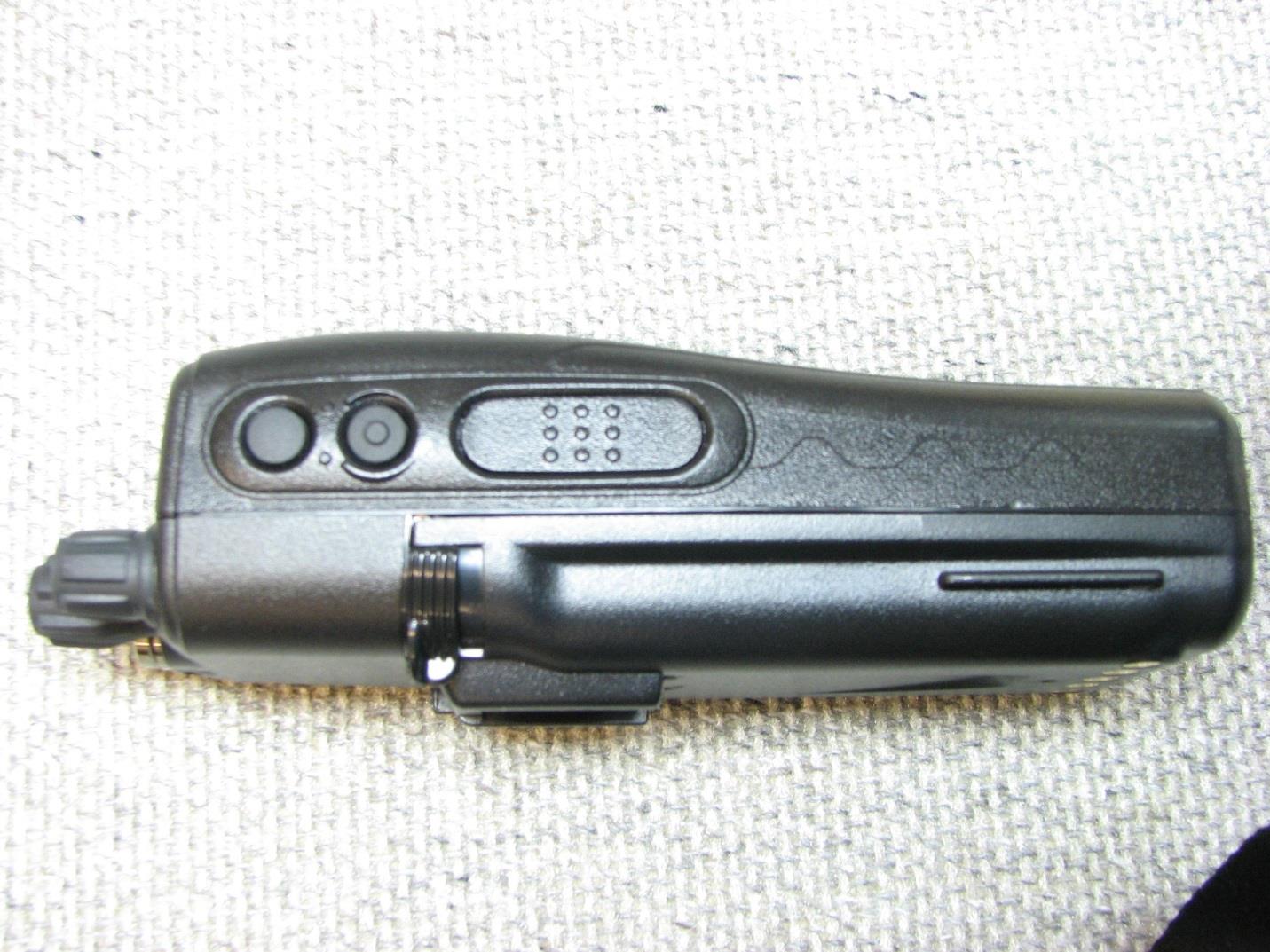

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 119 Appendix O: External Photographs Photograph 7: System Model and Scan Model Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 120 Photograph 8: Top View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 121 Photograph 9: Bottom View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 122 Photograph 10: PTT Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 123 Photograph 11: UDC Side

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 108 Appendix G: ID Label & Location Photograph 1: ID Label Sample – System Model Photograph 2: ID Label Sample – Scan Model Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 109 Photograph 3: RF Safety Label Sample Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 110 Photograph 4: ID Label Location and RF Safety Label Location The radio is packaged/distributed without the battery installed so that the ID label is visible.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 124 Appendix P: Internal Photographs Photograph 12: Front Cover Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 125 Photograph 13: Back without Battery Installed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 126 Photograph 14: IF Board View 1 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 127 Photograph 15: IF Board View 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 128 Photograph 16: IF Board View 3 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 129 Photograph 17: IF Board View 4 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 130 Photograph 18: IF Board View 5 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 131 Photograph 19: IF Board View 6 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 132 Photograph 20: Main Board View 1 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 133 Photograph 21: Main Board View 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 134 Photograph 22: Main Board View 3 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 135 Photograph 23: Main Board Back View 1 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 136 Photograph 24: Main Board Back View 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 137 Photograph 25: Main Board Back View 3 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-25P UHF-L Suite 1400 ID’s: OWDTR-0109-E/3636B-0109 Herndon, VA20170 Standards: FCC Part 22, 80, 90/IC RSS-119 http://www.rheintech.com Report #: 2013062 138 Photograph 26: Radio Shield

Applicant: HARRIS Corporation FCC ID: OWDTR-0109-E IC: 3636B-0109 DUT Type: Portable UHF Band PTT Radio Transceiver with Bluetooth DUT Name: XG-25P UHF-L 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 182 Date(s) of Evaluation May 30-Jun7, 2013 Test Report Serial No. 052813OWD-1235SAR Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Jun. 14, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION FCC & IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) ISO 17025 A2LA Test Lab Certificate No. 2470.01 Name HARRIS CORPORATION Applicant Information Address 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 U.S.A. FCC 47 CFR §2.1093 Standard(s) Applied IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supp. C KDB 447498 D01v05 KDB 643646 D01v01r01 Procedure(s) Applied IC RSS-102 Issue 4 IEEE 1528-2003 IEC 62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 Device Identifier(s) FCC ID: OWDTR-0109-E IC: 3636B-0109 Date of Sample Receipt May 28, 2013 Dates of Evaluation May 30, 31, June 3, 4 ,5 ,6 & 7, 2013 Device Description Portable UHF Band Digital Push-To-Talk (PTT) Radio Transceiver with Bluetooth XG-25P UHF-L System Model: DPXG-PFU1B P/N: 14011-0030-01 DTMF Keypad Device Name / Model(s) XG-25P UHF-L Scan Model: DPXG-PFU1B P/N: 14011-0030-02 Limited Keypad Test Sample Serial No.(s) XG-25P System - S/N: 25 (identical prototype) XG-25P Scan - S/N: 50 (identical prototype) Test Sample Revision No.s Hardware n/a Firmware P02A10 FCC 406.1 – 470.0 MHz Transmit Frequency Range(s) IC 406.1 – 430.0; 450.0 – 470.0 MHz Manufacturer’s Rated Output Power 5.0 W (5.3 W max.) Co-located Transmitter(s) Bluetooth (Class 2) Output Power: 1.0 mW Freq. Range: 2402-2480 MHz Antenna Type(s) Tested See manufacturer’s accessory listing (Section 5.0) Battery Type(s) Tested See manufacturer’s accessory listing (Section 5.0) Body-worn Accessories Tested See manufacturer’s accessory listing (Section 5.0) Audio Accessories Tested See manufacturer’s accessory listing (Section 5.0) Face-held (FCC) 1.94 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure Face-Held (IC) 2.10 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure Max. SAR Level(s) Evaluated Body-worn 5.13 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g 50% PTT duty factor Occupational / Controlled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209- 2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Mike Meaker Engineering Technologist Celltech Labs Inc. Applicant: HARRIS Corporation FCC ID: OWDTR-0109-E IC: 3636B-0109 DUT Type: Portable UHF Band PTT Radio Transceiver with Bluetooth DUT Name: XG-25P UHF-L 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 182 Date(s) of Evaluation May 30-Jun7, 2013 Test Report Serial No. 052813OWD-1235SAR Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Jun. 14, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENTS ____________________________________5 4.0 NO. OF TEST CHANNELS (N C ) ________________________________________________________5 5.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING __________________________________6 6.0 FLUID DIELECTRIC PARAMETERS ____________________________________________________8 7.0 SAR MEASUREMENT SUMMARY ____________________________________________________12 8.0 SAR SCALING (TUNE-UP TOLERANCE) _______________________________________________26 9.0 SIMULTANEOUS TRANSMISSION ASSESSMENT _______________________________________26 10.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES __________________________27 11.0 DETAILS OF SAR EVALUATION ____________________________________________________28 12.0 SAR EVALUATION PROCEDURES __________________________________________________28 13.0 SYSTEM PERFORMANCE CHECK ___________________________________________________29 14.0 SIMULATED EQUIVALENT TISSUES _________________________________________________30 15.0 SAR LIMITS _____________________________________________________________________30 16.0 ROBOT SYSTEM SPECIFICATIONS_______________________…

Text truncated - open the document above for the full version.

Applicant: HARRIS Corporation FCC ID: OWDTR-0109-E IC: 3636B-0109 DUT Type: Portable UHF Band PTT Radio Transceiver with Bluetooth DUT Name: XG-25P UHF-L 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 49 of 182 Date(s) of Evaluation May 30-Jun7, 2013 Test Report Serial No. 052813OWD-1235SAR Test Report Revision No. Rev. 1.0 (1st Release) Test Report Issue Date Jun. 14, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Plot B1 Date Tested: 06/03/2013 DUT: Harris XG-25P; Type: UHF-L PTT Radio Transceiver; Serial: 25 Program Notes: Ambient Temp: 22C; Fluid Temp: 21.8C; Barometric Pressure: 101.7 kPa; Humidity: 36% Communication System: UHF-L Frequency: 408 MHz; Duty Cycle: 1:1 Medium: M450 Medium parameters used (interpolated): f = 408 MHz; σ = 0.908 mho/m; ε r = 58.2; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(7.98, 7.98, 7.98); Calibrated: 24/04/2013 - Sensor-Surface: 4mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 19/04/2012 - Phantom: Barski Industries; Type: Fiberglass Planar; Serial: 03-01 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 408 - Li-poly - 1219/10 - Belt-Clip/Area Scan (7x23x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.65 mW/g 408 - Li-poly - 1219/10 - Belt-Clip/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 73.3 V/m; Power Drift = -0.392 dB Peak SAR (extrapolated) = 7.82 W/kg SAR(1 g) = 5.24 mW/g; SAR(10 g) = 3.7 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.53 mW/g Applicant: HARRIS Corporation FCC ID: OWDTR-0109-E IC: 3636B-0109 DUT Type: Portable UHF Band PTT Radio Transceiver with Bluetooth DUT Name: XG-25P UHF-L 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.…

Text truncated - open the document above for the full version.
