OWDTR-0132-EXG-75M/M7300 Series Mobile Radio

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 166 of 199 Appendix O: Manual Please refer to the Operators Manuals and Safety Manuals. Operator’s Manual MM-014716-001 Rev. P, Apr/15 XG-75M/M7300 Series Mobile Radios MM-014716-001, Rev. P 2 MANUAL REVISION HISTORY REV DATE REASON FOR CHANGE C Sep/09 Added VHF antennas, added “Enable/Disable Volume Side Tone,” and updated to Harris format. D Apr/10 Added keypad lock/unlock instructions for ECP, added REGISTER and BND SCAN to P25T status messages. E Jan/11 Updated antenna information; other minor updates. F Apr/11 Updated for OTP R17, consolidated EDACS, Conventional, P25 operation into one section. G Aug/11 Updated antennas; removed reference to ambient light sensor, minor edits. H Oct/11 Added Part 80 information. J Jan/12 Updated antennas and updated warranty. K Oct/12 Added VHF antennas. Added stealth mode, PIN entry, and Control and Status Services. L Jun/13 Added Audio Playback. Updated OpenSky operation. M Mar/14 Added support for XG-75M. Added Sections 7.37 and 7.38. Updated Data TX/RX Indications. N Oct/14 Updated for XGP R4A – added Voice Annunciation and APPENDIX A. P Apr/15 Updated for XGP R5A. Added Preset Buttons to EDACS, Conventional, and P25 operation section. Added French Safety section. ACKNOWLEDGEMENT This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; ; 5,491,772; 5,517,511; 5, 630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS EDACS, OpenSky, Harris, VIDA, and assuredcommunications are registered trademarks of Harris Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99 in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Division, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2012/19/EU. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, withou t the express written permission of Harris Corporation. Copyright © 2008-2015 Harris Corporation. MM-014716-001, Rev. P 3 TABLE OF CONTENTS Page 1. REGULATORY AND SAFETY INFORMATION ............................................................................. 9 1.1 SAFETY SYMBOL CONVENTIONS ......................................................................................... 9 1.2 REGULATORY APPROVALS ................................................................................................. 10 1.2.1 Applicable Type Acceptance/Certification Numbers .................................................... 10 1.3 RADIO FREQUENCY INTERFERENCE ................................................................................. 11 1.3.1 FCC Part 15 ................................................................................................................... 11 1.3.2 Industry Canada ............................................................................................................. 11 1.4 RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION FOR FCC OCCUPATIONAL USE REQUIREMENTS ............................................................................. 11 1.4.1 Federal Communications Commission Regulations ...................................................... 12 1.5 COMPLIANCE WITH RF EXPOSURE STANDARDS ........................................................... 12 1.5.1 Mobile Antennas ............................................................................................................ 13 1.5.2 Approved Accessories ................................................................................................... 13 1.5.3 Mobile Antennas (Vehicle Installations) ....................................................................... 14 1.5.4 Mobile Antennas (Motorcycle Installations) ................................................................. 17 1.6 OCCUPA…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 156 of 199 Appendix F: Power Setting Attestation Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com April 17, 2015 FCC ID: OWDTR-0132-E IC ID: 3636B-0132 ATTESTATION Power Settings For XG-75M Mobile Radio In mobile applications, power will be set at 30 Watts for 700 MHz band operation, and 35 Watts for 800 MHz band operation. Regards, William H. Pertner Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 157 of 199 Appendix G: AFC Attestation Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com ATTESTATION Locked/unlocked AFC Operation The XG-75 7/800 Mobile Radio use s a si ngle TCXO (19.2 MHz) as its frequency reference. All local oscillators are phase locked to this si ngle reference. The reference is speci fied to be better than +/- 1.5ppm over the operating temperature and voltage ranges. This reference oscillator has an elect ronic frequency control (EFC) range of +/ 410 Hz. The EFC ca n be fine- tuned through so ftware. The initial tuning is performed at factory test , ca lib ration and configuration tim e. This function is performed by providing a GPS locked RF ca rrier to the radio under test , while the radio’s AFC function is enabled. The radio so ftware co mputes the difference between the internal reference and the applied GPS locked RF ca rrier and adjust s the EFC voltage to minimize the difference. The radio is then commanded to transmit an unmodulated ca rrier and the frequency of that carrier is checked to confirm that it is within tolerance. The EFC co rrect ion fact or is stored i n the radio’s non-volatile memory. Software control is use d to implement AFC, when operating in the 700 MHz band (Part 90, Subpart R rules) . In AFC locked mode, the digi tal si gnal processor examines the received base st ation signal and determines if there is any resi dual frequency error. The so ftware then adjust s to minimize the resi dual frequency error. Hardware co rrect ion provides a reso lution of below 0.1 ppm when adjust ing the TCXO and so it is st raightforward to co ntrol the TCXO to within the +/- 0.4 ppm requirement. The rece ived base station signal correct ion is a continuously execu ted radio funct ion. When the radio is switched from a trunked system to a conventional sy stem, the radio’s AFC uses the last determined base st ation correct ion value for frequency control. When the radio powers up on a co nventional channel, ca libration data will be use d. CONFIDENTIAL

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 158 of 199 Appendix H: Subpart R Part 90 Attestation Please refer to the following pages. HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL FCC ID: OWDTR-0132-E Original submission ATTESTATION Part 90 Subpart R Application Review 1. Explanation of which Narrowband or Wideband channel segments the device is capable of supporting from those listed in 90.531(b), and 90.531(c). - For Narrowband segments: a) Is the device capable of operating on “General Use” channels listed in 90.531(b)(5) or “State” channels listed in 90.531(b)(6)? Response: Yes. b) Is the device ONLY capable of operating on Low Power “Regional” channels listed in 90.531(b)(3) or Low Power “Itinerant” channels listed in 90.531(b)(4)? Response: No, the device is capable of operating on the channels specified in a) above, c) below, as well as the Low Power “Itinerant” channels listed in 90.531(b)(4). c) Is the device capable of operating on “Nationwide” Interoperability channels listed in 90.531(b)(1)? Response: Yes. HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL - For Wideband segments: d) Is the device capable of operating on Interoperability channels listed in 90.531(c)(1)? Response: No. 2. Statement regarding the modulation capabilities of the device: - Does the device support digital Voice only, Data only, or both [see 90.547]? Response: Both - Does the device support analog voice operation [see 90.535(a)]? Response: Yes 3. Verify the following Interoperability Channel Operation requirements listed in 90.531 and 90.547 for Narrowband mobile, portable, or control devices only, given the information from #1 and #2 above: a) Designed for Data ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the data interoperability channels listed in 90.531(b)(1)(i). Response: Answered in question 1. Radio is not a single mode device. b) Designed for Voice ONLY Operation on Nationwide, General Use or State channels - HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL Must be capable of operating on the nationwide and calling only interoperability channels listed in 90.531(b)(1) and (b)(1)(ii), but do not have to operate on data only channels listed in 90.531(b)(1)(i). Response: Answered in question 1. Radio is not a single mode device, and has a wide configuration flexibility to allow compliance with these rule parts. c) Designed for BOTH Voice and Data Operation on Nationwide, General Use or State channels – Must be capable of operating on all nationwide interoperability channels including data only and calling only channels listed in 90.531(b)(1), (b)(1)(i), and (b)(1)(ii). Response: Answered in question 1. Yes, when application configured as such. d) Designed for Low Power ONLY Operation on Regional/Itinerant channels – Must operate ONLY on the data/voice channels listed in 90.531(b)(3) or (b)(4). Response: Answered in question 1. 4. Verify the following capability requirements for all Wideband devices only, given the information from #1. and #2. above: a) Designed for Data ONLY Operation on Nationwide Interoperability channels – Must operate on the wideband data interoperability channels listed in 90.531(c)(1). Response: N/A HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL 5. Application filing requirements for Narrowband mobile, portable or control devices only: - Voice Operation on General Use, State, or Nationwide Voice Interoperability channels: a) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Response: Performed and reported in FCC EMC test report filed. b) Attestation of voice path efficiency compliance for operation on General Use and State channels only – 90.203(m) & 90.535(d). Response: N/A; applies to licensees. c) Attestation of operation on Nationwide Voice Interoperability and Calling Only channels – 90.547. For Voice Only devices, attestation to 90.547(a)(3). Response: Radio is capable of operation in sections cited. Answered above. d) Attestation of compliance to Project 25 FDMA Common Air Interface (ANSI 102) standards for operation on Nationwide Voice Interoperability and Calling Only channels only - 90.548(a)(1). Response: Radio product capable of Project 25. FCC EMC test report shows this, and emission designators indicate so. e) Frequency stability compliance for all band plans - 90.539(a) & (c). HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL Response: Yes. FCC EMC test report shows this, and emission designators indicate so. f) Transmitting power compliance for all band plans - 90.541(b) & (c). Response: Yes. FCC EMC test report shows this. - Data Operation on General Use, State, or Nationwide Data Interoperability channels: g) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Response: Performed and reported in FCC EMC test report filed. h) Attestation of data rate efficiency compliance for General Use and State channels only 90.535(b). Response: Compliant to requirements. Rates reported in FCC EMC test report filed. i) Attestation of operation on Nationwide Data Interoperability channels listed in 90.531(b)(1)(i) only – 90.547. For Data Only devices, attestation to 90.547(a)(2). Response: Radio product in data mode, but is multi mode product based on application configuration. FCC EMC test report filed identifies emission designators …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 153 of 199 Appendix C: FCC Agent Authorization Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Authority to Act as Agent March 11, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Rhein Tech Laboratories, Inc./Kathy Grzovic is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: March 01, 2016 By: William H. Pertner Title: Regulatory Manager On behalf of: Harris Corporation Telephone: 434-455-9295

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 152 of 199 Appendix B: FCC & IC Confidentiality Request Please refer to the following pages. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Request for Confidentiality Date: March 11, 2015 Subject: Confidentiality Request for: FCC ID: OWDTR-0132-E, IC ID: 3636B-0132 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 6.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual Harris Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section V regarding EXCEPTIONAL CIRCUMSTANCES. As of the October 2014 version of this document, TCB’s can not authorize these requests. The applicant should petition the FCC by submitting an inquiry as directed. A copy of this inquiry and the FCC’s response must be provided with the application. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, Regulatory Manager

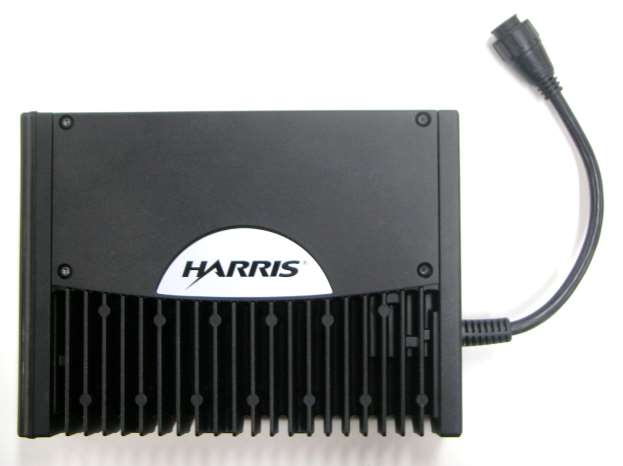

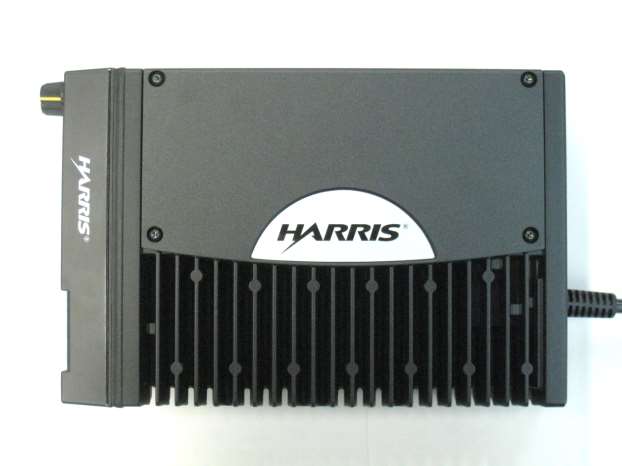

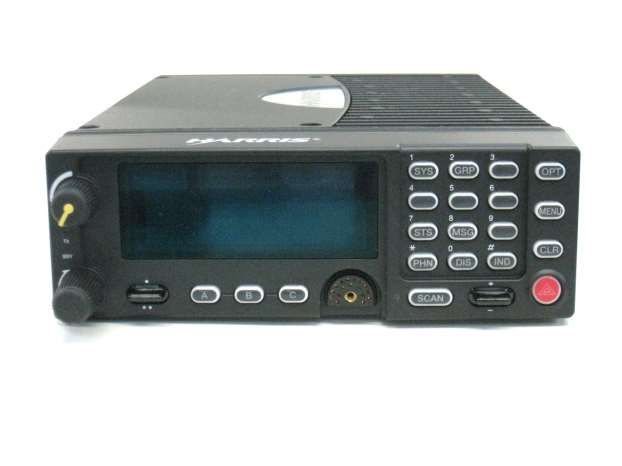

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 169 of 199 Appendix Q: External Photographs Photograph 6: Front View (Local) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 170 of 199 Photograph 7: Rear View (Local) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 171 of 199 Photograph 8: Left Side (Local) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 172 of 199 Photograph 9: Right Side (Local) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 173 of 199 Photograph 10: Top View (Local) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 174 of 199 Photograph 11: Bottom View (Local) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 175 of 199 Photograph 12: Front View (Remote) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 176 of 199 Photograph 13: Rear View (Remote) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 177 of 199 Photograph 14: Left Side (Remote) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 178 of 199 Photograph 15: Right Side (Remote) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 179 of 199 Photograph 16: Top View (Remote) Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 180 of 199 Photograph 17: Bottom View (Remote)

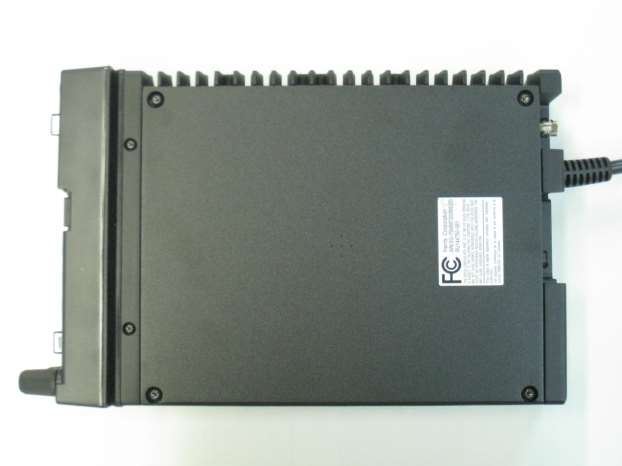

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 159 of 199 Appendix I: ID Label & Location Photograph 1: ID Label Sample Photograph 2: ID Label Location Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 160 of 199 Photograph 3: Part 15 Label on EUT Bottom

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 181 of 199 Appendix R: Internal Photographs Photograph 18: Top Cover Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 182 of 199 Photograph 19: Bottom Cover Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 183 of 199 Photograph 20: Bottom Cover and Shield Removed Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 184 of 199 Photograph 21: RF Processor – Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 185 of 199 Photograph 22: RF Processor – Component Side; Upper Left Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 186 of 199 Photograph 23: RF Processor – Component Side; Upper Right Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 187 of 199 Photograph 24: RF Processor – Component Side; Lower Left Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 188 of 199 Photograph 25: RF Processor – Component Side; Lower Right Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 189 of 199 Photograph 26: RF Processor – Solder Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 190 of 199 Photograph 27: RF Processor – Solder Side; Upper Left Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 191 of 199 Photograph 28: RF Processor – Solder Side; Upper Right Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 192 of 199 Photograph 29: RF Processor – Solder Side; Lower Left Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 193 of 199 Photograph 30: RF Processor – Solder Side; Lower Right Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 194 of 199 Photograph 31: PK Board – Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 195 of 199 Photograph 32: PK Board – Component Side; Left Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 196 of 199 Photograph 33: PK Board – Component Side; Right Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 197 of 199 Photograph 34: PK Board – Solder Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 198 of 199 Photograph 35: PK Board – Solder Side; Left Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model #: XG-75M/M7300/M5300,35W Suite 1400 ID’s: OWDTR-0132-E/3636B-0132 Herndon, VA20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014021 199 of 199 Photograph 36: PK Board – Solder Side; Right Side

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com RF Maximum Permissible Exposure (MPE) Report for Controlled and Uncontrolled Environments Harris Corporation 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Contact: Fred Shabestar Model: XG-75M 700/800 MHz Mobile Radio Model # XG-75M/M7300/M5300,35W FCC ID: OWDTR-0132-E IC: 3636B-0132 April 23, 2015 Report Prepared by: Richard B. McMurray, P.E. Document Number: 2014021MPE This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Harris Corporation. Test results relate only to the item tested. These test(s) are accredited under Rhein Tech Laboratories, Inc. ISO/IEC 17025 accreditation issued by the ANSI-ASQ National Accreditation Board. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client…

Text truncated - open the document above for the full version.
