OWDTR-0133-EXL-200P, Multi-Band Portable Land Mobile Radio

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 510 of 520 Appendix P: Manuals Please refer to the following pages for the Operator’s Manual and the Product Safety Manual. Operator’s Manual 14221-1800-2000 Feb/15 XL-2 00P Full-Spectrum Multiband Radio 14221-1800-2000 2 MANUAL REVISION HISTORY REV. DATE REASON FOR CHANGE - Feb/15 Initial release. ACKNOWLEDGEMENT This product was developed using GEOTRANS, a product of the National Geospatial Intelligence Agency and U.S. Army Engineering Research and Development Center. Use of this software does not indicate endorsement or approval of the product by the Secretary of Defense or the National Geospatial Intelligence Agency. This device made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,697; 5,164,986; 5,185,795. The Advanced Multi-Band Excitation implementation 2 (AMBE+2) voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. CREDITS Harris, assuredcommunications, Unity, VIDA, EDACS, NetworkFirst, and OpenSky are registered trademarks of Harris Corporation. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Motorola is a registered trademark of Motorola, Inc. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. All brand and product names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2012/19/EU. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2015 Harris Corporation. 14221-1800-2000 3 TABLE OF CONTENTS Section Page 1. REGULATORY AND SAFETY INFORMATION ............................................................................. 7 1.1 SAFETY CONVENTIONS .......................................................................................................... 7 1.2 SAFETY TRAINING INFORMATION ...................................................................................... 7 1.2.1 RF Exposure Guidelines .................................................................................................. 8 1.2.2 Electromagnetic Interference/Compatibility .................................................................... 9 1.3 REGULATORY APPROVALS ................................................................................................... 9 1.3.1 Part 15 .............................................................................................................................. 9 1.3.2 Industry Canada ............................................................................................................... 9 1.4 OPERATING TIPS ...................................................................................................................... 9 1.4.1 Efficient Radio Operation ................................................................................................ 9 2. RENSEIGNEMENTS SUR LA RÉGLEMENTATION ET SÉCURITÉ ....................................... 11 2.1 CONVENTIONS SUR LES SYMBOLES DE SÉCURITÉ ...................................................... 11 2.2 RENSEIGNEMENTS SUR LA FORMATION SUR LA SÉCURITÉ ...................................... 11 2.2.1 Directives sur l’exposition aux RF ................................................................................ 12 2.2.2 Interférence/Compatibilité Électromagnétique .............................................................. 13 2.3 INTERFÉRENCE DES RADIOFRÉQUENCES ...................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 502 of 520 Appendix I: AFC Attestation Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL ATTESTATION Locked/unlocked AFC Operation The XL-200P Portable Radio uses a single VTCXO (26.0 MHz) as its frequency reference. All local oscillators are phase locked to this single reference. The reference is specified to be better than +/- 1.5ppm over the operating temperature and voltage ranges. This reference oscillator has an electronic frequency control (EFC) range of +/ 410 Hz. The EFC can be fine-tuned through software. The initial tuning is performed at factory test, calibration and configuration time. This function is performed by providing a GPS locked RF carrier to the radio under test, while the radio’s AFC function is enabled. The radio software computes the difference between the internal reference and the applied GPS locked RF carrier and adjusts the EFC voltage to minimize the difference. The radio is then commanded to transmit an unmodulated carrier and the frequency of that carrier is checked to confirm that it is within tolerance. The EFC correction factor is stored in the radio’s non-volatile memory. Software control is used to implement AFC, when operating in the 700 MHz band (Part 90, Subpart R rules). In AFC locked mode, the digital signal processor examines the received base station signal and determines if there is any residual frequency error. The software then adjusts to minimize the residual frequency error. Hardware correction provides a resolution of below 0.1 ppm when adjusting the TCXO and so it is straightforward to control the TCXO to within the +/- 0.4 ppm requirement. The received base station signal correction is a continuously executed radio function. When the radio is switched from a trunked system to a conventional system, the radio’s AFC uses the last determined base station correction value for frequency control. When the radio powers up on a conventional channel, calibration data will be used.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 500 of 520 Appendix G: Extended Frequency Attestation Please refer to the following pages. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com January 13, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 ATTESTATION XL-200P Mobile Radio Extended Frequency Range FCC ID: OWDTR-0133-E Device is for use in Public Safety Part 90, Part 22, and Part 80. Additionally, Federal end users are intended. The frequency bands are: 136 – 174 MHz and 335.4 – 520 MHz Equipment programming is the responsibility of Authorized Service Personnel. Also, the operator cannot directly program the transmit frequencies using the normally accessible external controls. Harris Corporation acknowledges that operation on unauthorized frequencies is a violation of FCC rules. Harris Corporation acknowledges the inclusion of Grant note code “EF”. Part 2.106 has been used to construct the following table of frequency range capability intended for end users. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Frequency(MHz) Part 90 Part 80 Part 74 Part 22 Federal 136.0000 – 137.0000 137.0000 - 144.0000 X 144.0000 - 148.0000 148.0000 - 150.8000 X 150.8000 - 152.8550 X X 152.8550 - 154.0000 X X 154.0000 - 156.2475 X X 156.2475 – 156.7625 X 156.7625 – 156.8375 X X 156.8375 – 157.0375 X 157.0375 - 157.1875 X X 157.1875 - 157.4500 X X 157.4500 - 161.5750 X X X X 161.5750 - 161.6250 X X 161.6250 - 161.7750 X X 161.7750 - 161.9625 X X 161.9625 -161.9875 X X 161.9875 - 162.0125 X 162.0125 – 162.0375 X X 162.0375 - 173.2000 X X X 173.2000 - 173.4000 X 173.4000 - 174.0000 X HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Frequency(MHz) Part 90 Part 80 Part 74 Part 22 Federal 335.4000 – 406.1000 X 406.1000 – 420.0000 X X 420.0000 – 450.0000 X X 450.0000 - 454.0000 X X 454.0000 - 455.0000 X X 455.0000 - 456.0000 X 456.0000 - 460.0000 X X X 460.0000 - 462.5375 X X 462.5375 - 462.7375 X 462.7375 - 467.5375 X X X 467.5375 - 467.7375 X X 467.7375 - 470.0000 X X X 470.0000 - 512.0000 X X 512.0000 - 520.0000 X X William H. Pertner Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 501 of 520 Appendix H: Part 90 Subpart R Application Review Please refer to the following pages. HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL FCC ID: OWDTR-0133-E Original submission ATTESTATION Part 90 Subpart R Application Review 1. Explanation of which Narrowband or Wideband channel segments the device is capable of supporting from those listed in 90.531(b), and 90.531(c). - For Narrowband segments: a) Is the device capable of operating on “General Use” channels listed in 90.531(b)(5) or “State” channels listed in 90.531(b)(6)? Response: Yes. b) Is the device ONLY capable of operating on Low Power “Regional” channels listed in 90.531(b)(3) or Low Power “Itinerant” channels listed in 90.531(b)(4)? Response: No, the device is capable of operating on the channels specified in a) above, c) below, as well as the Low Power “Itinerant” channels listed in 90.531(b)(4). c) Is the device capable of operating on “Nationwide” Interoperability channels listed in 90.531(b)(1)? Response: Yes. HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL - For Wideband segments: d) Is the device capable of operating on Interoperability channels listed in 90.531(c)(1)? Response: No. 2. Statement regarding the modulation capabilities of the device: - Does the device support digital Voice only, Data only, or both [see 90.547]? Response: Both - Does the device support analog voice operation [see 90.535(a)]? Response: Yes 3. Verify the following Interoperability Channel Operation requirements listed in 90.531 and 90.547 for Narrowband mobile, portable, or control devices only, given the information from #1 and #2 above: a) Designed for Data ONLY Operation on Nationwide, General Use or State channels - Must be capable of operating on the data interoperability channels listed in 90.531(b)(1)(i). Response: Answered in question 1. Radio is not a single mode device. b) Designed for Voice ONLY Operation on Nationwide, General Use or State channels - HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL Must be capable of operating on the nationwide and calling only interoperability channels listed in 90.531(b)(1) and (b)(1)(ii), but do not have to operate on data only channels listed in 90.531(b)(1)(i). Response: Answered in question 1. Radio is not a single mode device, and has a wide configuration flexibility to allow compliance with these rule parts. c) Designed for BOTH Voice and Data Operation on Nationwide, General Use or State channels – Must be capable of operating on all nationwide interoperability channels including data only and calling only channels listed in 90.531(b)(1), (b)(1)(i), and (b)(1)(ii). Response: Answered in question 1. Yes, when application configured as such. d) Designed for Low Power ONLY Operation on Regional/Itinerant channels – Must operate ONLY on the data/voice channels listed in 90.531(b)(3) or (b)(4). Response: Answered in question 1. 4. Verify the following capability requirements for all Wideband devices only, given the information from #1. and #2. above: a) Designed for Data ONLY Operation on Nationwide Interoperability channels – Must operate on the wideband data interoperability channels listed in 90.531(c)(1). Response: N/A HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL 5. Application filing requirements for Narrowband mobile, portable or control devices only: - Voice Operation on General Use, State, or Nationwide Voice Interoperability channels: a) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Response: Performed and reported in FCC EMC test report filed. b) Attestation of voice path efficiency compliance for operation on General Use and State channels only – 90.203(m) & 90.535(d). Response: N/A; applies to licensees. c) Attestation of operation on Nationwide Voice Interoperability and Calling Only channels – 90.547. For Voice Only devices, attestation to 90.547(a)(3). Response: Radio is capable of operation in sections cited. Answered above. d) Attestation of compliance to Project 25 FDMA Common Air Interface (ANSI 102) standards for operation on Nationwide Voice Interoperability and Calling Only channels only - 90.548(a)(1). Response: Radio product capable of Project 25. FCC EMC test report shows this, and emission designators indicate so. e) Frequency stability compliance for all band plans - 90.539(a) & (c). HARRIS CORPORATION RF Communications Division 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com CONFIDENTIAL Response: Yes. FCC EMC test report shows this, and emission designators indicate so. f) Transmitting power compliance for all band plans - 90.541(b) & (c). Response: Yes. FCC EMC test report shows this. - Data Operation on General Use, State, or Nationwide Data Interoperability channels: g) Emission limitation (ACP) compliance for each combination of channel bandwidth and modulation for all band plans - 90.543. Response: Performed and reported in FCC EMC test report filed. h) Attestation of data rate efficiency compliance for General Use and State channels only 90.535(b). Response: Compliant to requirements. Rates reported in FCC EMC test report filed. i) Attestation of operation on Nationwide Data Interoperability channels listed in 90.531(b)(1)(i) only – 90.547. For Data Only devices, attestation to 90.547(a)(2). Response: Radio product in data mode, but is multi mode product based on application configuration. FCC EMC test report filed identifies…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 496 of 520 Appendix C: FCC Confidentiality Request Letter Please refer to the following pages. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com March 31, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: Confidentiality Request for OWDTR-0133-E Original Grant Harris wishes to submit this confidentiality letter for the record on FCC ID: OWDTR- 0133-E ; XL-200P. Harris is requesting that the following be kept long-term confidential, and not be made available for routine public inspection: • Block Diagrams • Parts Lists • Schematics • Tune Up / Alignment Procedure • Technical Operational Description Harris is requesting that the following be kept short-term confidential for 180 days, and not be made available for routine public inspection: • External Photos • Internal Photos • Users Manuals • Test Setup Photos This product will be sold to Federal and Government Department of Defense (DoD) customers. Harris feels that this information is considered sensitive and creates a vulnerability to U.S. and friendly forces deploying this product in military applications. Public display of this information does not prohibit hostile forces from attaining this information readily and using it in a manner to jeopardize lives. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of this material may be harmful to the applicant and provide unjustified benefits to its competitors. This request is made under the provision of 47 CFR Section 0.457 and Section 0.459 of the Commission’s rules, and section 552(b)(4) of the Freedom of Information Act. These sections authorize a withholding from public inspection material which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Thank you for your attention to this matter. William H. Pertner Regulatory Manager

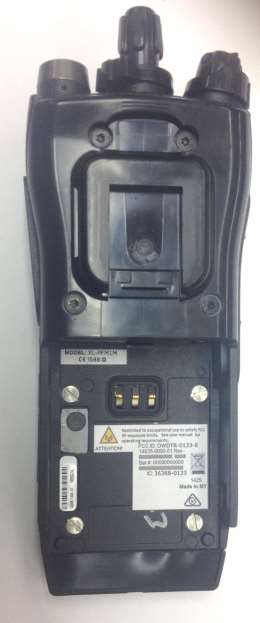

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 513 of 520 Appendix R: External Photographs Photograph 5: Front Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 514 of 520 Photograph 6: Back Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 515 of 520 Photograph 7: Top Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 516 of 520 Photograph 8: Side Views

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 503 of 520 Appendix J: Label Information Photograph 1: ID Label Sample with RF Statement Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 504 of 520 Photograph 2: Label Location

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 517 of 520 Appendix S: Internal Photographs Photograph 9: Top with Shields Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 518 of 520 Photograph 10: Bottom with Shields Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 519 of 520 Photograph 11: Top without Shields Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XL-200P Portable Radio Suite 1400 IDs: - OWDTR-0133-E/3636B-0133 Herndon, VA 20170 Standards: FCC 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2014103 520 of 520 Photograph 12: Bottom without Shields

Harris Corporation - FCC ID: OWDTR-0133-E BT-WiFi Antenna in Chassis -1 Harris Corporation - FCC ID: OWDTR-0133-E BT-WiFi Antenna in Chassis – 2 Harris Corporation - FCC ID: OWDTR-0133-E BT-WiFi Antenna with Shields Installed Harris Corporation - FCC ID: OWDTR-0133-E BT-WiFi Copper Track Harris Corporation - FCC ID: OWDTR-0133-E BT-WiFi Antenna - No Shields

Date(s) of Evaluation Dec 30/14 Jan 22/15 Test Report Serial No. 121814OWD-1302-S Test Report Revision No. Rev. 1.1 Test Report Issue Date Feb 10, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XL-200P Multi-Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 227 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION - FCC / IC Original Filing Name CELLTECH LABS INC. TEST LAB INFORMATION Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada TEST LAB ACCREDITATION Type ISO / IEC 17025 Accreditation A2LA Test Lab Certificate No. 2470.01 Name HARRIS CORPORATION APPLICANT INFORMATION Address 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 U.S.A. STANDARDS APPLIED FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC KDB 447498 D01v05r02, KDB 865664 D01v01r03 IC RSS 102 Issue 4 FCC KDB 865664 D02v01r01, KDB 643646 D01v01r01 IEC PROCEDURES APPLIED IEEE IEEE 1528-2013 IEC FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 DEVICE CLASSIFICATION IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 DEVICE DESCRIPTION Portable Multi-Band Digital Push-To-Talk (PTT) Radio Transceiver APPLICATION TYPE New Filing DATE(S) OF EVALUATION December 30, 2014 – January 22, 2015 SAMPLES RECEIVED December 18, 2014 Devices Evaluated FCC ID IC Certification Model Type Frequency Range Manufacturer's Rated Output Power OWDTR-0133-E 3636B-0133 XL-200P System & Scan 136-174MHz 378-522MHz 768-776MHz 798-806MHz 806-816MHz 851-861MHz 6W 5W 3W 3W 3W 3W Antenna Type(s) Tested KRE1011219/2, KRE1011506/1, KRE1011506/2, 14035-4000-01 Battery Type(s) Tested See Section 5.0 Body-worn Accessories Tested See Section 5.0 Audio Accessories Tested See Section 5.0 Head 1.88 Maximum SAR Level Evaluated FCC Body 5.20 Head 1.95 Maximum SAR Level Evaluated IC Body 5.46 W/kg 1g 50% PTT Duty Factor Occupational / Controlled Exposure FCC / IC Spatial Peak SAR Limit Head /Body 8.0 W/kg 1g 50% PTT Duty Factor Occupational / Controlled Exposure Statement of Compliance Celltech Labs Inc. declares under its sole responsibility that the Harris Corporation Model XL-200P Portable PTT Transceiver has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational/Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2013 and International Standard IEC 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. The results and statements contained in this report pertain only to the device(s) evaluated I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test Report Approved By Art Voss, P.Eng. Senior Engineer Celltech Labs Inc. Date(s) of Evaluation Dec 30/14 Jan 22/15 Test Report Serial No. 121814OWD-1302-S Test Report Revision No. Rev. 1.1 Test Report Issue Date Feb 10, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XL-200P Multi-Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 227 TABLE OF CONTENTS 1.0 DOCUMENT CONTROL _____________________________________________________ 3 2.0 INTRODUCTION ___________________________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM_______________________________________________ 4 4.0 RF CONDUCTED POWER MEASUREMENT_____________________________________ 5 5.0 NUMBER OF TEST CHANNELS (N C )___________________________________________ 7 6.0 MANUFACTURER’S ACCESSORY LIST________________________________________ 7 7.0 SAR MEASUREMENT SUMMARY_____________________________________________ 9 8.0 SCALING OF MAXIMUM MEASURE SAR ______________________________________ 17 9.0 SAR EXPOSURE LIMITS ___________________________________________________ 19 10.0 DETAILS OF SAR EVALUATION____________________________________________ 20 11.0 MEASUREMENT UNCERTAINTIES__________________________________________ 21 12.0 TISSUE SIMULATING LIQUID (TSL) RECIPE __________________________________ 23 13.0 FLUID DIELECTRIC PARAMETERS _________________________________________ 26 14.0 SYSTEM VERIFICATION TEST RESULTS ____________________________________ 48 15.0 MEASUREMENT SYSTEM SPECIFICATIONS _________________________________ 52 16.0 TEST EQUIPMENT LIST___________________________________________________ 54 APPENDIX A - SAR MEASUREMENT PLOTS _____________________________________ 55 APPENDIX B - SYSTEM VERIFICATION MEASUREMENT PLOTS____________________ 171 APPENDIX C - SETUP PHOTOS _______________________________________________ 193 APPENDIX D - DUT PHOTOS _________________________________________________ 214 APPENDIX E – DIPOLE CALIBRATION _________________________________________ 225 APPENDIX F – PROBE CALIBRATION __________________________________________ 226 APPENDIX G – PHANTOM COC _______________________________________________ 227 Date(s) of Evaluation Dec 30/14 Jan 22/15 Test Report Serial No. 121814OWD-1302-S Test Report Revision No. Rev. 1.1 Test Report Issue Date Feb 10, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 A…

Text truncated - open the document above for the full version.

Date(s) of Evaluation Dec 30/14 Jan 22/15 Test Report Serial No. 121814OWD-1302-S Test Report Revision No. Rev. 1.1 Test Report Issue Date Feb 10, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XL-200P Multi-Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 225 of 227 APPENDIX E – DIPOLE CALIBRATION Date: June 19, 2014 Revision No. Rev. 1.1 450 MHz Dipole Extended Calibration Test Lab Certificate No. 2470.01 Dipole: D450V3 Serial Number: 1068 Last Calibrated: Apr. 27, 2012 Antenna Parameters with Head TSL Impedance Real (ohms) Deviation from cal Impedance Imaginary (ohms) Deviation from cal Return Loss (dB) Deviation from Cal Last Calibration 57.7 - -4.7 - -21.6 - Extended Cal May 29, 2013 55.1 2.6 -7.2 2.5 -21.5 0.4 Extended Cal May 13, 2014 57.9 0.2 -7.1 2.4 -20.1 -1.5 Antenna Parameters with Body TSL Impedance Real (ohms) Deviation from cal (ohms) Impedance Imaginary (ohms) Deviation from cal (ohms) Return Loss (dB) Deviation from Cal (%) Last Calibration 54.6 - -8.1 - -21.0 - Extended Cal May 8, 2013 51.3 3.3 -11.9 3.8 -20.1 4.3 Extended Cal June 19, 2014 51.2 3.4 -9.4 1.3 -20.2 3.8 Date: June 19, 2014 Revision No. Rev. 1.1 450 MHz Dipole Extended Calibration Test Lab Certificate No. 2470.01 Antenna VSWR with Head TSL Date: June 19, 2014 Revision No. Rev. 1.1 450 MHz Dipole Extended Calibration Test Lab Cer…

Text truncated - open the document above for the full version.
