OWDTR-0136-EXG-15P UHF-H

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 84 of 102 Appendix N: Manuals Please refer to the following pages for the Operator’s Manual and the Safety Manual. Operator’s Manual 14221-1450-2000 Rev. B, Sep/15 XG-15P Series Portable Radios 14221-1450-2000, Rev. B 2 REV DATE REASON FOR REVISION - May/15 Initial release. A Aug/15 Added VHF split. B Sep/15 Added UHF split. Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation fax your comments to: 1-434-455-6851 PSPC Business or Technical Publications e-mail us at: PSPC _ TechPubs @ harris.com 221 Jefferson Ridge Parkway Lynchburg, VA 24501 ACKNOWLEDGEMENTS The software contained in this device is copyrighted by Harris Corporation Unpublished rights are reserved under the copyright laws of the United States. This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; ; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS! Harris Corporation and assuredcommunications are registered trademarks and ProScan and Failsoft are trademarks of Harris Corporation. RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. TORX is a registered trademark of CAMCAR division of TEXTRON, Inc. All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. This manual covers Harris Corporation products manufactured and sold by Harris Corporation. This product conforms to the European Union WEEE Directive 2012/19/EU. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Changes or modifications not expressly approved by Harris Corporation could void the user’s authority to operate the equipment. This manual is published by Harris Corporation, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation, at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2015 Harris Corporation. All rights reserved. 14221-1450-2000, Rev. B 3 TABLE OF CONTENTS Page 1. REGULATORY AND SAFETY INFORMATION ............................................................................................. 6 1.1 SAFETY CONVENTIONS ........................................................................................................................ 6 1.2 SAFETY TRAINING INFORMATION ..................................................................................................... 6 1.2.1 RF Exposure Guidelines ............................................................................................................... 7 1.2.2 Electromagnetic Interference/Compatibility ................................................................................. 8 1.3 REGULATORY APPROVALS .................................................................................................................. 8 1.3.1 Part 15 ........................................................................................................................................... 8 1.3.2 Industry Canada ............................................................................................................................ 8 1.4 OPERATING TIPS ..................................................................................................................................... 8 1.5 EFFICIENT RADIO OPERATION ............................................................................................................ 9 1.5.1 Antenna C…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 76 of 102 Appendix F: AFC Attestation Letter Please refer to the following pages. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com ATTESTATION Locked/unlocked AFC Operation The XG-15P UHF-H Portable Radio use s a si ngle TCXO (19.2 MHz) as its frequency reference. All local oscillators are phase locked to this si ngle reference. The reference is speci fied to be better than +/- 1.5ppm over the operating temperature and voltage ranges. This reference oscill ator has an elect ronic frequency control (EFC) range of +/ 410 Hz. The EFC ca n be fine- tuned through so ftware. The initial tuning is performed at factory test , ca lib ration and configuration t ime. This function is performed by providing a GPS locked RF ca rrier to the radio under test , while the radio’s AFC function is enabled. The radio so ftware co mputes the difference between the internal reference and the applied GPS locked RF ca rrier and adjust s the EFC voltage to minimize the difference. The radio is then commanded to transmit an unmodulated ca rrier and the frequency of that carrier is checked to confirm that it is within tolerance. The EFC co rrect ion fact or is stored in the radio’s non-volatile memory. Software control is used to implement AFC. In AFC locked mode, the digi tal si gnal processor examines the received base st ation signal and determines if there is any resi dual frequency error. The so ftware then adjust s to minimize the resi dual frequency error. Hardware correct ion provides a reso lution of below 0.1 ppm when adjust ing the TCXO and so it is st raightforward to co ntrol the TCXO to within the +/- 0.4 ppm requirement. The rece ived base station signal correc tion is a continuously execu ted radio funct ion. When the radio is switched from a trunked system to a conventional sy stem, the radio’s AFC uses the last determined base st ation correct ion value for frequency control. When the radio powers up on a co nventional channel, ca libration data will be use d. CONFIDENTIAL

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 77 of 102 Appendix G: Extended Frequency Attestation Letter Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Par kway Lynchburg, VA 24501 www.harris.com September 24, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 ATTESTATION XG-15P UHF-H Portable Radio Extended Frequency Range FCC ID: OWDTR-0136-E Device is for use in Public Safety Part 90, P art 22, Part 74 and Part 80. Additionally, Federal end users are intended. The frequency band is: 440 – 512 MHz. Equipment programming is the responsibility of Authorized Service Personnel. Also, the operator cannot directly program the transmit frequencies using the normally accessible external controls. Harris Corporation acknowledges that operation on unauthorized frequencies is a violation of FCC rules. Harris Corporation acknowledges the inclusion of Grant note code “EF”. P art 2.106 has been used to construct the following table of frequency range capability intended for end users. Frequency (MHz) Part 90 Part 80 Part 74 Part 22 Federal 420.0000 – 450.0000 X X 450.0000 – 454.0000 X X 454.0000 – 455.0000 X X 455.0000 – 456.0000 X 456.0000 – 460.0000 X X X 460.0000 – 462.5375 X X 462.5375 – 462.7375 X 462.7375 – 467.5375 X X X 467.5375 – 467.7375 X X 467.7375 – 470.0000 X X X 470.0000 – 512.0000 X X Sincerely, William H. Pertner Regulatory Manager CONFIDENTIAL

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 72 of 102 Appendix B: Agency Authorization Please refer to the following page. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Authority to Act as Agent March 11, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Rhein Tech Laboratories, Inc./Kathy Grzovic is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: March 01, 2016 By: William H. Pertner Title: Regulatory Manager On behalf of: Harris Corporation Telephone: 434-455-9295

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 73 of 102 Appendix C: FCC & IC Confidentiality Request Letter Please refer to the following pages. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Request for Confidentiality Date: September 22, 2015 Subject: Confidentiality Request for: FCC ID: OWDTR-0136-E, IC ID: 3636B-0136 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 6.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual Harris Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section V regarding EXCEPTIONAL CIRCUMSTANCES. As of the October 2014 version of this document, TCB’s can not authorize these requests. The applicant should petition the FCC by submitting an inquiry as directed. A copy of this inquiry and the FCC’s response must be provided with the application. HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, Regulatory Manager

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 78 of 102 Appendix H: ID Label & Location Photograph 1: ID Label & Location

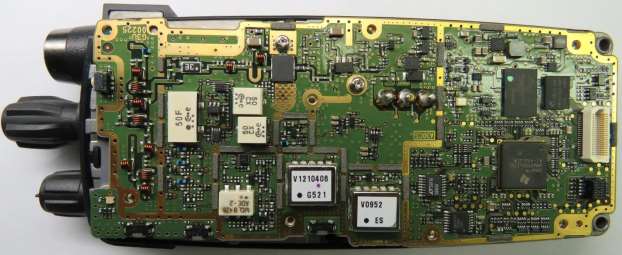

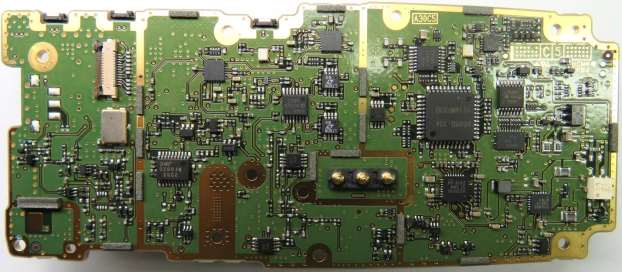

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 96 of 102 Appendix Q: Internal Photographs Photograph 13: Inside Front Cover Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 97 of 102 Photograph 14: Inside Rear Cover Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 98 of 102 Photograph 15: Main PWB in Unit with Shield Photograph 16: Main PWB in Unit without Shield Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 99 of 102 Photograph 17: Main PWB Side 1 Photograph 18: Main PWB Side 2 Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 100 of 102 Photograph 19: Interface PWB in Unit Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 101 of 102 Photograph 20: Interface PWB Component Side Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 102 of 102 Photograph 21: Interface PWB LCD Side

Date(s) of Evaluation Sep 14-21, 2015 Test Report Serial No. 091015OWD-1332-S Test Report Revision No. Rev. 1.2 Test Report Issue Date September 30, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XG-15P UHF-H Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 97 BlueTooth2.4Ghz3dBm (2mW) APPLICANT INFORMATION Name Address FCC KDB 447498 D01v05r02, KDB 865664 D01v01r03 47 CFR §2.1093 PROCEDURES APPLIEDFCC APPLICATION TYPENew Filing IEEE Health Canada Safety Code 6 IC RSS 102 Issue 5 IEEE 1528 - 2013 STANDARDS APPLIED Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 DEVICE DESCRIPTION Portable Digital Push-To-Talk (PTT) Radio Transceiver PROCEDURES APPLIED FCC IC IC KDB 865664 D02v01r01, KDB 643646 D01v01r01 ID IC Certification DATE(S) OF EVALUATIONSeptember 14-20, 2015 Model FCCDevice This test report shall not be reproduced, in part or in full, without prior written approval from Celltech Labs, Inc. TEST LAB ACCREDITATION Operating Frequency Rated Output Power Device Celltech Labs Inc. declares under its sole responsibility that this device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure limits specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational/Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC KDB 865664 D01v01r03, Industry Canada RSS-102 Issue 5 and IEEE Standard 1528-2013. Maximum SAR Level Evaluated FCC Maximum SAR Level Evaluated IC FCC / IC Spatial Peak SAR LimitFace/Body Body Face 6.62 8.0 HARRIS CORPORATION 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 U.S.A. Body Face 10 Sep 2015 3.25 6.62 Type SAR RF EXPOSURE EVALUATION - FCC / IC New Filing ISO / IEC 17025Accreditation A2LA Test Lab Certificate No. 2470.01Type Statement of Compliance DECLARATION OF COMPLIANCE Celltech Labs Inc. 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada TEST LAB INFORMATION Address Name Device Part Number Device(s) Evaluated SAMPLES RECEIVED Band W/kg1g Exposure Category RU-144772-001System UHF440-512MHz5.0W (37dBm) OWDTR-0136E3636B-0136XG-15P SYS 440-512 GRY The results and statements contained in this report pertain only to the device(s) indicated. 3.4050% PTT Accessories TestedSee Section 6.0Duty Cycle Occupational / Controlled I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 21 Sep 2015Senior EngineerArt VossCelltech Labs IncTest Report Approved By: Date(s) of Evaluation Sep 14-21, 2015 Test Report Serial No. 091015OWD-1332-S Test Report Revision No. Rev. 1.2 Test Report Issue Date September 30, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XG-15P UHF-H Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 97 TABLE OF CONTENTS 1.0 DOCUMENT CONTROL _____________________________________________________ 3 2.0 INTRODUCTION ___________________________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM_______________________________________________ 4 4.0 RF CONDUCTED POWER MEASUREMENT_____________________________________ 5 5.0 NUMBER OF TEST CHANNELS (N C )___________________________________________ 6 6.0 MANUFACTURER’S ACCESSORY LIST________________________________________ 6 7.0 SAR MEASUREMENT SUMMARY____________________________________________ 10 8.0 SCALING OF MAXIMUM MEASURE SAR ______________________________________ 12 9.0 SAR EXPOSURE LIMITS ___________________________________________________ 14 10.0 DETAILS OF SAR EVALUATION____________________________________________ 15 11.0 MEASUREMENT UNCERTAINTIES__________________________________________ 16 12.0 TISSUE SIMULATING LIQUID (TSL) RECIPE __________________________________ 18 13.0 FLUID DIELECTRIC PARAMETERS _________________________________________ 19 14.0 SYSTEM VERIFICATION TEST RESULTS ____________________________________ 23 15.0 MEASUREMENT SYSTEM SPECIFICATIONS _________________________________ 24 16.0 TEST EQUIPMENT LIST___________________________________________________ 26 APPENDIX A - SAR MEASUREMENT PLOTS _____________________________________ 27 APPENDIX B – SYSTEM VERIFICATION PLOTS ___________________________________ 67 APPENDIX C - SETUP PHOTOS ________________________________________________ 71 APPENDIX D - DUT PHOTOS __________________________________________________ 82 APPENDIX E – DIPOLE CALIBRATION __________________________________________ 95 APPENDIX F – PROBE CALIBRATION ___________________________________________ 96 APPENDIX G – PHANTOM COC ________________________________________________ 97 Date(s) of Evaluation Sep 14-21, 2015 Test Report Serial No. 091015OWD-1332-S Test Report Revision No. Rev. 1.2 Test Report Issue Date September 30, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XG-15P UHF-H Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 97 1.0 DOCUMENT CONTROL REVISION HISTORY REVISION NO. DESCRIPTION IMPLEMENTED BY RELEASE DATE 1.0 1st Release Art Vo…

Text truncated - open the document above for the full version.

Date(s) of Evaluation Sep 14-21, 2015 Test Report Serial No. 091015OWD-1332-S Test Report Revision No. Rev. 1.0 Test Report Issue Date September 21, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XG-15P UHF-H Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 95 of 97 APPENDIX E – DIPOLE CALIBRATION Date(s) of Evaluation Sep 14-21, 2015 Test Report Serial No. 091015OWD-1332-S Test Report Revision No. Rev. 1.0 Test Report Issue Date September 21, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XG-15P UHF-H Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 96 of 97 APPENDIX F – PROBE CALIBRATION Date(s) of Evaluation Sep 14-21, 2015 Test Report Serial No. 091015OWD-1332-S Test Report Revision No. Rev. 1.0 Test Report Issue Date September 21, 2015 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Applicant: Harris Corporation Original Filing DUT Type: XG-15P UHF-H Band Portable PTT Transceiver 2014 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 97 of 97 APPENDIX G – PHANTOM COC

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC & IC Certification Report Harris Corporation 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Contact: Thomas Camper Email: [email protected] Phone: (434) 455-9367 Model: XG-15P UHF-H Portable Radio FCC ID: OWDTR-0136-E IC: 3636B-0136 September 18, 2015 Standards Referenced for this Report Part 2: 2014 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Part 22: 2014 Public Mobile Services Part 74: 2014 Experimental Radio, Auxiliary, Special Broadcast and Other Program Distributional Services Part 80: 2014 Stations in the Maritime Services Part 90: 2014 Private Land Mobile Radio Services TIA-EIA-603-C August 2004 Land Mobile FM or PM Communications Equipment – Measurement and Performance Standards ANSI/TIA/EIA–102.CAAA-2002 Digital C4FM/CQPSK Transceiver Measurement Methods ANSI/TIA-102.CAAB-A-2002 Land Mobile Radio Transceiver Performance Recommendations - Project 25 - Digital Radio Technology, C4FM/CQPSK Modulation TIA-102.CCAA August 2011 Two-Slot Time Division Multiple Access Transceiver Measurement Methods TIA-102.CCAB October 2011 Two-Slot Time Division Multiple Access Transceiver Performance Recommendations RSS-119 Issue 11 Land Mobile and Fixed Radio Transmitters and Receivers 27.41 to 960.0 MHz SRSP-501 Technical Requirements for Land Mobile and Fixed Radio Services Operating in the Bands 406.1-430 MHz and 450-470 MHz Report Prepared By: Daniel Baltzell Document Number: 2015156 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Harris Corporation. Test results relate only to the item tested. These test(s) are accredited under Rhein Tech Laboratories, Inc. ISO/IEC 17025 accreditation issued by the ANSI-ASQ National Accreditation Board. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 2 of 102 FCC Rule Parts Frequency Range (MHz) Rated Conducted Output Power (W) Frequency Tolerance (ppm) Transmit Mode Emission Designator 22, 74, 80, 90 440-512 (FCC/Federal) 450-470 (IC) 5.0 0.2 2-level FSK 9600 Data/ Digital Voice FM 11K7F1D 11K7F1E 22, 74, 80, 90 440-512 (FCC/Federal) 450-470 (IC) 5.0 0.2 Analog FM Narrowband 11K0F3E 22, 74, 80, 90 440-512 (FCC/Federal) 450-470 (IC) 5.0 0.2 H-CPM Data & Voice 8K10DXW 22, 74, 80, 90 440-512 (FCC/Federal) 450-470 (IC) 5.0 0.2 C4FM Data/Voice 8K40F1D 8K40F1E Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: XG-15P UHF-H Suite 1400 IDs: OWDTR-0136-E/3636B-0136 Herndon, VA 20170 Standards: FCC Parts 22/74/80/90/IC RSS-119 http://www.rheintech.com Report #: 2015156 3 of 102 Table of Contents 1 Test Result Summary ............................................................................................................................ 7 2 General Information ............................................................................................................................... 7 2.1 Test Facility ...................................................................................................................................... 7 2.2 Related Submittal(s)/Grant(s) .......................................................................................................... 7 2.3 Grant Notes ...................................................................................................................................... 7 2.4 Tested System Details ..................................................................................................................... 8 3 FCC Part 2.1033(C)(8) Voltages and Currents through the Final Amplifying Stage ........................... 10 4 FCC Part 2.1046(a), 22.659, 80.215, 90.205; IC RSS-119 5.4: Transmitter Power .......................... 10 4.1 Test Procedure ............................................................................................................................... 10 4.2 Test Data ........................................................................................................................................ 11 5 FCC Part 2.1051, 22.359, 80.217, 90.210; RSS-119 5.8: Conducted Spurious Emissions ............... 12 5.1 Test Procedure ............................................................................................................................... 12 5.2 Test Data ........................................................................................................................................ 13 6 FCC Part 2.1053(a), 80.211, 90.210; IC RSS-119 5.8.9.2: Radiated Emissions ................................ 14 6.1 Test Procedure ............................................................................................................................... 14 6.2 Test Data ........................................................................................................................................ 14 7 FCC Part 2.1049(c)(1), 22.359(b), 74.462(c), 80.205, 80.211(f), 90.210; IC RSS-119 5.5: Bandwidths/Masks ...............................................................................................…

Text truncated - open the document above for the full version.
