OYC-BT009Bluetooth Speaker

Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker User’s Manual for BT009 I. Outer Appearance and Function Buttons Touch colorful rings Function key LCD display screen LED colorful rings 1. MODE/ Mode selector: Press the Mode Selector to select SD card, Flash Memory Stick, AUX, FM, Bluetooth and working state. 2. /Play/Pause: Click Pause while playing music and click Play during pausing. Press and hold Automatic Search button under the conditin of FM. Under the condition of AUX, click Slience and then click again to open the voice. 3. 1 /Alarm 1: Press this button to enable or disable the alarm 1. When enabled, the icon 1 shows up. Press and hold 1 to set up the time of alarm and the LCD display screen displays 1 . Meanwhile, the clock flashes. Press and to configure the time. Finally, press the Set Button to quit or quit automatically. 4. 2 /Alarm 2: [Hint: The alarm lasts 1minute and to turn it off, press the Alarm Button] 5. SNOOZE/DIMMER: Backlight control/Alarm setup. Backlight control: There are 3 options like bright, dark and off. Press this button to select. Alarm setup: SNOOZE/DIMMER can be regarded as snooze function only when the alarm rings and the alarm can ring again after five minutes. 6. /Upward: Press and hold the button to increase or decrease volume, press is to select songs upwards while playing music. 7. /Downward: Press and hold the button to increase volume; press is to select songs downwards. 8. SET/Set button: Set：Check the time and set up the calendar. Calendar setup: Press and hold the Set Button to initiate date configuration. When the year flashes, press and to adjust and then move to the month by pressing the Set Button again, continue to adjust via and . When configuration is done, press any button to quit or quit automatically. Time check: When the time is not available, press the Set Button to check it out. 9. SLEEP/ Automatic shut-down when time is up: The speaker turns itself off when the time is up. Options of this button include OFF, 15, 30, 45, 60, 75, 90 and 120minutes. Such function is set to OFF by default. 10. / Power On and Off: Press to start after power supply is connected and press to shutdown in operation. 11. /Colorful LED On/Off button: Press to open colorful LED after power supply is connected; Touch colorful rings to choose your favorite LED luminescent color after opened; Hold , colors can be changed automatically after opened, automatically-changed color time is 5 minutes; press to close colorful LED when opened. II. Product functions and characteristics 1. FM radio: Internal FM Radio modules, antenna surrounded, automatic station search and stored stations. 3.5mm Aux cable used as antenna must be plugged. 2. LCD display screen: Display corresponding working mode and calendar and time. 3． Time display: Set calendar and clock. 4． DC power: Use DC power supply with DC12/2,000mA. 5． Power-off memory play: Memorize exactly interrupted position of last time automatically. 6． AUX Audio-in jack: Input 3.5MM audio cable to connect various sound sources of audiovisual products easily, including computer and MP3/MP4/IPOD/IPHONE. 7. Colorful LED: Touch control and colorful color bring warm and colorful for your life. 8. Alarm clock function: Remember time all the time and enhance life memory. 9. Internal high quality Bluetooth device and wireless transmission can make fashion more convenient. III: Product parameter Bluetooth spec：Bluetooth V2.1+EDR Transmission distance：≤10M Speaker standard： 8Ω、2.5inch Output power：5W×2 Frequency response：90Hz-20KHz Sensitivity：80db±2db SNR：≥80dB Distortion factor：≤0.3% product standard：W260×D156×H99MM IV. Power supply applied The system applies DC power supply and specification of power supply is DC12V-2,000MA. V. Common function description Music Playback： Click “Mode” button to switch working mode, click “Play/Pause” button to pause or continue playing and hold “Upward” or “Downward” button for 3 seconds to adjust volume. AUX playback: Use the supplied audio cable to connect the speaker to another music player such as computer by plugging one end to the speaker's AUX port and the other end to the music player's audio port. Plug and play mode shall be supported. Press Mode button to switch into working mode, hold “Upward” or “Downward” button for 3 seconds to adjust volume. Click “ ” button, the voice shall be silent under the condition of AUX and then click “ ” to open the voice. FM radio: Click “Mode” button to choose FM working mode, hold “Play/Pause” to initiate automatic (save) station search, save station and delete station. Press “Upward” or “Downward” to choose station after FM search station is made, hold “Upward” or “Downward” button for 3 seconds to adjust volume. Important tips: Audio-in jack cable must be plugged at the state of FM. Clock query and calendar settings: Calendar settings: Hold SET button and enter calendar settings: year can flicker, press and button to adjust and then press SET button to have month flickering and then press and button to adjust; Press any button to exit or exit automatically after day, hour and minute are adjusted in sequence. Clock query: Press SET for query under the condition of non-display time. Alarm clock settings: Press 1 button to enable or disable the alarm 1. When enabled, the icon 1 shows up. Press and hold 1 to set up the time of alarm and the LCD display screen displays 1 . Meanwhile, the clock flashes. Press and to configure the time. Finally, press the Set Button to quit or quit automatically. Bluetooth connection: Press MODE button to switch into Bluetooth, the display can show: BLUE, attached with prompt tone and the Bluetooth is open. Bluetooth connections can be conducted by Bluetooth connection equipment. Bluetooth equipment prompts whether to pair up or not. If selected Yes, it pairs up with the device and a beep is also generated by the speaker. If failed to detect any other Bluetooth device within 5minutes, the speaker will shut itself dow…

Text truncated - open the document above for the full version.

Dongguan Taide Industrial Co., Ltd. Address: Taide Industrial Park, Phase 2 Jinfenghuang Industrial, Fengguang Town, Dongguan, China Tel: (86)769-82691925 Fax: (86) 769-82691920 2013-06-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID:OYC-BT009 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Emily Lee/Sales Contact information / address : Taide Industrial Park, Phase 2 Jinfenghuang Industrial, Fengguang Town, Dongguan, China Tel: (86)769-82691925 Fax: (86) 769-82691920

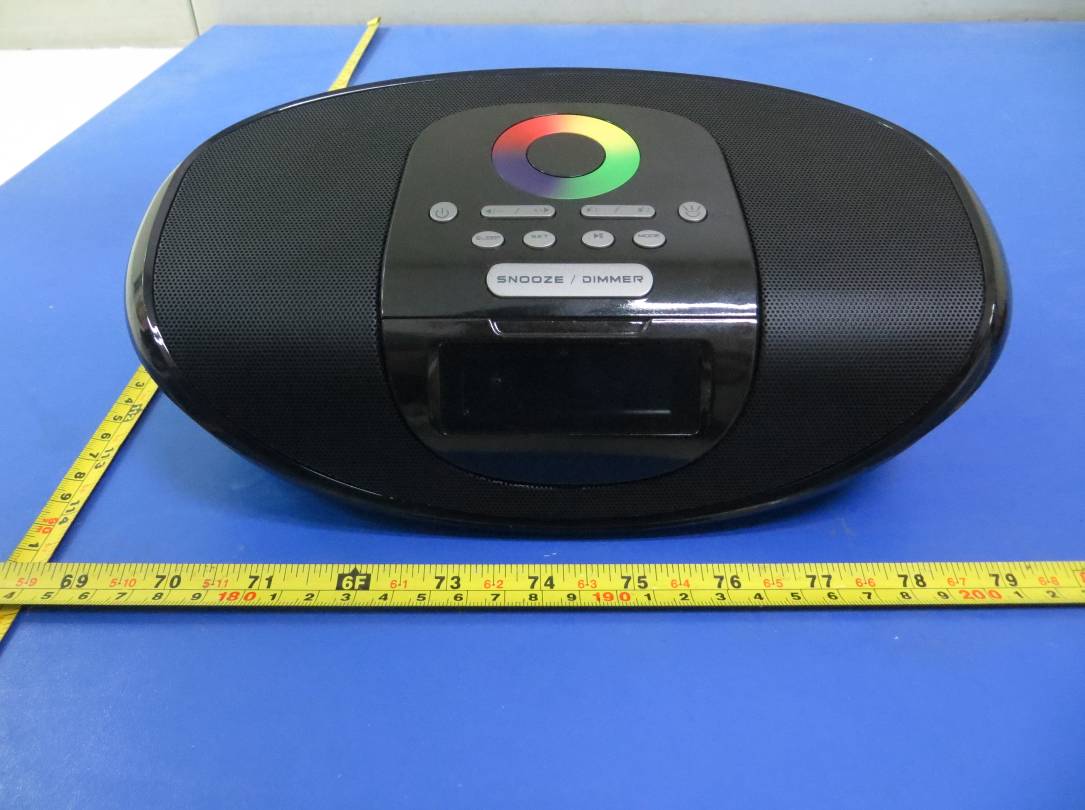

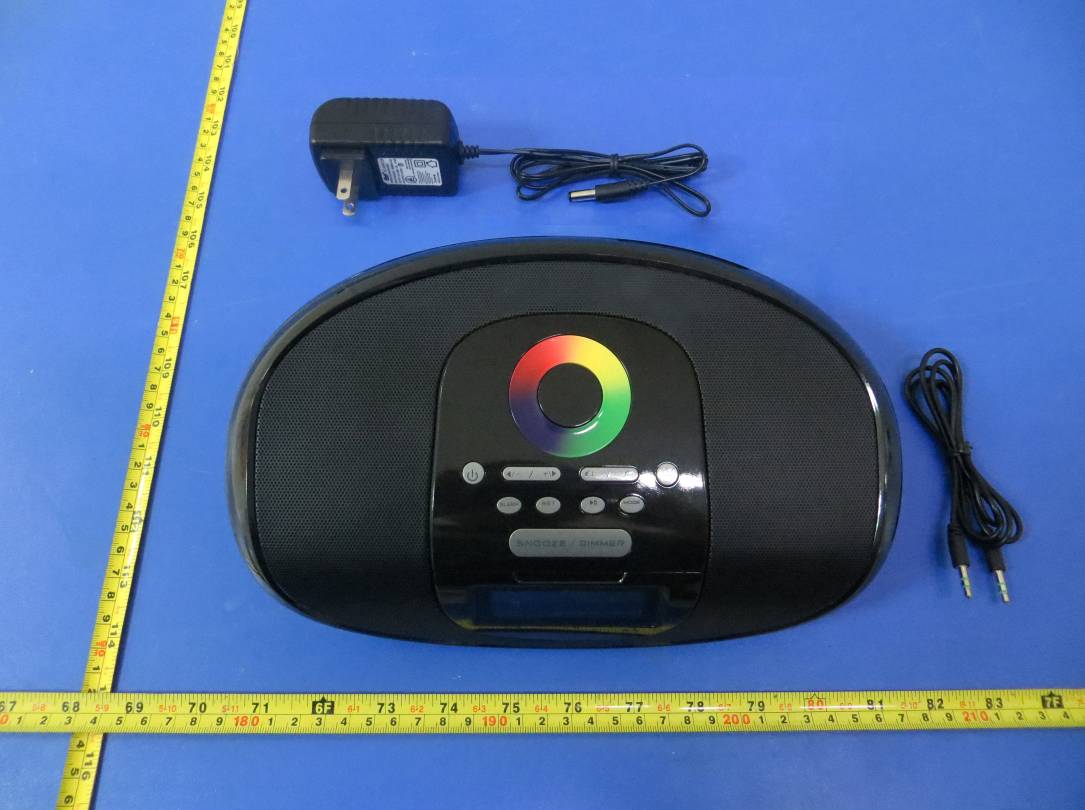

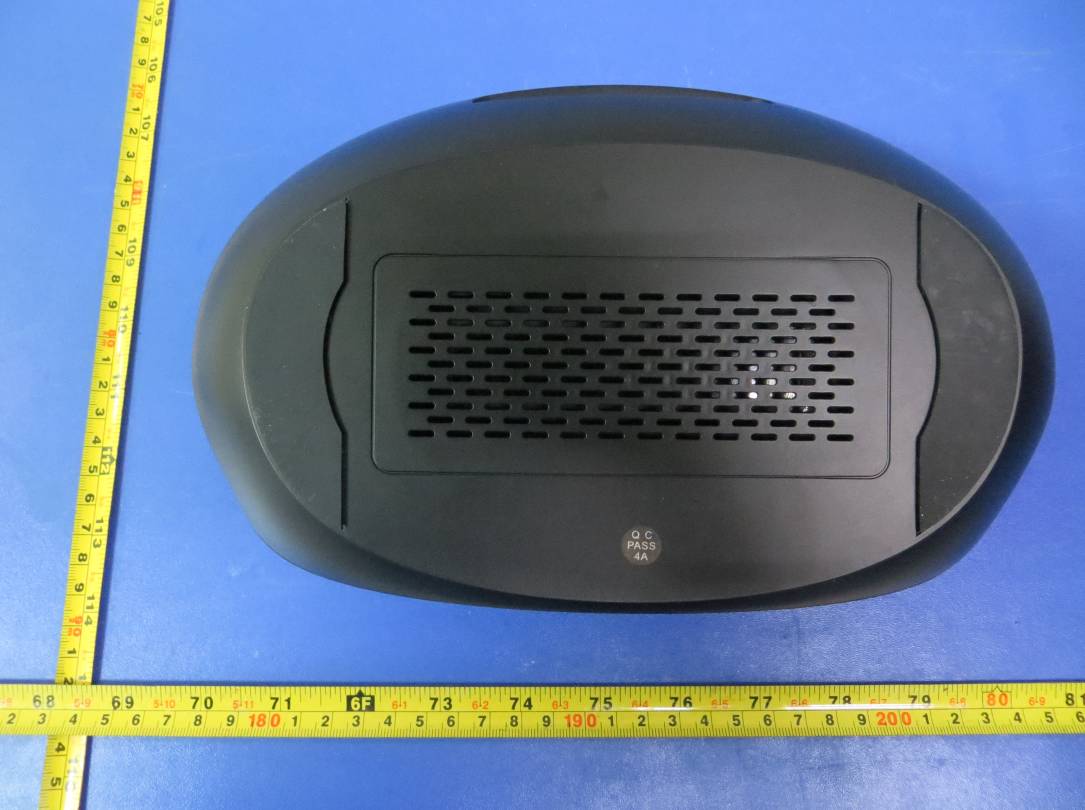

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.5cm*W2.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker Model No.: BT009 FCC ID: OYC-BT009 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 6 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 6 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 6 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 6 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 6 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 6 of 6 Fig.11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.: LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 42 FCC TEST REPORT FOR Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker Test Model: BT009 Prepared for : Dongguan Taide Industrial Co., Ltd. Address : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : June 06, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : June 06, 2013 - July 01, 2013 Date of Report : July 01, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.: LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 42 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2012 Report Reference No. ............... : LCS130530901TF Date of Issue ................................. : July 01, 2013 Testing Laboratory Name.......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Dongguan Taide Industrial Co., Ltd. Address ......................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247): 2012 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description................. : Bluetooth Speaker Trade Mark ................................... : N/A Model/ Type reference ................. : BT009 Ratings .......................................... : DC 12V by adapter Adapter Parameters: Input: AC 100~240V, 50/60Hz, 0.5A Output: DC 12V, 1.5A Result ......................................... : Positive Compiled by: Supervised by: Approved by: Yoyo Wang/ File administrators Fox Zhang/ Technique principalGavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.: LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 42 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130530901TF July 01, 2013 Date of issue Type / Model........................... : BT009 EUT......................................... : Bluetooth Speaker Applicant............................... : Dongguan Taide Industrial Co., Ltd. Address.................................. : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Taide Industrial Co., Ltd. Address................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Taide Industrial Co., Ltd. Address................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.: LCS130530901TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 42 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT)...........................................................................................................5 1.2 Support equipment List....................................................................................................................5 1.3 External I/O Cable ...........................................................................................................................5 1.4 Description of Test Facility .............................................................................................................5 1.5 Statement of The Measurement Uncertainty ...................................................................................6 1.6 Measurement Uncertainty................................................................................................................6 1.7 Description Of Test Modes.......…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement (X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT009 Report No.:LCS130530901TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Line Conducted Emissions Measurement
