OYCBT018Wireless Speakers

Wireless Slim Speaker Model #: BT8500BLK User Manual All trademarks are trademarks or registered trademarks of their respective companies. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Gear Head is under license. Other trademarks and trade names are those of their respective owners. 86(5¶65(&25' To provide quality customer service and technical support, it is suggested that you keep the following information as well as your store receipt and this user manual. Date of Purchase: ________________________________ Model Number: ________________________________ Product Rev Number (located below the UPC on the package): ____________________ PACKAGE CONTENTS: Your new speaker will ship with the following items: Wireless Slim Speaker USB to Micro USB Charging Cable User Manual and Warranty Information SYSTEM REQUIREMENTS: Works with: Bluetooth wireless technology enabled devices. INDICATION: NOTE: The pictures shown in this User Manual are for demonstration purposes only. Your speaker may look slightly different. 1. Power-on state: Switch on the speaker. The speaker will give out a warning tone and the Bluetooth indicator light flashes Blue. 2. Bluetooth connection: 1. Please turn your device and speaker on, then search the pairing model number ³GH_BT8500 ́ and pair it manually. 2.At first, the speaker will give out a warning tone, Bluetooth indicator light flashes Red and Blue alternately during pairing, it will flash Blue slowly after successful connection and also you will hear a warning tone .If Bluetooth speaker fails to detect any equipments, about 10 minutes, the speaker will shut itself down automatically. 3. To make another connection, it is necessary to switch on. The Bluetooth device once connected successfully ,which means the Bluetooth is activated ,and it will be connected automatically next time. 3. Smart automatic quick charge: Charging the speaker, one side, insert an available USB power cable into the Micro USB charge port of the speaker ,another side , connect with computer USB port or an USB charger. At the beginning, the charging indicator light flashes Red and Blue alternately at standby state or flashes Red at switch-off state, while it will finally change to Blue light after full charging. Power Switch Indicator light Micro USB charge port CONSIDERATE HINTS: 1) If connection fails, please switch off the device to restart. It may be low power with battery. Please charge it. 2) Pairing should be in the valid distance or it may fail to work. 3) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or impair your hearing. 4) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please recharge immediately. 5) When encountering any faults during operation, please cut off the power supply and disconnect the USB cable to prevent further damage to the speaker or other components. TROUBLESHOOTING Problems Solutions Unable to pair with other devices 1. Check whether the speaker is still in the process of searching or switch it off and then turn it on. 2. Check whether the speaker is in the valid range of pairing. 3. There are too many Bluetooth devices in the proximity that may cause difficulties in connection. Please turn them off. The sound is rather low or distorted 1. Check the Bluetooth device¶s volume and then adjust it to a proper level on your mobile devices or your computer. 2. Recharge the speaker if necessary. The music stops from time to time 1. Check whether the speaker is in the effective transmission range. 2. There is an obstacle standing between the speaker and Bluetooth devices. The Bluetooth indicator remains off 1. It suggests the battery power drops quite low and retry once being recharged. 2. Turn it on again. N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/3/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: OYCBT018 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Dongguan Taide Industrial Co., Ltd. Contact person: Emily Lee Title: Manager

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/3/2015 Request for Confidentiality Company name: Dongguan Taide Industrial Co., Ltd. FCC ID: OYCBT018 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Dongguan Taide Industrial Co., Ltd. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Dongguan Taide Industrial Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Dongguan Taide Industrial Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Emily Lee] [Manager] Dongguan Taide Industrial Co., Ltd. Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,523689,China

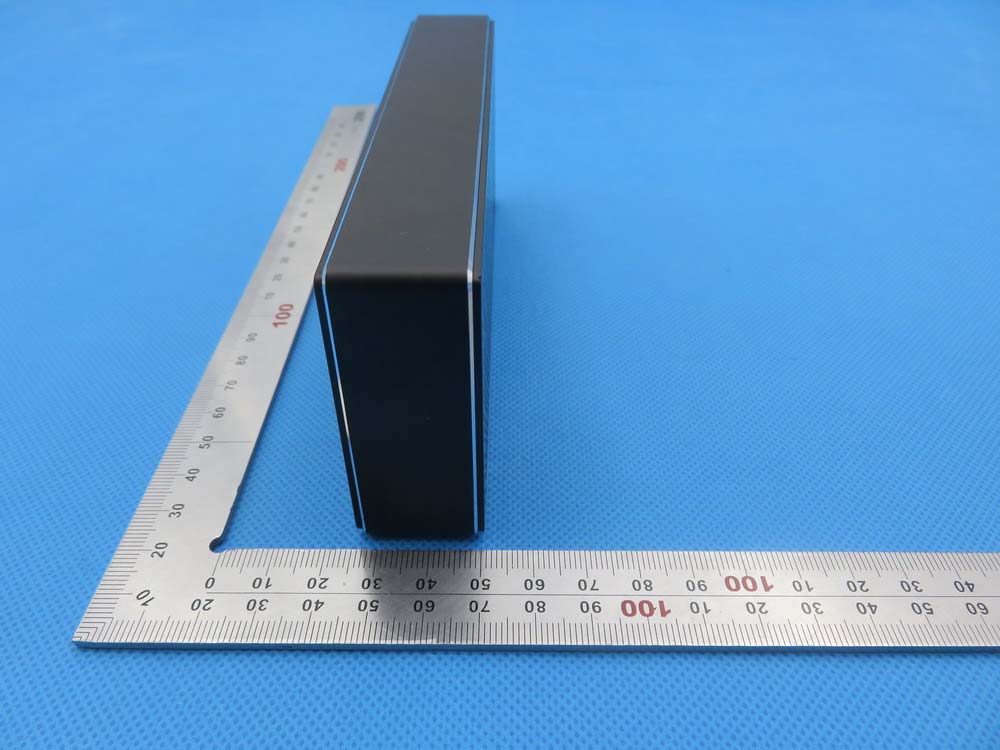

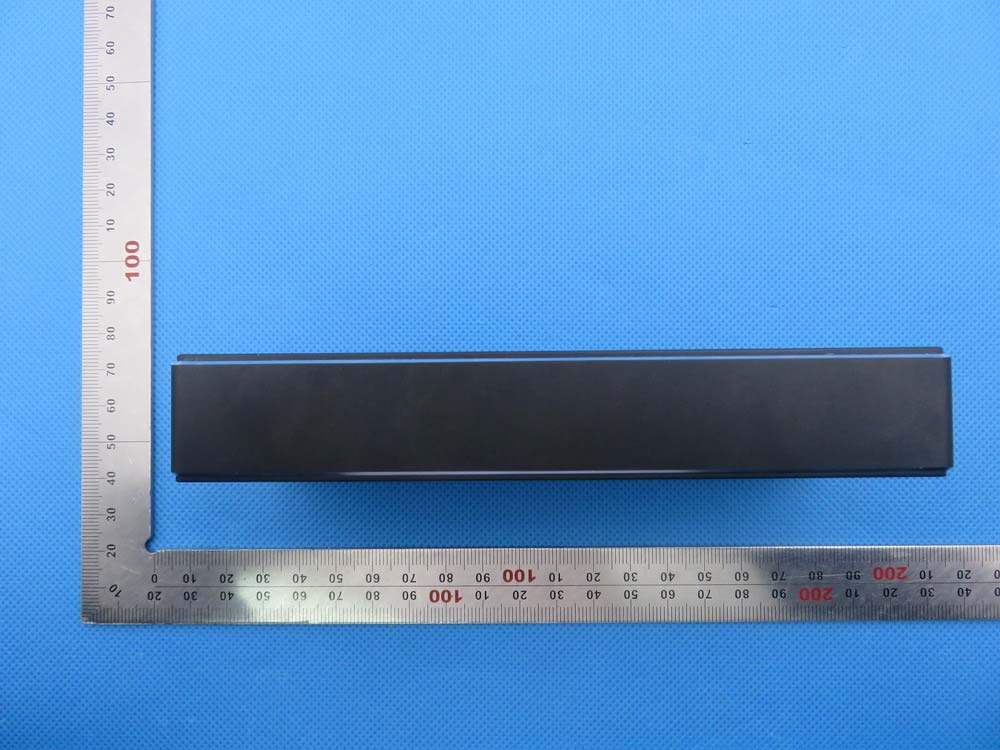

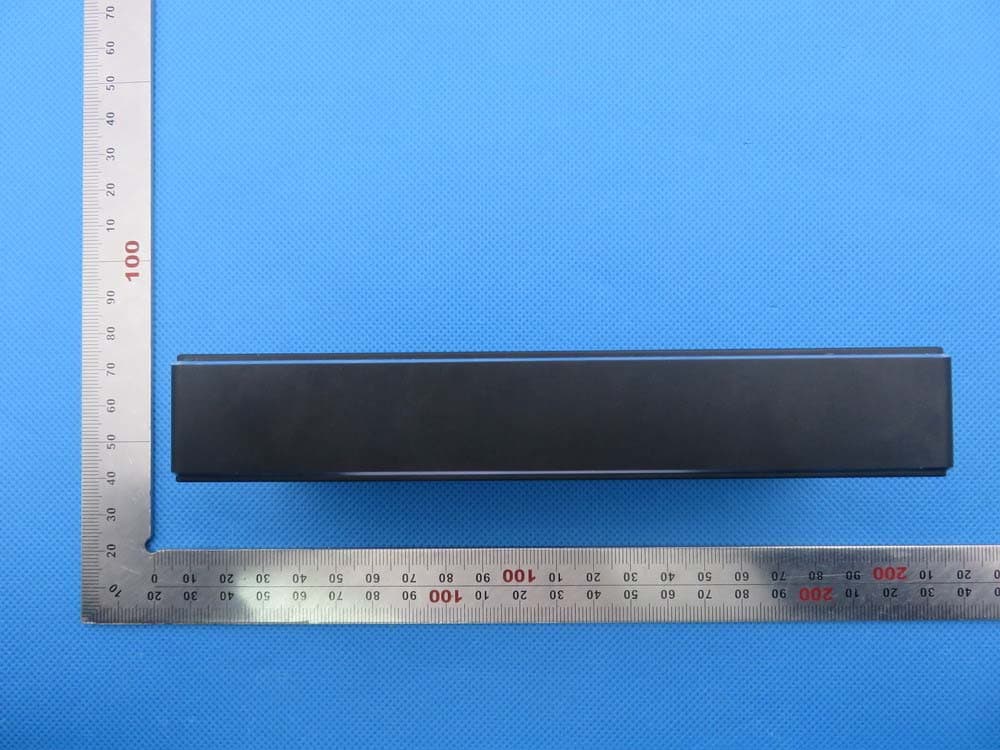

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location Wireless Speakers Model:BT018 Brand: IKANOO FCC ID: OYCBT018 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 Antenna INTERNAL VIEW OF EUT-7

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: BT018 FCC ID: OYCBT018 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: PCBtenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Dongguan Taide Industrial Co., Ltd. Address: Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town City: Dongguan City ZIP / Postal code: 523689 Country: China Place: Shenzhen Date: Dec.03,2015 Signature:

RF Exposure evaluation Product Description:Wireless Speakers Model Number: BT018 FCC ID: OYCBT018 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=95.78dBuv/m=0.062V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.062x3) 2 /(30x1)=0.001153W=1.15mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -1.15mW output power] (1.15mW /5mm) .[√2.480(GHz)]= 0.0.362<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 75 FCC Test Report Report No.: AGC00931151105FE03 FCC ID : OYCBT018 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Speakers BRAND NAME : IKANOO MODEL NAME : BT018, BT8500BLK, BT8500SLV, BT8500GLD, BTXXX(X for 0~9) CLIENT : Dongguan Taide Industrial Co., Ltd. DATE OF ISSUE : Dec.02,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00931151105FE03 Page 2 of 75 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Dec.02,2015 Valid Original Report Report No.: AGC00931151105FE03 Page 3 of 75 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7.ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 11 8.1TEST LIMIT ................................................................................................................................... 11 8.2. MEASUREMENT PROCEDURE ................................................................................................ 12 8.3. TEST SETUP .............................................................................................................................. 14 8.4. TEST RESULT ............................................................................................................................ 16 9. BAND EDGE EMISSION .................................................................................................... 42 9.1. MEASUREMENT PROCEDURE ................................................................................................ 42 9.2 TEST SETUP ............................................................................................................................... 42 9.3 RADIATED TEST RESULT .......................................................................................................... 43 10. 20DB BANDWIDTH .......................................................................................................... 51 10.1. MEASUREMENT PROCEDURE .............................................................................................. 51 10.2. TEST SET-UP ........................................................................................................................... 51 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 51 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 60 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 60 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 60 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 61 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 61 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 62 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 66 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 68 Report No.: AGC00931151105FE03 Page 4 of 75 1. VERIFICATION OF CONFORMITY Applicant Dongguan Taide Industrial Co., Ltd. Address Taide Technology Park, Jinfenghuang Industrial District, Fenggang Town, Dongguan City, China Manufacturer Dongguan Taide Industrial Co., Ltd. Address Taide Technology Park, Jinfenghuang Industrial District, Fenggang Town, Dongguan City, China Product Designation Wireless Speakers Brand Name IKANOO Test Model BT018 Series Model BT8500BLK, BT8500SLV, BT8500GLD, BTXXX(X for 0~9) Different Description All the same except the model name and appearance color. Date of test Nov.19,2015 to Nov.23,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Dongguan Precise Testing Service Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
