OYCBT015Bluetooth speaker

BLUETOOTH SPEAKER Model: BT015 FCC ID: OYCBT015 INSTRUCTION MANUAL WARNING This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non domestic use or in a commercial environment. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. No naked flame sources, such as lighted candles, should be placed on the apparatus. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. Ventilation Allow at least a 10 cm gap all around the product. This apparatus is not suitable for use in a tropical climate. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. To protect the environment, use local recycling facilities for battery disposal. BATTERY HANDLING AND USAGE The product is supplied with 1 rechargeable Lithium 3.7V 300 mA battery incorporated in the product which is not accessible and cannot be replaced. Therefore when the product reaches the end of its useful life it must be disposed of at a recycling centre. OVERVIEW Mini-USB / 3.5 mm plug cable OPERATION 1. Turn on the speaker. The blue indicator light will flash to detect Bluetooth enabled devices near you. The blue indicator light will stop flashing if no Bluetooth device is detected within around 5 minutes. 2. Pair the speaker with the desired Bluetooth device. OR connect the speaker to the music player using the 3.5 mm plug of the cable. NOTE: If you need to pair the speaker with another Bluetooth device, disconnect the speaker from the Bluetooth device already in use first. Charging the speaker The speaker has a built-in Lithium battery. The battery is rechargeable and provides approx 2-hour continuous operation when fully charged. Use the mini-USB connector of the cable to charge the speaker. The red indicator light will illuminate. The red indicator light will go out when the speaker is fully charged. SPECIFICATIONS 5V500 mA Transmission distance: ≤ 10 m (It varies when the environmental factors and the connected Bluetooth devices are different) Built-in battery: Lithium battery We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Disposal As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the product, packaging materials and if applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials are recycled in a manner that protects health and the environment. You must follow laws and regulations about disposal. Waste electrical products and batteries must be disposed of separately from household waste when the product reaches the end of its life. Contact the store where you bought the product and your local authority to learn about disposal and recycling. The batteries must be disposed of at your local recycling point. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Dongguan Taide Industrial Co., Ltd. Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 DATE 2015-06-04 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: OYCBT015 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Dongguan Taide Industrial Co., Ltd. Contact person: Emily Lee Title: Manager

Dongguan Taide Industrial Co., Ltd. Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/6/2015 Request for Confidentiality Company name: Dongguan Taide Industrial Co., Ltd. FCC ID: OYCBT015 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Dongguan Taide Industrial Co., Ltd. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Dongguan Taide Industrial Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Dongguan Taide Industrial Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Company Officer: Emily Lee Company address： Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China Email: [email protected]

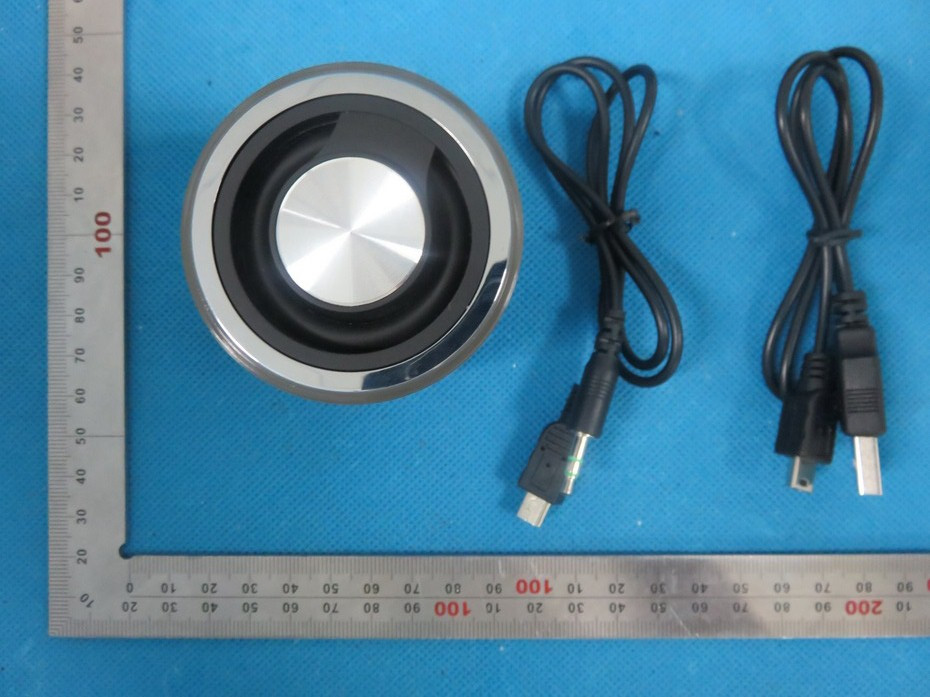

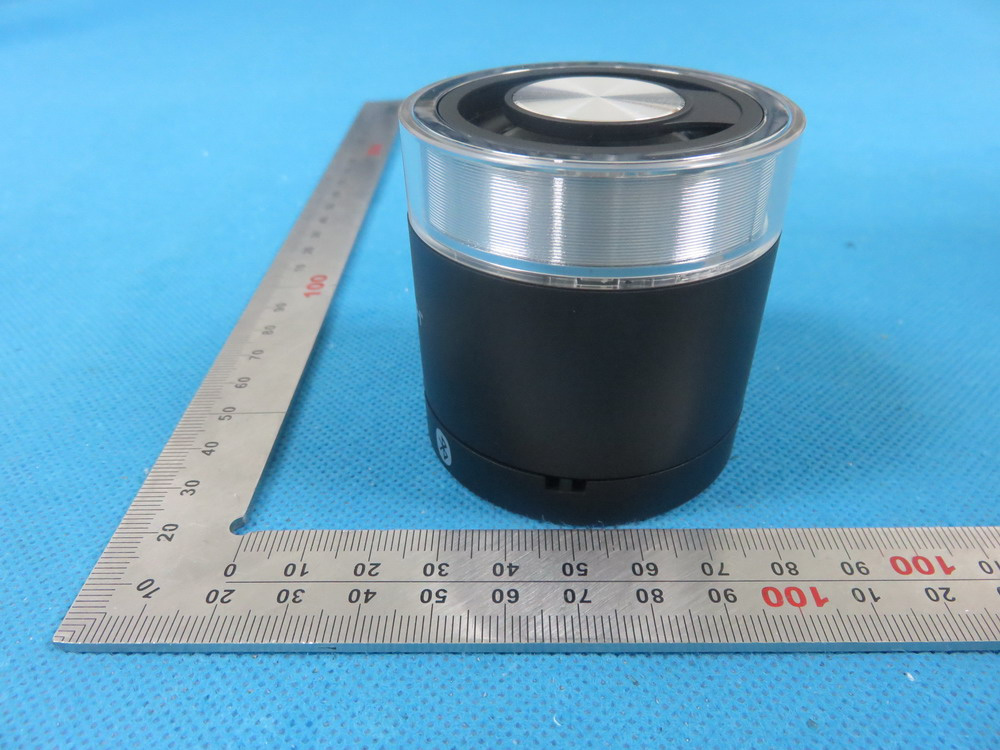

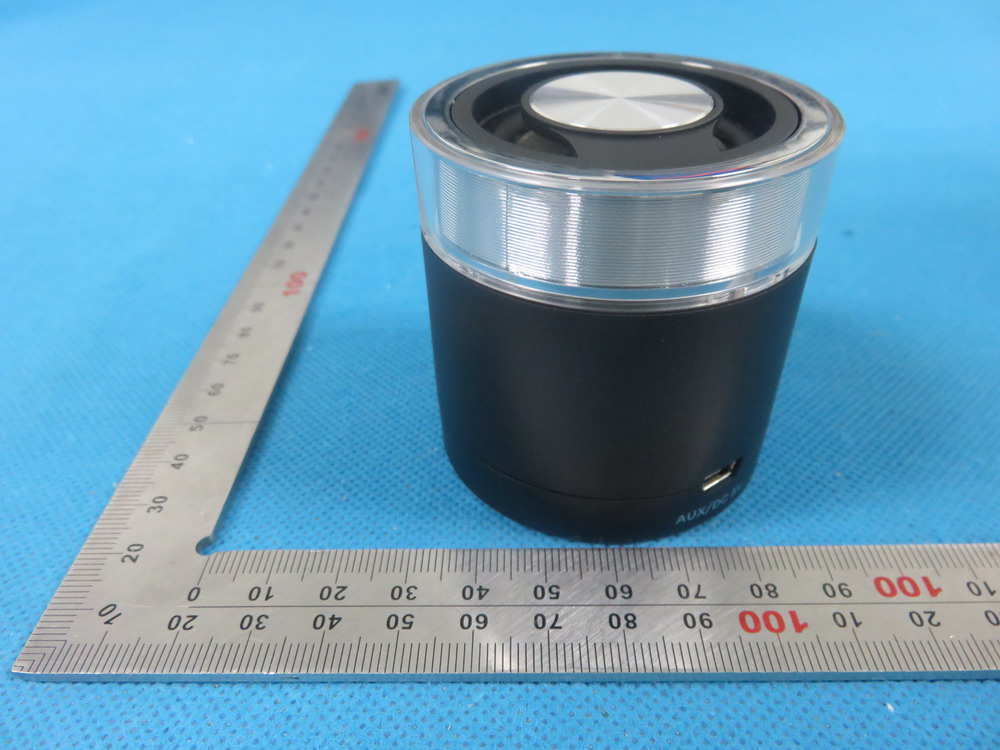

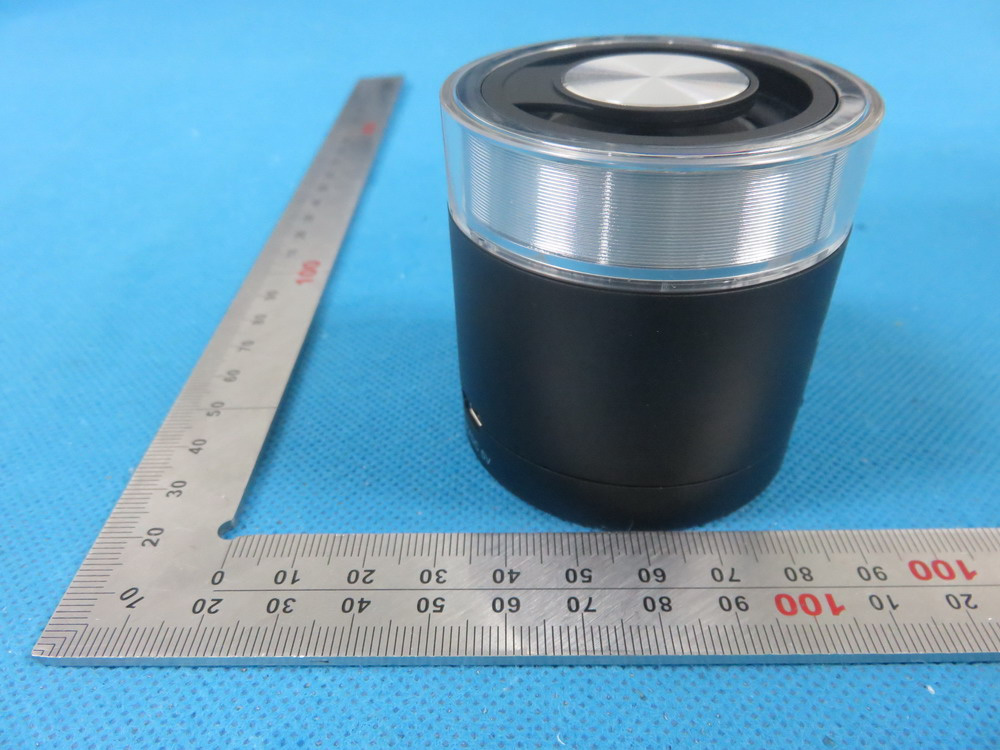

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location Bluetooth speaker BT015 FCC ID: OYCBT015

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Dongguan Taide Industrial Co., Ltd. Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China Declaration concerning Antenna Specification It is hereby declared that the product Model No.: BT015 FCC ID: OYCBT015 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna permanently attached Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Dongguan Taide Industrial Co., Ltd. Address: Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town City: Dongguan City ZIP / Postal code: 523000 Country: China Place: Dongguan Date: 2015-06-04 Signature:

RF Exposure evaluation Product Description:Bluetooth speaker Model Number: BT015 FCC ID: OYCBT015 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=94.80dBuv/m=0.055V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.055x3) 2 /(30x1)=0.000908W=0.91mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -0.91mW output power] (0.91mW /5mm) .[√2.480(GHz)]= 0.287<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 50 FCC Test Report Report No.: AGC00931150401FE03 FCC ID : OYCBT015 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth speaker BRAND NAME : N/A MODEL NAME : BT015 CLIENT : Dongguan Taide Industrial Co.,Ltd. DATE OF ISSUE : May 27,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00931150401FE03 Page 2 of 50 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 27,2015 Valid Original Report Report No.: AGC00931150401FE03 Page 3 of 50 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 7 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 7 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT.................................................................................................................................. 9 8.2. MEASUREMENT PROCEDURE .............................................................................................. 10 8.3. TEST SETUP ........................................................................................................................... 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................. 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE .............................................................................................. 27 9.2 TEST SETUP ............................................................................................................................ 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ............................................................... 28 10. 20DB BANDWIDTH .......................................................................................................... 32 10.1. MEASUREMENT PROCEDURE ............................................................................................ 32 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS .............................................................................. 32 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 39 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................. 39 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................... 39 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................. 40 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 40 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ..................................................... 41 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 43 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 45 Report No.: AGC00931150401FE03 Page 4 of 50 1. VERIFICATION OF CONFORMITY Applicant Dongguan Taide Industrial Co.,Ltd. Address Phase 2 Jinfenghuang Industrial District,Huangdong,Fenggang Town, Dongguan City,China Manufacturer Dongguan Taide Industrial Co., Ltd. Address Phase 2 Jinfenghuang Industrial District, Huangdong, Fenggang Town, Dongguan City, China Product Designation Bluetooth speaker Brand Name N/A Test Model BT015 Date of test May 25,2015 to May 26,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Jerry Xiao May 27,2015 Checked By Forrest Lei May 27,2015 Authorized By Solger Zhang May 27,2015 Report No.: AGC00931150401FE03 Page 5 of 50 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Op…

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
