OYC-BT012Bluetooth Speaker

User Manual Bluetooth Speaker BT012, BTPS-100 Dongguan Taide Industrial Co., Ltd. BT012 EN IB Dear user, Thank you very much for choosing BT012 walkman Bluetooth speaker. Please read this user manual carefully in order to operate this device correctly and bring its excellent performance. I. Notice Please store and use this product at normal temperature; DO NOT expose this product to rain or damp; DO NOT toss this product and prevent it from falling and being damaged; DO NOT disassemble, repair and modify this product; As it is inbuilt with lithium battery, DO NOT cast or place it in fire to avoid danger. II. Kind Reminder IIII 1, To extend the speaker‘ s service life ,and your physical and mental health, please don't listen to music under big volume for a long time to avoid hearing damage. 2, When something wrong with the speaker, please immediately shut off the power switch, plug off the USB ,to prevent the speaker and other parts are damaged. 3, Power shortage will affect Bluetooth distance or Bluetooth easy to disconnect, please charge in time. III. Overview V -：Decrease the volume V +：Increase the volume ：Answer/ Hang up the call PAIR：When stop pair with the first bluetooth device and press here to pari with another bluetooth device. Power on/ off USB 5V 3.5mm Aux in Function Keys IV. Parameters Model: BT012 Bluetooth specification: Bluetooth V3.0 Transmission distance: 10M (It varies when the environmental factors and t≦he connected Bluetooth devices are different) USB charging voltage: DC 5V Built-in battery: Lithium battery Output power: 3W Frequency response: 90Hz-20KHz Sensitivity: 80db±2db S/N ratio: ≥ 76dB Dimensions: φ62×D76MM Unit net weight: 170.50g V. Packing List 1. Speaker *1 2. 3.5mm audio jack cable*1 3. Mini-USB power cable * 1 3. IB*1 piece VI. Common Functions Start: Turn on the sound box it would give off “du-du” as tip and the blue light begins to flicker, the default power is 60%. Bluetooth connection: When the power is switched on, the blue light begins to flicker at the same time, the speaker give off “du-du”. At this moment, turn on the Bluetooth device and click “pair “option in Bluetooth device. BT012 will automatically stop if no Bluetooth device is found within 5 minutes, so as to save the power. Tip: If the connection fails, please turn off the machine and restart it or please charge it as there maybe no sufficient power. Bluetooth mode: Connect BT012 with Bluetooth device and press V -、V + to control the volume. Tip: Under Bluetooth mode, the music is controlled by the music player. Hands-free: Connect BT012 with Bluetooth device when calls in, BT012 would give off “ du-du” as tip. Press to answer the call and re-press to hang up the call. AUX source: Insert the attached audio cable into the AUX port on BT012 and the other sider audio port on PC. The player begins to play. The sound box will start the music. The volume, the songs are freely controlled by the player. Quick charge: Charge in power-off state. Insert the attached USB power cable with the micro USB end into the USB power port of BT012 and the other end into the USB port of PC or the USB charger to start charging. When the charging is over, the red indicator will be off. VII. Compatibility Device equipped with BLUETOOTH 3.0 or higher version (for details please refer to the relevant agreements, general specification), such as the IPAD, IPHONE (the second generation and IPHONE with updated IPHONE 3.1 software), IPOD TOCH, MAC with BLUETOOTH , and majority of smart phone or computer support BLUETOOTH. Bluetooth 3.0 including agreements as：A2DP, AVRCP,HFP VIII. Troubleshooting Problem Troubleshooting Failure in connection and pairing for many times 1. Inspect whether the sound box is in the status of searching, or, restart the machine. 2. The surrounding Bluetooth equipments are plentiful, which causes the difficulty in searching. So, please close the other Bluetooth equipments. The sound is small or distorted 1. Inspect the volume of the Bluetooth equipment and adjust the volume. 2. The power of battery is insufficient, please charge it. Discontinuous music See whether the effective connection distance of sound is exceeded, or, whether there is obstacle between the sound box and the Bluetooth equipment. The indicator for Bluetooth mode is not on 1. It indicates that the power of the battery is not sufficient. Please try again after charging it. 2. Restart the machine. FCC Warnings Statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Phenomenon Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluat…

Text truncated - open the document above for the full version.

Dongguan Taide Industrial Co., Ltd. Address: Taide Industrial Park, Phase 2 Jinfenghuang Industrial, Fengguang Town, Dongguan, China Tel: (86)769-82691925 Fax: (86) 769-82691920 2013-05-10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID:OYC-BT012 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Emily Lee/Sales Contact information / address : Taide Industrial Park, Phase 2 Jinfenghuang Industrial, Fengguang Town, Dongguan, China Tel: (86)769-82691925 Fax: (86) 769-82691920

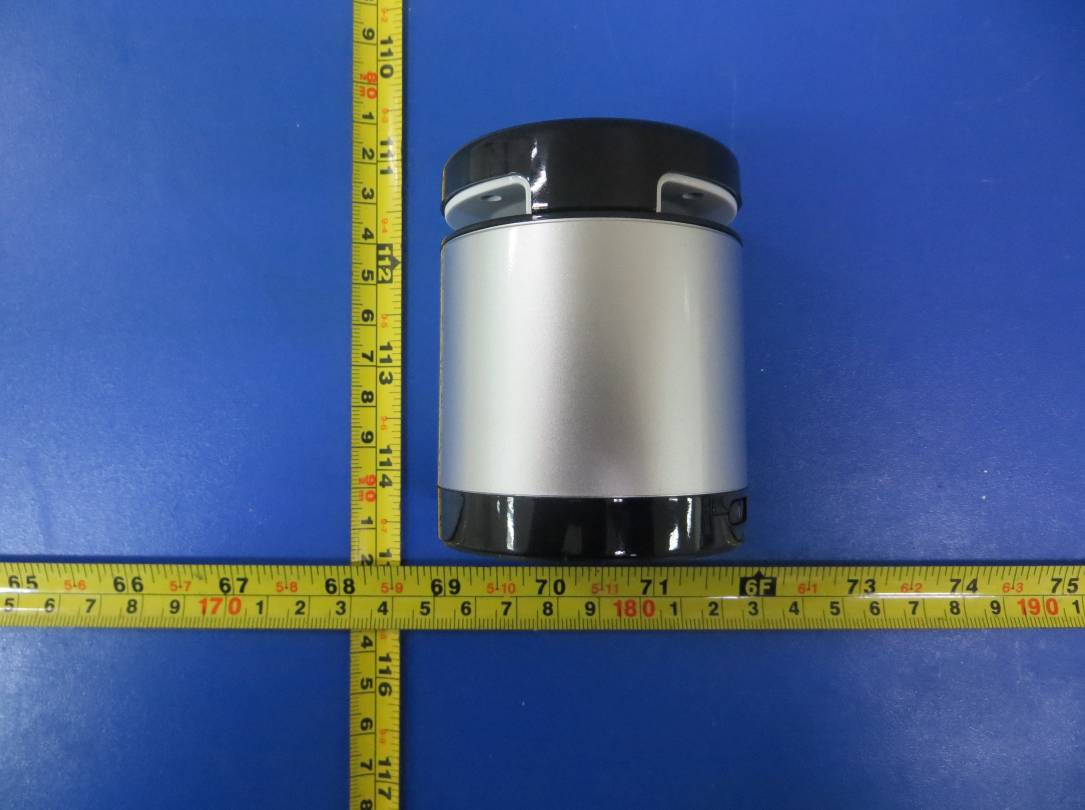

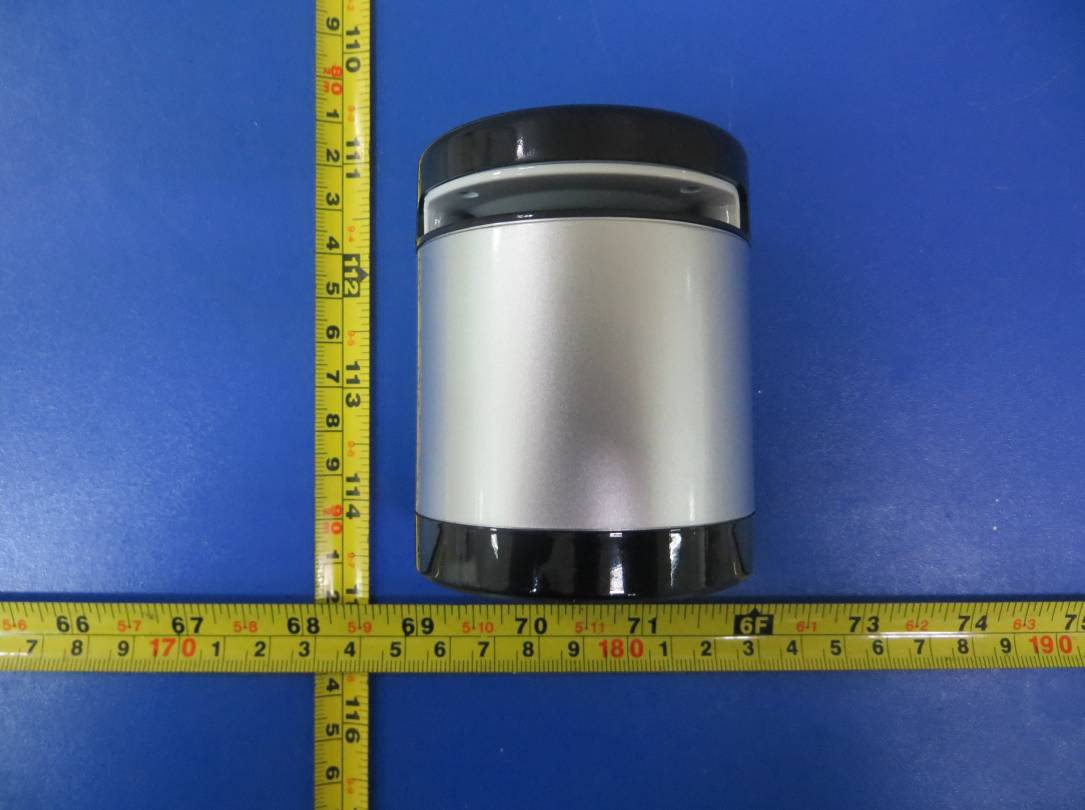

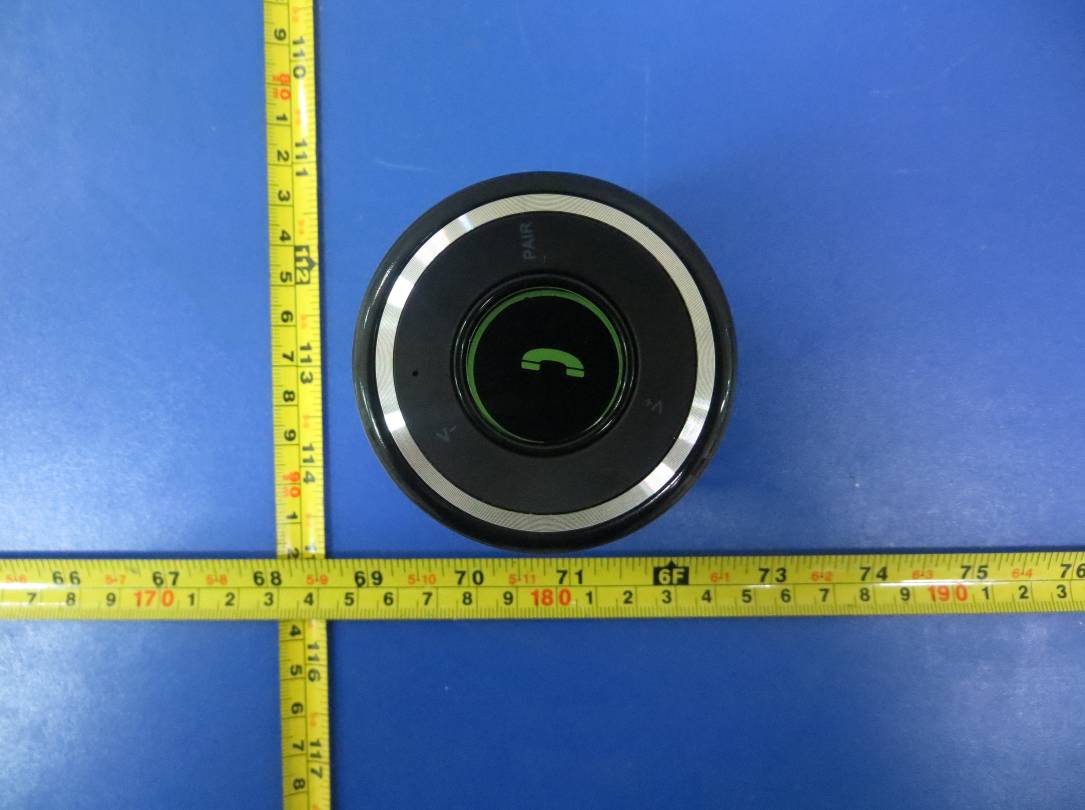

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS13017546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS13017546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS13017546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS13017546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: OYC-BT012 Report No.:LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.5cm*W2.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker Model No.: BT012 FCC ID: OYC-BT012 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 Bluetooth Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.:LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.: LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 41 FCC TEST REPORT FOR Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker Test Model: BT012, BTPS-100 Prepared for : Dongguan Taide Industrial Co., Ltd. Address : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : April 24, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : April 24, 2013 - May 10, 2013 Date of Report : May 10, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.: LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 41 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ............... : LCS130417546TF Date of Issue ................................. : May 10, 2013 Testing Laboratory Name.......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Dongguan Taide Industrial Co., Ltd. Address ......................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description................. : Bluetooth Speaker Trade Mark ................................... : N/A Model/ Type reference ................. : BT012 Ratings .......................................... : DC 3.7V by battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Yoyo Wang/ File administrators Fox Zhang/ Technique principalGavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.: LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 41 FCC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130417546TF May 10, 2013 Date of issue Type / Model........................... : BT012 EUT......................................... : Bluetooth Speaker Applicant............................... : Dongguan Taide Industrial Co., Ltd. Address.................................. : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Taide Industrial Co., Ltd. Address................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Taide Industrial Co., Ltd. Address................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT012 Report No.: LCS130417546TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 41 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .................................................................................................5 1.1 Description of Device (EUT)........................................................................................................... 5 1.2 Support equipment List.................................................................................................................... 5 1.3 External I/O Cable ........................................................................................................................... 5 1.4 Description of Test Facility ............................................................................................................. 5 1.5 Statement of The Measurement Uncertainty ...................................................................................6 1.6 Measurement Uncertainty................................................................................................................ 6 1.7 Description Of Test Modes...................................................................................…
