OYC-BT015Bluetooth Speaker

Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker User’s Manual for BT015 Distinguished Customers, Thank you for purchasing this Speaker BT015. Before getting started, please read the user's manual carefully so as to ensure proper operation and optimized performance of this product. With stylish outer appearance, compact structure, high fidelity sound and multi-functionality, it has obtained patents concerning its outer appearance and adopted advanced electric and sound technology in the industry, ultimately making itself the best choice to hook up with your devices such as tablet, cellphone and digital music player etc. perfectly by presenting you exceptional stereo effect either you are at home, on vacation or at work. I. Precautions Please store and use this product at the ambient temperature; Do not expose this product to the rain or damp surroundings; Prevent this product from falling that could result in serious damage; Do not dismantle, repair or modify this product on your own; In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in lithium battery. II. Considerate Hints 1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or impair your hearing; 2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to prevent further damage to the speaker or other components; 3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please recharge immediately. III． Outer Appearance and Function Buttons Power Switch IV. Product Parameters Product Model：BT015 Bluetooth Specifications：Bluetooth V3.0 Transmission Distance：≤10M (depending upon operation environment and devices to which it connects) USB Recharge Voltage: DC 5V Built-in Battery: Lithium battery Output Power: 3W Frequency Response: 90Hz-20KHz Sensitivity: 80db±2db Signal to Noise Ratio (SNR):≥76dB Product Dimensions: φ57×D58MM V. System Composition 1) Speaker 1set 2) 3.5mm Audio and USB Power Combined Cable 1piece 3) User's Manual/Warranty Card 1copy VI. Common Function Description Power-on Status: Press the Power Button to turn the speaker on and it beeps simultaneously with the blue indicator flashing. Bluetooth Connection: Once switched on, the speaker starts searching for Bluetooth devices automatically and the blue indicator goes on and off at the same time. No code is required during pair-up. When paired up, the blue indicator flashes slowly and a beep is also generated by the speaker. If failed to detect any other Bluetooth device within 5minutes, the speaker will shut itself down. Turn it back on again to start search. Indicator Hole Mini USB Recharging Port Hints: 1. Please recharge when the battery loses its power considerably or the connection is failed. 2. This Bluetooth speaker is required to carry out manual connection when switched on every time. Intelligent Quick Recharge: Recharge can be performed in the standby mode or power-off situation. Before recharging, plug the mini-USB end of the supplied USB cable to the speaker's USB port and the other end to the USB port of the computer or the USB recharger. When fully recharged, the red indicator goes off. VII. Compatibility Wireless：Devices configured with Bluetooth 3.0 or higher version such as IPAD, IPHONE (at least the second generation IPHONE installed the IPHONE software 3.1), IPOD TOCH and MAC as well as a majority of intelligent phones or computers that support Bluetooth. BLUETOOTH V3.0 consists of protocols like：A2DP, AVRCP VIII. Trouble shooting Faults Phenomena Solutions Unable to pair up with other devices 1. Check whether the speaker is still in the process of search or switch it off and then on. 2. There are too many Bluetooth devices in the proximity that cause difficulty in connection. Please turn them off. The sound is rather low or distorted 1. Check the Bluetooth device’s volume and then adjust it to a proper level. 2. Recharge the battery The music stops from time to time 1. Check whether the speaker’s effective transmission range is exceeded or there is an obstacle standing between the speaker and other Bluetooth devices. The Bluetooth indicator remains off 1. It suggests the battery power drops quite low and retry once being recharged. 2. Turn it on again. FCC warning statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The devi…

Text truncated - open the document above for the full version.

Dongguan Taide Industrial Co., Ltd. Address: Taide Industrial Park, Phase 2 Jinfenghuang Industrial, Fengguang Town, Dongguan, China Tel: (86)769-82691925 Fax: (86) 769-82691920 2013-05-27 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID:OYC-BT015 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Emily Lee/Sales Contact information / address : Taide Industrial Park, Phase 2 Jinfenghuang Industrial, Fengguang Town, Dongguan, China Tel: (86)769-82691925 Fax: (86) 769-82691920

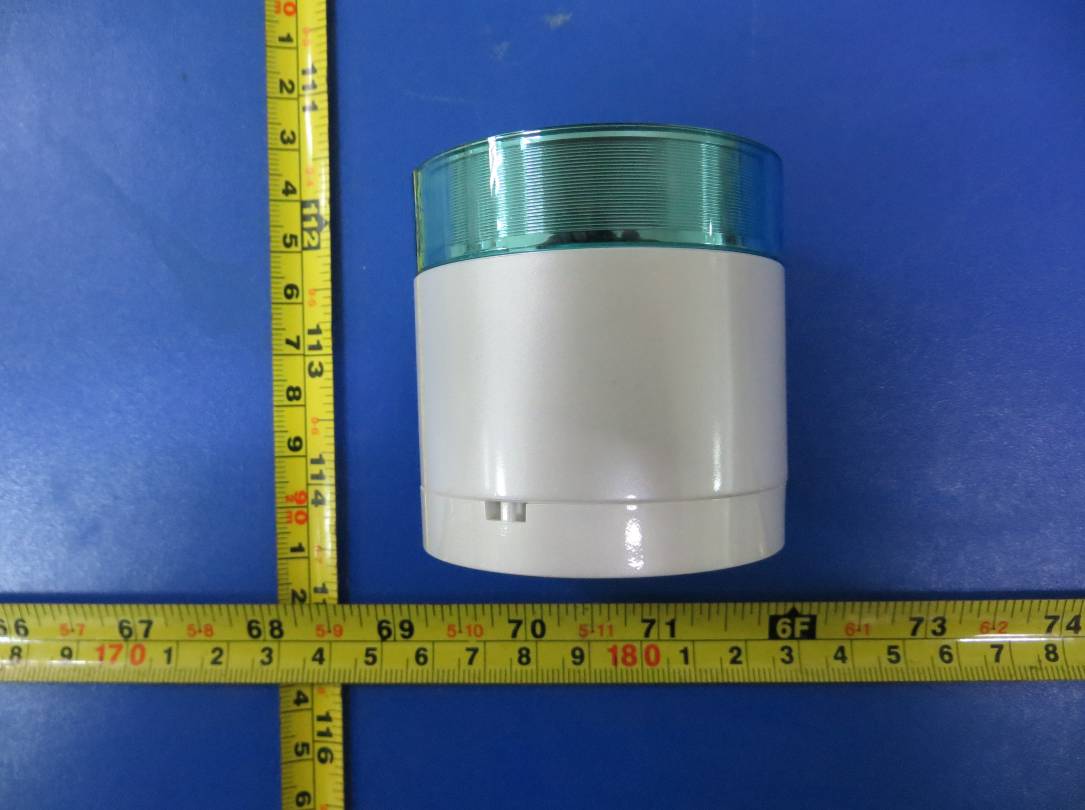

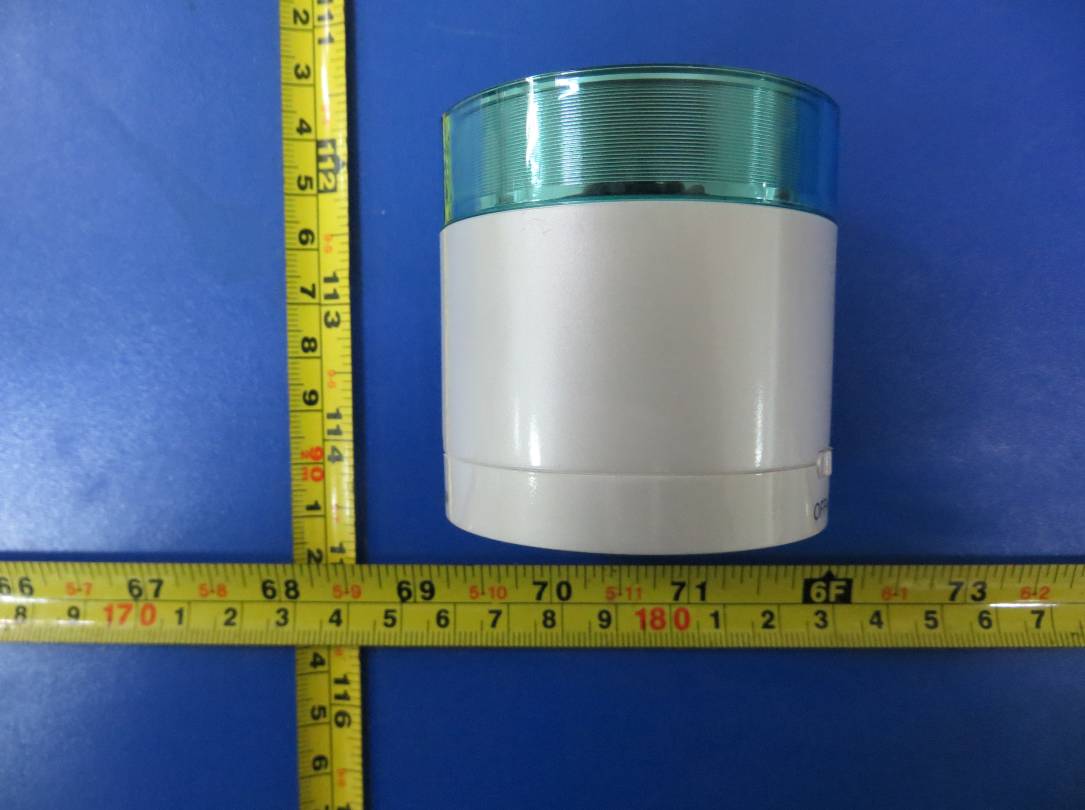

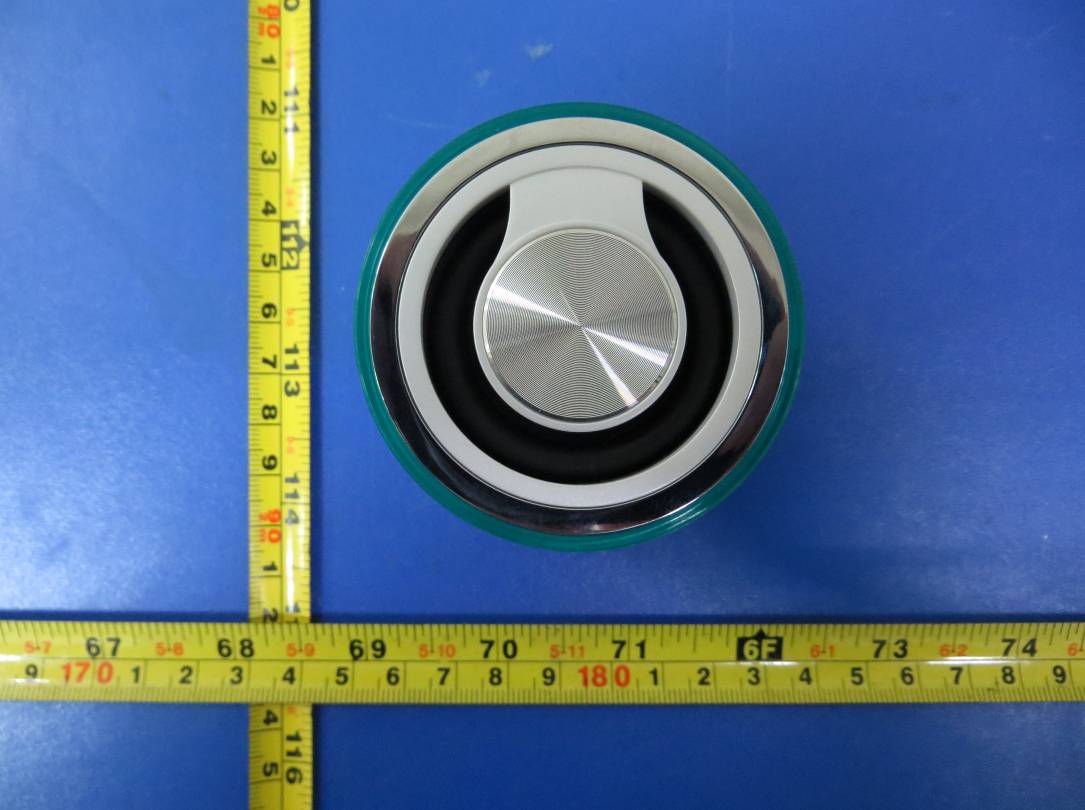

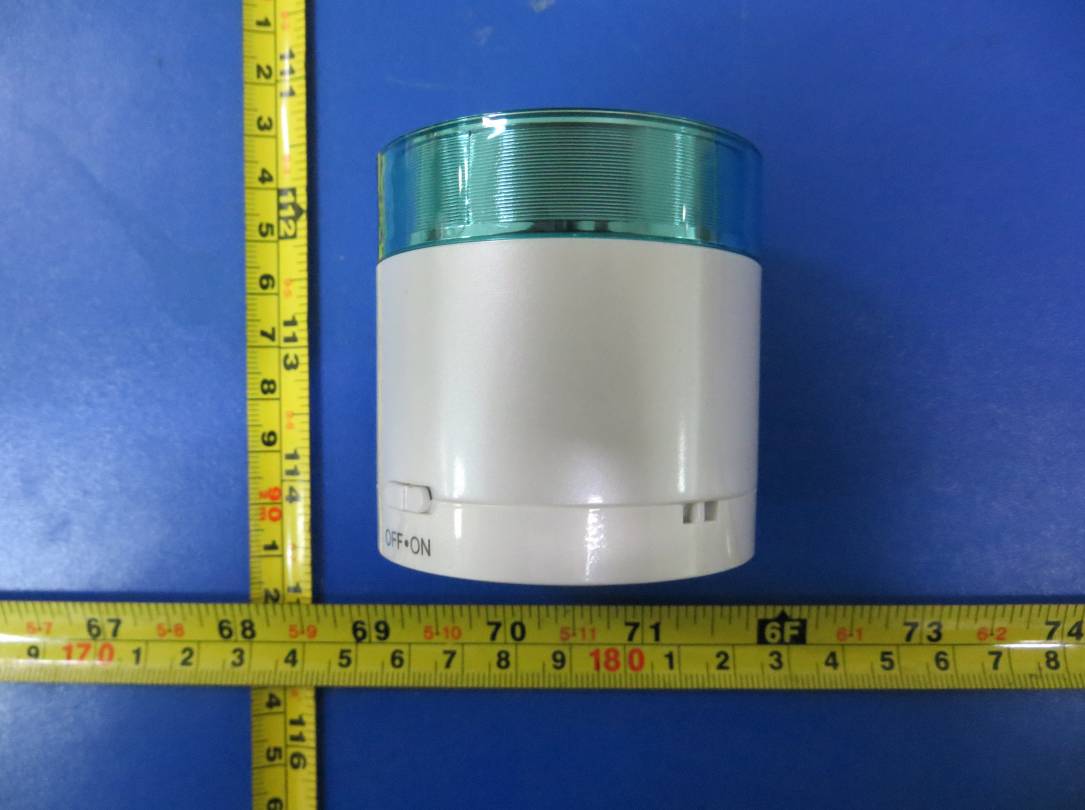

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.:LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.:LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.:LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.:LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: OYC-BT015 Report No.:LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.5cm*W2.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker Model No.: BT015 FCC ID: OYC-BT015 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.:LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.:LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.:LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.: LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 42 FCC TEST REPORT FOR Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker Test Model: BT015 Prepared for : Dongguan Taide Industrial Co., Ltd. Address : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : May 24, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : May 24, 2013 - June 07, 2013 Date of Report : June 07, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.: LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 42 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247):2012 Report Reference No. ............... : LCS130524739TF Date of Issue ................................. : June 07, 2013 Testing Laboratory Name.......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Dongguan Taide Industrial Co., Ltd. Address ......................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247):2012 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description................. : Bluetooth Speaker Trade Mark ................................... : N/A Model/ Type reference ................. : BT015 Ratings .......................................... : DC 3.7V by battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Yoyo Wang/ File administrators Fox Zhang/ Technique principalGavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.: LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 42 FCC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130524739TF June 07, 2013 Date of issue Type / Model........................... : BT015 EUT......................................... : Bluetooth Speaker Applicant............................... : Dongguan Taide Industrial Co., Ltd. Address.................................. : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Taide Industrial Co., Ltd. Address................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Taide Industrial Co., Ltd. Address................................... : Taide Industrial Park, Phase 2 Jinfenghuang Indust Fengguang Town, Dongguan, 523689, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT015 Report No.: LCS130524739TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 42 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .................................................................................................5 1.1 Description of Device (EUT)........................................................................................................... 5 1.2 Support equipment List.................................................................................................................... 5 1.3 External I/O Cable ........................................................................................................................... 5 1.4 Description of Test Facility ............................................................................................................. 5 1.5 Statement of The Measurement Uncertainty ...................................................................................6 1.6 Measurement Uncertainty................................................................................................................ 6 1.7 Description Of Test Modes...................................................................................…
