OYC-BT058Bluetooth Speaker

User’s Manual for the Bluetooth Speaker BT058 Distinguished Customers, Thank you for purchasing this Bluetooth speaker BT058. Before getting started, please read the user's manual carefully so as to ensure proper operation and optimized performance of this product. With stylish outer appearance, compact structure, high fidelity sound and multi-functionality, it has obtained patents concerning its outer appearance and adopted advanced electric and sound technology in the industry, ultimately making itself the best choice to hook up with your devices such as tablet, cellphone and digital music player etc. perfectly by presenting you exceptional stereo effect either you are at home, on vacation or at work. 1. Precautions Please store and use this product at the ambient temperature; Do not expose this product to the rain or damp surroundings; Prevent this product from falling that could result in serious damage; Do not dismantle, repair or modify this product on your own; In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in lithium battery. 2. Considerate Hints 1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or impair your hearing; 2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to prevent further damage to the speaker or other components; 3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please recharge immediately. 3. Outer Appearance and Function Buttons 1) //: switching by keeping pressing it for 2s, BLUETOOTH, AUX, selection of working mode Click “pause” during playing and click “play” when it is paused. Click “mute” at AUX state point and click it again to open it Function keys USB Charging interface 3.5 Audio input Power switch Click to answer the phone when there is a Bluetooth call, click it again to hang up and keep pressing it to refuse the call 2) “ “ : up selection key. Keep pressing it during the playing to volume down and keep pressing it for a short period to select the previous song; 3) “”: down selection key. Keep pressing it during the playing to volume up and keep pressing it for a short period to select the next song. 4. Function features of this product 1) Dual-mode power supply: the product is provided with lithium battery and supplied by USB interface or DC5V USB. The dual power supply mode can be selected freely. 2) Power failure memory playing: the precise position of last playing interruption can be memorized automatically. 3) AUX audio output: 3.5MM audio line input and computer can be connected easily. It can connect broad range of audio-visual products such as MP3/MP4/IPOD/IPHONE. 4) Bluetooth wireless music transmission: high-quality Bluetooth module is built in to realize wireless music transmission and hand-free connection. 5. Product Parameters Product Model：BT058 Bluetooth Specifications：Bluetooth V3.0+EDR Transmission Distance：≤10M (depending upon operation environment and devices to which it connects) USB Recharge Voltage: DC 5V Built-in Battery: Lithium battery Output Power: 3W×1 Frequency Response: 90Hz-20KHz Sensitivity: 80db±2db Signal to Noise Ratio (SNR): ≥76dB Product Dimensions: φ61.5×D71.5 mm 6. System Composition 1） Speaker 1set 2） USB Power Cable 1piece 3） User's Manual 1copy 7. Descriptions of common functions AUX audio playing: insert audio line to audio input interface of the speaker, computer and the socket of other music players. AUX plug and play is supported. The working mode can be switched by pressing mode key. Adjust the volume by keeping pressing “ ” or “” for 3s. Click “” under AUX state to silence and click “ ” again to open it. The corresponding operations are provided with voice prompt. Bluetooth connection: start this product to enter Bluetooth working mode. The speaker will enter Bluetooth exploring state automatically; when blue indicator lamp flashes very quickly: it will match automatically and the Bluetooth device will prompt if matching or not. The blue indicator lamp will flash very slowly after successful connection by clicking match. The device Bluetooth will be off automatically if the Bluetooth speaker fails to find any equipment within 5m after power-on and electrify the power again for reconnection. This product is provided with re-connection function and the device which is connected successfully will be connected automatically when opening the Bluetooth again. The corresponding operations are provided with voice prompt. Prompt: please restart this product in case of connection failure or recharge it if the electric quantity of the battery is insufficient. Bluetooth music playing: music is played by Bluetooth and keep pressing “ 、” during the playing process to adjust the volume. Keep pressing “ 、” to select the previous or next song. Intelligent automatic fast charging: charge this product after power-off. Insert MICRO USB end of USB power line of the accessory to USB power socket of the speaker and the other end to computer USB port or USB charger to charge this product. The red indicator lamp will be off after this product is fully charged. 8. Compatibility Wireless：Devices configured with Bluetooth 2.1+EDR or higher version such as IPAD, IPHONE (at least the second generation IPHONE installed the IPHONE software 3.1), IPOD TOCH and MAC as well as a majority of intelligent phones or computers that support Bluetooth. Bluetooth V3.0+EDR consists of protocols like A2DP, AVRCP and HFP and so on. 9. Troubleshooting Faults Phenomena Solutions Unable to pair up with other devices 1. Check whether the speaker is still in the process of search or switch it off and then on. 2. There are too many Bluetooth devices in the proximity that cause difficulty in connection. Please turn them off. The sound is rather low or distorted 1. Check the Bluetooth device’s volume and then ad…

Text truncated - open the document above for the full version.

Dongguan Taide Industrial Co., Ltd. Address: Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town, Dongguan City ,China Tel: (86)769-82691925 Fax: (86) 769-82691920 2014-07-04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID:OYC-BT058 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Emily Lee/Sales Contact information / address : Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town, Dongguan City ,China Tel: (86)769-82691925 Fax: (86) 769-82691920

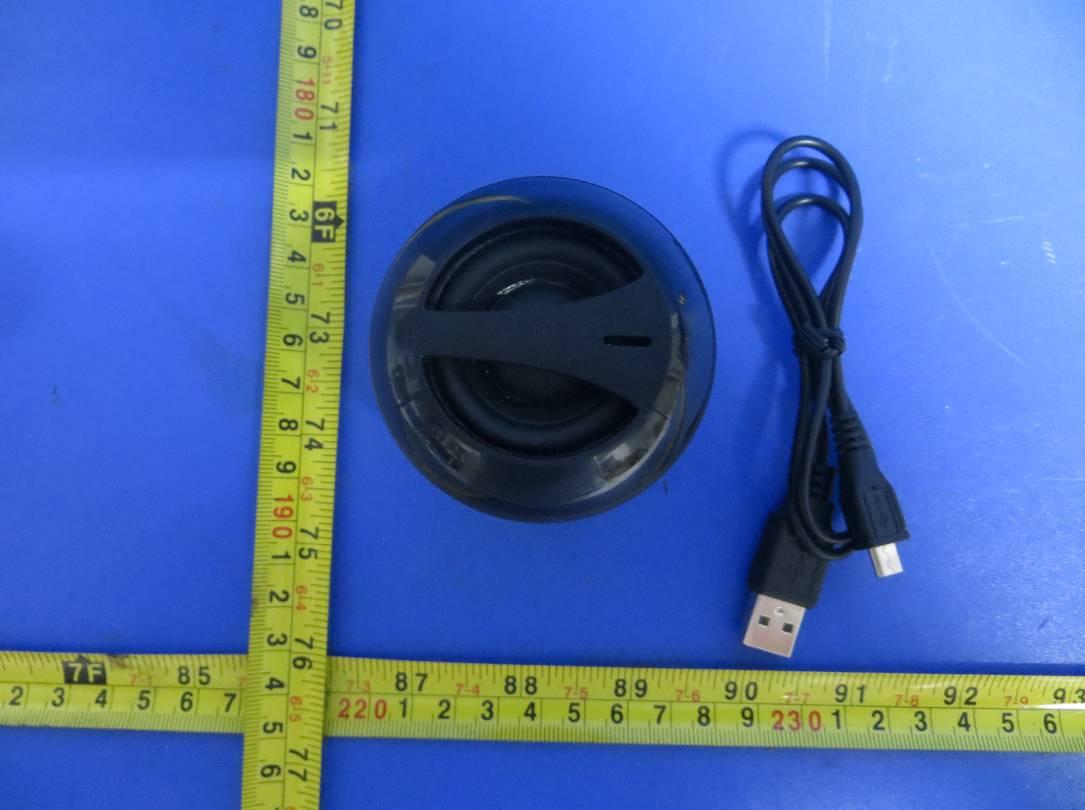

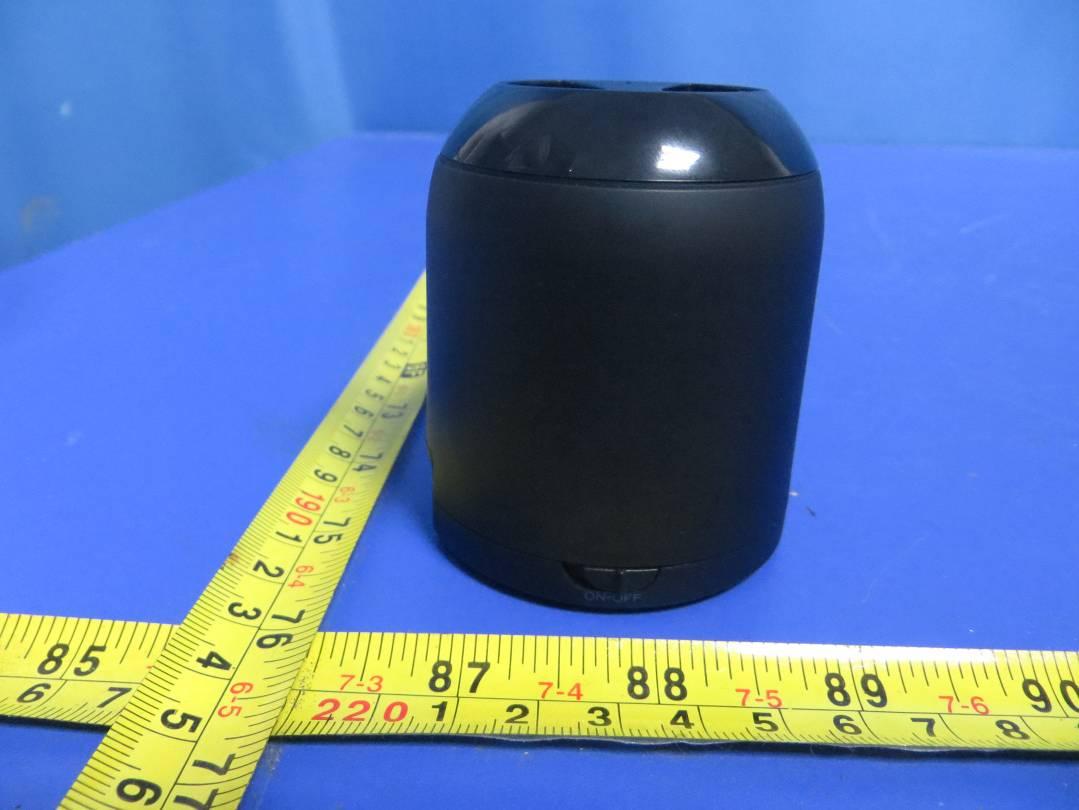

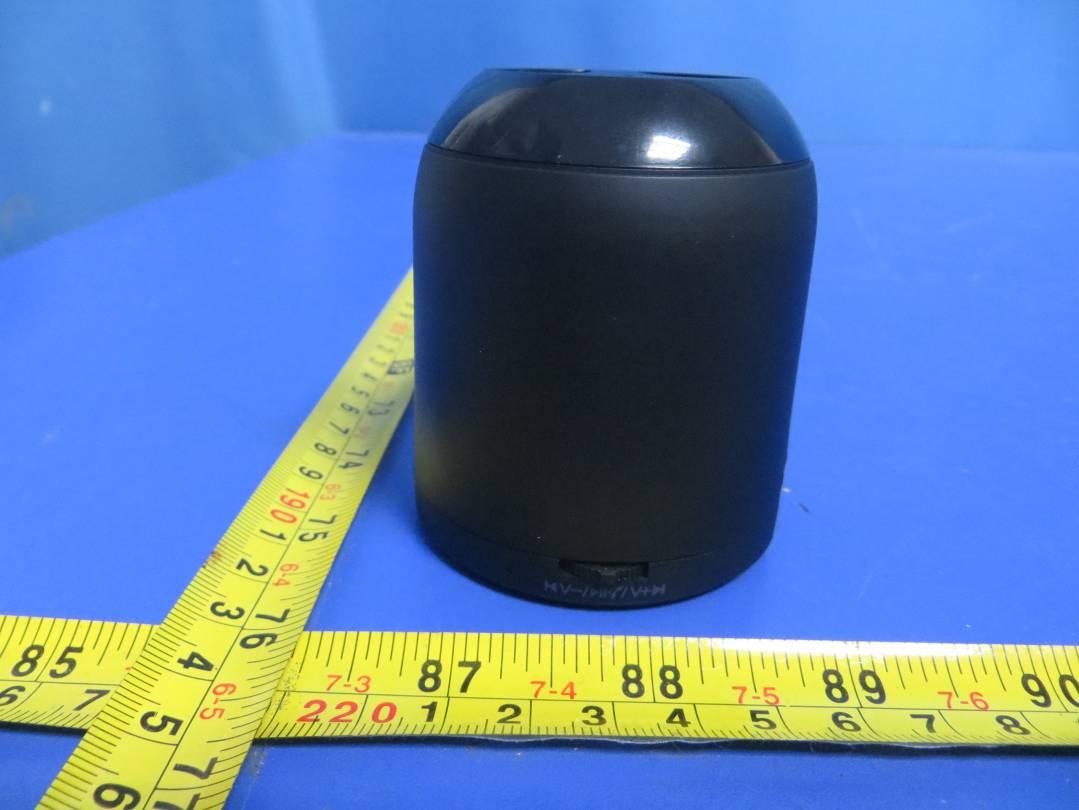

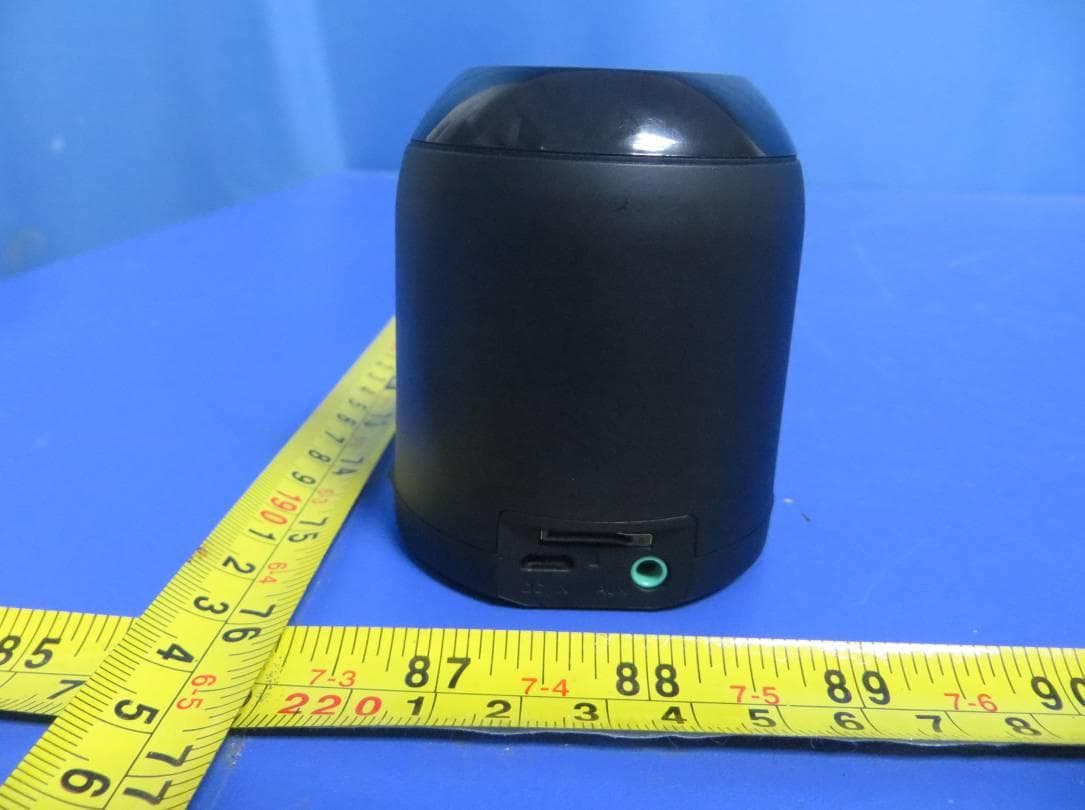

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.5cm*W1.8cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label And Location Dongguan Taide Industrial Co., Ltd. Product Name: Bluetooth Speaker Model No.: BT058 FCC ID: OYC-BT058 Input: DC 5V

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 43 FCC TEST REPORT FOR Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker Test Model: BT058 Additional Model No.: SC058BT Prepared for : Dongguan Taide Industrial Co., Ltd. Address : Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town, Dongguan City, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : June 10, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : June 10, 2014 - June 27, 2014 Date of Report : June 27, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 43 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2013 / RSS-210 Issue 8 / RSS-Gen Issue 3 Report Reference No. ............... : LCS1406100279E Date of Issue ................................ : June 27, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Dongguan Taide Industrial Co., Ltd. Address ........................................ : Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town, Dongguan City, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247): 2013 / RSS-210 Issue 8 / RSS-Gen Issue 3 Test Report Form No. .................. : LCSEMC-1.0 TRF Originator............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Bluetooth Speaker Trade Mark................................... : N/A Model/ Type reference ................. : BT058 Ratings ......................................... : DC 3.7V by battery(300mAh) Recharge Voltage: DC 5V/1A Result ......................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 43 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1406100279E June 27, 2014 Date of issue Type / Model........................... : BT058 EUT......................................... : Bluetooth Speaker Applicant............................... : Dongguan Taide Industrial Co., Ltd. Address.................................. : Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town, Dongguan City, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Taide Industrial Co., Ltd. Address................................... : Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town, Dongguan City, China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Taide Industrial Co., Ltd. Address................................... : Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town, Dongguan City, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYC-BT058 Report No.: LCS1406100279E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 43 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT) ........................................................................................................... 5 1.2 Support equipment List .................................................................................................................... 6 1.3 External I/O ..................................................................................................................................... 6 1.4 Description of Test Facility ............................................................................................................. 6 1.5 Statement of The Measurement Uncertainty ................................................................................... 7 1.6 Measurement Uncertainty ........................................................................…
