OYC70202BBluetooth Headset


    !" # $ %& '(##)*+ $$,  -  # &#'# #&# ## #  - &### #!#&!( #"#( !# ###-."'#(# &###" ## # -/ # #### '#(" #!#&(##& #!####!## "&# 0 , ### #'&- 0 /##"#'#- 0 $  ###" #'#- 0 $   ##1##2 3#  456789:;<=;>?@?A6B?;7:7;B9CD<9::EF6DD<;G9>HFB59D6<BF<9:D;7:?HE9@;<A;=DE?67A9 A;IE>G;?>B59I:9<J:6IB5;<?BFB;;D9<6B9B599KI?D=97BLM5?:>9G?A9A;=DE?9:N?B5O6<B PQ;@B59R44SIE9:LTD9<6B?;7?::IHU9ABB;B59@;EE;N?78BN;A;7>?B?;7:V W PXB5?:>9G?A9=6F7;BA6I:956<=@IE?7B9<@9<97A9Y67> WZ XB5?:>9G?A9=I:B6AA9DB67F?7B9<@9<97A9<9A9?G9>Y?7AEI>?78?7B9<@9<97A9B56B=6F A6I:9I7>9:?<9>;D9<6B?;7L

Dongguan Taide Industrial Co., Ltd. Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China May 25, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Subject: Explanation of differences between product types FCC ID : OYC70202B Model Number: 70202B,70232B,H013 To Whom It May Concern: We, The Dongguan Taide Industrial Co., Ltd. hereby declare that the model : 70232B,H013 is identical with the model : 70202B, except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Company Officer: Emily Lee Telephone Number: (86) 769-82691925 Email: [email protected]

Dongguan Taide Industrial Co., Ltd. Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China Date (25/05/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: OYC70202B Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Dongguan Taide Industrial Co., Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Emily Lee Telephone Number: (86) 769-82691925 Email: [email protected]

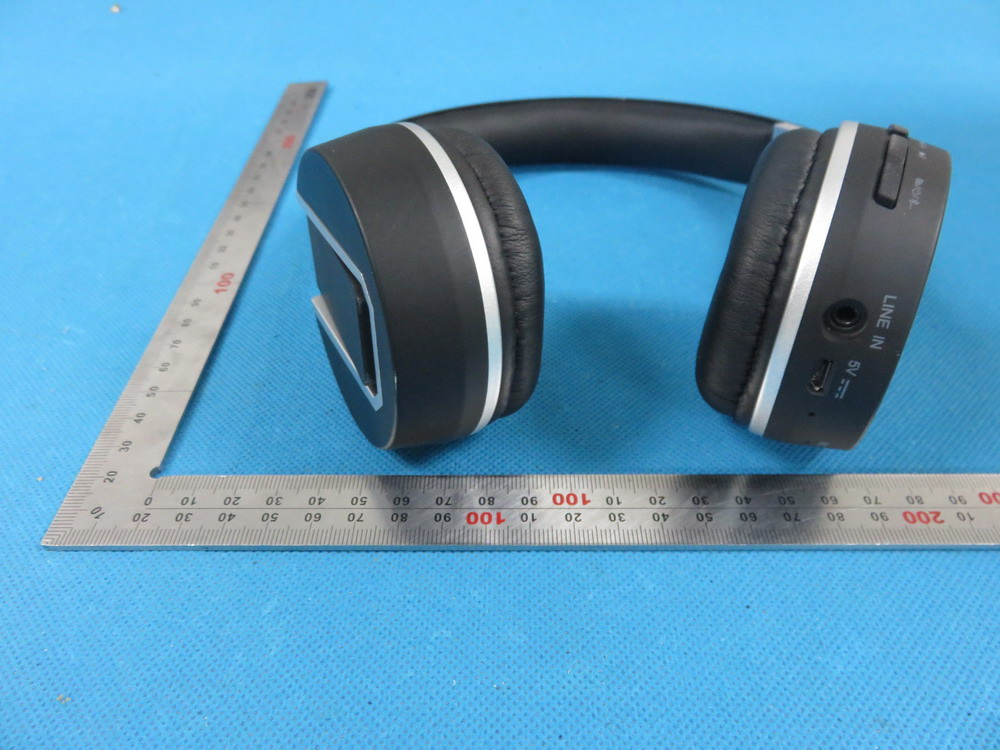

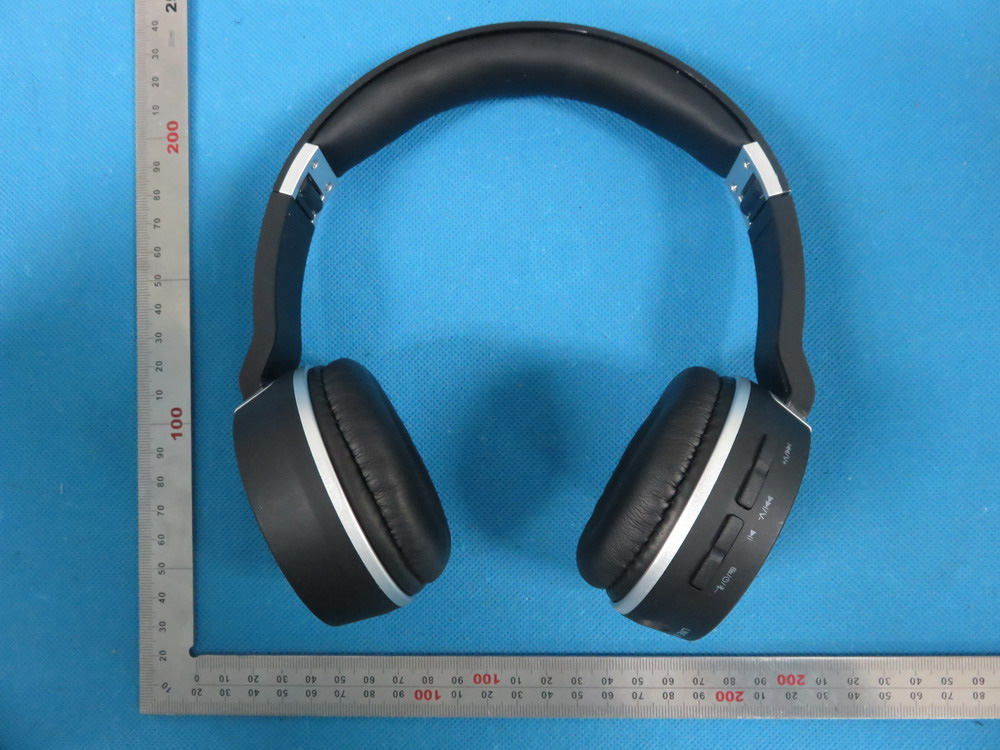

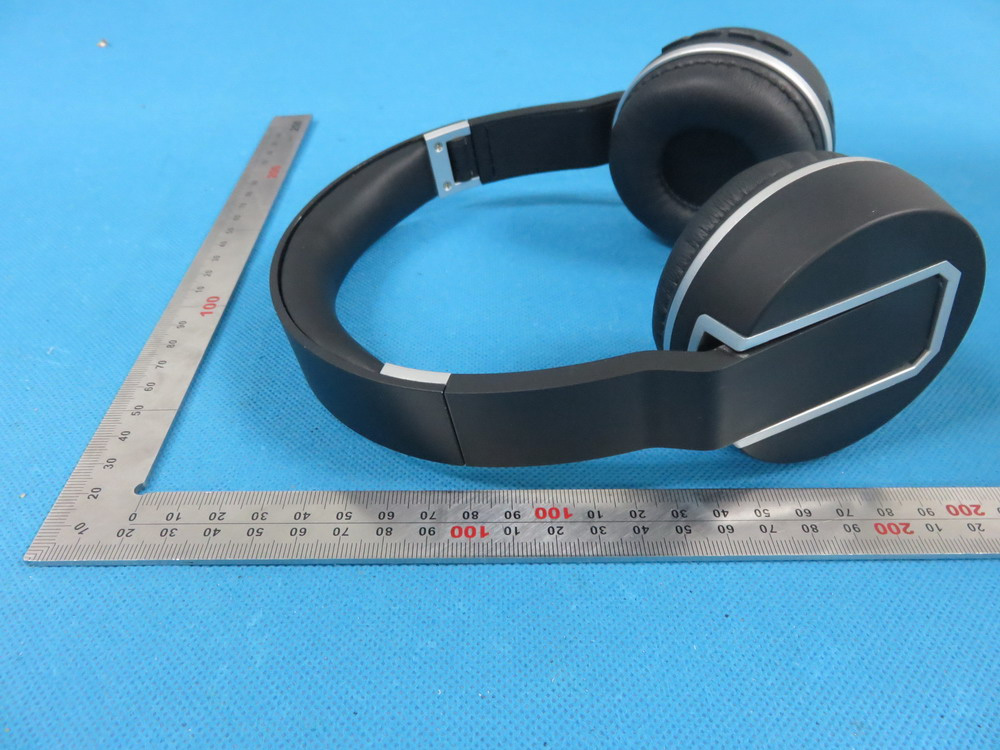

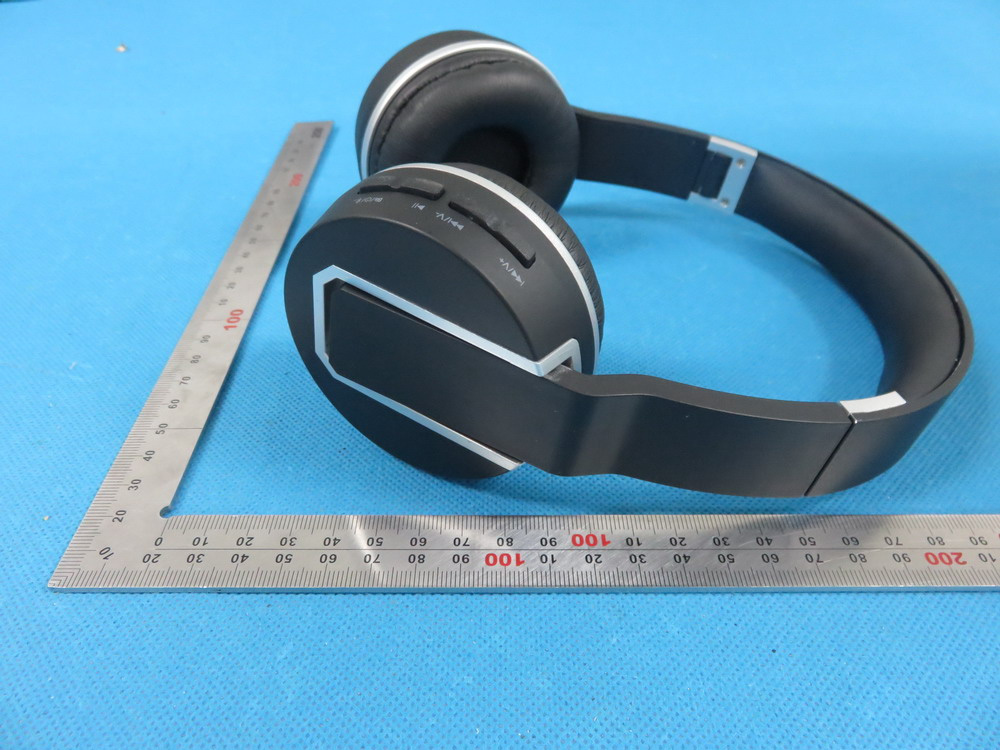

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location 70202B FCC ID: OYC70202B

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

RF Exposure evaluation Product Description:Bluetooth Headset Model Number: 70202B FCC ID: OYC70202B According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=98.30dBuv/m=0.082V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.082x3) 2 /(30x1)=0.002017W=2.02mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -2.02mW output power] (2.02mW /5mm) .[√2.480(GHz)]= 0.636<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 73 FCC Test Report Report No.: AGC00931150411FE03 FCC ID : OYC70202B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Headset BRAND NAME : N/A MODEL NAME : 70202B,70203B,H013 CLIENT : Dongguan Taide Industrial Co., Ltd. DATE OF ISSUE : May 12,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00931150411FE03 Page 2 of 73 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 12,2015 Valid Original Report Report No.: AGC00931150411FE03 Page 3 of 73 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 8 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 8 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT................................................................................................................................ 10 8.2. MEASUREMENT PROCEDURE ............................................................................................... 11 8.3. TEST SETUP ........................................................................................................................... 13 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................. 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE .............................................................................................. 41 9.2 TEST SETUP ............................................................................................................................ 41 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ............................................................... 42 10. 20DB BANDWIDTH .......................................................................................................... 50 10.1. MEASUREMENT PROCEDURE ............................................................................................ 50 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS .............................................................................. 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 59 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................. 59 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................... 59 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................. 60 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 60 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ..................................................... 61 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 65 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 67 Report No.: AGC00931150411FE03 Page 4 of 73 1. VERIFICATION OF CONFORMITY Applicant Dongguan Taide Industrial Co., Ltd. Address Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China Manufacturer Dongguan Taide Industrial Co., Ltd. Address Taide Technology Park, Jinfenghuang Industrial Distrial, Fenggang Town,Dongguan City,China Product Designation Bluetooth Headset Brand Name N/A Test Model 70202B Series Model 70203B,H013 Different Description All the same except for the model name Date of test May 04,2015 to May 07,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo May 12,2015 Checked By Forrest Lei May 12,2015 Authorized By Solger Zhang May 12,2015 Report No.: AGC00931150411FE03 Page 5 of 73 2. GE…

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
