OYCBT020APBluetooth speaker

TAIDE ELECTRONICS User’s Manual for BT020AP Brand name：IKANOO FCC ID:OYCBT020AP Distinguished Customers, Thank you for purchasing this Speaker BT020AP. Before getting started, please read the user's manual carefully so as to ensure proper operation and optimized performance of this product. With stylish outer appearance, compact structure, high fidelity sound and multi-functionality, it has obtained patents concerning its outer appearance and adopted advanced electric and sound technology in the industry, ultimately making itself the best choice to hook up with your devices such as tablet, cellphone and digital music player etc. perfectly by presenting you exceptional stereo effect either you are at home, on vacation or at work. I. Precautions Please store and use this product at the ambient temperature; Do not expose this product to the rain or damp surroundings; Prevent this product from falling that could result in serious damage; Do not dismantle, repair or modify this product on your own; In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in lithium battery. II. Considerate Hints 1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or impair your hearing; 2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to prevent further damage to the speaker or other components; 3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please recharge immediately. III． Outer Appearance and Function Buttons IV. Product Parameters Product Model：BT020AP Bluetooth Specifications：Bluetooth V2.1+EDR Transmission Distance：≤10M (depending upon operation environment and devices to which it connects) USB Recharge Voltage: DC 5V Built-in Battery: Lithium battery Output Power: 3W Frequency Response: 90Hz-20KHz Sensitivity: 80db±2db Signal to Noise Ratio (SNR):≥80dB Product Dimensions: φ62×D58MM V. System Composition 1) Speaker 1set 2) 3.5mm Audio 1piece 3) USB Power Cable 1piece 3) User's Manual/Warranty Card 1copy VI. Common Function Description Power-on Status: Press the Power Button to turn the speaker on and it beeps simultaneously with the blue indicator flashing. Micro USB and AUX Sling hole On and OFF Indicator light Bluetooth function button Bluetooth Connection: Once switched on, the speaker starts searching for other Bluetooth devices automatically and at the same time, the blue indicator goes on and off. When found a Bluetooth device, the speaker prompts whether to pair up or not. If selected Yes, it pairs up with the device and meanwhile, the blue indicator flashes slowly and a beep is also generated by the speaker. If failed to detect any other Bluetooth device within 5minutes, the speaker will shut itself down. Turn it back on again to start search. All the paired devices will engage in automatic connection when the speaker is turned on. Music Playback: When connected, the speaker plays music immediately. Press + and — to select tracks upwards or downwards. Long press and hold + and — to adjust the volume. While playing music, press to pause and to resume. Hints: 1. Please recharge when the battery loses its power considerably or the connection is failed. 2. This Bluetooth speaker is required to carry out manual connection when switched on every time. AUX Playback: Use the supplied audio cable to connect the speaker to another music player such as computer by plugging one end to the speaker's AUX port and the other end to the music player's audio port. When the music player starts playing music, the speaker sounds right away. Tracks can be selected and volume adjusted only by the music player. Hints: 3 buttons of, +, and — are functionless in the AUX mode and the volume is controlled by the music player. Intelligent Quick Recharge: Recharge can be performed in the standby mode or power-off situation. Before recharging, plug the mini-USB end of the supplied USB cable to the speaker's USB port and the other end to the USB port of the computer or the USB recharger. When fully recharged, the red indicator goes off. VII. Trouble shooting Faults Phenomena Solutions Unable to pair up with other devices 1. Check whether the speaker is still in the process of search or switch it off and then on. 2. There are too many Bluetooth devices in the proximity that cause difficulty in connection. Please turn them off. The sound is rather low or distorted 1. Check the Bluetooth device’s volume and then adjust it to a proper level. 2. Recharge the battery The music stops from time to time 1. Check whether the speaker’s effective transmission range is exceeded or there is an obstacle standing between the speaker and other Bluetooth devices. The Bluetooth indicator remains off 1. It suggests the battery power drops quite low and retry once being recharged. 2. Turn it on again. Hints: Another trouble, please consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Dec.19, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: OYCBT020AP Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dongguan Taide Industrial Co., Ltd. Contact person: Emily Lee Title: Sales

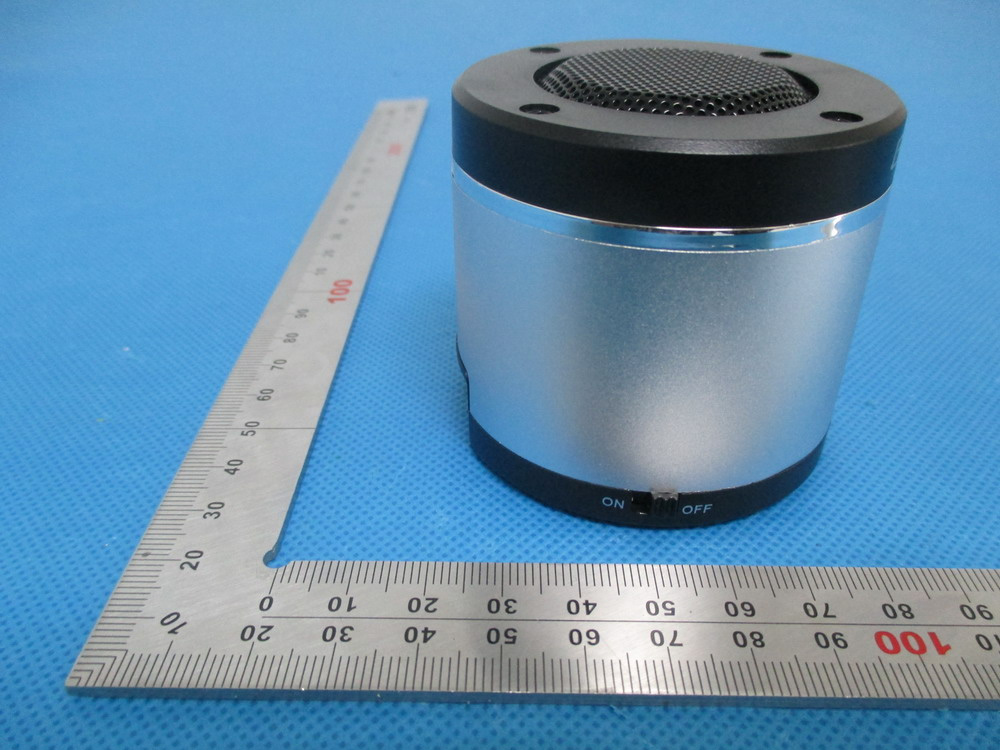

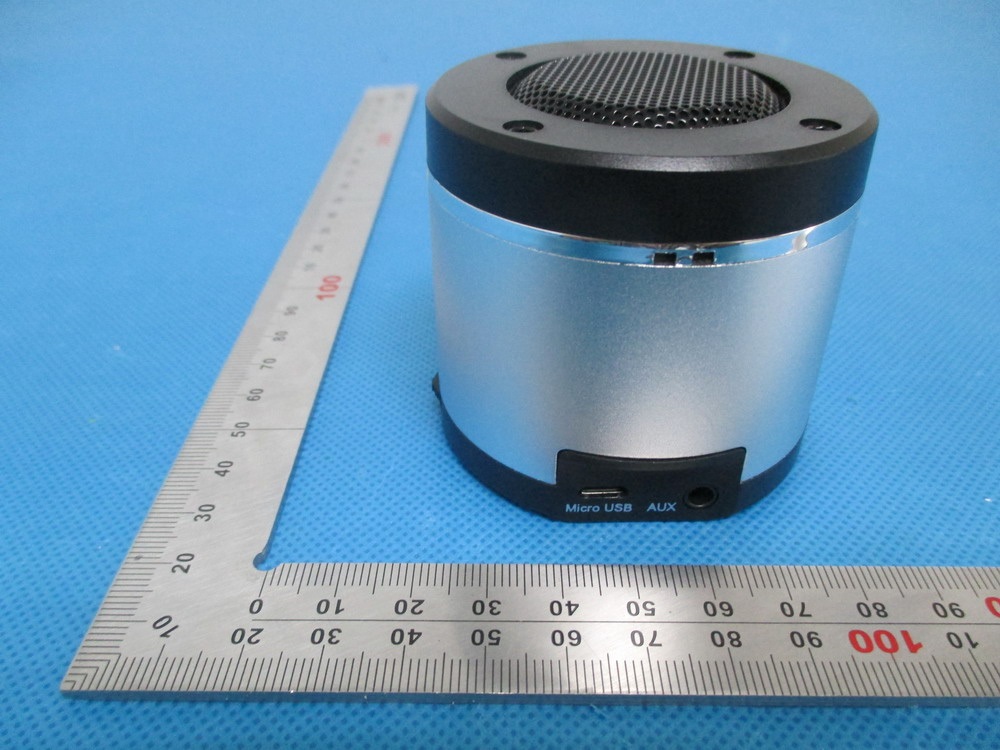

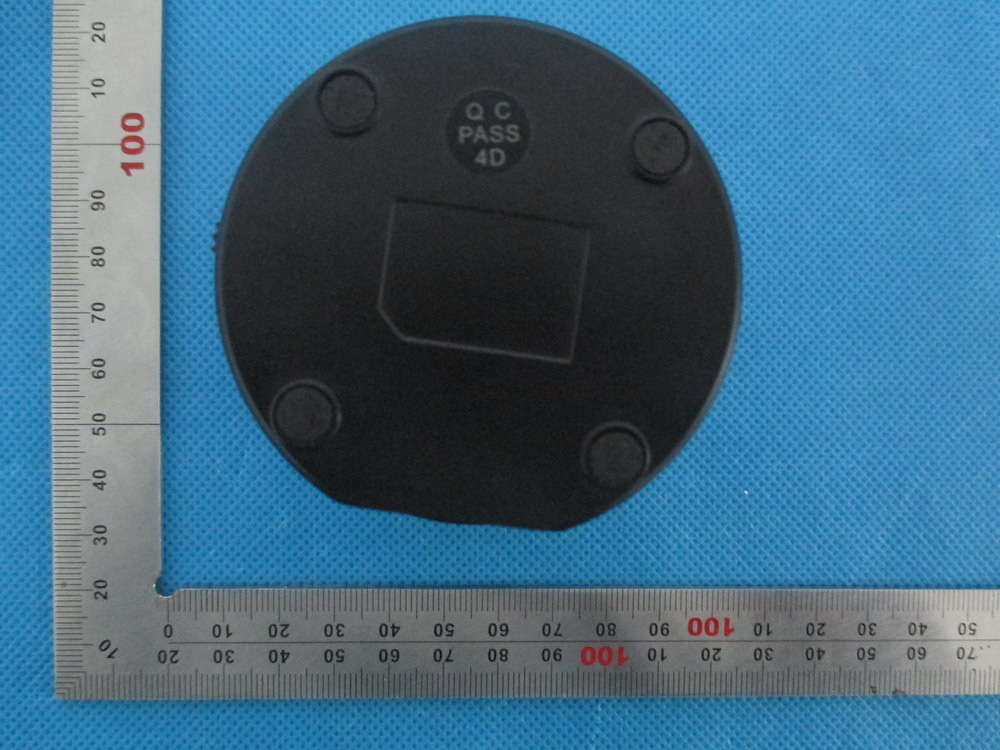

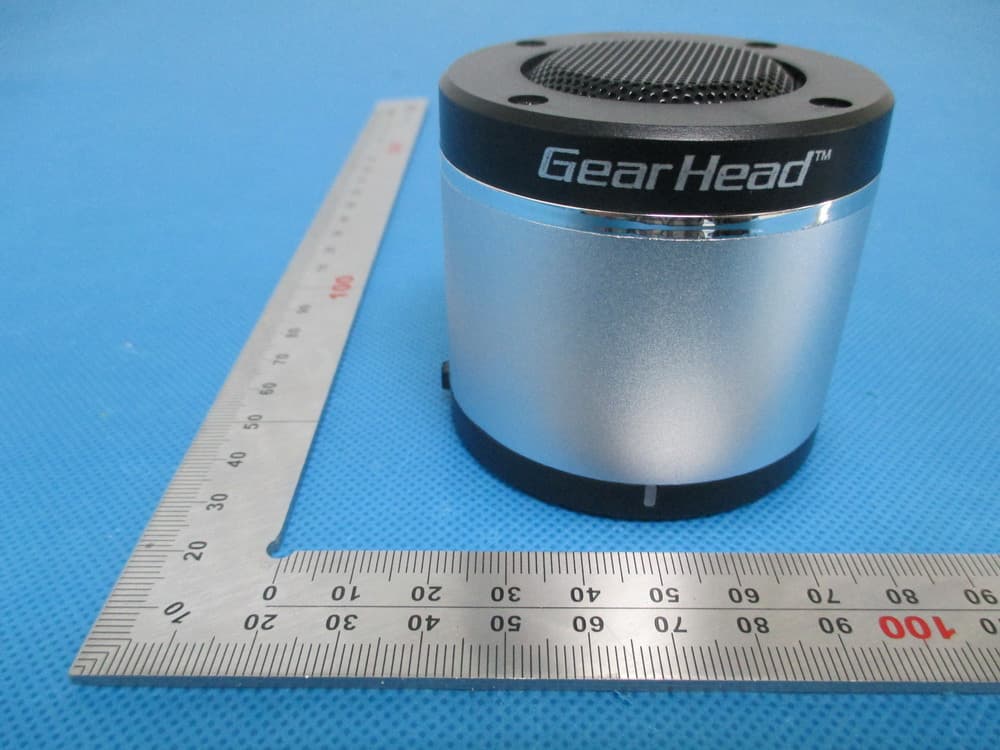

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth speaker Model: BT020AP Brand Name: IKANOO FCC ID: OYCBT020AP BT3000SLV, BT3000RED, BT3000BLU, BT3000BLK

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 BT Antenna INTERNAL VIEW OF EUT-4

Report No.: AGC000931301209FE03 Page 1 of 59 FCC Test Report Report No.: AGC000931301209FE03 FCC ID : OYCBT020AP APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth speaker BRAND NAME : IKANOO MODEL NAME : BT020AP, BT3000SLV, BT3000RED, BT3000BLU, BT3000BLK CLIENT : DONGGUAN TAIDE INDUSTRIAL CO.,LTD. DATE OF ISSUE : Dec.19, 2013 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC000931301209FE03 Page 2 of 59 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Dec.19, 2013Valid Original Report Report No.: AGC000931301209FE03 Page 3 of 59 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 Report No.: AGC000931301209FE03 Page 4 of 59 10.3. TEST RESULT .......................................................................................................................... 33 11. BAND EDGE EMISSION .................................................................................................. 37 11.1. MEASUREMENT PROCEDURE .............................................................................................. 37 11.2. TEST SET-UP ........................................................................................................................... 37 11.3. TEST RESULT .......................................................................................................................... 38 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 42 12.1. MEASUREMENT PROCEDURE ................................................................................…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
