OYCBT029Wireless Bluetooth speaker

TAIDE TECHNOLOGIES BT029 User Manual Brand name：iKANOO Model name：BT029 FCC ID:OYCBT029 Dear user, Thank you very much for choosing BT029 Bluetooth SPEAKER. Before use, please read this user manual carefully in order to operate this device correctly and bring its excellent performance into full play. I. Notice Please store and use this product in the environment at normal temperature; DO NOT expose this product to rain or DAMPNESS; DO NOT toss this product and prevent it from falling and thus being damaged; DO NOT disassemble, repair and modify this product; As it is inbuilt with lithium battery, DO NOT cast or place it in fire to avoid danger! II. Exterior and Functional Interface III. Parameters Model: BT029 Bluetooth specification: Bluetooth V2.1+EDR Transmission distance: ≤10M (It varies as the environmental factor and the connected Bluetooth equipment are different) USB charging voltage: DC 5V-300mA Built-in battery: Lithium battery Output power: 3W Frequency response: 90Hz-20KHz Sensitivity: 80db±2db S/N ratio: ≥ 76Db IV. Packing List 1. Sound box 1 set 2. 3.5” audio cable and wire for connecting USB power cable 1 piece 3. User manual/warranty card 1 piece Switch Charger port / audio input Indicator light V. Common Functions Start: Turn on the switch of the sound box and the sound box will give off the sound of “Ding Ding” as tip. Meanwhile, the blue lamp begins to flicker. Bluetooth connection: After the power is switched on, the blue lamp begins to flicker. At this moment, open the Bluetooth equipment and the SPEAKER BT029 can be successfully searched. After the match-making is successful, the sound of “Du-Du” as tip will be given off. Besides, the Bluetooth equipment will display successful connection. BT029 will automatically stop if no equipment connection is found within 5 minutes, so as to save the power. TIP : If the connection fails, please turn off the machine and restart it or please charge it as maybe there is not sufficient power in the battery. AUX source: Insert the attached audio cable into the AUX port on the sound box and the music player audio port on PC. The player begins to play. The machine will immediately start the music. The sound volume, the selected songs and so on are freely controlled by the player. TIP: Please never use AUX under the status of Bluetooth. Smart automatic quick charge: Charge in power-off state. Insert the attached USB power cable with the Mini USB end into the USB power port of the sound box and the other end into the USB port of PC or the USB charger to start charging. After the charging is over, the red indicator lamp will be off. VI. Troubleshooting Problem Troubleshooting Failure in connection and match-making for many times 1. Inspect whether the sound is in the status of searching, or, restart the machine. 2. The surrounding Bluetooth equipment are plentiful, which causes the difficulty in searching. So, please close the other Bluetooth equipment. The sound is small or distorted 1. Inspect the sound volume of the Bluetooth equipment and regulate the sound volume to the appropriate position. 2. The voltage of the battery is low, please charge it. There is discontinuity in the music See whether the effective connection distance of sound is exceeded, or, whether there is obstacle between the sound box and the Bluetooth equipment. The indicator light for Bluetooth status is not on 1. It indicates that the power of the battery is not sufficient. Please try again after charging it. 2. Restart the machine. Hints: Another trouble, please consult the dealer or an experienced radio/TV technician for help. VII:Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Feb.26, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: OYCBT029 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dongguan Taide Industrial Co., Ltd. Contact person: Emily Lee Title: Sales

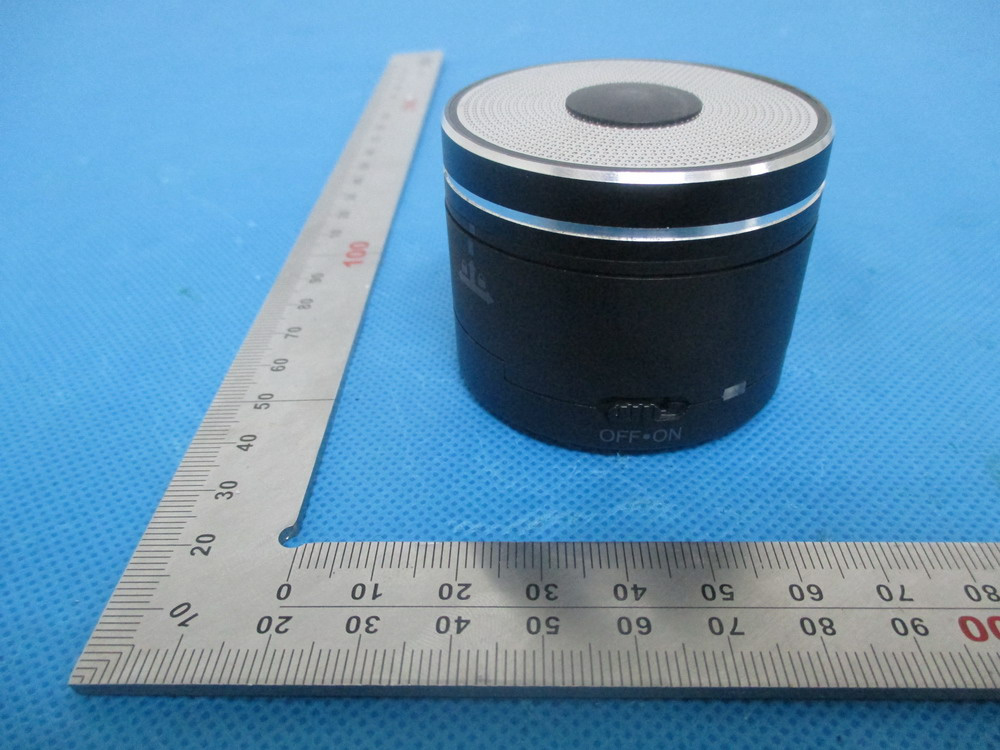

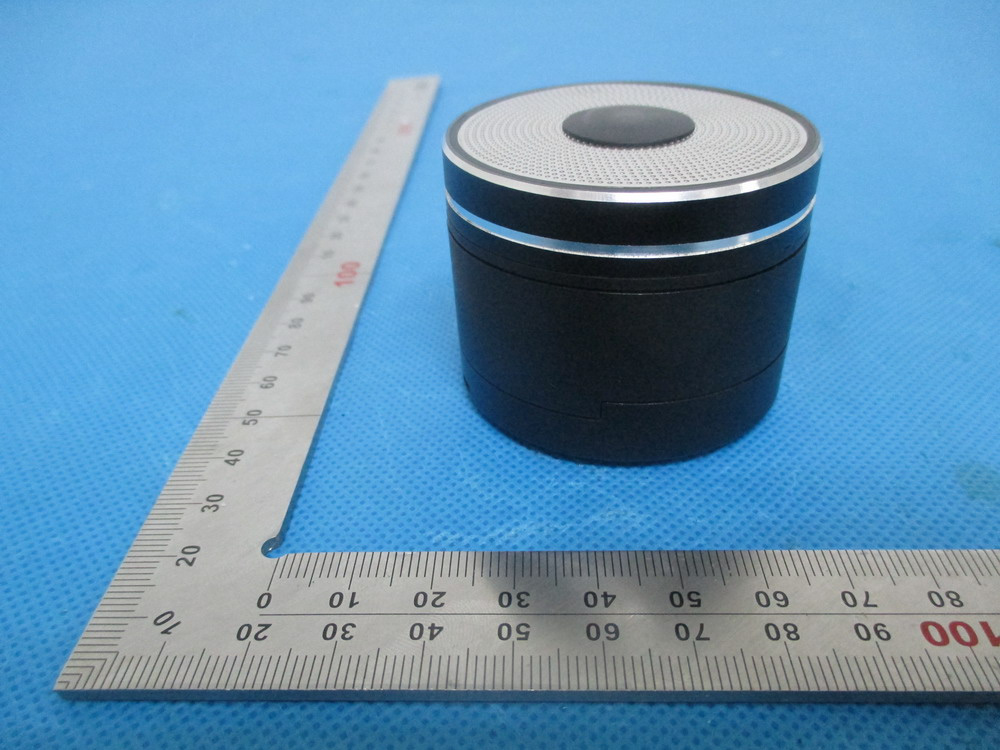

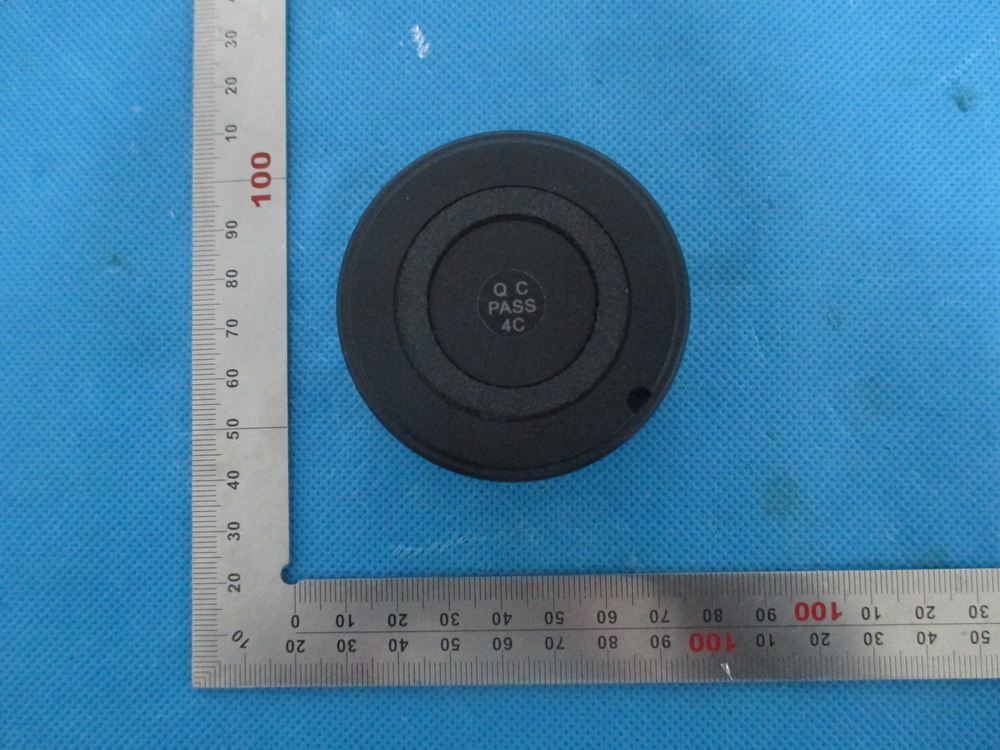

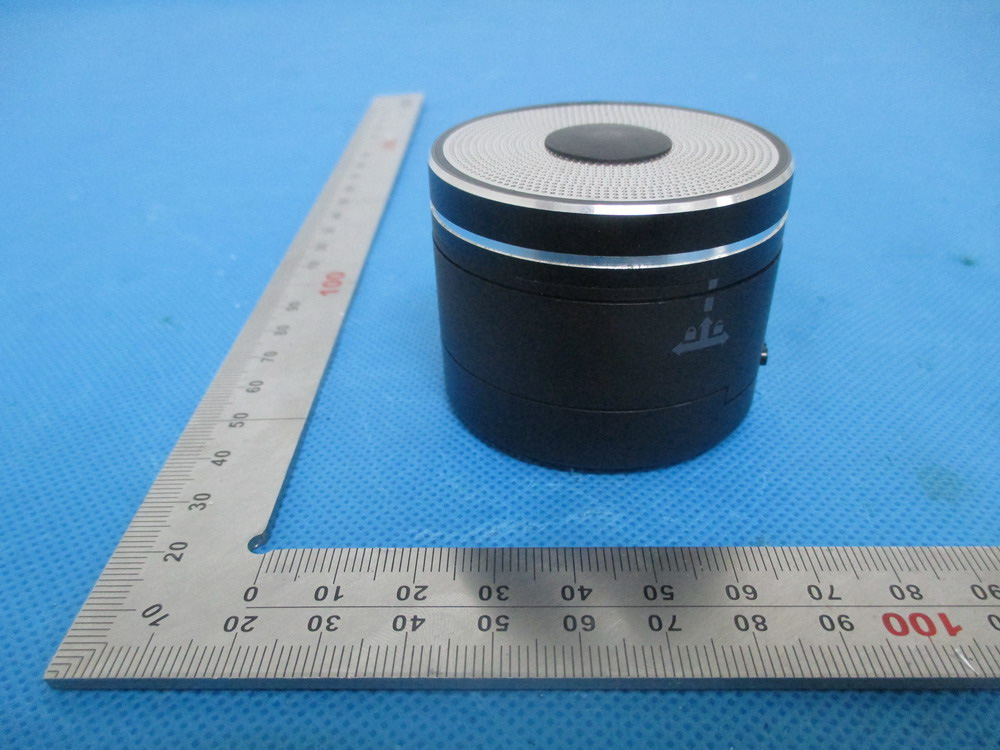

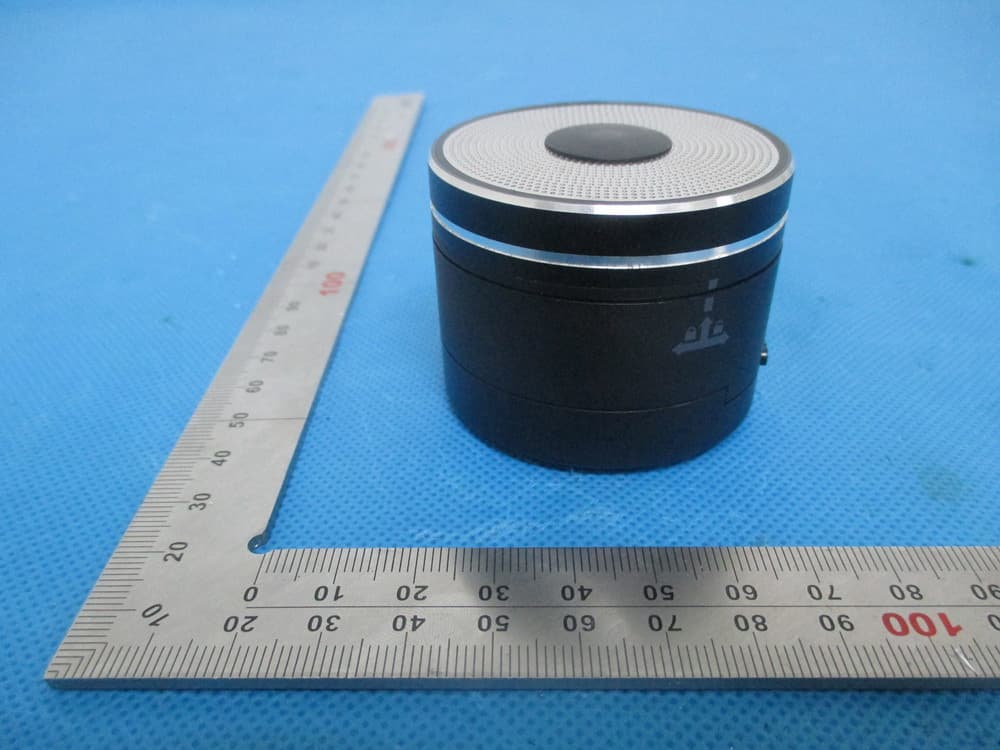

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Wireless Bluetooth speaker Model: BT029 Brand Name: iKANOO FCC ID: OYCBT029 FJ BT 1225, BT2500BLK, NGS-029BT, SSBT029, ETC

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna

Report No.: AGC00931140203FE03 Page 1 of 58 FCC Test Report Report No.: AGC00931140203FE03 FCC ID : OYCBT029 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Bluetooth speaker BRAND NAME : iKANOO MODEL NAME : BT029, FJ BT 1225, BT2500BLK, NGS‐029BT, SSBT029, ETC CLIENT : DONGGUAN TAIDE INDUSTRIAL CO.,LTD. DATE OF ISSUE : Feb.25, 2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00931140203FE03 Page 2 of 58 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Feb.25, 2014Valid Original Report Report No.: AGC00931140203FE03 Page 3 of 58 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 Report No.: AGC00931140203FE03 Page 4 of 58 10.3. TEST RESULT .......................................................................................................................... 33 11. BAND EDGE EMISSION .................................................................................................. 37 11.1. MEASUREMENT PROCEDURE .............................................................................................. 37 11.2. TEST SET-UP ........................................................................................................................... 37 11.3. TEST RESULT .......................................................................................................................... 38 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 42 12.1. MEASUREMENT PROCEDURE ............................................................................…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
