OYCBT030BWireless speaker with NFC

Odyssey Bluetooth / NFC Speaker User Manual Thank you for using our company’s portable Bluetooth / NFC speaker. Please read this user manual carefully in order to operate this product correctly. I. Notice Please store and use this product at a normal temperature DO NOT expose this product to rain or damp areas DO NOT drop this product DO NOT disassemble, repair, or modify this product DO NOT place product in or near fire to avoid danger, as it uses a lithium battery II. Kind Reminder 1. To prolong the speaker’s life span and to avoid hearing damage, please do not listen to music under high volume for long periods of time. 2. When an error occurs with the speaker, please turn off the product and restart to troubleshoot. 3. When the speaker’s power is low, the Bluetooth range may be affected. Please charge the speaker to avoid disruptions during use III. Overview ：Decrease Volume / Previous Song ：Increase Volume / Next Song ：Play & Pause / Call pick-up & Call hang-up ：lock and un-lock IV. Specification Model: Odyssey Bluetooth / NFC Speaker Transmission distance: ≦10M (It varies when the environmental factors and the connected Bluetooth devices are different) USB charging voltage: DC 5V Built-in battery: Lithium battery Output power: 3W Frequency response: 90 Hz-20 kHz Sensitivity: 80db±2db S/N ratio: ≥ 76dB V. Packing List 1. Speaker * 1 2. Mini-USB power cable * 1 3. User manual * 1 VI. FUNCTION DESCRIPTION BLUETOOTH OPERATION 1. Turn on the speaker. The indicator light will flash as it detects Bluetooth enabled devices near you. The indicator light will turn off if no Bluetooth device is detected within 5 minutes. 2. Turn on the Bluetooth function on your smartphone or Bluetooth enabled device. 3. “Gemline Spkr” will appear on Bluetooth device list, select “Gemline Spkr” to establish pairing. 4. Play/pause as desired by pressing function key. 5. When you want to play audio from another Bluetooth device, disconnect the speaker and restart the Bluetooth speaker and re-pair with the new device. NFC OPERATION 1. Turn on the speaker. 2. Gently touch your NFC supported device to the side of the speaker. 3. A pop-up asking whether to proceed with the connection will appear on the device, select “Yes”. 4. To disconnect the NFC supported device, gently touch the side of the speaker again with the device. CHARGING THE SPEAKER The speaker has a built-in Lithium battery. The battery is rechargeable and provides approximately 2.5 hours of continuous operation at 80% volume when fully charged. Use the micro-USB cable to charge the speaker. The red indicator light will illuminate while the speaker is charging. The red indicator light will turn off when the speaker is fully charged. VII. COMPATIBILITY Devices equipped with BLUETOOTH 3.0 or higher (for details please refer to the relevant device agreements or general specifications). Bluetooth 3.0 including agreements as：A2DP, AVRCP, HFP. VIII.TROUBLESHOOTING PROBLEM TROUBLESHOOTING Failure in connecting and pairing 1. Inspect whether the speaker is in the status of searching for a device; if not, restart the speaker. 2. Difficulty in searching and connecting with desired device can be caused if multiple devices are equipped, turned on, and in range for Bluetooth connectivity. Please turn off or disable Bluetooth on the other devices. The sound is low or distorted 1. Inspect the volume of the Bluetooth speaker or device and adjust the volume as needed. 2. The power of the battery is insufficient, please charge it. Discontinuous music 1. Inspect the distance between the device and speaker, they may be too far apart and exceed the Bluetooth range. 2. Inspect if there is an obstacle between the speaker and the Bluetooth device. The indicator for Bluetooth mode is not on 1. It indicates that the power of the battery is not sufficient. Please charge the speaker and try again. 2. Restart the speaker. FCC WARNING Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

tion for certification of FCC ID: OYCBT030B Dongguan Taide Industrial Co., Ltd Phase 2, Jinfenghuang Industrial District, Huangdong Village, Fenggang Town, Dongguan City, China. Tel: 86-769-82691925 Fax: 86-769-82691920 FCC Confidential Authorization Date: 2014-12-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding applica Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Detailed Circuit Schematics of EUT--- (Long term) Block Diagram--- (Long term) Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Signature: Emily Lee Sales Sincerely Yours,

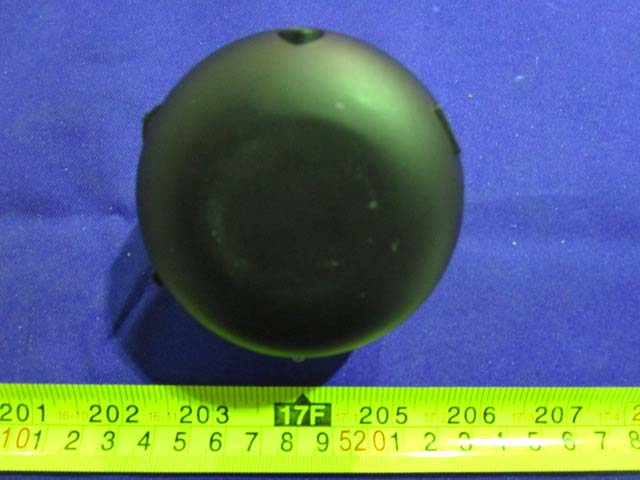

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT—All View EUT— Top View EUT- Bottom View EUT— Side View EUT— Side View EUT— Side View EUT—Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT— Uncover View EUT— Uncover View EUT— Uncover View EUT— Uncover View EUT— Mainboard Top View EUT- Main Board Bottom View EUT- RF Chip & Antenna View EUT— Battery View EUT— Uncover View EUT— NFC TAG View NFC Tag Location

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Dongguan Taide Industrial Co., Ltd Phase 2, Jinfenghuang Industrial District, Huangdong Village, Fenggang Town, Dongguan City, China. Report Type: Original Report Product Type: Wireless speaker with NFC Test En gineer: Sevin Li Re port Number: RDG141222001-00A Re port Date: 2014-12-30 Reviewed B y: Sula Huang RF Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: OYCBT030B Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG141222001-00A FCC Part 15.247 Page 2 of 68 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL CABLE ........................................................................................................................................................ 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE ............................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 MEASU…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions – Side View Radiated Emission - Front View (Below 1GHz) Radiated Emission - Rear View (Below 1GHz) Radiated Emission - Front View (Above 1GHz) Radiated Emission - Rear View (Above 1GHz)
