User Manual Bluetooth speakers Brand name:IKANOO Model name:BT065 FCC ID:OYCBT065 Dear user, Thank you very much for choosing BT065 Bluetooth SPEAKER. Before use, please read this user manual carefully in order to operate this device correctly and bring its excellent performance into full play. I. Notice Please store and use this product at normal temperature; DO NOT expose this product to rain or damp; DO NOT toss this product and prevent it from falling and being damaged; DO NOT disassemble, repair and modify this product; As it is inbuilt with lithium battery, DO NOT cast or place it in fire to avoid danger. II. Overview previous music / volume decrease next music / volume increase : play & pause / Volume/Order control III.Parameters Model : BT065 Transmission distance: ≦10M (It varies when the environmental factors and the connected Bluetooth devices are different) USB charging voltage: DC 5V/500mah Built-in battery: Lithium battery 280 mAh Frequency response: 90Hz-20KHz Sensitivity: 80db±2db S/N ratio: ≥ 76dB V. PACKING LIST 1. Speaker * 1 2. USB cable * 1 3. User manual * 1 VI. FUNCTION DESCRIPTION BLUETOOTH OPERATION 1. Turn on the speaker. The indicator light will flash to detect Bluetooth enabled devices near you. The indicator light will go out if no Bluetooth device is detected within 5 minutes. 2. Pair the speaker with the desired Bluetooth device. 3. Play/pause as desired by pressing 4. When you want to play music or movie from another Bluetooth device, disconnect the speaker and restart the Bluetooth speaker and re-pair. CHARGING THE SPEAKER The speaker has a built-in Lithium battery. The battery is rechargeable and provides approx 2.5-hour continuous operation when fully charged. Use the micro-USB cable to charge the speaker. The red indicator light will illuminate. The red indicator light will go out when the speaker is fully charged. VII. COMPATIBILITY Device equipped with BLUETOOTH 3.0 or higher version (for details please refer to the relevant agreements, general specification), such as the iPAD, iPHONE (the second generation and iPHONE with updated iPHONE 3.1 software), iPOD TOUCH, MAC with Bluetooth, and most of smart phone or computer support Bluetooth. Bluetooth 3.0 including agreements as：A2DP, AVRCP, HFP. VIII. TROUBLESHOOTING PROBLEM TROUBLESHOOTING Failure in connection and pairing for many times 1. Inspect whether the speaker is in the status of searching, or, restart the machine. 2. The surrounding Bluetooth equipments are plentiful, which causes the difficulty in searching. So, please close the other Bluetooth equipments. The sound is small or distorted 1. Inspect the volume of the Bluetooth equipment and adjust the volume. 2. The power of battery is insufficient, please charge it. PHENOMENON Discontinuous music See whether the effective connection distance of sound is exceeded, or, whether there is obstacle between the speaker and the Bluetooth equipment. The indicator for Bluetooth mode is not on 1. It indicates that the power of the battery is not sufficient. Please try again after charging it. 2. Restart the machine. Hints: Another trouble, please consult the dealer or an experienced IT technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Oct.13, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: OYCBT065 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dongguan Taide Industrial Co., Ltd. Contact person: Emily Lee Title: Sales

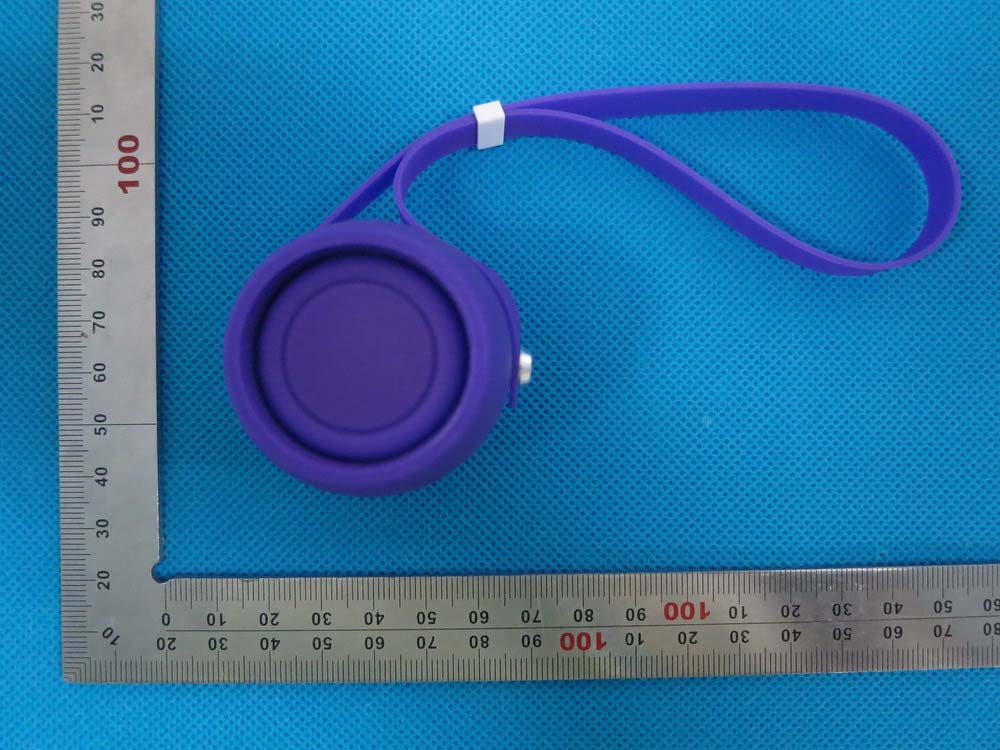

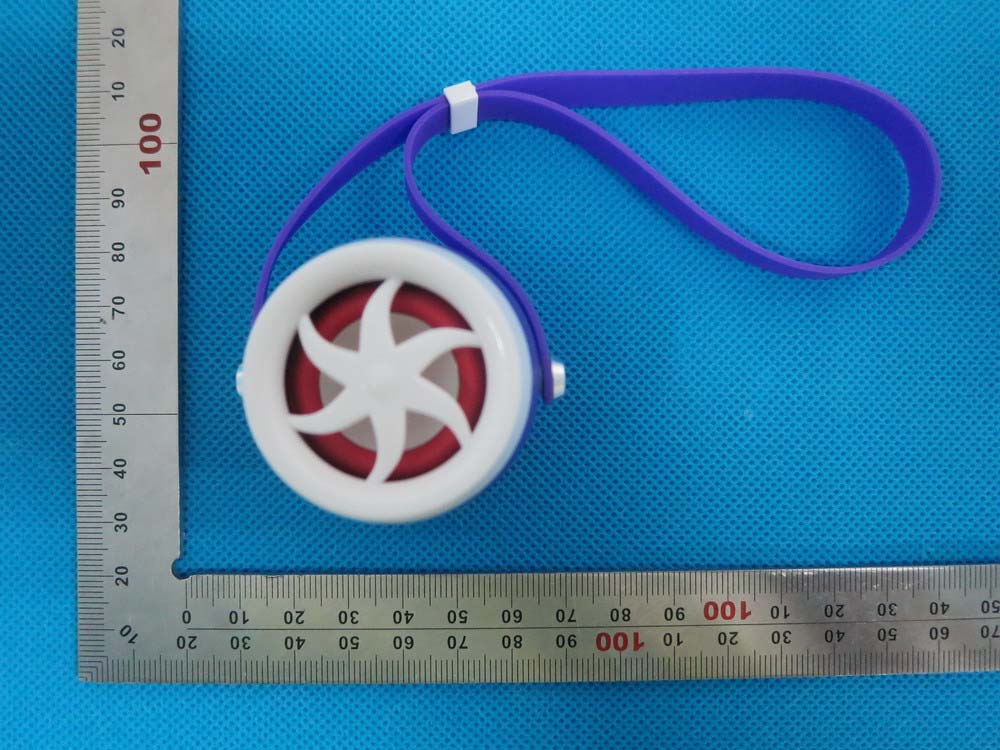

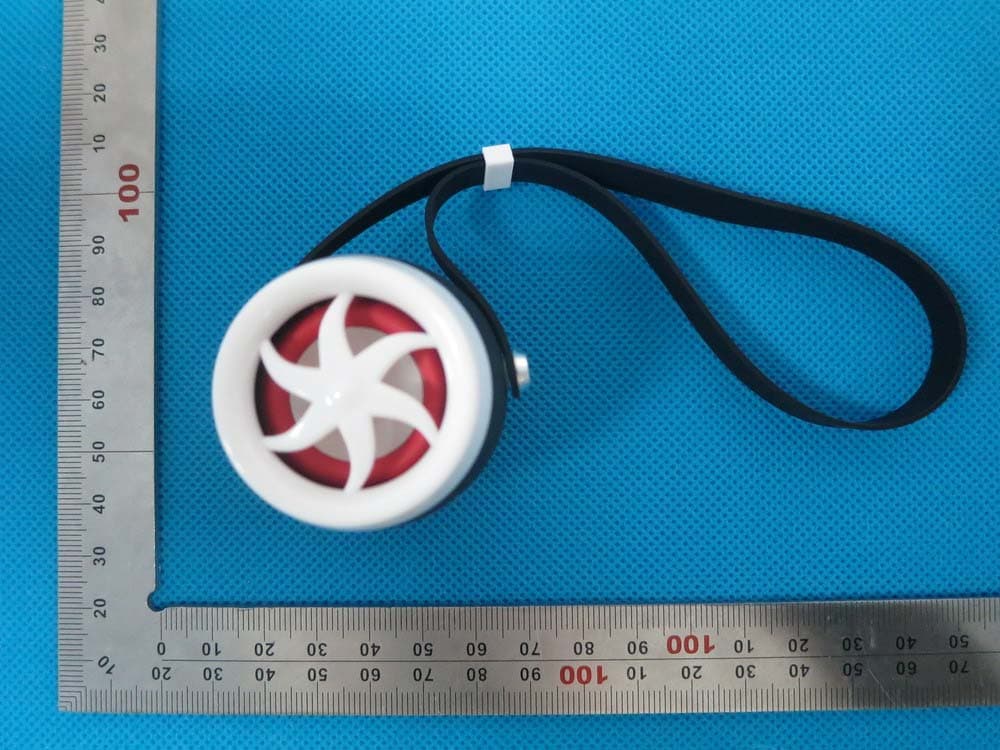

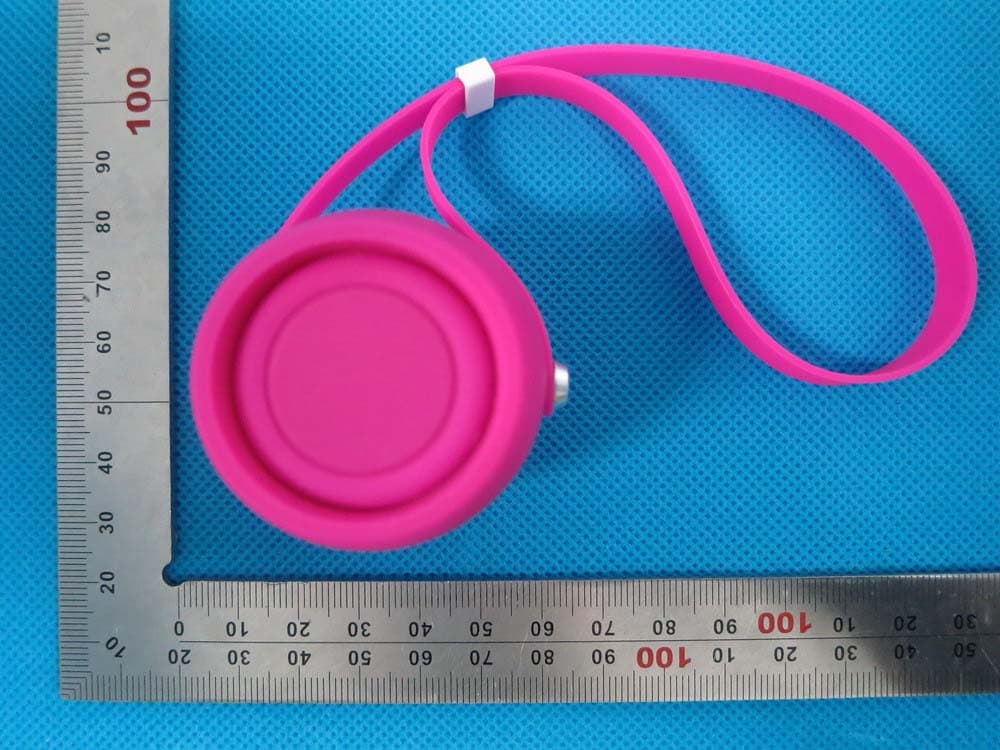

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT WHITE TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT BLACK TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT RED TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT BLUE TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)
