Huf Electronics Bretten Tire Pressure Monitoring Systems User’s manual & compliance statement Huf Electronics Bretten GmbH • Gewerbestr. 40 • 75015 Bretten • Germany • Tel.: +49 (0)7252 970-0 • E-Mail: [email protected] • www.huf-group.com 2014-01-24, haertera Page 1 of 1 Huf Electronics Bretten GmbH Gewerbestrasse 40, 75015 Bretten Germany Tire Pressure Monitoring System (TPMS) Model(s): TSSRE4Pc The device under test is manufactured by the grantee (Huf Electronics Bretten) and sold as an OEM product for motor vehicles. Therefore, we will not supply a separate user’s manual. Huf Electronics Bretten will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the vehicle. INFORMATION TO BE INCLUDED IN THE END USER’S MANUAL We hereby assure that the following caution statement as per CFR 47, §15.21 is included in a prominent location of the owner’s manual of the vehicles: +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ FCC ID: OYGTSSRE4PC IC: 3702A-TSSRE4PC This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

Huf Electronics Bretten Entwicklung und Fertigung von Elektronik-Systemen für Kraftfahrzeuge P O W E R O F A T T O R N E Y Huf Electronics Bretten GmbH Gesellschaft mit beschränkter Haftung, Sitz Bretten, Registergericht Mannheim, HR B 240742 Gewerbestraße 40, D-75015 Bretten, Germany Geschäftsführer: Ulrich Hülsbeck, Thomas Tomakidi, Lothar Baer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We the undersigned, hereby authorize CSA Group Bayern GmbH, Ohmstrasse 1-4, 94342 Strasskirchen, Germany, Mr. Thomas Ring to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CSA Group Bayern GmbH on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huf Electronics Bretten GmbH. Sincerely, Place of Issue: Bretten, Germany Date of Issue: March 5, 2014 __________________________________ i. A. Alexander Haerter EMC / CE Coordinator

Huf Electronics Bretten Entwicklung und Fertigung von Elektronik-Systemen für Kraftfahrzeuge R E Q U E S T O F C O N F I D E N T I A L I T Y Huf Electronics Bretten GmbH Gesellschaft mit beschränkter Haftung, Sitz Bretten, Registergericht Mannheim, HR B 240742 Gewerbestraße 40, D-75015 Bretten, Germany Geschäftsführer: Ulrich Hülsbeck, Thomas Tomakidi, Lothar Baer March 5, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Certification Application FCC ID: OYGTSSRE4PC Pursuant to sections 0.457(d) and 0.459 of CFR 47, the applicant hereby requests long-term/permanent confidential treatment of information accompanying this application as outlined below: • Block Diagram • Operational Description • Schematics • Parts List & Placement • Internal Photos (EUT is sealed) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant: Huf Electronics Bretten GmbH Address: Gewerbestrasse 40, 75015 Bretten, Germany Signature: ________________________ Name: i.A. Alexander Haerter EMC / CE Coordinator

American Certification Body Inc. 6731 Whittier Ave, Suite C110 McLean, VA22101 Date: 06.03.2014 FCC ID: OYGTSSRE3C FCC ID: OYGTSSRE3PC IC: 3702A-TSSRE3PC Model: TSSRE3c / TSSRE3Pc FCC ID: OYGTSSRE4C FCC ID: OYGTSSRE4PC IC: 3702A-TSSRE4PC Model: TSSRE4c / TSSRE4Pc Request for Confidentiality of Internal Photographs Our client’s models mentioned above are sealed units. The circuitry is encased in this ‘sealant’ and the circuitry would be destroyed if the device was dismantled. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Thomas Ring Manager Certification CSA Group Bayern GmbH Ohmstr. 1-4 94342 Strasskirchen Germany

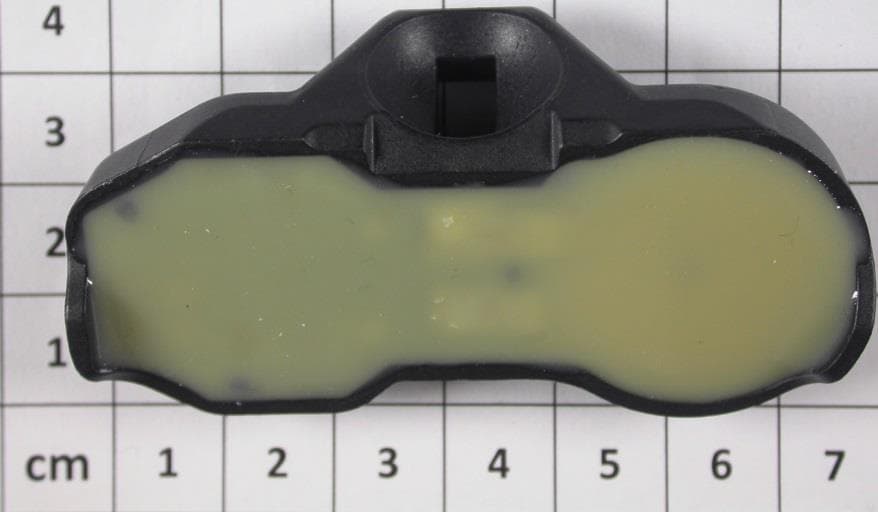

Attachment A to File No.: T37830-00 1 P h o t o d o c u m e n t a t i o n o f t h e E U T T S S R E 4 c a n d T S S R E 4 P c 1.1 External views:

Huf Electronics Bretten Tire Pressure Monitoring Systems Label and location TSSRE4Pc 2014-03-05 page 1 of 1 no. description content text height mm text width mm 1 customer logo image --- --- 2 customer part number xxx xxx xxx x 1.6 14.0 3 serial number (dec, 10 character) nnnnnnnnnn 1.5 11.0 4 hex wrench size 11mm Symbol 3.4 4.0 5 torque for mounting screw 4Nm 1.4 4.0 6 date of manufacture dd/mm/yy 1.3 7.0 7 frequency 433MHz 1.3 6.0 8 number of EOL tester (2 ch.) nn 1.3 2.0 9 other country approvals Other homologations see owner manual 1,0 13.0 11.0 10 model designation TSSRE4Pc 1.5 7.5 11 manufacturer designation Huf 5.8 7.0 12 data matrix code (optional) 433snnnnnnnnnn 7.5 7.5 13 wheeled bin symbol Symbol 4.0 3.8 14 country of origin Germany 1.5 8.0 15 legend for model Model: 1.5 6.4 16 approval Identification EU CE symbol 2.0 2.6 17 approval Identification USA FCC ID: OYGTSSRE4PC 1.1 13.0 18 approval Identification Canada IC: 3702A-TSSRE4PC 1.1 13.0 19 not used 1.1 13.0

FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 1 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 EMI − T E S T R E P O R T - FCC Part 15.231 - Test Report No. : T37830-00-04HU 24. March 2014 ______________________________________________________________________________________________ Date of issue Type / Model Name : TSSRE4Pc Product Description : TPMS Wheel Electronics G1.3 433MHz power Applicant : Huf Electronics Bretten GmbH Address : Gewerbestr. 40 75015 Bretten, Germany Manufacturer : Huf Electronics Bretten GmbH Address : Gewerbestr. 40 75015 Bretten, Germany Licence holder : Huf Electronics Bretten GmbH Address : Gewerbestr. 40 75015 Bretten, Germany Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 2 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 6 3.1 Photo documentation of the EUT – See Attachment A 6 3.2 Power supply system utilised 6 3.3 Short description of the Equipment under Test (EUT) 6 4 T E S T E N V I R O N M E N T 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 7 5 T E S T C O N D I T I O N S A N D R E S U L T S 9 5.1 Conducted emissions 9 5.2 Field strength of the fundamental wave 10 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 12 5.4 Spurious emissions radiated (electric field) 14 5.5 Correction for pulse operation (duty cycle) 18 5.6 Emission bandwidth 23 5.7 On / Off Period 26 5.8 Signal deactivation 29 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 33 A T T A C H M E N T A FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 3 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2013) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2013) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1: 1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 4 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 2 S U M M A R Y GENERAL REMARKS: All radiated tests have been performed on samples which are in original state. For activating the EuT a “Pressure Vessel” was used to power up the Wheel Unit Sensor in the different operation modes. The EuT has an incorporated antenna and is powered by a primary battery. For testing the manufacturer declares following transmitting intervals: Each wheel electronic has its own code (ID) that is transmitted with the datagram at each transmission event. The RF transfer occurs in the 315MHz or 433.92 MHz range. The samples are in standstill mode. For activating the EUT it has to be put into the pressure box where it is possible to change the pressure. - Storage mode (mode 0): In storage mode no RF transmission takes place. - Normal mode (mode 1) @ standstill and rotating: In normal mode, the wheel electronics measure the tire pressure and the approximate temperature of the air in the tire every three seconds but if the measured values are stable, RF transmitting processes only every 54 seconds. - The alarm mode can be activated by the use of a pressure box. The pressure has to be set to 2 bar for 5 minutes. Now the sensor switches into normal mode. - Alarm mode (mode 2) @ pressure loss: When a pressure loss > 0.2 bar on the last sent pressure value is detected, the wheel electronics switch immediately to alarm mode. In this situation, the wheel electronics measure and send every 1 seconds a RF datagram for 255 seconds. After this time it falls back to the normal mode. The alarm mode can be activated by the use of a pressure box. The pressure in the box has to be set to 2 bar. Now the sensor switches for about 4 minutes into alarm mode. Then a rapid pressure drop of at least 0.2 bar must be generated again so that the alarm mode will continue. Pulse duration for normal and alarm mode = 10.1 ms (+/-0.2 ms) FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 5 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 - Storage Mode: no RF transmission, the device is switched to sleep mode Switch: connect M5 to M2 for …

Text truncated - open the document above for the full version.

FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 10 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.231(e): The field strength of emissions from intentional radiators shall not exceed the effective field strength limits. 5.2.2 Description of Measurement The radiated power of the fundamental wave from the EUT is measured in the frequency range of 30 to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 metres non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. The set up of the EUT will be in accordance to ANSI C63.4. The Interface cables that are closer than 40 centimetres to the ground plane are bundled in the centre in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the centre of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 metres horizontally from the EUT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 metres, measurement scans are made in horizontal and vertical antenna polarization’s and the EUT is rotated 360 degrees. FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 12 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Applicable standard According to FCC Part 15C, Section 15.209: The emissions from intentional radiators shall not exceed the effective field strength limits. 5.3.4 Description of Measurement The magnetic field strength from the EUT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The set up of the Equipment under test will be in accordance to ANSI C63.4. The antenna was positioned 3, 10 or 30 meters horizontally from the EUT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31(f)(2)(2). The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209(d)(2). FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 14 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.4 Spurious emissions radiated (electric field) For test instruments and accessories used see section 6 Part SER 2, SER 3. 5.4.1 Description of the test location Test location: OATS1 Anechoic Chamber A1 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 18 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.5 Correction for pulse operation (duty cycle) For test instruments and accessories used see section 6 Part DC. 5.5.1 Description of the test location Test location: AREA 4 5.5.2 Photo documentation of the test set-up 5.5.3 Applicable standard According to FCC Part 15C, Section 15.35(c): The emissions from intentional radiators shall not exceed the effective field strength limits. 5.5.4 Test result The Duty cycle factor (dB) is calculated applying the following formula: KE= 20 log ((tiB)/100) KE: pulse operation correction factor (dB) tiB pulse duration for one pulse (ms) Maximum transmitting duration in every 100ms period: KE= 20 log ((10.2)/100) = -19.83 dB Remarks: FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 23 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.6 Emission bandwidth For test instruments and accessories used see section 6 Part MB. 5.6.1 Description of the test location Test location: AREA4 5.6.2 Photo documentation of the test set-up 5.6.3 Applicable standard According to FCC Part 15C, Section 15.231(c): The bandwidth of the emission shall not exceed the effective limits. 5.6.4 Description of Measurement The measurement was performed conducted with intentional modulation using a spectrum analyser. The analyser span was set wide enough to capture the most of the power envelope of the signal. The function “20-dB-down” is used to determine the BW. For an overview on the adjacent restricted bands the span was set as wide as needed to show that the restricted bands are not affected. FCC ID: OYGTSSRE4PC CSA Group Bayern GmbH File No. T37830-00-04HU, page 26 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 5.7 On / Off Period For test instruments and accessories used see section 6 Part MB. 5.7.1 Description of the test location Test location: AREA 4 5.7.2 Photo d…
