OYGTSSRE4TDTire Safety System

PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 2010-11-05 FCC ID: OYGTSSRE4TD IC : 3702A-TSSRE4TD Subject: Compliance Statement in Car Manual Dear Sirs, Our products with the above FCC ID/IC are marketed together with cars, where it’s operation is included in the individual owner’s manual of the car. We hereby assure that the following caution statement as per CFR 47, §15.21 is included in a prominent location of the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC WARNING”: “NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition, we also assure that the following statement is also included in a prominent location in the manual as per CFR 47, §15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Sonja Sachs Certification Group mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen +49 9424 9481 216 [email protected]

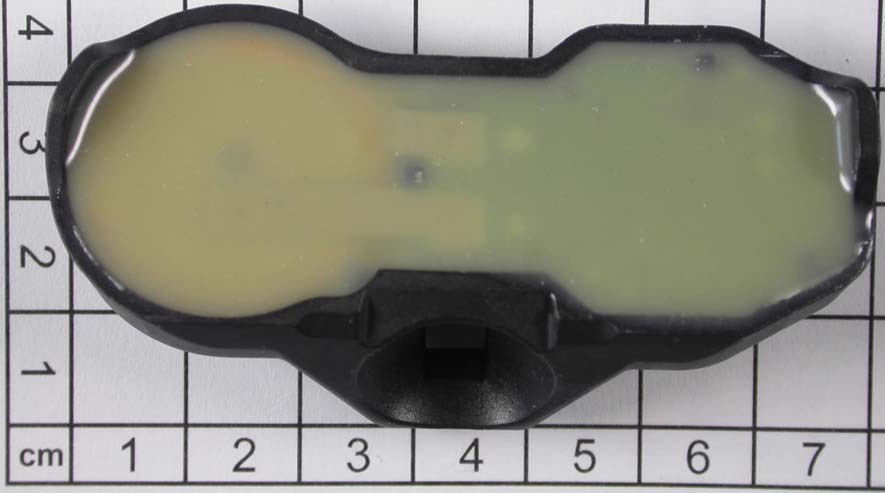

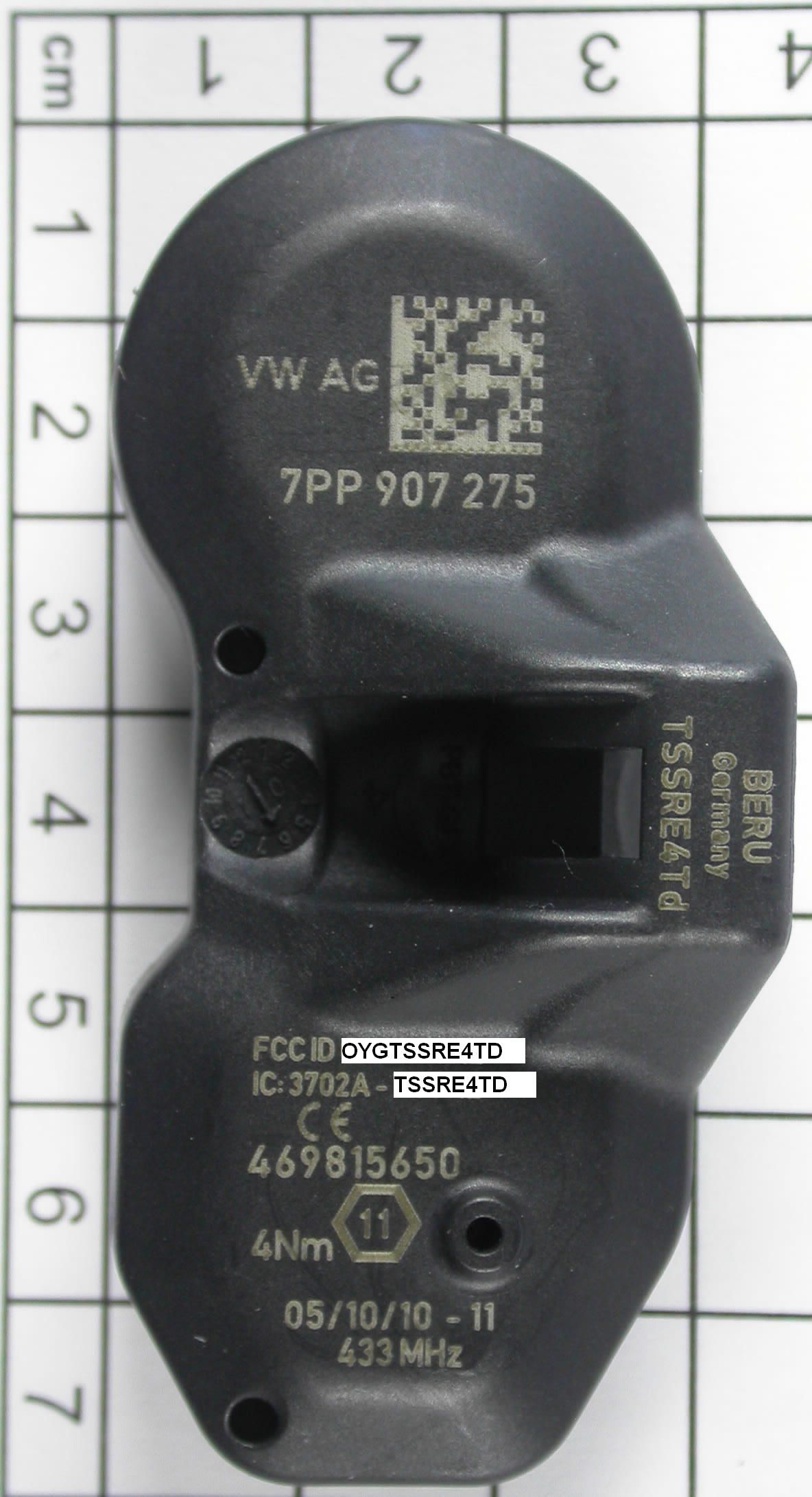

mikes-testingpartners gmbh File No. T34668-00HU, page 3 of 4 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1; 9.9.2010 1 Photo documentation of the EUT 1.1 External views:

FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 1 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 EMI − T E S T R E P O R T - FCC Part 15.231 - Test Report No. : T34668-00-03HU 04. November 2010 ______________________________________________________________________________________________ Date of issue Type / Model Name : Wheel Electronic / TSSRE4Td Product Description : Tire Safety System Applicant : Borg Warner BERU Systems GmbH Address : Mörikestraße 155 71636 LUDWIGSBURG, GERMANY Manufacturer : Borg Warner BERU Systems GmbH Address : Mörikestraße 155 71636 LUDWIGSBURG, GERMANY Licence holder : Borg Warner BERU Systems GmbH Address : Mörikestraße 155 71636 LUDWIGSBURG, GERMANY Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 2 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT – See Attachment A 5 3.2 Power supply system utilised 5 3.3 Short description of the Equipment under Test (EUT) 5 4 TEST ENVIRONMENT 6 4.1 Address of the test laboratory 6 4.2 Environmental conditions 6 4.3 Statement of the measurement uncertainty 6 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 6 5 TEST CONDITIONS AND RESULTS 8 5.1 Conducted emissions 8 5.2 Field strength of the fundamental wave 9 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 11 5.4 Spurious emissions radiated (electric field) 13 5.5 Correction for pulse operation (duty cycle) 17 5.6 Emission bandwidth 20 5.7 Signal deactivation 23 6 USED TEST EQUIPMENT AND ACCESSORIES 28 ATTACHMENT A FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 3 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2009) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2009) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1: 1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 4 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 2 SUMMARY GENERAL REMARKS: All radiated tests have been performed on samples which are in original state. For activating the EuT a 125 kHz control signal was sent via “Beru TSS Tester”. With this function of the “Beru TSS Tester” it is possible to set the EuT in both operation modes. The EUT has an incorporated antenna and is powered by a primary battery. The manufacturer declares following transmitting intervals: - Normal Operation mode: In normal operation mode, the electronic wheel unit measures the tire pressure and the approximate temperature of the air in the tire every three seconds but if the measured values are stable, sending processes are carried out only every 54 seconds. - Fast send mode: When a pressure loss > 0.2 bar on the last sent pressure value is detected, the wheel electronics switch immediately to fast-send mode. In this situation, the wheel electronics measure and send every 0.8 seconds for 255s. After this period of time it falls to the normal operation mode back. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 11. October 2010 Testing concluded on : 18. October 2010 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager: Radio Group Markus Huber FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 5 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT – See Attachment A 3.2 Power supply system utilised Power supply voltage : 3.0 V / DC (Lithium battery) 3.3 Short description of the Equipment under Test (EUT) The Wheel electronics measure the tire pressure and the air temperature in the tire and send these via a set radio route together with the residual battery life and the code (ID) to the digital antenna. For exactly description please refer to the technical documents. Number of tested samples: 1 Serial number: Pre production sample EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - Tx mode at frequency 433 MHz, Fast send mode - Tx m…

Text truncated - open the document above for the full version.

FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 9 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.231(e): The field strength of emissions from intentional radiators shall not exceed the effective field strength limits. 5.2.2 Description of Measurement The radiated power of the fundamental wave from the EUT is measured in the frequency range of 30 to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 metres non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. The set up of the EUT will be in accordance to ANSI C63.4. The Interface cables that are closer than 40 centimetres to the ground plane are bundled in the centre in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the centre of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 metres horizontally from the EUT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 metres, measurement scans are made in horizontal and vertical antenna polarization’s and the EUT is rotated 360 degrees. FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 11 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Applicable standard According to FCC Part 15C, Section 15.209: The emissions from intentional radiators shall not exceed the effective field strength limits. 5.3.4 Description of Measurement The magnetic field strength from the EUT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The set up of the Equipment under test will be in accordance to ANSI C63.4. The antenna was positioned 3, 10 or 30 meters horizontally from the EUT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31(f)(2)(2). The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209(d)(2). FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 13 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.4 Spurious emissions radiated (electric field) For test instruments and accessories used see section 6 Part SER 2, SER 3. 5.4.1 Description of the test location Test location: OATS1 Anechoic Chamber A2 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 17 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.5 Correction for pulse operation (duty cycle) For test instruments and accessories used see section 6 Part DC. 5.5.1 Description of the test location Test location: AREA4 5.5.2 Photo documentation of the test set-up 5.5.3 Applicable standard According to FCC Part 15C, Section 15.35(c): The emissions from intentional radiators shall not exceed the effective field strength limits. 5.5.4 Test result The Duty cycle factor (dB) is calculated applying the following formula: K E= 20 log ((tiB)/100) K E: pulse operation correction factor (dB) t iB pulse duration for one pulse (ms) Maximum transmitting duration in every 100ms period: 10.25 ms K E= 20 log ((10.25)/100) = -19.8 dB Remarks: FCC ID: OYGTSSRE4TD mikes-testingpartners gmbh File No. T34668-00-03HU, page 23 of 28 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.7 Signal deactivation For test instruments and accessories used see section 6 Part MB. 5.7.1 Description of the test location Test location: Shielded Room S4 5.7.2 Photo documentation of the test set-up 5.7.3 Applicable standard According to FCC Part 15C, Section 15.231(a)(1): A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter not exceeding the defined on time limit. 5.7.4 Description of Measurement The duration of transmission is measured with the spectrum analyzer. The sweep points were set to maximum for higher the time resolution. The signal is modulated; the marker of the analyzer is set to maximum amplitude at normal temperature and zero span. The analyser was set to single sweep and triggered on the button, the marker was set to the edges in order to measure the duration time and than recorded.
