OZULF01144USmartScope

User's Manual requirement Joseph Brunett <[email protected]> Desmarais, Nicolas: DEB Lab <[email protected]> Tue, Sep 19, 2006 at 10:51 AM To: [email protected] Cc: "Valdis V. Liepa" <[email protected]> Dear Mr. Brunett, It is permissible to have a device sold without a user's manual, as long as the labeling information (RSS-GEN section 5.2) and the applicable statements (RSS-GEN section 7.1.5) are on the device. In this case, you do not need to provide a user's manual with your application. Best regards, Nicolas DesMarais Certification Officer Industry Canada Certification & Engineering Bureau Spectrum Engineering 3701 Carling Avenue, Bldg.94, P.O. Box 11490, Station H Ottawa, Ontario K2H 8S2 (613) 990-5329 Fax: (613) 990-4752 E-mail: [email protected] Web: http://strategis.ic.gc.ca /certification [Quoted text hidden] Page 1 of 1Gmail - User's Manual requirement 10/5/2006http://mail.google.com/mail/?ik=4cddaab9f2&view=pt&th=10dc742fcd3576a6&search=q... Response to Inquiry to FCC (Tracking Number 474491) Joseph Brunett <[email protected]> Generic Office of Engineering Technology <[email protected]> Wed, Sep 27, 2006 at 12:30 PM To: [email protected] Inquiry: Please address the following two questions. 1) Is it permissible for a Part 15 device to be sold without a users manual (or other paper/electronic document) so long as all required statements (id number, rf hazard and interference warnings, etc...) are placed directly on the device? 2) If all required statements are placed on a device, must a users manual (or other paper/electronic document) be provided when applying for certification? Thanks. JDB --- Reply from Customer on 09/22/2006 --- Just to verify I am understanding this correctly. Most applications require a users manual exhibit. However, that exhibit may be comprized of an ID label drawing or photograph, so long as that label clearly demonstrates all information required of the users manual for compliance. Please confirm. JDB Response: Your understanding is correct. Since the manufacturer does not supply an actual user manual, ! then they may use the product label which contains the required FCC information as a user manual exhibit. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. Page 1 of 1Gmail - Response to Inquiry to FCC (Tracking Number 474491) 10/5/2006http://mail.google.com/mail/?ik=4cddaab9f2&view=pt&th=10df01cef203e919&search=ca...

Re: Certification for Nasco Transmitter Model(s): LF01144U FCC ID: OZULF01144U IC: 6758A-LF01144U POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Nasco Transmitter Model(s): LF01144U FCC ID: OZULF01144U IC: 6758A-LF01144U REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Nasco requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Nasco has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan October 12, 2006 Re: Certification for Nasco Transmitter Model(s): LF01144U FCC ID: OZULF01144U IC: 6758A-LF01144U STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Nasco Transmitter Model(s): LF01144U FCC ID: OZULF01144U IC: 6758A-LF01144U GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Nasco 901 Janesville Ave. Fort Atkinson, WI 53538 Mr. Neil P. Caffrey [email protected] Tel: (920) 563-2446 625 Fax: (920) 563-5784 It will be manufactured by: Nasco 901 Janesville Ave. Fort Atkinson, WI 53538 Mr. Neil P. Caffrey [email protected] Tel: (920) 563-2446 625 Fax: (920) 563-5784 Canadian Contact: Spectrum Educational Supplies Limited 150 Pony Drive Newmarket, Ontario L3Y 7B6 Brian Arthurs Tel: (905) 898-0031, ext. 4901 Fax: (905) 898-0035

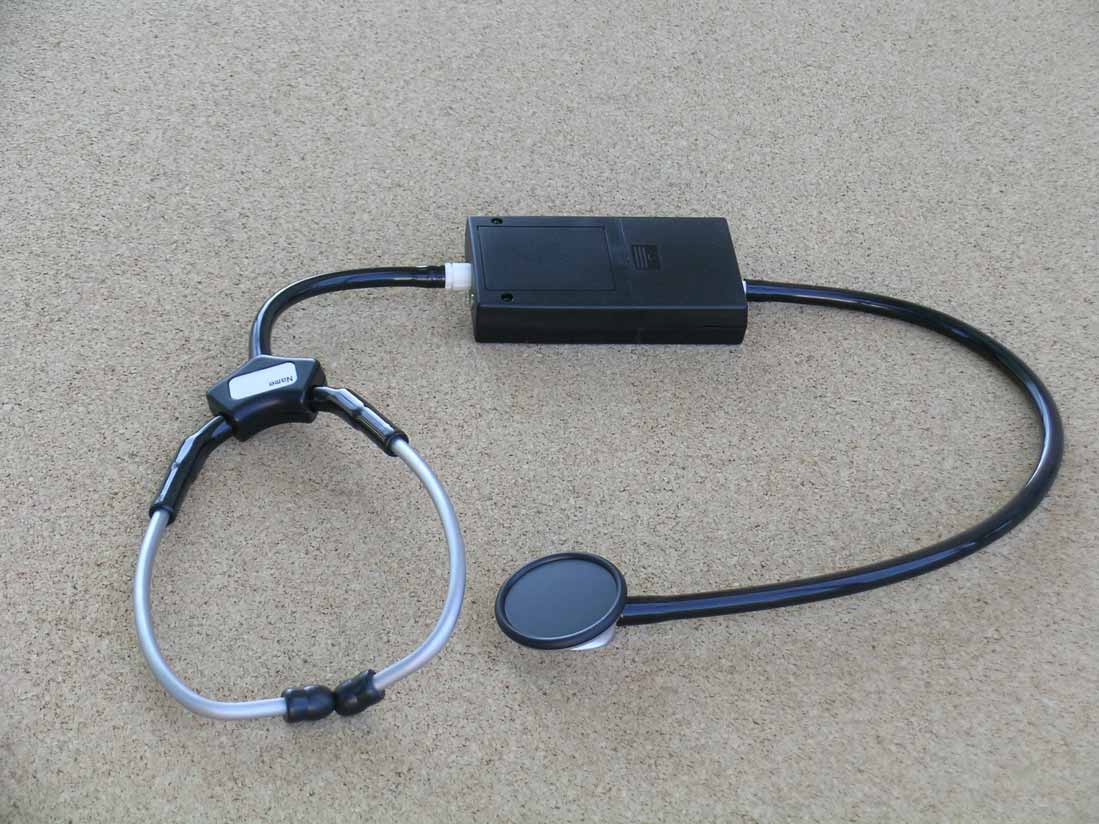

Saw Filter U10 B39431-B3750-U310 433.92 MHz UHF Receiver U9 X-TAL Y3 6.7458 MHz Processor U2 PIC17LC1756 X-TAL Y1 307.2 KHz Stethoscope Head RFID Reader U7 HTRC11001AD X-TAL Y2 307.2 KHz Speaker Antenna IN 125 KHz Out 125 KHz In

October 12, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: OZULF01144U IC: 6758A-LF01144U Model(s): LF01144U Please find enclosed application materials for certification of Nasco LF01144U Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-323 Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Nasco 125 kHz LF Transmitter Report Model(s): LF01144U Report No. 415031-323 October 9, 2006 Copyright © 2006 For: Nasco 901 Janesville Ave. Fort Atkinson, WI 53538 Contact: Gerry Sivulka [email protected] Tel: (419) 478-6600 ext 104 Tests supervised by: Measurements made by: Joseph D. Brunett Report approved by: _____________________ Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, Part 15, Subpart C, and for compliance with Industry Canada RSS-210/Gen, were performed on Nasco transmitter, model LF01144U. This device is subject to Rules and Regulations as both an LF transmitter and a 433.92 MHz receiver. This test report details only the worst transmitter radiated emissions, see the Receiver Test Report for digital emissions compliance. In testing completed August 23, 2006, the device tested in the worst case met the allowed specifications for transmitter radiated emissions by 24.6 dB (see p. 7); digital emissions, Class B, were met by more than 20 dB. The conducted emissions tests do not apply, since the device is powered from two 1.5 VDC batteries. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-323 Page 2 of 13 1. Introduction The Nasco model LF01144U was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedures and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) X EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-323 Page 3 of 13 3. Device Under Test 3.1 Identification The DUT is a device containing a a 433.92 MHz receiver and a 125 kHz transmitter. This report details the emissions relating to the 125 kHz transmitter portion of the device. The DUT is designed for actuating small LFID tags embedded in a manikin. Depending on the ID tag actuated, the device will received the passive tag response and provide a corresponding audio playback to the user. The device is housed in a plastic case approximately 2.5 by 5 by 0.75 inches. The coil is placed in the stethoscope head. The DUT was designed and manufactured by Nasco, 901 Janesville Ave., Fort Atkinson, WI 53538. It is identified as: Nasco LF Transmitter Model: LF01144U FCC ID: OZULF01144U IC: 6758A-LF01144U 3.2 Models There is only one model of the device. 3.3 Modes of Operation There is only one mode of operation for this device. That modulation scheme is detailed in section 6.1 of this report. 3.4 EMI Relevant Modifications No EMI Relevant Modifications were performed by this test laboratory. However, an engineer representing the manufacturer altered the receiver antenna wire length to improve receiver range prior to compliance testing at our facility. 4. Emission Limits 4.1 Radiated Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices, subject to Subpart C, Section 15.209; and Subpart B, Section 15.109 (transmitter generated signals excluded); and Subpart A, Section 15.33. The applicable testing frequencies with correspo…
