P2F-DIRC505BDrift 2-way Remote Control

quick guide follow us facebook.com/driftinnovation vimeo.com/driftinnovation instagram.com/drift_innovation twitter.com/driftinnovation DRIFTINNOVATION.COM contents about your camera | initial setup 3—4 package contents | getting started 5—6 mode selection & settings 7—8 playback & camera settings | mounting the camera 9—10 features & new features 11—12 using the two-way remote | accessory guide 13—14 wifi & firmware | connecting the camera 15—16 specifications 17—18 disclosures 19—20 Thank you for purchasing the Drift Ghost-S CUSTOMER SUPPORT Check our official website for firmware updates, customer support, news about our products and videos from our users. If you have any suggestions, comments or concerns, please contact our customer support team at: [email protected] WARRANTY To obtain our warranty service, register your product at: driftinnovation.com/warranty 43 about your camerainitial setup MENU / Tag / Back Button LEFT Button / Zoom Out RIGHT Button / Zoom In ACTION Button (On/Off/Rec/Stop) Status LED Rear Hatch 2.0” LCD Screen 300° Rotating Lens USB Port (Mini-B) HDMI Port (Mini-C) 3.5mm Microphone Input -MONO Micro SD Card Slot Battery Slot Cover A D CBE FG H I J KL 1. Unscrew and remove the rear hatch 2. Insert a Class 6 or higher Micro SD/HC/XC card (up to 64GB) Format before first usage! 3. Lift the hinged battery slot cover and insert the battery as shown (below) 4. Connect the camera via mini USB cable to a powered USB port and charge the battery for 4 hours before first use 5. Charge the remote via mini USB cable 6. Replace the rear hatch and screw shut to secure 65 getting startedpackage contents Connector HatchWrist Strap Microphone Extension Cable USB Cable (Mini-B) Remote ControlRechargeable Battery Universal ClipMount KitGoggle Mount POWER ON AND OFF 1. Press and hold the ACTION button to power on 2. The screen will power on, show the welcome display, then Live Preview 3. The camera is now ready to record video, or take still photos 4. The current camera mode is indicated by the icon in the top left of the display and by the LED indicator (for details, see p7-8) 5. To power off, press and hold the ACTION button for 3 seconds MAIN MENU Press the MENU button to enter the Main Menu. The screen will display the icons of the four menu options. Use the LEFT/RIGHT buttons to highlight menu options; press the ACTION button to select an option. Mode Selection Mode Settings Playback Settings *Note: The camera will power on in the same mode it powered off in. 87 mode selection & settings VIDEO MODE (Green LED) The camera will record video when ACTION is pressed on the camera or remote. The LED will flash red while recording. Press ACTION on the camera, or STOP on the remote, to end recording. MODE SELECTION MENU The Mode Selection menu displays the icons for the four camera modes. Highlight the desired mode and press ACTION. The screen will return to Live Preview and the camera is ready to record. TIMELAPSE MODE (Purple LED) The camera will capture a series of still images at a specified rate when ACTION is pressed on the camera or remote. To stop recording, press ACTION on the camera or STOP on the remote. PHOTO MODE (Yellow LED) The camera will capture still images when ACTION is pressed on the camera or remote. The LED will blink red every time a photo is taken (this applies for Timelapse and Photoburst modes also). PHOTOBURST MODE (Cyan LED) The camera will capture a burst of still images for an allotted duration, at a specified rate, when ACTION on the camera or remote is pressed (for best results, use a Class 6 or higher micro SD card). MODE SETTINGS The Mode Settings menu displays the icons for the settings of the four camera modes. Highlight the desired mode and press ACTION. The screen will show the list of settings for the chosen mode. VIDEO SETTINGS • Video Resolution • Frame Rate • FOV • Exposure • Self-Timer • Scene Mode • Video Tagging (see p10) • Car DVR • Default Settings PHOTO SETTINGS • Photo Resolution • FOV • Exposure • Self-Timer • Scene Mode • Default Settings TIMELAPSE SETTINGS • Photo Resolution • FOV • Exposure • Sequence Interval • Self-Timer • Scene Mode • Default Settings PHOTOBURST SETTINGS • Photo Resolution • FOV • Capture Rate • Burst Duration • Exposure • Self-Timer • Scene Mode • Default Settings Video Timelapse Photo Photoburst 109 playback & camera settings Selecting the Playback icon opens the Mode Selection menu, and display the four camera mode icons. The number of videos or photos is displayed beside each camera mode icon. Selecting a mode will display the most recent video or photo, timelapse or photoburst folder. Navigate through the files using LEFT/RIGHT. To play a video, or open a timelapse or photoburst sequence, press the ACTION button. Press MENU to go back. CAMERA SETTINGS • Wi-Fi ON / OFF • Wi-Fi Network Name GHOST-S [000] • WiFi Password ---- • Mic Sensitivity OFF / LOW / MED / HIGH • Speaker Volume OFF / LOW / MED / HIGH • LCD Brightness LOW / MED / HIGH • LCD Off OFF / 5S / 10S / 20S / 1MIN / 5MIN • Remote Control YES / NO • Remote Pairing ONE-ONE / ONE-ALL • Remote LED ON / OFF • Camera LED ON / OFF • Digital Zoom ON / OFF • Camera Off OFF / 2MIN / 5MIN • HDMI Out Resolution 1080p / 1080i / 720p • HDMI frame Rate 60 / 59.97 / 50 / 30 / 29.97 / 25 • Date YEAR / MONTH / DAY • Date / Timestamp ON / OFF • Language (list of languages) • Save Settings A / B / C • Load Settings A / B / C • Reset Settings YES / NO • FormatMemoryCard YES / NO • Firmware Version CURRENT VERSION mounting the camera 1. Attach the Universal Clip to the camera in any 360° orientation as needed— first position the clip in the desired orientation, then secure by rotating the screw base by hand 2. Slide the Universal Clip into your chosen mount, ensuring that it ‘clicks’ into place *Double check it has been fully inserted by pushing out the clips 3. Align your shot. Rotate the lens by hand until the screen is orientated correctly. Use the lens mar…

Text truncated - open the document above for the full version.

Drift Innovation Ltd The Light Box Unit 125, 111 Power Road ,London,UK. Drift Innovation Ltd FCC ID: P2F-DIRC505B Date: Nov 06, 2013 To whom it may concern: We the undersigned, hereby authorize Shenzhen Huatongwei International Inspection Co., Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Shenzhen Huatongwei International Inspection Co., Ltd on our behalf shall have the same affect as acts of our own. This authorization shall expire 6 months from orignal data. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, Drew Henson/ Senior Product Design Engineer Drift Innovation Ltd Tel: +442031764812 E-mail: [email protected]

Drift Innovation Ltd The Light Box Unit 125, 111 Power Road ,London,UK. Attestation for FCC Declaration of Conformity FCC ID: P2F-DIRC505B Date: Nov 06, 2013 Please be notified that we, the undersigned, Drift Innovation Ltd declare that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. Testing in regards to this report was done by The Hong Kong Standards and Testing Centre Ltd.. located at 10 Dai Wang St, Tai Po Ind Estatet, NT, Hong Kong, which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827 Sincerely, Drew Henson/ Senior Product Design Engineer Drift Innovation Ltd Tel: +442031764812 E-mail: [email protected]

Drift Innovation Ltd The Light Box Unit 125, 111 Power Road ,London,UK. Declaration FCC ID: P2F‐DIRC505B Date: Nov 06, 2013 Our Drift Innovation Ltd declares that our product Drift 2‐way Remote Control’s USB port can used as data transmission. Sincerely, Drew Henson/ Senior Product Design Engineer Drift Innovation Ltd Tel: +442031764812 E‐mail: [email protected]

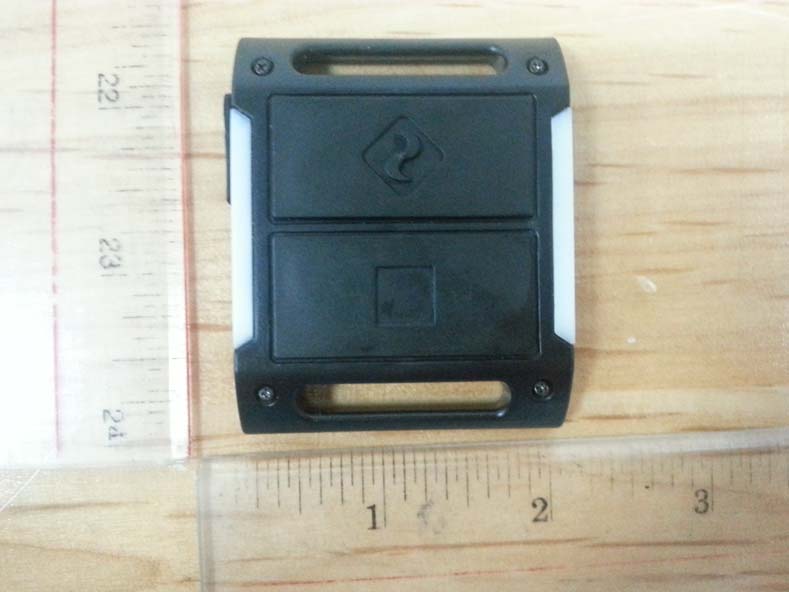

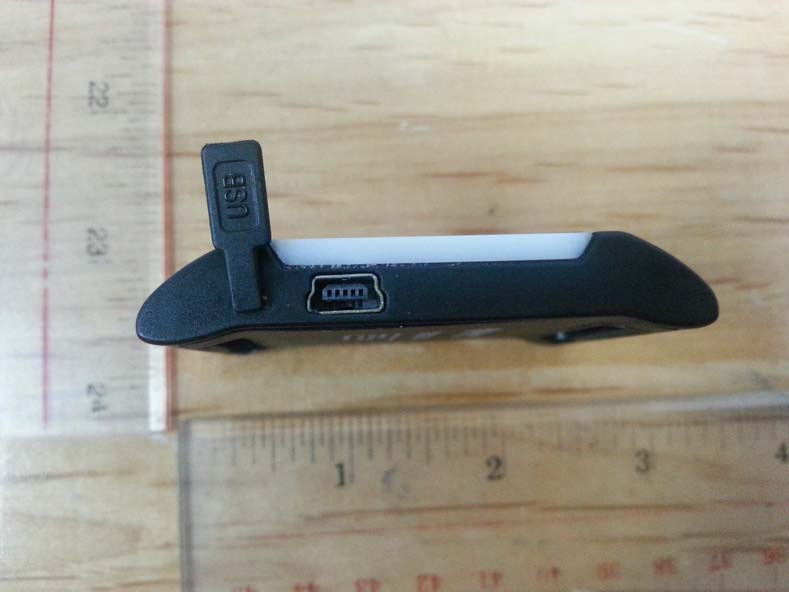

External photos of the EUT

Internal photos of the EUT

FCC & IC TEST REPORT FCC Part 15.249 and RSS-210 A2.9 Report Reference No. ..................... : FCC ID. ............................................. : TRE13090121 R/C:10852 P2F-DIRC505B IC. ..................................................... : 10574A-DIRC505B Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Nov 04, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Drift Innovation Ltd Address ............................................. : The Light Box Unit 125, 111 Power Road ,London,UK. Test specification: Standard .......................................... : FCC Part 15.249: Operation within the bands 902–928 MHz, 2400–2483.5 MHz, 5725–5875 MHZ, and 24.0–24.25 GHz. RSS-210 RSS-Gen TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment Under Test .................. : Drift 2-way Remote Control Trade Mark ....................................... : Model/Type reference ....................... : DI-RC505B Listed Models .................................. : / Modulation ........................................ : GFSK Manufacturer .................................. : Foxda Technology Industrial(Shenzhen) Co.,Ltd Operation Frequency ........................ : 2430MHz Rating ............................................... : DC 3.70V/DC 5.0V from USB Result ................................................ : PASS Report No.: TRE13090121 Page 2 of 25 Issued: 2013-11-04 FCC ID: P2F-DIRC505B IC: 10574A-DIRC505B T E S T R E P O R T Test Report No. : TRE13090121 Nov 04, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Drift 2-way Remote Control Model /Type : DI-RC505B Listed Models : / Applicant : Drift Innovation Ltd Address : The Light Box Unit 125, 111 Power Road ,London,UK. Manufacturer : Foxda Technology Industrial(Shenzhen) Co.,Ltd Address : 1F of 1st Building&1F-3F of 2nd Building, Foxda Industrial Zone,North of Lanzhu Road,Pingshan New District,Shenzhen City,Guangdong Province,P.R.China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE13090121 Page 3 of 25 Issued: 2013-11-04 FCC ID: P2F-DIRC505B IC: 10574A-DIRC505B Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY ............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. Related Submittal(s) / Grant (s) 5 2.6. Modifications 5 2.7. NOTE 5 3. TEST ENVIRONMENT ............................................................... 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Statement of the measurement uncertainty 7 3.4. Configuration of Tested System 7 3.5. Summary of standards and result 7 3.6. Environmental conditions 7 3.7. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. ANTENNA REQUIREMENT 9 4.2. Conducted Emissions Test (Not Applicable) 10 4.3. Radiated Emission Test 11 4.4. Out of band emissions 16 4.5. 20dB Bandwidth Measurement 19 5. TEST SETUP PHOTOS OF THE EUT .......................................... 20 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 21 Report No.: TRE13090121 Page 4 of 25 Issued: 2013-11-04 FCC ID: P2F-DIRC505B IC: 10574A-DIRC505B 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Rules Part 15.249:2012: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. ANSI C63.10: 2009 – American National Standard for Teating Unlicensed Wireless Devices RSS-210 Issue 8 December 2010 –Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 December 2010 –General Requirements and Information for the Certification of Radio Apparatus Report No.: TRE13090121 Page 5 of 25 Issued: 2013-11-04 FCC ID: P2F-DIRC505B IC: 10574A-DIRC505B 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Sep 29, 2013 Testing commenced on : Oct 08, 2013 Testing concluded on : Nov 04,2013 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC3.70V/DC5.0V from USB 2.3. Short description of the Equipment under Test (EUT) The EUT (Drift 2-way Remote Control (M/N:DI-RC505B)). For more details, refer to the user’s manual of the EUT. 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID:P2F-DIRC505B and IC:105…
