P2F-FD9963STEALTH 2

quick guide follow us facebook.com/driftinnovation vimeo.com/driftinnovation instagram.com/drift_innovation twitter.com/driftinnovation DRIFTINNOVATION.COM contents about your camera | initial setup 3—4 package contents | getting started 5—6 mode selection & settings 7—8 features 9—10 mounting the camera | accessory guide 11—12 wifi | connecting the camera 13—14 specifications 15—16 disclosures 17—18 Thank you for purchasing the Drift Stealth 2 CUSTOMER SUPPORT Check our official website for firmware updates, customer support, news about our products and videos from our users. If you have any suggestions, comments or concerns, please contact our customer support team at: [email protected] WARRANTY Warranty does not apply if the product is damaged due to physical abuse, mishandling, accident, fire, frostbite, water damage, negligence or failure to follow the supplied operating instructions. 43 about your camerainitial setup MODE/ Tag / Simultaneous Photo Button CYCLE OPTION Button ACTION Button (On/Off/Rec/Stop) Status LED Lens “Up” Indicator Rear Hatch 1.3” Backlit LCD Screen 300° Rotating/Replaceable Lens HDMI Port (Micro-D) USB Port (Micro-B) Micro SD Card Slot Reset Button Rear Hatch Screw Point A B F D C E G H I J K 1. Unscrew and remove the rear hatch 2. Insert a Class 6 or higher Micro SD/HC/ card (up to 32GB) Format before first usage! 3. Connect the camera via micro USB cable to a powered USB port and charge the battery for 4 hours before first use 4. Replace the rear hatch and screw shut to secure L M 5 *Note: The camera will power on in the same mode it powered off in. MODE SETTINGS To change the settings of the current camera mode press the CYCLE [ ] button. This will change the settings between a selection of presets. package contents USB Cable (Micro-B) Universal Clip Mount Kit Goggle Mount getting started GNITTE Exposure Self Timer X S X POWER ON AND OFF 1. Press and hold the ACTION button to power on 2. The screen will power on, show the welcome display. 3. The camera is now ready to record video, or take still photos 4. The current camera mode is indicated by the icon in the top left of the display and by the LED indicator (for details, see p7-8) 5. To power off, press and hold the ACTION button for 3 seconds VIDEO INTERFACE SETTINGS INTERFACE Wi-Fi 0.0 6 MODE NAVIGATION To change the current camera recording mode press the [MODE] button, changing between; Video, Photo, Timelapse, Photoburst and the camera general setting modes. 25 FPS 1080p 12:05:59 EXP -2 90% 87% 78 settingsmode selection TIMELAPSE MODE (Purple LED) The camera will capture a series of still images at a specified rate when ACTION is pressed on the camera or remote. To stop recording, press ACTION on the camera or STOP on the remote. PHOTO MODE (Yellow LED) The camera will capture still images when ACTION is pressed on the camera or remote. The LED will blink red every time a photo is taken (this applies for Timelapse and Photoburst modes also). PHOTOBURST MODE (Cyan LED) The camera will capture a burst of still images for an allotted duration, when ACTION on the camera or remote is pressed (for best results, use a Class 6 or higher micro SD card). CAMERA SETTINGS •EXPOSURE -2.0 / -1.0 / 0 / +1.0 / +2.0 •SELF-TIMER OFF / 3S / 5S / 10S •WI-FI OFF / ON •VIDEO TAGGING ON / OFF •TAGGING INTERVAL 10S / 30S / 1MIN / 2MIN / 5MIN / 10MIN •CAR DVR MODE ON / M / OFF •CAR DVR INTERVAL 1MIN / 3MIN / 5MIN / 10MIN / 15MIN •VIDEO STANDARD NTSC (30) / PAL (25) •MIC SENSITIVITY OFF / LOW / MED / HIGH •SPEAKER VOLUME OFF / LOW / MED / HIGH •RC 1-1 ON / OFF •RC 1-ALL ON / OFF •RC LED ON / OFF •CAMERA LED ON / OFF •CAMERA OFF OFF / 2MIN / 5MIN •LCD BACKLIGHT ON / OFF •LCD BACKLIGHT TIMER OFF / 5S / 10S / 20S / 1MIN •DATE YEAR / MONTH / DAY •DATE / TIME STAMP ON / OFF •LANGUAGE [List of Languages] •RESET SETTINGS YES / NO •FORMAT MEMORY CARD YES / NO • FIRMWARE VERSION CURRENT VERSION *Note: In settings mode, pressing the CYCLE button once will move the selection down one setting. Holding the CYCLE button will move the selection back up the list to facilitate navigation. VIDEO PRESETS (NTSC VIDEO STANDARD] 1080P @ 30 FPS 960P @ 30 FPS 720P @ 30 FPS 720P @ 60 FPS WVGA @ 30 FPS WVGA @ 120 FPS PHOTOBURST PRESETS 5MP @ 3/s, 1s 5MP @ 3/s, 2s 5MP @ 3/s, 5s TIMELAPSE PRESETS 5MP @ 0.5s 5MP @ 1s 5MP @ 2s 5MP @ 3s VIDEO MODE (Green LED) The camera will record video when ACTION is pressed on the camera or remote. The LED will flash red while recording. Press ACTION on the camera, or STOP on the remote, to end recording. NTSC vs PAL The camera records in both NTSC and PAL video standards (changeable from the settings menu) NTSC delivers frame rate intervals of 30 (30, 60, 120) FPS whereas PAL uses frame rate intervals of 25 (25, 50, 100) FPS. 109 (see Tagging Screen-Shot below) For example, with a video tagging interval of 30s selected, on pressing MENU while recording, the camera will save the previous 30s, the current 30s and an additional 30s—a total of 1m30s of ‘tagged’ footage. The Video Tagging feature requires a class 10 micro SD card with 4GB of free space to function correctly. SIMULTANEOUS PHOTO While recording video, pressing the MODE button will simultaneously take a 2MP still photo. When using the two-way remote control, press the ACTION button for the same result. This feature is not available when Video Tagging (left) is enabled. CAR DVR MODE This hands off mode setting is ideal for insurance and security purposes. In this mode the camera records footage in a continuous loop style (DVR Intervals) recording loop after loop until it fills the Micro SD Card. Once full, the oldest loops will be deleted as the newest ones are saved. DVR loop intervals can be 1min, 3min, 5min, 10min or 15min intervals. MODE INDICATOR The Drift Stealth 2 features a multi-coloured status indicator light system. A front facing LED combined with a backlit LCD Display light up depending on the current camera mode. Either can be disabled in…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Drift Innovation Ltd 2014-7-1 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Drift Innovation Ltd hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: P2F-FD9963 Product Name: STEALTH 2 Trade mark: Drift Model: FD9963 Sincerely, Client’s signature Client’s name / title Drew Henson/ Senior Product Design Engineer Contact information / address The Light Box Unit 125, 111 Power Road , London, UK. SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 Drift Innovation Ltd 2014-7-1 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Drift Innovation Ltd hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): FCC ID: P2F-FD9963 Product Name: STEALTH 2 Trade mark: Drift Model: FD9963 We affirm that between SIEMIC, Inc. and Drift Innovation Ltd , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title Drew Henson/ Senior Product Design Engineer Contact information / address The Light Box Unit 125, 111 Power Road , London, UK.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Drift Innovation Ltd The Light Box Unit 125, 111 Power Road ,London,UK. June 24, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: P2F-FD9963 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram- Long-term confidential - Schematics- Long-term confidential - Operational Description- Long-term confidential The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title: Mr Drew E Henson/ Senior Product Design Engineer Company Name: Drift Innovation Ltd Address: The Light Box Unit 125, 111 Power Road ,London,UK. mail: [email protected] Fax: Tel: +442031764812

Date: 2014-6- 24 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: P2F-FD9963 To Whom It May Concern: This letter is to ascertain that Drift Innovation Ltd Product STEALTH 2 has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature: Client’s name / title: Mr Drew E Henson/ Senior Product Design Engineer Contact information / address Address: The Light Box Unit 125, 111 Power Road ,London,UK. E-mail: [email protected] Fax: Tel: +442031764812

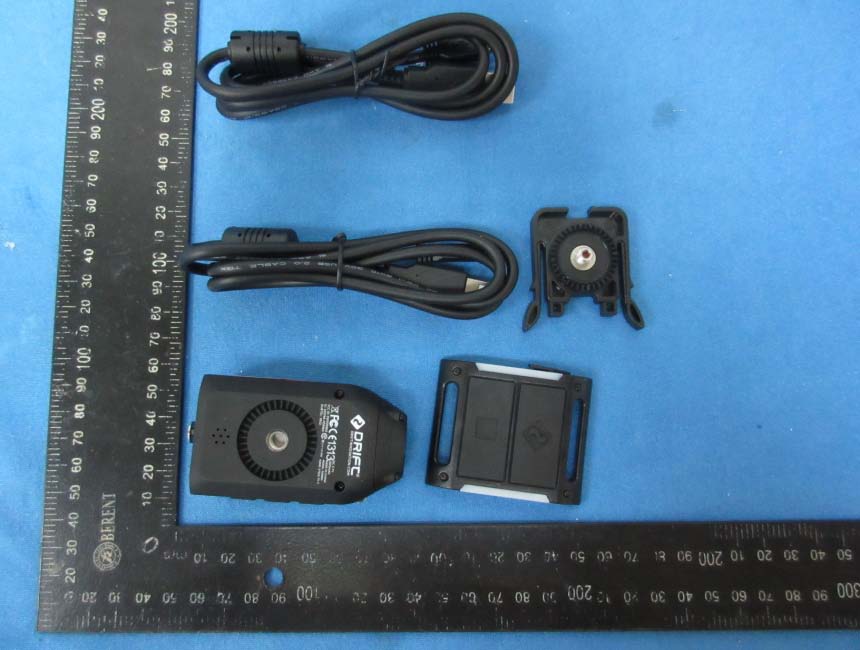

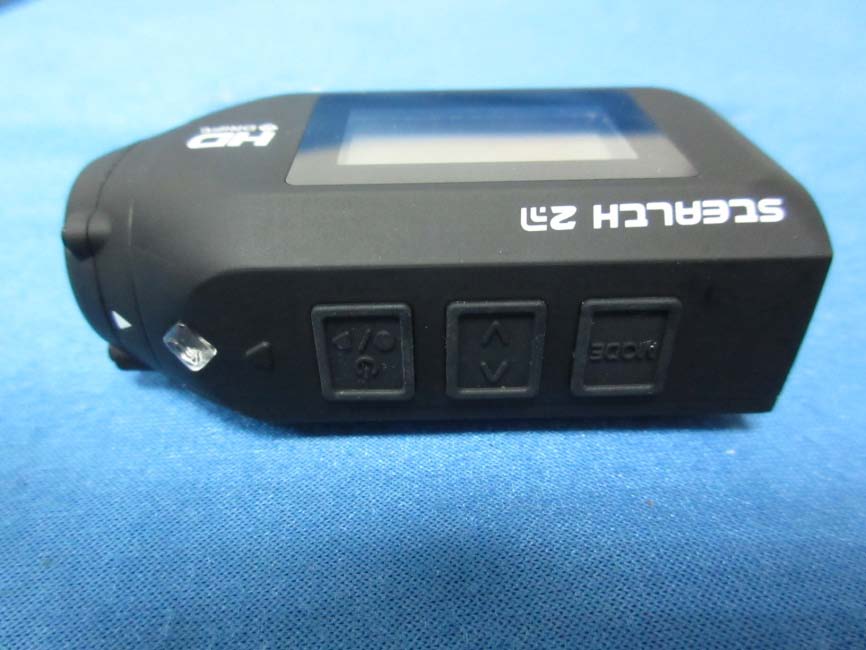

Report No : TRE1404018101 Page 22 of 27 6. External and Internal Photos of the EUT External Photos Report No : TRE1404018101 Page 23 of 27

2014-04-25 FCC ID:P2F-FD9963 FCC ID:P2F-FD9963

Report No : TRE1404018101 Page 24 of 27 Internal Photos WIFI Antenna 2.4GHZ Antenna Report No : TRE1404018101 Page 25 of 27 Report No : TRE1404018101 Page 26 of 27 Report No : TRE1404018101 Page 27 of 27 .......................End of Report.........................

TEST REPORT Report Reference No. .................... : FCC ID. ............................................ : IC ID. ................................................ : TRE1404018101 P2F-FD9963 10574A-FD9963 R/C..........: 69315 Applicant’s name ........................... : Drift Innovation Ltd Address ............................................. : The Light Box Unit 125, 111 Power Road ,London,UK. Manufacturer......................................: Foxda Technology Industrial(Shenzhen) Co.,Ltd Address...............................................: 1F of 1st Building&1F-3F of 2nd Building, Foxda Industrial Zone,North of Lanzhu Road,Pingshan New District,Shenzhen City,Guangdong Province,P.R.China Test item description .................... : STEALTH 2 Trade Mark ....................................... : Drift Model/Type reference ....................... : FD9963 Listed Model(s) ................................. : / Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.249 RSS-210 Issue 8 Date of receipt of test sample...........: Apirl 29, 2014 Date of testing..............................: Apirl 30, 2014- Jun 11, 2014 Date of issue.................................: Jun 11, 2014 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators Vivi Zhou Supervised by ( position+printed name+signature) .. : Project Engineer Lion Cai Approved by ( position+printed name+signature) .. : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Contents Report No : TRE1404018101 Page 2 of 27 1. TEST STANDARDS AND TEST DESCRIPTION ....................................... 3 1.1. Test Standards 3 1.2. Test Description 3 2. SUMMARY ............................................................................... 4 2.1. Client Information 4 2.2. Product Description 4 2.3. EUT configuration 4 2.4. Modifications 4 3. TEST ENVIRONMENT .................................................................. 5 3.1. Address of the test laboratory 5 3.2. Test Facility 5 3.3. Environmental conditions 6 3.4. Statement of the measurement uncertainty 6 3.5. Equipments Used during the Test 7 4. TEST CONDITIONS AND RESULTS ................................................... 8 4.1. Antenna requirement 8 4.2. AC Conducted Emissions Test 9 4.3. Radiated Emission Test 12 4.4. Out of band emissions 16 4.5. 20dB Bandwidth and 99% Ocuppy Bandwidth Measurement 18 5. TEST SETUP PHOTOS OF THE EUT ........................................... 20 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 22 Report No : TRE1404018101 Page 3 of 27 1. TEST STANDARDS AND TEST DESCRIPTION 1.1. Test Standards The tests were performed according to following standards: 47 CFR FCC Rules Part 15.249: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. ANSI C63.10: American National Standard for Testing Unlicensed Wireless Devices RSS-210 Issue 8: –Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment RSS-Gen Issue 3: –General Requirements and Information for the Certification of Radio Apparatus 1.2. Test Description Test Item Section in CFR 47 RSS-210 Annex 8 Result Antenna requirement 15.203 RSS-210 Annex 8 Pass AC Power Conducted Emission 15.207 RSS-Gen 7.12 Pass Radiated Emission 15.109/ 15.205/ 15.209/15.249 (a) RSS-Gen 7.2.5 RSS-Gen 7.2.4 Pass Band Edge 15.249(d) RSS-Gen 7.2.2 RSS-Gen A2.9 (a) Pass 20dB Bandwidth / 99% ocuppy bandwidth 15. 215 RSS-210 A2.9 (b) Pass Remark: The measurement uncertainty is not included in the test result. Report No : TRE1404018101 Page 4 of 27 2. SUMMARY 2.1. Client Information Applicant: Drift Innovation Ltd Address: The Light Box Unit 125, 111 Power Road ,London,UK. Manufacturer: Foxda Technology Industrial(Shenzhen) Co.,Ltd Address: 1F of 1st Building&1F-3F of 2nd Building, Foxda Industrial Zone,North of Lanzhu Road,Pingshan New District,Shenzhen City,Guangdong Province,P.R.China 2.2. Product Description Name of EUT STEALTH 2 Trade Mark: Drift Model/Type reference: FD9963 Listed Model(s): / Power supply: DC 3.7V From internal battery Adapter information: / 2.4GHz Transmitter Modulation: GFSK Operation frequency: 2430MHz Channel number: 1 Antenna type: Internal Antenna Antenna gain: 0.08 dBi 2.3. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 2.4. Modifications No modifications were implemented to meet testing criteria. Report No : TRE1404018101 Page 5 of 27 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd. Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26748019 Fax: 86-755-26748089 3.2. Test Facility The test facility is recognized, certified, or accredited by the following organizations: CNAS-Lab Code: L1225 Shenzhen Huatongwei International Inspection Co., Ltd. has been assessed and proved to be in compliance with CNAS-CL01 Accreditation Criteria for Testing and Calibration Laboratories (ide…

Text truncated - open the document above for the full version.

Report No : TRE1404018101 Page 20 of 27 5. Test Setup Photos of the EUT Radiated Emission (30MHz-1GHz) Radiated Emission (above 1GHz) Radiated Emission (Below 30MHz) Report No : TRE1404018101 Page 21 of 27 Conducted Emission (AC Mains)
