P2F-FD9970GHOST 4K+

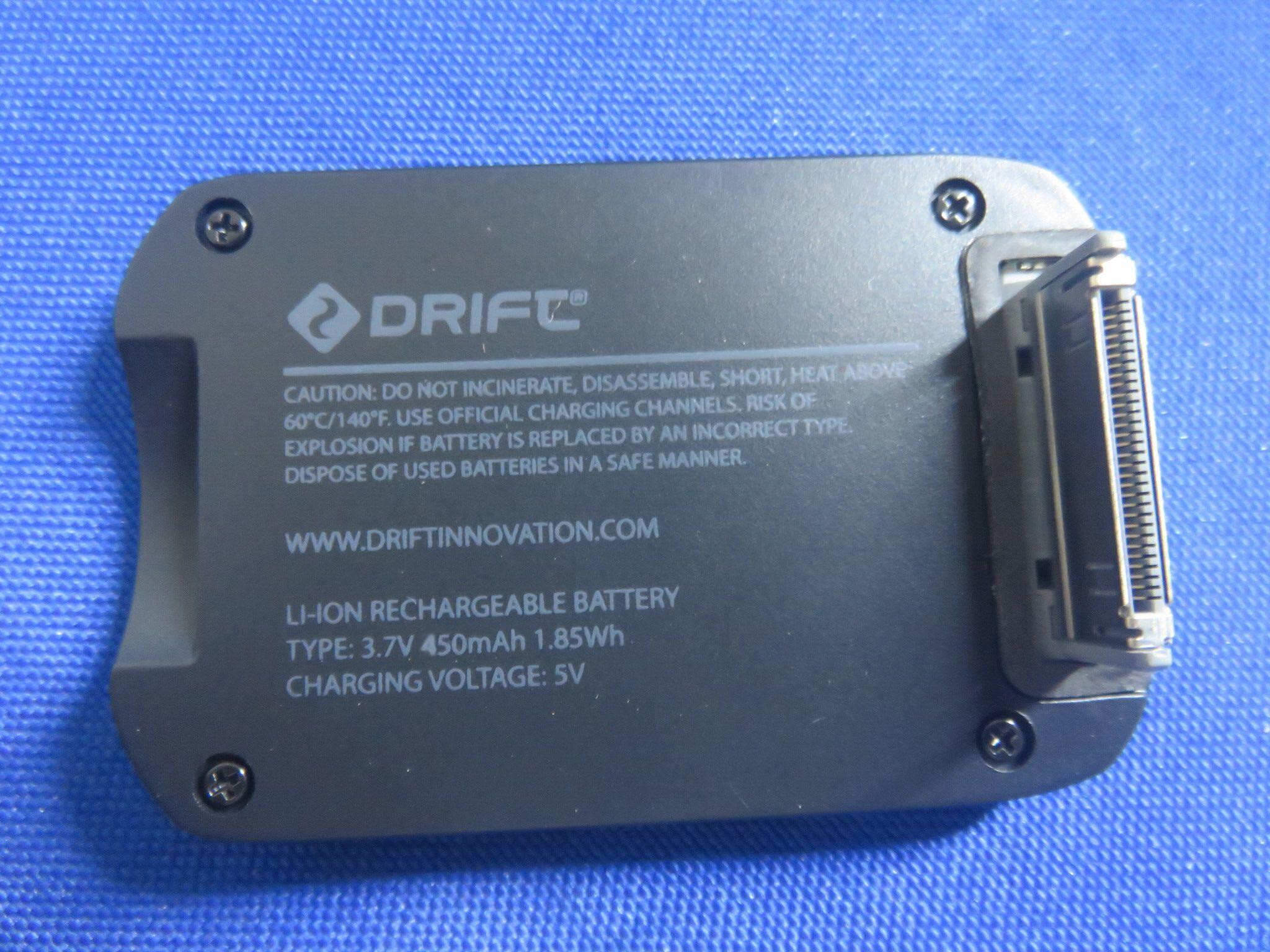

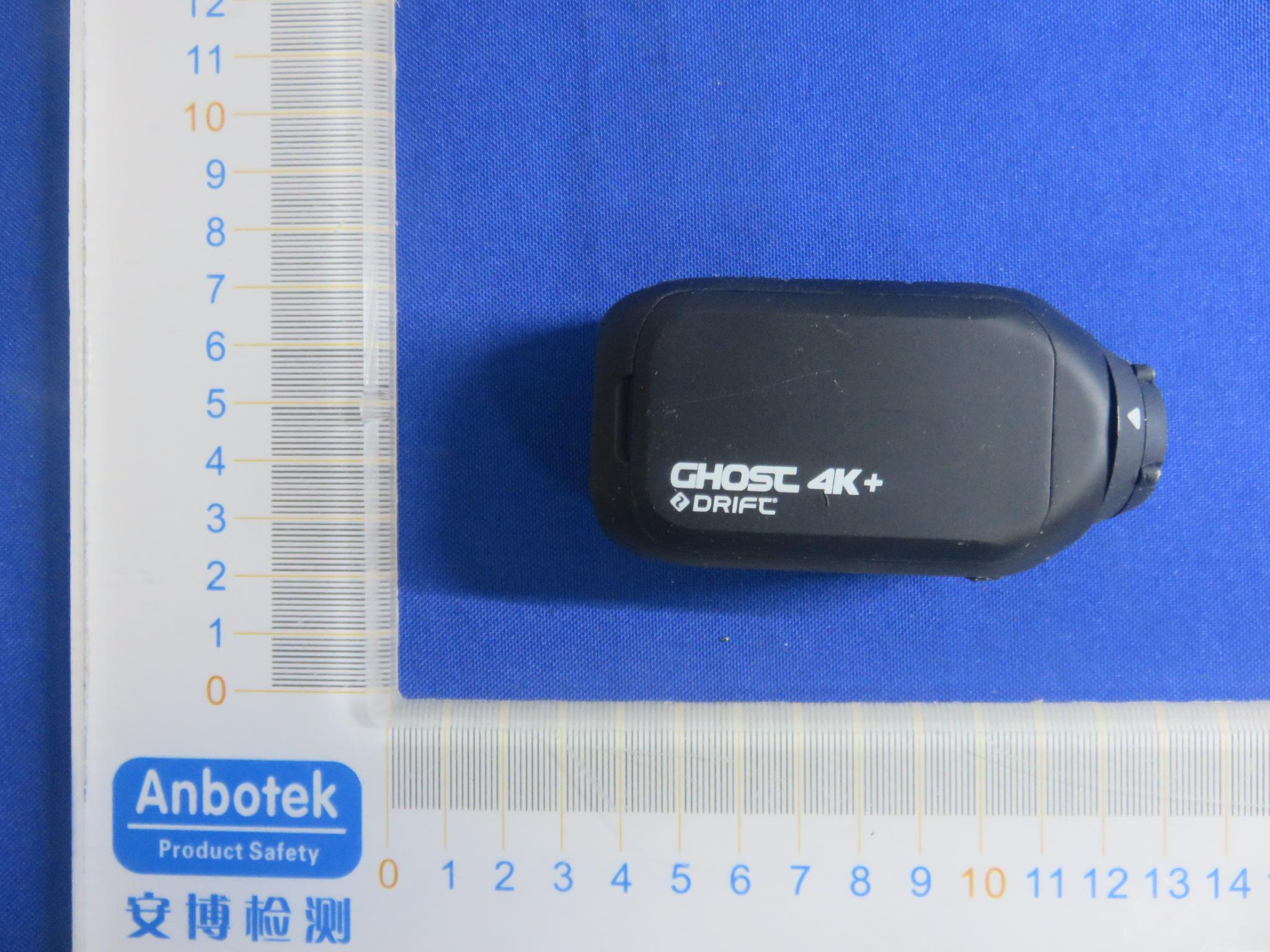

-1- GHOST 4K Quick Guide -1- Thank you for purchasing the Drift Ghost 4K+ CUSTOMER SUPPORT Download the full manual and check our official website for firmware updates, customer support, and info on all of our products. https://driftinnovation.com/ If you have any suggestions, comments or concerns; please contact our customer support team at: [email protected] WARRANTY For product warranty policy, please check here: https://driftinnovation.com/warranty Open Source Software： Ghost 4K+ includes open source software component packages, for more detail, please refer to https://us.driftinnovation.com/blogs/support/ open-source-software About Your Camera | Package Contents Initial Setup | Getting Started Camera Modes Settings Menu Settings Mounting the Camera Feature Overview Accessory Guide Wi-Fi + Firmware Connecting Your Camera Specifications Disclosures 2-3 4-5 6 7 8 9 10-11 12 13 14 15-16 17-19 Contents -2- About Your Camera AB I CDE G J F N H MKL Rear Button Status LED Module Latch Wi-Fi LED Rear Screen MicroSD Card Slot Middle Button Rotating Lens Dual microphones 10 Pin Mini USB Port Rubber Cover Front Button Battery Module Reset Button A D G H I L B E J M C F K N -3- Package Contents Ghost 4K+ Camera Universal Clip Curved Adhesive Mount External Microphone USB-Mic Converter MiniUSB Cable Reset Tool A D F B E G C A C B D F E G -4- Initial Setup 1. Uncover the microSD slot by lifting its rubber cover. 2. Insert a Class 10 or higher microSD/HC/XC card (up to 128GB). Format before first usage! 3. Uncover the mini USB port by lifting its rubber cover. 4. Connect the camera via a mini USB cable to a powered USB port, and charge the battery for 2.5 hours before first use. 5. Replace the rubber covers securely to cover both the microSD slot and mini USB port. You are ready to go! 4 3 12 5 -5- Getting Started POWER ON/OFF 1. Press and hold the button to power on. 2. The Rear Screen will power on, showing the welcome display. 3. The camera is now ready to record video or take photos. 4. Current camera mode is indicated by the colour of the Status LED and Rear Screen, along with the icon in the top left of the Rear Screen. 5. To power off, press and hold the button for 3 seconds. 4 MODE NAVIGATION To change the current camera recording mode, press the button; changing between Video, Photo, Timelapse, Photoburst, and General Settings modes. RESET YOUR CAMERA If Ghost 4K+ becomes unresponsive, press and hold the button for 20s to reset it. 2 Mode Icon -6- Camera Modes VIDEO MODE (Green LED) Press the button to start recording. The Status LED and LCD backlight will flash red to indicate recording. Press the button again to stop recording. VIDEO SETTINGS • Resolution • Frame Rate PHOTO MODE (Yellow LED) The camera will capture still images when the button is pressed, and the status LED and LCD screen will flash red each time a photo is captured. PHOTO SETTINGS • Resolution CHANGE SETTINGS In any mode press the button to highlight a setting. Press the button to change the option for the highlighted setting. TIMELAPSE MODE (Purple LED) Press the button to capture a series of still images at a specified rate. The Status LED and LCD screen will flash red each time an image is captured. To stop recording, press the button once more. TIMELAPSE SETTINGS • Resolution • Timelapse Interval PHOTOBURST MODE (Cyan LED) The camera will capture a burst of still images for an allotted duration and at a specified rate, when the button is pressed. For best results, use a memory card with the highest possible data rate. PHOTOBURST SETTINGS • Resolution • Burst Duration/Capture Rate -7- Settings Menu SETTINGS MENU NAVIGATION 1. On arrival to the settings menu, the highlight black box rests on the top, highlighting the Settings Menu icon as the starting position. 2. Press the button to navigate down, this highlights the next setting. Press hold the button to scroll upwards. 3. Press the button to change the option for that setting. 4. At any time, press the button to change mode (returning to Video). In this example pressing once moves highlight block to the next setting (Field of View), pressing once more moves to Exposure. In step 3 pressing changed FOV 140° to 115°. 4 1 2 3 -8- Settings Speaker Volume LED Status Indicator Indicator Timer Instant Record Video Standard Date Date Stamp Default Start-Up Mode Camera Off THM Files Language Reset Settings Format SD Card Serial Number Clone Mode Clone Group Firmware Version *Check our official website for firmware updates. OFF / LOW / MED / HIGH OFF / ON OFF / 5s / 10s / 20s / 1m OFF / ON ALL / NTSC / PAL / CINEMATIC YY/MM/DD HH/mm OFF / ON RESUME LAST SESSION / VIDEO/ PHOTO/ TIMELAPSE / PHOTOBURST NEVER / 2MIN / 5MIN / 10MIN / 20MIN ON / OFF EN / DE / FR / IT / ES / CN YES / NO YES / NO XXXXXX Off / Master / Slave 0 / 1 / 2 / 3 / 4 / 5 XXXXXX Wi-Fi Wi-Fi Frequency DVKit DVKit Reset Field of View Exposure Self Timer Bit Rate Filters ISO Sensitivity Video Tagging Video Tagging Interval Car DVR Car DVR Loop Interval Video Stabilization Microphone Mic Sensitivity OFF / ON 2.4 / 5.8 GHz OFF / ON YES / NO 90° / 115° / 140° -2 / -1 / 0 / +1 / +2 OFF / 3S / 5S / 10S HIGH / MEDIUM / LOW NORMAL / VIVID / LOW LIGHT / WATER 100 / 200 / 400 / 800 / AUTO OFF / ON 10S / 30S / 1MIN / 2MIN OFF / ON 10S / 30S / 1MIN / 2MIN / 5MIN / 10MIN OFF / ON FRONT / REAR OFF / 1 / 2 / 3 / 4 / 5 -9- Mounting the Camera 1.Attach the Universal Clip to the camera in any 360° orientation as needed – first position the clip in the desired orientation, then secure by rotating the screw base by hand. 2. Slide the Universal Clip into your chosen mount, ensuring that it ‘clicks’ into place. *Double check it has been fully inserted by pushing out the clips. 3.Align your shot. Rotate the lens by hand, using the lens marker as an ‘up’ reference, mantaining it perpendicular to the ground for correct orientation. Lens Marker -10- Feature Overview CAR DVR MODE This hands-off mode is ideal for insurance and se…
