P3A-K78-205RMobile Payment Terminal

FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Report Number: M050435_Cert_Terminal APPENDIX H – User Manual Version 2.0, September 2003 Document 902-MA-0194 GPRS/GSM K78-205 Advanced Mobile Payment Terminal User Guide K78-205 User Guide ii Disclaimer All material contained in this document is furnished pursuant to the terms and conditions of a duly executed Program Product Licence ("Licence") and/or a duly executed Agreement to Purchase or Lease Equipment ("Agreement"). All terms, conditions, warranties, undertakings, inducements or representations, whether express, implied, statutory or otherwise, relating in any way to the products the subject of the Licence and/or the Agreement are excluded, other than: 1. terms, conditions or warranties expressly provided for in the Licence and/or the Agreement; and 2. terms, conditions or warranties implied by any Act of Parliament which may not be excluded provided that Keycorp's liability for any breach of any such term, condition or warranty shall, subject to the Licence and/or Agreement, be limited at the option of Keycorp to any one or more of the following: (a) if the breach relates to goods: (i) the replacement of the goods or the supply of the equivalent goods; (ii) the repair of the goods; (iii) the payment of the cost of replacing the goods or of acquiring equivalent goods; or (iv) the payment of the costs of having the goods repaired; and (b) if the breach relates to services: (i) the supplying of the services again; or (ii) the payment of the cost of having the services supplied again. Without limiting the generality hereof, Keycorp shall not be under any liability to any person in respect of any loss or damage, including consequential loss or damage and however caused, which may be suffered or incurred or which may arise directly or indirectly from the use of the material contained in this document or any other material furnished pursuant to the Licence and/or the Agreement. All the users of the material contained in this document or any other material furnished pursuant to the Licence and/or the Agreement should ensure that the material is used in compliance with the laws, rules and regulations of the jurisdictions in which the material is used. The material contained within is subject to change without notice and Keycorp may issue revised documents containing any such changes. K78-205 User Guide iii NOTICE TO USERS REGULATORY AND SAFETY INFORMATION Australian Communications Authority (Australia Only) The GSM module fitted in this device complies with Australian requirements and is marked with Australian supplier code N173. European Telephone Network (European Union Only) This equipment has been declared as compliant in accordance with EU Council Directive 1999/5/EC for pan-European single terminal connection to the Public Switched Telephone Network (PSTN) and displays the CE mark accordingly. However, due to differences between the individual PSTNs provided in different countries, the Declaration of Compliance does not, of itself, give an assurance of successful operation on every PSTN network termination point. In the event of problems you should contact your equipment supplier in the first instance. FCC and Industry Canada Regulatory and Safety Information (USA/Canada Only) (a) Information to Users Warning: Changes or modifications not expressly approved by Keycorp could void the user’s authority to operate the equipment. SAR SAR compliance for body-worn operations is restricted to belt-clips, holsters and accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Antenna Warning Use only the supplied antenna. Unauthorised antennas, modifications or attachments could impair quality and/or damage device or result in violation of FCC regulations. (b) FCC Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These K78-205 User Guide iv limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. (c) FCC Telephone Connection – General Requirements This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. Applicable certification jack Universal Service Order Codes (“USOC”) for the Equipment is RJ11C. If service from the local telephone is requested they will require Facility Interface Code (“FIC”) and Service Order Code (“SOC”). These are as follows: (a) Facility Interface Code (“FIC”) 02LS2 (b) Service Order Code (“SOC”) 9.0Y A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be …

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: TIMCO ENGINEERING INC. Attention: Certification Manager No. of pages: 1 From: Donna Cleary Date: 6 th May 2005 EMC Ref: M050435_Cert_Terminal Subject: FCC & IC APPROVAL - FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Please receive EMC Technologies’ Report M050435_Cert_Terminal for review. The EUT is a Mobile Payment Terminal fitted with GSM Module, Model K78-205. The test sample is an intentional radiator (transmitter) and testing was performed in accordance with FCC Part 24 Subpart E – Broadband PCS and FCC Part 22 Subpart H – Cellular Radiotelephone Service. This device was previously certified by Keycorp Limited under FCC ID: P3A-K78-205. Test results are recorded as follows: EMC Technologies Report : M050435_Cert_Terminal Test results - FCC Part 24 Subpart E and FCC Part 22 Subpart H Documents submitted: Report Number: M050435_Cert_Terminal and all appendices. Required FCC Forms: Agent Authority, Confidentiality Request, Form 731. EMC Technologies Pty Ltd is acting as agent for Keycorp Limited during this product approval. Their corresponding FRN is 0009591066. The FCC ID for this application is FCC ID: P3A-K78-205R. Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

29 April 2005 TIMCO ENGINEERING INC. 849 NW State Rd 45 Newberry, Florida 32669 Ph: 888 472 2424 Fax: 352 472 2030 Subject: Request for Confidentiality for FCC Certification Application Company: Keycorp Limited Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Keycorp Limited, requests that prior to the equipment authorization grant, the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that are not made available to competitors and the general public. This information is treated in a confidential manner by Keycorp Limited and guarded from disclosure to our competitors. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Keycorp Limited requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: Schematics, Block Diagram, Technical Operational Description, Parts List Sincerely Yours, Ken McAnulty Engineering Services Manager

FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050435_Cert_Terminal APPENDIX B1 – Test Sample External Photograph FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B1 – Test Sample External Photograph FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B1 – Test Sample External Photograph

FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Report Number: M050435_Cert_Terminal APPENDIX G – FCC Label FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal _______________________________________________________________________ EMC Technolgies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC Label IC Label FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal _______________________________________________________________________ EMC Technolgies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Label position

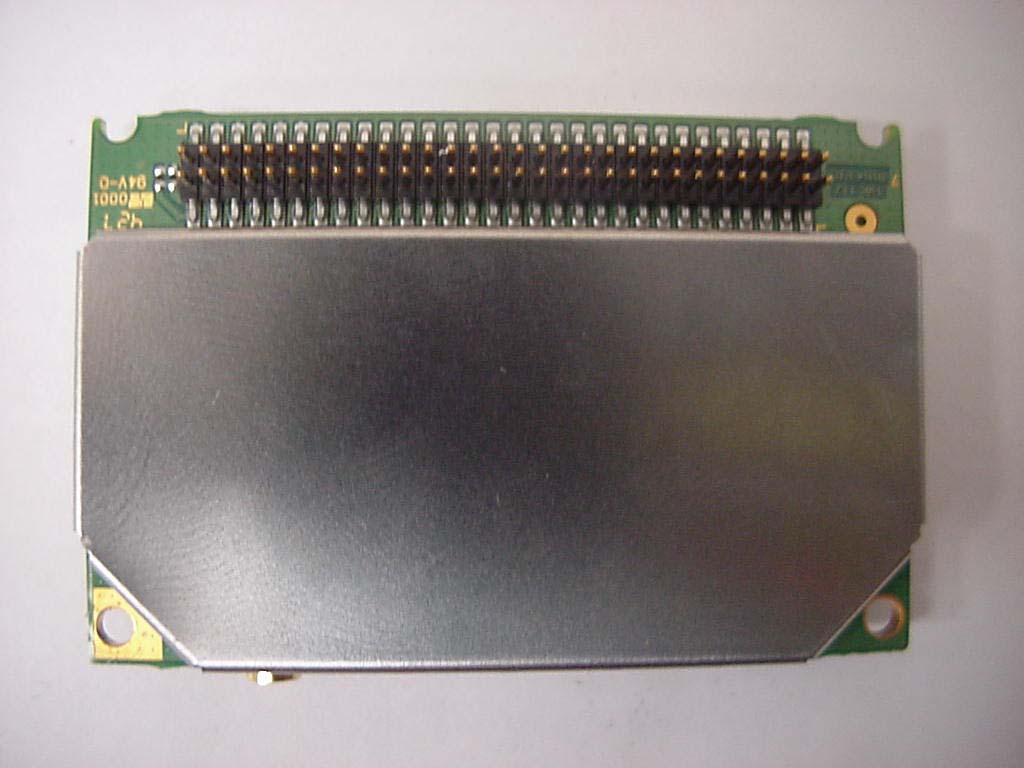

FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050435_Cert_Terminal APPENDIX B2 – Test Sample Internal Photograph FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B2 – Test Sample Internal Photograph FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B2 – Test Sample Internal Photograph FCC ID: P3A-K78-205R (IC: 2813A-K78205R) Report No. M050435_Cert_Terminal EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B2 – Test Sample Internal Photograph

TO WHOM IT MAY CONCERN TUNE-UP PROCEDURE There is no tune-up procedure for GM48 module as fitted in K78-205 The module is fully aligned in the factory and needs no further adjustment. By:__ _ (Print Name) Ken McAnulty_________ Title: Engineering Services Manager Telephone: +61 2 9414 5200

Page 1 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au SAR TEST REPORT - FCC FCC ID: P3A-K78-205R IC: 4170B-6220511 Report Number: M050436-FCC Test Sample: Dual Band GSM EFTPOS Terminal Model Number: K78-205 Tested For: Keycorp Ltd Date of Issue: 6 th May 2005 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 2 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au CONTENTS 1.0 General Information ................................................................................................................... 3 2.0 Description of Device................................................................................................................. 4 2.1 D ESCRIPTION OF T EST S AMPLE ................................................................................................ 4 2.2 T EST SAMPLE A CCESSORIES .................................................................................................... 4 2.2.1 Battery Types ...................................................................................................................................... 4 2.3 T EST S IGNAL , F REQUENCY AND O UTPUT P OWER ...................................................................... 4 2.4 C ONDUCTED P OWER M EASUREMENTS ...................................................................................... 4 2.5 B ATTERY S TATUS .................................................................................................................... 5 2.6 D ETAILS OF T EST L ABORATORY ................................................................................................ 5 2.6.1 Location .............................................................................................................................................. 5 2.6.2 Accreditations..................................................................................................................................... 5 2.6.3 Environmental Factors....................................................................................................................... 5 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM .................................................................. 6 3.1 P ROBE P OSITIONING S YSTEM ................................................................................................... 6 3.2 E-F IELD P ROBE T YPE AND P ERFORMANCE ................................................................................ 6 3.3 D ATA A CQUISITION E LECTRONICS ............................................................................................. 6 3.4 C ALIBRATION AND V ALIDATION P ROCEDURES AND D ATA ............................................................ 6 3.4.1 Validation Results (900 MHz and 1800 MHz)................................................................................... 6 3.4.2 Deviation from reference validation values....................................................................................... 7 3.4.3 Liquid Depth 15cm ............................................................................................................................. 7 3.5 P HANTOM P ROPERTIES (S IZE , S HAPE , S HELL T HICKNESS , T ISSUE M ATERIAL P ROPERTIES ) ....... 8 3.5.1 Temperature and Humidity ................................................................................................................ 9 3.6 S IMULATED T ISSUE C OMPOSITION U SED FOR SAR T EST ........................................................... 9 3.7 D EVICE H OLDER FOR DASY4................................................................................................... 9 4.0 SAR Measurement Procedure Using DASY4 ..........................................................................10 5.0 MEASUREMENT UNCERTAINTY..............................................................................................11 6.0 Equipment List and Calibration Details ...................................................................................13 7.0 SAR Test Method.......................................................................................................................14 7.1 D ESCRIPTION OF THE T EST P OSITIONS (B ODY S ECTIONS )........................................................ 14 7.2 L IST OF A LL T EST C ASES (A NTENNA I N /O UT , T EST F REQUENCIES , U SER M ODES ETC ) ............. 14 7.3 FCC RF E XPOSURE L IMITS FOR O CCUPATIONAL / C ONTROLLED E XPOSURE ............................. 14 7.4 FCC RF E XPOSURE L IMITS FOR U N - CONTROLLED /N ON – OCCUPATIONAL ................................. 14 8.0 SAR Evaluation Results............................................................................................................15 8.1 SAR M EASUREMENT R ESULTS FOR 850 MH Z ......................................................................... 15 8.2 SAR M EASUREMENT R ESULTS FOR 1900 MH Z ....................................................................... 16 9.0 Compliance statement .............................................................................…

Text truncated - open the document above for the full version.

EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 11 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au 5.0 MEASUREMENT UNCERTAINTY The uncertainty analysis is based on the template listed in the IEEE Std 1528-2003 for both Handset SAR tests and Validation uncertainty. The measurement uncertainty of a specific device is evaluated independently and the total uncertainty for both evaluations (95% confidence level) must be less than 30%. Table 11: Uncertainty Budget for DASY4 Version V4.4 Build 3 – EUT SAR test a b c d e= f(d,k) f g h=cxf/e i=cxg/e k Uncertainty Component Sec. Tol. (%) Prob. Dist. Div. C i (1g) C i (10g) 1g u i (%) 10g u i (%) v i Measurement System Probe Calibration (k=1) (standard calibration) E.2.1 10 N 1 1 1 10.0 10.0 ∞ Axial Isotropy E.2.2 4.7 R 1.73 0.707 0.707 1.9 1.9 ∞ Hemispherical Isotropy E.2.2 9.6 R 1.73 0.707 0.707 3.9 3.9 ∞ Boundary Effect E.2.3 10 R 1.73 1 1 5.8 5.8 ∞ Linearity E.2.4 4.7 R 1.73 1 1 2.7 2.7 ∞ System Detection Limits E.2.5 1 R 1.73 1 1 0.6 0.6 ∞ Readout Electronics E.2.6 1 N 1 1 1 1.0 1.0 ∞ Response Time E.2.7 0.8 R 1.73 1 1 0.5 0.5 ∞ Integration Time E.2.8 2.6 R 1.73 1 1 1.5 1.5 ∞ RF Ambient Conditions E.6.1 0.05 R 1.73 1 1 0.0 0.0 ∞ Probe Positioner Mechanical Tolerance E.6.2 0.4 R 1.73 1 1 0.2 0.2 ∞ Probe Positioning with respect to Phantom Shell E.6.3 2.9 R 1.73 1 1 1.7 1.7 ∞ Extrapolation, interpolation and Integration Algorithms for Max. SAR Evaluation E.5 1 R 1.73 1 1 0.6 0.6 ∞ Test Sample Related Test Sample Positioning E.4.2 1.61 N 1 1 1 1.6 1.6 11 Device Holder Uncertainty E.4.1 3.34 N 1 1 1 3.3 3.3 7 Output Power Variation – SAR Drift Measurement 6.6.2 7.15 R 1.73 1 1 4.1 4.1 ∞ Phantom and Tissue Parameters Phantom Uncertainty (shape and thickness tolerances) E.3.1 4 R 1.73 1 1 2.3 2.3 ∞ Liquid Conductivity – Deviation from target values E.3.2 5 R 1.73 0.64 0.43 1.8 1.2 ∞ Liquid Conductivity – Measurement uncertainty E.3.3 2.5 N 1 0.64 0.43 1.6 1.1 5 Liquid Permittivity – Deviation from target values E.3.2 5 R 1.73 0.6 0.49 1.7 1.4 ∞ Liquid Permittivity – Measurement uncertainty E.3.3 2.5 N 1 0.6 0.49 1.5 1.2 5 Combined standard Uncertainty RSS 14.6 14.5 154 Expanded Uncertainty (95% CONFIDENCE LEVEL) k=2 29.3 28.92 Estimated total measurement uncertainty for the DASY4 measurement system was ± 14.6%. The extended uncertainty (K = 2) was assessed to be ± 29.3% based on 95% confidence level. The uncertainty is not added to the measurement result. EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 12 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Table 12: Uncertainty Budget for DASY4 Version V4.4 Build 3 - Validation a b c d e= f(d,k) f g h=cxf/e i=cxg/e k Uncertainty Component Sec. Tol. (%) Prob. Dist. Div. C i (1g) C i (10g) 1g u i (%) 10g u i (%) v i Measurement System Probe Calibration (k=1) (standard calibration) E.2.1 4.8 N 1 1 1 4.8 4.8 ∞ Axial Isotropy E.2.2 4.7 R 1.73 1 1 2.7 2.7 ∞ Hemispherical Isotropy E.2.2 0 R 1.73 1 1 0.0 0.0 ∞ Boundary Effect E.2.3 1 R 1.73 1 1 0.6 0.6 ∞ Linearity E.2.4 4.7 R 1.73 1 1 2.7 2.7 ∞ System Detection Limits E.2.5 1 R 1.73 1 1 0.6 0.6 ∞ Readout Electronics E.2.6 1 N 1 1 1 1.0 1.0 ∞ Response Time E.2.7 0 R 1.73 1 1 0.0 0.0 ∞ Integration Time E.2.8 0 R 1.73 1 1 0.0 0.0 ∞ RF Ambient Conditions E.6.1 0.05 R 1.73 1 1 0.0 0.0 ∞ Probe Positioner Mechanical Tolerance E.6.2 0.4 R 1.73 1 1 0.2 0.2 ∞ Probe Positioning with respect to Phantom Shell E.6.3 2.9 R 1.73 1 1 1.7 1.7 ∞ Extrapolation, interpolation and Integration Algorithms for Max. SAR Evaluation E.5 1 R 1.73 1 1 0.6 0.6 ∞ Test Sample Related Test Sample Positioning 2 R 1.73 1 1 1.2 1.2 ∞ Device Holder Uncertainty 4.7 R 1.73 1 1 2.7 2.7 ∞ Phantom and Tissue Parameters Phantom Uncertainty (shape and thickness tolerances) E.3.1 4 R 1.73 1 1 2.3 2.3 ∞ Liquid Conductivity – Deviation from target values E.3.2 5 R 1.73 0.6 0.43 1.7 1.2 ∞ Liquid Conductivity – Measurement uncertainty E.3.3 2.5 N 1.73 0.6 0.43 0.9 0.6 5 Liquid Permittivity – Deviation from target values E.3.2 5 R 1.73 0.6 0.49 1.7 1.4 ∞ Liquid Permittivity – Measurement uncertainty E.3.3 2.5 N 1.73 0.6 0.49 0.9 0.7 5 Combined standard Uncertainty RSS 8.0 7.8 154 Expanded Uncertainty (95% CONFIDENCE LEVEL) k=2 16.0 15.63 Estimated total measurement uncertainty for the DASY4 measurement system was ±8.0%. The extended uncertainty (K = 2) was assessed to be ±16% based on 95% confidence level. The uncertainty is not added to the Validation measurement result. EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 13 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au 6.0 EQUIPMENT LIST AND CALIBRATION DETAILS Table 13: SPEAG DASY4 Version V4.4 Build 3 Equipment Type Manufacturer Model Number Serial Number Calibration Due Used For this Test? Robot - Six Axes Staubli RX90BL N/A Not applicable Yes Robot Remote Control SPEAG CS7MB RX90B Not applicable Yes SAM Phantom SPEAG N/A 1260 Not applicable Yes SAM Phantom SPEAG N/A 1060 Not applicable No Flat Phantom AndreT 10.1 P 10.1 Not Applicable Yes Flat Phantom AndreT 9.1 P 9.1 Not Applicable No Flat Phantom SPEAG PO1A 6mm 1003 Not Applicable No Data Acquisition Electronics SPEAG DAE3 V1 359 09-July-2005 No Data Acquisition Electronics SPEAG DAE3 V1 442 06-Dec-2005 Yes Probe E-Field - Dummy SPEAG DP1 N/A Not applicable No Probe E-Field SPEAG ET3DV6 1380 14-July-2005 No Probe E-Field SPEAG ET3DV6 1377 29-Sept -2005 Yes Probe E-Field SPEAG ES3DV6 3029 1-Nov-2005 No Antenna Dipole 300 MHz SPEAG D300V2 1005 27- Nov-2005 No Antenna Dipole 450 MHz SPEAG D450V2 1009 15-Dec-2006 No Antenna Dipole 900 MHz SPEAG D900V2 047 12-July-2006 Yes Antenna Dipole 1640 MHz SPEAG D1640V2 314 25-May-2006 N…

Text truncated - open the document above for the full version.

EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 22 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table 17: 850 MHz SAR Plots Test Position Plot Number Test Channel Hand Held 1 128 Back Side Position 2 190 3 251 Hand Held Front Side Position 4 190 Belt-Clip – with holster 5 190 Z-Axis Scans for plots 1 to 5 Table 18: 1900 MHz SAR Plots Test Position Plot Number Test Channel Hand Held 6 512 Back Side Position 7 661 8 810 Hand Held Front Side Position 9 661 Belt-Clip – with holster 10 661 Z-Axis Scans for plots 6 to 10 Table 19: SAR Validation Plots Plot Number Date Frequency Plot 11 Validation 20-April-2004 850MHz Plot 12 Validation 21-April-2004 1900MHz Z-Axis Scans for plots 6 to 10 EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 23 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 20 April 2005 File Name: Hand Held Back Side (No Holster) 850 MHz GSM (DAE442 Probe1377) 20-04-05.da4 DUT: GSM Portable EFTPOS Terminal; Type: KT-78 -205; Serial: A00000002 * Communication System: GSM-PCS (850 MHz, 1900MHz) FCC; Frequency: 824 MHz; Duty Cycle: 1:8.3 * Medium parameters used: σ = 0.97068; mho/m, ε r = 53.3332; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(5.9, 5.9, 5.9) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 128 Test 2/Area Scan (181x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.566 mW/g Channel 128 Test 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.5 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 1.4 W/kg SAR(1 g) = 0.471 mW/g; SAR(10 g) = 0.277 mW/g Maximum value of SAR (measured) = 0.510 mW/g 0 dB = 0.510mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 21.5 Degrees Celsius Liquid Temperature 20.8 Degrees Celsius Humidity 46.0 % EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 24 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 20 April 2005 File Name: Hand Held Back Side (No Holster) 850 MHz GSM (DAE442 Probe1377) 20-04-05.da4 DUT: GSM Portable EFTPOS Terminal; Type: KT-78 -205; Serial: A00000002 * Communication System: GSM-PCS (850 MHz, 1900MHz) FCC; Frequency: 836 MHz; Duty Cycle: 1:8.3 * Medium parameters used: f = 836 MHz; σ = 0.98 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(5.9, 5.9, 5.9) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 190 Test/Area Scan (181x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.526 mW/g Channel 190 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.4 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.453 mW/g; SAR(10 g) = 0.256 mW/g Maximum value of SAR (measured) = 0.488 mW/g 0 dB = 0.488mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 21.5 Degrees Celsius Liquid Temperature 20.8 Degrees Celsius Humidity 46.0 % EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 25 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 20 April 2005 File Name: Hand Held Back Side (No Holster) 850 MHz GSM (DAE442 Probe1377) 20-04-05.da4 DUT: GSM Portable EFTPOS Terminal; Type: KT-78 -205; Serial: A00000002 * Communication System: GSM-PCS (850 MHz, 1900MHz) FCC; Frequency: 849 MHz; Duty Cycle: 1:8.3 * Medium parameters used (interpolated): f = 849 MHz; σ = 0.996 mho/m; ε r = 53; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(5.9, 5.9, 5.9) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 251 Test/Area Scan (181x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.482 mW/g Channel 251 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.1 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.416 mW/g; SAR(10 g) = 0.232 mW/g Maximum value of SAR (measured) = 0.451 mW/g 0 dB = 0.451mW/g SAR MEASUREMENT PLOT 3 Ambient Temperature 21.5 Degrees Celsius Liquid Temperature 20.8 Degrees Celsius Humidity 46.0 % EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 26 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 20 April 2005 File Name: Hand Held Front Side (No Holster) 850 MHz GSM (DAE442 Probe1377) 20-04-05.da4 DUT: GSM Portable EFTPOS Terminal; Type: K-78 -205; Serial: A00000002 * Communication System: GSM-PCS (850 MHz, 1900MHz) FCC; Frequency: 836 MHz; Duty Cycle: 1:8.3 * Medium parameters used: f = 836 MHz; σ = 0.98 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(5.9, 5.9, 5.9) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 190 Test/Area Scan (181x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.065 mW/g Channel 190 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.095 W/kg SAR(1 g) = 0.062 mW/g; SAR(10 g) = 0.043 mW/g Maximum value of SAR (measured) = 0.065 mW/g 0 dB …

Text truncated - open the document above for the full version.

EMC Technologies Report No. M050436-FCC FCC ID: P3A-K78-205R Page 30 of 40 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 21 April 2005 File Name: Hand Held Back Side (No Holster) 1900 MHz GSM (DAE442 Probe1377) 21-04-05.da4 DUT: GSM Portable EFTPOS Terminal; Type: KT-78 -205; Serial: A00000002 * Communication System: GSM-PCS (850 MHz, 1900MHz) FCC; Frequency: 1850 MHz; Duty Cycle:…
