P3HSPR1Satellite Radio Receiver

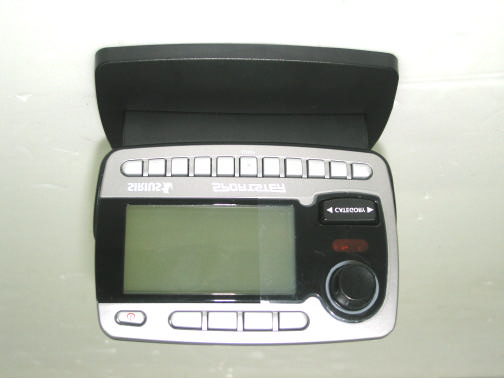

SP-R1 Satellite Radio Receiver User Guide Sportster SP-R1 User Guide 2 CONGRATULATIONS! Your new Sirius Sportster™ SP-R1 portable Plug-n-Play Receiver kit lets you enjoy SIRIUS® Satellite Radio’s digital entertainment anywhere you’ve installed the SP-H1 Home DockingStation, SP-C1 Mobile Docking Station or the SP-B1 Portable Boombox (each sold separately). Use thismanual to familiarize yourself with all of Sirius Sportster’s features and capabilities. For the latestinformation about this and other Sirius Sportster products, visit www.sirius.com Box Contents .. ................................................................. 3 Safety Precautions .......................................................... 3 Receiver Controls and Features .................................... 6 Remote Control ............................................................... 7 Activating your SIRIUS Subscription ............................. 8 Basic Operation .............................................................. 9 Changing Channels ................................................... 9 Display Button ............................................................ 9 Search Modes (Category, Channel, Artist, Song) .. 10Direct Tuning ............................................................ 11 Setting Channel Presets .......................................... 12 Recalling Channel Presets ...................................... 12 Jump Preset Button ............................................. 12Searching for a Channel Preset (P.TUNE Mode) ... 13Preset Tune List Mode ............................................. 14 Memory (MEMO) and SongSeek (S-Seek) Functions15Game Alert .......................................................... 19 Table of Contents Menu Display Options ............................................... 19 Sirius ID ..................................... .............................. 20 Favorite T eam ......................................................... 20 Jump Settings ......................................................... 21Display Settings ...................................................... 22 Confirm Tone Options ............................................. 23 FM Transmitter ........................................................ 23 Channel Add or Skip ............................................... 24 Lock Options ....................................................... 24Audio Level ................................................... 25Antenna Aiming ..................................................... 26 Memory Options ...................................................... 26 Time-Based Features ............................................. 27 Factory Default ........................................................ 29 Troubleshooting ........................................................... 31 Specifications ............................................................... 32 Optional Accessories ................................................... 34 Warranty ....................................................................... 36 Sportster SP-R1 User Guide 3 Box ContentsUnpack your Sirius Sportster Receiver carefully andmake sure that everything listed here is present: Safety Precautions Warning Take the following precautions to prevent trafficaccidents and avoid personal injury: • Installation must be performed according to this user guide. Sirius Satellite Radio is notresponsible for issues arising from installationsnot performed according to the procedures in thismanual. • Do not install the unit where it may obstruct your view through the windshield or of your vehicle’sindicator displays. • Do not install the unit where it may hinder the function of safety devices such as an airbag.Doing so may prevent the airbag from functioningproperly in the event of an accident. • The installation and use suggestions contained in this manual are subject to any restrictions orlimitations that may be imposed by applicablelaw—the purchaser should check applicable lawfor any restrictions or limitations before installingand/or operating this unit. • Failure to follow these safety instructions and warnings may result in a serious accident. 1 x Sportster Receiver 1 x Remote Control(Batteries Not Included) If anything is missing or damaged, or if your SiriusSportster Receiver fails to operate, notify your dealerimmediately. It is recommended that you retain theoriginal carton and packing materials in case youneed to ship your Receiver in the future. Sportster SP-R1 User Guide 4 WarningTake the following precautions to prevent fire andavoid personal injury: • To avoid short circuits, never put or leave any metallic objects (coins, tools, etc.) inside the unit. • If the unit emits smoke or unusual odors, turn the power off immediately and consult your SiriusSportster retailer. • Do not drop the unit or subject it to strong shocks. • If the LCD display becomes damaged or broken, do not touch the liquid crystal fluid. The fluid canbe dangerous to your health. If the liquid crystalfluid contacts your body or clothing, immediatelywash it off with soap and water. CautionTake the following precautions to keep the unit inproper working order: • Be sure the unit is connected to a 12V DC power supply with a negative ground connection. • Do not open the unit.• Do not install the unit where it will be exposed to high levels of humidity, moisture, or dust. • When replacing a fuse, use only a new one with the proper rating. Using a fuse with the wrongrating may cause the unit to malfunction. • To prevent a short circuit when replacing a fuse, first disconnect the wiring harness. NoteIf the unit doesn’t seem to be working properly: • Turn the unit’s power off, wait 5 – 10 seconds, then turn the power on again. • If the unit still malfunctions, turn the unit’s power off, remove it from the cradle, wait 5 – 10 seconds,replace it in the cradle and turn the power back on.If the problem persists, consult your…

Text truncated - open the document above for the full version.

Appendix E. Block Diagram E04.0823.FCC.484N / Page E1 of E1 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0

Appendix C. External Photographs E04.0823.FCC.484N / Page C1 of C1 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Front View of EUT Rear View of EUT

Appendix A. FCC ID Label and Location E04.0823.FCC.484N / Page A1 of A1 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel: 82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Product label sample with FCC label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID label and compliance statement are marked in the product label. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Digital Satellite Radio FCC ID : P3HSPR1 Model No : SP-R1 Power : AC/DC Adapter : Input AC110V, 50/60Hz 0.3A Output DC 12V, 1A Serial No : N/A This device complies with Part 15 of the FCC Rules. Operation is Subject to the following two conditions: (1) this device may not Cause harmful interference, and(2) this device must accept any Interference received, including interference that may cause undesired Operation. Label here

Appendix D. Internal Photographs E04.0823.FCC.484N / Page D1 of D5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of Inside Appendix D. Internal Photographs E04.0823.FCC.484N / Page D2 of D5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of Main board Solder side view of Main board Appendix D. Internal Photographs E04.0823.FCC.484N / Page D3 of D5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Front view of module Solder side view of module Appendix D. Internal Photographs E04.0823.FCC.484N / Page D4 of D5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of module board Solder side view of module board Appendix D. Internal Photographs E04.0823.FCC.484N / Page D5 of D5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Side view of Adapter Adapter label

Appendix H. Operational Description E04.0823.FCC.484N / Page H1 of H1 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Operational Description (SP-R1) SIR-PNP3 is a FM transmitter. It is fixed inside the vehicle and powered 12 V from car battery. FM transmitter is designed to operate on frequency in the 88.1 ~ 94.9 MHz (range into 200 kHz Step) The u-com in the SP-R1 tune the OSD frequency to the car stereo select by using + CH - button. The selected frequency varies as voltage and the voltage inputs to the RF OSC port of FM stereo transmitter IC (BH1415F). The stereo audio signal is modulated the selected frequency and the modulated RF is amplified by FM stereo transmitter IC (BH1415F). The amplified RF is transmitted via transmitting antenna. All tuning and verification are performed by the manufacturer and there are adjustments which can be made by the user within the 88.1 ~ 94.9 MHz (range into 200 kHz Step). External ground is the chassis of vehicle and transmitting antenna of the EUT is built-in inside the EUT.

Appendix F. Circuit Diagram E04.0823.FCC.484N / Page F1 of F5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Appendix F. Circuit Diagram E04.0823.FCC.484N / Page F2 of F5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Appendix F. Circuit Diagram E04.0823.FCC.484N / Page F3 of F5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Appendix F. Circuit Diagram E04.0823.FCC.484N / Page F4 of F5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Appendix F. Circuit Diagram E04.0823.FCC.484N / Page F5 of F5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This Satellite Radio Receiver has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C section15.239. I attest to the accuracy of data. All measurement herein performed by me or made under my supervision and correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea PRODUCT : Satellite Radio Receiver MODEL/TYPE NO : SP-R1 FCC ID : P3HSPR1 APPLICANT : Ki Ryung Electronics Co.,Ltd. 219-6 Gasan-Dong, Kumchun-Ku Seoul 153-023, Korea Guro Dan Ji P. O. Box 37 Attn. : In Kyoung Kim / Q.C Assistant Manager FCC CLASSIFICATION : Low Power Communication Device Transmitter FCC RULE PART(S) : Intentional Radiator FCC PROCEDURE : Certification TRADE NAME : SPORTSTER TEST REPORT No. : E04.0823.FCC.484N DATES OF TEST : August 17 ~ 24, 2004 DATES OF ISSUE : August 24, 2004 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 FCC TEST REPORT E04.0823.FCC.484N / Page 2 of 2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emission 5.3 Radiated Emissions of RF Carrier frequency 5.4 Out-of-band Radiated Emissions 5.5 Emission Bandwidth Measurement 6. Antenna Requirement 7. Sample Calculations 8. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description FCC TEST REPORT E04.0823.FCC.484N / Page 3 of 3 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : Satellite Radio Receiver l Model Number : SP-R1 l FCC Identifier : P3HSPR1 l S/N : N/A l Freq. Range : 88.10 MHz – 94.90 MHz l FCC Rule Part(s) : Part 15 Subpart C Section 15.239 l Test Procedure : ANSI C63.4-1992 l FCC Classification : DXX - Low Power Communication Device Transmitter : Intentional Radiator l Dates of Tests : August 17 ~ 24, 2004 l Place of Tests : ETL Inc. EMC Testing Lab. (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, 469-880, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E04.0823.FCC.484N Applicant Name : Ki Ryung Electronics Co.,Ltd. Address : 219-6 Gasan-Dong, Kumchun-Ku Seoul 153-023, Korea Guro Dan Ji P. O. Box 37 Attention : In Kyoung Kim / Q.C Assistant Manager FCC TEST REPORT E04.0823.FCC.484N / Page 4 of 4 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of E- RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American national standard for method of measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz (ANSI C.63.4- 1992) was used in determining radiated and conducted emissions from the Ki Ryung Electronics Co., Ltd. Model:SP-R1 FCC TEST REPORT E04.0823.FCC.484N / Page 5 of 5 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 2. PRODUCT INFORMATION 2.1 General Remark 2.2 Equipment Description The Equipment Under Test(EUT) is the Ki Ryung Electronics Co., Ltd. Satellite Radio Receiver. Model: SP-R1(…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs E04.0823.FCC.484N / Page B1 of B2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs E04.0823.FCC.484N / Page B2 of B2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-023, Korea / Tel : 82-2-858-0786, Fax : 82-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Radiated Emission Test Setup
