P3HSV1G3Digital Satellite Radio

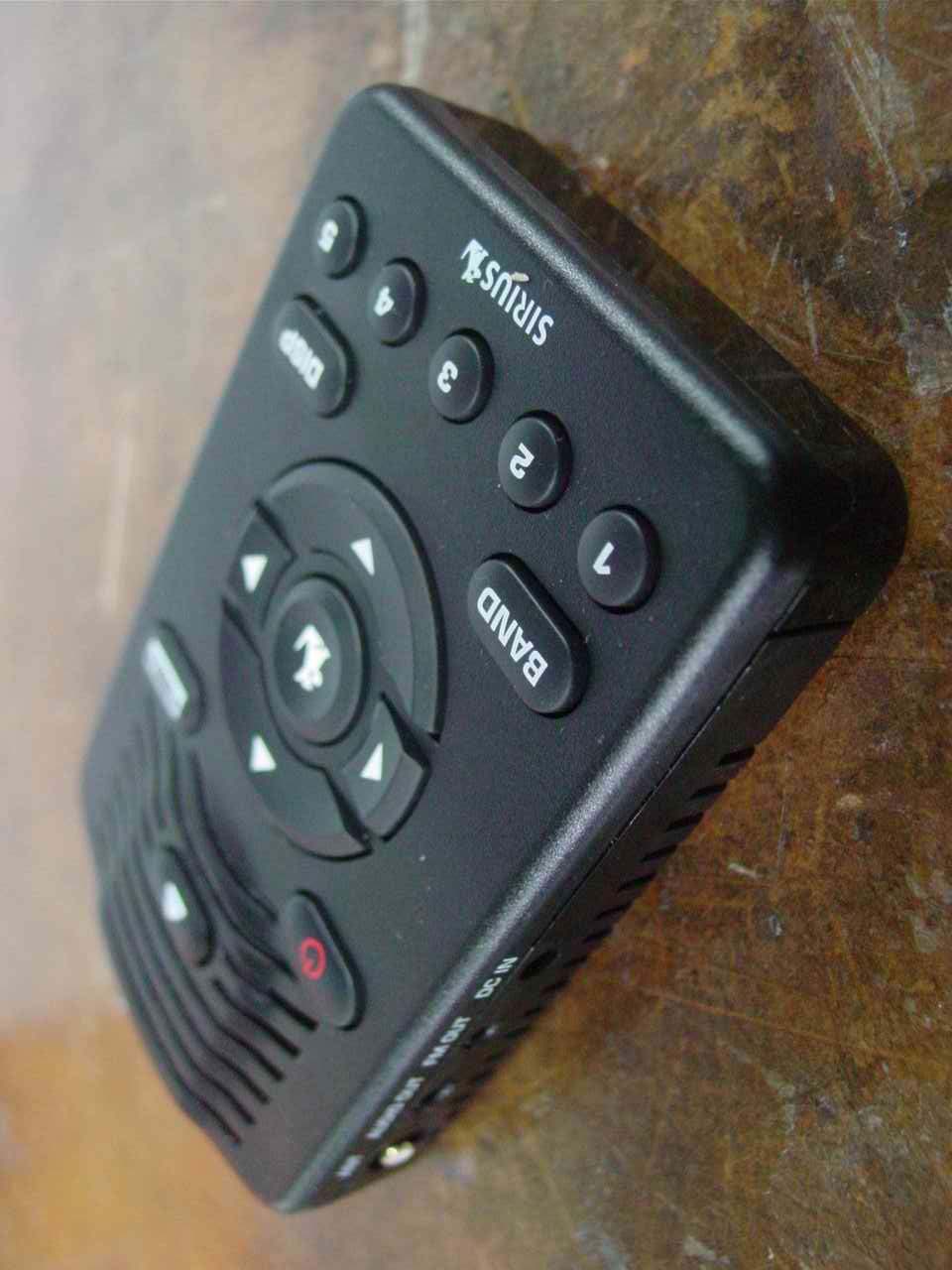

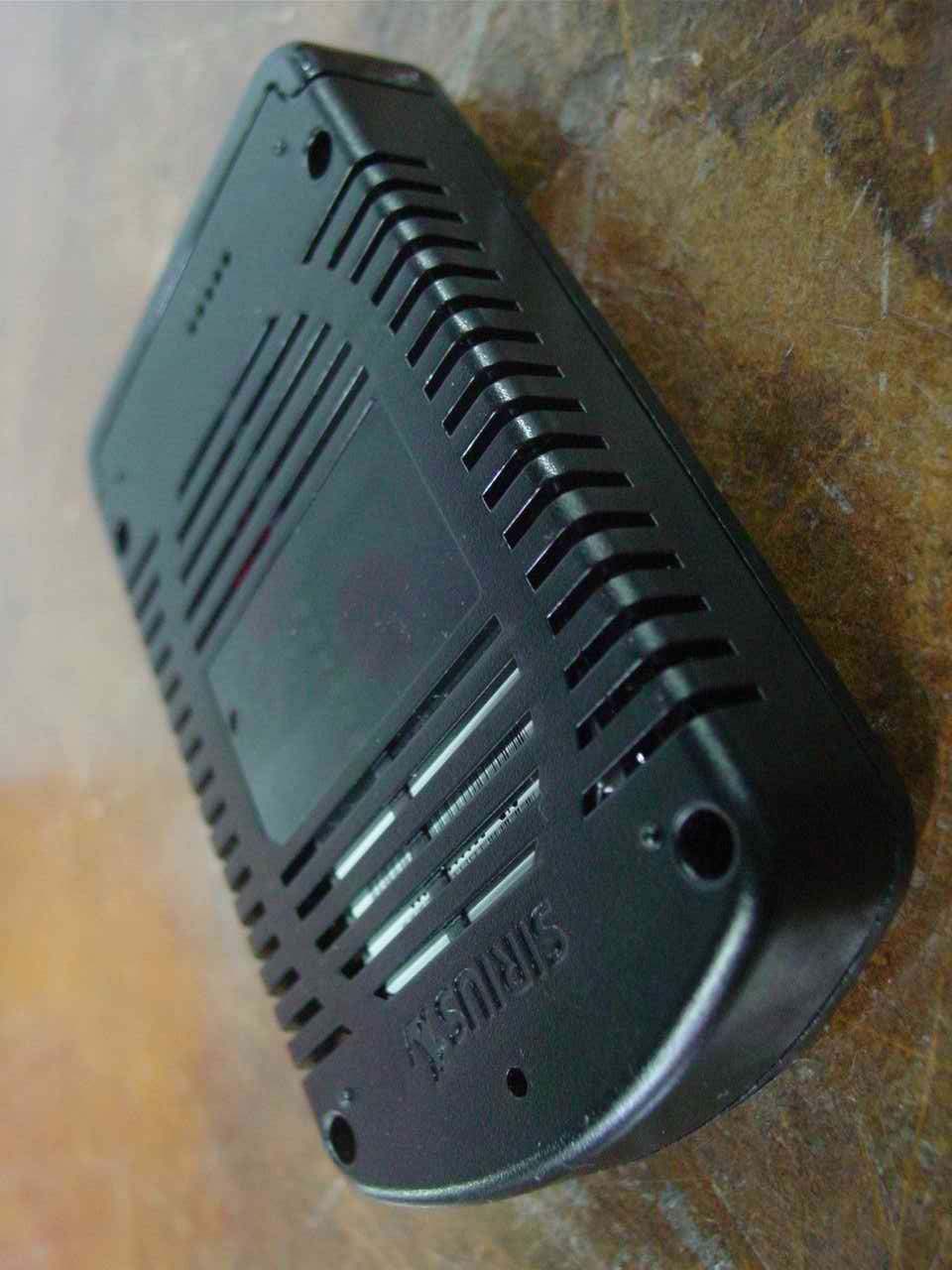

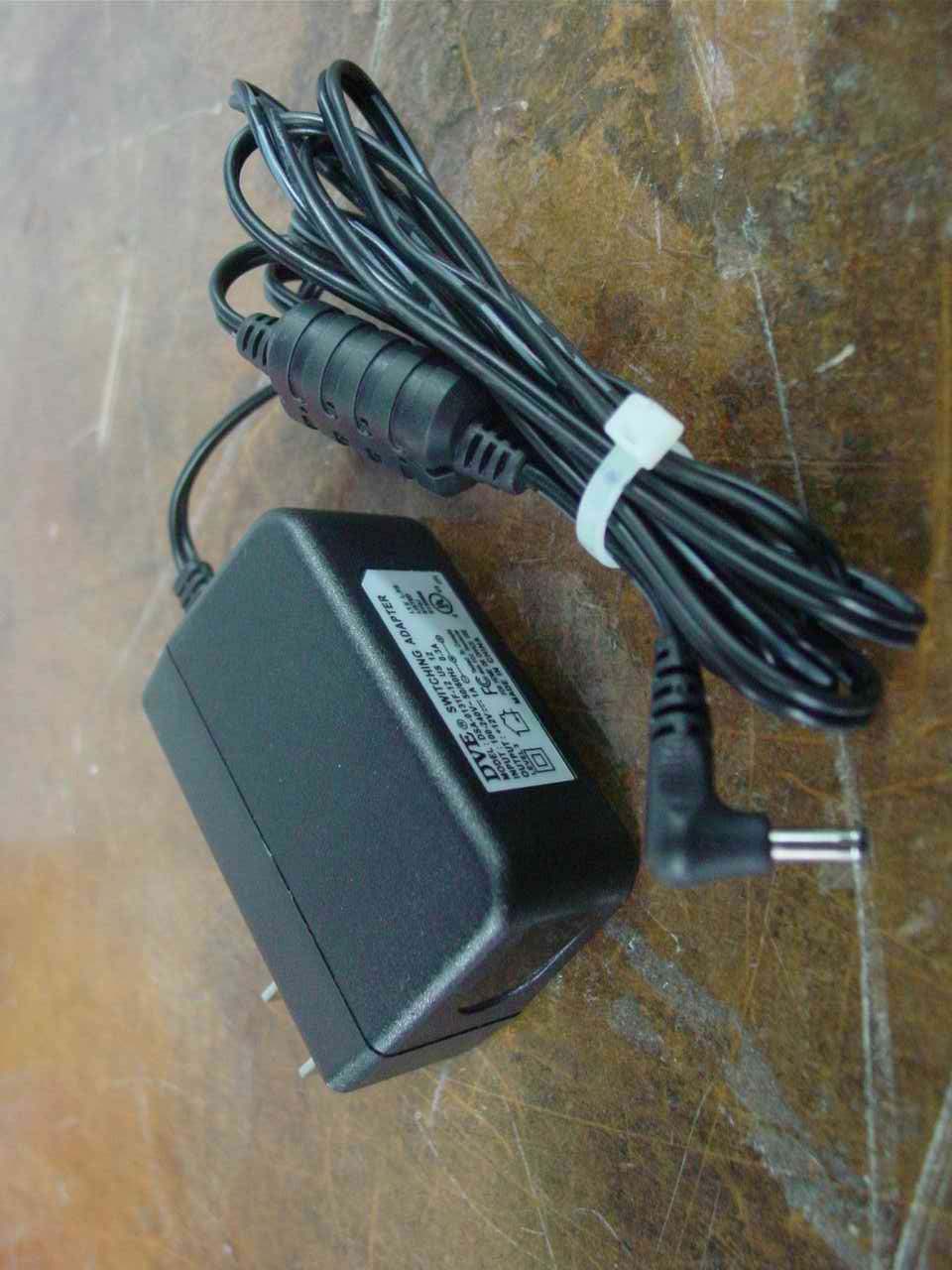

SV1 SIRIUS One SIRIUS Satellite Radio Plug and Play User and Installation Guide SV1 Receiver User and Installation Guide 2 CONGRATULATIONS! Your new SV1 SIRIUS One SIRIUS ® Satellite Radio Plug and Play Receiver lets you enjoy SIRIUS Satellite Radio’s digital entertainment in your vehicle, home, or boat. Use this guide tofamiliarize yourself with all of SV1’s features and capabilities. For the latest information about this and otherSIRIUS products, please visit http://www.siriusradio.com.Table of Contents Safety Precautions ........................................................... 4 FCC Warning .................................................................... 5 Cleaning the Receiver ....................................................... 5Package Contents ......... ................................................... 6 Installation ....................................................................... 7 Location ....................................................................... 7Mounting the Receiver ................................................. 7Installing the Magnetic Antenna .................................. 8 Connecting the Receiver ............................................ 10Activating your SIRIUS Subscription .......................... 11 SV1 SIRIUS One Receiver Basic Operation .............. 13 Remote Control .......................................................... 14 Installing Batteries in the Remote ........................... 14 Changing Channels .................................................... 15 Display Button (DISP) ............................................... 15 Selecting Channels Direc tly ...................................... 16 Advanced Features ...................................................... 17 Channel Presets (BAND) ........................................... 17 Storing Channel Presets ......................................... 17Using Channel Presets ........................................... 17 Searching for a Channel Preset (P.TUNE Mode) ....... 18 FM Frequency Button ................................................ 18 Menu Options ................................................................ 19 FM Transmitter .......................................................... 20 FM Presets ............................................................. 20 FM On/Off ............................................................... 21 Display Options ......................................................... 21 Parental Control ......................................................... 22 Lock/Unlock .... ........................................................ 22 Edit Code ................................................................ 23 SV1 Receiver User and Installation Guide 3 Table of Contents (continued) © 2005 SIRIUS Satellite Radio Inc. ® “SIRIUS,” the SIRIUS dog logo, channel names and logosare trademarks of SIRIUS Satellite Radio Inc. “NFL” and the NFL Shield logo, and the NFL Sunday Drive name and logo areregistered trademarks of the National Football League. “NHL”and the NHL Shield are registered trademarks of the NationalHockey League. “NBA” and the NBA silhouette logo areregistered trademarks of NBA Properties Inc. Velcro is aregistered trademark of Velcro Industries B.V. All other trademarks, service marks and logos are the property of theirrespective owners. All Rights Reserved. Audio Level ................................................................. 25 Signal Indicator .......................................................... 25 Factory Default .......................................................... 25 Specifications .................................................................. 28Troubleshooting ............................................................... 29 12 MONTH LIMITED WARRANTY .................................. 30 SV1 Receiver User and Installation Guide 4 • If the LCD display on the Receiver becomes damaged or broken, do not touch the liquid crystalfluid. The fluid can be dangerous to your health. Ifthe liquid crystal fluid contacts your body orclothing, immediately wash it off with soap andwater. CautionTake the following precautions to keep the Receiverin proper working order: • Do not open the Receiver.• When replacing a fuse, use only a new one with the proper rating. Using a fuse with the wrongrating may cause the Receiver to malfunction. • To prevent a short circuit when replacing a fuse, first disconnect the wiring harness. Note:If the Receiver doesn’t seem to be working properly,turn the Receiver’s power off, wait 5 – 10 seconds,then turn the power on again. Safety Precautions Warning Take the following precautions to prevent fire andavoid personal injury: • Be sure the Receiver is installed as described in the Installation Guide. • The use suggestions contained in this User Guide are subject to any restrictions or limitations thatmay be imposed by applicable law—the purchasershould check applicable law for any restrictions orlimitations before installing and/or operating thisReceiver. • Failure to follow these safety instructions and warnings may result in a serious accident. • To avoid short circuits, never put or leave any metallic objects (coins, tools, etc.) inside theReceiver. • If the Receiver emits smoke or unusual odors, turn the power off immediately. • Do not drop the Receiver, or subject it to strong shocks. SV1 Receiver User and Installation Guide 5 FCC WarningThis equipment may generate or use radiofrequency energy. Changes or modifications to thisequipment may cause harmful interference unlessthe modifications are expressly approved in thisUser Guide. The user could lose the authority tooperate this equipment if an unauthorized change ormodification is made.Note:This equipment has been tested and found tocomply with Part 15 of the FCC Rules. Theserules are designed to provide reasonableprotection against harmful interference. Thisequipment may cause harmful interference toradio…

Text truncated - open the document above for the full version.

KI RYUNG ELECTRONICS CO., LTD. 219-6, Gasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Tel: +82-2-3282-2382, Fax: +82-2-3282-1672 Power of Attorney Date: July 26, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ONETECH Corp., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ONETECH Corp on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ONETECH Corp., as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, __________________________ Ms. MinJi, Lee / Account Officer KI RYUNG ELECTRONICS CO., LTD. Tel: +82-2-3282-2382 Fax: +82-2-3282-1672 E-Mail: [email protected]

ONETECH Corp. http://www.onetech.co.kr 505 SK APT Factory, 223-28 Sangdaewon 1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-121, Korea [ Tel ] 82-31-746-8500, [ Fax ] 82-31-746-8700 December 05, 2005 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: KI RYUNG ELECTRONICS CO., LTD. FCC ID: P3HSV1G3 To whom it may concern, Request is hereby submitted, on behalf of my client, KI RYUNG ELECTRONICS CO., LTD., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Rationale for request for confidentiality: KI RYUNG ELECTRONICS CO., LTD. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Chief Engineer Onetech Corp. Email: [email protected]

FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab.

FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the rear side of the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : P3HSV1G3 FCC ID

FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab.

Operational Description (SV1) SV1 has a FM transmitter. It is fixed inside the vehicle and powered 12V from car battery or adaptor. FM transmitter is designed to operate on frequency in the 88.1 ~ 107.9 MHz (range into 200 KHz Step) The u-com in the SV1 tunes the OSD frequency to the car stereo select by using + CH - button. The selected frequency varies as voltage and the voltage inputs to the RF OSC port of FM stereo transmitter IC (BH1415F). The stereo audio signal is modulated the selected frequency and the modulated RF is amplified by FM stereo transmitter IC (BH1415F). The amplified RF is transmitted via transmitting antenna. All tuning and verification are performed by the manufacturer and there are adjustments which can be made by the user within the 88.1 ~ 107.9 MHz (range into 200 KHz Step). External ground is the chassis of vehicle and transmitting antenna of the EUT is built-in inside the EUT.

Page 1 of 15 FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 3 0 7 -51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR FCC CERTIFICATION Test Report No. : E05DR-004 Applicant : KI RYUNG ELECTRONICS CO., LTD. Address : 219-6, Gasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Manufacturer : KI RYUNG ELECTRONICS CO., LTD. Address : 219-6, Gasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Type of Equipment : Digital Satellite Radio (FM Transmitter) FCC ID. : P3HSV1G3 Model Name : SV1 Serial number : N/A Total page of Report : 15 pages (including this page) Date of Incoming : November 09, 2005 Date of Issuing : December 02, 2005 SUMMARY The equipment complies with the regulation of FCC CRF 47 PART 15, SUBPART C, SECTION 15.239. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: Young-Min, Choi / Project Engineer Y. K. Kwon / Director EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. Page 2 of 15 FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 3 0 7 -51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. CONTENTS Page 1. VERIFICATION OF COMPLIANCE .............................................................................................................................3 2. GENERAL INFORMATION............................................................................................................................................4 2.1 PRODUCT DESCRIPTION.................................................................................................................................................4 2.2 MODEL DIFFERENCES....................................................................................................................................................4 2.3 RELATED SUBMITTAL(S) / GRANT(S)............................................................................................................................4 2.4 TEST SYSTEM DETAILS..................................................................................................................................................4 2.5 TEST METHODOLOGY....................................................................................................................................................4 2.6 TEST FACILITY...............................................................................................................................................................4 3. SYSTEM TEST CONFIGURATION...............................................................................................................................5 3.1 JUSTIFICATION...............................................................................................................................................................5 3.2 EUT EXERCISE SOFTWARE............................................................................................................................................5 3.3 CABLE DESCRIPTION.....................................................................................................................................................5 3.4 NOISE SUPPRESSION PARTS ON CABLE.........................................................................................................................5 3.5 EQUIPMENT MODIFICATIONS........................................................................................................................................5 3.6 CONFIGURATION OF TEST SYSTEM...............................................................................................................................6 3.7 ANTENNA REQUIREMENT..............................................................................................................................................6 4. PRELIMINARY TEST ......................................................................................................................................................6 4.1 AC POWER LINE CONDUCTED EMISSION TEST............................................................................................................6 4.2 RADIATED EMISSION TEST............................................................................................................................................6 5. FINAL RESULT OF MEASURMENT ............................................................................................................................7 5.1 CONDUCTED EMISSION TEST.........................................................................................................................................7 5.2 RADIATED EMISSION TEST (WITHIN THE PERMITTED 200 KHZ BAND).......................................................................9 5.2 RADIATED EMISSION TEST (OUTSIDE OF THE SPECIFIED 200 KHZ BAND).................................................................10 5.3 BANDWIDTH OF THE OPERATING FREQUENCY............................................................................................................11 6. FIELD STRENGTH CALCULATION ......................................................................................…

Text truncated - open the document above for the full version.

FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. Conducted Emission Test FCC ID. : P3HSV1G3 Report No. : E05DR-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Testing & Evaluation Lab. Radiated Emission Test
