P3YSPOTCELL0013DU 1900 Full Band

Technical Support The SpotCell TM serial number must be available to authorize technical support and/or to establish a return authorization for defective units. The serial number is located on the back of the Coverage Unit (CU) and Donor Unit (DU) as well as the box in which they were delivered. Additional support information may be obtained by accessing the Spotwave Wireless Inc. website at www.spotwave.com. To contact support by telephone, call your local Spotwave vendor, or if you are unable to reach your vendor, contact Spotwave Wireless at 1-877-610- 9586. Important Safety Information Wa r n i n g ! For your safety, beware of power lines and ensure appropriate safety measures are maintained at all times during the installation of the SpotCell equipment. If equipment not shipped with the SpotCell system is to be used during installation or mounting, follow all equipment manufacturer’s instructions in proper use to ensure injury is avoided. The DU and CU of the SpotCell are low power transmitters. As with a cell phone antenna, avoid unneccessary contact with the front of the units after installed. Mount the units in a location where people will not approach within 1 meter of the front of the DU and 20 centimeters in front of the CU. When deploying the extended coverage antenna, there must be a minimum separation of 10 cm between the main CU and the extended coverage antenna with the antennas facing in opposite directions. The extended coverage antenna should be mounted in locations where people will not approach within 20 cm in front of the antenna This manual outlines installation instructions and the appendix offers practical safety tips (see page 57 entitled ‘Safety Hints’). If you are not sure about a safe installation, do not attempt to install it yourself. Call a professional installer for help. iiSpotCell LIMITED WARRANTY AND LIMITATION OF LIABILITY: 1. What is Covered and for How Long? Spotwave Wireless Inc. ("Spotwave") warrants to the original Purchaser that the Spotwave SpotCell System (the "System") is free from defects in material and workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period"). 2. What is not covered? This Limited Warranty is conditioned upon proper use of the System by the Purchaser. This Limited Warranty does not cover (and will become null and void in the event of ): (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, modification of the System or any part thereof, or cosmetic damage; (b) removal, alteration or defacing of the serial number or other identifying marks on the System; (c) all plastic surfaces and other externally exposed components that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of the System in conjunction with accessories, products or (ancillary) or peripheral equipment not provided by Spotwave; or (e) defects or damage from unauthorized or improper testing, operation, maintenance, installation, servicing or adjustment of the System. Any repairs or replacements provided by Spotwave outside of the Limited Warranty Period (including repairs to or replacement after the end of the Warranty Period), or in excess of the services provided during the Limited Warranty Period, will subject to Spotwave's then prevailing rates. 3. What are Spotwave's Obligations and how do you make a claim? During the Limited Warranty Period, Spotwave will repair or replace, at Spotwave's sole option, without charge to Purchaser, any defective component of the System, provided that the System is returned promptly upon discovery of the defect and during the Limited Warranty Period. To obtain service, Systems must be returned to an authorized service facility in the original packaging or packaging adequate for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase and the serial number of the System. A valid RMA is required prior to any return. To locate your nearest authorized service facility, call Spotwave Customer Service at 1-877-610-9586. Spotwave may, at Spotwave's sole option, use rebuilt, reconditioned, or new parts or components when repairing any System or replace a System with a rebuilt, reconditioned or new System. Repaired Systems will be warranted for a period equal to the remainder of the original Limited Warranty Period for the original System or for 90 days, whichever is longer. All replaced parts, components, boards or equipment shall become the property of Spotwave. If Spotwave determines that any System is not covered by this Limited Warranty, Purchaser must pay the costs for all parts, shipping, and labor charges for the repair or return of such System. 4. What are the Limits on Spotwave's Liability? EXCEPT FOR THE WARRANTY IN PARAGRAPH 1, THE SYSTEMS AND ANY ASSOCIATED SERVICES ARE PROVIDED BY SPOTWAVE ON AS 'AS IS' BASIS AND THERE ARE NO OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, ,EXPRESS OR IMPLIED, WRITTEN OR ORAL, ARISING BY STATUTE, OPERATION OF LAW, COURSE OF DEALING, USAGE OF TRADE OR OTHERWISE, REGARDING THEM OR ANY OTHER PRODUCT OR SERVICE PROVIDED HEREUNDER OR IN CONNECTION HEREWITH BY SPOTWAVE. SPOTWAVE DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF DURABILITY, MERCHANT ABILITY, MERCHANTABLE QUALITY, SATISFACTORY QUALITY, NON- INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SPOTWAVE DOES NOT REPRESENT OR WARRANT THAT THE SYSTEMS WILL MEET ANY OR ALL OF PURCHASERS' PARTICULAR REQUIREMENTS, THAT THE SYSTEMS WILL OPERATE ERROR-FREE OR UNINTERRUPTED OR THAT ALL ERRORS OR DEFECTS IN THE SYSTEMS CAN BE FOUND TO BE CORRECTED. System performance is dependant upon the performance and availability of services or technology provided by third parties and Spotwave is not responsible for service continuity and reliability, reception, or other performance related limitations associ…

Text truncated - open the document above for the full version.

™ SpotCell 111s/112s ™ SpotCell 111s/112s Quick Installation GuideQuick Installation Guide www.spotwave.com Spotwave Wireless Inc. 1 Hines Road, Ottawa ON K2K 3C7 Canada 780-0000x-01-01 © 2004 Spotwave Wireless Inc. All rights reserved. Printed in Canada Spotwave and SpotCell are trademarks of Spotwave Wireless Inc. Patents pending. If required, more detailed information on installing a SpotCell system can be found in the User Manual which is also available for downloading at www.spotwave.com/2003/support/manuals.htm. 2. Location The DU can be mounted anywhere your cell phone works. This may be on a rooftop (typical rural set-up), on the side of a building, or inside a building (typical downtown set-up). The CU will be mounted inside the building where your cell phone does not work.(The illustration at the right depicts a typical installation.) To start the installation, place the DU and CU in the general areas where they are to be located. Do not physically mount them at this time. Maximum separation between the DU and CU, and back-to-back positioning are optimal when both are mounted indoors. For quick installation of SpotCell:For quick installation of SpotCell: For your safety beware of power lines and ensure that appropriate safety measures are maintained at all times during the installation of the SpotCell 100 equipment. Contact with high-voltage power lines could result in death or serious injury. , WARNING 6. Align DU - 2nd rotation Again rotate the DU. When the LED turns green, stop the rotation. This is the direction the DU must face when mounted. 10. Final Checklist 1.Properly ground the DU via the grounding bolt. 2.Ensure that there is a drip loop on the cable connecting to the DU. 3.Firmly affix the cable to the building where it runs between the DU and CU. 7. Mount DU Now mount the DU. Typical installations are pictured below. Wall MountPipe Mount with Hose Clamp LED 4. Set Mode and AP Switch Set the switch on the bottom of the CU to “1” (install). If only one of the split bands is currently active, then set the AP switch to the active band. If both bands are active, then the AP switch can be in either position for DU alignment. Connect the power supply to the CU, and then plug the adapter into the AC outlet. 8. Set CU to Active Move the switch on the bottom of the CU to “2” (active). Hold the CU in the location to be mounted. The LCD on the bottom of the CU indicates coverage ( ) by the number of bars; more bars indicate better coverage. DU (outward-facing unit) CU (indoor unit) 1. Parts List • Mounting kit• Donor Unit (DU) • Coverage Unit (CU) • Cable (80'/25 m) • Power supply xxx CH I S v ce n er i I S v ce n er i 5. Align DU - 1st rotation In the location where the DU is to be mounted, rotate the unit in a complete circle. The LED on the back will turn red or green during the rotation. 9. Mount CU Mount the CU from a wall or ceiling, close to the center of the area requiring coverage. Rotate 360° 3. Connect CU to DU Connect the CU and DU with the cable provided. Back of DU Back of CU Back of CU Mode Switch Power Connector AP Switch

WARNING LABEL LOCATION UNIT LABEL LOCATION

XXXXXXXXXXXXXXXXXX SERIAL NO.: Spotwave Wireless Inc. www.spotwave.com MADE IN CANADA LABEL, DU, PRODUCT 161-00006-01 NTS 1 1 03 JO 03-05-01 01 GENERIC PATENT(S) PENDING MODEL NO.: IC: 4189XXXXXXXXXX FCC ID: P3YSPOTCELLXXXX B SCALESHEET OF OTTAWA, CANADA SPOTWAVE WIRELESS INC. DWG. NO. REV. ALL DIMENSIONS INCHES 3rd ANGLE PROJECTION DRAWN BY ENG. APPROVAL PROJ. APPROVAL DATE DATE DATE FINISH: TOLERANCES .XX.XXX ANG ±. ±. ± ° NEXT ASSY REVISIONS DESCRIPTIONREV.DATE BY 04 NCAGE L1156 100-XXXXXX-YY A0YYWWXXXXX 2 - GRAPHICS COLOR: BLACK. LINE 3 - ACTUAL SERIAL NUMBER OF THE UNIT GOING IN THE BOX. FRU DESCRIPTION AS PER 753-10000-01 DOC. LINE 2 - MODEL NO. TO BE DRIVEN BY 100 LEVEL FRU DESCRIPTION AS PER 753-10000-01 DOC. LINE 1 - NOMENCLATURE TO BE THE SAME AS 100 LEVEL 3 - LINES 1, 2, & 3 AS SPECIFIED ON WORK ORDER. 4 - ALL OTHER TEXT, FONT, SPACING & ARTWORK SHALL CONFORM TO IMAGE. -.100" HIGH, BOLD - SEE TABLE A FOR DETAILS. -.100" HIGH, BOLD -.170" HIGH, BOLD - 33 CHARACTERS MAX. 1 - MATERIAL: INTENDED FOR USE ON 160-00006-XX LABEL STOCK. NOTES: UNLESS OTHERWISE SPECIFIED, RESERVED (DEFAULT 0 (ZERO)) PLANT CODE (ASSIGNED BY SPOTWAVE) PLANT SPECIFIC SERIAL NO. YY/WW YYWW SERIAL NO. (SEE NOTE 3) TO IDENTIFY THE PRODUCT NAME AND MODEL NUMBER. REFER TO THE LATEST REV. OF DOCUMENT 753-10000-01 PRODUCT IDENTIFICATION: (SEE NOTE 3) A0 TABLE A XXXXXXXXX 5 - BAR CODE SHALL CONTAIN ONLY THE MODEL NUMBER/SERIAL NUMBER VALUES (NOT FIELD IDENTIFIERS) AND CONFORM TO ASCII 128A FORMAT. 161-00006-01-XX A 6 - TEXT FONT: ARIAL. 7 - FOR REVISION OF PART NO. USE REV IN TITLE BLOCK. 8 - FCC ID - SEE TABLE A FOR DETAILS. ONLY USE WHEN APPLICABLE, OTHERWISE BLANK. 9 - INDUSTRY CANADA ID - SEE TABLE A FOR DETAILS. ONLY USE WHEN APPLICABLE, OTHERWISE BLANK. RELEASED ECO 0103MAY-14-03J.O. 02ADDED INFO FOR IDEN DUNOV-26-03J.O. 03INCORP ECN 0262JUN-30-04J.O. PRODUCTINDUSTRY CANADA ID.FCC ID DU 800MHz4189311256AP3YSPOTCELL0003 DU 1900MHz4189A - 00000002P3YSPOTCELL0005 DU 800MHz (CN)BLANKBLANK DU 850MHz TBDBLANK DU 800MHz IDEN4189A - 00000003P3YSPOTCELL0009 DU SC6124189A - 00000004BLANK HPCU PCS4189A - 00000004P3YSPOTCELL0011 DU 111/112 141/1424189A - 00000006P3YSPOTCELL0013 04INCORP ECN 0299SEP-07-04J.O.

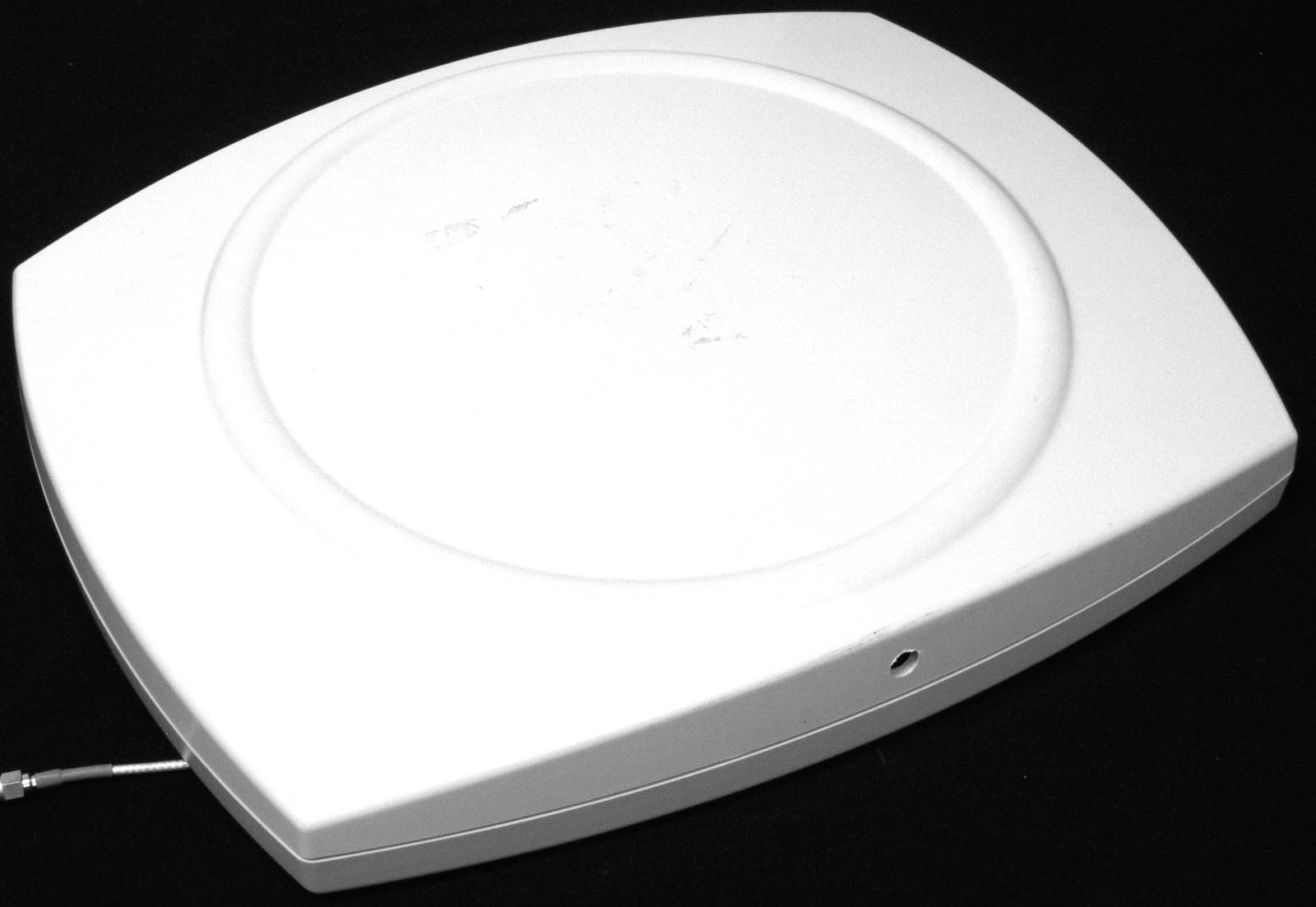

Spotwave Wireless Inc. 1 Hines Road Ottawa ON K2K 3C7 Canada Tel: (613) 591-1662 Fax: (613) 591-8107 www.spotwave.com Subject: Operational Description of DU 1900 FULL BAND The Full Band PCS DU The PCS DU is a 60MHz wide amplifier outdoor unit that receives the RF signal from the SpotCell 141/142 Dual Band CU and Spotcell 111/112 Split Band CU and transmits it to the Base Station and receives downlink RF signals from the base station to the CU for processing. The PCS DU is powered by a DC power that is transmitted with the same RF signal on the Coax cable from the CU. The PCS DU is also provided with a diplexer that separates the Cellular band RF signals from AP2 and transmits it the Cellular DU through a 1meter coax RF cable. The PCS DU is also provided with an integrated antenna with a peak gain of 11.5dBi. The PCS DU has a fixed gain on the downlink and on the uplink. It is also provided with an RSSI level indicator LED for installation. All the hardware is housed in a plastic housing for outdoor deployment. The PCS DU is also provided with a grounding stud for lightning protection. The protection/regulatory circuitry is also capable of shutting down the final stage amplifier on the uplink when the system decides to do so due to high in-band signal, under/over input voltage, high downlink in-band signal, high out-band signals, minimum Downlink signal, an isolation that can compromise the stability of the system and if the synthesizers get unlocked. Tune-Up Procedure and DC voltage of the last stage Amplifier. The final stage of the PCS DU on the downlink is a GaAs HBT linear amplifier, part N° SXA-389, from Sirenza Microdevices. (See attached datasheet for SXA-389). The device is operated at 5Vdc @120mA. The Uplink final stage of the PCS DU on the uplink is a GaAs HBT linear amplifier, part N° SPA-2318, from Sirenza Microdevices. (See attached datasheet for SPA-2318). The devices is operated at 5vdc @ 400mA. There is no tune-up on the PCS DU. The PCS DU has a fixed gain of 23dB on the Downlink and an UL gain of 20dB. Please refer to the block diagram of the PCS Full band DU, Doc N° 761-00015-01.

Prediction of MPE limit at a given distance DU 1900 Full Band Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 18.50 (dBm) Maximum peak output power at antenna input terminal: 70.79457844 (mW) Antenna gain(typical): 11.5 (dBi) Maximum antenna gain: 14.12537545 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1850-1910 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.198944 (mW/cm^2) Maximum allowable antenna gain: 18.51269855 (dBi) Margin of Compliance: 7.012698554 2 4 R PG S π =

Copyright © 2004, Spotwave Wireless Inc Subject: MPE Compliance Statement for DU 1900 FULL BAND Outdoor Adaptive Repeater for Uncontrolled Exposure (general population) and Occupational Workers (controlled exposure). Description: The DU 1900 FULL BAND Outdoor Adaptive Repeater is a full PCS band outdoor transmitter that is part of two systems. When deployed as part of the dual band transmitter system, Cellular and PCS, it is named Spotcell 141/142 PCS DU and when deployed as part of the PCS split band transmitter system, PCS and PCS, it is named Spotcell 111/112 (S) DU. The DU 1900 Full Band outdoor Adaptive Repeater equipment has been tested and the performance characterized in accordance with the MPE requirement of 47 CFR, Part 1.1310, Radiofrequency Exposure Limits for fixed installations, pursuant to 47 CFR, Part 24.52 of the FCC rules and regulation for PCS equipment and 47 CFR, Part 1.1310(b). Environmental Assessment Evaluation For fixed transmitters, CFR 47, Part 1.1307 (b) requires evaluation of Environmental Assessment if the particular transmitter would cause human exposure to levels of radio frequency radiation in excess of the limits in 1.1310. FCC regulation 47 CFR, Part 1.1307, Table 1 specifies that for broadband PCS, subpart E, EA evaluation is required for the following sites: • non-building mounted antennas: height above ground level to lowest point of antenna < 10m and total power of all channels > 3280 W EIRP. • building mounted antennas: total power of all channels > 3280 W EIRP. Since the maximum radiated composite output power of the DU 1900 Full Band is ≤30dBm EIRP (1 W EIRP) and the transmitter is designed for installation at outdoors and on rooftops, the transmitters are excluded for a routine environmental evaluation or preparation of an EA. Copyright © 2004, Spotwave Wireless Inc Section I – Human Exposure Compliance Statement for Spotcell 141/142 PCS DU (Dual Band Deployment) Pursuant to 47 CFR, Part 1.1310, the power density prediction was done in accordance with the FCC Office of Engineering and Technology (OET) Bulletin 65, Edition 97-01, "Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields". The new adopted changes to the Commission's Rules Regarding Human Exposure to Radiofrequency Electromagnetic Fields, as specified in document FCC 03-132, released on June 26, 2003 have also been implemented. The Spotcell 141/142 PCS DU Outdoor Adaptive repeater operates in the 1900MHz PCS band and is a low power adaptive repeater, having integral antenna built into the DU module. The repeater is designed to operate in an outdoor environment. The Maximum Permissible Exposure (MPE) limit for the general public is 1mW/cm 2 , averaged over 30 minutes, and for occupationally exposed persons is 5mW/cm 2 , averaged over 6 minutes time for the whole 1900MHz PCS band, as specified by 47 CFR, Part 1.1310, Table 1. The SpotCell 141/142 PCS DU complies with this limit at the following line of sight distances from the radiating antenna structure of the DU: Transmitting Device Distance at which MPE limit occurs from device for General Public Distance at which MPE limit occurs from device for Occupational workers Spotcell 141/142 PCS DU 8.9cm 4.0cm Spotcell 141/142 PCS DU co-located with the Spotcell 100 DU 16.3cm 7.3cm Copyright © 2004, Spotwave Wireless Inc Prediction Method for Spotcell 141/142 PCS DU RF Power Density Uncontrolled/General Public Exposure For the general uncontrolled population the Maximum Permissible Exposure (MPE) limit is 1mW/cm 2 , as specified by 47 CFR, Part 1.1310, for the PCS frequency band. The prediction methods used to calculate power density levels are based on worst- case far-field calculations: S = EIRP/(4πR 2 ), (1) From Equations for Predicting RF Fields, OET, bulletin 65-, Edition 97-01, August 1997, Where: S = power density in mW/cm 2 . EIRP = Equivalent isotropically radiated power in mW. R = distance in cm. The DU has a maximum composite total radiated power of 1000mW (30dBm) EIRP. Hence, S = 1mW/cm 2 . EIRP = 1000mW. R = 8.92cm, using the formula in (1). Since the Spotcell 141/142 PCS DU is deployed where the separation from the publicly accessible area is greater than 1 meter, the public is in no danger of being exposed to this limit. The customer manual has guideline where installers are instructed to install the DU in areas where no one will be within a meter of approach. Controlled/Occupational Exposure For occupational workers, the Maximum Permissible Exposure (MPE) limit is 5mW/cm 2 , as specified by 47 CFR, Part 1.1310, Table 1. Using equation (1) above, the distance at which the MPE limit occurs is 4cm. The DU has a radome with a separation of 3.5 cm from the radiating elements at the point where the gain is maximum. Hence there is only 0.5 cm of separation from the Copyright © 2004, Spotwave Wireless Inc housing where occupational workers could be exposed to the Maximum Permissible Exposure limit. The worst-case scenario is if some body touches the DU while transmitting. The maximum power density at the plastic housing is: S = 1000mW/(4π3.5 2 ) = 6.5mW/cm 2 (from OET, bulletin 65, page 11). At this power density, the maximum allowable time, T , is: 5mW/cm 2 x 6 minutes = 6.5mW/cm 2 x T T = 4.6 minutes Anyone who may be on a transient in front of the DU while transmitting may touch the housing of the transmitter or may linger for longer than 4.6 minutes at a distance less than 0.5cm. To prevent any person from staying longer than 4.6 minutes in front of the transmitter, at a distance less than 0.5cm, or from touching the radome for longer than 4.6 minutes, a warning label is applied on the DU informing installers to avoid being in front of the DU within a distance of one meter. This is being extra- cautious. MPE Limit consideration when Spotcell 141/142 PCS DU and Spotcell 100 DU are co-located The Spotcell 141/142 is a dual band transmitter system consisting of the uplink 800MHz Cellu…

Text truncated - open the document above for the full version.

Master: Generic FCC Date: October 16, 2001 Test Report: 4W29268 Issue III Applicant: Spotwave Wireless Inc. 1 Hines Rd. Ottawa, Ontario K2K 3C7 Equipment Under Test: DU 1900 Full Band (EUT) FCC ID: P3YSPOTCELL0013 In Accordance With: FCC Part 24 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC/EMI/Wireless Specialist. Date: 22 October 2004 Total Number of Pages: 27 Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 2 of 27 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. RF Power Output ................................................................................................6 Section 4. Occupied Bandwidth ..........................................................................................7 Section 5. Spurious Emissions at Antenna Terminals ....................................................11 Section 6. Field Strength of Spurious Emissions .............................................................17 Section 7. Out of Band Rejection .......................................................................................20 Section 8. Frequency Stability............................................................................................22 Section 9. Block Diagrams ..................................................................................................23 Section 10. Test Equipment List ..........................................................................................27 Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 3 of 27 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. TESTED BY: ______________________________ DATE: 22 October 2004 Glen Westwell, Wireless Specialist. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 4 of 27 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complied Occupied Bandwidth 2.1049 Complied Spurious Emissions at Antenna Terminals 2.1051 Complied Field Strength of Spurious Emissions 2.1053 Complied Out of Band Rejection EAB/RF-2-11-04 Complied Frequency Stability 2.1055 Complied Indoor Temperature: 25°C Humidity: 44% Outdoor Temperature: 18°C Humidity: 45% Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 5 of 27 Section 2. General Equipment Specification Manufacturer: Spotwave Wireless Inc. Model No.: DU 1900 Full Band Serial No.: None. Date Received In Laboratory: 15 Sept 2004 Nemko Identification No.: #2 Supply Input Voltage: 10.5Vdc Frequency Range: Uplink: 1850-1910MHz Rated Output Power (conducted composite): GSM & CDMA: +18.5dBm, 0.071W WCDMA: +15.5dBm, 0.036W Antenna Gain (maximum): 11.5dBi Emission Designator GXW (GSM) F9W (CDMA) F9W (WCDMA) Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 6 of 27 Section 3. RF Power Output Para. No.: 2.1046 Test Performed By: Glen Westwell Date of Test: 13 Sept. 2004 Minimum Standard: 24.232 Test Results: Complied. Measurement Data: The maximum RF output power is within +1dB of the manufacturer’s rating. The Composite RF output power is de-rated according to the number of channels via AGC and is equal to Pmax –10LogN. Pmax = Maximum Composite RF Output Power N = Number Of Channels The power levels were measured at maximum input drive and gain. This device uses AGC to prevent saturation or over-modulation. Uplink Maximum Conducted Power Channel Frequency (MHZ) Measured Power (dBm) Rated Max. Power (dBm) 1850 12.1 18.5 1860 16.2 18.5 1870 18.5 18.5 1870 18.2 18.5 1880 18.0 18.5 1890 18.5 18.5 1890 18.0 18.5 1900 18.5 18.5 1910 11.6 18.5 Note: (1) Power measurements are shown across all three 20MHz band selections to cover the complete 60MHz uplink. Band edge attenuation due to the filter characteristics can be seen in the table above. Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 7 of 27 Section 4. Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Glen Westwell Date of Test: 15 Sept 2004 Minimum Standard: 24.238 Test Results: Complies. Measurement Data: See attached graphs. The occupied bandwidth was measured by comparison of input from the signal generator to the output signal from the amplifier. This was done in order to determine if there was any degradation to the output signal due to the amplification and conversion through the repeater. Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 8 of 27 Uplink, Input vs Output PCS Band Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 9 of 27 Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 10 of 27 Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 11 of 27 Section 5. Spurious Emissions at Antenna Terminals Para. No.: 2.1051 Test Performed By: Glen Westwell Date of Test: 17…

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC Part 24 PROJECT NO.:4W29268 EQUIPMENT: DU 1900 Full Band Page 19 of 27 Emissions Search Photos
