P4E-SMARTPIN-5Inductive Proximity Card Reader

Proximity Card Reader SmartID Ref. V7-132006 2 This manual is applicable for the following SmartID products: • 800-8002 SmartID/EM4102 • 800-8003 SmartID/EM4102/RS232/RO • 800-8001 SmartID/EM4102/pin • 800-8015 SmartID/Hitag1&2 • 800-8016 SmartID/Hitag1&2/RW • 800-8008 SmartID/Hitag1&2/PIN • 800-8025 Mifare Serial number Reader/Rs232 • 800-8030 ISO14443-3 Mifare Sector reader • 800-8045 ISO14443-3 Mifare Sector reader and pinpad • 800-8062 SmartID/ISO14443-3/MifareDual/RO • 800-8077 SmartID/ISO14443-3/PIN/MifareDual • 800-8060 ISO14443-4 DESFire reader (PIV II) • 800-8061 ISO14443-4 DESFire reader • 800-8076 ISO14443-4DESFire PINpad reader • 800-8075 ISO14443-4DESFire PINpad reader (PIV II) • 800-8063 ISO14443-4 DESFire and Mifare reader • 800-8078 ISO14443-4 DESFire and Mifare PINpad reader • 800-8080 ISO14443-4 reader (ISO7816-4, PIV II) • 800-8085 ISO14443-4 PINpad reader (ISO7816-4, PIV II) • 800-8081 ISO14443-4 PINpad reader (ISO7816-4 and Mifare, PIV II) • 800-8086 ISO14443-4 PINpad reader (ISO7816-4 and Mifare, PIV II) • 800-8100 SmartTRANS • 800-8110 SmartTRANS + PIN • 800-8150 SmartID/Legic • 800-8153 SmartID/Legic/PIN Extra options for these readers, which are included in this manual, are: • 500-0300 Reader Tamper switch • 500-9287 SmartID/Mountingplate/Grey (Spacer) • 500-8090 SmartID/SPMD (Switch Box Mounting Device) 3 Table of content: Features.............................................................4 Mullion Mounting...............................................5 Indications.........................................................5 Connections.......................................................5 Output protocols................................................6 Security..............................................................6 Specifications.....................................................6 Typical read range with an ISO Card......................6 Power Supply......................................................6 Power requirements.............................................7 Interface.............................................................7 Dimensions.........................................................7 Material..............................................................7 Operating temperature.........................................7 Certifications.......................................................7 Cable Distance.....................................................9 SIA recommended cable type for Wiegand signals..10 Wiegand Signal Levels........................................10 Reader output interface and pull-up resistors........10 Timing..............................................................11 Installation instruction....................................12 Mullion Mounting.............................................14 Connector Assignments....................................15 Tamper Switch.................................................16 Mounting tool...................................................17 Mounting Plate (Spacer)..................................19 Notes ..............................................................20 4 Features The Smart ID Reader has a slim door style mountable design to match any decor. The sunk LED’s and buzzer allow the Smart ID Readers to be mounted indoors and outdoors. The Smart ID Reader accepts 5 to 12 Volts DC. The reader output formats like clock-and-data magstripe (ABA / ISO7811), Wiegand and a number of other formats are determined by the personalization of the card or configuration of the reader. The 5 Volt DC capability allows the replacement of older reader systems without rewiring or pulling new cables. The Smart ID Reader offers high reliability, consistent read characteristics and low power consumption. Within the Smart ID Proximity Reader Family also models with a RS232/RS422/RS485 interface are available for read-only and read/write operations. The RS232/RS422/RS485 have not been evaluated by UL. The Smart ID Reader Family supports both the 125KHz and 13.56MHz technologies. Different models are available for EM4102, HiTAG1 and 2, Mifare, DESFire, Legic and I·Code technology. (The pure 125kHz variants of this reader, EM4102 and HiTAG 1&2, and Legic have not been evaluated by UL. The ISO14443 variant is evaluated by UL) Standard capabilities include Host system controlled red and green LED’s and a buzzer. 5 The Smart ID Reader can be mounted on any surface without relevant performance degradation. For mounting on a metal surface a spacer is advised. Our commitment is to bring non-propriety, open Radio Frequent Identification (RFID) systems to the market demonstrated with the Smart ID Reader Family. Mullion Mounting The Smart ID Readers can be mounted on a door mullion. Optional there is a mounting kit available in case the small Smart ID reader will be mounted over a wall box (mounting US back box, vertical 84 milimeter (3.31 inch), mounting European back box, horizontal 60 millimeter (2.36 inch)). Indications When a proximity card is decoded successfully the with the card associated code is send to the Host system and the buzzer sounds a short 3KHz beep. Both LED’s and the buzzer are also controllable by the Host system. Connections The Smart ID Reader Family has a flexible and reliable connector interface. The space for the cable and the connector within the Smart ID housing can be sealed with silicone to withstand harsh environmental conditions. 6 Output protocols The Smart ID Reader Family can operate with any facility, system or card coding scheme. The output format, contents and length are determined by the personalization of the card or configuration of the reader. Output formats like magstripe, Wiegand and several others are available. The Wiegand output is evaluated by UL. The readers are intended for connection to a UL 294 Listed Access Control Panel where compatibility to the reader is referenced in the control unit’s installation instructions. Security Depending…

Text truncated - open the document above for the full version.

TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno-eps.com T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date February 08, 2007 Our reference 07K0050A Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands TCB Telefication BV Certification Department Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Sir or Madam: On behalf of our customer Integrated Engineering, we hereby would like to apply for FCC certification of the following device: FCC ID : P4E-SMARTPIN-5 Brand : Integrated Engineering Model : Smartid/Legic/8pin Description : 13.56 MHz Inductive Proximity Card Reader The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this letter). 2. Request for confidentiality 3. Authorization letter 4. Form 731 5. Antenna information 6. Bill of materials 7. Block diagram 8. Circuit diagram 9. Interior and exterior photographs 10. Label information 11. Operational description 12. Test report in conformity with 47 CFR Part 15 13. Test setup photographs 14. User manual Best regards, TNO Electronic Products & Services (EPS) B.V. P. de Beer Approvals & Quality Manager

To whom it may concern, This letter confirms the agreement that: TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 9822 TL Niekerk The Netherlands Phone number: +31 594 505005 Fax number: +31 594 504814 is authorized as an agent for Integrated Engineering BV Paasheuvelweg 20 1105 BJ Amsterdam The Netherlands This agent authorization includes: -signing application forms and act on behalf of Integrated Engineering BV -receiving and exchanging data between Integrated Engineering BV and worldwide national authorities regarding the -certification of- and/or -arranging type approvals for the following product: proximity readers for access control and other purposes. This authorization will expire on December 31, 2007 or upon earlier written notice from Integrated Engineering BV. Yours sincerely,

TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno-eps.com T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date February 08, 2007 Our reference 07K0050B Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands TCB Telefication BV Certification Department Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Sir or Madam: Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: P4E-SMARTPIN-5, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Integrated Engineering and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. P. de Beer Approvals & Quality Manager

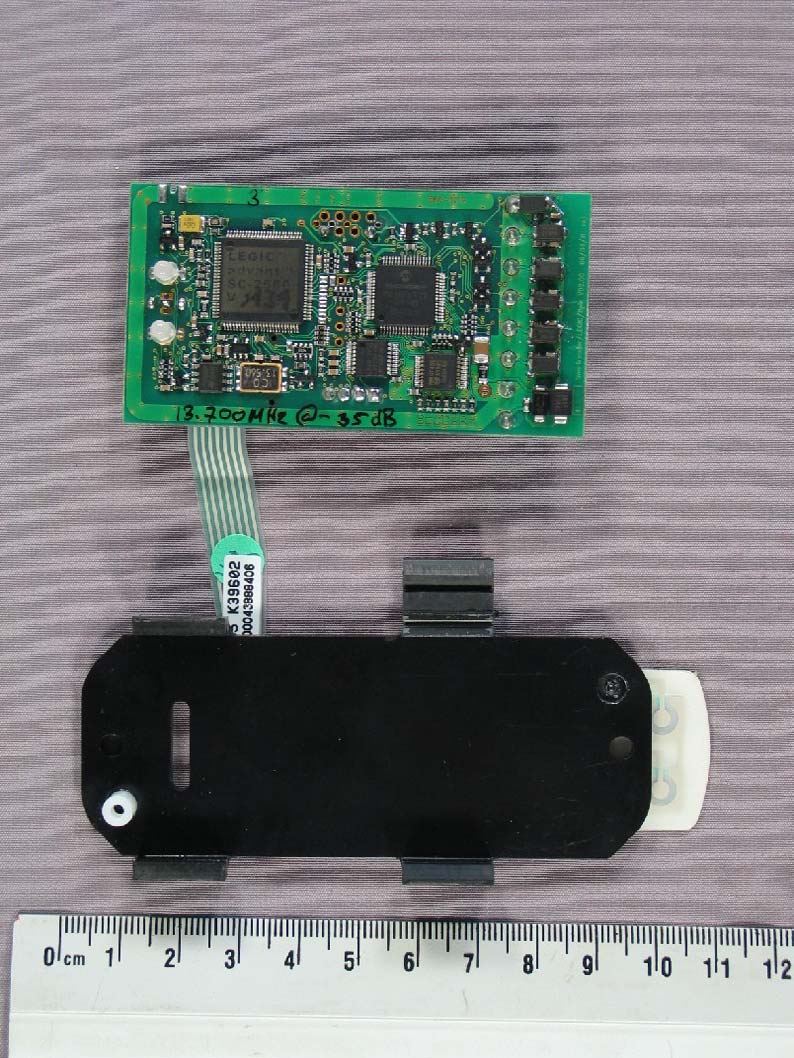

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 06080103.p02 Page 1 of 7 EXTERIOR AN INTERIOR PHOTOGRAPHS OF A SMARTTRANS READER, BRAND INTEGRATED ENGINEERING, MODEL SMARTID/LEGIC/8PIN FCC listed Industry Canada : : 90828 IC3501 Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 2 of 7 Description of test item Test item : 13.56 MHz Smarttrans reader Manufacturer : Integrated Engineering B.V. Brand mark : Integrated Engineering Model : SmartID/Legic/8pin Serial number : --- Receipt number : 1 Receipt date : August 25, 2006 Applicant information Applicantís representative : Ir. R. Holslag Company : Integrated Engineering Address : Paasheuvelweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : - Postal code : - City : - Country : the Netherlands Telephone number : +31 (0) 20 46 20 755 Telefax number : +31 (0) 20 46 20 756 Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 3 of 7 Table of contents 1 Photographs of the equipment ................................................................................................................................................4 1.1 Front view exterior .........................................................................................................................................................4 1.2 Rear view exterior ..........................................................................................................................................................5 1.3 Front view interior..........................................................................................................................................................6 1.4 Rear view interior ...........................................................................................................................................................7 Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 4 of 7 1 Photographs of the equipment 1.1 Front view exterior Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 5 of 7 1.2 Rear view exterior Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 6 of 7 1.3 Front view interior Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 7 of 7 1.4 Rear view interior

Label information for Brand: Integrated Engineering Model: SmartID/Legic FCC-ID: P4E-SMARTPIN-5 The statement on compatibility with Part 15 as meant in 47 CFR Part 15.19 (a) (3) will be in the information to the user. The size of the label is 20mm x 38mm. In line with 47 CFR 15.19, The label will be of polyester film or comparable material with indelibly inprinted marking, fastened by a permanent adhesive, such that detachment is not readily possible. The label is designed to last the expected lifetime of the equipment. Samples of identification label on the product: SmartID/Legic FCC-ID: P4E-SMARTPIN-5 <- FCC id Artno: 800-8150 V2.01 <- VERSION YR-WK-S/N: 06-46-1234 CE <- YEAR WEEK NUMBER, CE Conf: 01MFR-0031 <- CONFIGURATION (frontsticker, etc) SmartID/Legic/PIN FCC-ID: P4E-SMARTPIN-5 <- FCC id Artno: 800-8153 V2.01 <- VERSION YR-WK-S/N: 06-46-2345 CE <- YEAR WEEK NUMBER, CE Conf: 01MFR-0031 <- CONFIGURATION (frontsticker, etc) SmartID/Module FCC-ID: P4E-SMARTPIN-5 <- FCC id Artno: 800-8151 V2.01 <- VERSION YR-WK-S/N: 06-46-3456 CE <- YEAR WEEK NUMBER, CE Conf: 01MFR-0031 <- CONFIGURATION (frontsticker, etc)

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 06080103.p02 Page 1 of 7 EXTERIOR AN INTERIOR PHOTOGRAPHS OF A SMARTTRANS READER, BRAND INTEGRATED ENGINEERING, MODEL SMARTID/LEGIC/8PIN FCC listed Industry Canada : : 90828 IC3501 Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 2 of 7 Description of test item Test item : 13.56 MHz Smarttrans reader Manufacturer : Integrated Engineering B.V. Brand mark : Integrated Engineering Model : SmartID/Legic/8pin Serial number : --- Receipt number : 1 Receipt date : August 25, 2006 Applicant information Applicantís representative : Ir. R. Holslag Company : Integrated Engineering Address : Paasheuvelweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : - Postal code : - City : - Country : the Netherlands Telephone number : +31 (0) 20 46 20 755 Telefax number : +31 (0) 20 46 20 756 Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 3 of 7 Table of contents 1 Photographs of the equipment ................................................................................................................................................4 1.1 Front view exterior .........................................................................................................................................................4 1.2 Rear view exterior ..........................................................................................................................................................5 1.3 Front view interior..........................................................................................................................................................6 1.4 Rear view interior ...........................................................................................................................................................7 Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 4 of 7 1 Photographs of the equipment 1.1 Front view exterior Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 5 of 7 1.2 Rear view exterior Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 6 of 7 1.3 Front view interior Description of EUT: Manufacturer: Brand mark: Model: Smarttrans reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin Project number: 06080103.p01 Page 7 of 7 1.4 Rear view interior

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 06080103_mod1.fcc Page 1 of 13 TEST REPORT CONCERNING THE COMPLIANCE OF A SMARTTRANS READER, OPERATING ON 13.56 MHZ, BRAND INTEGRATED ENGINEERING, MODEL SMARTID/LEGIC/8PIN, WITH 47 CFR PART 15 (AUGUST 14, 2006). (MODIFIED REPORT NR: 06080103_mod1.fcc) FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-02-01) Smarttrans reader Integrated Engineering Integrated Engineering Smartid/Legic/8pin P4E-SMARTPIN-5 Project number 06080103_mod1.fcc Page 2 of 13 MEASUREMENT/TECHNICAL REPORT Integrated Engineering B.V. Model : Smartid/Legic/8pin FCC ID: P4E- SMARTPIN-5 February 20, 2007 (replaces version 06080103.fcc of February 2, 2007) This report concerns: Original grant/certification Class 2 change Verification Equipment type: Smarttrans reader Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No n.a. Report prepared by: Name : Ties E.T. Koning Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 (August 14, 2006) and the measurement procedures of ANSI C63.4-2003. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: February 20, 2007 Signature: H.J. Pieters Project Manager TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-02-01) Smarttrans reader Integrated Engineering Integrated Engineering Smartid/Legic/8pin P4E-SMARTPIN-5 Project number 06080103_mod1.fcc Page 3 of 13 Description of test item Test item : 13.56 MHz Inductive Proximity Card Reader Manufacturer : Integrated Engineering B.V. Brand : Integrated Engineering Model : Smartid/Legic/8pin Serial number(s) : n.a. Revision : n.a. Receipt date : August 1, 2006 Applicant information Applicant's representative : Ir. R. Holslag Company : Integrated Engineering B.V. Address : Paasheuvelweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : - Postal code : - City : - Country : The Netherlands Telephone number : +31 (0) 20 46 20 755 Telefax number : +31 (0) 20 46 20 756 Test(s) performed Location : Niekerk Test(s) started : August 25, 2006 Test(s) completed : November 28, 2006 Purpose of test(s) : Equipment Authorisation (Original grant/certification) Test specification(s) : 47 CFR Part 15 (August 14, 2006) Test engineers : J. Schuurmans, B.Sc.E.E. i.o. Report written by : Ties E.T. Koning. Report date : February 20, 2007 (replaces version 06080103.fcc of February 2, 2007) This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-02-01) Smarttrans reader Integrated Engineering Integrated Engineering Smartid/Legic/8pin P4E-SMARTPIN-5 Project number 06080103_mod1.fcc Page 4 of 13 Table of contents 1 General information. ..............................................................................................................................................................5 1.1 Product description.........................................................................................................................................................5 1.1.1 Introduction. ...........................................................................................................................................................5 1.2 Related submittal(s) and/or Grant(s). .............................................................................................................................5 1.2.1 General. ..................................................................................................................................................................5 1.2.2 FCC ID P4E-SMARTPIN-5. ..................................................................................................................................5 1.3 Tested system details......................................................................................................................................................5 1.3.1 Description of input and output ports. ....................................................................................................................6 1.4 Test methodology. ..........................................................................................................................................................6 1.5 Test facility.....................................................................................................................................................................6 1.6 Product labeling..............................................................................................................................................................6 2 System test…

Text truncated - open the document above for the full version.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 06080103.p03 Page 1 of 6 47 CFR PART 15 TEST SETUP PHOTOGRAPHS OF A SMARTTRANS READER, BRAND INTEGRATED ENGINEERING, MODEL SMARTID/LEGIC/8PIN FCC ID P4E-SMARTPIN-5 FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive e-document reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin P4E-SMARTPIN-5 Project number: 06080103.p03 Page 2 of 6 Description of test item Test item : 13.56 MHz Smarttrans reader Manufacturer : Integrated Engineering B.V. Brand mark : Integrated Engineering Model : SmartID/Legic/8pin Applicant information Applicantís representative : Mr. R.J. Holslag Company : Integrated Engineering B.V. Address : Paasheuvelsweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : n.a. Postal code : n.a. City : n.a. Country : The Netherlands Telephone number : + 31 (0)20 46 20 755 Telefax number : + 31 (0)20 46 20 756 Website address : www.smart-ID.com Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive e-document reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin P4E-SMARTPIN-5 Project number: 06080103.p03 Page 3 of 6 Table of contents 1 Test setup photographs of radiated emission measurements. .................................................................................................4 1.1 Smartid/Legic/8pin .........................................................................................................................................................4 2 Test setup photographs of conducted emission measurements...............................................................................................6 2.1 Smartid/Legic/8pin .........................................................................................................................................................6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive e-document reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin P4E-SMARTPIN-5 Project number: 06080103.p03 Page 4 of 6 1 Test setup photographs of radiated emission measurements. 1.1 Smartid/Legic/8pin Photo 1: Radiated emission; front side view . Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive e-document reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin P4E-SMARTPIN-5 Project number: 06080103.p03 Page 5 of 6 Photo 2: radiated emission measurement set up; back side view. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive e-document reader Integrated Engineering B.V. Integrated Engineering SmartID/Legic/8pin P4E-SMARTPIN-5 Project number: 06080103.p03 Page 6 of 6 2 Test setup photographs of conducted emission measurements 2.1 Smartid/Legic/8pin Photo 3: Conducted emission measurement set up; front side view.
