P4IBTM403Bluetooth module

FLC-BTM403 Datasheet Flaircomm Microelectronics Confidential -1- FLC-BTM403/FLC-BTMDC748 Datasheet Document Type: Bluetooth Module Datasheet Document Number: FLC-BTM403-DS Document Version: V1.3 Release Date: 2012/11/12 Copyright 2012 ~ 2014 by Flaircomm Microelectronics Inc., All Right Reserved Without written permission from Flaircomm Microelectronics Inc., reproduction, transfer, distribution or storage of part or all of the contents in this document in any form is prohibited FLC-BTM403 Datasheet Flaircomm Microelectronics Confidential -2- Release Record Version Release Date Comments 1.0 2012/6/26 Release 1.1 2012/9/14 Modify operating temperature. Add BT/CE/FCC logo. Add Cautions & Warnings. 1.2 2012/11/1 Add Antenna Statement. 1.3 2012/11/12 Modify 11.3 Label Instructions. FLC-BTM403 Datasheet Flaircomm Microelectronics Confidential -3- CONTENTS 1. INTRODUCTION .................................................................................................................................................. 6 1.1 NAMING DECLARATION ........................................................................................................................................ 6 1.2 BLOCK DIAGRAM .................................................................................................................................................. 7 1.3 FEATURES ............................................................................................................................................................. 7 1.4 APPLICATIONS ...................................................................................................................................................... 7 2. GENERAL SPECIFICATION ............................................................................................................................. 9 3. PIN DEFINITION ................................................................................................................................................ 10 3.1 PIN CONFIGURATION ........................................................................................................................................... 10 3.2 PIN DEFINITION ................................................................................................................................................... 10 4. PHYSICAL INTERFACES ................................................................................................................................ 12 4.1 POWER SUPPLY ................................................................................................................................................... 12 4.2 RESET ................................................................................................................................................................. 12 4.3 DIGITAL AUDIO INTERFACES .............................................................................................................................. 13 4.3.1 PCM Interface Master/Slave ...................................................................................................................... 13 4.3.2 Long Frame Sync ....................................................................................................................................... 14 4.3.3 Short Frame Sync ....................................................................................................................................... 15 4.3.4 Multi-slot Operation ................................................................................................................................... 15 4.3.5 GCI Interface .............................................................................................................................................. 16 4.3.6 Slots and Sample Formats .......................................................................................................................... 16 4.3.7 Additional Features .................................................................................................................................... 17 4.3.8 PCM Timing Information ........................................................................................................................... 17 4.4 RF INTERFACE .................................................................................................................................................... 21 4.5 GENERAL PURPOSE ANALOGUE IO ..................................................................................................................... 21 4.6 GENERAL PURPOSE DIGITAL IO .......................................................................................................................... 21 4.7 SERIAL INTERFACES ............................................................................................................................................ 21 4.7.1 UART ......................................................................................................................................................... 21 4.7.2 USB ............................................................................................................................................................ 22 4.7.3 I 2 C .............................................................................................................................................................. 24 4.7.4 SPI .............................................................................................................................................................. 24 5. ELECTRICAL CHARACTERISTIC ................................................................................................................ 26 5.1 ABSOLUTE MAXIMUM RATING ........................................................................................................................... 26 5.2 RECOMMEND OPERATION CONDITIONS ............................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2012.9.26 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ____ Fujian Flaircomm Microelectronics,Inc. _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name：Bluetooth module Model Name：FLC-BTM403IQ2A、FLC-BTM403VQ2A、FLC-BTM403IQ2B、 FLC-BTM403VQ2B、FLC-BTM403IQ2C 、FLC-BTM403VQ2C FCC ID: P4IBTM403 We affirm that between SIEMIC and ____ Fujian Flaircomm Microelectronics,Inc. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title: Marvin.Zhao/ President Address: 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China. Tel: 0591-88833388 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2012.9.26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: P4IBTM403 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title: Marvin.Zhao/ President Address: 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China. Tel: 0591-88833388 E-mail: [email protected]

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (current) 6.0 7.0 Jan-31-2012 SCS-F26 Modular Approval Letter Page 2 of 2 Rev 7.0 2012.9.26 Bluetooth module FCC ID : P4IBTM403 , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature : Client’s name / title: Marvin.Zhao/ President Address: 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China. Tel: 0591-88833388 E-mail: [email protected]

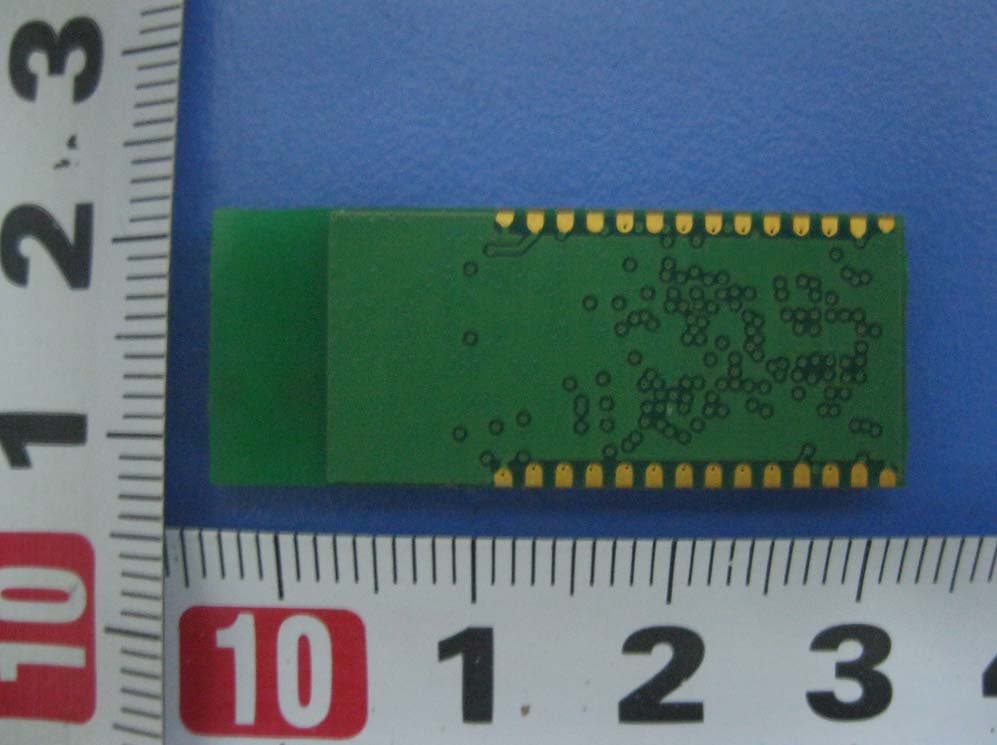

Annex B. EUT External Photo EUT - Front View EUT - Rear View

FCC ID: P4IBTM403 Model:FLC-BTM403IQ2A 7.50mm 14.00mm FLC-BTM403 Series Label

FLC-BTM403 Series Label Location 14.00mm 35.30mm Label Location FCC ID: P4IBTM403 Model:FLC-BTM403IQ2A

Annex B. EUT Internal Photo Uncover Without Shielding - Top View BT Antenna - Front View BT Antenna

Fujian Flaircomm Microelectronics,Inc. Bluetooth module Main Model: FLC-BTM403IQ2A Serial Model: See P5 October 30, 2012 Report No.: 12020708-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Alan Lv Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Report for Bluetooth module Main Model: FLC-BTM403IQ2A Serial Model: See P5 To: FCC 2.1091: 2012 Report No.: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 2 of 8 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Exposure Report for Bluetooth module Main Model: FLC-BTM403IQ2A Serial Model: See P5 To: FCC 2.1091: 2012 Report No.: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 3 of 8 www.siemic.com.cn This page has been left blank intentionally. Title: RF Exposure Report for Bluetooth module Main Model: FLC-BTM403IQ2A Serial Model: See P5 To: FCC 2.1091: 2012 Report No.: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 4 of 8 www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION...........................................................................................5 2. TECHNICAL DETAILS ..........................................................................................................................................6 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..................................................................................................7 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE)...................................................................................7 Title: RF Exposure Report for Bluetooth module Main Model: FLC-BTM403IQ2A Serial Model: See P5 To: FCC 2.1091: 2012 Report No.: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 5 of 8 www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Fujian Flaircomm Microelectronics,Inc. Bluetooth module and model: FLC-BTM403IQ2A against the current Stipulated Standards. The Bluetooth module has demonstrated compliance with the FCC 2.1091: 2012. EUT Information EUT Description : Bluetooth module Main Model : FLC-BTM403IQ2A Serial Model : FLC-BTM403VQ2A, FLC-BTM403IQ2B , FLC-BTM403VQ2B, FLC-BTM403IQ2C ,FLC-BTM403VQ2C Antenna Gain : 0.5 dBi Input Power : Voltage Range: 2.7 ~ 3.6V DC Classification Per Stipulated Test Standard : FCC 2.1091: 2012 NOTE ：According to the description of the FLC-BTM403 Datasheet and Declaration letter，the BTM403B can be decision belong to BTM403A's serial model. So BTM403B do not need to do the test.(Please refer to the Declaration letter in page 83/84/85 of report 12020708-FCC-R1 and the FLC-BTM403 Datasheet page 38). Title: RF Exposure Report for Bluetooth module Main Model: FLC-BTM403IQ2A Serial Model: See P5 To: FCC 2.1091: 2012 Report No.: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 6 of 8 www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of Bluetooth module with stipulated standard Applicant / Client Fujian Flaircomm Microelectronics,Inc. 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China Manufacturer Fujian Flaircomm Microelectronics,Inc. 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12020708-FCC-R1 Date EUT received August 23, 2012 Standard applied FCC 2.1091: 2012 Dates of test August 28 to October 09, 2012 No of Units #1 Equipment Category mobile device Trade Name N/A RF Operating Frequency (ies) 2402-2480MHz Number of Channels 79 CH Modulation GFSK, π/4-DQPSK, 8DPSK FCC ID P4IBTM403 Title: RF Exposure Report for Bluetooth module Main Model: FLC-BTM403IQ2A Serial Model: See P5 To: FCC 2.1091: 2012 Report No.: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 7 of 8 www.siemic.com.cn 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrol…

Text truncated - open the document above for the full version.

Fujian Flaircomm Microelectronics,Inc. Bluetooth module Main Model: FLC-BTM403IQ2A Serial Model: See P5 October 30, 2012 Report No.: 12020708-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Alan Lv Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Bluetooth module Main Model: FLC-BTM403IQ2A Main Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 2 of 85 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for Bluetooth module Main Model: FLC-BTM403IQ2A Main Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 3 of 85 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Bluetooth module Main Model: FLC-BTM403IQ2A Main Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 4 of 85 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS .........................................................................................................................................6 3 MODIFICATION.....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................71 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................77 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................78 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................82 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................83 Title: RF Test Report for Bluetooth module Main Model: FLC-BTM403IQ2A Main Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 5 of 85 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Fujian Flaircomm Microelectronics,Inc., Bluetooth module and model: FLC-BTM403IQ2A against the current Stipulated Standards. The Bluetooth module has demonstrated compliance with the FCC Part 15.247: 2012, ANSI C63.4: 2009. EUT Information EUT Description : Bluetooth module Main Model : FLC-BTM403IQ2A Serial Model : FLC-BTM403VQ2A, FLC-BTM403IQ2B , FLC-BTM403VQ2B, FLC-BTM403IQ2C ,FLC-BTM403VQ2C Antenna Gain : 0.5 dBi Input Power : Voltage Range: 2.7 ~ 3.6V DC Classification Per Stipulated Test Standard : FCC Part 15.247: 2012, ANSI C63.4: 2009 NOTE ：According to the description of the FLC-BTM403 Datasheet and Declaration letter，the BTM403B can be decision belong to BTM403A's serial model. So BTM403B do not need to do the test.(Please refer to the Declaration letter and the FLC-BTM403 Datasheet page 38). Title: RF Test Report for Bluetooth module Main Model: FLC-BTM403IQ2A Main Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12020708-FCC-R1 Issue Date: October 30, 2012 Page: 6 of 85 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Bluetooth module with stipulated standard Applicant / Client Fujian Flaircomm Microelectronics,Inc. 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China Manufacturer Fujian Flaircomm Microelectronics,Inc. 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12020708-FCC-R1 Date EUT received Augus…

Text truncated - open the document above for the full version.

Annex B. Test Setup Photo Conducted Emissions Test Setup - Front View Conducted Emissions Test Setup - Side View Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz - Front View
