P4ICBM202WiFi and BT combo module

FLC-CBM202 Datasheet Flaircomm Microelectronics Confidential -1- FLC-CBM202 Datasheet Document Type: Combo Module Datasheet Document Number: FLC-CBM202-DS Document Version: V1.2 Release Date: Feb.22, 2013 Copyright 2012 ~ 2014 by Flaircomm Microelectronics, Inc., All Right Reserved Without written permission from Flaircomm Microelectronics, Inc., reproduction, transfer, distribution or storage of part or all of the contents in this document in any form is prohibited FLC-CBM202 Datasheet Flaircomm Microelectronics Confidential -2- Release Record Version Release Date Comments 0.1 June 16, 2011 Preliminary Release 0.2 August 05, 2011 Add Section5.2 1.0 July 3, 2012 1.1 Jan. 11, 2013 Add Section 11 1.2 Feb.22，2013 Modify Frequency Band. FLC-CBM202 Datasheet Flaircomm Microelectronics Confidential -3- CONTENTS 1. INTRODUCTION .................................................................................................................................................. 6 1.1 BLOCK DIAGRAM .................................................................................................................................................. 6 1.2 FEATURES ............................................................................................................................................................. 6 1.2.1 WiFi Features ............................................................................................................................................... 6 1.2.2 Bluetooth Features ........................................................................................................................................ 7 1.3 FUNCTIONS ........................................................................................................................................................... 7 1.3.1 WiFi Functions ............................................................................................................................................. 7 1.3.2 Bluetooth Functions ..................................................................................................................................... 8 1.4 APPLICATIONS ...................................................................................................................................................... 9 2. GENERAL SPECIFICATION ........................................................................................................................... 10 3. PIN DEFINITION ................................................................................................................................................ 12 3.1 PIN CONFIGURATION ........................................................................................................................................... 12 3.2 PIN DEFINITION ................................................................................................................................................... 12 4. PHYSICAL INTERFACES ................................................................................................................................ 15 4.1 WIFI POWER SUPPLY .......................................................................................................................................... 15 4.1.1 Linear Regulator for Digital Supply ........................................................................................................... 15 4.1.2 Linear Regulator for Analogue Supply ...................................................................................................... 15 4.1.3 RF Front End Power Supply ...................................................................................................................... 15 4.1.4 I/O Power Supply ....................................................................................................................................... 15 4.2 BT POWER SUPPLY ............................................................................................................................................. 15 4.3 RESET ................................................................................................................................................................. 15 4.3.1 WiFi reset ................................................................................................................................................... 16 4.3.2 BT Reset ..................................................................................................................................................... 16 4.4 RF INTERFACE .................................................................................................................................................... 16 4.5 HOST INTERFACE ................................................................................................................................................ 17 4.5.1 WiFi Host Interfaces .................................................................................................................................. 17 4.5.2 Bluetooth UART Host Interfaces ............................................................................................................... 19 4.6 AUDIO INTERFACE .............................................................................................................................................. 19 4.6.1 PCM Interface ............................................................................................................................................ 19 4.6.2 Digital Audio Interface (I²S) ...................................................................................................................... 21 5. ELECTRICAL CHARACTERISTIC ................................................................................................................ 22 5.1 WIFI PERFORMANCE SPECIFICATIONS ...............................................................................................…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 2013.02.01 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Fujian Flaircomm Microelectronics,Inc. _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name：WiFi and BT combo module Model Name：FLC-CBM202；FLC-CBM202IL2B； FLC-CBM202VL2B；FLC-CBM202CL2B； FCC ID: P4ICBM202 We affirm that between SIEMIC and ____ Fujian Flaircomm Microelectronics,Inc. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature ： Client’s name / title： Marvin.Zhao/ President Address ：7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China. Tel: 0591-88833388 E-mail: [email protected] SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013.02.01 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: P4ICBM202 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Marvin.Zhao/ President Address: 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China. Tel: 0591-88833388 E-mail: [email protected]

福建慧翰微电子有限公司 Fujian Flaircomm Microelectronics, Inc. Fujian Flaircomm Microelectronics, Inc. Address:7F, Guomai Building,116 East JiangBin Ave., Fuzhou, Fujian,P.R.China, 350015 http://www.flairmicro.com Ordering information FLC-CBM202CL2A Product Revision Shipping Package Product Package Product Grade Ordering Information Note: Because the name “FLC-CBM202IL2A” is not easy to remember, we take “FLC-CBM202” for short as the main model of the product. 1、Product Revision Product Revision Description Availability A Release A Yes Product Revision 2、Shipping Package Shipping Package Description Quantity Availability 0 Foam Tray — No 1 Plastic Tray — No 2 Tape TBD Yes Shipping Package 3、Product Package Product Package Description Availability Q QFN No L LGA Yes B BGA No C Connector No Product Package 福建慧翰微电子有限公司 Fujian Flaircomm Microelectronics, Inc. Fujian Flaircomm Microelectronics, Inc. Address:7F, Guomai Building,116 East JiangBin Ave., Fuzhou, Fujian,P.R.China, 350015 http://www.flairmicro.com 4、Product Grade Product Grade Description Availability C Consumer Yes I Industrial Yes V Automobile After-Market Yes A Automobile Before-MarketNo Product Grade Note: A、 Consumer Grade（C）: Operation temperature range from -20°C to 70°C. Products can be used as common consumer electronics. B、 Industrial Grade（I）: Operation temperature range from -40°C to 85°C. Product can be used for industrial applications. C、 Automobile After-Market Grade（V）: Operation temperature range from -20°C to 70°C. Product can be used for after-market applications.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (current) 6.0 7.0 Jan-31-2012 SCS-F26 Modular Approval Letter Page 1 of 2 Rev 7.0 2013.02.01 (Product name) FCC ID : P4ICBM202 , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questi ons are: * Please provide a detailed explanation if the answer is “No.” 1. “The modular transmitter mus t have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature ： Client’s name / title ： Marvin.Zhao/ President Address： 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China. Tel: 0591-88833388 E-mail: [email protected] SCS-F26 Modular Approval Letter Page 2 of 2 Rev 7.0

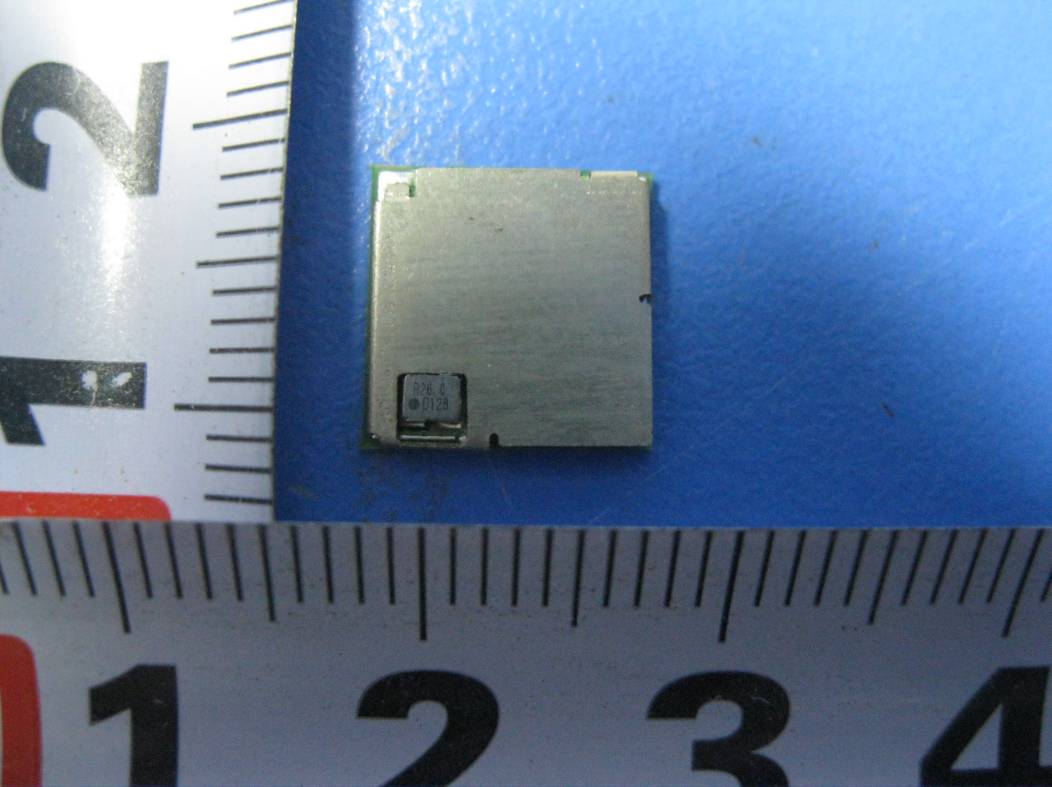

Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 77 of 89 www.siemic.com Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo EUT - Front View EUT - Rear View

http://www.flairmicro.com 第 1 页 共 1 页 福建慧翰微电子有限公司 Fujian Flaircomm Microelectronics, Inc Fujian Flaircomm Microelectronics, Inc. Address:7F, Guomai Building,116 East JiangBin Ave., Fuzhou, Fujian,P.R.China, 350015 FLC-CBM202 Label FCC ID:P4ICBM202 Model:FLC-CBM202

http://www.flairmicro.com 第 1 页 共 1 页 福建慧翰微电子有限公司 Fujian Flaircomm Microelectronics, Inc Fujian Flaircomm Microelectronics, Inc. Address:7F, Guomai Building,116 East JiangBin Ave., Fuzhou, Fujian,P.R.China, 350015 FLC-CBM202 Label Location 9.90mm 9.90mm Label Location

Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 78 of 89 www.siemic.com Annex B.ii. Photograph 2: EUT Internal Photo Uncover Without Shielding - Front View Uncover Without Shielding – Rear View Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 79 of 89 www.siemic.com Antenna – Front View Bluetooth &WIFI Antenn a

Fujian Flaircomm Microelectronics,Inc. WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 January 25, 2013 Report No.: 12021036-FCC-H1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Alan Lv Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Evaluation Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC 2.1091: 2012 Report No: 12021036-FCC-H1 Issue Date: January 25, 2013 Page: 2 of 9 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Exposure Evaluation Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC 2.1091: 2012 Report No: 12021036-FCC-H1 Issue Date: January 25, 2013 Page: 3 of 9 www.siemic.com This page has been left blank intentionally. Title: RF Exposure Evaluation Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC 2.1091: 2012 Report No: 12021036-FCC-H1 Issue Date: January 25, 2013 Page: 4 of 9 www.siemic.com CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) .................................................................................................. 7 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................................................................... 7 Title: RF Exposure Evaluation Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC 2.1091: 2012 Report No: 12021036-FCC-H1 Issue Date: January 25, 2013 Page: 5 of 9 www.siemic.com 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Fujian Flaircomm Microelectronics,Inc. WiFi and BT combo module and model: FLC- CBM202against the current Stipulated Standards. The WiFi and BT combo module has demonstrated compliance with the FCC 2.1091: 2012. EUT Information EUT Description : WiFi and BT combo module Main Model : FLC-CBM202 Serial Model FLC-CBM202IL2B; FLC-CBM202VL2B; FLC-CBM202CL2B Antenna Gain : 2.8 dBi Input Power : 1.8 ~ 3.3V DC Maximum Conducted Peak Power to Antenna : 802.11b:18.2 dBm 802.11g:19.0 dBm 802.11n:19.2 dBm BLE:7.00 dBm Classification Per Stipulated Test Standard : FCC 2.1091: 2012 NOTE： in this report, we choice the model FLC-CBM202 to test, and the difference between all of them please refer to Annex E. DECLARATION OF SIMILARITY of 12021036-FCC-R2. Title: RF Exposure Evaluation Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC 2.1091: 2012 Report No: 12021036-FCC-H1 Issue Date: January 25, 2013 Page: 6 of 9 www.siemic.com 2. TECHNICAL DETAILS Purpose Compliance testing of WiFi and BT combo module with stipulated standard Applicant / Client Fujian Flaircomm Microelectronics,Inc. 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China Manufacturer Fujian Flaircomm Microelectronics,Inc. 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12021036-FCC-H1 Date EUT received December 12, 2012 Standard applied FCC 2.1091: 2012 Dates of test January 21, 2013 No of Units #1 Equipment Category DTS& DSS Trade Name N/A RF Operating Frequency (ies) Bluetooth & BLE: 2402-2480 MHz WIFI: 802.11b/g/n: 2412-2462 MHz Number of Channels Bluetooth: 79CH 802.11b/g /n: 11CH BLE: 40CH Modulation Bluetooth: GFSK, π/4-DQPSK, 8DPSK DSSS/OFDM BLE: GFSK FCC ID P4ICBM202 Title: RF Exposure Evaluation Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC 2.1091: 2012 Report No: 12021036-FCC-H1 Issue Date: January 25, 2013 Page: 7 of 9 www.siemic.com 3. MAXIMUM PERMISSIBLE EXPOSURE (MPE) FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the …

Text truncated - open the document above for the full version.

Fujian Flaircomm Microelectronics,Inc. WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 January 24, 2013 Report No.: 12021036-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Alan Lv Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 2 of 89 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 3 of 89 www.siemic.com This page has been left blank intentionally. Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 4 of 89 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 71 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 77 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 82 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 86 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 87 Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 5 of 89 www.siemic.com 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Fujian Flaircomm Microelectronics,Inc., WiFi and BT combo module and model: FLC-CBM202 against the current Stipulated Standards. The WiFi and BT combo module has demonstrated compliance with the FCC Part 15.247: 2012, ANSI C63.4: 2009. EUT Information EUT Description : WiFi and BT combo module Main Model : FLC-CBM202 Serial Model : FLC-CBM202CL2A; FLC-CBM202IL2A; FLC-CBM202VL2A Antenna Gain : 2.8 dBi Input Power : Voltage Range: 1.8 ~ 3.3V DC Temperature -40ºC to +85ºC for A and I grade -20ºC to +70ºC for V and C grade Classification Per Stipulated Test Standard : FCC Part 15.247: 2012, ANSI C63.4: 2009 NOTE：in this report, we choice the model FLC-CBM202 to test, and the differences of them please refer to the Annex E. DECLARATION OF SIMILARITY. Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 6 of 89 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of WiFi and BT combo module with stipulated standard Applicant / Client Fujian Flaircomm Microelectronics,Inc. 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China Manufacturer Fujian Flaircomm Microelectronics,Inc. 7F,Guomai Building,116 East JiangBin Ave,Fuzhou,Fujian,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12021036-FCC-R1 Date EUT received December 12, 2012 Standar…

Text truncated - open the document above for the full version.

Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 80 of 89 www.siemic.com Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Title: RF Test Report for WiFi and BT combo module Main Model: FLC-CBM202 Serial Model: See P5 To: FCC Part 15.247: 2012, ANSI C63.4: 2009 Report No: 12021036-FCC-R1 Issue Date: January 24, 2013 Page: 81 of 89 www.siemic.com Radiated Emissions Test Setup Below 1GHz - Rear View Radiated Emissions Test Setup Above 1GHz - Front View
