P4M-DT2000CDMA Dual Band Data Module

CDMA DATA TERMINAL DT2000-Dual Reference Manual Application Information October 2, 2002 01-DT2000-Dual-1 X3 AnyDATA.NET AnyTime AnyPlace Any Wireless Data Solutions International Contact United Computer & Telecommunication Inc. 18902 Bardeen Ave Irvine, CA 92612-1522, U.S.A. e-mail : [email protected] Korea Contact AnyDATA.NET Hanvit Bank Bldg. 6th Fl., 1-12 Byulyang-dong Kwachon, Kyunggi-do, Korea e-mail : [email protected] AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM All Rights Reserved. AD-2001-06-28 Ver 1.1 -2- Notice All data and information contained in or disclosed by this document are confidential and proprietary information of AnyDATA.NET Inc. , and all rights therein are expressly reserved. By accepting this material, the recipient agrees that this material and the information contained therein are held in confidence and in trust and will not be used, copied, reproduced, or distributed in whole or in part, nor its contents revealed in any manner to others without the express written permission of AnyDATA.NET Inc . AnyDATA.NET Inc . does not assume any liability arising out of the application or use of its products. AnyDATA.NET Inc. assumes no responsibility for any damage or loss resulting from the misuse of its products. AnyDATA.NET Inc. assumes no responsibility for any loss or claims by third parties, which may arise through the use of its products. AnyDATA.NET Inc. assumes no responsibility for any damage or loss caused by the deletion or loss of data as a result of malfunctions or repairs. The information contained in this document is subject to change without notice. Information contained herein is for reference only and does not constitute a commitment on the part of AnyDATA.NET Inc . Although the information in this document has been carefully reviewed and it...s believed to be reliable, AnyDATA.NET Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in this document nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this document. AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM All Rights Reserved. AD-2001-06-28 Ver 1.1 -3- Contents 1 Introduction 1.1 Purpose 1.2 Organization 1.3 Revision History 1.4 Reference 1.5 Acronym List 2 Overview 2.1 Application Description 2.2 Technical Specifications 2.2.1 General Specification 2.2.2 Receive Specification 2.2.3 Transmit Specification 2.2.4 Standards 2.3 Interface Diagram 2.4 General Features 3 PIN Description 3.1 I/O Description Parameters 3.2 PIN Names and Pinouts 3.2.1 60-PIN Connector 3.3 60-Pin Connector Pinout (Top view) 4 Interface Descriptions 4.1 Overview 4.2 CODEC Interface AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM All Rights Reserved. AD-2001-06-28 Ver 1.1 -4- 4.3 UART Interface 4.3.1 Primary UART Interface 4.3.2 Secondary UART Interface 4.4 General Purpose Interface 4.5 External Hardware Reset 4.6 LEDs 4.7 User Interface 4.7.1 Key Pad 4.7.2 LCD 4.7.3 Ringer 5 Electrical Specifications 5.1 DC Electrical Specifications 5.1.1 Absolute Maximum Ratings 5.1.2 Recommended Operating Conditions 5.1.3 Power Consumption 5.1.4 Serial Interface Electrical Specifications 5.2 Timing Characteristics 5.2.1 External CODEC Timing 5.2.2 LCD Timing 6 Mechanical Dimension 6.1 DT2000-Dual Outline 6.2 60-Pin Connector 6.3 RF Connector AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM All Rights Reserved. AD-2001-06-28 Ver 1.1 -5- Figures Figure 2-1 Interface Block Diagram ....................................................................................... 11 Figure 2-2 General Features ................................................................................................... 12 Figure 4-1 Interface Block Diagram ....................................................................................... 16 Figure 4-2 Keypad Matrix ...................................................................................................... 21 Figure 4-3 LCD Interface Block Diagram .............................................................................. 22 Figure 4-4 Reference External Ringer Driver Circuit ............................................................. 23 Figure 5-1 External PCM CODEC to Module timing ............................................................ 25 Figure 5-2 Module to External PCM CODEC timing ............................................................ 25 Figure 5-3 LCD Timing .......................................................................................................... 26 Figure 6-1 60-pin Female Connector ––––––––––––––––––––––... 29 Figure 6-2 PCB Connector .––––––––––––––––––––––––––..30 Figure 6-3 PCB Connector Layout .–––––––––––––––––––––––. 30 Figure 6-4 Mechanical Characteristics of Cable Harness Assembly .–––––––––.–. 31 AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM All Rights Reserved. AD-2001-06-28 Ver 1.1 -6- Tables Table 1-1 Revision History ....................................................................................................... 7 Table 3-1 60-PIN Connector Pinouts ...................................................................................... 15 Table 4-1 Analog Audio Pinouts ............................................................................................ 17 Table 4-2 Digital CODEC Pinouts ......................................................................................... 18 Table 4-3 UART Interface Pinouts ......................................................................................... 18 Table 4-4 Secondary UART Interface Pinouts ––––––––––––––––––– 19 Table 4-5 General Purpose Interface Pinouts ......................................................................... 19 Table 4-6 LED Pinouts –––––––––––––––––––––––––––– 20 Table 4-7 LCD Interface Signals ............................................................................................ 22 Table…

Text truncated - open the document above for the full version.

CDMA DATA TERMINAL DT2000-Dual Reference Manual Application Information October 2, 2002 01-DT2000-Dual-1 X3 AnyDATA.NET AnyTime AnyPlace Any Wireless Data Solutions™ International Contact United Computer & Telecommunication Inc. 18902 Bardeen Ave Irvine, CA 92612-1522, U.S.A. e-mail : [email protected] Korea Contact AnyDATA.NET Hanvit Bank Bldg. 6th Fl., 1-12 Byulyang-dong Kwachon, Kyunggi-do, Korea e-mail : [email protected] AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM Notice All data and information contained in or disclosed by this document are confidential and proprietary information of AnyDATA.NET Inc., and all rights therein are expressly reserved. By accepting this material, the recipient agrees that this material and the information contained therein are held in confidence and in trust and will not be used, copied, reproduced, or distributed in whole or in part, nor its contents revealed in any manner to others without the express written permission of AnyDATA.NET Inc. AnyDATA.NET Inc. does not assume any liability arising out of the application or use of its products. AnyDATA.NET Inc. assumes no responsibility for any damage or loss resulting from the misuse of its products. AnyDATA.NET Inc. assumes no responsibility for any loss or claims by third parties, which may arise through the use of its products. AnyDATA.NET Inc. assumes no responsibility for any damage or loss caused by the deletion or loss of data as a result of malfunctions or repairs. The information contained in this document is subject to change without notice. Information contained herein is for reference only and does not constitute a commitment on the part of AnyDATA.NET Inc. Although the information in this document has been carefully reviewed and it’s believed to be reliable, AnyDATA.NET Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in this document nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this document. All Rights Reserved. AD-2001-06-28 Ver 1.1 -2- ! Warning: Exposure to Radio Frequency Radiation The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should not be less than 20cm during normal operation and the gain of the antenna must not exceed 1.5dBi. AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM Contents 1 Introduction 1.1 Purpose 1.2 Organization 1.3 Revision History 1.4 Reference 1.5 Acronym List 2 Overview 2.1 Application Description 2.2 Technical Specifications 2.2.1 General Specification 2.2.2 Receive Specification 2.2.3 Transmit Specification 2.2.4 Standards 2.3 Interface Diagram 2.4 General Features 3 PIN Description 3.1 I/O Description Parameters 3.2 PIN Names and Pinouts 3.2.1 60-PIN Connector 3.3 60-Pin Connector Pinout (Top view) 4 Interface Descriptions 4.1 Overview 4.2 CODEC Interface All Rights Reserved. AD-2001-06-28 Ver 1.1 -3- 4.3 UART Interface AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM 4.3.1 Primary UART Interface 4.3.2 Secondary UART Interface 4.4 General Purpose Interface 4.5 External Hardware Reset 4.6 LEDs 4.7 User Interface 4.7.1 Key Pad 4.7.2 LCD 4.7.3 Ringer 5 Electrical Specifications 5.1 DC Electrical Specifications 5.1.1 Absolute Maximum Ratings 5.1.2 Recommended Operating Conditions 5.1.3 Power Consumption 5.1.4 Serial Interface Electrical Specifications 5.2 Timing Characteristics 5.2.1 External CODEC Timing 5.2.2 LCD Timing 6 Mechanical Dimension 6.1 DT2000-Dual Outline 6.2 60-Pin Connector 6.3 RF Connector All Rights Reserved. AD-2001-06-28 Ver 1.1 -4- AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM Figures Figure 2-1 Interface Block Diagram ....................................................................................... 11 Figure 2-2 General Features ................................................................................................... 12 Figure 4-1 Interface Block Diagram ....................................................................................... 16 Figure 4-2 Keypad Matrix ...................................................................................................... 21 Figure 4-3 LCD Interface Block Diagram .............................................................................. 22 Figure 4-4 Reference External Ringer Driver Circuit ............................................................. 23 Figure 5-1 External PCM CODEC to Module timing ............................................................ 25 Figure 5-2 Module to External PCM CODEC timing ............................................................ 25 Figure 5-3 LCD Timing .......................................................................................................... 26 Figure 6-1 60-pin Female Connector ..................................................................... 29 Figure 6-2 PCB Connector .................................................................................30 Figure 6-3 PCB Connector Layout ....................................................................... 30 Figure 6-4 Mechanical Characteristics of Cable Harness Assembly ................................. 31 All Rights Reserved. AD-2001-06-28 Ver 1.1 -5- AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data Solution TM Tab l e s Table 1-1 Revision History ....................................................................................................... 7 Table 3-1 60-PIN Connector Pinouts ..................................................................................... 15 Table 4-1 Analog Audio Pinouts ............................................................................................ 17 Table 4-2 Digi…

Text truncated - open the document above for the full version.

DIPLEXER DUPLEXER (1.9G) PAM (1.9G) LNA BPF BPF RFT3100 BPF PAM (800M) BPF LNA BPF BPF IFR3000 DUPLEXER (800M) Dual Band VCO PLL 19.68MHz TCXO Combiner Divider Ant. Con. SW201 . . . . . MSM5100 TX IF TANK PLL_EN PLL_DATA PLL_CLK Rx IF TANK . . . . . MSM5100 S/WS/W DT2000-DUAL Block Diagram 967.38MHz (+/-)12.5MHz for 800MHz CDMA 1749.62MHz (+/-) 30MHz for 1900MHz CDMA 170.76MHz for 800MHz CDMA IF420.76MHz for 1900MHz CDMA IF 260.76MHzfor800MHz/1900MHz

AnyDATA Corporation 18902 Bardeen Ave. Irvine, CA 92612, U.S.A. Tel) 1- 949-833-0011 AnyDATA Fax) 1-949-833-0022 February 2, 2004 The CDMA Dual band module ( model: DT2000-Dual ), FCC ID : P4M-DT2000 , is seeking FCC Authorization as a modular transmitter. The EUT meets the requirements for modular approval as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” - The radio portion of the CDMA wireless module has its own RF shielding. The shielding is installed at the factory. 2. “The modular transmitter must have buffered modulation/data inputs.” - Please see Appendix 1 for schematics of the module. 3. “The modular transmitter must have its own power supply regulation.” - The EUT has its own AC/DC power adapter. It insures compliance with part 15 supplying the module from the host unit. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” - The EUT meets the FCC antenna requirements. 5. “The modular transmitter must be tested in a stand-alone configuration.” - The EUT was tested in a stand-alone configuration. 6. “The modular transmitter must be labeled with its own FCC ID number.” - The EUT is labeled with its own FCC ID number. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” - The EUT is compliant with all applicable FCC rules. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” – The EUT fully complies with RF exposure requirements.

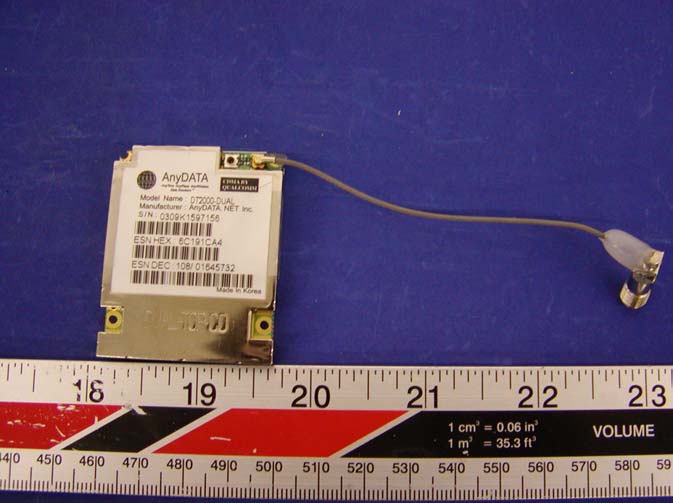

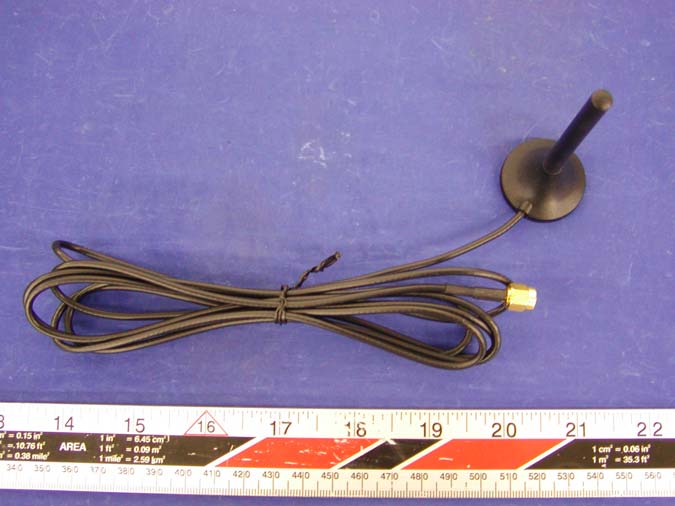

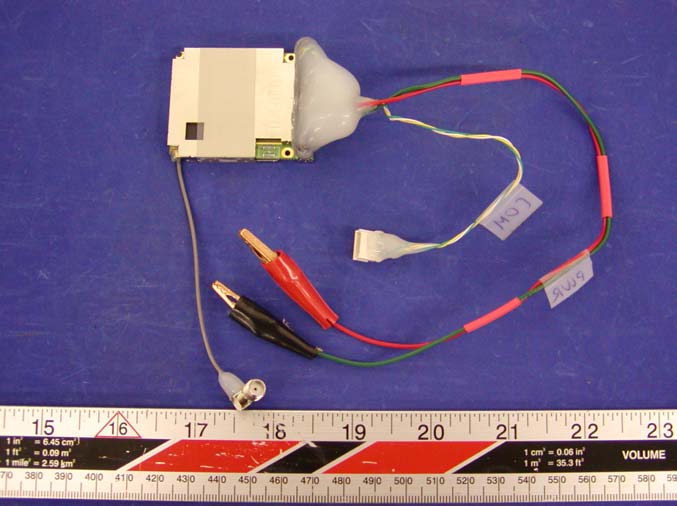

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS Chassis - Front View Chassis – Rear View EUT with Cable View Test Interface Cable View Data Interface View Antenna View AC/DC Power Adapter for Data Interface View 1 AC/DC Power Adapter for Data Interface View 2

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Front View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: P4M-DT2000

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Component View EUT - Solder View

Technical Specification & description 1. General Feactures CDMA 2000 1xRTT IS-95A/B Standard RS-232E interface Data transmission up to 153Kbps Remote control by AT command Built-in TCP/IP/UDP stack 2-way SMS Enhanced variable rate codec (EVRC) Quick Net Connect for fast Internet connection Telemetry-specific features Optimized for easy OEM applications LCD/Keypad interface GPIO for custom interface Supports Circuit Data/Fax 2 General Specifications Parameters 1.1.1. Descriptions External Access Code-Division-Multiple-Access (CDMA) CDMA Protocol IS-95 A/B, IS-98A, IS-126, IS-637A, IS-707A, IS-2000 Data Rate 153.6Kbps max Transmit/Receive Frequency Interval 45MHz for Cellular and 80MHz for PCS Number of Channel 832 for Cellular and 42 for PCS Operating Voltage DC +3.4V ~ +4.2V Current Consumption Stand by mode: Idle (110mA), Sleep (2mA) Busy mode: 900mA (Max) Operating Temperature -30ºC ~ +60ºC Frequency Stability ±300Hz for Cellular and ±150Hz for PCS Antenna MCA Connector, 50ohm Size 39 X 49 X 6.0mm with case Weight About 20g External Interface RS-232, Digital/Analog Audio, LCD, Keypad, Ringer External Reset Control 2.1 Receive Specifications Parameters 1.1.2. Descriptions Frequency Range 869.04 ~ 893.97 MHz for Cellular and 1931.25 ~ 1988.75MHz for PCS Sensitivity Below –104 dBm Interference Rejection Single tone (-30dBm @900KHz): Below –101dBm Two tone (-43 dBm @900KHz and 1700KHz): Below –101dBm Two tone (-32 dBm @900KHz and 1700KHz): Below –90dBm Two tone (-21 dBm @900KHz and 1700KHz): Below –79dBm Spurious Wave Suppression Below –80dBc Input Dynamic Range -25 dBm ~ -104dBm 2.2 Transmit Specifications Parameters 1.1.3. Descriptions Frequency Range 824.04 ~ 848.97 MHz for Cellular and 1851.25 ~ 1908.75MHz for PCS Nominal Power 0.32 W (24.7dBm) Minimum Controlled Output Power Below –50dBm Max Power Spurious 900KHz: Below –42dBc/30KHz 1.98MHz: Below –54dBc/30KHz 3 Standards IS-95 A/B: Protocol Between MS & BTS IS-96A: Voice Signal Coding IS-98A: Base MS Function IS-126: Voice Loop-Back IS-637: Short Message Service IS-707: Data Service

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 22, 24 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For AnyDATA Corporation 18902 Bardeen Ave. Irvine, CA 92612 FCC ID: P4M-DT2000 2004-01-26 This Report Concerns: Original Report Equipment Type: CDMA Dual Band Data Module Test Engineer: Ling Zhang / Report No.: R0312246 Test Date: 2004-01-08 / 2004-01-09 / 2004-01-12 / 2004-01-14 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 AnyDATA Corporation FCC ID: P4M-DT2000 Report # R0312246Rpt.doc Page 2 of 48 FCC Part 22, 24 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................5 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................5 POWER SUPPLY INFORMATION.....................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 ENVIRONMENTAL CONDITIONS....................................................................................................................................8 TEST RESULTS.............................................................................................................................................................8 §2.1053 - SPURIOUS RADIATED EMISSIONS .....................................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 ENVIRONMENTAL CONDITIONS..................................................................................................................................12 TEST RESULT.............................................................................................................................................................13 §1.1307(B)(1) & §2.1093 - RF EXPOSURE...............................................................................................................16 §15.107 - CONDUCTED EMISSIONS ......................................................................................................................18 MEASUREMENT UNCERTAINTY..................................................................................................................................18 EUT SETUP......................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Radiated Emission - Front View Radiated Emission - Rear View
