AnyDATA Corporation 18902 Bardeen Ave. Irvine, CA 92612, U.S.A. Tel) 1- 949-833-0011 AnyDATA Fax) 1-949-833-0022 July 6, 2004 The CDMA Dual band module ( model: DTG2000 ), FCC ID : P4M-DTG2000 , is seeking FCC Authorization as a modular transmitter. The EUT meets the requirements for modular approval as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” - The radio portion of the CDMA wireless module has its own RF shielding. The shielding is installed at the factory. 2. “The modular transmitter must have buffered modulation/data inputs.” - Please see R0405243Sch for schematics of the module. 3. “The modular transmitter must have its own power supply regulation.” - The EUT has its own AC/DC power adapter. It insures compliance with part 15 supplying the module from the host unit. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” - The EUT meets the FCC antenna requirements. 5. “The modular transmitter must be tested in a stand-alone configuration.” - The EUT was tested in a stand-alone configuration. 6. “The modular transmitter must be labeled with its own FCC ID number.” - The EUT is labeled with its own FCC ID number. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” - The EUT is compliant with all applicable FCC rules. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” – The EUT fully complies with RF exposure requirements.

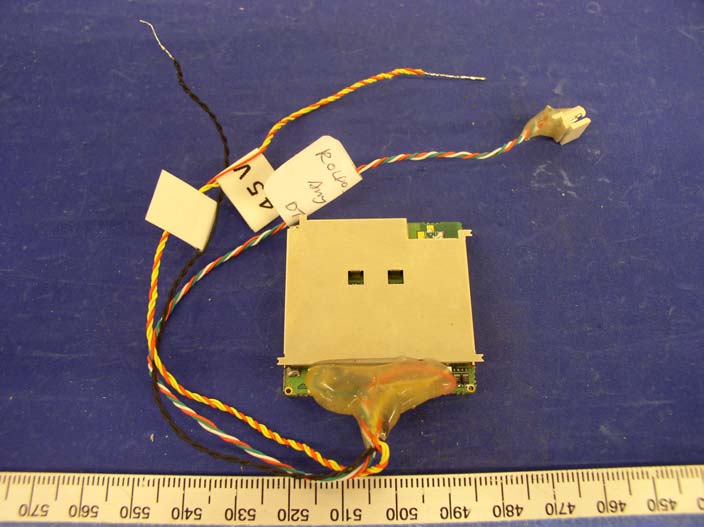

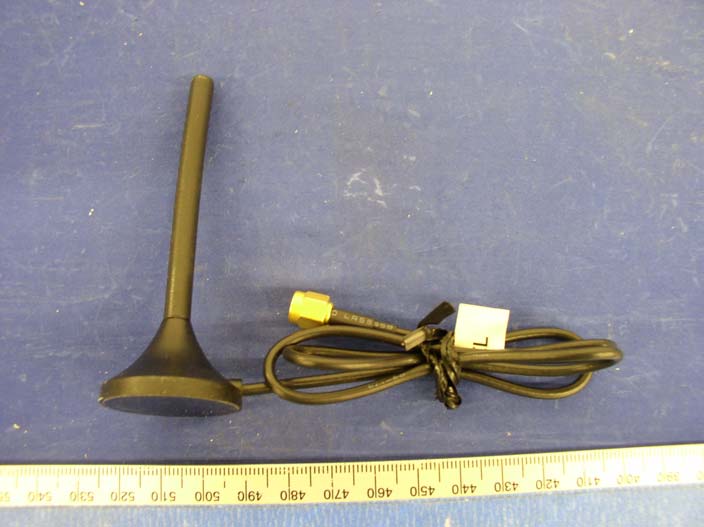

AnyDATA Corporation FCC ID: P4M-DTG2000 EXHIBIT C - EUT PHOTOGRAPHS Chassis - Front View Chassis – Rear View AnyDATA Corporation FCC ID: P4M-DTG2000 Antenna View Test Cable

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Front View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: P4M-DTG2000

AnyDATA Corporation FCC ID: P4M-DTG2000 EUT – Component View EUT - Solder View AnyDATA Corporation FCC ID: P4M-DTG2000 EUT Overall View

Circuit Description 1. Overview RFT6100(U103) receives modulated digital signals from the MSM6050(U7) of the digital circuit and then, changes them into analog signals by the digital/analog converter (DAC, D/A Converter) in order to create baseband signals. Created baseband signals are changed into RF signals by RFT6100(U103). They are amplified at the Power AMP(U204, U6). Finally, they are sent out to the cell site via the antenna after going through the isolator and duplexer. MSM6050 (U7) RFT6100 (U103) RFR6000 (U102) PA (U204, U6) RF BPF (FL3, FL4) Figure 1. DTG2000-DUAL Block Diagram 2. RF Transmit / Receive Part 2.1. Tx Baseband Processors, RFT6100 (U103) The RFT6100(U103) includes digital-to-analog converters(DAC) for converting digital baseband to analog baseband, low-pass filters, a mixer for up-converting to RF and an 85 dB dynamic range Tx AGC amplifier. The RFT6100(U103) includes a fully programmable phase-locked loop(PLL) for generating Rx LO. 2.2. Transmit Bandpass Filter (FL3, FL4) Transmit signals that have been converted RF signals are inputted into the Power Amp(U6, U204) after passing through RF BPF(FL3, FL4) in order to filter out noise signals amplified during the amplification of RF signals. This is carried out in order to create power level inputted to the Power AMP(U204, U6) via RF BPF (FL3, FL4). IL of two RF BPFs is 4dB as a maximum, whereas the ripple in the passing band is 2dB(maximum). The degree of the suppression of transmit signals on receive band is at least 20dB or greater. The maximum power that can be inputted is about 25dBm. 2.3. Power Amplifier (U6, U204) The power amplifier(U204, U6) that can be used in the CDMA mode has linear amplification capability. For higher efficiency, it is made up of one MMIC (Monolithic Microwave Integrated Circuit) for which RF input terminal and internal interface circuit are integrated onto one IC after going through the AlGaAs/GaAs HBT (heterojunction bipolar transistor) process. The module of power amplifier is made up of an output end interface circuit including this MMIC. The maximum power that can be inputted through the input terminal is +17dBm and conversion gain is about 28dB. RF transmit signals that have been amplified through the power amplifier are sent to the duplexer and then, sent out to the cell site through the antenna in order to prevent any damages on circuits, that may be generated by output signals reflected from the duplexer and re-inputted to the power amplifier output end. 2.4. Description of Frequency Synthesizer Circuit 2.4.1 Voltage Control Temperature Compensation Crystal Oscillator(TCX1) The temperature range that can be compensated by TCX1 which is the reference frequency generator of mobile terminal is -30 ~ +80 degrees. TCX1 receives frequency tuning signals called TRK_LO_ADJ from MSM as 0.5V~2.5V DC via R and C filters in order to generate the reference frequency of 19.2MHz and input it into the frequency synthesizer of UHF band. Frequency stability depending on temperature is ± 2.0 ppm. 2.4.2 Voltage Control Crystal Oscillator (VCO1) VCO that generates the LO frequency of mobile terminal receives the output voltage of PLL. The sensitivity on control voltage is 23MHz/v and the output level is 1dBm(maximum). Since LO frequency signal is very important for the sensitivity of mobile terminal, they must have good spurious characteristics. VCO1 is -70dBc(maximum). 3. Digital/Voice Processing Part 3.1 Overview The digital/voice processing part processes the user's commands and processes all the digital and voice signal processing in order to operate in the phone. The digital/voice processing part is made up of a receptacle part, voice processing part, mobile station modem part, memory part, and power supply part. 3.1.1 Voice Processing Part The voice processing part is made up of an audio codec into digital voice signals and digital voice signals into analog voice signals, amplifying part for amplifying the voice signals and sending them to the ear piece, amplifying part that amplifies ringer signals coming out from MSM6050, and amplifying part that amplifies signals coming out from MIC and transferring them to the audio processor. MIC signals are amplified through the audio codec which is PM6050(U4), and converted into digital signals. Then, they are inputted into MSM6050. In addition, digital audio signals outputted from MSM6050 are converted into analog signals after going through the audio codec to be amplified. and then transferred to the ear piece. 3.1.2 MSM6050 (Mobile Station Modem) Part MSM6050, which is U7, is the core element of CDMA system terminal that includes ARM7TDMI microprocessor core. It is made up of a CPU, encoder, interleaver, deinterleaver, Viterbi decoder, MOD/DEM, and vocoder. TCXO (19.2MHz) that is received from TCX1. CPU controls the terminal operation. Digital voice data that have been inputted are voice-encoded and variable-rated. Then, they are convolutionally encoded so that error detection and correction are possible. Coded symbols are interleaved in order to cope with multi-path fading. Each data channel is scrambled by the long code PN sequence of the user in order to ensure the confidentiality of calls. Moreover, binary quadrature codes are used based on Walsh functions in order to discern each channel . Data created thus are 4-phase modulated by one pair of Pilot PN code and they are used to create I and Q data. When received, I and Q data are demodulated into symbols by the demodulator and then, deinterleaved in reverse to the case of transmission. Then, the errors of data received from Viterbi decoder are detected and corrected. They are voice decoded at the vocoder in order to output digital voice data 3.1.3 Memory Part Memory part consisit of Flash Memory,SRAM. In the Flash Memory part included SRAM of U1 (64M x 16M bits), there are programs used for terminal operation. The programs can be changed through down loading after the assembling of terminals. On…

Text truncated - open the document above for the full version.

Tune up procedure To set up transmit power before shipping, AnyDATA uses a manufacturing process which is called “Calibration of Rx and Tx power over the dynamic range, temperature and frequency”. CDMA technical standard requires AnyDATA’s CDMA module to transmit more than +23dBm output power when it is required to transmit its maximum power. Therefore, AnyDATA sets the maximum power of the module to +24.5dBm (+1dB, -1.5dB) By adjusting Tx AGC Amplifier built in the CDMA module, transmit power can be limited to +24.5dBm (+1dB,-1.5dB) Transmit power calibration consists of transmit linearizer calibration, and power compensation calibration over the temperature and frequency. During the transmit linearizer calibration, the module searches for 16 AGC adjust values for the 16 power levels within the dynamic range including the maximum output power and saves these AGC adjust values in the memory device in the module. These searched AGC adjust values (TX_LIN_MASTER) set the maximum power of the module. To prevent the variation in maximum power over the frequency, the transmit circuit is calibrated over the frequency and compensation values (TX_LIM_VS_FREQ) are found. These values are also used to limit the maximum output power to +24.5dBm (+1dB,-1.5dB) Also to prevent the variation in maximum power over the temperature, the transmit circuit is calibrated over the temperature and compensation values (TX_LIM_VS_TEMP) are found. These are also used to limit the maximum output power to +24.5dBm (+1dB,-1.5dB) when there is variation in temperature..

§1.1307(b)(1) & §2.1093 - RF EXPOSURE According to §15.247(b)(4) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna CDMA800 Maximum peak output power at antenna input terminal: 25.50 (dBm ) Maximum peak output power at antenna input terminal: 354.8 (mW) Prediction distance: 20 (cm) Predication frequency: 800 (MHz) Antenna Gain (typical): 1.0 (dBi) antenna gain: 1.26 (numeric) Power density at predication frequency at 20 cm: 0.089 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.53 (mW/cm 2 ) CDMA1900 Maximum peak output power at antenna input terminal: 25.50 (dBm) Maximum peak output power at antenna input terminal: 354.8 (mW) Prediction distance: 20 (cm) Predication frequency: 1900 (MHz) Antenna Gain (typical): 1.0 (dBi) antenna gain: 1.26 (numeric) Power density at predication frequency at 20 cm: 0.089 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is a mobile device. The power density level at 20 cm is 0.089 mW/cm², which is below the uncontrolled exposure limit of 0.53mW/cm² at 800 MHz. The power density level at 20 cm is 0.089 mW/cm², which is below the uncontrolled exposure limit of 1.0mW/cm² at 1900 MHz.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 22, 24 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For AnyDATA Corporation 18902 Bardeen Ave. Irvine, CA 92612 FCC ID: P4M-DTG2000 This Report Concerns: Original Report Equipment Type: CDMA 2000 Wireless Modem with Dual Band Capability Test Engineer: Ling Zhang / Report No.: R0405243 Report Date: 2004-06-10 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 AnyDATA Corporation FCC ID: P4M-DTG2000 Report # R0405243Rpt.doc Page 2 of 47 FCC Part 22, 24 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST RESULTS.............................................................................................................................................................9 §2.1053 - SPURIOUS RADIATED EMISSIONS .....................................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 ENVIRONMENTAL CONDITIONS..................................................................................................................................13 TEST RESULT.............................................................................................................................................................14 §15.107 - CONDUCTED EMISSIONS ......................................................................................................................17 MEASUREMENT UNCERTAINTY..................................................................................................................................17 EUT SETUP................................................................................................................................................................17 SPECTRUM ANALYZER SETUP.........................................................................................................…
