P4MDTS-800CDKCDMA Development kit DTS-800

CDMA Development Kit DTS-800 CDK AnyDATA.NET Inc. Hanvit Bank B/D 7F Byulyang-dong Kwachon KO REA Tel) 82-2-504-3360 Fax) 82-2-504-3362 SERVICE MANUAL Introduction The CDMA development kit (CDK -800) is designed for the test and simulation of the CDMA wireless data communications. User can connect the development kit to your PC or Notebook and easily test the wireless communications. User can use this to develop your applications softw are even before user’s ow n hardw are is ready. It also can be used as a debugging during user’s hardw are test. Disclaimer and Limitation of Liability AnyDATA.NET Inc. assumes no responsibility for any damage or loss resulting from the misuse of its products. AnyDATA.NET Inc. assumes no responsibility for any loss or claims by third parties, which may arise through the use of its products. AnyDATA.NET Inc. assumes no responsibility for any damage or loss caused by the deletion or loss of data as a result of malfunctions or repairs. The information disclosed herein is the exclusive property of AnyDATA.NET Inc. and no part of this publication may be reproduced or transmitted in any form or by any means including electronic storage, reproduction, adaptation , translation , execution or transmission without the prior written consent of AnyDATA.NET Inc. The information contained in this document is subject to change without notice. FCC RF Exposure Information Warning! Read this information before using this device. In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this device complies with the FCC guidelines and these international standards. CAUTION ! Operating Requirements The user can not make any changes or modifications not expressly approved by the party responsible for compliance, otherwise it could void the user's authority to operate the equipment. To satisfy FCC RF exposure compliance requirements for a mobile transmitting device, this device and its antenna should generally maintain a separation distance of 20cm or more from a person’s body. Special accessories In order to ensure this device in compliance with FCC regulation, the special accessories are provided with this device and must be used with the device only. The user is not allowed to use any other accessories than the special accessories given with this device Table of Contents General Introduction .......................................................................................................................................... 2 CHAPTER 1. System Introduction 1. System Introduction ......................................................................................................... 3 2. Features and Advantages of CDMA Module .................................................................. 4 3. Structure and Functions of CDMA Module ..................................................................... 7 4. Specification ..................................................................................................................... 8 CHAPTER 2. NAM Input Method(Inputting of telephone numbers included) 1. NAM Programming Method and Telephone Number Input Method .............................. 11 CHAPTER 3. Circuit Description 1. Overview.......................................................................................................................... 14 2. RF Transmit/Receive Part .............................................................................................. 14 3. Digital/Voice Processing Part ................................................................... ...... .. 17 CHAPTER 4. FCC Notice Appendix ........................................................................................................................................ 22 1. Assembly and Disassembly Diagram 2. Block & Circuit Diagram 3. Part List 4. Component Layout The DTS-800 CDK functions digital cellular module worked in CDMA (Code Division Multiple Access) mode. CDMA type digital mode applies DSSS (Direct Sequence Spread Spectrum) mode which is used in military…

Text truncated - open the document above for the full version.

DTS-800 CDK User Manual Application Information 01-DTS800 CDK-1 X1 April 23, 2001 AnyDATA.NET Inc. Ha nvit Ba nk B/D 7 F Byulyang-dong Kwachon KO REA Τελ) 82−2−504−3360 Φαξ) 82−2−504−3362 01-DT800-1 X1 AnyDATA.NET Proprietary – Use Subject to Restrictions ii AnyDATA.NET Inc. Ηανπιτ Βανκ Β/∆ 7Φ Βψυλψανγ−δονγ Κωαχηον KOREA Copyright  2001 AnyDATA.NET Inc. . All rights reserved. Printed in the Republic Of KOREA. All data and information contained in or disclosed by this document are confidential and proprietary information of AnyDATA.NET Inc. , and all rights therein are expressly reserved. By accepting this material, the recipient agrees that this material and the information contained therein are held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of AnyDATA.NET Inc. . AnyDATA.NET Proprietary : Restricted Distribution. This document contains critical information about AnyDATA.NET products and may not be distributed to anyone without permission of AnyDATA.NET Inc. All data and information contained in this document are proprietary and confidential information of AnyDATA.NET Inc. No part of this document may be reproduced, in any form or any means without written permission of AnyDATA.NET Inc. Although the information in this document has been carefully reviewed and its believed to be reliable. AnyDATA.NET Inc. does not assume any liability arising out of the application or use of any product described herein, Neither does it convey any license under its patent rights nor rights of others. Send Technical Questions to : [email protected] DTS-800 CDK Reference Manual Application Information 01-DT800 CDK-1 X1 Απριλ 23, 2001 Introduction Τηε Χ∆ΜΑ δεπελοπμεντ κιτ (Χ∆Κ −800) ισ δεσιγνεδ φορ τηε τεστ ανδ σιμυλατιον οφ τηε Χ∆ΜΑ ωιρελεσσ δατα χομμυνιχατιονσ. Υσερ χαν χοννεχτ τηε δεπελοπμεντ κιτ το ψουρ ΠΧ ορ Νοτεβοοκ ανδ εασιλψ τεστ τηε ωιρελεσσ χομμυνιχατιονσ. Υσερ χαν υσε τηισ το δεπελοπ ψουρ αππλιχατιονσ σοφτωαρε επεν βεφορε υσερ’σ οων ηαρδωαρε ισ ρεαδψ. Ιτ αλσο χαν βε υσεδ ασ α δεβυγγινγ δυρινγ υσερ’σ ηαρδωαρε τεστ. 01-DT800-1 X1 AnyDATA.NET Proprietary – Use Subject to Restrictions iii Disclaimer and Limitation of Liability Ανψ∆ΑΤΑ.ΝΕΤ Ινχ. ασσυμεσ νο ρεσπονσιβιλιτψ φορ ανψ δαμαγε ορ λοσσ ρεσυλτινγ φρομ τηε μισυσε οφ ιτσ προδυχτσ. Ανψ∆ΑΤΑ.ΝΕΤ Ινχ. ασσυμεσ νο ρεσπονσιβιλιτψ φορ ανψ λοσσ ορ χλαιμσ βψ τηιρδ παρτιεσ, ωηιχη μαψ αρισε τηρουγη τηε υσε οφ ιτσ προδυχτσ. Ανψ∆ΑΤΑ.ΝΕΤ Ινχ. ασσυμεσ νο ρεσπονσιβιλιτψ φορ ανψ δαμαγε ορ λοσσ χαυσεδ βψ τηε δελετιον ορ λοσσ οφ δατα ασ α ρεσυλτ οφ μαλφυνχτιονσ ορ ρεπαιρσ. Τηε ινφορματιον δισχλοσεδ ηερειν ισ τηε εξχλυσιπε προπερτψ οφ Ανψ∆ΑΤΑ.ΝΕΤ Ινχ. ανδ νο παρτ οφ τηισ πυβλιχατιον μαψ βε ρεπροδυχεδ ορ τρανσμιττεδ ιν ανψ φορμ ορ βψ ανψ μεανσ ινχλυδινγ ελεχτρονιχ στοραγε, ρεπροδυχτιον, εξεχυτιον ορ τρανσμισσιον ωιτηουτ τηε πριορ ωριττεν χονσεντ οφ Ανψ∆ΑΤΑ.ΝΕΤ Ινχ. Τηε ινφορματιον χονταινεδ ιν τηισ δοχυμεντ ισ συβφεχτ το χηανγε ωιτηουτ νοτιχε. Ρεπροδυχτιον, αδαπτατιον ορ τρανσλατιον οφ τηισ δοχυμεντ ισ προηιβιτεδ ωιτηουτ πριορ ωριττεν περμισσιον οφ Ανψ∆ΑΤΑ.ΝΕΤ Ινχ. FCC RF Exposure Information Warning! Ρεαδ τηισ ινφορματιον βεφορε υσινγ τηισ δεπιχε. In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those gui de li ne s are consiste nt with t he safe ty standard pre viously se t by both U.S. a nd i nte rnat io nal standards bodies. The design of this device complies with the FCC guidelines and these inte rnatio nal sta nda rds. CAUTION ! Operating Requirements Τηε υσερ χαν νοτ μακε ανψ χηανγεσ ορ μοδιφιχατιονσ νοτ εξπρεσσλψ αππροπεδ βψ τηε παρτψ ρεσπονσιβλε φορ χομπλιανχε, οτηερωισε ιτ χουλδ ποιδ τηε υσερ∋σ αυτηοριτψ το οπερατε τηε εθυιπμεντ. Το σατισφψ ΦΧΧ ΡΦ εξποσυρε χομπλιανχε ρεθυιρεμεντσ φορ α μοβιλε τρανσμιττινγ δεπιχε, τηισ δεπιχε ανδ ιτσ αντεννα σηουλδ γενεραλλψ μαινταιν α σεπαρατιον διστανχε οφ 20χμ ορ μορε φρομ α περσον’σ βοδψ. Special accessories Ιν ορδερ το ενσυρε τηισ δεπιχε ιν χομπλιανχε ωιτη ΦΧΧ ρεγυλατιον, τηε σπεχιαλ αχχεσσοριεσ αρε προπιδεδ ωιτη τηισ δεπιχε ανδ μυστ βε υσεδ ωιτη τηε δεπιχε ονλψ. Τηε υσερ ισ νοτ αλλοωεδ το υσε ανψ οτηερ αχχεσσοριεσ τηαν τηε σπεχιαλ αχχεσσοριεσ γιπεν ωιτη τηισ δεπιχε 01-DT800-1 X1 AnyDATA.NET Proprietary – Use Subject to Restrictions iv Contents Preface 1 Introduce 1.1 Application Description ..................................................... 1 1.2 Technical Specifications ....................................................2 1.2.1 General Specification .............................................2 1.2.2 Receive Specification .............................................3 1.2.3 Tra…

Text truncated - open the document above for the full version.

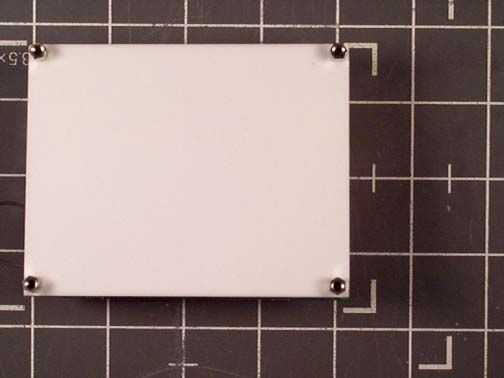

This device consists of boards without an enclosure. There are not external photos.

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

The CDMA Wireless Data Modem is a complex consumer communications instrument that relies heavily on both digital signal and embedded processor technologies. The Wireless Data Modem manufactured by AnyDATA.net support Code-Division-Multiple-Access(CDMA). Operating both the cellular and PCS spectrum. 1. Overview IRT3000 receives modulated digital signals from the MSM of the digital circuit and then, changes them into analog signals by the digital/analog converter (DAC, D/A Converter) in order to create baseband signals. Created baseband signals are changed into IF signals by IFT3000 and then, fed into the Mixer after going through AGC. IF signals that have been fed are mixed with the signals of VCO and changed into the RF signals and then, they are amplified at the Power AMP. Finally, they are sent out to the cell site via the antenna after going through the isolator and duplexer. 2. RF Transmit / Receive Part 2.1 CDMA Transmit End 8 bit I and Q transmit signals are inputted into 2 DACs (DIGITAL-TO-ANALOG CONVERTER) from the output terminal TX_IQDATA0 ~ TX_IQDATA7 of MSM through the input terminals TXD0~TXD7 of BBA. Transmit signal input speed is two times of TXCLK+, TXCLK- which are two transmit/receive reference frequency. Among transmit signals being inputted, signals are inputted into I signal DAC when the transmit clock is in the rise edge, whereas signals are inputted into Q Signal DAC during the drop edge. I and Q transmit signals are compensated and outputted at MSM in order to compensate the 1/2 clock time difference generated between reference clocks. In the signals coming out from the output terminal of DAC, there are spurious frequency ingredients resulting from DAC output transition edge and parasite ingredients, transmit clock frequencies and harmonics which are unwanted signals. Accordingly, spurious ingredients are removed by passing the signals through LPF of passband 6.30KHz. Unlike the receive end, the transmit end LPF requires no OFFSET adjustment. Analog baseband signals that have passed the CDMA LPF are mixed with I and Q signals of frequency 130.38 MHz (260.76 MHz created in the BBA internal VCO are divided by half into frequency 130.38MHz having the phase difference of 90 degrees) in two mixers. The mixed signals are added again and converted into IF frequency 130.38 MHz ±630 KHz (CDMA Spread Power Density Modulated Signals) and then, outputted. 2.2. Tx IF/Baseband Processors, IFT3000 (U105) The IFT3000 includes digital-to-analog converters(DAC) for converting digital baseband to analog baseband, low-pass filters, a mixer for up-converting to IF and an 85 dB dynamic range Tx AGC amplifier. The IFT3000 includes a fully programmable phase-locked loop(PLL) for generating Tx LO and IF frequencies. The IFT3000 also has an 8-bit general purpose ADC with three selectable inputs for monitoring battery level, RF signal strength and phone temperature. 2.3. Upconverter (U104) CHAPTER 3. Circuit Description Upconverters made up of a mixer part and Driver AMP part. The mixer part is used to receive double-balanced OUT+ and OUT- of transmit AGC from baseband and mix the output of VCO (U171) with UHF output signal, whereas the Amp part is used to buffer the output of this mixer. U105 has the operation range of RF500MHz~1500MHz and has the conversion gain of 0 dB. In addition, the suppression of spurious signals which are unwanted noise is about 30 dBc when being compared to RF output. The IF input signal range of the mixer is DC~200MHz. The isolation on RF output terminal and LO signal input terminal at the IF input terminal is 30dB. The range of LO signal that can be inputted is 300~1700MHz and power level is -6~0 dBm. 2.4. Transmit Bandpass Filter (F102, F103) Transmit signals that have been converted from IF signals into RF signals after passing through the upconverter U105 are inputted into the Power Amp U102 after passing once again through RF BPF F102 in order to filter out noise signals amplified during the amplification of RF signals after going through upconverter(U105). This is carried out in order to create power level inputted to the Power AMP via RF BPF F102. IL of two RF BPFs is 4dB as a maximum, whereas the ripple in the passing band is 2dB(maximum). The degree of the suppression of transmit signals on receive band is at least 20dB or greater. The maximum power that can be inputted is about 25dBm. 2.5. Power Amplifier (U102) The power amplifier U102 that can be used in the CDMA and FM mode has linear amplification capability, whereas in the FM mode, it has a high efficiency. For higher efficiency, it is made up of one MMIC (Monolithic Microwave Integrated Circuit) for which RF input terminal and internal interface circuit are integrated onto one IC after going through the AlGaAs/GaAs HBT (heterojunction bipolar transistor) process. The module of power amplifier is made up of an output end interface circuit including this MMIC. The maximum power that can be inputted through the input terminal is +17dBm and conversion gain is about 28dB. RF transmit signals that have been amplified through the power amplifier are sent to the duplexer and then, sent out to the cell site through the antenna in order to prevent any damages on circuits, that may be generated by output signals reflected from the duplexer and re-inputted to the power amplifier output end. 2.6. Description of Frequency Synthesizer Circuit 2.6.1 Voltage Control Temperature Compensation Crystal Oscillator(U174, VCTCXO) The temperature range that can be compensated by U174 which is the reference frequency generator of mobile terminal is -30 ~ +80 degrees. U174 receives frequency tuning signals called TRK_LO_ADJ from MSM as 0.5V~2.5V DC via R and C filters in order to generate the reference frequency of 19.68MHz and input it into the frequency synthesizer of UHF band. Frequency stability depending on temperature is ± 2.0 ppm. 2.6.2 UHF Band Frequency Synthesizer (U172) Reference frequency that can be inputted to…

Text truncated - open the document above for the full version.

Tune Up procedure The power level is not adjustable by the end user. The power level is automatically controlled by the command of base station of CDMA network.

Page 1 of 71 Report No.: FC01-075 ANYDATA.NET INCORPORATED TEST REPORT FOR THE CDMA DEVELOPMENT KIT, DTS-800 CDK FCC PART 22 SUBPART H & FCC PART 15 SUBPART B SECTIONS 15.107 & 15.109 CLASS B COMPLIANCE DATE OF ISSUE: DECEMBER 27, 2001 PREPARED FOR: AnyDATA.NET, Incorporated Hanvit Bank Bldg. 7th Fl., 1-12, Byulyang-dong Kwachon City, Kyunggi-do, Korea, 427-040 PREPARED BY: Joyce Walker CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: UCT-5374 W.O. No.: 77559 Date of test: October 8 – December 21, 2001 Report No.: FC01-075 This report contains a total of 71 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 71 Report No.: FC01-075 TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary of Results......................................................................................................... 4 Modifications Required for Compliance ......................................................................... 4 Approvals......................................................................................................................... 4 Equipment Under Test (EUT) Description...................................................................... 5 Equipment Under Test..................................................................................................... 5 Peripheral Devices ........................................................................................................... 5 Temperature and Humidity During Testing .................................................................... 6 Frequency Range Tested ................................................................................................. 6 2.1033(c)(3) User’s Manual ............................................................................................ 6 2.1033(c)(4) Type of Emissions ...................................................................................... 6 2.1033(c)(5) Frequency Range ........................................................................................ 6 2.1033(c)(6) Operating Power ......................................................................................... 6 2.1033(c)(7) Maximum Power Rating............................................................................. 6 2.1033(c)(8) DC Voltages ............................................................................................... 7 2.1033(c)(9) Tune-Up Procedure .................................................................................... 7 2.1033(c)(10) Schematics and Circuitry Description ...................................................... 7 2.1033(c)(11) Label and Placement................................................................................. 7 2.1033(c)(12) Submittal Photos....................................................................................... 7 2.1033(c)(13) Modulation Information ........................................................................... 7 2.1033(c)(14)/2.1046/22.913 - RF Power Output .......................................................... 8 2.1033(c)(14)/2.1047(a)/22.915(a) - Modulation Characteristics - Audio Frequency Response.. 10 2.1033(c)(14)/2.1047(b)/22.915(a) - Modulation Characteristics - Modulation Limiting Response. 1 0 2.1033(c)(14)/2.1049(i)/22.917(c) - Occupied Bandwidth ............................................. 11 2.1033(c)(14)/2.1051/22.917(c) - Spurious Emissions at Antenna Terminal ................. 18 2.1033(c)(14)/2.1053/22.219(c) - Field Strength of Spurious Radiation ........................ 52 2.1033(c)(14)/2.1055/22.355 - Frequency Tolerance...................................................... 55 2.1091 - MPE Calculations.............................................................................................. 58 15.107 – AC Conducted Emissions - Receiver ............................................................... 59 15.109 – Radiated Emissions - Receiver ......................................................................... 66 Page 3 of 71 Report No.: FC01-075 CKC Laboratories, Inc. has received Certificates of Accreditation from the following agencies: A2LA (USA); DATech (Germany); BSMI (Taiwan); Nemko (Norway); and GOST (Russia). CKC Laboratories, Inc has received test site Registration Acceptance from the following agencies: FCC (USA); VCCI (Japan); and Industry Canada. CKC Laboratories, Inc. has received Letters of Acceptance through an MRA for the following agencies: ACA/NATA (Australia); SABS (South Africa); SWEDAC (Sweden); Radio Communications Agency (RA); HOKLAS (Hong Kong); Bakom (Swiss); BIPT (Belgium); Denmark Telestyrelsen; RvA (Netherlands); SEE (Luxembourg) SITTEL (Bolivia); and UKAS (UK). ADMINISTRATIVE INFORMATION DATE OF TEST: October 8 – December 21, 2001 DATE OF RECEIPT: October 8, 2001 PURPOSE OF TEST: To demonstrate the compliance of the CDMA Development Kit, DTS-800 CDK with the requirements for FCC Part 22 Subpart H & FCC Part 15 Subpart B Sections 15.107 & 15.109 Class B. TEST METHOD: 47 CFR FCC Parts 2, 22H, IS 137, TIA/EIA 603 and ANSI C63.4 (1992) MANUFACTURER: AnyDATA.NET, Incorporated Hanvit Bank Bldg. 7th Fl., 1-12, Byulyang-dong Kwachon City, Kyunggi-do, Korea, 427-040 REPRESENTATIVE: John Kim TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Page 4 of 71 Report No.: FC01-075 SUMMARY OF RESULTS As received, the AnyDATA.NET, Incorporated CDMA Development Kit, DTS-800 CDK was found to be fully compliant with the following standards and specifications: United States ! FCC Part 22 Subpart H ! FCC Part 15 Subpart B Sections 15.107 & 15.109 Class B. ! ANSI C63.4 (1992) method The results in this report apply only to the items tested, as identified herein. MODIFICATIONS REQUIRED FOR COMPLIANCE No modifications were necessary for com…

Text truncated - open the document above for the full version.

Page 1 of 9 Report No.: FC01-075A ADDENDUM TEST REPORT FOR THE CDMA DEVELOPMENT KIT, DTS-800 CDK FCC PART 22 SUBPART H & FCC PART 15 SUBPART B SECTIONS 15.107 & 15.109 CLASS B COMPLIANCE DATE OF ISSUE: JANUARY 18, 2002 PREPARED FOR: AnyDATA.NET, Incorporated Hanvit Bank Bldg. 7th Fl., 1-12, Byulyang-dong Kwachon City, Kyunggi-do, Korea, 427-040 PREPARED BY: Joyce Walker CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: UCT-5374 W.O. No.: 77559 Date of test: October 8 – January 15, 2002 Report No.: FC01-075A This report contains a total of 9 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 9 Report No.: FC01-075A TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary of Results......................................................................................................... 4 Modifications Required for Compliance ......................................................................... 4 Approvals......................................................................................................................... 4 Equipment Under Test (EUT) Description...................................................................... 5 Equipment Under Test..................................................................................................... 5 Peripheral Devices ........................................................................................................... 5 FCC 22.917(f) - Low Channel Plot ................................................................................. 6 FCC 22.917(f) - Middle Channel Plot ............................................................................. 7 FCC 22.917(f) - High Channel Plot ................................................................................ 8 Page 3 of 9 Report No.: FC01-075A CKC Laboratories, Inc. has received Certificates of Accreditation from the following agencies: A2LA (USA); DATech (Germany); BSMI (Taiwan); Nemko (Norway); and GOST (Russia). CKC Laboratories, Inc has received test site Registration Acceptance from the following agencies: FCC (USA); VCCI (Japan); and Industry Canada. CKC Laboratories, Inc. has received Letters of Acceptance through an MRA for the following agencies: ACA/NATA (Australia); SABS (South Africa); SWEDAC (Sweden); Radio Communications Agency (RA); HOKLAS (Hong Kong); Bakom (Swiss); BIPT (Belgium); Denmark Telestyrelsen; RvA (Netherlands); SEE (Luxembourg) SITTEL (Bolivia); and UKAS (UK). ADMINISTRATIVE INFORMATION DATE OF TEST: October 8 – January 15, 2002 DATE OF RECEIPT: October 8, 2001 PURPOSE OF TEST: To demonstrate the compliance of the CDMA Development Kit, DTS-800 CDK with the requirements for FCC Part 22 Subpart H & FCC Part 15 Subpart B Sections 15.107 & 15.109 Class B. Addendum A includes test data for FCC 22.917(f) compliance. TEST METHOD: 47 CFR FCC Part 22H MANUFACTURER: AnyDATA.NET, Incorporated Hanvit Bank Bldg. 7th Fl., 1-12, Byulyang-dong Kwachon City, Kyunggi-do, Korea, 427-040 REPRESENTATIVE: John Kim TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Page 4 of 9 Report No.: FC01-075A SUMMARY OF RESULTS As received, the AnyDATA.NET, Incorporated CDMA Development Kit, DTS-800 CDK was found to be fully compliant with the following standards and specifications: United States ! FCC Part 22 Subpart H ! FCC Part 15 Subpart B Sections 15.107 & 15.109 Class B. ! 47 CFR FCC Part 22H Test Method The results in this report apply only to the items tested, as identified herein. MODIFICATIONS REQUIRED FOR COMPLIANCE No modifications were necessary for compliance. APPROVALS QUALITY ASSURANCE:TEST PERSONNEL: Dennis Ward, Quality ManagerRandy Clark, EMC Engineer Page 5 of 9 Report No.: FC01-075A EQUIPMENT UNDER TEST (EUT) DESCRIPTION The EUT tested by CKC Laboratories was a production unit. CDM RF Modem EQUIPMENT UNDER TEST CDMA Development Kit Manuf: AnyDATA.NET, Incorporated Model: DTS-800 CDK Serial: 10052001-01 FCC ID: P4MDTS-800 CDK (pending) PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Mouse Manuf: Microsoft Model: Serial Mouse 2.0 Serial: 03763521 FCC ID: C3KAZB1 Power Supply Manuf: Samsung Model: AD-6019 Serial: NA FCC ID: DoC Computer Manuf: Samsung Model: SENS 680 Serial: 558791ANB00124 FCC ID: None Power Supply Manuf: (markings not legible) Model: (markings not legible) Serial: 2000.12.7C2 FCC ID: DOC DTSS Manuf: AnyDATA Model: V.04 Serial: NA FCC ID: DoC Page 6 of 9 Report No.: FC01-075A FCC 22.917(f) - Low Channel Page 7 of 9 Report No.: FC01-075A FCC 22.917(f) - Middle Channel Page 8 of 9 Report No.: FC01-075A FCC 22.917(f) - High Channel Page 9 of 9 Report No.: FC01-075A Occupied Bandwidth Test Equipment: EquipmentManufacturerModel #Serial #Asset #Cal DateCal Due 3/10 meter CableAndrewsHardlineN/AN/A02/27/20012/27/02 Antenna, BiconA&HSAS-200/542 1560022512/6/0112/6/02 Antenna, LogA&HSAS-200/510 1540133005/07/015/7/02 Power Supply, DCHP6205C2228A01775007625/31/20015/31/02 PreampHP8447D1937A026040009903/29/013/29/02 QP AdapterHP85650A2811A012670047811/9/0111/9/02 S/A DisplayHP8566B2403A082410048911/9/0111/9/02 Spectrum AnalyzerHP8566B2209A014040049011/9/0111/9/02 Bandwidths used 300 Hz (within ±60 kHz of the carrier) 30 kHz (beyond ±60 kHz of the carrier) In accordance with FCC 22.917(h) Occupied Bandwidth Test Setup

Setup for Direct Connect Testing Setup for Bandwidth…

Text truncated - open the document above for the full version.
