Date: NOV 16,2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize <Guangzhou Testing & Inspection Institute For Household Electrical Appliances(GTIHEA) >, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by < Guangzhou Testing & Inspection Institute For Household Electrical Appliances(GTIHEA)> on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing < Guangzhou Testing & Inspection Institute For Household Electrical Appliances(GTIHEA) > as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK : 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

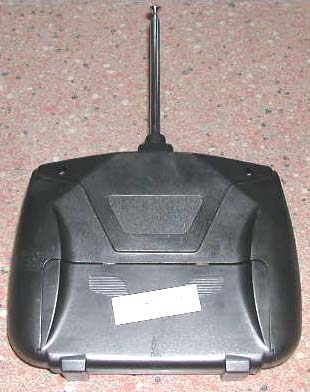

Photographs of the EUT 1. Outlook: Front View of the Transmitter Rear View of the Transmitter Note: Label used by EMC Testing Dept. of GTIHEA

Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0008 Page 24 of 29 5.2 Structure of internal wires: Internal Structure of the Transmitter Note: Inner circuit board 1 Note: Inner circuit board 2 Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0008 Page 25 of 29 Top View of the Transmitter’s Inner Circuit (Inner circuit board 1) (Inner circuit board 2) Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0008 Page 26 of 29 Bottom View of the Transmitter’s Inner Circuit (Inner circuit board 1) (Inner circuit board 2)

TEST REPORT Guangzhou Testing & Inspection Institute for Household Electrical Appliances 广州日用电器检测所 GTIHEA 国家日用电器质量监督检验中心 Add.: 204 Xingang West Road Guangzhou 510302 P.R. China Telephone: 86-20-84451692 Fax: 86-20-84183160 E-mail: EMC@ GTIHEA.COM EUT : Transmitter of A7 Tornado Electric Airplane MODEL/TYPE : MTC 53XX FCC ID : P4SMTC53XX CLIENT : MEGATECH INTERNATIONAL INC. Classification of Test : COMMISSION TEST Test Report No.: FCC2005-0008 Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0008 Page2of27 Client Name: MEGATECH INTERNATIONAL INC. Address: 8300 Tonnelle Ave, North Bergen, NJ07047, USA Manufacturer Name: SHANGHAI C.C. LEE MODEL CO., LTD. Address: Huachang Industrial District, Shanghai, P. R. China Equipment under Test Name : TRANSMITTER OF A7 TORNADO ELECTRIC AIRPLANE Model/ type : MTC 53XX FCC ID : P4SMTC53XX Trade mark : Megatech Serial no. : — Sampling : — Date of Receipt. 2005.08.02 Date of Testing 2005.08.02-2005.11.02 Test Specification Test Result FCC PART 15,Subpart C, 2005 PASS Evaluation of Test Result This device complies with the requirements of Federal Communications Commission (FCC) Rules and Regulations Part 15. Issue Date: November 8, 2005 Tested by: Reviewed by: Approved by: Deng Junyong Name Signature Wang Xiaoyan Name Signature Name Signature Other Aspects: NONE Abbreviations: OK, Pass = passed Fail = failed N/A= not applicable EUT= equipment, sample(s) under tested This test report relates only to the EUT, and shall not be reproduced except in full, without written approval of GTIHEA. Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0008 Page 3 of 29 Contents 1. GENERAL PRODUCT INFORMATION...................................................................................4 1.1 PRODUCT DESCRIPTION......................................................................................................4 1.2 INDEPENDENT OPERATION MODES....................................................................................4 1.3 SUBMITTED DOCUMENTS....................................................................................................4 2. TEST SITES..........................................................................................................................5 2.1 TEST FACILITIES.................................................................................................................5 2.2 DESCRIPTION OF NON-STANDARD METHOD AND DEVIATIONS.........................................5 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS............................................................5 3. TEST SET-UP AND OPERATION MODES..............................................................................6 3.1 PRINCIPLE OF CONFIGURATION SELECTION......................................................................6 3.2 PHYSICAL CONFIGURATION FOR TESTING.........................................................................6 3.3 TEST OPERATION MODE AND TEST SOFTWARE................................................................6 3.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.......................................................6 3.5 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE....................................................6 4. EMISSION TEST RESULTS (INTENTIONAL RADIATOR) .........................................................7 4.1 CONDUCTED EMISSION (0.15MHZ~30MHZ).....................................................................7 4.2 RADIATED EMISSION (GENERAL REQUIREMENT) .............................................................8 4.3 20DB BANDWIDTH.............................................................................................................14 4.4 RADIATED EMISSION (ADDITIONAL PROVISIONS) ...........................................................17 5. PHOTOGRAPHS & NAMEPLATES OF THE EUT...............................................................222 6. PHOTOGRAPH OF THE TEST SETUP.................................................................................288 APPENDIX A...........................................................................................................................299 Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0008 Page 4 of 29 1. General Product Information Transmitter inputs: Left-hand stick at middle or back: Stops the motor-model glides/descends; Left-hand stick forward: Motor runs at high speed-model climbs; Right-hand stick to right: Model turns right; Right-hand stick to left: Plane turns left. For more details, refer to the Flight Manual. 1.1 Product Description Equipment Type : Intentional radiator Frequency Characteristics : 49.86 MHz Modulation Type : Pluse Ratings : 8×1.5V DC Antenna Type : Telescopic antenna 1.2 Independent Operation Modes The basic operation mode of the EUT is Transmitting. Because there are two sticks, so there are five kinds of combination for transmitting operation: No. Left-hand Stick Right-hand Stick The direction of the receiver Operation Mode 1 Forward —— Forward Operation Mode 2 —— Move to left Left Operation Mode 3 —— Move to right Right Operation Mode 4 Forward Move to left Forward and left Operation Mode 5 Forward Move to right Forward and right 1.3 Submitted Documents Operating Instructions and Installation Manual Rating Label Wiring Diagram Construction Drawing Photographs of EUT Material Bill (Parts List) Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0008 Page 5 of 29 2. Test Sites 2.1 Test Facilities The tests and measurements refer to this report were performed by EMC testing Lab. Of Guangzhou Testing & Inspection Institute for Household Electric Appliances. Add. : 204, Xingang West Road, Guangzhou, 510300, P.R. China Telephone : 86-20-84451692 Fax : 86-20-84183160 The EMC testing laboratory has…

Text truncated - open the document above for the full version.

Photograph of the test setup Spurious Emission (Front view) Spurious Emission (Back view)
