P4SMTC8340Transmitter of A7 Tornado Electric Airplane

Helen Zhao Subject: FW: (????-??????????)RE: Megatech International Inc., FCC ID: P4SMTC8340, Assessment NO.: AN05T4831, Notice#2 7/5/2005 From: Yu Xinlu To: Helen Zhao Subject: Re: (????-??????????)RE: Megatech International Inc., FCC ID: P4SMTC8340, Assessment NO.: AN05T4831, Notice#2 Dear Helen, The following is our reply: Question #1: Please submit Operational Description. Answer to Question #1: The transmitter (the EUT) has two sticks, left-hand stick and right-hand stick. If the left-hand stick is at middle or back, the receiver (the model plane) is stopped. If the left-hand stick moves to forward, the motor of the receiver is on. The right-hand stick can be moved to the left and the right. If the right-hand stick is moved to left, the receiver (the model plane) can be moved to left. If the right-hand stick is moved to right, the receiver (the model plane) can be moved to right. So, there are five kinds of combination for transmitting operation: Question #2: The test report and the test setup photos do not show that loop antenna has ever been used for radiated measurement below 30MHz. Please explain. You may need to redo radiated measurement below 30MHz using loop antenna. Please update both report and setup photos. Answer to Question #2: Test below 30MHz was redone with loop antenna. Please refer to the revised test report NoFCC2005 - 0002. Question #4: The Schematic in the filing is for RX, not for TX, the EUT. Please resubmit correct schematic for TX. Please see the attached TX. Question # 5 : Please revise FCC ID label format to change from "FCC ID P4SMTC8340" to "FCC ID: P4SMTC8340", i.e. please add a colon. Answer to Question # 5 : The FCC ID label had been revised and a colon had been added. Question # 6 : The user manual does not contain user information as specified in FCC15.21: The client will add the"changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." into the user manual.(please see the attached) No. Left-hand Stick Right-hand Stick The direction of the receiver Operation Mode 1 Forward —— Forward Operation Mode 2 —— Move to left Left Operation Mode 3 —— Move to right Right Operation Mode 4 Forward Move to left Forward and left Operation Mode 5 Forward Move to right Forward and right Best regards GTIHEA Yu Xinlu 7/5/2005

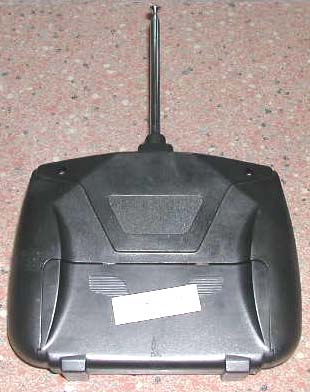

Photographs & Nameplates of the EUT 1. Outlook: Front View of the Transmitter Rear View of the Transmitter Note: Label used by EMC Testing Dept. of GTIHEA

3. Nameplate: FCC label location 58 mm 24 mm

2. Structure of internal wires: Internal Structure of the Transmitter Note: Inner circuit board 1 Note: Inner circuit board 2 Top View of the Transmitter’s Inner Circuit (Inner circuit board 1) (Inner circuit board 2) Bottom View of the Transmitter’s Inner Circuit (Inner circuit board 1) (Inner circuit board 2)

TEST REPORT Guangzhou Testing & Inspection Institute for Household Electrical Appliances ᑓᎲ᮹⫼⬉఼Ẕ⌟᠔GTIHEA ೑ᆊ᮹⫼⬉఼䋼䞣ⲥⴷẔ偠Ёᖗ Add.: 204 Xingang West Road Guangzhou 510302 P.R. China Telephone: 86-20-84451692 Fax: 86-20-84183160 E-mail: EMC@ GTIHEA.COM EUT : Transmitter of A7 Tornado Electric Airplane MODEL/TYPE : MTC 8340 FCC ID : P4SMTC8340 CLIENT :MEGATECH INTERNATIONAL INC. Classification of Test :COMMISSION TEST Test Report No.: FCC2005-0002 Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0002 Page2of43 Client Name: MEGATECH INTERNATIONAL INC. Address: 8300 Tonnelle Ave, North Bergen, NJ07047, USA Manufacturer Name: SHANGHAI C.C. LEE MODEL CO., LTD. Address: Huachang Industrial District, Shanghai, P. R. China Equipment under Test Name : TRANSMITTER OF A7 TORNADO ELECTRIC AIRPLANE Model/ type : MTC 8340 FCC ID :P4SMTC8340 Trade mark : Megatech Serial no. :ü Sampling :ü Date of Receipt. 2005.04.07 Date of Testing 2005.04.07-2005.16 Test SpecificationTest Result FCC PART 15,Subpart C, 2004PASS Evaluation of Test Result This device complies with the requirements of Federal Communications Commission (FCC) Rules and Regulations Part 15. Issue Date: June 17,2005 Tested by: Reviewed by: Approved by: Kuang Jian Name Signature Wang Xiaoyan Name Signature Name Signature Other Aspects: NONE Abbreviations: OK, Pass = passed Fail = failed N/A= not applicable EUT= equipment, sample(s) under tested This test report relates only to the EUT, and shall not be reproduced except in full, without written approval of GTIHEA. Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0002 Page 3 of 43 Contents 1.GENERALPRODUCTINFORMATION...................................................................................4 1.1P RODUCTDESCRIPTION......................................................................................................4 1.2I NDEPENDENTOPERATION MODES....................................................................................4 1.3S UBMITTEDDOCUMENTS....................................................................................................4 2.T ESTSITES..........................................................................................................................5 2.1T ESTFACILITIES.................................................................................................................5 2.2D ESCRIPTION OF NON-STANDARDMETHOD AND DEVIATIONS.........................................5 2.3L IST OF TEST AND MEASUREMENTINSTRUMENTS............................................................5 3.T ESTSET-UP AND OPERATION MODES..............................................................................6 3.1P RINCIPLE OF CONFIGURATIONSELECTION......................................................................6 3.2P HYSICALCONFIGURATION FOR TESTING.........................................................................6 3.3T ESTOPERATION MODE AND TESTSOFTWARE................................................................6 3.4S PECIALACCESSORIES AND AUXILIARY EQUIPMENT.......................................................6 3.5C OUNTERMEASURES TO ACHIEVEEMC COMPLIANCE....................................................6 4.E MISSION TEST RESULTS (INTENTIONAL RADIATOR) .........................................................7 4.1C ONDUCTEDEMISSION(0.15MHZ~30MHZ).....................................................................8 4.2R ADIATEDEMISSION...........................................................................................................9 4.320 DB BANDWIDTH.............................................................................................................32 5.P HOTOGRAPHS& NAMEPLATES OF THE EUT.................................................................35 6.P HOTOGRAPH OF THE TEST SETUP...................................................................................41 APPENDIXA.............................................................................................................................43 Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0002 Page 4 of 43 1. General Product Information Transmitter inputs: Left-hand stick at middle or back: Stops the motor-model glides/descends; Left-hand stick forward: Motor runs at high speed-model climbs; Right-hand stick to right: Model turns right; Right-hand stick to left: Plane turns left. For more details, refer to the Flight Manual. 1.1 Product Description Equipment Type : Intentional radiator Frequency Characteristics : 27.145 MHz Modulation Type : Pluse Ratings : 8h1.5V DC Antenna Type : Telescopic antenna 1.2 Independent Operation Modes The basic operation modes of the EUT is Transmitting. Because there are two sticks, so there are five kinds of combination for transmitting operation: No. Left-hand Stick Right-hand Stick The direction of the receiver Operation Mode 1 Forward üü Forward Operation Mode 2 üü Move to left Left Operation Mode 3 üü Move to right Right Operation Mode 4 Forward Move to left Forward and left Operation Mode 5 Forward Move to right Forward and right 1.3 Submitted Documents Operating Instructions and Installation Manual Rating Label Wiring Diagram Construction Drawing Photographs of EUT Material Bill (Parts List) Guangzhou Testing & Inspection Institute for Household Electrical Appliances GTIHEA Test Report No. FCC2005-0002 Page 5 of 43 2. Test Sites 2.1 Test Facilities The tests and measurements refer to this report were performed by EMC testing Lab. Of Guangzhou Testing & Inspection Institute for Household Electric Appliances. Add. : 204, Xingang West Road, Guangzhou, 510300, P.R. China Telephone : 86-20-84451692 Fax : 86-20-84183160 The EMC testing laboratory has been recognized by China National Commission for Laboratory Assessment, and authorized by Nemko of Norway since 1997(…

Text truncated - open the document above for the full version.

Photograph of the test setup Spurious Emission (Front view) Spurious Emission (Back view)
