P4XH1300KWIRELESS KEYBOARD

Dyna Point (Dong Guan) Electronic

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Dec 09, 2004
Application Purpose: Original Equipment
Date of Application: Dec 09, 2004
Equipment Note: WIRELESS KEYBOARD
Frequency Range: 27.14200000 - 27.14200000
Company: Dyna Point (Dong Guan) Electronic
Country: China

Documents & Files

Select a file to view

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

KGYW998BUSB User Manual 1. Connect the USB connector to the USB port on the system. 2. Connect the power connector from nodedock to the system. 3. Open the top cover of the mouse and insert 2 AA batteries. Take off the keyboard cover and insert 4 AAA batteries. Put back the battery doors. 4. Place mouse and keyboard in a distance of 1.5M to the nodedock. Within 10 seconds, press the synchornization button on the mouse and keyboard, then press the button on the receiver. The nodedock LED green light will start blinking if the synchornization functions normally. 5. Low Voltage Indicator: Mouse is in low voltage when the blue light is blinking in the mouse. Please change the battery when the top left LED indicator is blinking red light. 6. You can dock your MP3 player into the MP3 cup on the nodedock, all other 3 USB connectors can be insertted with any USB device. 7. You can insert any 1394 connector into the 1394 connection on the nodedock, and also insert the 1394 connector into the system. 8. Nodedock contains 6-in-1 card reader function. It is compatible with CF card, SM card, memory stick, SD card, MMC and Microdrive card. FCC Compliance and Advisory Statement. This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Block Diagram

Keyboard TX MCU DC circuit 27.142MHZ Keyboard send High modulate & amplifier

External Photos

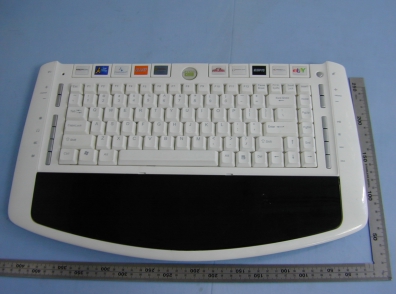

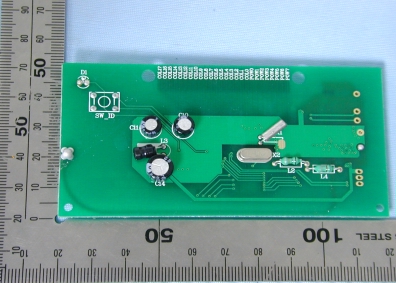

HomeTek (Chang-An) Inc.FCC ID: P4XH1300K FBRP4202 Appendix B: 1 of 4 Appendix B PHOTOS OF EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300K FBRP4202 Appendix B: 2 of 4 PHOTO OF EUT Model : H1300 Full View of EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300K FBRP4202 Appendix B: 3 of 4 PHOTO OF EUT Model : H1300 Inside View of EUT Case Inside View of EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300K FBRP4202 Appendix B: 4 of 4 PHOTO OF EUT Model : H1300 Full View of Component Full View of Solder 27.142MHz

ID Label/Location Info

HomeTek (Chang-An) Inc.FCC ID: P4XH1300K FBRP4202 Appendix C: 1 of 2 Appendix C Label Location and Label Content Keyboard FCC ID : P4XH1300K This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Switch Connect FCC ID Label (70mm×35mm) FCC ID:****** HomeTek (Chang-An) Inc.FCC ID: P4XH1300K FBRP4202 Appendix C: 2 of 2

Internal Photos

Operational Description

1. Connect the USB connector to the USB port on the PC system. 2. Connect the power connector from nodedock to the PC system. 3. Open the top cover of the mouse and insert 2 AA batteries. Take off the keyboard cover and insert 4 AAA batteries. Put back the battery doors. 4. Place mouse and keyboard in a distance of 1.5M to the nodedock. Within 10 seconds, press the synchornization button on the mouse and keyboard, then press the button on the receiver. The nodedock green LED will start blinking if the synchornization functions normally. 5. Low Voltage Indicator: Mouse is in low voltage when the blue light is blinking in the mouse. Please change the battery when the top left LED indicator is blinking red light. 6. You can dock your MP3 player into the MP3 cup on the nodedock, all other 3 USB connectors can be insertted with any USB device. 7. You can insert any 1394 connector into the 1394 connection on the nodedock, and also insert the 1394 connector into the PC system. 8. Nodedock contains 6-in-1 card reader function. It is compatible with CF card, SM card, memory stick, SD card, MMC and MicroDrive card.

Schematics

Keyboard??? COL[1] 1 COL[0] 2 VDD 3 FBUT 4 BBUT 5 OSC1 6 OSC2 7 RBUT 8 MBUT 9 LBUT 10 TXCB 11 ORF1 12 ORF2 13 RPOUT 14 RFCTL 15 TXD 16 ROW[5] 32 ROW[6] 31 ROW[7] 30 VSS 29 SVDIN 28 XIR 27 W2IN 26 W1IN 25 XREST 24 Z2IN 23 Z1IN 22 Y2IN 21 Y1IN 20 X2IN 19 X1IN 18 TEST 17 COL[18] 48 COL[19] 47 DCVR 46 VL 45 VSS 44 TURBO 43 L2IN 42 L1IN 41 P2IN 40 P1IN 39 P2[6] 38 ROW[0] 37 ROW[1] 36 ROW[2] 35 ROW[3] 34 ROW[4] 33 COL[2] 64 C0L[3] 63 COL[4] 62 COL[5] 61 COL[6] 60 COL[7] 59 COL[8] 58 COL[9] 57 COL[10] 56 COL[11] 55 COL[12] 54 COL[13] 53 COL[14] 52 COL[15] 51 COL[16] 50 COL[17] 49 U1 MA6121 X2 32.768 X1 27.142M C9 33P C7 18P C2 47P C1 47P R1 4.7M SWL SWID SWR VDD C6 33P L2 1.8UH C3 56P C0 5P COL0 COL1 COL2 COL3 COL4 COL5 COL6 COL7 COL8 COL9 COL10 COL11 COL12 COL13 COL14 COL15 COL16 COL17 COL18 BT1 2*1.5V C14 470UF C13 0.1uF L3 100UH D2 5819 R8 220K R9 100K C12 0.1uF C11 100UFuF R7 10 VDD VDD C10 100uF C15 0.1uF LED1 0.1uF R5 1K ROW[4] ROW[3] ROW[2] ROW[1] ROW[0] VDD ROW[5] ROW[6] ROW[6] X1X2Y1Y2 BAT R3 1.2M R4 680K VCC VDD 1 RB5 2 RB4 3 RB3 4 RC5 5 RC4 6 RC3 7 RC2 8 RC1 9 RC0 10 RB2 11 RB1 12 RB0 13 GND 14 U2 PIC16C505 TP5 TP4 TP3 TP2 TP1 R12 30K R6 30K R10 30K R11 30K R19 47K R18 47K R17 47K R20 47K Y2 Y1 X2 X1 G 3 S 2 D 1 XQ1 R13 0 R14 0 BAT VCC BAT C01 0.1uF VCC1 DATA CLK GND TOUCHPAD R16 47K R15 47K NORGATE-KEYBOARD-TR+TOUCHPAD L2 1.8UH BT2 2*1.5v

Test Report

HomeTek (Chang-An) Inc. FCC TEST REPORT FOR APPLICANT : Dyna Point (Dong Guan) Electronic ADDRESS : Hua Guo Shan Industry Park. Jie Kou, Chang’an, Dong Guan, Guang Dong ,China EUT : HIP-E Wireless Combo MODEL NO. : H1300 FCC ID : P4XH1300K Under Part 15, SUBPART C. CLASS B Certification MEASUREMENT PROCEDURE USED FCC RULES AND FCC / ANSI C63.4-2001 PREPARED BY : HomeTek (Chang-An) Inc. South of Shatou Industry District, Chang-An Town, DongGuan City, GuangDong,, China Report # : FBRP4202 ADDRESS: South of Shatou Industry District, Chang-An Town, DongGuan City, GuangDong,, China PHONE : 86-769-5303005 FAX : 86-769-5303006 E - mail:[email protected] HomeTek (Chang-An) Inc. FCC ID : P4XH1300K FBRP4202 Page : 1 of 19 TABLE OF CONTENTS............................................................................................. 1 GENERAL INFORMATION ..................................................................................... 2 MODIFICATION LIST .............................................................................................. 3 CONDUCTED POWER LINE TEST ....................................................................... 4 1 TEST PROCEDURE ........................................................................................... 4 2 RESULT OF CONDUCTED EMISSION TEST................................................. 4 RADIATED EMISSION TEST .................................................................................. 5 1 TEST INSTRUMENTS & FACILITIES ............................................................. 5 2 EUT OPERATING CONDITION ....................................................................... 6 3 TEST SETUP....................................................................................................... 7 4 CONFIGURATION OF THE EUT ..................................................................... 9 5 TEST PROCEDURE .........................................................................................15 6 LIMIT OF RADIATED EMISSION CLASS B.................................................16 7 RESULT OF RADIATED EMISSION TEST ...................................................17 PHOTO OF FCC ID LABEL ...................................................................................19 APPENDIX A PHOTOS OF TEST CONFIGURATION APPENDIX B PHOTOS OF EUT HomeTek (Chang-An) Inc. FCC ID : P4XH1300K FBRP4202 Page : 2 of 19 GENERAL INFORMATION 1 APPLICANT : Dyna Point (Dong Guan) Electronic 2 ADDRESS : Hua Guo Shan Industry Park. Jie Kou, Chang’an, Dong Guan, Guang Dong ,China 3 MANUFACTURER : Dyna Point (Dong Guan) Electronic 4 ADDRESS : Hua Guo Shan Industry Park. Jie Kou, Chang’an, Dong Guan, Guang Dong ,China 5 DESCRIPTION OF EUT : EUT : HIP-E Wireless Combo FCC ID : P4XH1300K Model Number : H1300 Serial # : N/A Transmitter Frequency : 27.142MHz Deviation : 5KHz ± 2KHz Modulation : Fsk Coding : Manchester Number of ID : 255 sets Effective Distance : 2m Working voltage : 3V DC / 4 * (AA) Battery Working Current : ≤20mA stand-by Current : ≤5uA Working mode to stand-by mode time : 100ms Working mode to sleeping mode time : 300ms 6 TEST MODE : The test mode of FM 27.142MHz is worst case, and the final test data were shown in this test report. HomeTek (Chang-An) Inc. FCC ID : P4XH1300K FBRP4202 Page : 3 of 19 MODIFICATION LIST There is no modification to this EUT by HomeTek (Chang-An) Inc. HomeTek (Chang-An) Inc. FCC ID : P4XH1300K FBRP4202 Page : 4 of 19 CONDUCTED POWER LINE TEST 1 TEST PROCEDURE According to ANSI C63.4 – 2001. 2 RESULT OF CONDUCTED EMISSION TEST N/A (Conducted Power Line Test is not applicable to this EUT ( Model : H1300)). HomeTek (Chang-An) Inc. FCC ID : P4XH1300K FBRP4202 Page : 5 of 19 RADIATED EMISSION TEST 1 TEST INSTRUMENTS & FACILITIES The following test Instruments was used during the radiated emission test : Item Instruments /facilities Specification Manufacturer Model # / S/N# Date of Cal. 1 OPEN AREA TEST SITE OATS 5 HOMETEK N/A AUG/2004 2 EMI TEST RECEIVER 20Hz ~ 26.5GHz ROHDE & SCHWARZ ESBI 845636/007 JUL/2004 3 PRE- AMPLIFIER 0.1MHz ~ 1.3GHz HEWLEET PACKARD 8447D 1937A02095 AUG/2004 4 ANTENNA (BI-LOG) 25MHz ~ 2GHz ANTENNA RESEACH LPB2520/A 1095 AUG/2004 5 ANTENNA (DIPOLE) 30 ~ 300MHz ROHDE & SCHWARZ HZ-12 842899/0008 AUG/2004 6 ANTENNA (DIPOLE) 300 ~ 1000MHz ROHDE & SCHWARZ HZ-12 842007/0004 AUG/2004 7 SIGNAL GENERATOR 9KHz ~ 2GHz MARCOIN 2022D 119229/010 AUG/2004 Note : Items 1 ~ 7 were calibrated within period of 1 year. HomeTek (Chang-An) Inc. FCC ID : P4XH1300K FBRP4202 Page : 6 of 19 2 EUT OPERATING CONDITION 2.1 Configure the EUT according to the ANSI C63.4 - 2001. 2.2 The radiated emission in the frequency range from 30 MHz - 1000 MHz was test in a horizontal and vertical polarization at HomeTek (Chang-An) Lab’s open site V. 2.3 The frequency of the EUT is 27.142 MHz. 2.4 Install 4 * DC 1.5V AA Battery into EUT. 2.5 Turn on all the power of EUT and peripheral. 2.6 The EUT was operated in its normal operating mode for the purpose of the measurements. (Press the “H” KEY for good.) 2.7 The receiving antenna polarized horizontally was varied from 1 to 4 meters and the wooden turntable was rotated through 360 degrees to obtain the highest reading on the ESMI test receiver or on the display of the spectrum analyzer. And also, each emission was to be maximized by changing the orientation of the EUT. 2.8 The photos of radiated test configuration, please refer to appendix A. HomeTek (Chang-An) Inc. FCC ID : P4XH1300K FBRP4202 Page : 7 of 19 3 TEST SETUP 3.1 TEST SETUP OF OPEN SITE. 1 M to 4 M EUT Receiver 3 M GROUND PLANE HomeTek (Chang-An) Inc. FCC ID : P4XH1300K FBRP4202 Page : 8 of 19 3.2 TEST SETUP OF EUT ANSI ELECTRICAL AND ELECTRONIC EQUIPMENT IN THE RANGE OF 9kHz TO 40 GHz C63.4-2001 (Details for setup configuration, please refer to appendix A.) LEGEND: 1. Interconnecting cables that hang closer than 40 cm to the ground plane shall be folded back and forth forming a bundle 30 to 40 cm long, hanging approximat…

Text truncated - open the document above for the full version.
