P4XH1300MWireless Mouse

KGYW998BUSB User Manual 1. Connect the USB connector to the USB port on the system. 2. Connect the power connector from nodedock to the system. 3. Open the top cover of the mouse and insert 2 AA batteries. Take off the keyboard cover and insert 4 AAA batteries. Put back the battery doors. 4. Place mouse and keyboard in a distance of 1.5M to the nodedock. Within 10 seconds, press the synchornization button on the mouse and keyboard, then press the button on the receiver. The nodedock LED green light will start blinking if the synchornization functions normally. 5. Low Voltage Indicator: Mouse is in low voltage when the blue light is blinking in the mouse. Please change the battery when the top left LED indicator is blinking red light. 6. You can dock your MP3 player into the MP3 cup on the nodedock, all other 3 USB connectors can be insertted with any USB device. 7. You can insert any 1394 connector into the 1394 connection on the nodedock, and also insert the 1394 connector into the system. 8. Nodedock contains 6-in-1 card reader function. It is compatible with CF card, SM card, memory stick, SD card, MMC and Microdrive card. FCC Compliance and Advisory Statement. This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

H13000 Mouse TX DC circuit High Modulate & Amplifier MCU Photoemission check & manage 27.042MHz Mouse send

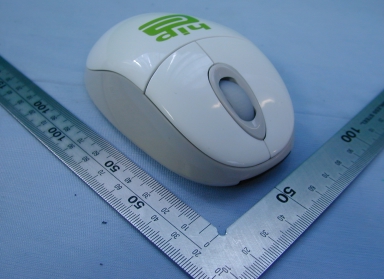

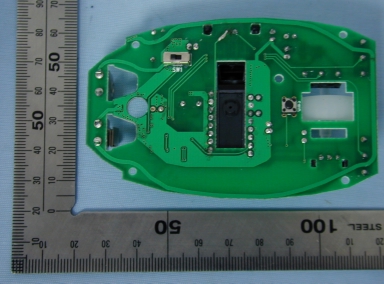

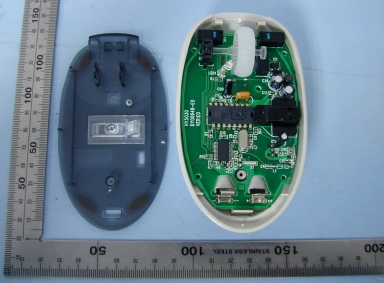

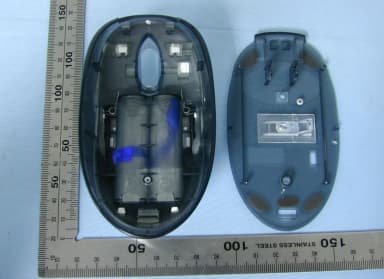

HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix B: 1 of 4 Appendix B PHOTOS OF EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix B: 2 of 4 PHOTO OF EUT Model : H1300 Full View of EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix B: 3 of 4 PHOTO OF EUT Model : H1300 Inside View of EUT Case Inside View of EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix B: 4 of 4 PHOTO OF EUT Model : H1300 Full View of Component Full View of Solder 27.042MHz

HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix C: 1 of 2 Appendix C Label Location and Label Content Mouse FCC ID : P4XH1300M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID Label (45mm×27mm) HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix C: 2 of 2

HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix B: 1 of 4 Appendix B PHOTOS OF EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix B: 2 of 4 PHOTO OF EUT Model : H1300 Full View of EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix B: 3 of 4 PHOTO OF EUT Model : H1300 Inside View of EUT Case Inside View of EUT HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix B: 4 of 4 PHOTO OF EUT Model : H1300 Full View of Component Full View of Solder 27.042MHz

1. Connect the USB connector to the USB port on the PC system. 2. Connect the power connector from nodedock to the PC system. 3. Open the top cover of the mouse and insert 2 AA batteries. Take off the keyboard cover and insert 4 AAA batteries. Put back the battery doors. 4. Place mouse and keyboard in a distance of 1.5M to the nodedock. Within 10 seconds, press the synchornization button on the mouse and keyboard, then press the button on the receiver. The nodedock green LED will start blinking if the synchornization functions normally. 5. Low Voltage Indicator: Mouse is in low voltage when the blue light is blinking in the mouse. Please change the battery when the top left LED indicator is blinking red light. 6. You can dock your MP3 player into the MP3 cup on the nodedock, all other 3 USB connectors can be insertted with any USB device. 7. You can insert any 1394 connector into the 1394 connection on the nodedock, and also insert the 1394 connector into the PC system. 8. Nodedock contains 6-in-1 card reader function. It is compatible with CF card, SM card, memory stick, SD card, MMC and MicroDrive card.

C15 104 C16 470U/16V L3 100UH C14 220UF/16V SWID OSC1 1 VSS 2 OSC2 3 VDD 4 RBUT 5 MBUT 6 LBUT 7 RFOUT 8 ORFIN0 9 ORFO 10 ORFO/TXD 11 TXD/PD 12 PD/WAKE_A 13 WA/WB 14 WB/XIR 15 Z1IN 16 Z2IN 17 SDIO 18 SCLK 19 BATL 20 TYPE 21 TXCB 22 BBUT 23 FBUT 24 SVD_IN 25 DCVR 26 VL 27 VL_NM 28 U1 MA6221S7K R2 560R EN1 C12 103 C833P Y1 27.042MHZ C9op C4 33P C11 39P SWL SWM SWR LBUT MBUT RBUT C3 104 X1 76.8KHZ R1 4.7M C1 22P C2 22P 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 SCLK XA XB YB YA XY_LED REFA REFB OSC_IN GND OSC_OUT GND VDD R_BIN PD SDIO U2 A2030 1 1 2 2 LED2 C18 104 C17 2.2UF/10V C19 104 X3 18.43MHZ R9 15K R8 68R C710P C105P R3 680K C20 4.7U/10V R4 1.2M R7 1K LED1 VIN 3 GND 1 Vout 2 Q1 RT9261B-40CX VDD VDD PD SCLK SDIO PD SDIO SCLK SW1 R6 100K L1 1.8UH C5 47p C6 22p PD SDIO SCLK SCLK SDIO PD VDD VDD C13 104 D1 1N5819 VDD BT1 3v NORCHGATE-MOUSE-TR HY5030 LIRENHUA 1 REV:B0

HomeTek (Chang-An) Inc. FCC TEST REPORT FOR APPLICANT : Dyna Point (Dong Guan) Electronic ADDRESS : Hua Guo Shan Industry Park. Jie Kou, Chang’an, Dong Guan, Guang Dong ,China EUT : HIP-E Wireless Combo MODEL NO. : H1300 FCC ID : P4XH1300M Under Part 15, SUBPART C. CLASS B Certification MEASUREMENT PROCEDURE USED FCC RULES AND FCC / ANSI C63.4-2001 PREPARED BY : HomeTek (Changan) Inc. South of Shatou Industry District, Chang-An Town, DongGuan City, GuangDong,, China Report # : FBRP4203 ADDRESS: South of Shatou Industry District, Chang-An Town, DongGuan City, GuangDong,, China PHONE : 86-769-5303005 FAX : 86-769-5303006 E - mail:[email protected] HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 1 of 20 TABLE OF CONTENTS ............................................................................................ 1 GENERAL INFORMATION..................................................................................... 2 MODIFICATION LIST.............................................................................................. 4 CONDUCTED POWER LINE TEST ....................................................................... 5 1 TEST PROCEDURE ....................................................................................... 5 2 RESULT OF CONDUCTED EMISSION TEST ............................................. 5 RADIATED EMISSION TEST.................................................................................. 6 1 TEST INSTRUMENTS & FACILITIES ......................................................... 6 2 EUT OPERATING CONDITION ................................................................... 7 3 TEST SETUP ................................................................................................... 8 4 CONFIGURATION OF THE EUT ...............................................................10 5 TEST PROCEDURE .....................................................................................16 6 LIMIT OF RADIATED EMISSION CLASS B.............................................17 7 RESULT OF RADIATED EMISSION TEST ...............................................18 PHOTO OF FCC ID LABEL ...................................................................................20 APPENDIX A PHOTOS OF TEST CONFIGURATION APPENDIX B PHOTOS OF EUT HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 2 of 20 GENERAL INFORMATION 1 APPLICANT : Dyna Point (Dong Guan) Electronic 2 ADDRESS : Hua Guo Shan Industry Park. Jie Kou, Chang’an, Dong Guan, Guang Dong ,China 3 MANUFACTURER : Dyna Point (Dong Guan) Electronic 4 ADDRESS : Hua Guo Shan Industry Park. Jie Kou, Chang’an, Dong Guan, Guang Dong ,China 5 DESCRIPTION OF EUT : EUT : HIP-E Wireless Combo FCC ID : P4XH1300M Model Number : H1300 Serial # : N/A Transmit Frequency : 27.042MHz Deviation : 5KHz ± 2KHz Modulation : Fsk Coding : Mouse Manchester Number of ID : 255 sets Effective Distance :2 m Working voltage : 3V DC / 2 * AA Battery Working Current : ≤40mA Stand-by Current : ≤10mA Sleep mode current : ≤0.07mA Working mode to stand-by mode time : 2-4sec Working mode to sleeping mode time : 8-10sec Buttons : 3 buttons with scrolling wheel Performance : Optical Mouse Resolution : 800 CPI HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 3 of 20 6 TEST MODE: The test mode of FM 27.042MHz is worst case, and the final test data were shown in this test report. HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 4 of 20 MODIFICATION LIST ※ ※※ ※ There is no modification to this EUT by HomeTek (Chang-An) Inc. HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 5 of 20 CONDUCTED POWER LINE TEST 1 TEST PROCEDURE According to ANSI C63.4 – 2001. 2 RESULT OF CONDUCTED EMISSION TEST N/A (Conducted Power Line Test is not applicable to this EUT ( Model : H1300)). HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 6 of 20 RADIATED EMISSION TEST 1 TEST INSTRUMENTS & FACILITIES The following test Instruments was used during the radiated emission test : Item Instruments /facilities Specification Manufacturer Model # / S/N# Date of Cal. 1 OPEN AREA TEST SITE
OATS 5 HOMETEK N/A AUG/2004 2 EMI TEST RECEIVER 20Hz ~ 26.5GHz ROHDE & SCHWARZ ESBI 845636/007 JUL/2004 3 PRE- AMPLIFIER 0.1MHz ~ 1.3GHz HEWLEET PACKARD 8447D 1937A02095 AUG/2004 4 ANTENNA (BI-LOG) 25MHz ~ 2GHz ANTENNA RESEACH LPB2520/A 1095 AUG/2004 5 ANTENNA (DIPOLE) 30 ~ 300MHz ROHDE & SCHWARZ HZ-12 842899/0008 AUG/2004 6 ANTENNA (DIPOLE) 300 ~ 1000MHz ROHDE & SCHWARZ HZ-12 842007/0004 AUG/2004 7 SIGNAL GENERATOR 9KHz ~ 2GHz MARCOIN 2022D 119229/010 AUG/2004 Note : Items 1 ~ 7 were calibrated within period of 1 year. HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 7 of 20 2 EUT OPERATING CONDITION 2.1 Configure the EUT according to the ANSI C63.4 - 2001. 2.2 The radiated emission in the frequency range from 30 MHz - 1000 MHz was test in a horizontal and vertical polarization at HomeTek (Chang-An) Lab’s open site V. 2.3 The frequency of the EUT is 27.042 MHz. 2.4 Connect the EUT power input to 4 X DC 1.5V AA Battery. 2.5 Turn on all the power of EUT and peripheral. 2.6 The EUT was operated in its normal operating mode for the purpose of the measurements. 2.7 The receiving antenna polarized horizontally was varied from 1 to 4 meters and the wooden turntable was rotated through 360 degrees to obtain the highest reading on the ESMI test receiver or on the display of the spectrum analyzer. And also, each emission was to be maximized by changing the orientation of the EUT. 2.8 The photos of radiated test configuration, please refer to appendix A. HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 8 of 20 3 TEST SETUP 3.1 TEST SETUP OF OPEN SITE. 1 M to 4 M EUT Receiver 3 or 10 M GROUND PLANE HomeTek (Chang-An) Inc. FCC ID : P4XH1300M FBRP4203 Page : 9 of 20 3.2 TEST SETUP OF EUT ANSI ELECTRICAL AND ELECTRONIC EQUIPMENT IN THE RANGE OF 9kHz TO 40 GHz C63.4-2001 (Details for setup configuration, please refer to appendix A.) LEGEND: 1. Intercon…

Text truncated - open the document above for the full version.

HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix A: 1 of 2 Appendix A PHOTOS OF TEST CONFIGURATION HomeTek (Chang-An) Inc.FCC ID: P4XH1300M FBRP4203 Appendix A: 2 of 2
