P53-EMB1013BLE Module

Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. Summary ⚫ Voltage input: 1.8 V ~ 3.6 V ⚫ Operating Temperature: -40 °C to + 85 °C ⚫ Processor: MX1510 Cortex-M0 kernel Running at 64 MHz ⚫ Memory 64KB SRAM 512KB XIP Flash ⚫ Bluetooth features Support for BLE 5.0/5.1, Bluetooth Mesh Supports 125Kbps/500Kbps/1Mbps/2Mbps Sensitivity: -96dBm@1mbps, 93dBm@2mbps, 105dBm@125kbps Transmit Power: + 7dBm Support for Single-Ended Antenna Output ⚫ Rich peripherals Up to 18 universal ios 2-way I2C interface (with bus arbitration) 2-way SPI interface 3-way UART (supports ISO7816, Lin, Irda, etc.) 2-way PDM interface, Digital Mic support, 1-way I2S interface 12-bit high-resolution SAR ADC, 5 channels 6 timers, 14 PWM outputs, 4 complementary RTC: supports high-precision hardware temperature compensation Watchdog timer: IWDG and WWDG Datasheet EMB1013 Bluetooth low energy module Built-in MX1510 Bluetooth low energy microcontroller, 64 KB static memory, 512 KB flash memory Bluetooth 5.1, security algorithms, high integration, rich peripherals Version: 1.1 Date: 2023-09-11 No. : DS0200EN EMB1013 Series BLE Modules Datasheet Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. ⚫ Security and acceleration unit ECC (256) AES (256/192/128) T/DES (192/128/64) True random number generation (TRNG) Operation Accelerator (Calc) ⚫ Interface and size PCB antenna on board 3x7 pins, double rows of 1.4 mm spaced stamp holes, 1.8 mm spaced gold fingers 15.8 mm x 17.5 mm, gold finger size 2.8 mm x 12.8 mm ⚫ Rich set of software Support for the MXOS operating system Support for XBT Bluetooth protocol stack, support for broadcast, Scan, Peripheral and Central mode, support for extended broadcast, Long-Range and other 5.0 new features Support for Bluetooth SIG Mesh Support for MXCHIP MXMesh stack Controller and Host modes are supported Bluetooth AT firmware with Passthrough support ⚫ Order code Order code Instructions EMB1013-PZG7 PCB antenna on board EMB1013 Series BLE Modules Datasheet Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. 1 Notes on version updates Date Version Update 2021-12-10 0.1 Initial version 2022-08-10 1.0 Adding a package diagram 2023-09-11 1.1 Updating electrical parameters Copyright notice All or any part of this manual shall not be used or reproduced without permission. This applies in particular to trademarks, model designations, part numbers and drawings. Data in documentation below version 1.0 is for reference only and may still be adjusted and modified before final production. EMB1013 Series BLE Modules Datasheet Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. 1 Introduction to modules MX1510 bluetooth microcontroller with Cortex-M0 ARM core at 64 MHz. It has the rich peripherals of a traditional microcontroller. Can be used as a host processor in a variety of embedded applications; also integrated with the latest Bluetooth communication technology, support broadcast, point-to-point, Mesh networking and other communications, it can upgrade the traditional embedded devices intelligently. It has a wide range of applications and has a very high cost-effective. The EMB1013 series modules are based on MX1510 Bluetooth microcontrollers, which can use rich peripheral interfaces to achieve data acquisition and control, and communicate with other Bluetooth devices through the built-in Bluetooth subsystem, not only can it interact directly with the phone, but it can also connect data to the Internet of Things Cloud Service Platform through the Mesh network. This series of modules through a variety of different sizes, interface forms, antenna interface, used in a wide range of Internet of things products. Shanghai Qingke provides MXOS software platform to support the development of EMB1013 series modules, providing an efficient development environment. MXOS includes XBT Bluetooth protocol stack, XMESH SDK, various Bluetooth sample programs and typical applications. The following is the hardware block diagram of the EMB1013 module, including: ⚫ Bluetooth microcontroller MX1510 ⚫ On-board antenna ⚫ Power and communication interface Fig. 1 hardware interface diagram EMB1013 Series BLE Modules Datasheet Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. 2 PIN definition PIN distribution Fig. 2 pin distribution (top view) PIN definition Table 1 pin definitions Serial numbe r Name Type Description Recommended settings (2) 1 PB12 I/o/Analog GPIO/ADC 2 PB13 I/o/Analog GPIO/ADC 3 PB14 I/O GPIO/Boot (1) Boot (1) 4 PB15 I/O GPIO/Wakeup STATUS 5 PA00 I/o/Analog GPIO/ADC/Wakeup 6 PB01 I/O GPIO/UART1, debug serial port (1) , ISP Burn Debug 7 PB00 I/O GPIO/UART1, debug serial port (1) , ISP Burn Debug 8 PA01 I/o/Analog GPIO/ADC 9 PA02 I/o/Analog GPIO/ADC 10 PA07 I/O GPIO 11 PA08 I/O GPIO 12 PA09 I/O GPIO 13 GND Power 14 VDD33 Power 3.3 V Power Input 15 PB11 I/O GPIO/Wakeup: USER 16 PB10 I/O GPIO USER 17 PB05 I/O GPIO/SWDIO SWDIO EMB1013 Series BLE Modules Datasheet Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. 3 18 NRST I Reset signal, active at low level Reset 19 PB06 I/O GPIO/SWCLK SWCLK 20 PB08 I/O GPIO 21 PB09 I/O GPIO Special notes: 1. The hardware detects PB14 at boot time and decides whether to enter ISP mode. This is a hardwired feature, so it can not be modified. When using the SDK or firmware provided by MXCHIP, the firmware also detects the PB15 pin and decides whether to enter QC mode. All the module specific modes of operation and mode of entry are shown in Table 2 module mode of Operation Selection: ⚫ ISP mode: through the UART connection module PB00(UART1) and PB01(UART1) , you can use the burn tool on-chip Flash programming. This mode is mainly used for production, at development time, you can directly through the SWD debug interface using the emulator to download firmware. ⚫ QC mode: internal test program is executed and test data is output via PB11(USER) and PB10(USER) . Serial port…

Text truncated - open the document above for the full version.

Shanghai MXCHIP Information Technology Co., Ltd Covered Equipment Certification Attestation Letter 7/23/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID:P53-EMB1013 Shanghai MXCHIP Information Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shanghai MXCHIP Information Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Shanghai MXCHIP Information Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name:Xu Wei Title:Product department manager Company Name:Shanghai MXCHIP Information Technology Co., Ltd Date: 7/23/2026

Shanghai MXCHIP Information Technology Co., Ltd * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 7/23/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: P53-EMB1013 FRN of applicant: 0021953211 Per section 2.911(d)(7) of t he FCC rules, Shanghai MXCHIP Information Technology Co., Ltd FRN:0021953211Click here to enter text.(“t he applicant”) certifi es tha t the equi pment fo r which authorization i s sought i s designated to t he following U.S. agent* f or service of process: Company Name: Oasis Compliance,Inc. FCC Registration Number (FRN):0033464157 Physical U.S. Company Address: 3313 Verdi Dr,San Jose,CA 95111 Contact Person:James He Email:[email protected] Telephone Number: (202) 602-8330 The above contact person accepts t he obligation for service of process. The applicant accepts to maintain an agent for no less than one year after t he grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Xu Wei Title: Product department manager Company Name: Shanghai MXCHIP Information Technology Co., Ltd Agent Signed (if different from Applicant): Signed: Printed name:James He Title: Manager Company Name:Oasis Compliance,Inc. Date: 7/23/2026 Date: 7/23/2026

Shanghai MXCHIP InformationTechnology Co., Ltd. Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Modular v02 Page 1 of 2 MODULAR APPROVAL LETTER (Product name) FCC ID :P53-EMB1013, is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one) The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in KDB 996369. Compliance to each of the requirements is described below: Modular Approval Requirement Yes No Please provide a detailed explanation (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. X Yes, the module has the radio frequency circuitry shielded. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. X Yes, all inputs to the modules are buffered through logic or microprocessor inputs. (iii) The modular transmitter must have its own power supply regulation. X Yes, the module contains a power supply regulation on the module. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. X The module contains a permanently attached antenna. (v) The modular transmitter must be tested in a stand-alone configuration X Yes, the module demonstrates compliance in a stand-alone configuration. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. X Yes, the module has its permanently affixed FCC ID label and the FCC ID label is printed on the top of the shield. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. X Yes, the module complies with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, refer to test report and user manual. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. X Yes, transmitter meets MPE calculation of 47 CFR 1.1307 and Part 2.1091. Refer to MPE Reports and Shanghai MXCHIP InformationTechnology Co., Ltd. Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Modular v02 Page 2 of 2 Refer to modular installation manual Client’s signature: Client’s name & title: Xu Wei/Manager Contact information / address: : 9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333)

Shanghai MXCHIP Information Technology Co., Ltd 7/23/2025 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Acote TechnologyCo., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Xu Wei, Product department manager Name, function, signature Telephone: 862152655026-103

Shanghai MXCHIP Information Technology Co., Ltd 7/23/2025 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (BLE Module / EMB1013-P/ P53-EMB1013) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the required to be submitted with this application be permanently withheld from public review.  Schematics  Block Diagrams  Theory of Operation SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Xu Wei, Product department manager

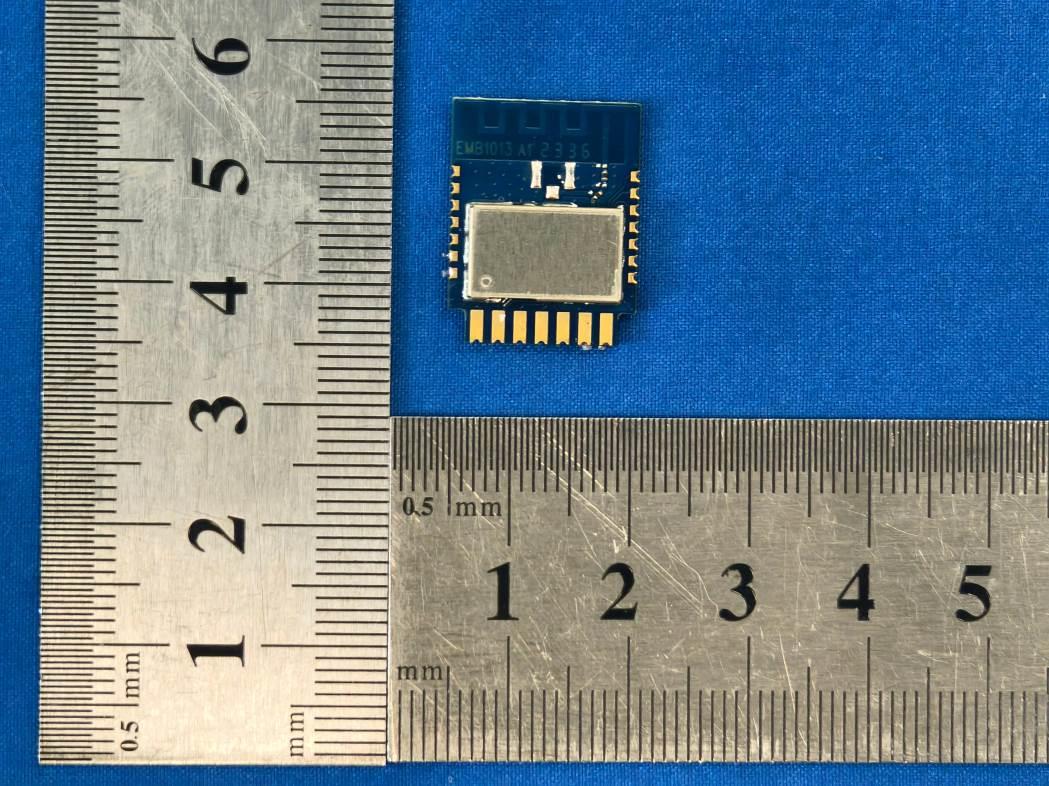

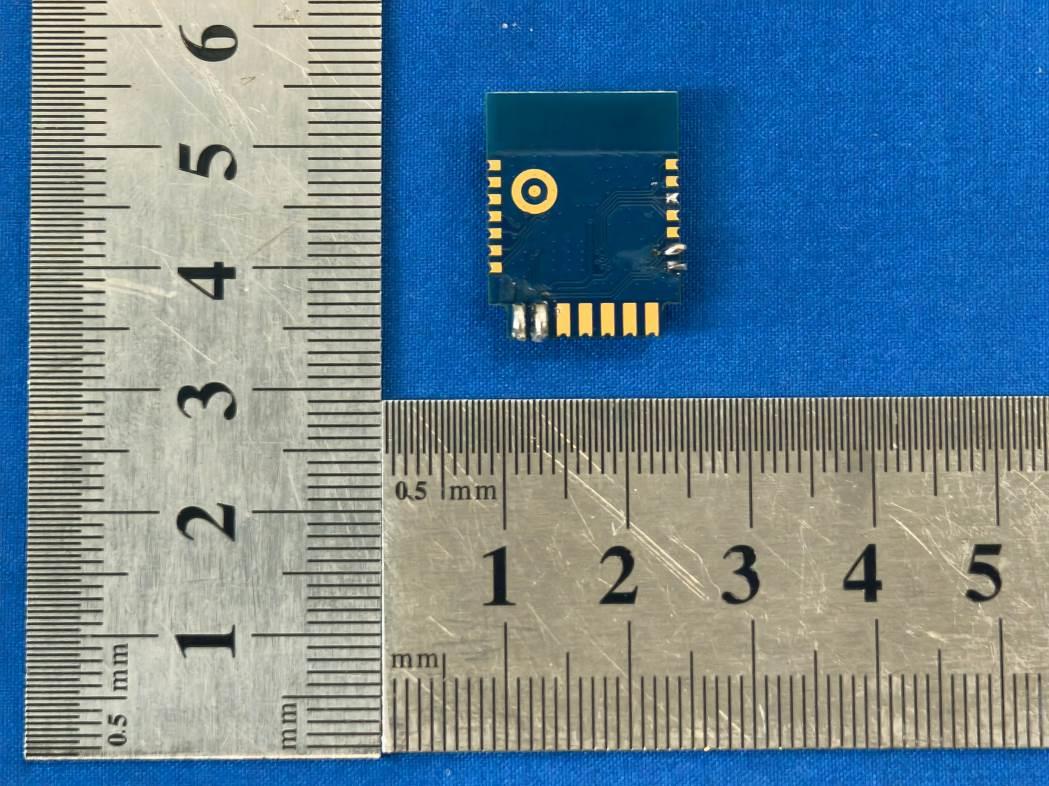

Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 38 of 42 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) 7 EUT Constructional Details Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 39 of 42 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 40 of 42 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715)

Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 41 of 42 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 42 of 42 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) ------ End of Report ------ ANT

Report No.: ACT-RF-260700102 This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page RF Exposure Evaluation Report Applicant: Shanghai MXCHIP Information Technology Co., Ltd Address of Applicant: 9th Floor, No.5, Lane2145, Jinsha Jiang Road, Putuo District, ShangHai, China (200333) Product Name: BLE Module Model No.: EMB1013-P Brand Name: MXCHIP FCC ID: P53-EMB1013 Test Standards: FCC CFR Title 47 Part 2 (§2.1091) Date of Sample Receipt: Jul. 07, 2026 Date of Test: Jul. 08 to 15, 2026 Date of Report Issue: Jul. 16, 2026 Prepared By: Shenzhen Acote Technology Co., Ltd. Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Winner Zhang / Manager Approved by Aron Wu / Senior Engineer Reviewed by Report No.: ACT-RF-260700102 Shenzhen Acote Technology Co., Ltd. Page 2 of 8 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) Report Revision History Rev. Issue Date Description V00 Jul. 16, 2026 Initial Release Report No.: ACT-RF-260700102 Shenzhen Acote Technology Co., Ltd. Page 3 of 8 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) Table of Contents Cover Page ............................................................................................................................. 1 Report Revision History ........................................................................................................ 2 Table of Contents................................................................................................................... 3 1 Laboratory Introduction .................................................................................................. 4 Laboratory Location................................................................................................................................... 4 Laboratory Facility ..................................................................................................................................... 4 Announcement .......................................................................................................................................... 4 Disclaimer .................................................................................................................................................. 4 2 Equipment Under Test Information ................................................................................ 5 Application Information .............................................................................................................................. 5 Product Information ................................................................................................................................... 5 EUT Technical Parameters ....................................................................................................................... 5 3 Test Information ............................................................................................................... 6 Test Methodology ...................................................................................................................................... 6 Additions to, Deviations, or Exclusions from the Method .......................................................................... 6 Test Mode ................................................................................................................................................. 6 Worst-case ................................................................................................................................................ 6 4 Technical requirements specification ............................................................................ 7 Limits ......................................................................................................................................................... 7 Result ........................................................................................................................................................ 8 Conclusion ................................................................................................................................................. 8 Report No.: ACT-RF-260700102 Shenzhen Acote Technology Co., Ltd. Page 4 of 8 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) 1 Laboratory Introduction Laboratory Location Company Name: Shenzhen Acote Technology Co., Ltd. Address of Laboratory: Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China. 101, F1, building 15, zhongda 365, Xincheng Road No.9, Songshanhu, Dongguan, Guangdong, China. Website: www.acotelabs.com Email: [email protected] Tel.: +86-0755-2788 9963 Laboratory Facility Our company’s laboratory facilities have received accreditation, certification, or authorization from the following organizations: ⚫ FCC - Designation No.: CN1450 Shenzhen Acote Technology Co., Ltd. has been certified by the FCC (Federal Comm…

Text truncated - open the document above for the full version.

Report No.: ACT-RF-260700101 This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page FCC RF Test Report (BLE) Applicant: Shanghai MXCHIP Information Technology Co., Ltd Address of Applicant: 9th Floor, No.5, Lane2145, Jinsha Jiang Road, Putuo District, ShangHai, China (200333) Product Name: BLE Module Model No.: EMB1013-P Brand Name: MXCHIP FCC ID: P53-EMB1013 Test Standards: FCC CFR Title 47 Part 15C (§15.247) Date of Sample Receipt: Jul. 07, 2026 Date of Test: Jul. 08 to 15, 2026 Date of Report Issue: Jul. 16, 2026 Prepared By: Shenzhen Acote Technology Co., Ltd. Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Winner Zhang / Manager Approved by Aron Wu / Senior Engineer Reviewed by Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 2 of 42 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) Report Revision History Rev. Issue Date Description V00 Jul. 16, 2026 Initial Release Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 3 of 42 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) Table of Contents Cover Page ............................................................................................................................. 1 Report Revision History ........................................................................................................ 2 Table of Contents................................................................................................................... 3 1 Laboratory Introduction .................................................................................................. 4 Laboratory Location................................................................................................................................... 4 1.1 Laboratory Facility ..................................................................................................................................... 4 1.2 Announcement .......................................................................................................................................... 4 1.3 Disclaimer .................................................................................................................................................. 4 1.4 2 Equipment Under Test Information ................................................................................ 5 Application Information .............................................................................................................................. 5 2.1 Product Information ................................................................................................................................... 5 2.2 EUT Technical Parameters ....................................................................................................................... 5 2.3 3 Test Information ............................................................................................................... 6 Test Methodology ...................................................................................................................................... 6 3.1 Test Result Summary ................................................................................................................................ 6 3.2 Environment of test site ............................................................................................................................. 6 3.3 Measurement Uncertainty ......................................................................................................................... 7 3.4 Description of Support Units ..................................................................................................................... 7 3.5 Additions to, Deviations, or Exclusions from the Method .......................................................................... 7 3.6 Test Instruments List ................................................................................................................................. 8 3.7 4 Test Configuration of EUT ............................................................................................. 10 Channels Selected to Perform the Tests ................................................................................................ 10 4.1 Test Mode ............................................................................................................................................... 10 4.2 Worst-case Configuration ........................................................................................................................ 10 4.3 Test Setup Block ..................................................................................................................................... 11 4.4 5 Technical requirements specification .......................................................................... 12 Antenna Requirement ............................................................................................................................. 12 5.1 AC Power Line Conducted Emission .........................................................................................…

Text truncated - open the document above for the full version.

1 / 3 RF Report Model Name EMB1013-P HW Solution Bluetooth Low Energy (BLE) Module FW Version 0000.0000.AT13 Report No. MXCHIP-EMB1013-P RF Test_001 Manufacture and Applicant Shanghai MXCHIP Information Technology Co., Ltd Address 9th Floor, Building B, Lane2145, Jinsha Jiang Road, Putuo District, Shanghai Tester Reviewer 2 / 3 1. Test Device 2. Test Environment Setup 3. Test Equipment Equipment Model Manufacture Vector Network Analyzer E5071C KEYSIGHT Comprehensive Test Instrument RayZone-5000 GTS 4. Antenna Efficient and Gain Freq （MHz） Effi （%%） Effi （dB） Gain （dBi） Min （dB） Attenut Hor Attenut Ver 2400 63.2 -1.9 1.8 -11.60 53.2 52.7 2410 62.5 -2.1 1.9 -10.97 52.9 51.8 2420 61.7 -1.9 1.8 -10.64 52.7 53.2 2430 62.4 -1.8 2.0 -11.08 53.6 52.6 2440 61.5 -1.9 1.8 -10.73 52.4 52.3 2450 62.3 -2.0 1.9 -11.25 53.8 53.5 2460 61.9 -2.0 1.8 -10.70 52.7 52.7 2470 61.2 -1.9 2.0 -11.32 53.4 52.3 2480 61.4 -2.0 1.8 -10.85 52.8 52.4 2490 62.7 -1.9 1.9 -10.32 53.2 51.9 2500 62.3 -2.1 1.7 -10.53 53.0 53.4 3 / 3 5. Antenna Radiation 2450MHz 6. Antenna Type Antenna Manufacturer: Shanghai MXCHIP Information Technology Co., Ltd. Antenna Type: PCB Antenna Antenna Model: EMB1013-PCB-Antenna Antenna Frequency: 2.4GHz Antenna Dimension: As shown in following figure (unit: mm)

Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 1 of 34 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) Appendix – BLE Test Data Report No.: ACT-RF-260700101 Shenzhen Acote Technology Co., Ltd. Page 2 of 34 Project No.: ACT-RF-2607001 Room 719, Excellence Times Building, No. 27, Xinqiao 3rd Road, Xinqiao Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong Province, China Report Template No.: ACT-4-FM-RF-001 Version A1 (20260715) Table of Contents Table of Contents ...............................................................................................................................................................…
