P53-EMC60832.4GHz Wi-Fi/BLE Module

Shanghai MXCHIP Information Technology Co.,Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 04, 2024
Application Purpose: Original Equipment
Date of Application: Aug 04, 2024
Equipment Note: 2.4GHz Wi-Fi/BLE Module
Frequency Range: 2412.00000000 - 2462.00000000
Company: Shanghai MXCHIP Information Technology Co.,Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. Abstract ⚫ Input： 3.0V~3.6V ⚫ Operating temperature：-40°C to +105°C ⚫ Dual Processor(Arm Cortex-M55 and RISC-V) ▪ 32-bit processor ▪ Main frequency up to 240MHz. ▪ UART supporting download and debugging. ⚫ Memory ▪ 512KB SRAM ▪ 64KB ROM ▪ 8MB XIP Flash ▪ 8MB external Flash ⚫ Wi-Fi ▪ IEEE 802.11 b/g/n/ax 1T1R . ▪ Support 20/40MHz Channel bandwidth, 2.4GHz single frequency. ▪ Transmitting power up to+18dBm, receiving sensitivity - 99dBm. ▪ Support working mode：STA、AP、Direct， Concurrency AP+STA. ▪ Support WPA/WPA2/WPA3. ▪ Integrated BT/WLAN coexistence（PTA）. ⚫ Bluetooth ▪ Support BLE 5.2 Standard. ▪ Support Bluetooth scattering network ▪ Support SIG Mesh network communication mode that supports flooding and scattering methods. ▪ Support AOA and AOD technology ▪ Wi-Fi and BLE share the same PA and antenna, time-sharing multiplexing. ▪ Support Bluetooth slave mode, which can be used for Bluetooth distribution network. ⚫ Rich Peripherals ▪ 21 x GPIO ▪ 1 x SPI ▪ 3 x UART ⚫ Interface and Size ▪ External antenna with IPEX connector. ▪ 18mm x 19.2mm x 3.2mm, stamp hole ⚫ Rich Supporting Software ▪ Support MXOS operating systems. ▪ Provide access SDK and AT instructions for major cloud platforms. ▪ Provide mass-produced firmware for various typical applications. ⚫ Typical Application ▪ Smart appliances ▪ Intelligent electrician ▪ Industrial automation ⚫ Order code Code Direction EMC6083-EZJ6 External Antenna with IPEX connector -40°C~105°C Datasheet EMC6083 Wi-Fi/BLE IoT Module Built-in Wi-Fi 6 Combo SoC 2.4G Hz IEEE 802.11 b/g/n/ax, BLE 5.2, ultra-high integration, rich peripherals Version：0.5 Date：2025-05-23 Number：DS0232EN EMC6083 Series Wi-Fi/BLE IoT Module Datasheet Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. Order Code Example EMC 6 08 3 -E Z L 7 -xxx Product Series EMC = Wi-Fi/BLE Module Product Type 6 = Wi-Fi 6 Typical Targe Application and Function 08 = IOT Application 8 series Shape size, enhancement function 3 = 18mm x 19.2mm x 3.2mm RF Interface P = 2.4GHz On-Board PCB Antenna E = 2.4GHz External Antenna IPEX Connector PSRAM Capacity(optional) Z=Without PSRAM J=4Mbyte PSRAM Flash Capacity L= 16M byte Flash Temperature Range 7 = Industrial Temperature Range, -40°C~105°C Optional TR = Reel packaging (pallet is used by default) For a list of all relevant features (such as packaging, minimum order quantity, etc.) and other information, please contact the nearest MXCHIP sales point and agent. Parts Order Code Direction MXKIT-Base Development board motherboard, applicable to all EMC6083 modules. MXKIT-Core-6083 The development board core board for EMC6083, including the EMC6083-P module. Used with MXKIT-Base. FX-6083 EMC6083 production fixture, including accompanying plate: MXKIT-Base, MXKIT-Core- 6083. EMC6083 Series Wi-Fi/BLE IoT Module Datasheet Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. Version Update Date Version Update 2024-01-15 0.1 Initial Version 2024-01-30 0.2 Adjust processor content 2024-04-15 0.3 Add reuse function of some IO pins Update RF parameters Update the final assembly dimension drawing 2024-04-24 0.4 Adjust the final assembly dimension drawing 2024-05-23 0.5 Optimize the annotation data of the final assembly dimension drawing Copyright Notice Without permission, it is prohibited to use or copy all or any part of this manual, especially for trademarks, model naming, part numbers and drawings. Datasheet lower than 1.0 are for reference only and may be modified before mass production. EMC6083 Series Wi-Fi/BLE IoT Module Datasheet Shanghai MXCHIP Information Technology Co., Ltd. All rights reserved. 1 Catalog Introduction ............................................................................................................................................................................................ 3 Pin Definition .......................................................................................................................................................................................... 4 Pin Arrangement .................................................................................................................................................................................................................. 4 Pin Definition ......................................................................................................................................................................................................................... 4 Electrical Parameters............................................................................................................................................................................ 7 Operation Voltage and Current ...................................................................................................................................................................................... 7 General I/O Interface .......................................................................................................................................................................................................... 8 Typical Application Power ................................................................................................................................................................................................. 8 Temperature ........................................................................................................................................................................................................................... 8 Electrostatic discharge ....................................................................................................................................................................................................... 9 RF Parameter ....................................................................................…

Text truncated - open the document above for the full version.

Attestation Statements

Rev1/26/2023 ShanghaiMXCHIPInformationTechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:07-23-2024 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:P53-EMC6083 [ShanghaiMXCHIPInformationTechnologyCo.,Ltd.](“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Sincerely, Signature Name:WeiXu Title:Manager Company:ShanghaiMXCHIPInformationTechnologyCo.,Ltd. Addressandcontactinformation:9thFloor,No.5,Lane2145JinshaJiangRoad,PutuoDistrict,ShangHai, China Rev1/26/2023 ShanghaiMXCHIPInformationTechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:07-23-2024 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:P53-EMC6083 [ShanghaiMXCHIPInformationTechnologyCo.,Ltd.](“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList(asaspecificallynamed entityoranyofitssubsidiariesoraffiliates)asanentityproducing“covered” equipment. Sincerely, Signature Name:WeiXu Title:Manager Company:ShanghaiMXCHIPInformationTechnologyCo.,Ltd. Addressandcontactinformation:9thFloor,No.5,Lane2145JinshaJiangRoad,PutuoDistrict,ShangHai, China

Cover Letter(s)

Rev11/20/07 ShanghaiMXCHIPInformationTechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:FCCID:P53- EMC6083 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockBlock Schematicssch OperationalDescription BOM OperationDescription BOM Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, Signature Name:WeiXu Title:Manager Company:ShanghaiMXCHIPInformationTechnologyCo.,Ltd. Addressandcontactinformation:9thFloor,BuildingB,Lane2145,JinshaJiangRoad,Putuo District,Shanghai,China

Cover Letter(s)

ShanghaiMXCHIPInformationTechnologyCo.,Ltd OperatingProceduresForm–FCCModularPage1of1 MODULARAPPROVALLETTER 2024/07/23 (Productname)FCCID:P53-EMC6083,isseekingFCCAuthorizationasa SingleModulartransmitter/SingleLimitedModularApproval(Pleasecheckone) TheEUTmeetstherequirementsfor SingleModularapproval/SingleLimitedModularApproval(pleasecheckone) asdetailedinKDB996369.Compliancetoeachoftherequirementsisdescribedbelow: Requirementper15.212andKDB996369D01ExplanationfromGrantee (donotwriteyes/no,butexplainwhyproduct complies/howitisachieved) Theradioelementsmusthavetheradiofrequencycircuitry shielded.Physicalcomponentsandtuningcapacitor(s)maybe locatedexternaltotheshield,butmustbeonthemodule assembly. Thismodulehasacompletemetalshield coveringtheentirecircuit,exceptforthe antenna. Themodulemusthavebufferedmodulation/datainputstoensure thatthedevicewillcomplywithPart15requirementswithanytype ofinputsignal. IthaslargeFlashandram,andacomplete modemtoensurethatthedevicewillcomply withPart15requirementswithanytypeof inputsignal. Themodulemustcontainpowersupplyregulationonthemodule. ItintegratedDCDC(BUCK)andseveral LDOsinternally. Themodulemustcontainapermanentlyattachedantenna,or containauniqueantennaconnector,andbemarketedand operatedonlywithspecificantenna(s),per§§15.203,15.204(b), 15.204(c),15.212(a),2.929(b). ThemodulecontainsainvertedPCBantenna ontheboard. Themodulemustdemonstratecomplianceinastand-alone configuration. ItcontainsRFPA/LNAandtransceiver,and ARMCortexM0MCUinside;Itcanrealize functionsstandalone. ThemodulemustbelabeledwithitspermanentlyaffixedFCCID label,oruseanelectronicdisplay(seeKDBPublication784748). Alabelwillbeattachedtothemetalshieldof themodule. Themodulemustcomplywithallspecificrulesapplicabletothe transmitter,includingalltheconditionsprovidedintheintegration instructionsbythegrantee. Thismodulehasgooddesignanduniform quality,itcanmeettestrequirements. ThemodulemustcomplywithRFexposurerequirements ItcomplieswiththeBluetoothLowEnergyand 802.11b/g/n/axspecification,andithasbeen testedandverified. Client’ssignature: Client’sname&title: WeiXu/ ManagerContactinformation/address:9thFloor,No.5,Lane2145 JinshaJiangRoad,PutuoDistrict,ShangHai,China

Cover Letter(s)

ShanghaiMXCHIPInformation TechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Date:2024.07.23 FCCID:P53-EMC6083 ToWhomItMayConcern: We,theundersigned,herebyauthorizeWiminXieatGRGMetrology&TestGroup Co.,Ltd.onourbehalf,toapplytotheFederalCommunicationsCommissiononour equipment.AnyandallactscarriedoutbyGRGMetrology&TestGroupCo.,Ltd.onour behalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Signature Name:WeiXu Title:Manager Company:ShanghaiMXCHIPInformationTechnologyCo.,Ltd. Addressandcontactinformation:9thFloor,No.5,Lane2145JinshaJiangRoad, PutuoDistrict,ShangHai,China(200333)Shanghai,China

External Photos

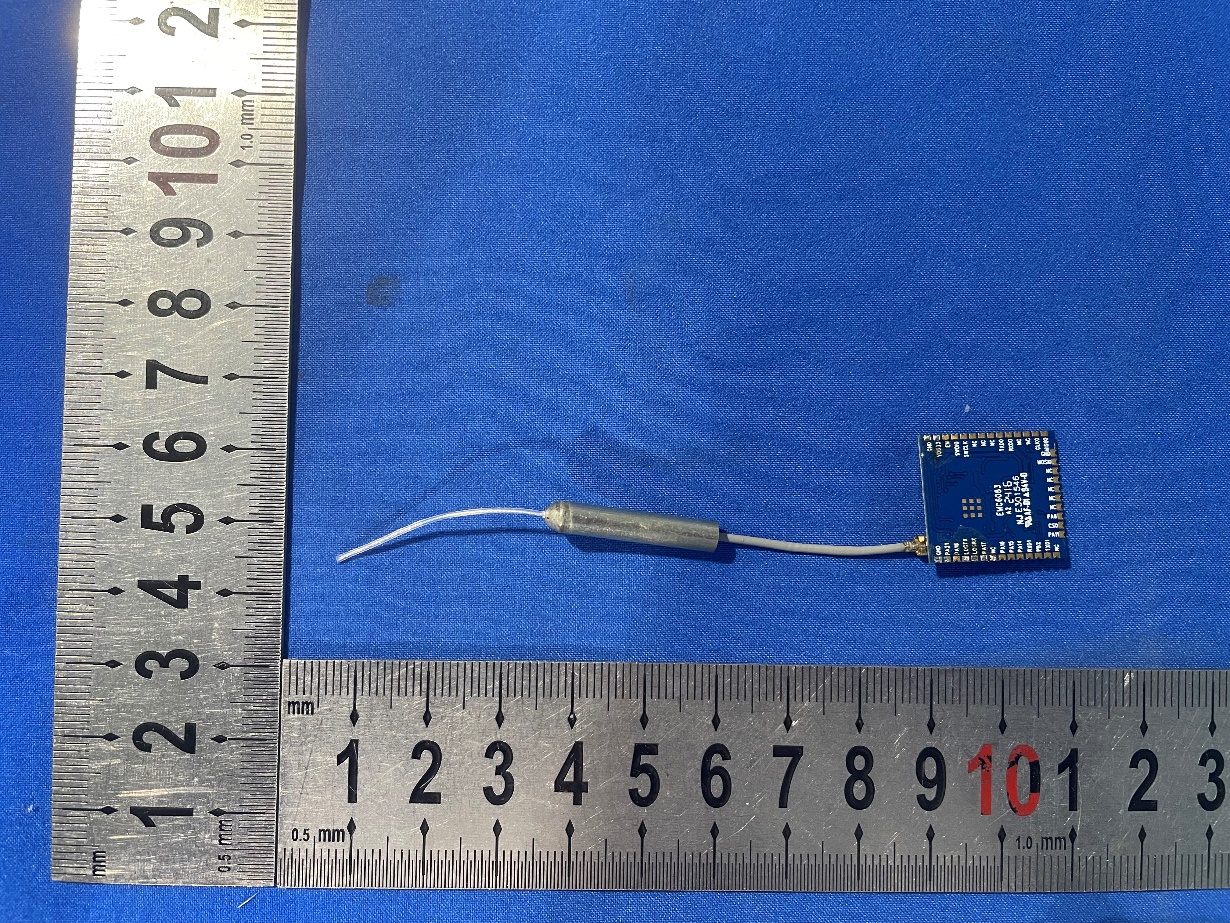

Report No.: S20240603102301-A1 Page Number: 1 of 3 Attachment 1：External Photo of EUT Photo 1: The whole product view Photo 2: The whole product view Report No.: S20240603102301-A1 Page Number: 2 of 3 Photo 3: The whole product view Photo 4: The whole product view Report No.: S20240603102301-A1 Page Number: 3 of 3 Photo 5: The whole product view Photo 6: The whole product view

ID Label/Location Info

! ""# $%"! ! &'()! *(&# $+(( , $%$ $ $

ID Label/Location Info

! " #$% &'( )&#$*+ ,$%% %-% ),),

Internal Photos

Report No.: S20240603102301-A2 Page Number: 1 of 3 Attachment 2：Internal Photo of EUT Photo 1: Internal View for PCB Photo 2: Internal View for PCB Report No.: S20240603102301-A2 Page Number: 2 of 3 Photo 3: Internal View for 2.4G-WiFi/BLE Antenna Photo 4: Internal View for PCB Report No.: S20240603102301-A2 Page Number: 3 of 3 Photo 5: Internal View for PCB Photo 6: Internal View for PCB

RF Exposure Info

FangguangInspection&TestingCo.,Ltd. PageNumber:1of6 RFExposureEvaluationDeclaration ReportNo.:S20240603102301E03 IssueDate:07-30-2024 Applicant: ShanghaiMXCHIPInformationTechnologyCo.,Ltd Address: 9thFloor,No.5,Lane2145JinshaJiangRoad,Putuo District,ShangHai,China(200333) FCCID:P53-EMC6083 ApplicationType:Certification Product:2.4GHzWi-Fi/BLEModule ModelNo.:EMC6083-E TradeMark: FCCRulePart(s): CFR47,FCCPart2.1091Radiofrequencyradiation exposureevaluation:mobiledevices. ItemReceiptdate:Jun03,2024 TestDate:Jun05~Jul09,2024 CompiledBy (StoneZhang) SeniorTestEngineer ApprovedBy (LineChen) EngineerManager Thetestresultsrelateonlytothesamplestested. Thisequipmenthasbeenshowntobecapableofcompliancewiththeapplicabletechnicalstandardsas indicatedinthemeasurementreportandwastestedinaccordancewiththemeasurementproceduresspecified inKDB558074D01.Testresultsreportedhereinrelateonlytotheitem(s)tested. ThetestreportshallnotbereproducedexceptinfullwithoutthewrittenapprovalofFangguangInspection& TestingCo.,Ltd.WuxiBranch Thetestreportmustnotbeusedbytheclienttoclaimproductcertifications,approval,orendorsementby NVLAP,NISToranyagencyofU.S.Government. ReportNo.:S20240603102301E03 PageNumber:2of6 RevisionHistory ReportNo.VersionDescriptionIssueDate S20240603102301E03 Rev.01/ 07-30-2024 ReportNo.:S20240603102301E03 PageNumber:3of6 CONTENTS DescriptionPage 1.PRODUCTINFORMATION.........................................................................................4 1.1.EquipmentDescription............................................................................................4 1.2.ProductSpecificationSubjectivetothisReport..................................................4 2.RFExposureEvaluation.............................................................................................5 2.1.Limits.........................................................................................................................5 2.2.CalculationMethod..................................................................................................6 ReportNo.:S20240603102301E03 PageNumber:4of6 1.PRODUCTINFORMATION 1.1.EquipmentDescription 1.2.ProductSpecificationSubjectivetothisReport ProductName:2.4GHzWi-Fi/BLEModule ModelName:EMC6083-E TradeMark: InputVoltageRange:DC3.3V300mA FrequencyRange:BLE_1M:2402~2480MHz BLE_2M:2404~2478MHz 802.11b/g/n-HT20/ax-HE20:2412~2462MHz DataRate:BLE:1Mbps 802.11b:1/2/5.5/11Mbps 802.11g:6/9/12/18/24/36/48/54Mbps 802.11n-HT20:MCS0~MCS7 802.11ax-HE20:MCS0~MCS11 AntennaType:PCBAntenna AntennaGain:2dBi ReportNo.:S20240603102301E03 PageNumber:5of6 2.RFExposureEvaluation 2.1.Limits AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedtoevaluatethe environmentimpactofhumanexposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LIMITSFORMAXIMUMPERMISSIBLEEXPOSURE(MPE) FrequencyRange (MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm 2 ) AverageTime (Minutes) (A)LimitsforOccupational/ControlExposures 300-1500----f/3006 1500-100,000----56 (B)LimitsforGeneralPopulation/UncontrolledExposures 300-1500----f/15006 1500-100,000----130 f=FrequencyinMHz CalculationFormula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=gainofantennainlinearscale Pi=3.1416 r=distancebetweenobservationpointandcenteroftheradiatorincm PdisthelimitofMPE,1mW/cm².Ifweknowthemaximumgainoftheantennaandthetotalpower inputtotheantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitis reached. ReportNo.:S20240603102301E03 PageNumber:6of6 2.2.CalculationMethod Product2.4GHzWi-Fi/BLEModule TestItemRFExposureEvaluation Mode Frequency (MHz) Maximum Conducted Output Power (dBm) Antenna Gain (dBi) PG MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) (dBm)(mW) WLAN2412-246219.87221.87153.820.311.00 BLE2402-24805.5827.585.730.011.00 Remark:1.MPEusedistanceis20cmfrommanufacturerdeclarationofusermanual. Remark:2.Usethemaximumgainofallbandswhenevaluating CONCULISON: ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRF ExposureandSARExclusionThresholdperKDB447498v06. TheEnd

Test Report

1 / 3 RF Report Model Name EMC6083-E HW Solution IOT WLAN (802.11) Module RTL8710EC FW Version 0000.0000.A258 Report No. MXCHIP-EMC6083-E RF Test_001 Manufacture and Applicant Shanghai MXCHIP Information Technology Co., Ltd. Address 9th Floor, Building B, Lane2145, Jinsha Jiang Road, Putuo District, Shanghai Tester Reviewer 2 / 3 1. Test Device 2.Test Environment Setup 2. Test Equipment Equipment Model Manufacture Vector Network Analyzer E5071C KEYSIGHT Comprehensive Test Instrument RayZone-5000 GTS 4.Antenna Efficient and Gain 3 / 3 5. Antenna Radiation 2450MHz 6. Antenna Dimension Antenna Manufacturer: Shanghai MXCHIP Information Technology Co., Ltd. Antenna Type: PCB Antenna Antenna Model: EMC5020-PCB-Antenna Antenna Frequency: 2.4GHz Antenna Dimension: As shown in following figure 30mm m 50mm m R=2mm m IPEX Connector 25mm m

Test Report

FangguangInspection&TestingCo.,Ltd. HeadquartersAdd.:AreaBofthe3rdfloor,XEDASci-TechPark,XiqingEconomicDevelopmentArea,Tianjin,China Tel:+86-020-66289500-8260Email:[email protected]://www.fgtest.cn TRFNo.:FG.WI-07-Part15SubpartC(15.247)ReportsInquiry:https://grgtest.com PageNumber:1of84 ReportNo.:S20240603102301E01 IssueDate:07-30-2024 Applicant: ShanghaiMXCHIPInformationTechnologyCo.,Ltd Address:9thFloor,No.5,Lane2145JinshaJiangRoad,PutuoDistrict, ShangHai,China(200333) FCCID: P53-EMC6083 Product:2.4GHzWi-Fi/BLEModule ModelNo.:EMC6083-E FCCClassification:DigitalTransmissionSystem(DTS) FCCRulePart(s):Part15SubpartC(15.247) TestProcedure(s):ANSIC63.10-2013,KDB558074D01v05r02 Result:Pass ItemReceiptDate:Jun03,2024 TestDate:Jun05~Jul09,2024 CompiledBy (StoneZhang) SeniorTestEngineer ApprovedBy (LineChen) EngineerManager MEASUREMENTREPORT FCCPART15.247Bluetooth-LE Thetestresultsrelateonlytothesamplestested. Thisequipmenthasbeenshowntobecapableofcompliancewiththeapplicabletechnicalstandards asindicatedinthemeasurementreportandwastestedinaccordancewiththemeasurement proceduresspecifiedinANSIC63.4-2014.Testresultsreportedhereinrelateonlytotheitem(s)tested. ThetestreportshallnotbereproducedexceptinfullwithoutthewrittenapprovalofFangguang Inspection&TestingCo.,Ltd.WuxiBranch Thetestreportmustnotbeusedbytheclienttoclaimproductcertifications,approval,orendorsement byNVLAP,NISToranyagencyofU.S.Government. ReportNo.:S20240603102301E01 PageNumber: 2 of 84 RevisionHistory ReportNo.VersionDescriptionIssueDate S20240603102301E01Rev.01/07-30-2024 ReportNo.:S20240603102301E01 PageNumber: 3 of 84 CONTENTS DescriptionPage §2.1033GeneralInformation..............................................................................................................5 1.INTRODUCTION..........................................................................................................................6 1.1.Scope................................................................................................................................6 1.2.FangguangTestLocation.................................................................................................6 2.PRODUCTINFORMATION..........................................................................................................7 2.1.EquipmentDescription......................................................................................................7 2.2.ProductSpecificationSubjectivetothisReport................................................................7 2.3.OperationFrequency/ChannelList.................................................................................7 2.4.DeviceCapabilities............................................................................................................8 2.5.DescriptionofTestSoftware...........................................................................................11 2.6.TestMode........................................................................................................................11 2.7.TestConfiguration...........................................................................................................12 2.8.EMISuppressionDevice(s)/Modifications......................................................................12 2.9.EUTPhoto.......................................................................................................................12 2.10.LabelingRequirements...................................................................................................12 2.11.Calculationwithallconversionandcorrectionfactorsused..........................................12 3.DESCRIPTIONOFTEST...........................................................................................................13 3.1.EvaluationProcedure......................................................................................................13 3.2.ACLineConductedEmissions.......................................................................................13 3.3.RadiatedEmissions........................................................................................................14 4.ANTENNAREQUIREMENTS....................................................................................................15 5.TESTEQUIPMENTCALIBRATIONDATE...............................................................................16 6.MEASUREMENTUNCERTAINTY.............................................................................................17 7.TESTRESULT............................................................................................................................18 7.1.Summary.........................................................................................................................18 7.2.6dBBandwidthMeasurement.........................................................................................19 7.2.1.TestLimit.....................................................................................................................19 7.2.2.TestProcedureused...................................................................................................19 7.2.3.TestSetting..................................................................................................................19 7.2.4.TestSetup...................................................................................................................19 7.2.5.TestResult...................................................................................................................20 7.3.OutputPowerMeasurement...........................................................................................23 ReportNo.:S20240603102301E01 PageNumber: 4 of 84 7.3.1.TestLimit.....................................................................................................................23 7.3.2.TestProcedureUsed...................................................................................................23 7.3.3…

Text truncated - open the document above for the full version.

Test Report

ReportNo.:S20240603102301E01 PageNumber: 36 of 84 BLE_1M_Low_2402 BLE_1M_High_2480 ReportNo.:S20240603102301E01 PageNumber: 37 of 84 BLE_2M_Low_2404 BLE_2M_High_2478 ReportNo.:S20240603102301E01 PageNumber: 38 of 84 BLE_1M_2402_0~Reference BLE_1M_2402_30~1000 ReportNo.:S20240603102301E01 PageNumber: 39 of 84 BLE_1M_2402_1000~26500 BLE_1M_2440_0~Reference ReportNo.:S20240603102301E01 PageNumber: 40 of 84 BLE_1M_2440_30~1000 BLE_1M_2440_1000~26500 ReportNo.:S20240603102301E01 PageNumber: 41 of 84 BLE_1M_2480_0~Reference BLE_1M_2480_30~1000 ReportNo.:S20240603102301E01 PageNumber: 42 of 84 BLE_1M_2480_1000~26500 BLE_2M_2404_0~Reference ReportNo.:S20240603102301E01 PageNumber: 43 of 84 BLE_2M_2404_30~1000 BLE_2M_2404_1000~26500 ReportNo.:S20240603102301E01 PageNumber: 44 of 84 BLE_2M_2440_0~Reference BLE_2M_2440_30~1000 ReportNo.:S20240603102301E01 PageNumber: 45 of 84 BLE_2M_2440_1000~26500 BLE_2M_2478_0~Reference ReportNo.:S20240603102301E01 PageNumber: 46 of 84 BLE_2M_2478_30~1000 BLE_2M_2478_1000~26500 ReportNo.:S20240603102301E01 PageNumber: 47 of 84 7.6.RadiatedSpuriousEmissionMeasurement 7.6.1.TestLimit AlloutofbandemissionsappearinginarestrictedbandasspecifiedinSection15.205oftheTitle 47CFRmustnotexceedthelimitsshowninTableperSection15.209. FCCPart15SubpartCParagraph15.209 Frequency [MHz] FieldStrength [uV/m] MeasuredDistance [Meters] 0.009–0.4902400/F(kHz)300 0.490–1.70524000/F(kHz)30 1.705-303030 30-881003 88-2161503 216-9602003 Above9605003 7.6.2.TestProcedureUsed ANSIC63.10-2013–Section6.6.4.3 7.6.3.TestSetting PeakFieldStrengthMeasurements 1.Analyzercenterfrequencywassettothefrequencyoftheradiatedspuriousemissionof interest 2.RBW=asspecifiedinTable1 3.VBW=3MHz 4.Detector=peak 5.Sweeptime=autocouple 6.Tracemode=maxhold ReportNo.:S20240603102301E01 PageNumber: 48 of 84 7.Tracewasallowedtostabilize Table1-RBWasafunctionoffrequency FrequencyRBW 9~150kHz200~300Hz 0.15~30MHz9~10kHz 30~1000MHz100~120kHz >1000MHz1MHz AverageFieldStrengthMeasurements 1.Analyzercenterfrequencywassettothefrequencyoftheradiatedspuriousemissionof interest 2.RBW=1MHz 3.VBW=3MHz 4.Detector=PowerAverage(RMS) 5.Numberofsweeppoint=2001(Numberofsweeppointsmustbe≥2xspan/RBW) 6.Sweeptime=auto 7.Trace(RMS)averagingwasperformedoveratleast100traces. ReportNo.:S20240603102301E01 PageNumber: 49 of 84 7.6.4.TestSetup 9kHz~30MHzTestSetup: 30MHz~1GHzTestSetup: ReportNo.:S20240603102301E01 PageNumber: 50 of 84 1GHz~18GHzTestSetup: 18GHz~25GHzTestSetup: ReportNo.:S20240603102301E01 PageNumber: 51 of 84 7.6.5.TestResult TestMode:BLE_1MTestDate:2024-06-19 TestChannel:00TestEngineer:StoneZhang Remark:Averagemeasurementwasnotperformedifpeaklevellowerthanaveragelimit. Otherfrequencywas20dBbelowlimitlinewithin1-18GHz,thereisnotshowinthereport. Frequency (MHz) Level (dBμV/m) Factor (dB) Limit (dBμV/m) Margin(dB)DetectorPolarization 1062.666739.44-19.3674.0034.56 PeakHorizontal 2125.333340.97-12.5674.0033.03 PeakHorizontal 4805.000047.51-2.0474.0026.49 PeakHorizontal 7525.000047.680.5974.0026.32 PeakHorizontal 1065.333345.51-18.2074.0028.49 PeakVertical 2132.000044.47-12.1674.0029.53 PeakVertical 4800.000047.59-2.5674.0026.41 PeakVertical 8325.000049.292.2474.0024.71 PeakVertical ReportNo.:S20240603102301E01 PageNumber: 52 of 84 TestMode:BLE_1MTestDate:2024-06-19 TestChannel:19TestEngineer:StoneZhang Remark:Averagemeasurementwasnotperformedifpeaklevellowerthanaveragelimit. Otherfrequencywas20dBbelowlimitlinewithin1-18GHz,thereisnotshowinthereport. Frequency (MHz) Level (dBμV/m) Factor (dB) Limit (dBμV/m) Margin(dB)DetectorPolarization 1118.666742.87-19.0274.0031.13 PeakHorizontal 2213.333342.73-12.0874.0031.27 PeakHorizontal 4880.000048.36-1.6974.0025.64 PeakHorizontal 8000.000049.522.3074.0024.48 PeakHorizontal 1114.666747.86-17.9474.0026.14 PeakVertical 2129.333347.53-12.1774.0026.47 PeakVertical 4880.000047.07-2.2774.0026.93 PeakVertical 9305.000050.614.7174.0023.39 PeakVertical ReportNo.:S20240603102301E01 PageNumber: 53 of 84 TestMode:BLE_1MTestDate:2024-06-19 TestChannel:39TestEngineer:StoneZhang Remark:Averagemeasurementwasnotperformedifpeaklevellowerthanaveragelimit. Otherfrequencywas20dBbelowlimitlinewithin1-18GHz,thereisnotshowinthereport. Frequency (MHz) Level (dBμV/m) Factor (dB) Limit (dBμV/m) Margin(dB)DetectorPolarization 1116.000042.39-19.0474.0031.61 PeakHorizontal 1329.333337.70-17.7774.0036.30 PeakHorizontal 4960.000048.71-1.2974.0025.29 PeakHorizontal 7020.000047.600.1274.0026.40 PeakHorizontal 1112.000045.26-17.9674.0028.74 PeakVertical 2132.000047.29-12.1674.0026.71 PeakVertical 4960.000045.30-1.9574.0028.70 PeakVertical 8985.000049.853.6074.0024.15 PeakVertical ReportNo.:S20240603102301E01 PageNumber: 54 of 84 TestMode:BLE_2MTestDate:2024-06-19 TestChannel:01TestEngineer:StoneZhang Remark:Averagemeasurementwasnotperformedifpeaklevellowerthanaveragelimit. Otherfrequencywas20dBbelowlimitlinewithin1-18GHz,thereisnotshowinthereport. Frequency (MHz) Level (dBμV/m) Factor (dB) Limit (dBμV/m) Margin(dB)DetectorPolarization 1112.000042.19-19.0774.0031.81 PeakHorizontal 2129.333341.08-12.5374.0032.92 PeakHorizontal 4805.000047.06-2.0474.0026.94 PeakHorizontal 8300.000049.602.5074.0024.40 PeakHorizontal 1118.666743.52-17.9274.0030.48 PeakVertical 2132.000044.25-12.1674.0029.75 PeakVertical 4805.000047.21-2.5574.0026.79 PeakVertical 7025.000047.820.2174.0026.18 PeakVertical ReportNo.:S20240603102301E01 PageNumber: 55 of 84 TestMode:BLE_2MTestDate:2024-06-19 TestChannel:19TestEngineer:StoneZhang Remark:Averagemeasurementwasnotperformedifpeaklevellowerthanaveragelimit. Otherfrequencywas20dBbelowlimitlinewithin1-18GHz,thereisnotshowinthereport. Frequency (MHz) Level (dBμV/m) Factor (dB) Limit (dBμV/m) Margin(dB)DetectorPolarization 1120.000040.75-19.0274.0033.25 PeakHorizontal 1597.333338.87-16.0974.0035.13 PeakHorizontal 4880.000048.26-1.6974.0025.74 PeakHorizontal 8340.000050.022.7674.0023.98 PeakHorizontal 1114.666744.55-17.9474.0029.45 PeakVertical 1462.666739.23-16.1374.0034.77 PeakVertical 4880.000045.42-2.2774.0028.58…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Xu Wei(Product department manager)

[email protected]862152655026Fax: 862152655026

Test Firm

Fangguang Inspection & Testing Co. LtdZeming Zhang

[email protected]135-7047-5374

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	97.05 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. Single Modular Approval for mobile RF Exposure conditions. The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20 cm from all persons and any additional testing and authorization process as required. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. Approved for OEM integration only. The grantee must provide OEM integrators, or end-users if marketed directly to end-users, with installation and operating instructions for satisfying FCC multi-transmitter product guidelines. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end-user has no manual instructions to remove or install the device. This device supports 20 MHz modes.
