P53-EMB1082Embedded BLE module

Abstract Features ⚫ Based on an ultra-low power BLE SOC ▪ ARM Cortex-M4F Core 20MHz ▪ 160KB RAM ▪ 512KB Flash in chip, and support external flash up to 8Mbyte ▪ 32K RCOSC in chip, and support external 32K clock ⚫ Operating Voltage: 2.7V～3.3V ⚫ Support up to 16 IOs pin mux. ⚫ Bluetooth Features ▪ Support Bluetooth 5.0 (BLE single mode) ▪ Max RF date rate 1Mbps ▪ Max TX power: 7dBm ▪ Min RX sensitivity: -96dBm@1Mbps ▪ Support BLE Master/ Slave mode ▪ Support broadcasting, data encryption, and adaptive frequency hopping ▪ Support LE L2CAP ▪ Support LE date length expension ⚫ Operating Temperature：-40°C to +105°C ⚫ Antenna: PCB antenna or IPEX connector (Optional) Application ⚫ Intelligent lighting ⚫ Smart Home Application ⚫ Wearables ⚫ Smart healthcare ⚫ Portable devices Module Type Type Note EMB1082-P PCB antenna EMB1082-E IPEX connector Hardware Block Copyright Notice Mxchip copyrights this specification. No part of this specification may be reproduced in any form or means, without the prior written consent of Mxchip. Datasheet EMB1082 BLE module Vision：1.2 Date：2020-03-18 Number: DS0135EN Datasheet [Page 1] EMB1082 Version history Date Vision Details 2018-10-23 1.0 Initial release 2019-03-25 1.1 Update power consumpiton 2020-03-18 1.2 Update product image Datasheet [Page 2] EMB1082 Content Abstract ............................................................................................................................................................................... 1 Version history .................................................................................................................................................................... 1 1. Product Introduction .................................................................................................................................................. 4 2. Pins and dimension ..................................................................................................................................................... 5 PIN ARRANGEMENT .......................................................................................................................................... 5 PIN DEFINITION ................................................................................................................................................ 7 3. Electrical Parameters ............................................................................................................................................... 10 OPERATING CONDITIONS ................................................................................................................................ 10 POWER CONSUMPTION ................................................................................................................................... 10 WORKING ENVIRONMENT ............................................................................................................................... 11 ELECTROSTATIC DISCHARGE .......................................................................................................................... 11 4. RF parameters ........................................................................................................................................................... 12 BASIC RF PARAMETERS .................................................................................................................................. 12 GFSK PARAMETERS ....................................................................................................................................... 12 5. Antenna Information ................................................................................................................................................ 14 ANTENNA TYPE .............................................................................................................................................. 14 PCB ANTENNA CLEARANCE ZONE ................................................................................................................. 14 EXTERNAL ANTENNA CONNECTOR ................................................................................................................. 15 6. Assembly Information and Production Guidance ................................................................................................. 16 ASSEMBLY SIZE .............................................................................................................................................. 16 PRODUCTION GUIDANCE（IMPORTANT） ...................................................................................................... 16 CONSIDERATIONS............................................................................................................................................ 18 STORAGE CONDITION ..................................................................................................................................... 19 TEMPERATURE CURVE OF SECONDARY REFLOW ............................................................................................. 20 7. Reference Circuit ...................................................................................................................................................... 21 8. FCC and IC Information ......................................................................................................................................... 23 FCC WARNING ............................................................................................................................................... 23 IC WARNING.................................................................................................................................................... 23 9. Module MOQ and Package Information ................................................................................................................ 25 10. Sales Information and Technical Support ................…

Text truncated - open the document above for the full version.

Rev 11/20/07 Shanghai MXCHIP Information Technology Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: P53-EMB1082 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram Operation Description schematic diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, 2020-7- 15 Xu Wei/ Product department manager Shanghai MXCHIP Information Technology Co.,Ltd.

MODULAR APPROVAL LETTER FCC ID: P53-EMB1082 Modular Approval Requirement Yes No (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. YES The modular transmitter have its own RF shielding (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. YES The modular accord with Part 15 requirements (iii) The modular transmitter must have its own power supply regulation. YES The modular It has its own power supply regulation (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. YES The modular accord with the antenna requirements of Section 15.203 and 15.204(b)(c) (v) The modular transmitter must be tested in a stand-alone confi guration YES (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. YES The modular have one permanently affixed label (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. YES The modular transmitter accord with any specific rule or operating requirements (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. YES The modular transmitter accord RF exposure requirements The letter must be on the applicant’s letterhead and signed by the grantee code contact. Signature: Date: ___2020-05-17 Xu Wei/ Product department manager Shanghai MXCHIP Information Technology Co.,Ltd.

Shanghai MXCHIP Information Technology Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020-07-15 SUBJECT: FCC Application for FCC ID: P53-EMB1082 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at EMTEK (SHENZHEN) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK (SHENZHEN) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Xu Wei/ Product department manager Shanghai MXCHIP Information Technology Co.,Ltd.

Shanghai MXCHIP Information Technology Co., Ltd. Family models declaration letter. 2020-7-15 We Shanghai MXCHIP Information Technology Co., Ltd. Of 9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District, ShangHai,China (200333) Product: Embedded BLE module FCC ID: P53-EMB1082 Model Name: EMB1082-E, EMB1082-P Two models are identical in circuitry and electrical, mechanical and physical construction; the only difference is EMB1082-P model with PCB antenna; EMB1082-E model with IPEX antenna connector Thanks Sincerely, 2020-7-15 Xu Wei/ Product department manager

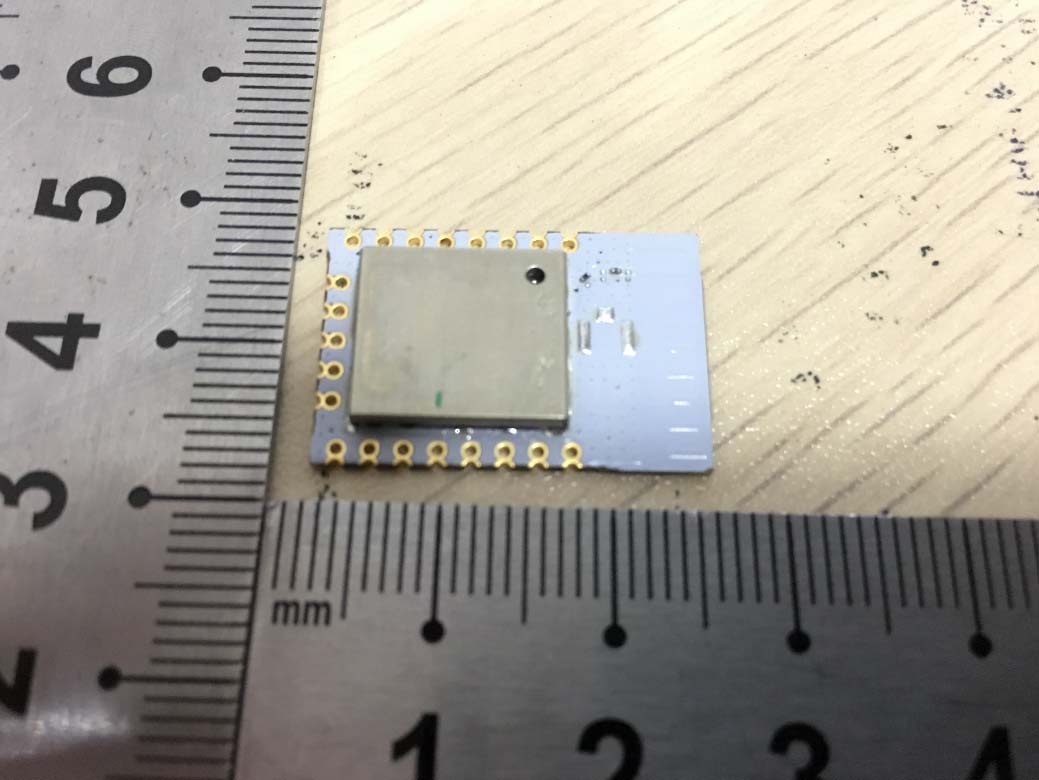

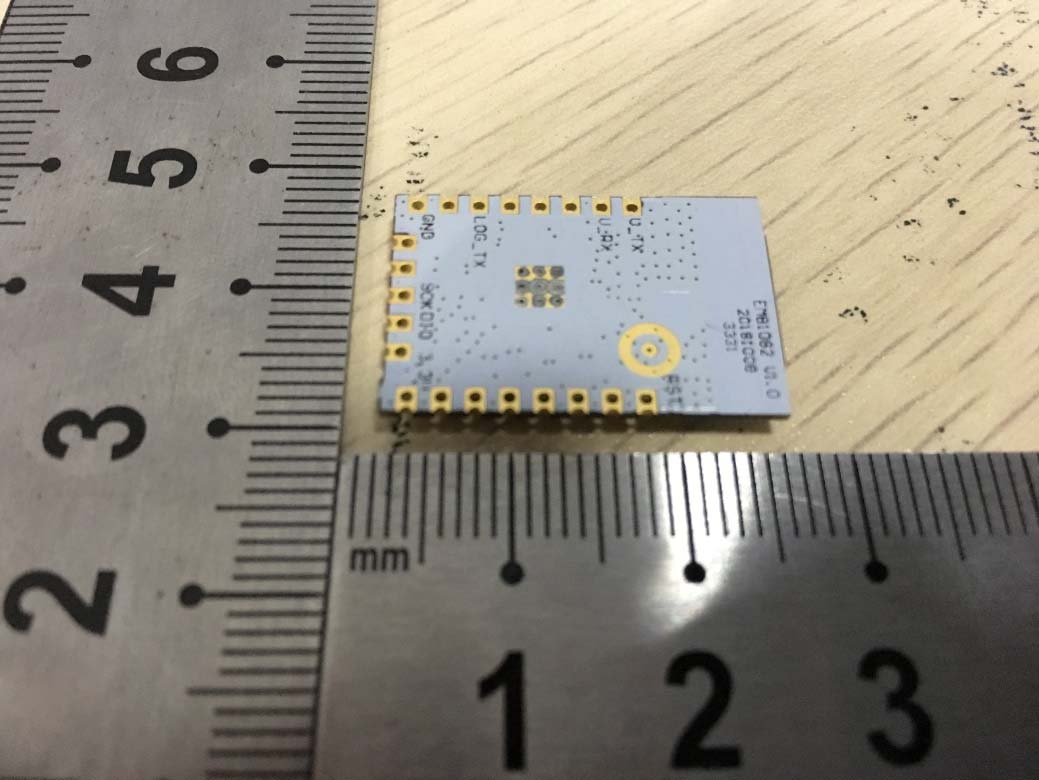

External Photo Model: EMB1082‐E Model: EMB1082‐P
