P53-EMC3380Embedded Wi-Fi/BT Module

Shanghai MXCHIP Information Technology Co.,Ltd.
Embedded Wi-Fi/BT Module - FCC ID P53-EMC3380 - Shanghai MXCHIP Information Technology Co.,Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 20, 2021
Application Purpose
Original Equipment
Date of Application
Mar 20, 2021
Equipment Note
Embedded Wi-Fi/BT Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Shanghai MXCHIP Information Technology Co.,Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Copyright of Shanghai MXCHIP Information Technology Co., Ltd. Abstract ⚫ Input voltage:2.7V~3.3V ⚫ Processor:Dual-core CPU with ARM v8-M architecture. ▪ Performance core KM4:Cortex-M33 with main frequency up to 200MHz. ▪ Energy Efficiency Core KM0:Cortex-M23 with main frequency up to 20MHz. ▪ Deep Sleep、Deep Standby and Sleep mode. ▪ SWD/JTAG simulation debugging interface. ⚫ Memory ▪ 512K bytes SRAM for KM4 core ▪ 64K bytes SRAM for KM0 core ▪ 4M bytes PSRAM ▪ XIP flash memory from 2M to 16M bytes ⚫ Wi-Fi ▪ 802.11 a/b/g/n 1T1R 2.4/5GHz dual frequency. ▪ Processing Wi-Fi messages using independent Microcontrollers. ▪ Support low power TX/RX mode in short distance applications. ▪ Support narrow-band mode: 10MHz bandwidth. ▪ Support Antenna diversity. ▪ Support the IEEE Power Save Model ⚫ BT 5.0 Low Energy ▪ Comply with Low Power Bluetooth 5.0 Standard. ▪ Support high power mode (10dbm). ▪ Wi-Fi and BLE time division multiplexing and share the same PA and antenna. ▪ Support Bluetooth Master-Slave Mode and BLE mesh. ⚫ Audio Codec ▪ Support 8, 16, 32, 44.1, 48 and 96 kHz sampling rates ▪ 24-bit stereo DAC and DAC ▪ Headphone speakers supporting 16ohm and 32ohm loads ▪ Two Digital Microphone Interfaces ▪ Bias Voltage of Built-in Microphone ▪ Optional Voice Processor for Intelligent Noise Reduction ⚫ I2S Interface ▪ Output: 16/24 bit,24K-384K Sampling rate stereo. ▪ Input: 16 bit,24K-96K Sampling rate dual microphone. ▪ Full duplex input/output stereo audio ▪ 5.1 Channel Output. ⚫ Safety ▪ ARM Trust Zone-M Technology. ▪ AES/SHA Hardware Accelerator, Random Number Generator ▪ Security boot Safe Start ▪ Anti-reading mechanism: JTAG interface protection, flash encryption technology. ⚫ Peripherals ▪ 34 x GPIO ▪ 1 x USB、3 x SPI、1 x I2C、1 x Infrared、11 x PWM ▪ 3 x UART: ✓ 1 x Log UART、1 x LP UART、1 x HS UART Datasheet EMC3380 Wi-Fi/BT Module Built-in ARM Cortex V8 dual-core processor, voice processor and Flash memory. 2.4/5G Hz dual-frequency Wi-Fi, BLE 5.0, audio processing unit, PSRAM, rich peripherals Version:3.1 Date:2020-02-26 Number:DS0144EN Copyright of Shanghai MXCHIP Information Technology Co., Ltd. ✓ The baud rate is as high as 4M. ▪ Up to 7 channels 12-bit ADC, 1M sampling rate, battery power detection ▪ Low power RTC (32kHz) ▪ Up to 5 x 5 matrix keyboard and 4 touch keys can be supported ⚫ Operating Temperature:-20°C to +85°C ⚫ Antenna:On-Board PCB Antenna, or IPEX Connector ⚫ Interface and Dimension ▪ EMC3380-E/S:2 x 21pin 1.2pitch,double-row stamp hole ✓ EMC3380-E/S:external antenna,20mm x 27mm ✓ EMC3380-P/D: On-board Antenna, 20mm x 33mm Copyright of Shanghai MXCHIP Information Technology Co., Ltd. Order Code For example, EMC 3 38 0 -S J L 5 Product Series EMC=Wi-Fi + BT Module Product Type 3=3.3V Standard Universal Voltage Typical Target Applications and Functions 38= IoT Voice Application Processor Shape size, enhancement function 0=2 x 21pin 1.2 Spacing double-row stamp holes 0A=2 x 21pin 1.2 Spacing double-row stamp holes, additional audio processing DSP RF Interface P=2.4GHz,On-board PCB antenna E=2.4GHz,External antenna IPEX connector D=2.4/5GHz,On-board PCB antenna S=2.4/5GHz,External antenna IPEX connector PSRAM Capacity Z= Without PSRAM J=4M bytes PSRAM Flash Capacity J=4M bytes Flash Memory K=8M bytes Flash Memory L=16M bytes Flash Memory Temperature Range 5= Industrial Temperature Range,-20°C~85°C Optional model Ordering Code Description EMC3380-SJL5 2.4/5GHz Dual Frequency Wi-Fi,BLE 5.0,External Antenna,4M bytes PSRAM, 16M bytes Flash EMC3380A-DJJ5 2.4/5GHz Dual Frequency Wi-Fi,BLE 5.0,Audio DSP processor, On-Board Antenna, 4M byte PSRAM, 4M byte flash memory EMC3380-DJJ5 2.4/5GHz Dual Frequency Wi-Fi,BLE 5.0,On-Board Antenna, 4M byte PSRAM, 4M byte flash memory EMC3380 Series Wireless Module Data Manual Copyright of Shanghai MXCHIP Information Technology Co., Ltd. Version Update Record Date Version Update Items 2019-03-13 1.0 Initial Document. 2019-04-02 1.1 Update pin multiplexing. 2019-04-12 1.2 Update pin multiplexing table that increase function 7 and 8, and add internal pull-down. 2019-06-02 2.0 Update Document format, content to conform to the actual product. 2019-08-10 2.1 Add Module Label Information and Radio Frequency Part Data. 2019-09-12 2.2 Adjust the overall document format. 2020-02-26 3.1 Add dimension diagram Copyright Notice Without permission, it is prohibited to use or copy all or any part of this manual, especially for trademarks, model naming, part numbers and drawings. EMC3380 Series Wireless Module Data Manual Copyright of Shanghai MXCHIP Information Technology Co., Ltd. 1 Catalog Abstract ...................................................................................................................................................... 1 Introduction ............................................................................................................................................ 6 Peripheral List ............................................................................................................................... 7 Characteristics ........................................................................................................................................ 8 System and Storage ...................................................................................................................... 8 Wireless Communication .............................................................................................................. 9 Security ......................................................................................................................................... 9 Communication Interface ............................................................................................................. 9 Timer ........................................................................................................................................... 11 Human-Computer Interface..........................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Rev 11/20/07 Shanghai MXCHIP Information Technology Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: P53-EMC3380 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram Operation Description schematic diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Client’s name / title : Xu Wei/ Product department manager Contact information / address: Shanghai MXCHIP Information Technology Co.,Ltd. /9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333)

Cover Letter(s)

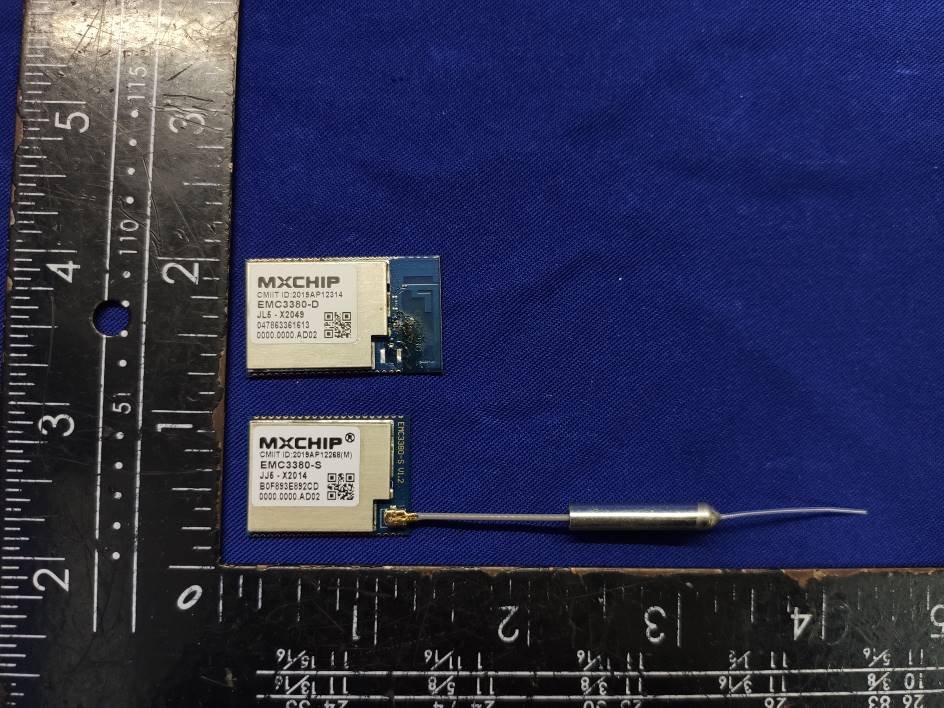

Declaration on model difference We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only difference is EMC3380-D model with PCB antenna; EMC3380-S model with IPEX antenna connector FCC ID: P53-EMC3380 Production name Trade name Model no. Embedded Wi-Fi/BT Module EMC3380-S,EMC3380-D Confirmed by Shanghai MXCHIP Information Technology Co., Ltd. Client’s name / title : Xu Wei/ Product department manager Contact information / address: Shanghai MXCHIP Information Technology Co.,Ltd. /9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333) Date: 2021-03-06

Cover Letter(s)

MODULAR APPROVAL LETTER FCC ID: P53-EMC3380 Modular Approval Requirement Yes No (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. YES The modular transmitter have its own RF shielding (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. YES The modular accord with Part 15 requirements (iii) The modular transmitter must have its own power supply regulation. YES The modular It has its own power supply regulation (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. YES The modular accord with the antenna requirements of Section 15.203 and 15.204(b)(c) (v) The modular transmitter must be tested in a stand-alone configuration YES (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. YES The modular have one permanently affixed label (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. YES The modular transmitter accord with any specific rule or operating requirements (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. YES The modular transmitter accord RF exposure requirements The letter must be on the applicant’s letterhead and signed by the grantee code contact. Signature: Date: ___2021-03-06 Client’s name / title : Xu Wei/ Product department manager Contact information / address: Shanghai MXCHIP Information Technology Co.,Ltd. /9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333)

Cover Letter(s)

Shanghai MXCHIP Information Technology Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2021-03-06 SUBJECT: FCC Application for FCC ID: P53-EMC3380 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at EMTEK (SHENZHEN) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK (SHENZHEN) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Client’s name / title : Xu Wei/ Product department manager Contact information / address: Shanghai MXCHIP Information Technology Co.,Ltd. /9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333)

External Photos

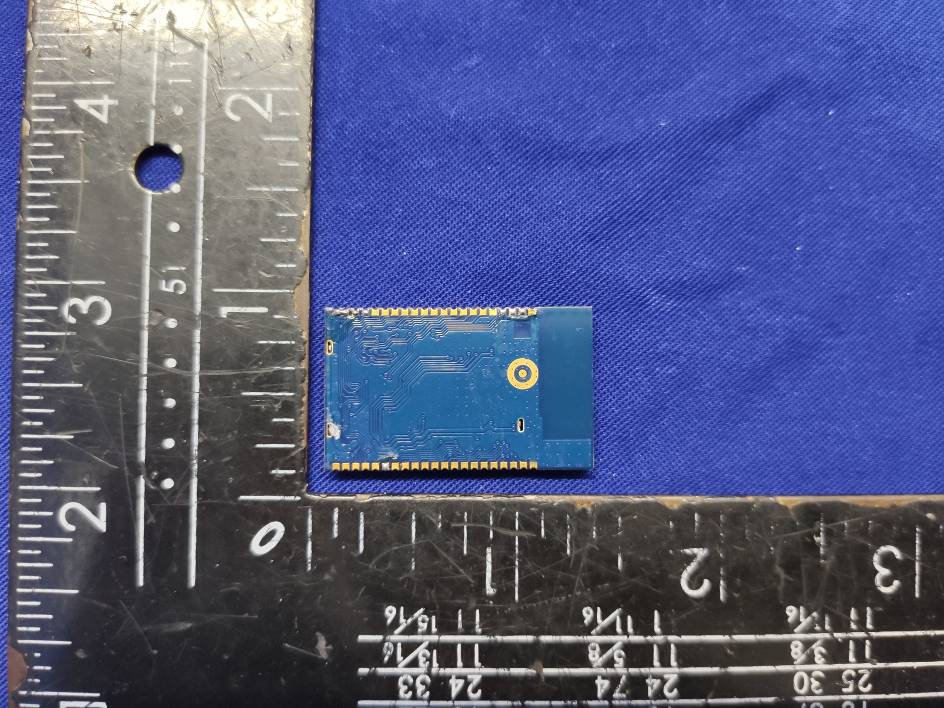

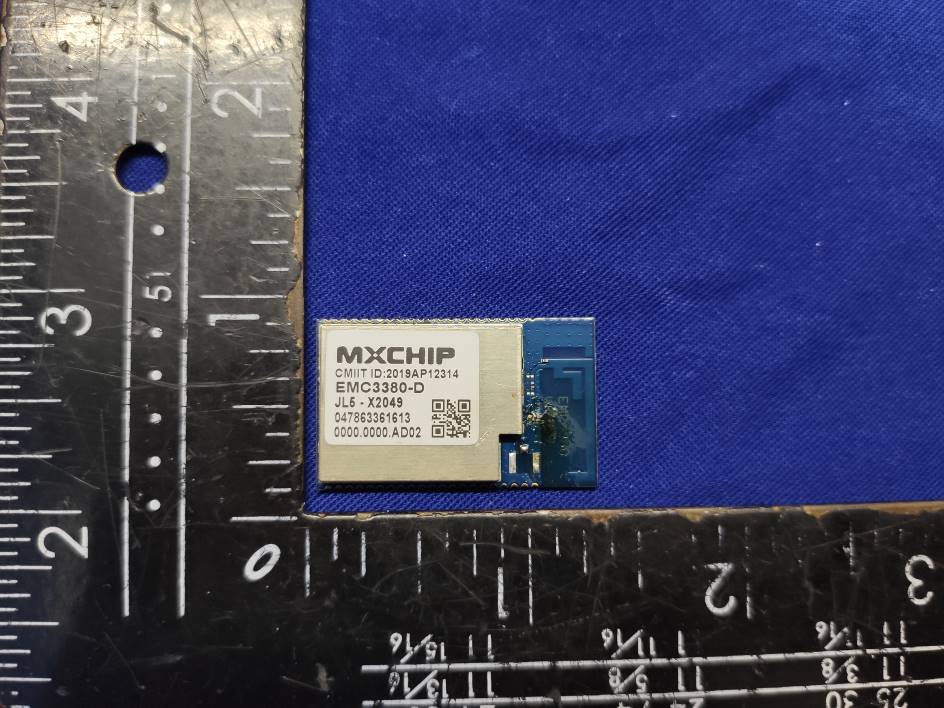

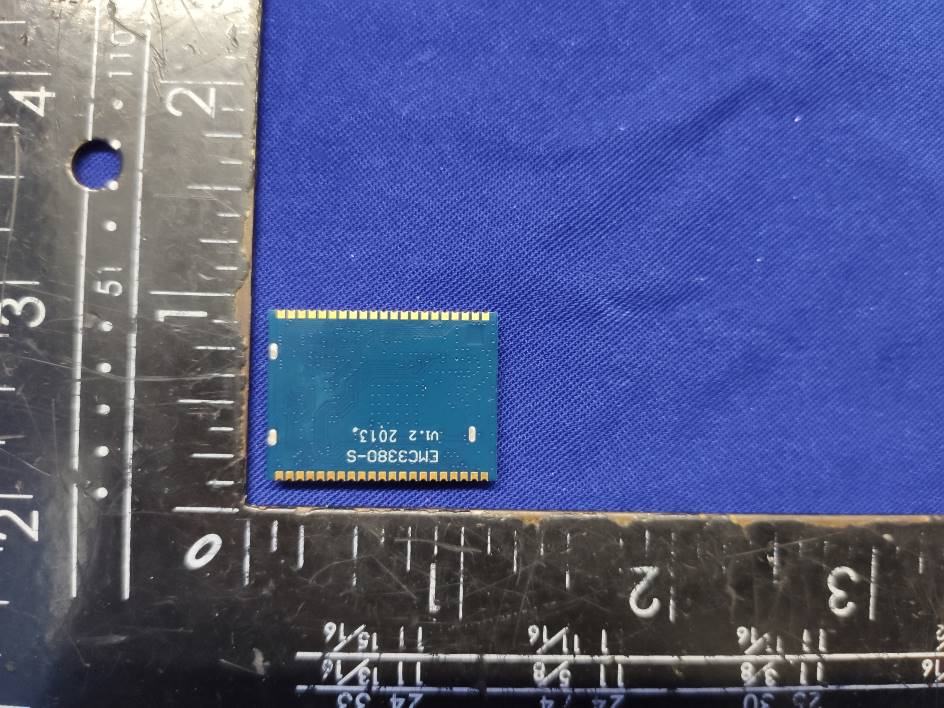

EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 EUT View 3 EUT View 4 EUT View 5 ----------------The end----------------

ID Label/Location Info

Label and label location

Internal Photos

EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Solder Board-Component View 2 Antenna 1 Antenna 2 ----------------The end----------------

RF Exposure Info

FCC ID : P53-EMC3380 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result WIFI2.4G and Bluetooth cannot transmit at the same time BLE Antenna gain: 2.0 dBi modulation Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) GFSK(1M) 2402 7.109 6 to 8 8 1.58 0.0020 1 2440 6.708 5 to 7 7 1.58 0.0016 1 2480 5.545 4 to 6 6 1.58 0.0013 1 GFSK(2M) 2402 7.232 6 to 8 8 1.58 0.0020 1 2440 6.349 5 to 7 7 1.58 0.0016 1 2480 6.161 5 to 7 7 1.58 0.0016 1 Wifi 2.4G Antenna gain: 2.0 dBi modulation Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 802.11b 2412 15.76 14 to 16 16 1.58 0.0125 1 2437 15.55 14 to 16 16 1.58 0.0125 1 2462 15.16 14 to 16 16 1.58 0.0125 1 802.11g 2412 16.04 15 to 17 17 1.58 0.0158 1 2437 16.13 15 to 17 17 1.58 0.0158 1 2462 15.45 14 to 16 16 1.58 0.0125 1 802.11n (HT20) 2412 16.74 15 to 17 17 1.58 0.0158 1 2437 16.03 15 to 17 17 1.58 0.0158 1 2462 15.50 14 to 16 16 1.58 0.0125 1 802.11n (HT40) 2422 13.93 12 to 14 14 1.58 0.0079 1 2437 14.03 13 to 15 15 1.58 0.0099 1 2452 13.61 12 to 14 14 1.58 0.0079 1 Wifi 5G Antenna gain: 2.0 dBi U-NII – 1 modulation Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 802.11a 5180 11.08 10 to 12 12 1.58 0.0050 1 5200 11.62 10 to 12 12 1.58 0.0050 1 5240 12.21 11 to 13 13 1.58 0.0063 1 802.11n- HT20 5180 11.24 10 to 12 12 1.58 0.0050 1 5200 11.59 10 to 12 12 1.58 0.0050 1 5240 12.16 11 to 13 13 1.58 0.0063 1 802.11n- HT40 5190 10.86 9 to 11 11 1.58 0.0040 1 5230 11.87 10 to 12 12 1.58 0.0050 1 U-NII – 2A modulation Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 802.11a 5260 12.22 11 to 13 13 1.58 0.0063 1 5280 12.47 11 to 13 13 1.58 0.0063 1 5320 12.09 11 to 13 13 1.58 0.0063 1 802.11n- HT20 5260 12.11 11 to 13 13 1.58 0.0063 1 5280 12.50 11 to 13 13 1.58 0.0063 1 5320 12.06 11 to 13 13 1.58 0.0063 1 802.11n- HT40 5270 12.40 11 to 13 13 1.58 0.0063 1 5310 12.15 11 to 13 13 1.58 0.0063 1 U-NII – 3 modulation Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 802.11a 5745 10.98 9 to 11 11 1.58 0.0040 1 5785 10.33 9 to 11 11 1.58 0.0040 1 5825 10.04 9 to 11 11 1.58 0.0040 1 802.11n- HT20 5745 11.00 10 to 12 12 1.58 0.0050 1 5785 10.34 9 to 11 11 1.58 0.0040 1 5825 10.08 9 to 11 11 1.58 0.0040 1 802.11n- HT40 5755 11.05 10 to 12 12 1.58 0.0050 1 5795 9.71 9 to 10 10 1.58 0.0031 1

Test Report

Report No.ES210118058W01 Page 1 of 61 Ver.1.0 TEST REPORT Product Name : Embedded Wi-Fi/BT Module Model Number : EMC3380-S,EMC3380-D FCC ID : P53-EMC3380 Prepared for : Shanghai MXCHIP Information Technology Co., Ltd. Address : 9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333) Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES210118058W01 Date(s) of Tests : January 20, 2021 to March 12, 2021 Date of issue : March 15, 2021 $二维码$ Report No.ES210118058W01 Page 2 of 61 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ............................................................................................................. 4 3 SUMMARY OF TEST RESULT .................................................................................................................... 5 4 TEST METHODOLOGY ............................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .................................................................................................. 6 4.3 DESCRIPTION OF TEST MODES ........................................................................................................... 7 4.4 TEST SOFTWARE .................................................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES............................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................... 8 6 TEST SYSTEM UNCERTAINTY ................................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST .................................................................................................. 10 7.1 RADIO FREQUENCY TEST SETUP 1 ................................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ................................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP .............................................................................................. 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ............................................................... 13 7.5 SUPPORT EQUIPMENT......................................................................................................................... 13 8 TEST REQUIREMENTS ............................................................................................................................. 14 8.1 DTS 6DB BANDWIDTH ........................................................................................................................ 14 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ......................................................................... 19 8.3 MAXIMUM POWER SPECTRAL DENSITY ........................................................................................ 25 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ....................................... 30 8.5 RADIATED SPURIOUS EMISSION ...................................................................................................... 35 8.6 CONDUCTED EMISSIONS TEST ......................................................................................................... 57 8.7 ANTENNA APPLICATION .................................................................................................................... 60 Report No.ES210118058W01 Page 3 of 61 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Shanghai MXCHIP Information Technology Co., Ltd. Address : 9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333) Manufacturer : Shanghai MXCHIP Information Technology Co., Ltd. Address : 9F, Building B, Lane 2145, Jinshajiang Road, Putuo District, Shanghai, China Trade Mark : EUT : Embedded Wi-Fi/BT Module Model Number : EMC3380-S,EMC3380-D Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report Date of Test : January 20, 2021 to March 12, 2021 Prepared by : Sewen Guo /Editor Reviewer : Sevin Li /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No.ES210118058W01 Page 4 of 61 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product: Embedded Wi-Fi/BT Module Model Number: EMC3380-S,EMC3380-D (Two models are identical in circuitry and electrical, mechanical and physical construction; the only difference is EMC3380-D model with PCB antenna; EMC3380-S model with IPEX antenna connector) Sample number: 2# Device Type: Bluetooth V5.0 Data Rate : 1Mbps for GFSK modulation 2Mbps for GFSK modulation Modulation: Bluetooth DTS: GFSK Frequency Range: 2402-2480MHz Number of Channels: 40 Channels for Bluetooth DTS; Transmit P…

Text truncated - open the document above for the full version.

Test Report

Report No.ES210118058W02 Page 1 of 68 Ver.1.0 TEST REPORT Product Name : Embedded Wi-Fi/BT Module Model Number : EMC3380-S,EMC3380-D FCC ID : P53-EMC3380 Prepared for : Shanghai MXCHIP Information Technology Co., Ltd. Address : 9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333) Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES210118058W02 Date(s) of Tests : January 20, 2021 to March 12, 2021 Date of issue : March 15, 2021 $二维码$ Report No.ES210118058W02 Page 2 of 68 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION .................................................................................................................... 4 3 SUMMARY OF TEST RESULT ........................................................................................................................... 5 4 TEST METHODOLOGY ...................................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................ 6 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................................ 7 5 FACILITIES AND ACCREDITATIONS ............................................................................................................. 8 5.1 FACILITIES.................................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................ 8 6 TEST SYSTEM UNCERTAINTY ........................................................................................................................ 9 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................................ 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................................ 10 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................... 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .................................................................... 13 7.5 SUPPORT EQUIPMENT.............................................................................................................................. 13 8 TEST REQUIREMENTS .................................................................................................................................... 14 8.1 DTS (6DB) BANDWIDTH ........................................................................................................................... 14 8.2 MAXIMUM CONDUCTED OUTPUT POWER.......................................................................................... 21 8.3 MAXIMUM POWER SPECTRAL DENSITY ............................................................................................. 30 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ............................................ 37 8.5 RADIATED SPURIOUS EMISSION ........................................................................................................... 42 8.6 CONDUCTED EMISSIONS TEST .............................................................................................................. 64 8.7 ANTENNA APPLICATION ......................................................................................................................... 67 Report No.ES210118058W02 Page 3 of 68 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Shanghai MXCHIP Information Technology Co., Ltd. Address : 9th Floor,No.5,Lane2145 JinshaJiang Road,Putuo District,ShangHai,China (200333) Manufacturer : Shanghai MXCHIP Information Technology Co., Ltd. Address : 9F, Building B, Lane 2145, Jinshajiang Road, Putuo District, Shanghai, China Trade Mark : EUT : Embedded Wi-Fi/BT Module Model Number : EMC3380-S,EMC3380-D Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 15 , Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. Date of Test : January 20, 2021 to March 12, 2021 Prepared by : Sewen Guo /Editor Reviewer : Sevin Li /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No.ES210118058W02 Page 4 of 68 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Note: for more details, please refer to the User’s manual of the EUT. Characteristics Description Product Embedded Wi-Fi/BT Module Model Number EMC3380-S,EMC3380-D (Two models are identical in circuitry and electrical, mechanical and physical construction; the only difference is EMC3380-D model with PCB antenna; EMC3380-S model with IPEX antenna connector) Sample Number 2# IEEE 802.11 WLAN Mode Supported 802.11b 802.11g 802.11n(20MHz channel bandwidth) 802.11n(40MHz channel bandwidth) Modulatio…

Text truncated - open the document above for the full version.

Test Setup Photos

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------

Contact Information

Applicant

Xu Wei(Product department manager)
[email protected]862152655026Fax: 862152655026

Test Firm

EMTEK (Shenzhen) Co., Ltd.Lisa Wang
[email protected]86 755 26954280

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.41 GHz - 2.46 GHz47.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Output power listed is the maximum conducted output power. Approval is limited to OEM installation only. This device is to be used only for mobile and fixed applications. The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing and authorization process as required. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. OEM integrators and end-Users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device has 20 and 40 MHz bandwidth modes.
