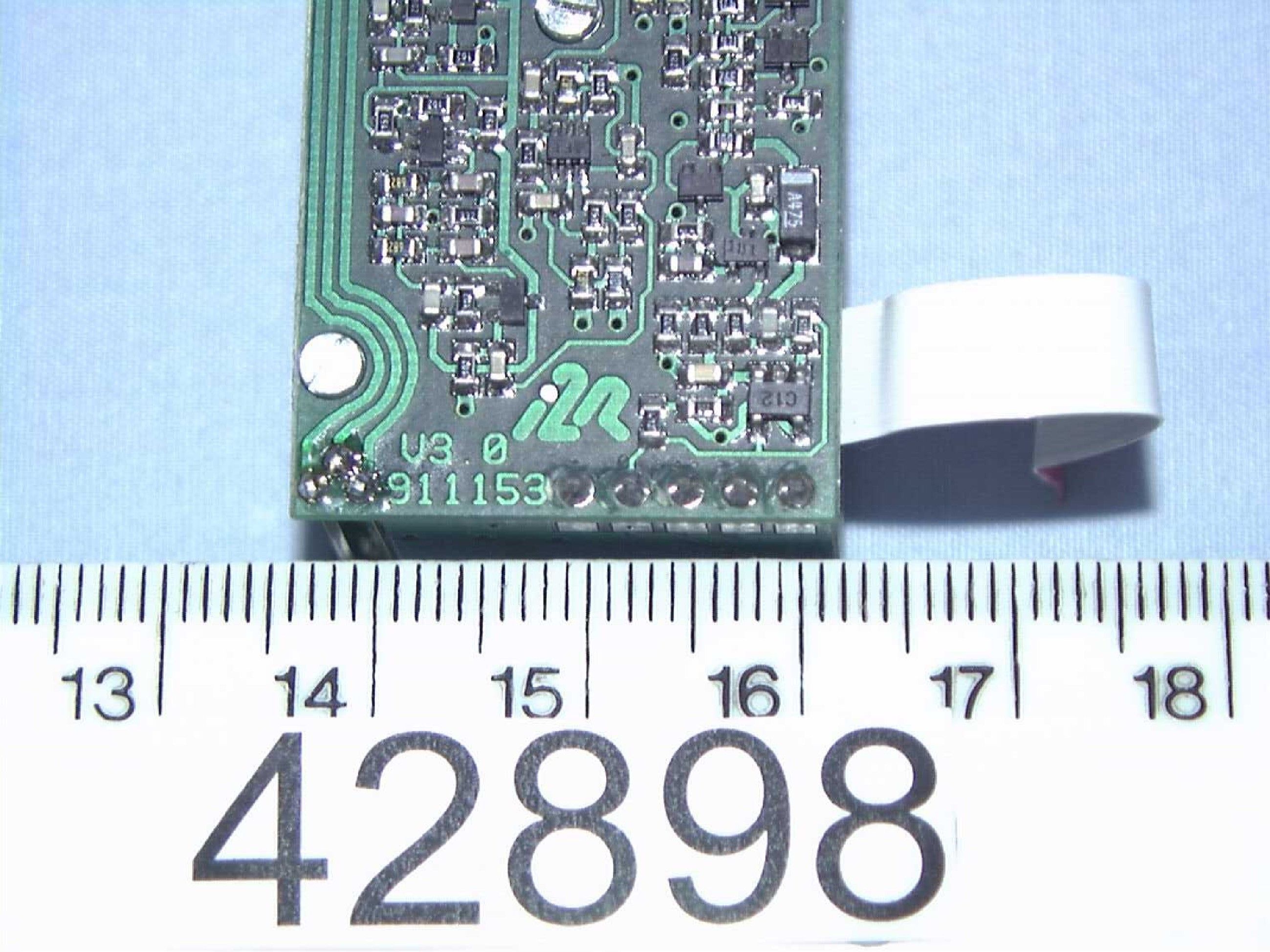

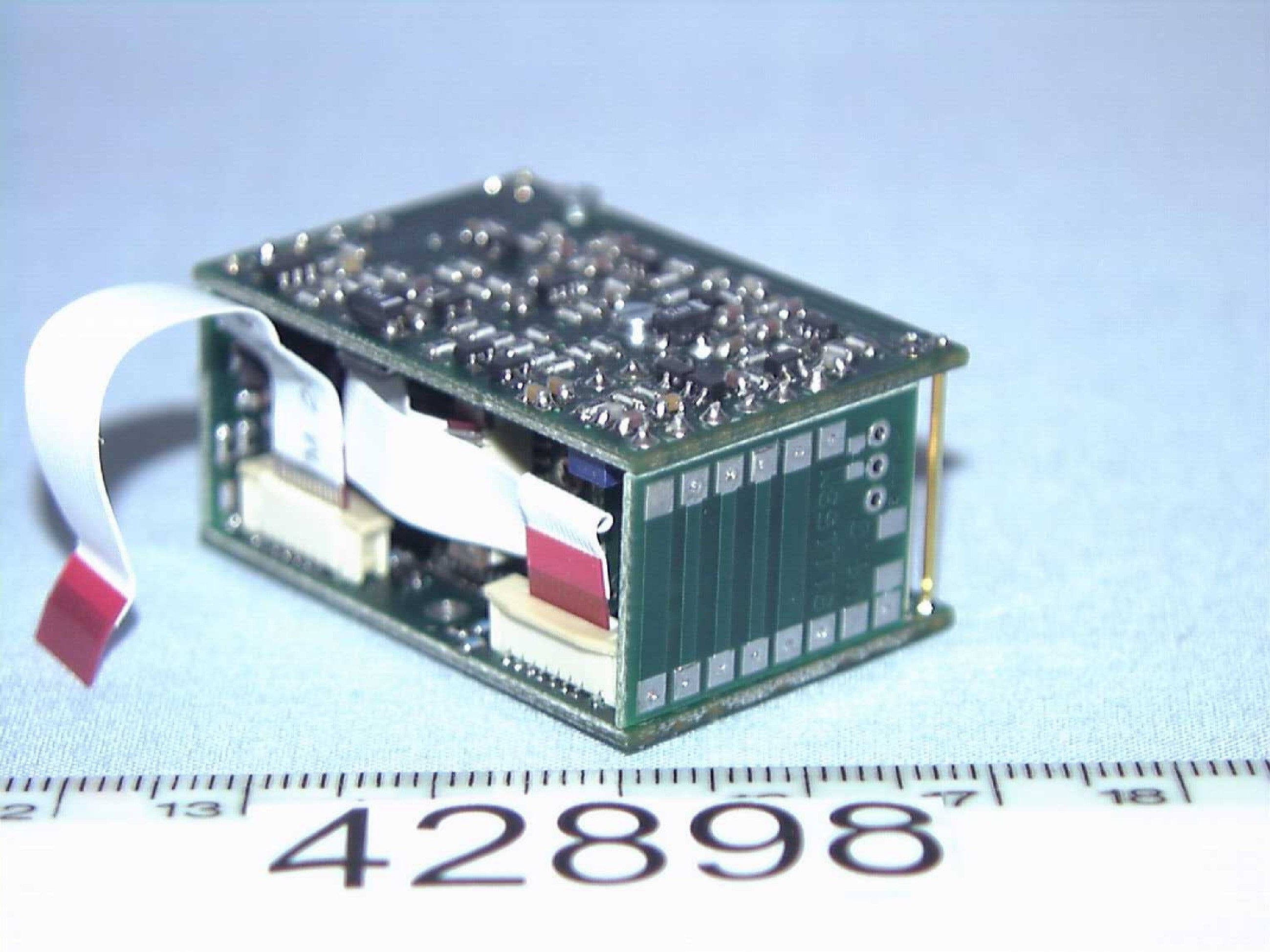

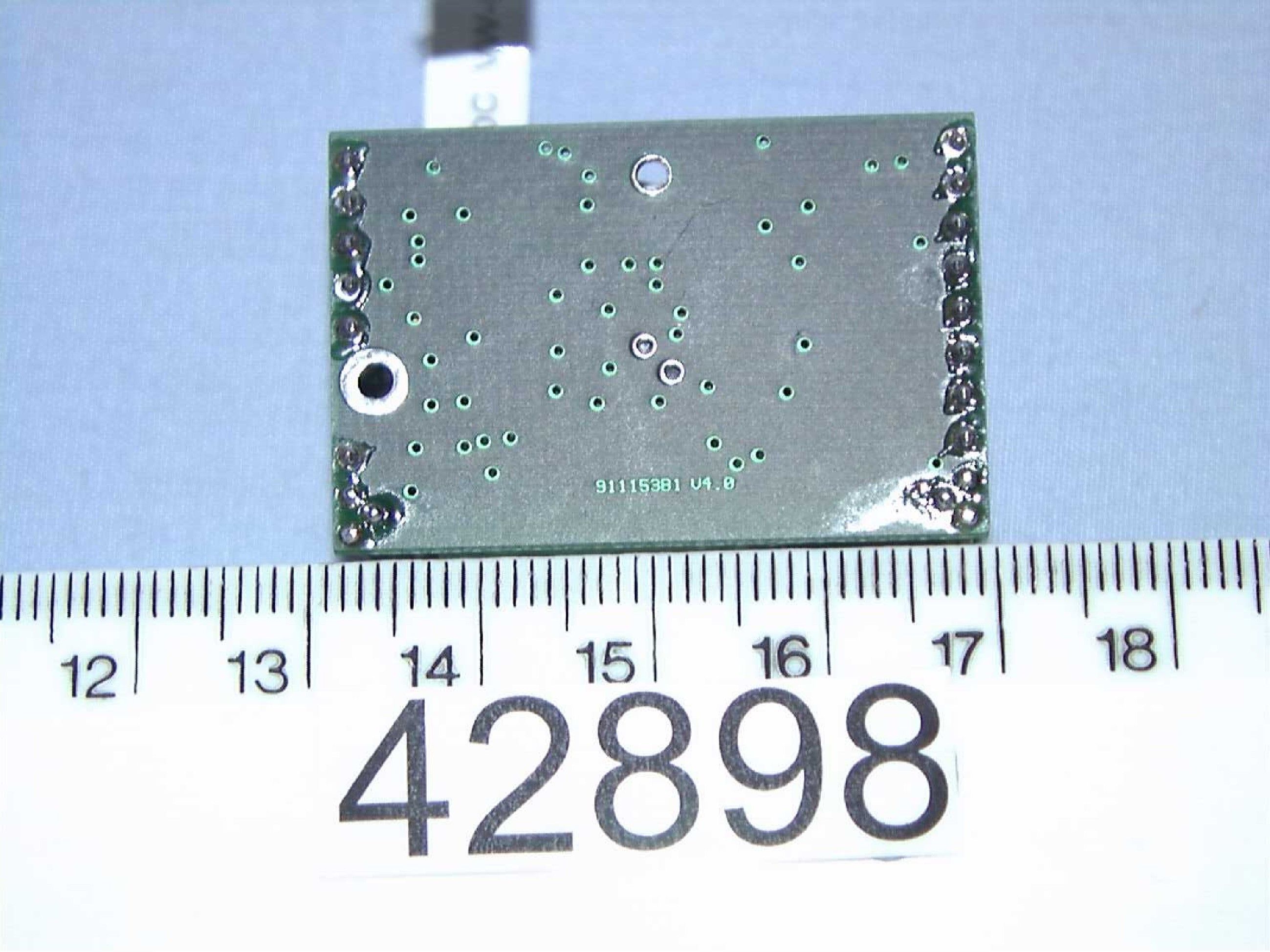

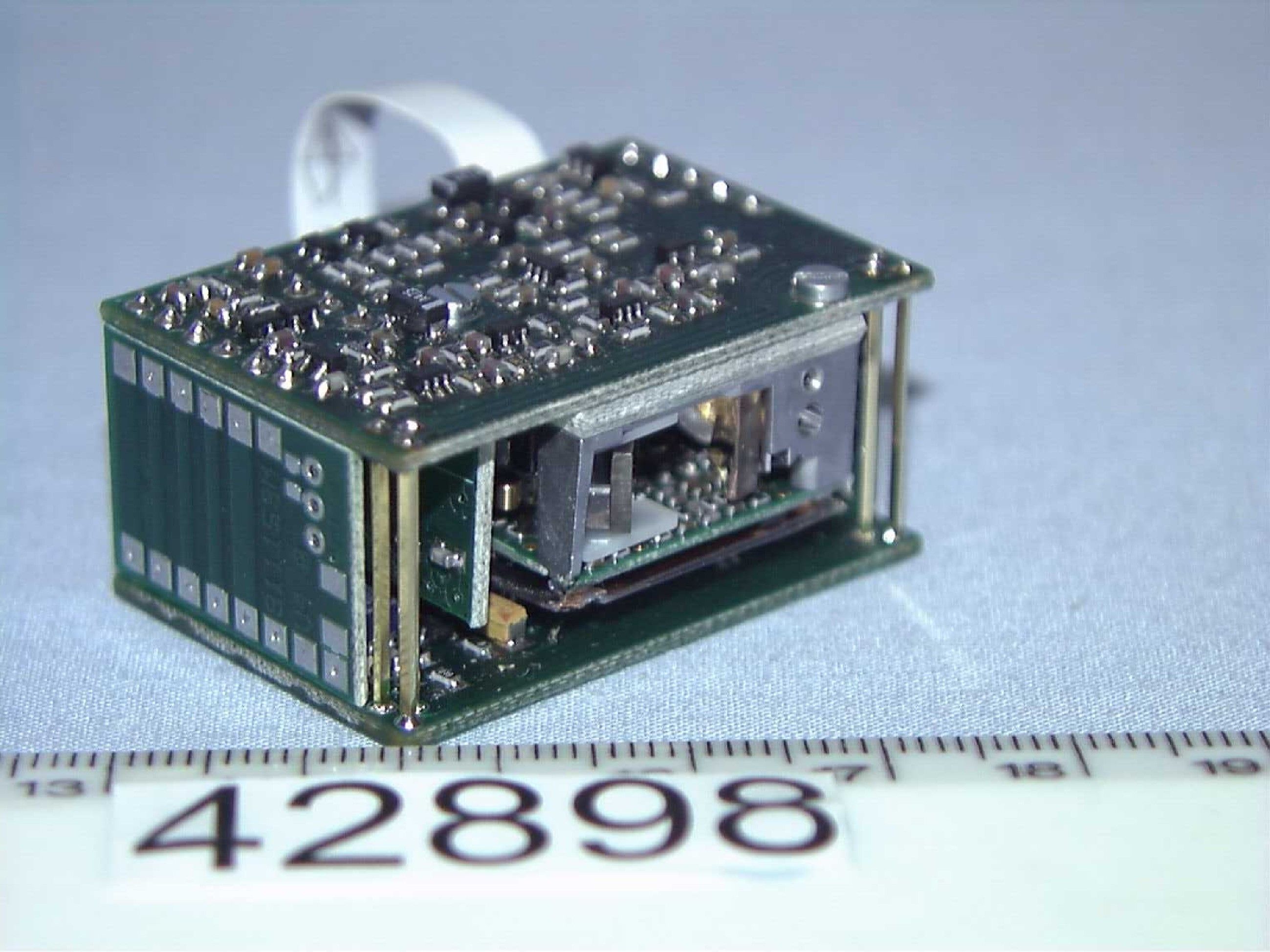

P5ROEM410V12RFID Reader Module

I2R Ltd

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Apr 22, 2003
Application Purpose: Original Equipment
Date of Application: Apr 22, 2003
Equipment Note: RFID Reader Module
Frequency Range: 13.56000000 - 13.56000000
Company: I2R Ltd
Country: United Kingdom

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

320061.DOC TRICTLY CONFIDENTIAL DO NOT COPY The information contained in this document is the property of Sirit Technologies INC. and cannot be communicated to Third parties or reproduced without the written consent of Sirit Technologies. Sirit Technologies reserves the right to change its products, specifications and services at any time without notice. User Manual Information OEM 410 i2r Ltd Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE Tel: +44 (0) 1509 213141 Fax: +44 (0) 1509 213191 Email: [email protected] Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE. Tel: +44 1509 213141 Fax: +44 1509 213191 Email: [email protected] Page 2 of 4 This document is for information only. Every effort has been made to avoid errors, but Sirit provide no guarantee as to the accuracy of the material. History Version 1.0 – First release 28 th of March 2003 1 Introduction I2r Ltd. is a wholly owned UK subsidiary of Sirit Technologies inc. of Toronto Canada and forms the design and development arm of the corporation. This document covers the User Manual Information of the OEM 410 combined RFID module when fitted to the Agfa Drystar 5500 series printers. There is no specific document “User Manual” this is because the module is completely transparent to the end user. There is how ever one specific note for the installation instructions which reads as follows “When the OEM 410 is installed in the final product its FCC ID label is not visible therefore the final product should display a label including the text “Contains Transmitter Module FCC ID: P5ROEM410V12”.

Cover Letter(s)

320048.DOC TRICTLY CONFIDENTIAL DO NOT COPY The information contained in this document is the property of Sirit Technologies INC. and cannot be communicated to Third parties or reproduced without the written consent of Sirit Technologies. Sirit Technologies reserves the right to change its products, specifications and services at any time without notice. Application For Limited Modular Approval (LMA) Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE Tel: +44 (0) 1509 213141 Fax: +44 (0) 1509 213191 Email: [email protected] Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE. Tel: +44 1509 213141 Fax: +44 1509 213191 Email: [email protected] Page 2 of 5 This document is for information only. Every effort has been made to avoid errors, but Sirit provide no guarantee as to the accuracy of the material. Introduction I2r Ltd. is a wholly owned UK subsidiary of Sirit Technologies inc. of Toronto Canada and forms the design and development arm of the corporation. Overview The OEM 410 module is a Radio Frequency Identification (RFID) interrogator capable of reading from and writing to various 13.56MHz transponders. The OEM-400v1.2 operates under the control of a host (in this case the AGFA Drystar 5500 printer and is designed to be integrated within the Agfa printer. Limited Modular Approval (LMA) is requested to facilitate the integration of the OEM 410v1.2 and reduce the need for repeated testing. In accordance with Public Notice DA 00-1407 (June 2000) the following issues are addressed: Contents 1 RF Shielding ........................................................................................................................................3 2 Data inputs ...........................................................................................................................................3 3 Power Supply regulation .....................................................................................................................3 4 Antenna ................................................................................................................................................3 5 Labelling ..............................................................................................................................................4 6 Specific operating requirements ..........................................................................................................4 7 RF exposure requirements ...................................................................................................................4 History Version 0.1 - document creation Version 1.0 - First release 28 th of March 2003 Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE. Tel: +44 1509 213141 Fax: +44 1509 213191 Email: [email protected] Page 3 of 5 This document is for information only. Every effort has been made to avoid errors, but Sirit provide no guarantee as to the accuracy of the material. 1 RF Shielding This application relates to the specific incorporation of the OEM 410 module into the Agfa Drystar 5500 series printer as such all tests were performing using the unit in free space without additional screening. 2 Data inputs The OEM 410 is command driven. No RF is generated without the receipt of a valid command. Commands are received via the RS232 port at a baud rate of 9600 baud. Since the data input is digital it is not possible to cause over modulation. Similarly an excessive data rate will prevent the command from being decoded and acted upon. 3 Power Supply regulation The OEM 410 receives its regulated power supply from the Drystar printer. All testing was carried out using a power supply from the Drystar 5500 printer. 4 Antenna The antenna is incorporated into the PCB of the OEM 410. There is no facility to connect an external antenna to this module. Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE. Tel: +44 1509 213141 Fax: +44 1509 213191 Email: [email protected] Page 4 of 5 This document is for information only. Every effort has been made to avoid errors, but Sirit provide no guarantee as to the accuracy of the material. 5 Labelling The OEM 410 is labelled on the bottom side of the PCB using a self-adhesive label as shown in Figure 1. Figure 1: Design of OEM410 label (not to scale) Since this will not be visible when the OEM 410 is installed in the final product the installation instructions specifies that the final product should display a label including the text “Contains Transmitter Module FCC ID: P5ROEM410V12”. 6 Specific operating requirements There are no operating requirements for Section 15.225 that can be modified by the user. 7 RF exposure requirements There are no RF exposure implications with operating the OEM 400 V1.2 Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE. Tel: +44 1509 213141 Fax: +44 1509 213191 Email: [email protected] Page 5 of 5 This document is for information only. Every effort has been made to avoid errors, but Sirit provide no guarantee as to the accuracy of the material.

Cover Letter(s)

27/3/2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: P5EOEM410V12 It is requested that the following information is to be held confidential on behalf of SIRIT. FCC Rules Part 0.459 refers. Circuit Schematics 1 files 3 pages per file OEM 410 v1.2 CIRCUIT DIAGRAM.pdf (3 pages) Bill of Materials 1 file 5 page per file OEM410v1.2 BILL OF MATERIALS.XLS This device is unique in the market place, as such this information is commercially very sensitive. The disclosure of this information would allow our competitors to gain an advantage in the market place. The product is manufactured in house therefore this information is retained in house in a secure storage area and is not available to the public. Yours sincerely

Operational Description

320056.DOC TRICTLY CONFIDENTIAL DO NOT COPY The information contained in this document is the property of Sirit Technologies INC. and cannot be communicated to Third parties or reproduced without the written consent of Sirit Technologies. Sirit Technologies reserves the right to change its products, specifications and services at any time without notice. Operational description of OEM 410 i2r Ltd Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE Tel: +44 (0) 1509 213141 Fax: +44 (0) 1509 213191 Email: [email protected] Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE. Tel: +44 1509 213141 Fax: +44 1509 213191 Email: [email protected] Page 2 of 4 This document is for information only. Every effort has been made to avoid errors, but Sirit provide no guarantee as to the accuracy of the material. History Version 0.1 – Document created Version 1.0 – First release 26 th of March 2003 1 Introduction I2r Ltd. is a wholly owned UK subsidiary of Sirit Technologies inc. of Toronto Canada and forms the design and development arm of the corporation. This document covers the Operational description of the OEM 410 RFID reader module. The module is designed for incorporation into a range of printers. Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE. Tel: +44 1509 213141 Fax: +44 1509 213191 Email: [email protected] Page 3 of 4 This document is for information only. Every effort has been made to avoid errors, but Sirit provide no guarantee as to the accuracy of the material. 2 Functional Description Refer to block diagram The Module is supplied with regulated +5v from the host printer. The power is fed in via a fused, filtered & surge limiting circuit. This module is command driven by the host printer and is completely transparent to the end user of the printer. The host also has the ability to reset the module remotely via the RS232 interface. The heart of the module is a sine wave crystal oscillator running at 27.12MHz, the output from this oscillator is “squared-up” and fed to the micro controller as its master clock signal. the 27.12MHz is also divided by two to give 13.56MHz that is fed to the PA driver stage. The PA driver stage has 2 functions, firstly, it amplifies the 13.56MHz signal from the divider output and secondly the transmitter on-off function is implemented in this stage under the control of the micro-controller. The output from the driver stage is fed into the PA stage, which receives approximately 10% amplitude modulation via the PA power supply. The PA output is fed to a multi-pole low pass filter and then to a switchable 10dB attenuator, which is intended for future use and is not used in the current application. The output from the attenuator is fed through matching and tuning components to the internal loop antenna. Depending on the type of transponder, communication between the transponder and the reader is by “load modulating” the transmitter RF signal in one of two ways either On Off Keying (OOK) at Fc/32 or FSK with keying frequencies at Fc/32 or Fc/28. The transponder modulation signal is picked off at the antenna and fed to the detector, after detected signal is passed to the first two stages of the receiver, which are identical band pass filter/amplifier stages. The amplified signal is then passed to the discriminator stage which acts in two ways in the case of OOK signals this are passed straight through with amplification or in the case of FSK signals these are converted to OOK signals by the action of the discriminator and also receive some amplification. The final two stages of the receiver comprise the envelope detector and data slicer which respectively convert the signal back to baseband data and convert the data to a suitable form to present to the micro-controller for further processing and error checking. Verified transponder data is passed back to the host via the RS232 interface. Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE. Tel: +44 1509 213141 Fax: +44 1509 213191 Email: [email protected] Page 4 of 4 This document is for information only. Every effort has been made to avoid errors, but Sirit provide no guarantee as to the accuracy of the material.

Test Report

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: SIRIT Technologies Inc. SIRIT OEM 410 To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Clause 15.225 Test Report Serial No: RFI/EMCB2/RP43508JD02A Supersedes Test Report Serial No: RFI/EMCB1/RP43508JD02A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: Release Version No: PDF01 Issue Date: 22 April 2003 Test Dates: 08 October 2002 to 21 October 2002 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/EMCB2/RP43508JD02A Operations Department Page 2 of 32 Issue Date: 22 April 2003 Test Of: SIRIT Technologies Inc. SIRIT OEM 410 To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Clause 15.225 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/EMCB2/RP43508JD02A Operations Department Page 3 of 32 Issue Date: 22 April 2003 Test Of: SIRIT Technologies Inc. SIRIT OEM 410 To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Clause 15.225 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures ............................................................7 4. Deviations From The Test Specification .....................................................................8 5. Operation Of The EUT During Testing ........................................................................9 6. Summary Of Test Results...........................................................................................10 7. Measurements, Examinations And Derived Results................................................11 8. Measurement Uncertainty ..........................................................................................16 Appendix 1. Test Equipment Used ................................................................................17 Appendix 2. Measurement Methods ..............................................................................19 Appendix 3. Test Configuration Drawings....................................................................23 Appendix 4. Graphical Test Results ..............................................................................27 Appendix 5. Photographs of EUT ..................................................................................31 Test Report Serial No: RFI/EMCB2/RP43508JD02A supersedes Test Report Serial No: RFI/EMCB1/RP43508JD02A. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/EMCB2/RP43508JD02A Operations Department Page 4 of 32 Issue Date: 22 April 2003 Test Of: SIRIT Technologies Inc. SIRIT OEM 410 To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Clause 15.225 1. Client Information Company Name: SIRIT Technologies Inc Address: i2R Division Unit 10 Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE Contact Name: Mr G Bishop RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/EMCB2/RP43508JD02A Operations Department Page 5 of 32 Issue Date: 22 April 2003 Test Of: SIRIT Technologies Inc. SIRIT OEM 410 To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Clause 15.225 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: SIRIT UK (formally i2R Limited) Model Name or Number: OEM 410 Unique Type Identification: None stated by client Serial Number: X16000249 Country of Manufacture: UK FCC ID Number: P5ROEM410V12 Date of Receipt: 08 October 2002 2.2. Description Of EUT Radio Frequency Identification (RFID) module designed for incorporation into OEM printer products. Its specific application is for the identification of special printer papers. 2.3. Modifications Incorporated In EUT The unit was tested with additional software to provide constant RF ON or continuous RFID read, this was for test purposes. The OEM unit to which the unit is fitted would normally provide these functions externally. 2.4. Additional Information Related To Testing Power Supply Requirement: Nominal 115 V 60 Hz AC mains supply Intended Operating Environment: Light Industrial Weight: Approx. 31g Dimensions: Approx. 108 x 68 x 13 mm Interface Ports: AC Power Port RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/EMCB2/RP43508JD02A Operations Department Page 6 of 32 Issue Date: 22 April 2003 Test Of: SIRIT Technologies Inc. SIRIT OEM 410 To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Clause 15.225 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Power Supply Brand Name: NEDAP Model Name or Number: 9884254 Serial Number: A328354 FCC ID Number: Not applicable Cable Length And Type: Not Applicable Connected to Port: AC Power Port RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/EMCB2/RP43508JD02A Operations Department Page 7 of 32 Issue Date: 22 April 2003 Test Of: SIRIT Technologies Inc. SIRIT OEM 410 To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Clause…
